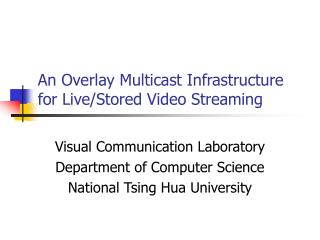

An Overlay Multicast Infrastructure for Live/Stored Video Streaming

Visual Communication Laboratory

Department of Computer Science

National Tsing Hua University

outline
Outline
  • Live video broadcasting
    • Typical service model
    • Limitations
  • Our goals
    • Overlay multicast infrastructure
  • Our previous works
    • Multicast video streaming
    • Peer-to-peer search & delivery
    • Scalable video coding
live video broadcasting
Live Video Broadcasting
  • Techniques
    • Live video encoding
    • Multicast delivery
  • Commercial products
    • Windows Media Services (Microsoft)
    • Real System Server (Real)
    • QuickTime Streaming Server (Apple)
service architecture
Service Architecture

StreamServer

(VOD)

Stream Server

(Live)

Encoder

Storage

Internet

(Live Broadcast)

(VOD)

multicast routing tree
Multicast Routing Tree

Client A

(10:00)

Client B

(10:00)

Client C

(10:00)

Client D

(10:00)

common solution prefix caching

5, 6, 7, …

1, 2, 3, 4

Common Solution: Prefix Caching
  • Permanently cache the front part of the video.
  • Clients request before (the start time + the length of the prefix) can see the entire video program.

Prefix cache

1

2

3

4

C1

multicast prefix caching

5 min

store the first 5 min

Client D

(10:05)

Multicast + Prefix Caching

Client A

(10:00)

Client B

(10:00)

5 min

Client C

(10:00)

(10:05) queue the stream

(10:10) read data from the buffer

limitations
Limitations
  • Must know the video source in advance.
  • Need router support. (IP multicast)
  • Cannot pass through firewall/NAT.
  • Users arrive after the system startup time cannot view the front part of the video.
    • Prefix caching is not perfect.
scenario request playback
Scenario: Request & Playback
  • User input
    • Service mode (live/on-demand)
    • Video attributes
  • Peer-to-peer search
  • Streaming
    • Overlay multicast
  • Payment (?)
    • By service mode (VOD > live) (from server > from p2p)
    • By video (popular > unpopular) (bit rate)
    • By search method (advanced > basic)
request flow
Request flow

distributed query

input :

service mode

query rules

init multicast

video stream

peer 0

EPG

peer 1

Search

Player

peer 4

meta data

P2P

peer 3

peer 2

topics in this project
Topics in this project
  • Overlay multicast
    • Peer-to-peer infrastructure
    • Performance optimization
  • Two-mode multicasting
    • Live broadcasting (real-time)
    • On-demand streaming (see the entire video)
advanced topics
Advanced Topics (?)
  • Advanced electronic program guide
    • Intelligent search
      • Personal profile
      • Ambiguous keyword search
      • Melody / scene search
      • Distributed / continuous query
      • Matchmaker (?)
    • Meta datas
      • Creation/collection/distribution
      • Format (?) (object-based?)
our previous works
Our Previous Works
  • On-Demand Multicast Streaming Delivery Platform
  • Technology and Systems
    • Peer-to-Peer Streaming Video (Directory Search)
    • Proxy-based Streaming Video
  • Multicast streaming platform for layered videos
on demand multicast communications

10:02

10:01

10:02

10:04

10:03

On-Demand Multicast Communications

10:00

10:02

10:00

10:00

10:00

10:00

10:00

Source

10:00

10:04

10:00

10:03

10:00

Node with timing control

interval caching

5

4

3

2

4

3

2

1

C1

C2

10:04

10:00

Interval Caching
  • Cache a sliding interval of the video.

Caching buffer

2, 1

1

5, 4, 3, 2, 1

4, 3, 2, 1

1

timing control mechanism
Timing Control Mechanism

10:00

10:00

10:03

10:05

2, 1

7

6

5

4

3

To player D, 10:05

4, 3, 2, 1

To player C, 10:03

To player B, 10:00

7, 6, 5, 4, 3, 2, 1

on demand multicast routing

10:08

10:06

On-Demand Multicast Routing

source

10:06

10:03

10:02

10:00

Network

  • Constructing an on-demand multicast tree
    • find a routing path
    • allocate buffers to generate path delay
playback with directory server

WWW

Playback (with Directory Server)

directory server

Source

1

3

Proxy

4

7

IE

2

5

8

module.exe

6

module.exe

Client

playback peer to peer

10:00

source

client

Pi

Pj

Ps

10:02

Playback (Peer-to-Peer)
  • find a source
  • find a routing path
  • allocate buffers
p2p v s proxy platform
P2P v.s. Proxy Platform

Media Player

  • Mgmt. GUI
    • Network Mgmt.
    • QoS Reservation
  • Proxy
    • Protocol
    • Replacement
    • Chaining

Media Player

Video Streaming

(HTTP)

Video Streaming

(HTTP)

Virtual File System

(Media Query)

(Information Delivery)

Proxy

Selection &

Chaining

Cache

Replacement

Network Mgmt.

IP Networks

IP Networks

QoS

Proxy-Based

Peer-to-Peer

fault handling

11:32

11:33

11:34

11:35

Fault Handling

Source

One of the clients faults

Auto reconfiguration

11:30

11:30

11:40

11:40

11:43

11:44

heterogeneous network bandwidth

aggregated stream

1.5 Mbps

Bottleneck = 0.7 Mbps

0.7 Mbps

1.5 Mbps

High quality

0.8 Mbps

0.8 Mbps

low quality

1.5 Mbps

0.8 Mbps

Heterogeneous Network Bandwidth

Server

end to end layer subscription with bandwidth constraint

Sender

Layer L

Lossy Channel

Scheduler

Layer 2

Layer 1

Decoder with

Error Concealment

Receiver

End-to-end Layer Subscription with Bandwidth Constraint
