video streaming

Video Streaming

Dr. Md. Humayun Kabir

Assistant Professor, CSE Department, BUET, Bangladesh

slide2

Overview

  • Streaming
  • Downloading
  • How Streaming works
  • Streaming Contents
  • Different Streaming Technologies
  • Streaming Issues
    • Network Bandwidth
    • Media Compression
    • Real Challenges
  • My Work
  • Opportunities
  • Conclusion

Dr. Md. Humayun Kabir

slide3

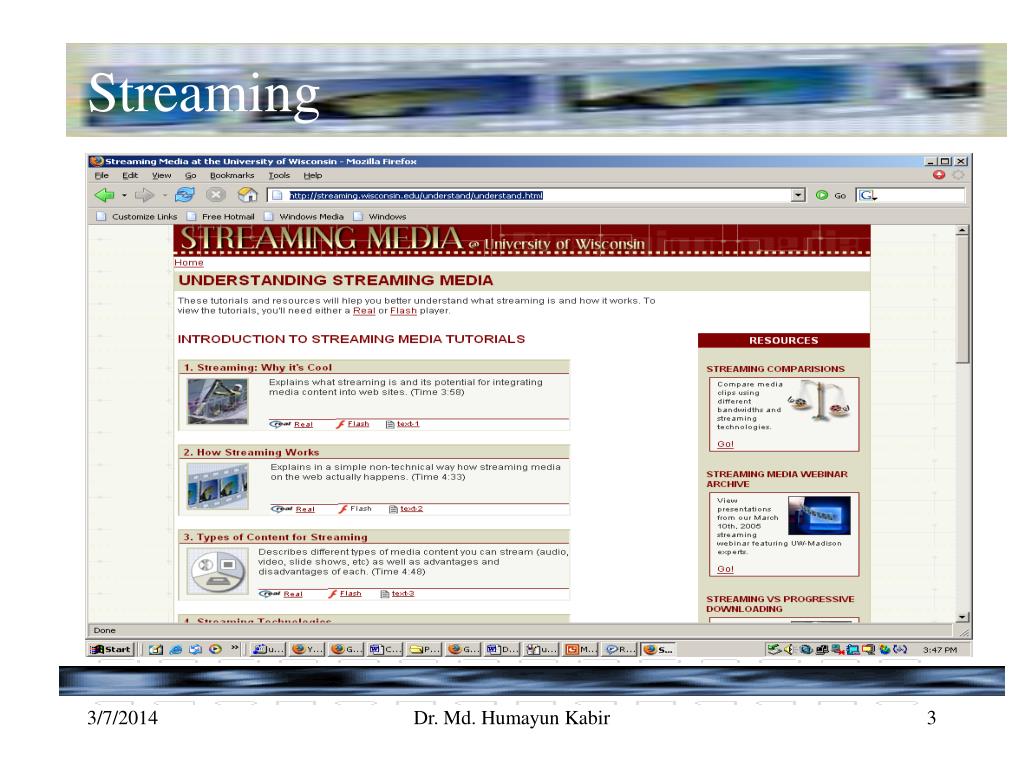

Streaming

  • Streaming

Dr. Md. Humayun Kabir

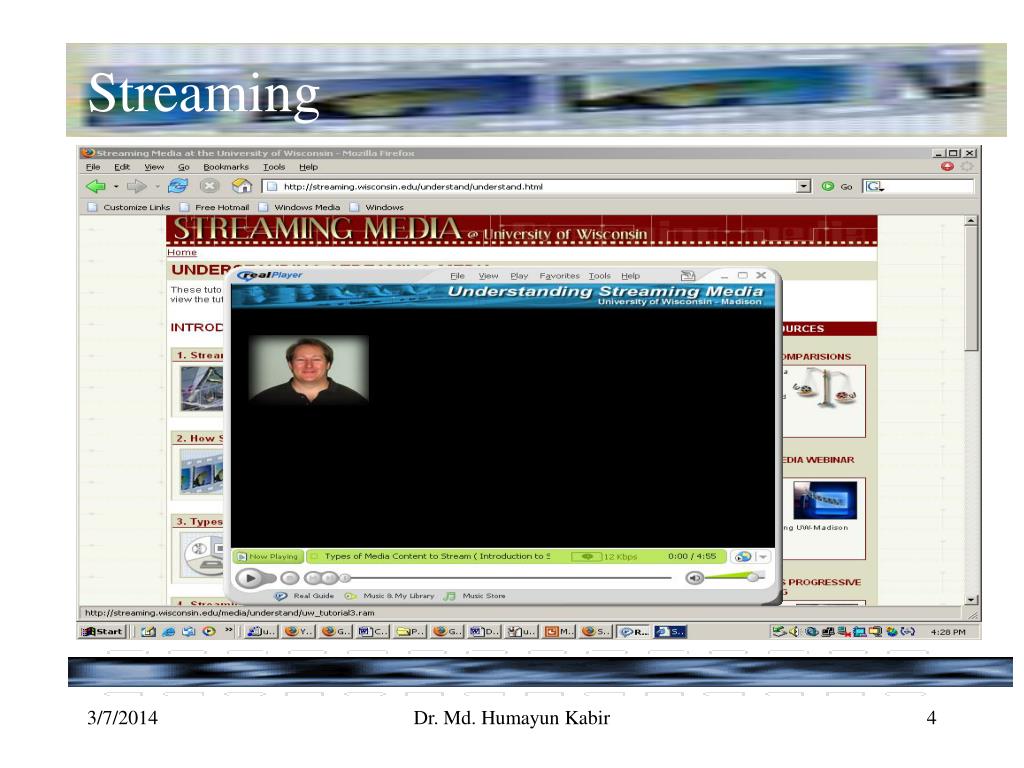

slide4

Streaming

  • Streaming

Dr. Md. Humayun Kabir

slide5

Streaming

  • Streaming

Dr. Md. Humayun Kabir

slide6

Streaming

  • Streaming

Dr. Md. Humayun Kabir

slide7

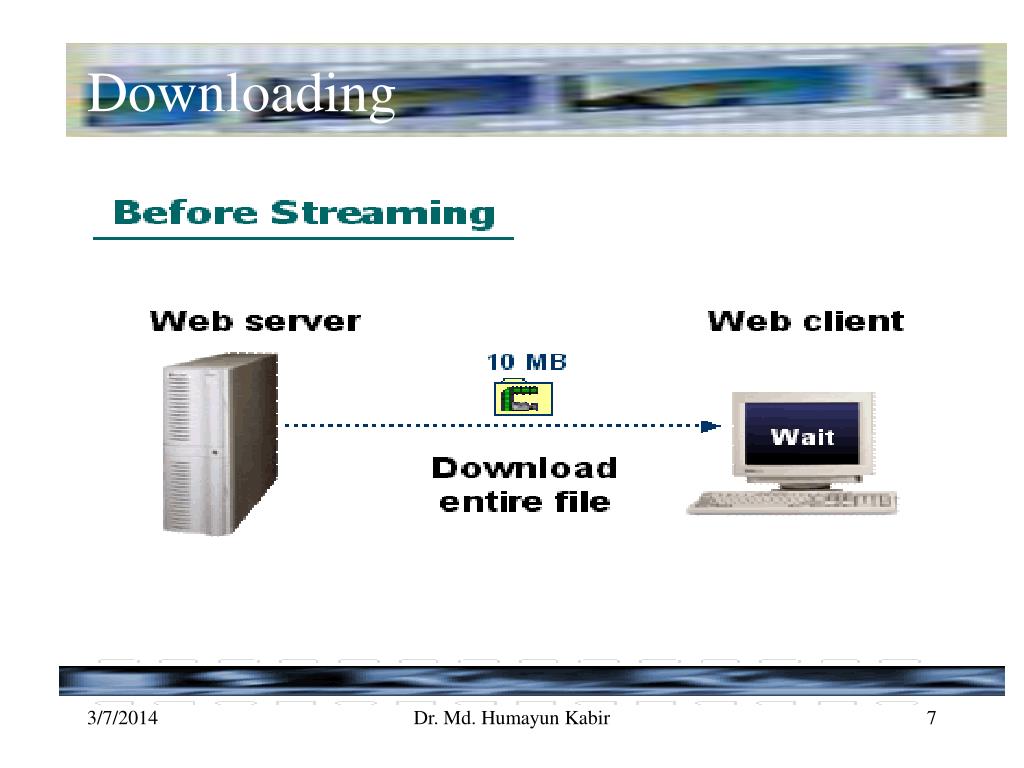

Streaming

  • Downloading

Dr. Md. Humayun Kabir

slide8

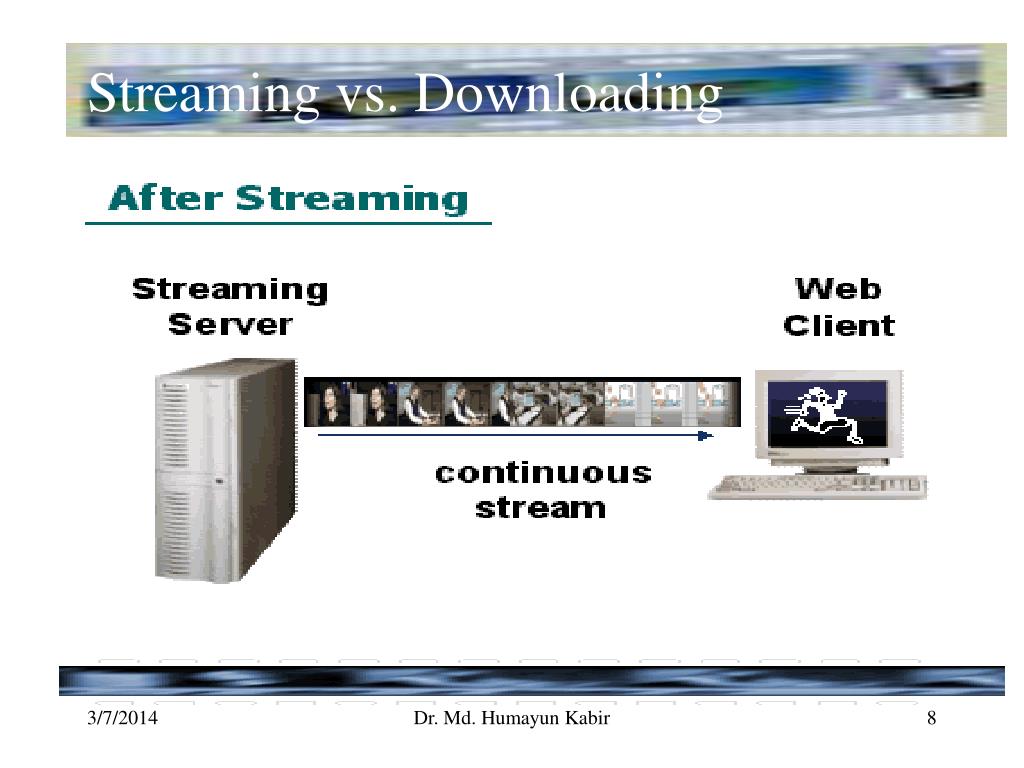

Streaming

  • Streaming vs. Downloading

Dr. Md. Humayun Kabir

slide9

Streaming

  • Streaming vs. Downloading

Downloading

Needs to wait for long time

Needs large disk space

May violate copy-right

Works with low bandwidth

Streaming

No wait time

No disk space requirements

Copy-right cannot be violated

Does not work with low bandwidth

Dr. Md. Humayun Kabir

slide10

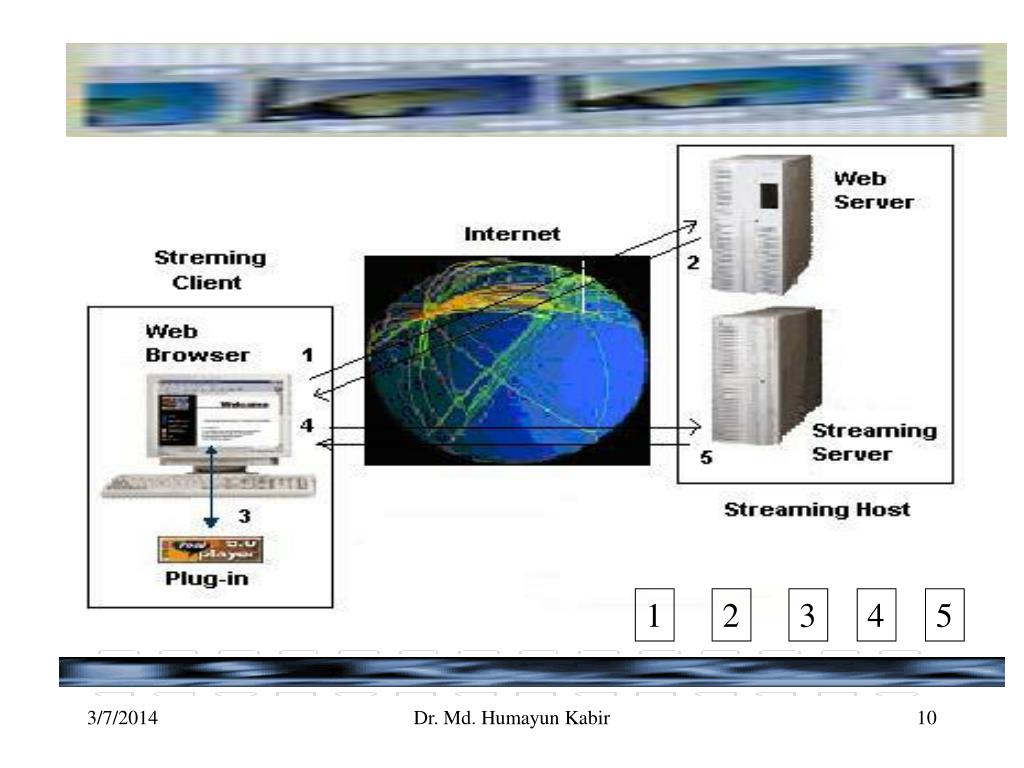

Streaming

  • How Streaming Works

1

2

3

4

5

Dr. Md. Humayun Kabir

slide11

Streaming

  • How Streaming Works

Step 1: Browser opens a Web Page (HTML File)

<HTML>

<BODY>

< A href=“http://www.web-server.domain.com/demo/a-video.qtl”>Link to a video </A>

</BODY>

</HTML>

Quicktime

<HTML>

<BODY>

<A href="http://www.web-server.domain/demo/a-video.wvx"> Link to a video </A>

</BODY>

</HTML>

Microsoft

Dr. Md. Humayun Kabir

slide12

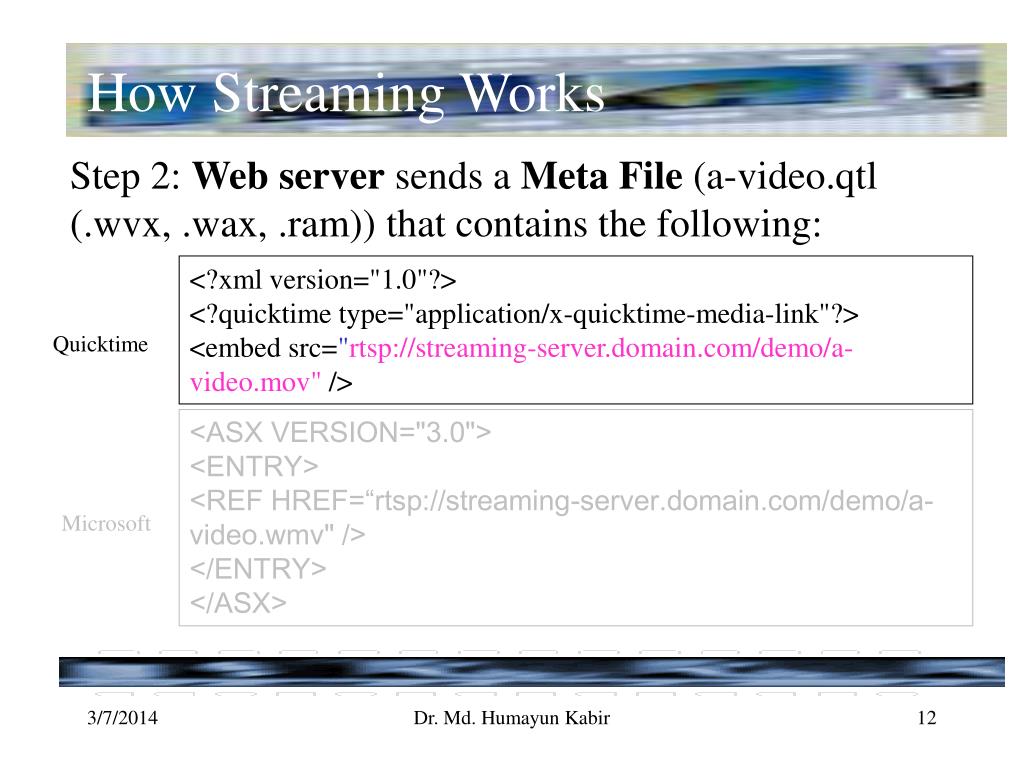

Streaming

  • How Streaming Works

Step 2: Web server sends a Meta File (a-video.qtl (.wvx, .wax, .ram)) that contains the following:

<?xml version="1.0"?><?quicktime type="application/x-quicktime-media-link"?><embed src="rtsp://streaming-server.domain.com/demo/a-video.mov" />

Quicktime

<ASX VERSION="3.0">

<ENTRY>

<REF HREF=“rtsp://streaming-server.domain.com/demo/a-video.wmv" />

</ENTRY>

</ASX>

Microsoft

Dr. Md. Humayun Kabir

slide13

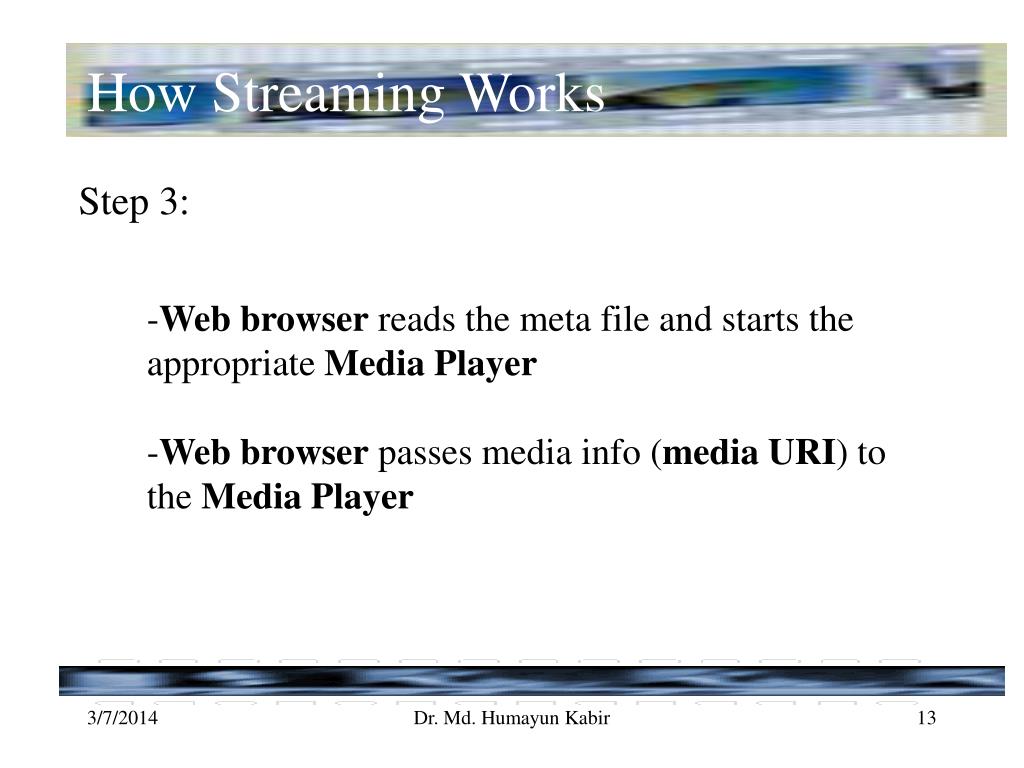

Streaming

  • How Streaming Works

Step 3:

-Web browser reads the meta file and starts the appropriate Media Player

-Web browser passes media info (media URI) to the Media Player

Dr. Md. Humayun Kabir

slide14

Streaming

  • How Streaming Works

Step 4:

-Media Player sends RTSP SETUP request to the Media Server using the media URI

-Media server replies OK in SETUP response

-Media Player sends RTSP PLAY request to the Media Server

Dr. Md. Humayun Kabir

slide15

Streaming

  • How Streaming Works

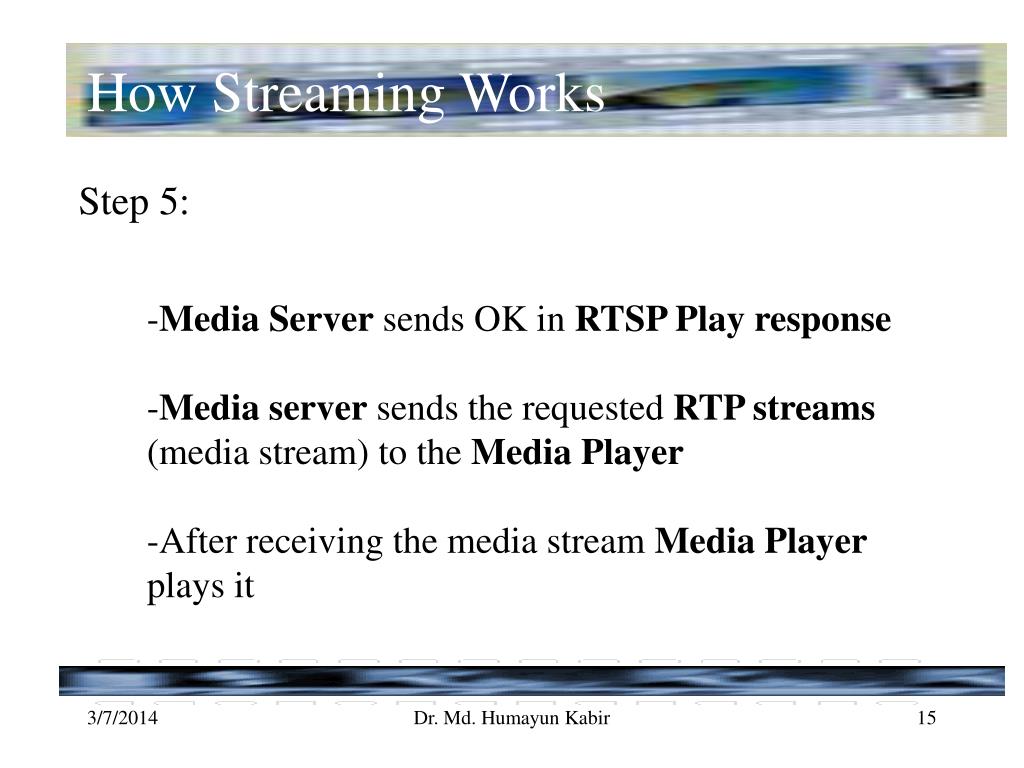

Step 5:

-Media Server sends OK in RTSP Play response

-Media server sends the requested RTP streams (media stream) to the Media Player

-After receiving the media stream Media Player plays it

Dr. Md. Humayun Kabir

slide16

Streaming

  • Streaming Contents

Audio

Video

Slides with Audio

Animation

Dr. Md. Humayun Kabir

slide17

Streaming

  • Streaming Technologies

Dr. Md. Humayun Kabir

slide18

Streaming

  • Streaming Issues: Bandwidth

Bits per second: bps

Dial-up: 56 kbps

Cable: Downstream 30.3 Mbps to 42.9 Mbps per drop cable;

500 kbps per user

DSL: 128 kbps to 51 Mbps

PON: 155.52 Mbps to 622.08 Mbps

WiFi: 11 Mbps (802.11b:2.4 GHz), 54 Mbps (802.11a: 5GHz),

54 Mbps (802.11g: 2.4 GHz)

Bandwidth needed for an uncompressed video with resolution - 720 x 486 x 29.97 is roughly 160 Mbps

CD quality uncompressed audio: 1.41 Mbps

So, Media compression is must

Dr. Md. Humayun Kabir

slide19

Streaming

  • Streaming Issues: Compression

H.261: 64 kbps to 2 Mbps

H.263: 30 kbps to 2 Mbps

H.264: 50-60 kbps (mobile), 1-2 Mbps (Internet, DVD),

5-8 Mbps (HDTV)

MPEG-1: 1.5 Mbps (VCD)

MPEG-2: 4 Mbps to 15 Mbps (DVD); 80 Mbps (HDTV)

MPEG-4: H.264 bit rates

MP3: 128 kbps

AAC: 16 kbps to 128 kbps; regular 64 kbps

Real: 150 kbps to 1 Mbps (standard), 3 Mbps (HDTV)

Quicktime: Slightly better than MPEG-4

Windows media: ½ to 1/3 of MPEG-2.

Dr. Md. Humayun Kabir

slide20

Streaming

  • Streaming Issues: Real Challenges

Bandwidths are constraint

Network latency and jitter

Compressed Video: variable bit rate with high peaks

Streaming media: non-cacheable

Streaming service: non-scalable

Supporting playback mode switching

Dr. Md. Humayun Kabir

slide21

Streaming

  • My Work

Invented a new Video Streaming Scheme

Conceals network latency and jitter

Conceals peak bandwidth requirements of compressed videos

Works with any available (low or high) bandwidth

Scales well without caching media files

Supports different DVD like playback modes

Scales well even when different clients are in

different playback modes

Dr. Md. Humayun Kabir

slide22

Streaming

  • Opportunities: Applications
  • Video on demand (Cinemanow)
  • Internet Video (Google Video)
  • Live/Web Cast
  • Home Media Center
  • Kids Entertainment Site
  • Distance Education
  • Product Marketing
  • IPTV
  • VoIP (IP Phone)
  • Video Conferencing
  • Video Phone

Dr. Md. Humayun Kabir

slide23

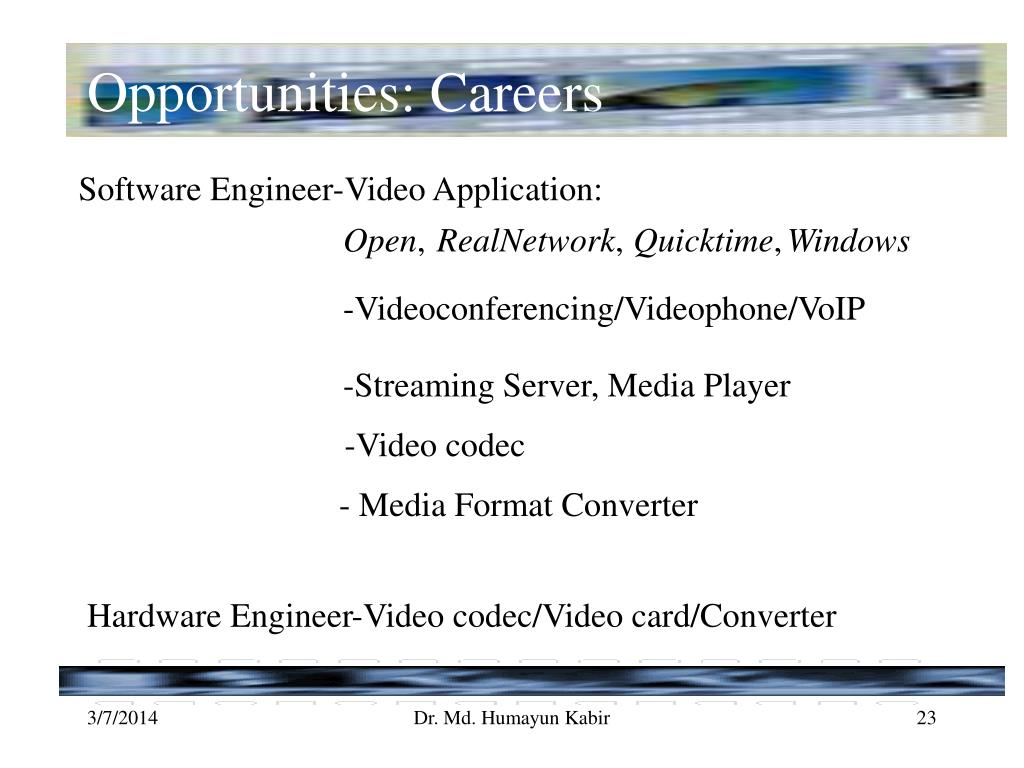

Opportunities: Careers

Software Engineer-Video Application:

Open,

RealNetwork,

Quicktime,

Windows

-Videoconferencing/Videophone/VoIP

-Streaming Server, Media Player

-Video codec

- Media Format Converter

Hardware Engineer

-Video codec/Video card/Converter

Dr. Md. Humayun Kabir

slide24

Streaming

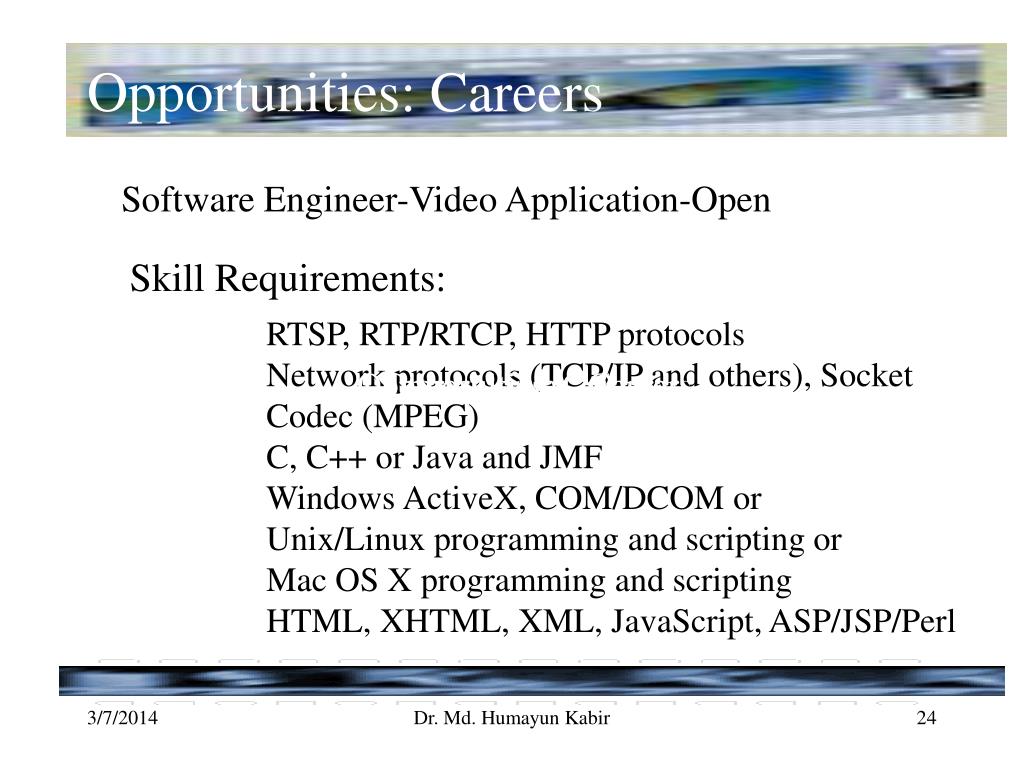

  • Opportunities: Careers
  • Opportunities: Careers
  • Software Engineer-Video Application-Open

Skill Requirements:

RTSP, RTP/RTCP, HTTP protocols

Network protocols (TCP/IP and others), Socket

Codec (MPEG)

C, C++ or Java and JMF

Windows ActiveX, COM/DCOM or

Unix/Linux programming and scripting or

Mac OS X programming and scripting

HTML, XHTML, XML, JavaScript, ASP/JSP/Perl

  • Opportunities: Careers

Opportunities: Careers

Dr. Md. Humayun Kabir

slide25

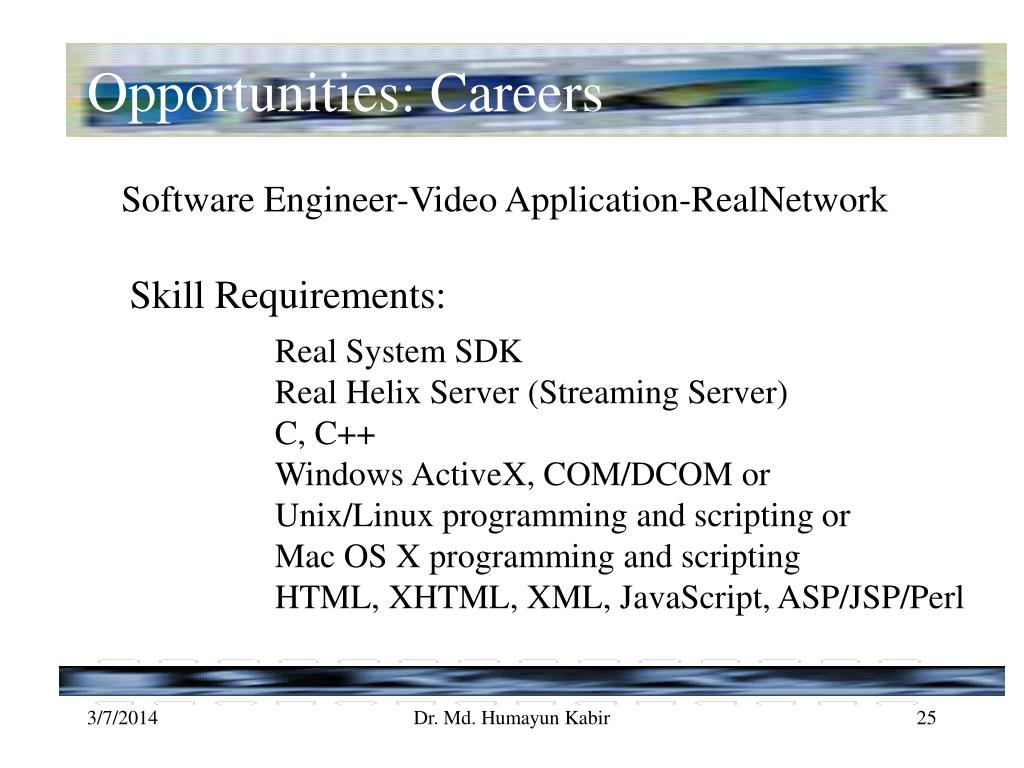

Streaming

  • Opportunities: Careers
  • Software Engineer-Video Application-RealNetwork

Skill Requirements:

Real System SDK

Real Helix Server (Streaming Server)

C, C++

Windows ActiveX, COM/DCOM or

Unix/Linux programming and scripting or

Mac OS X programming and scripting

HTML, XHTML, XML, JavaScript, ASP/JSP/Perl

Dr. Md. Humayun Kabir

slide26

Streaming

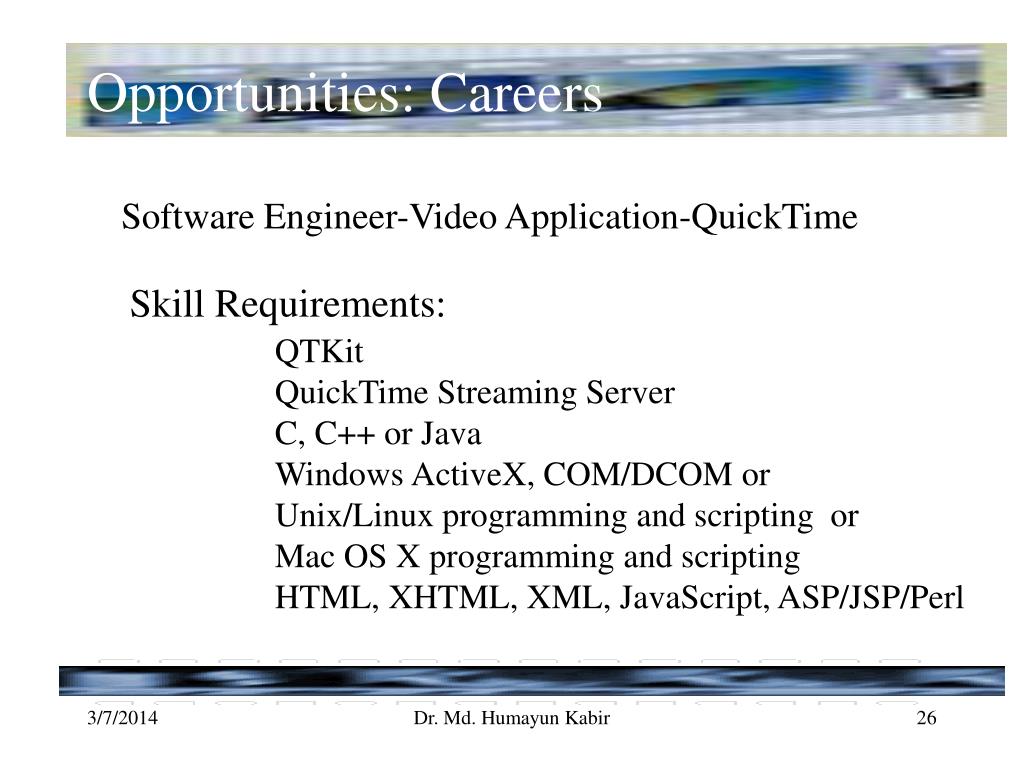

  • Opportunities: Careers
  • Software Engineer-Video Application-QuickTime

Skill Requirements:

QTKit

QuickTime Streaming Server

C, C++ or Java

Windows ActiveX, COM/DCOM or

Unix/Linux programming and scripting or

Mac OS X programming and scripting

HTML, XHTML, XML, JavaScript, ASP/JSP/Perl

Dr. Md. Humayun Kabir

slide27

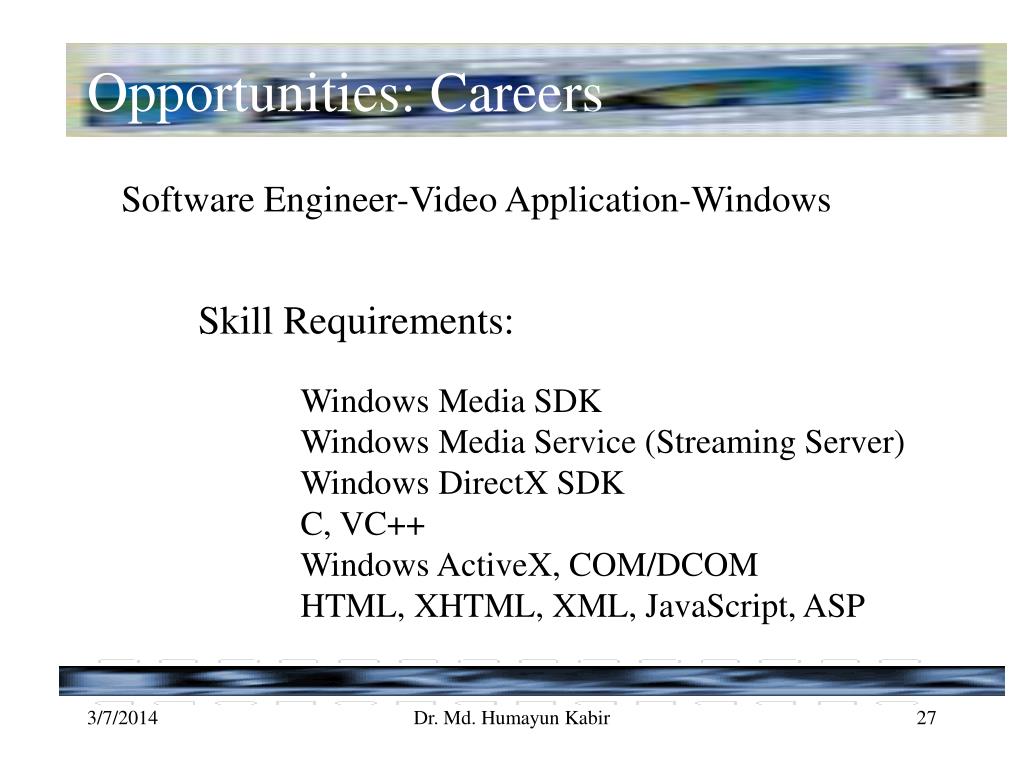

Streaming

  • Opportunities: Careers
  • Software Engineer-Video Application-Windows

Skill Requirements:

Windows Media SDK

Windows Media Service (Streaming Server)

Windows DirectX SDK

C, VC++

Windows ActiveX, COM/DCOM

HTML, XHTML, XML, JavaScript, ASP

Dr. Md. Humayun Kabir

slide28

Streaming

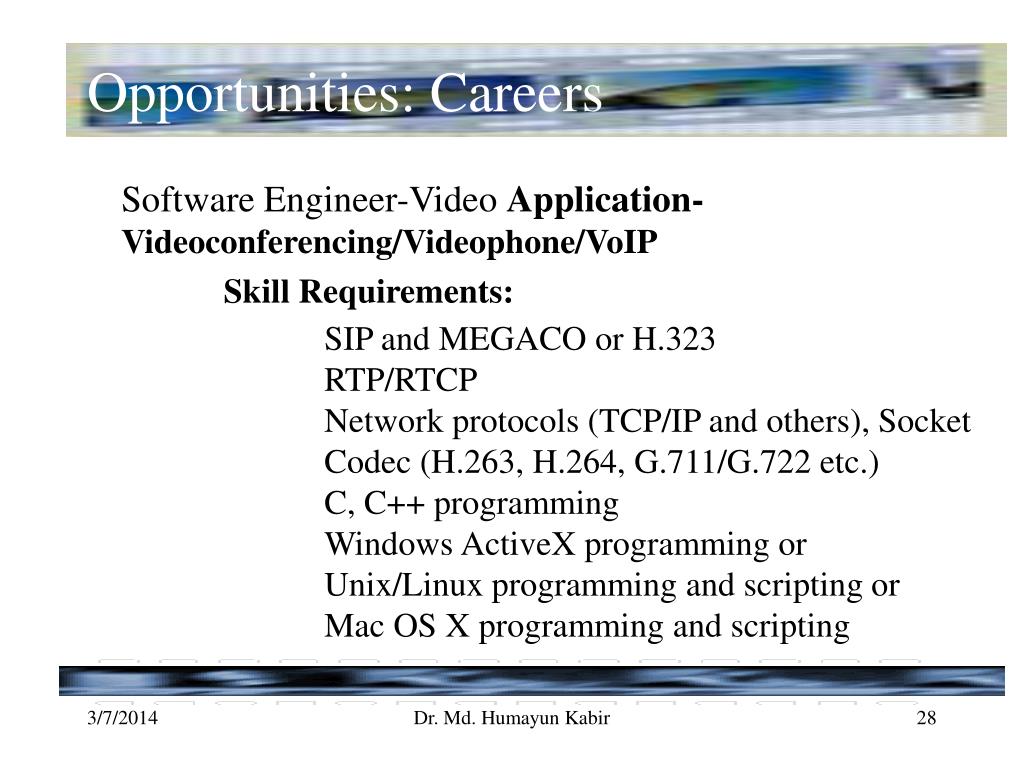

  • Opportunities: Careers
  • Software Engineer-Video Application-Videoconferencing/Videophone/VoIP

Skill Requirements:

SIP and MEGACO or H.323

RTP/RTCP

Network protocols (TCP/IP and others), Socket

Codec (H.263, H.264, G.711/G.722 etc.)

C, C++ programming

Windows ActiveX programming or

Unix/Linux programming and scripting or

Mac OS X programming and scripting

Dr. Md. Humayun Kabir

slide29

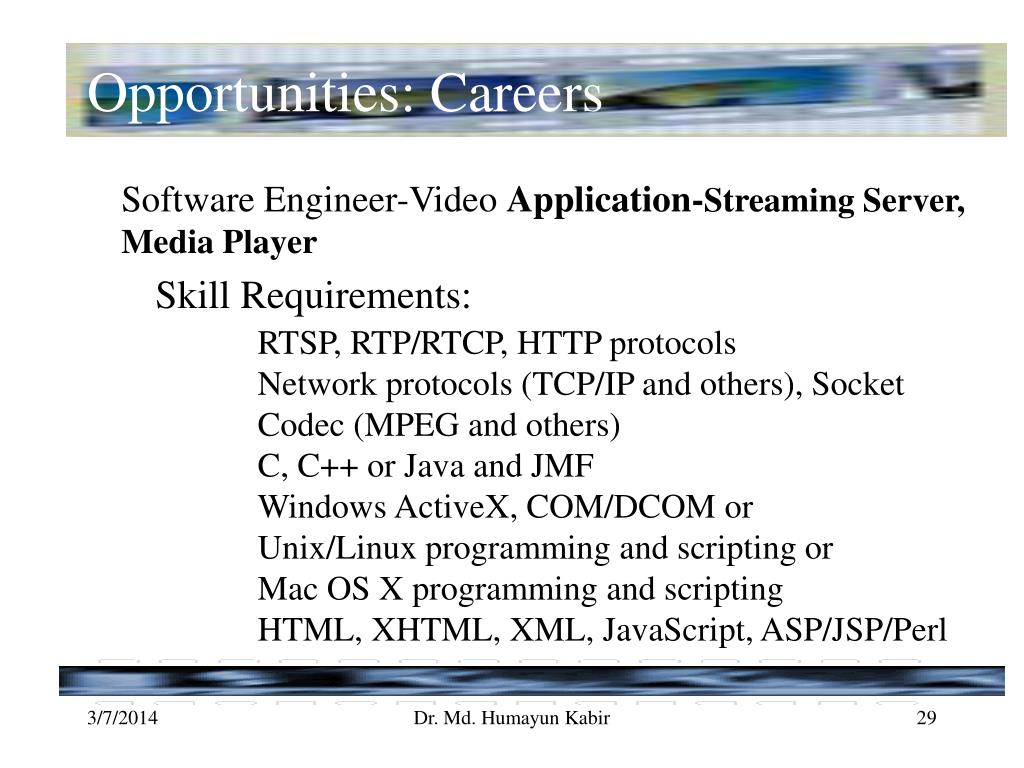

Streaming

  • Opportunities: Careers
  • Software Engineer-Video Application-Streaming Server, Media Player

Skill Requirements:

RTSP, RTP/RTCP, HTTP protocols

Network protocols (TCP/IP and others), Socket

Codec (MPEG and others)

C, C++ or Java and JMF

Windows ActiveX, COM/DCOM or

Unix/Linux programming and scripting or

Mac OS X programming and scripting

HTML, XHTML, XML, JavaScript, ASP/JSP/Perl

Dr. Md. Humayun Kabir

slide30

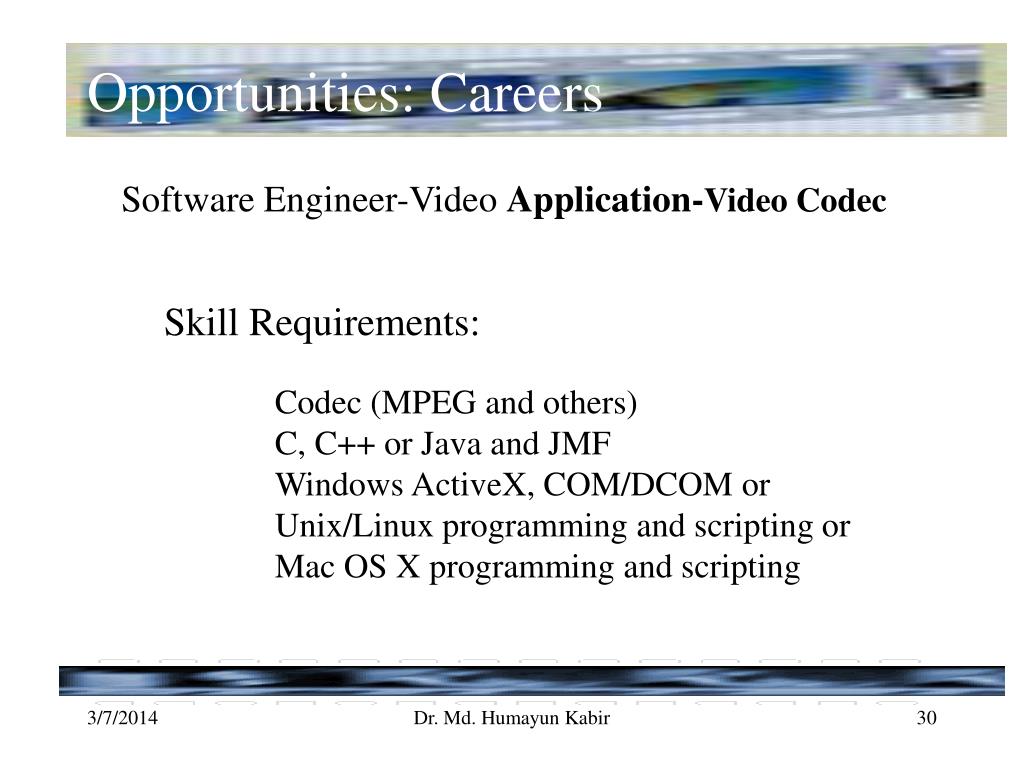

Streaming

  • Software Engineer-Video codec
  • Opportunities: Careers
  • Software Engineer-Video Application-Video Codec

Skill Requirements:

Codec (MPEG and others)

C, C++ or Java and JMF

Windows ActiveX, COM/DCOM or

Unix/Linux programming and scripting or

Mac OS X programming and scripting

Dr. Md. Humayun Kabir

slide31

Streaming

  • Software Engineer -Media Converter
  • Opportunities: Careers
  • Opportunities: Careers
  • Software Engineer-Video Application-Media Converter

Skill Requirements:

Codec (MPEG and others)

C, C++ or Java and JMF

Windows ActiveX, COM/DCOM or

Unix/Linux programming and scripting or

Mac OS X programming and scripting

Dr. Md. Humayun Kabir

slide32

Streaming

  • Opportunities: Careers

Hardware Engineer

-Video codec/Video card/Converter

Skill Requirements:

Codec theory

C, C++

Embedded/Assembly Programming

FPGA and ASIC design and programming

Dr. Md. Humayun Kabir

slide33

Streaming

  • Conclusion
  • Basics of Video Streaming
  • Bandwidth available at different access networks
  • Different media compression techniques and their bit rates
  • Problems in streaming
  • My work in video streaming
  • Opportunities in streaming technologies

Dr. Md. Humayun Kabir

slide34

Streaming

  • Thank You

Questions ?

Few pictures in this presentation were taken from

http://streaming.wisconsin.edu/understand/understand.html

Dr. Md. Humayun Kabir
