  1. Chapter 10Sheet Metal Design

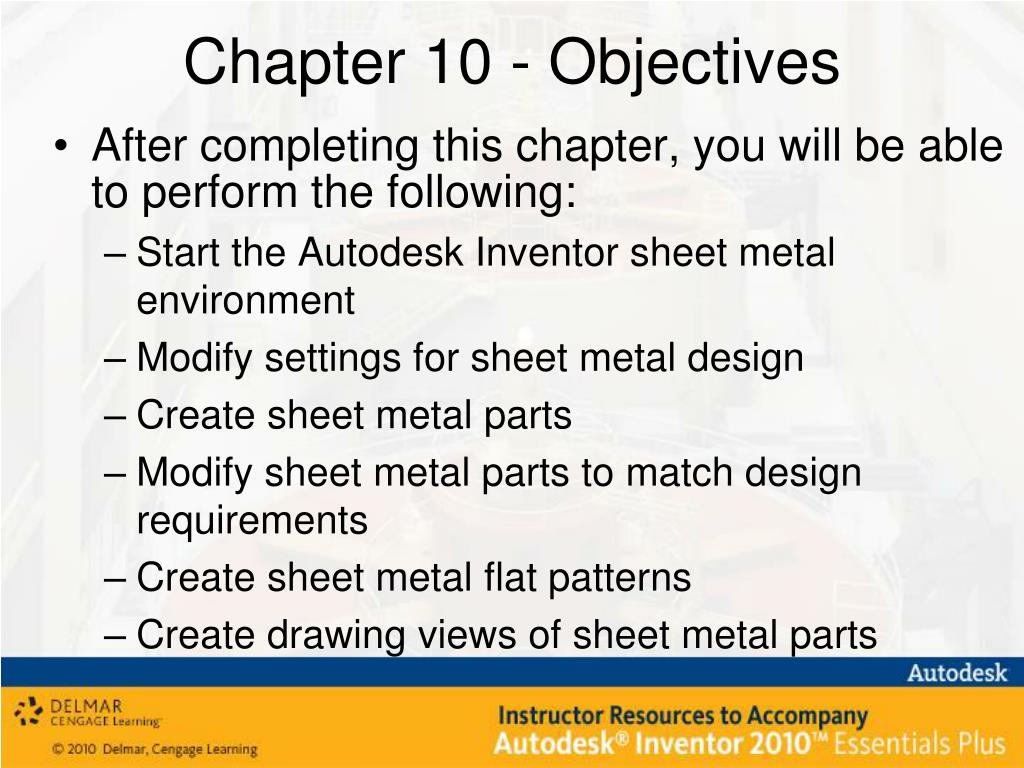

  2. Chapter 10 - Objectives • After completing this chapter, you will be able to perform the following: • Start the Autodesk Inventor sheet metal environment • Modify settings for sheet metal design • Create sheet metal parts • Modify sheet metal parts to match design requirements • Create sheet metal flat patterns • Create drawing views of sheet metal parts

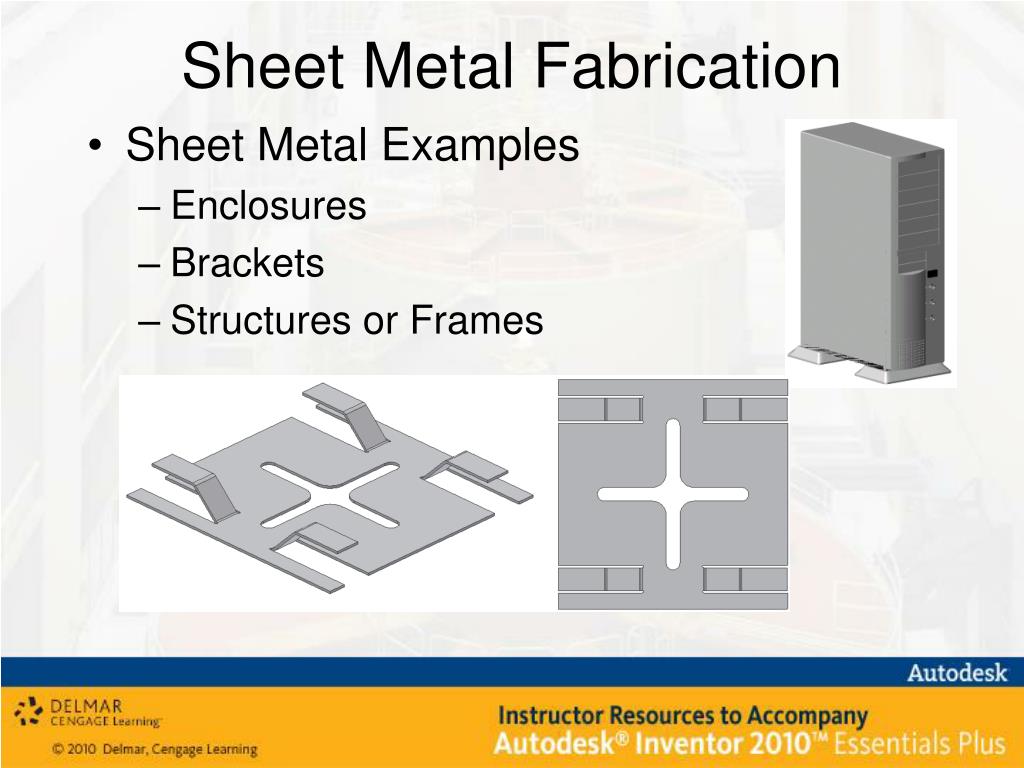

  3. Sheet Metal Fabrication • Sheet Metal Examples • Enclosures • Brackets • Structures or Frames

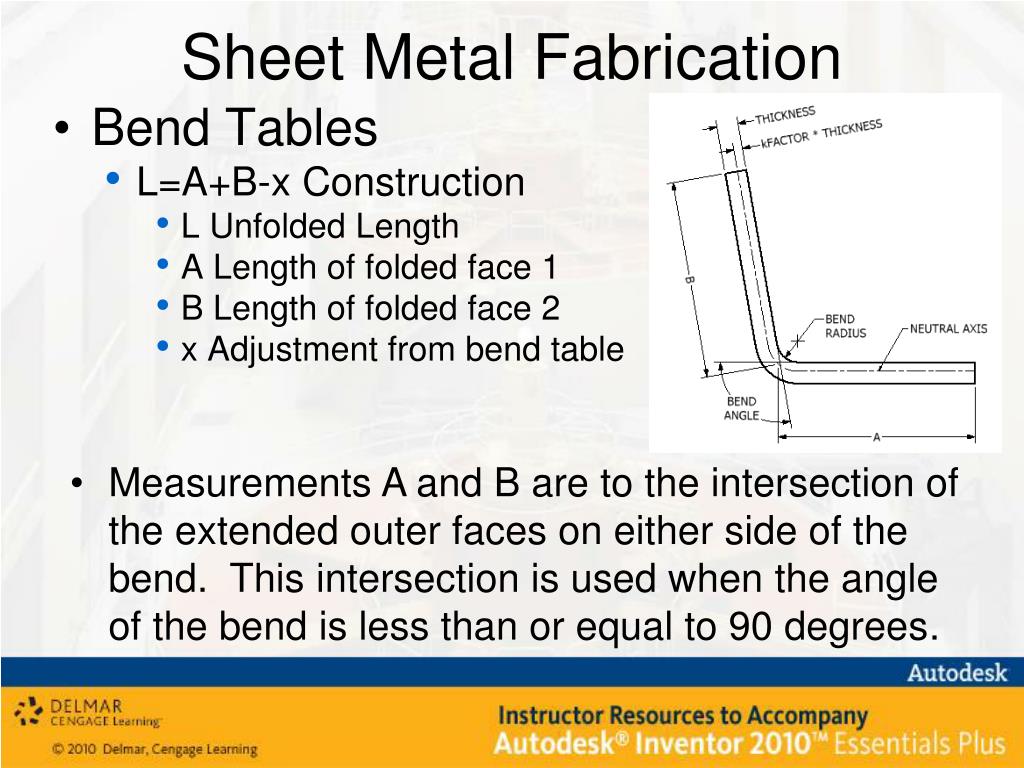

  4. Sheet Metal Fabrication • Bend Tables • L=A+B-x Construction • L Unfolded Length • A Length of folded face 1 • B Length of folded face 2 • x Adjustment from bend table • Measurements A and B are to the intersection of the extended outer faces on either side of the bend. This intersection is used when the angle of the bend is less than or equal to 90 degrees.

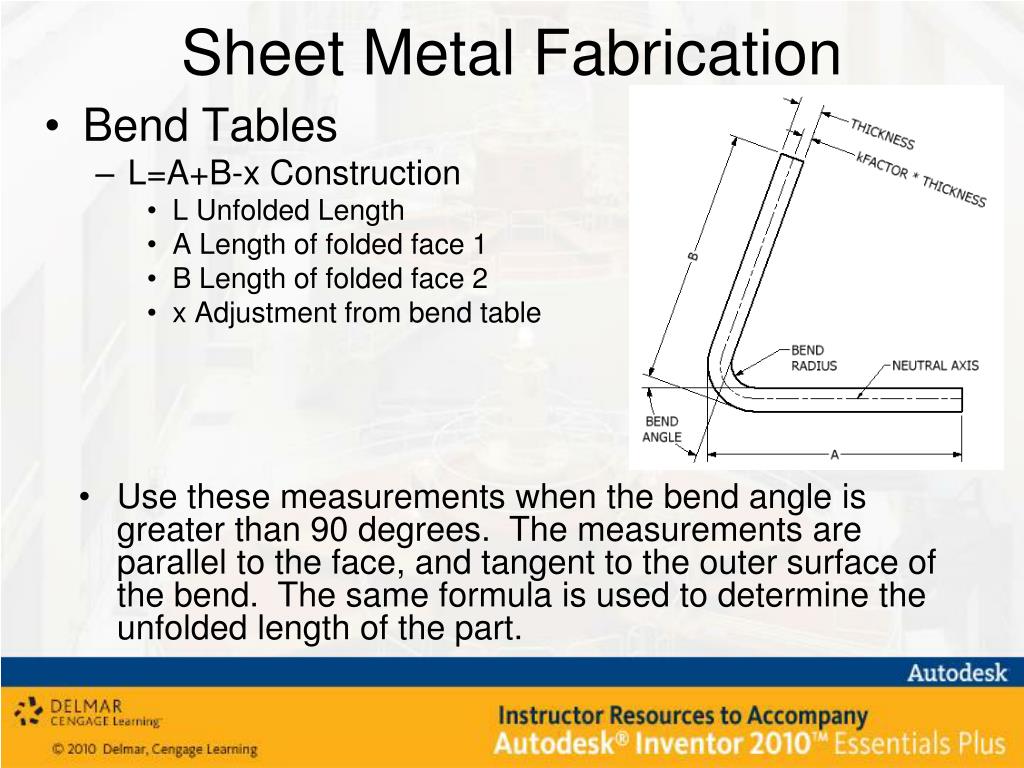

  5. Sheet Metal Fabrication • Bend Tables • L=A+B-x Construction • L Unfolded Length • A Length of folded face 1 • B Length of folded face 2 • x Adjustment from bend table • Use these measurements when the bend angle is greater than 90 degrees. The measurements are parallel to the face, and tangent to the outer surface of the bend. The same formula is used to determine the unfolded length of the part.

  6. Sheet Metal Parts • Sheet Metal Design Methods • Folded State • Flat State • Disjointed Solids • Shelled Parts

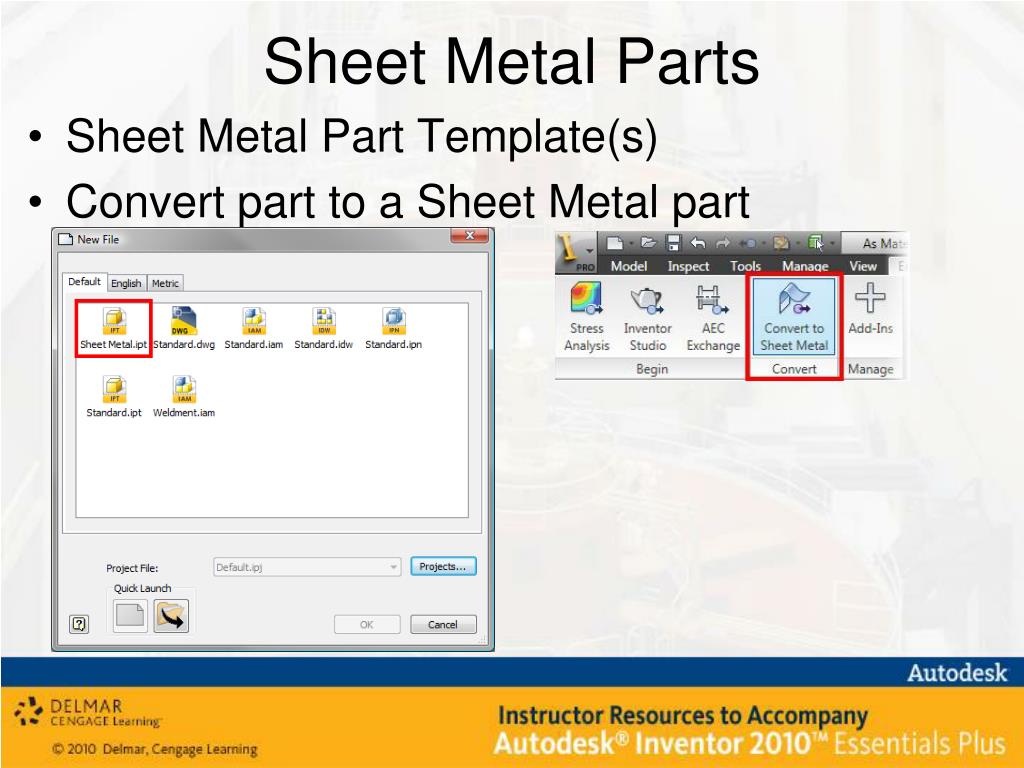

  7. Sheet Metal Parts • Sheet Metal Part Template(s) • Convert part to a Sheet Metal part partEnvironment

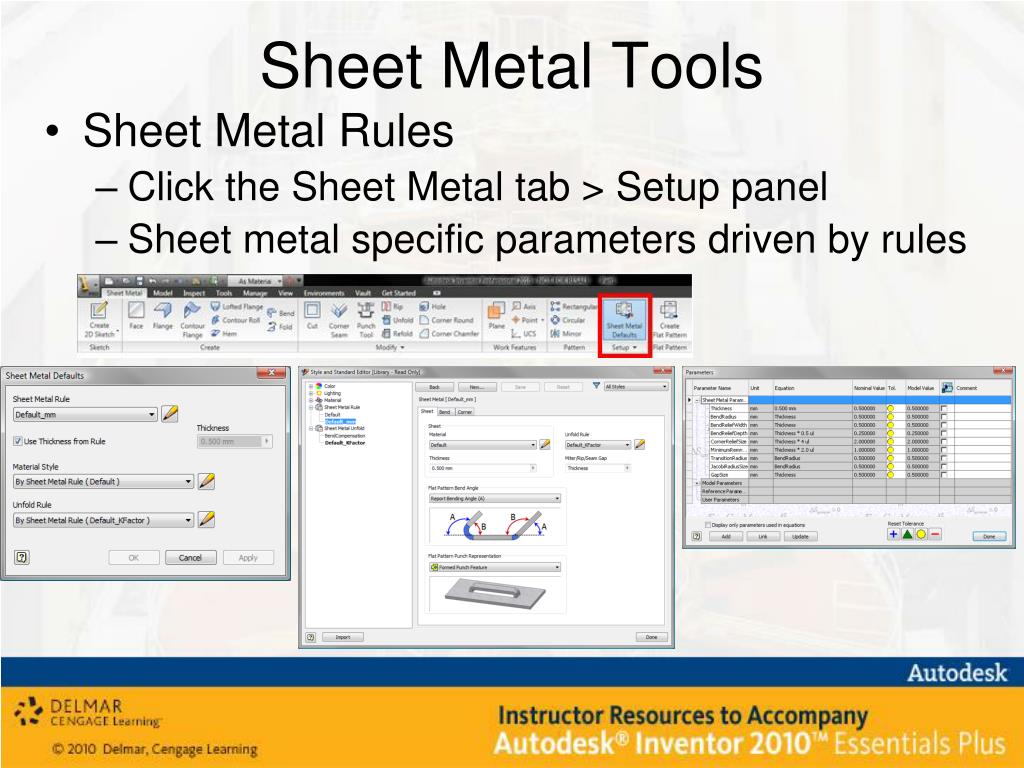

  8. Sheet Metal Tools • Sheet Metal Rules • Click the Sheet Metal tab > Setup panel • Sheet metal specific parameters driven by rules

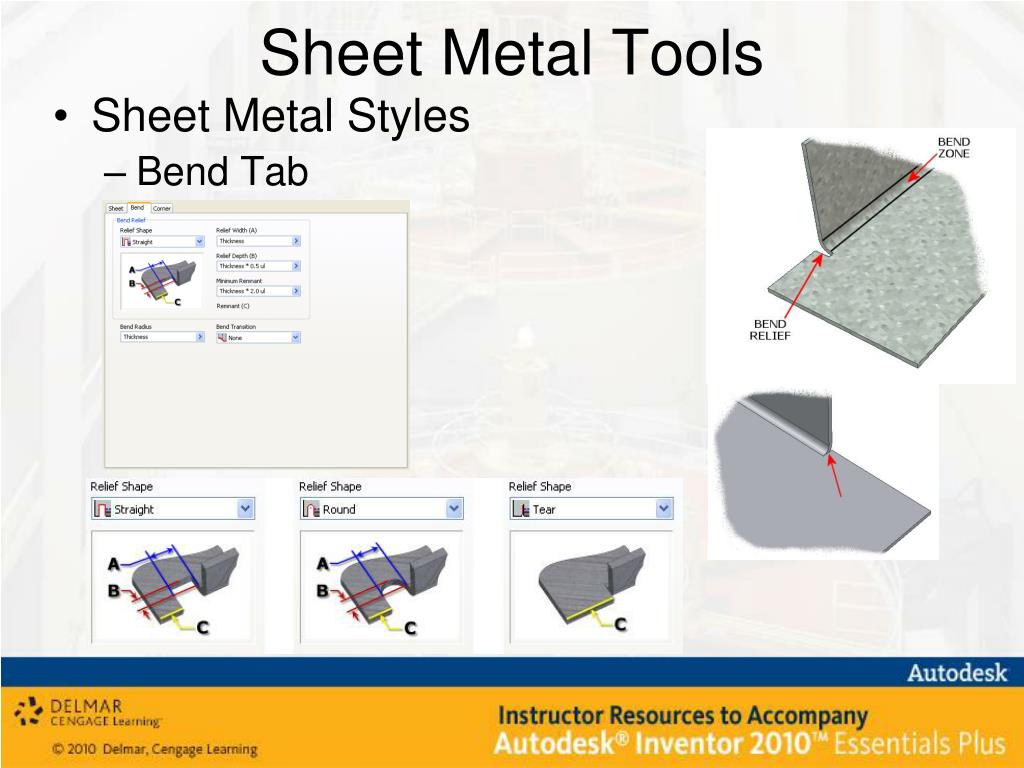

  9. Sheet Metal Tools • Sheet Metal Styles • Bend Tab

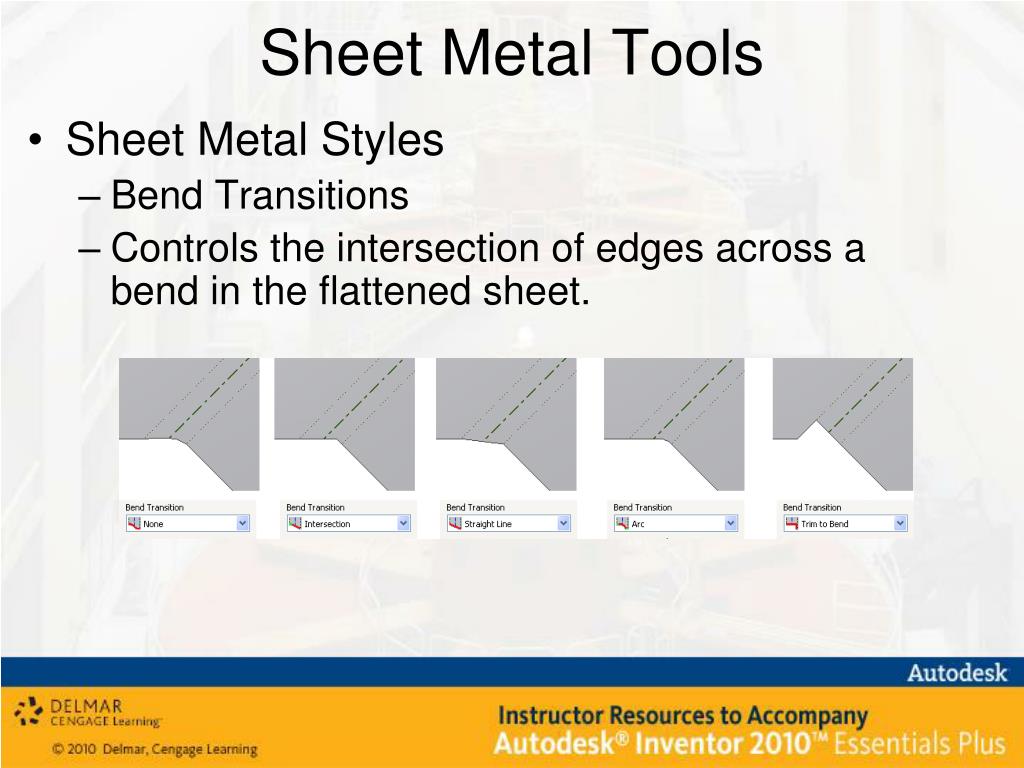

  10. Sheet Metal Tools • Sheet Metal Styles • Bend Transitions • Controls the intersection of edges across a bend in the flattened sheet.

  11. Sheet Metal Tools • Sheet Metal Styles • Corner Tab • Relief Shape • Jacobi Corner

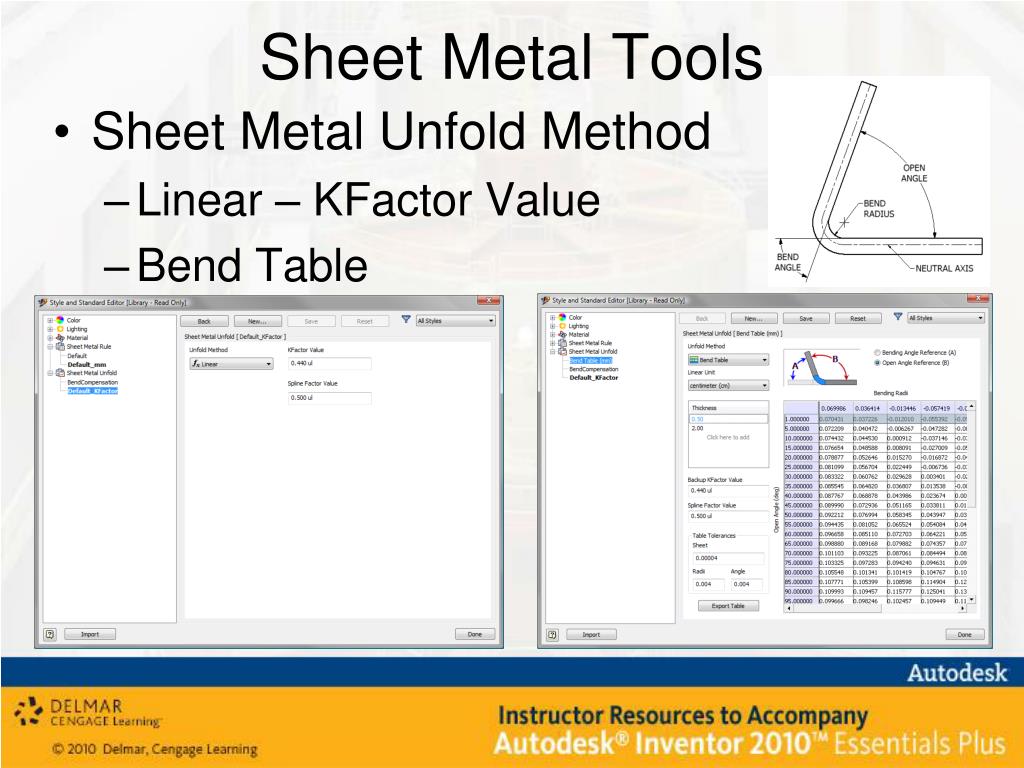

  12. Sheet Metal Tools • Sheet Metal Unfold Method • Linear – KFactor Value • Bend Table

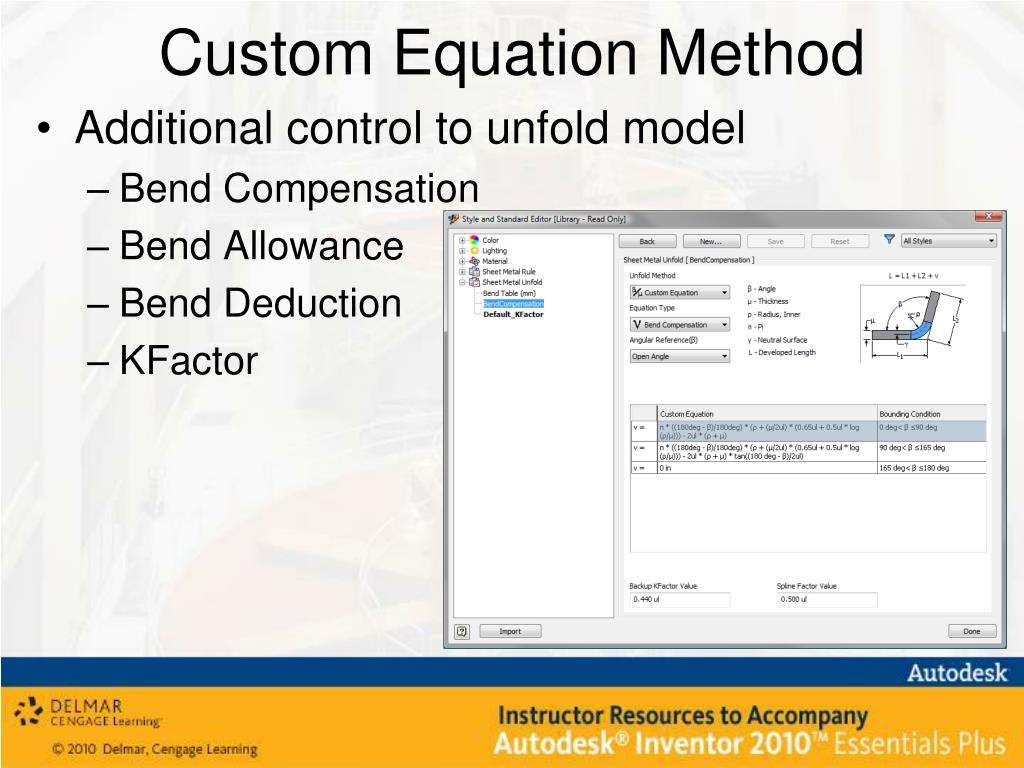

  13. Custom Equation Method • Additional control to unfold model • Bend Compensation • Bend Allowance • Bend Deduction • KFactor

  14. Sheet Metal Tools • Sheet Metal Defaults • After you define sheet metal rules • Use the Sheet Metal Defaults tool to select the rule that is active for the sheet metal part

  15. Sheet Metal Tools • Sheet Metal Face • Extrudes a closed profile a distance equal to the sheet metal thickness • Unfold Options • Relief Options

  16. Sheet Metal Tools • Contour Flange • Created from an open sketch profile • Bends are added at sharp intersections

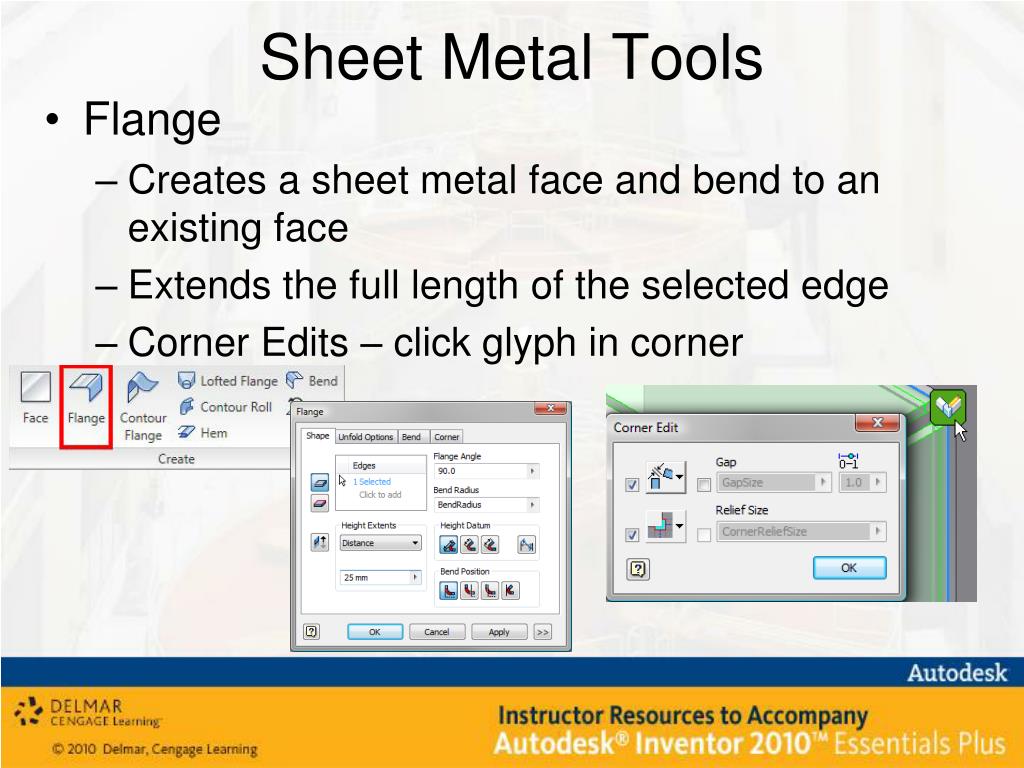

  17. Sheet Metal Tools • Flange • Creates a sheet metal face and bend to an existing face • Extends the full length of the selected edge • Corner Edits – click glyph in corner

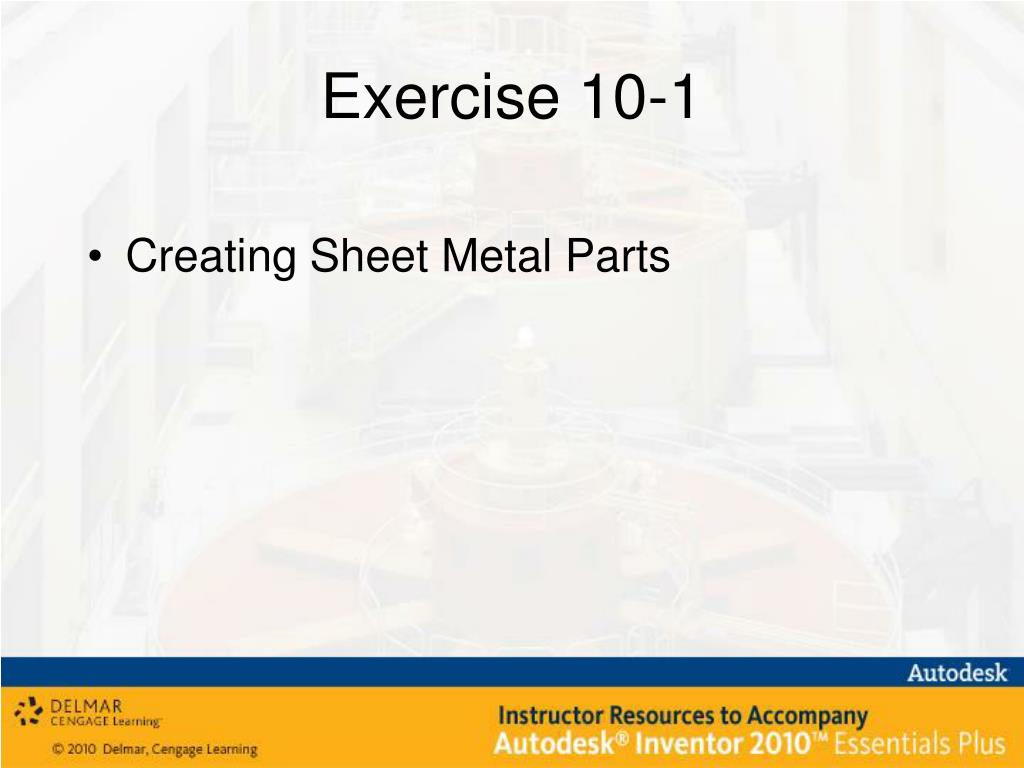

  18. Exercise 10-1 • Creating Sheet Metal Parts

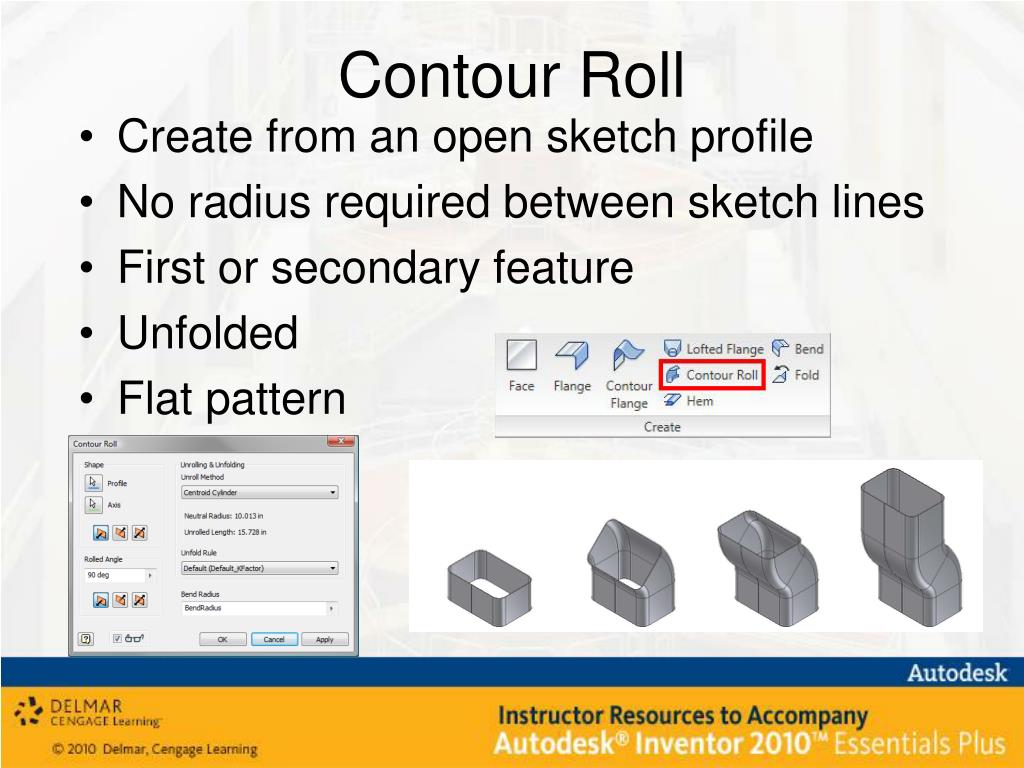

  19. Contour Roll • Create from an open sketch profile • No radius required between sketch lines • First or secondary feature • Unfolded • Flat pattern

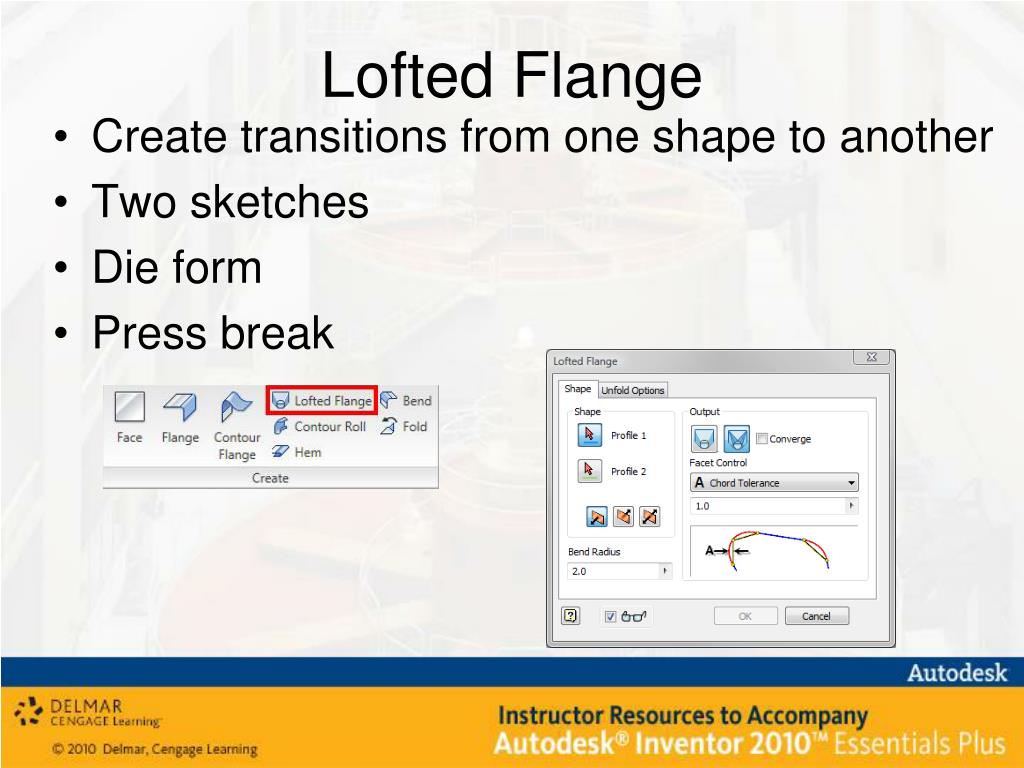

  20. Lofted Flange • Create transitions from one shape to another • Two sketches • Die form • Press break

  21. Sheet Metal Tools • Hem • Eliminate sharp edges • Strengthen an open edge of a face • Material is folded back over a face with a small gap

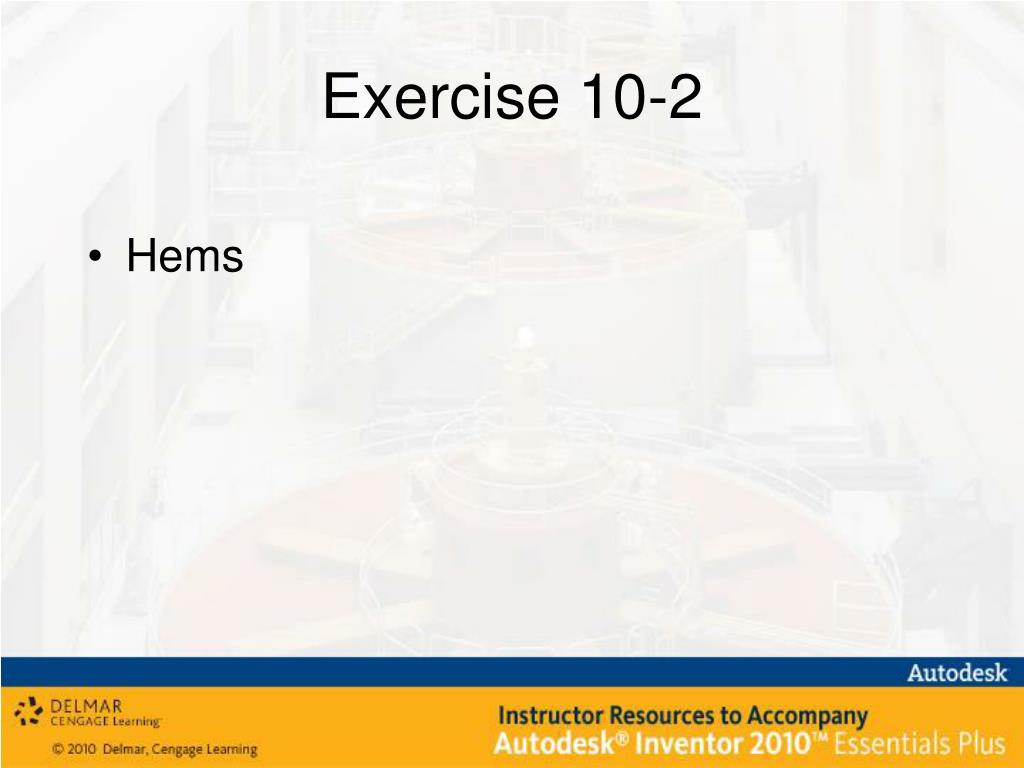

  22. Exercise 10-2 • Hems

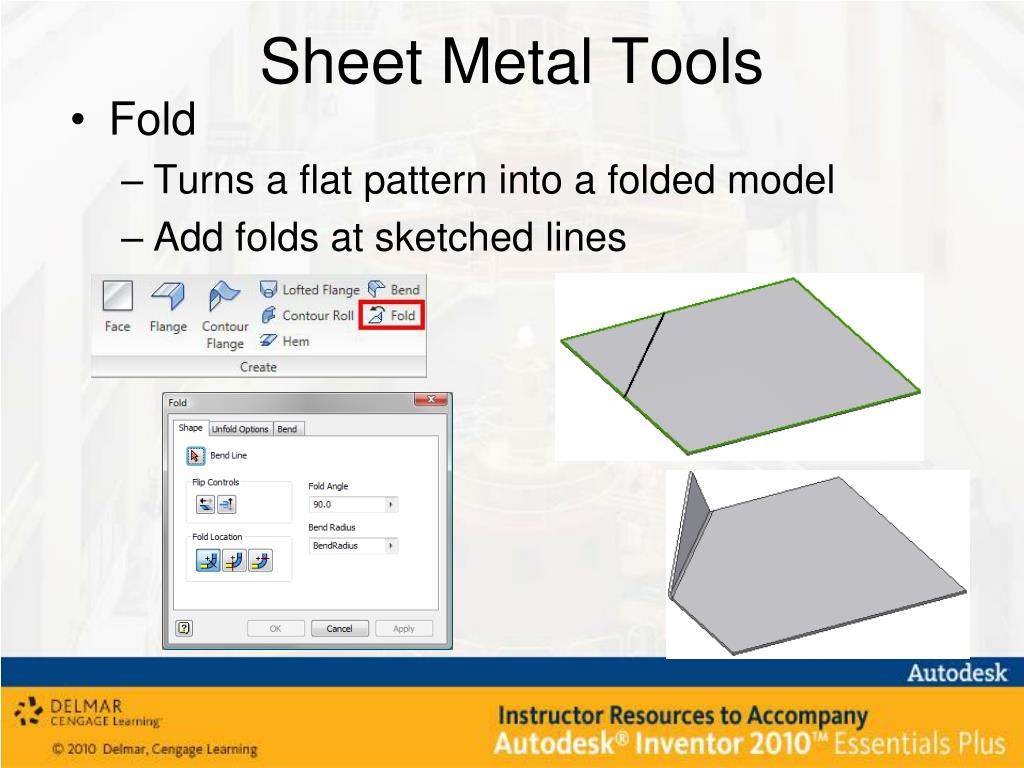

  23. Sheet Metal Tools • Fold • Turns a flat pattern into a folded model • Add folds at sketched lines

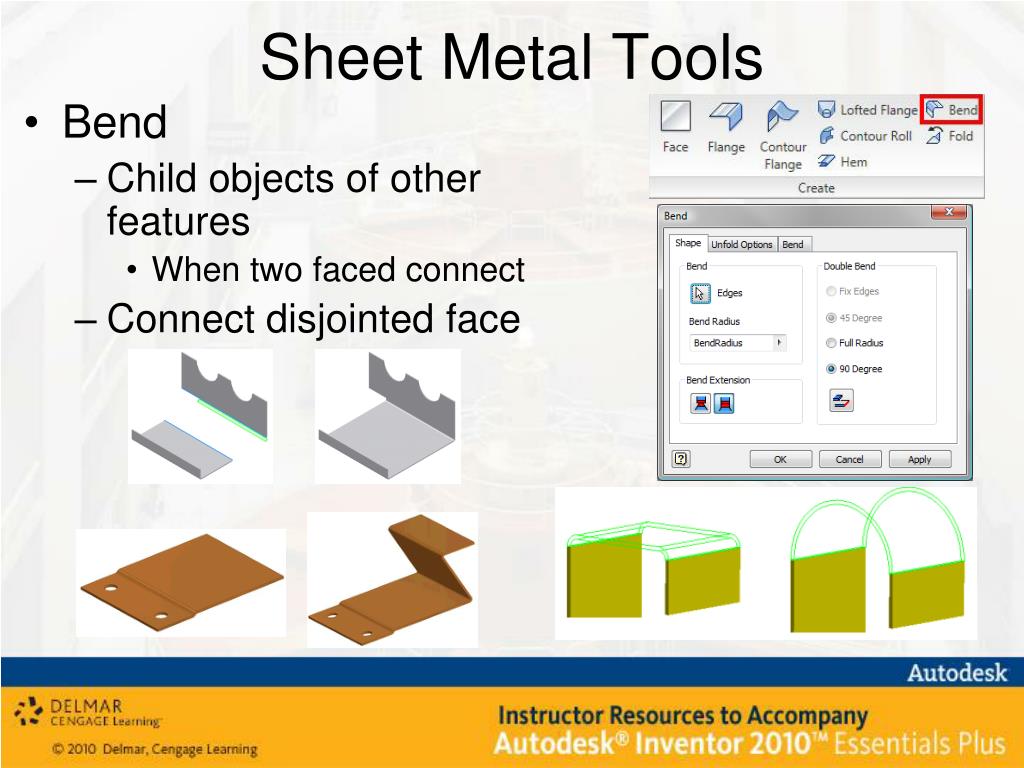

  24. Sheet Metal Tools • Bend • Child objects of other features • When two faced connect • Connect disjointed face

  25. Exercise 10-3 • Modifying Sheet Metal Parts

  26. Sheet Metal Tools • Cut • Sheet Metal tab > Modify panel > Cut • Distance of the cut is equal to the Thickness parameter • Project Flat Pattern • Cut Across Bend • Define Distance

  27. Sheet Metal Tools • Unfold/Refold • Unfold selected or all bends • Add feature • Refold selected or all bends

  28. Exercise 10-4 • Cut Across Bend

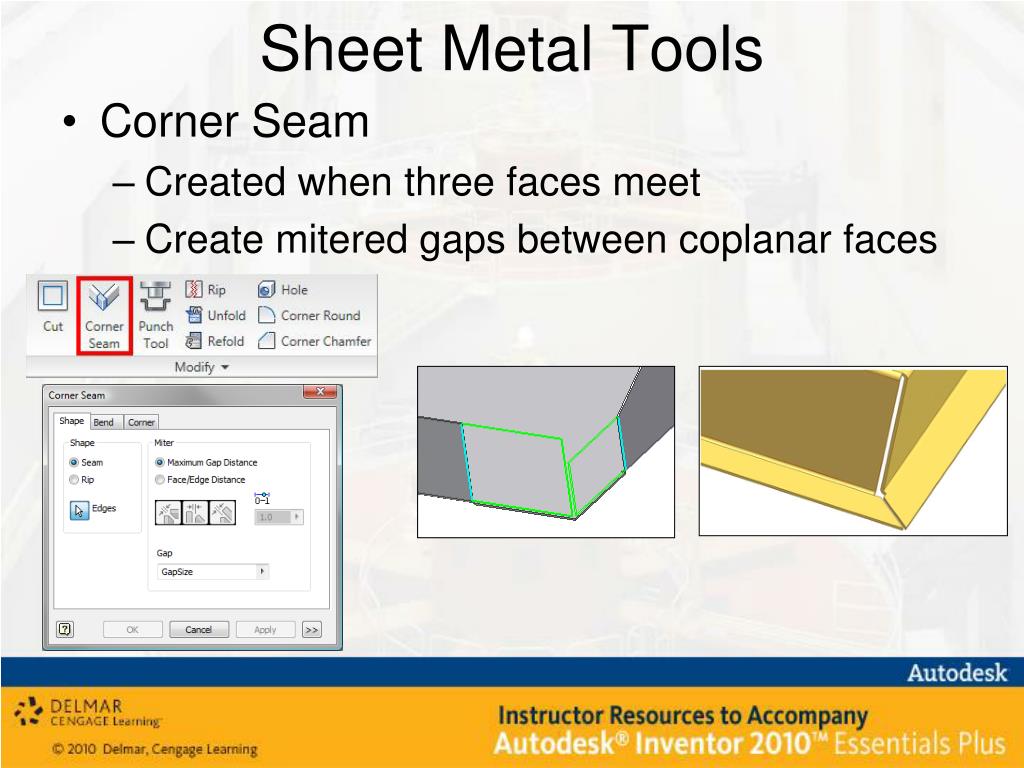

  29. Sheet Metal Tools • Corner Seam • Created when three faces meet • Create mitered gaps between coplanar faces

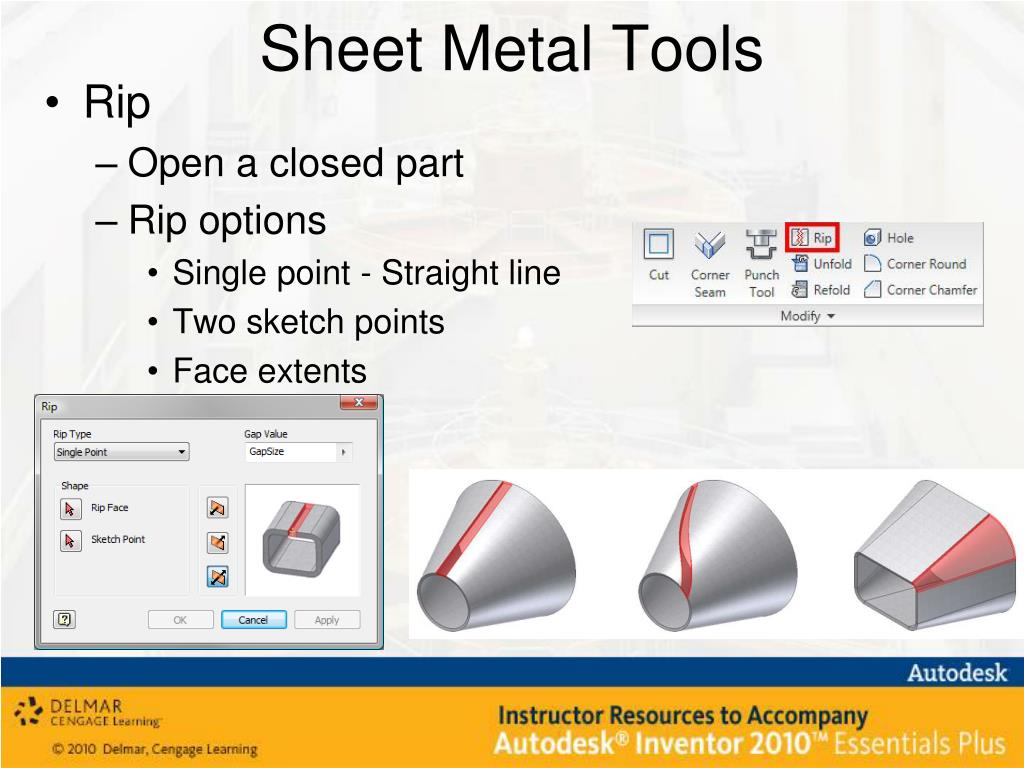

  30. Sheet Metal Tools • Rip • Open a closed part • Rip options • Single point - Straight line • Two sketch points • Face extents

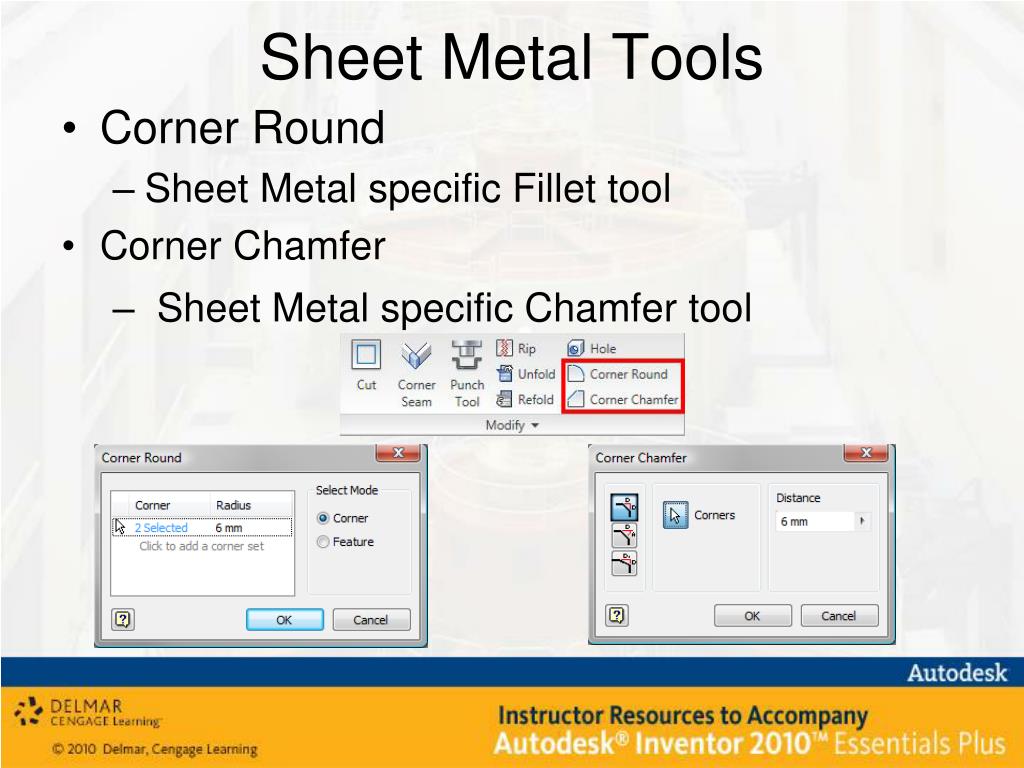

  31. Sheet Metal Tools • Corner Round • Sheet Metal specific Fillet tool • Corner Chamfer – Sheet Metal specific Chamfer tool

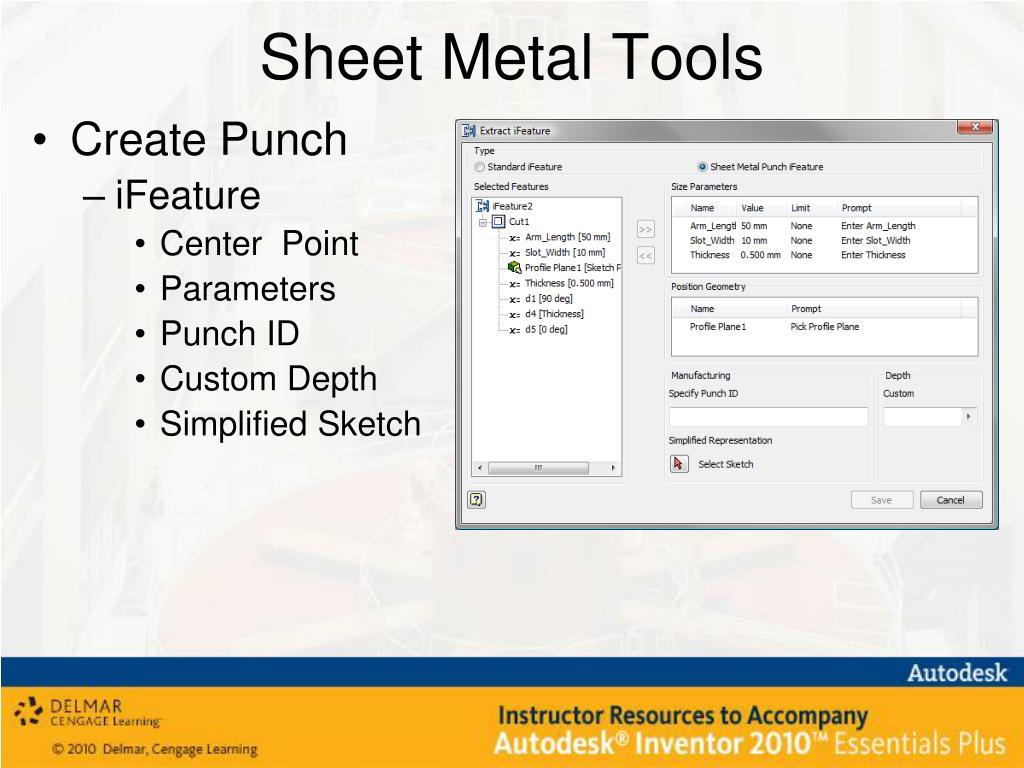

  32. Sheet Metal Tools • Create Punch • iFeature • Center Point • Parameters • Punch ID • Custom Depth • Simplified Sketch

  33. Sheet Metal Tools • PunchTool • Center Point required • Creates Cuts and 3D Deformations • Dimples • Louvers • Punch Folder • Applications Options > iFeature tab • Flat Pattern • Representation

  34. Exercise 10-5 • Punch Tool

  35. Sheet Metal Tools • Flat Pattern • Represents the starting point for sheet metal part manufacturing • Creates a 3D model of the unfolded part • Displayed in a 2D drawing view • Flat Pattern – Browser • Flat Pattern – Extents, area

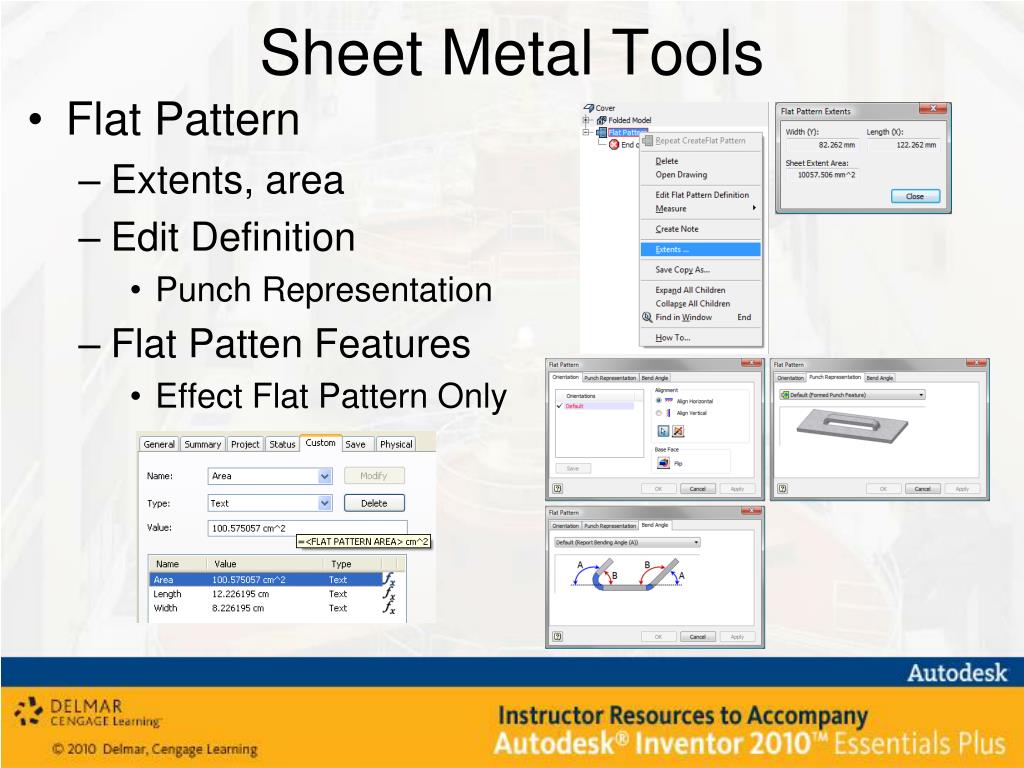

  36. Sheet Metal Tools • Flat Pattern • Extents, area • Edit Definition • Punch Representation • Flat Patten Features • Effect Flat Pattern Only

  37. Sheet Metal Tools • Common Tools – Sheet Metal tab • Holes • Work Features • Feature Patterns • Mirror • Parameters

  38. Detailing Sheet Metal Designs • Detailing Sheet Metal Designs • 3D Model and Flat Patterns

  39. Exercise 10-6 • Documenting Sheet Metal Designs

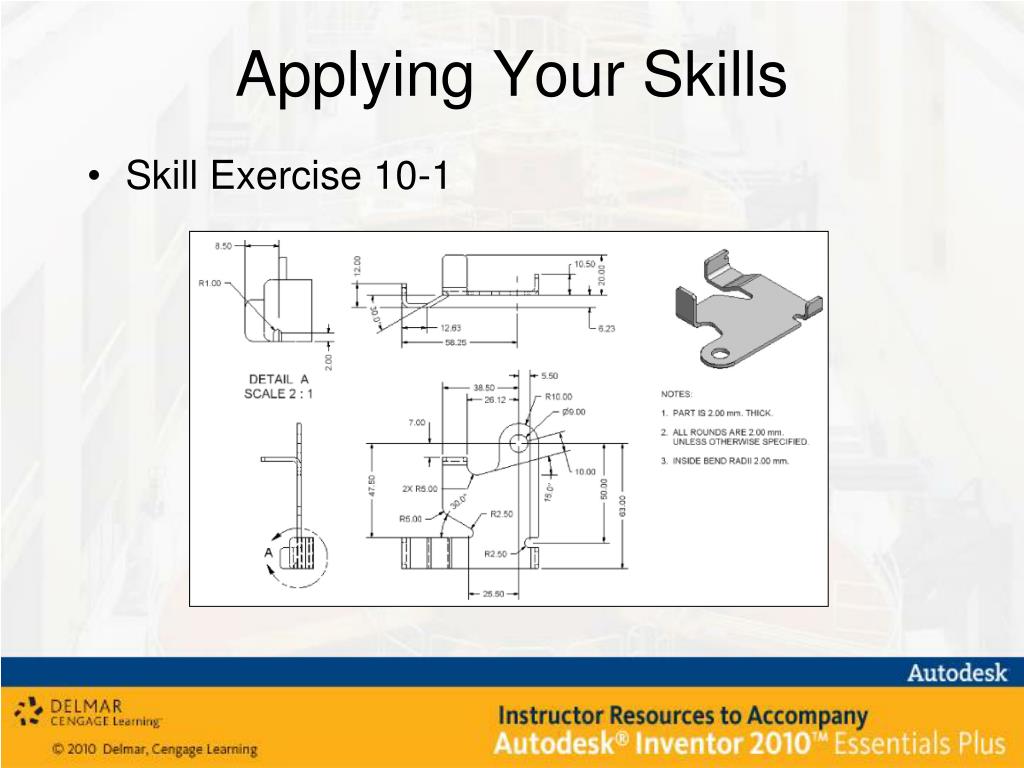

  40. Applying Your Skills • Skill Exercise 10-1

  41. Checking Your Skills • The base feature of a sheet metal part is most often a: • Revolve • Face • Extrude • Flange • What is the correct procedure to change the edges connected by a bend feature? • Suppress the existing bend, and add a new bend. • Delete the existing bend, and add a new bend. • Edit the bend, and select the new edges. • Create a corner seam between the desired faces. • Which command would you use to create a full-length rectangular face off of an existing face edge? • Flange • Extrude • Face • Bend • What action is required to update a flat pattern model? • Right-click on the flat pattern in the browser, and select Update. • Erase the existing flat pattern, and recreate it. • Create a new flat pattern drawing view. • The flat pattern is updated automatically. Continued….

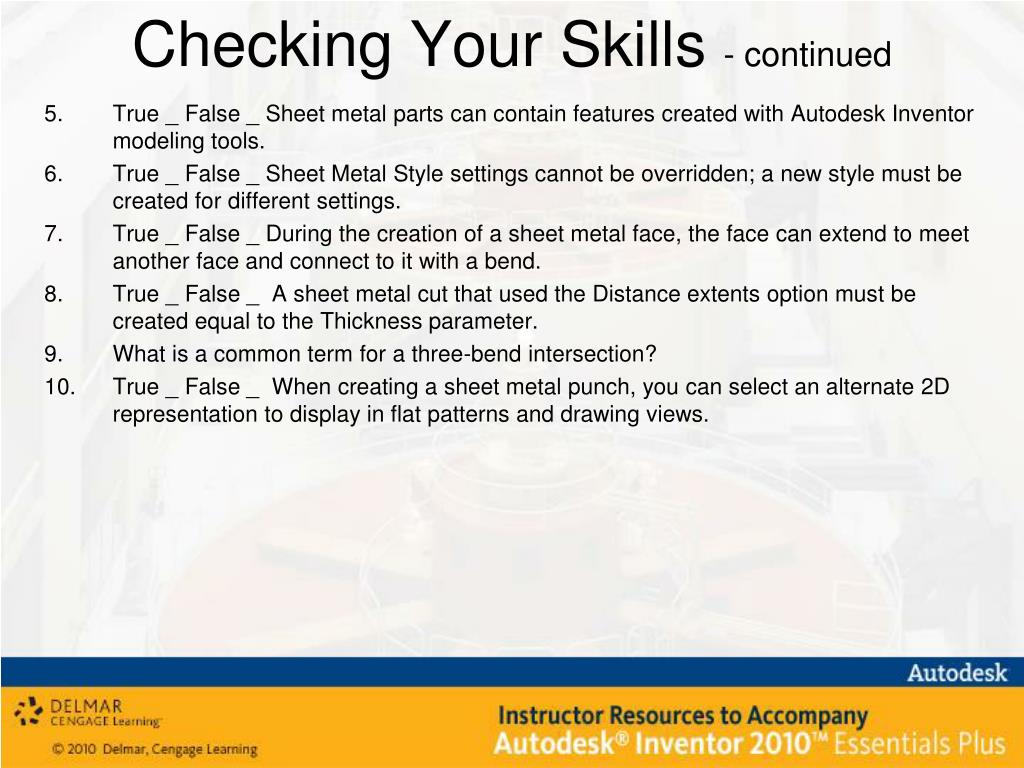

  42. Checking Your Skills - continued • True _ False _ Sheet metal parts can contain features created with Autodesk Inventor modeling tools. • True _ False _ Sheet Metal Style settings cannot be overridden; a new style must be created for different settings. • True _ False _ During the creation of a sheet metal face, the face can extend to meet another face and connect to it with a bend. • True _ False _ A sheet metal cut that used the Distance extents option must be created equal to the Thickness parameter. • What is a common term for a three-bend intersection? • True _ False _ When creating a sheet metal punch, you can select an alternate 2D representation to display in flat patterns and drawing views.
