Chapter 10Sheet Metal Design


Chapter 10 objectives l.jpg
Chapter 10 - Objectives

  • After completing this chapter, you will be able to perform the following:

    • Start the Autodesk Inventor sheet metal environment

    • Modify settings for sheet metal design

    • Create sheet metal parts

    • Modify sheet metal parts to match design requirements

    • Create sheet metal flat patterns

    • Create drawing views of sheet metal parts


Sheet metal fabrication l.jpg
Sheet Metal Fabrication

  • Sheet Metal Examples

    • Enclosures

    • Brackets

    • Structures or Frames


Sheet metal fabrication4 l.jpg
Sheet Metal Fabrication

  • Bend Tables

    • L=A+B-x Construction

      • L Unfolded Length

      • A Length of folded face 1

      • B Length of folded face 2

      • x Adjustment from bend table

  • Measurements A and B are to the intersection of the extended outer faces on either side of the bend. This intersection is used when the angle of the bend is less than or equal to 90 degrees.


Sheet metal fabrication5 l.jpg
Sheet Metal Fabrication

  • Bend Tables

    • L=A+B-x Construction

      • L Unfolded Length

      • A Length of folded face 1

      • B Length of folded face 2

      • x Adjustment from bend table

  • Use these measurements when the bend angle is greater than 90 degrees. The measurements are parallel to the face, and tangent to the outer surface of the bend. The same formula is used to determine the unfolded length of the part.


Sheet metal parts l.jpg
Sheet Metal Parts

  • Sheet Metal Design Methods

    • Folded State

    • Flat State

    • Disjointed Solids

    • Shelled Parts


Sheet metal parts7 l.jpg
Sheet Metal Parts

  • Sheet Metal Part Template(s)

  • Convert part to Sheet Metal part

    • Model tab

    • or Environment tab


Sheet metal tools l.jpg
Sheet Metal Tools

  • Sheet Metal Rules

    • Click the Sheet Metal tab > Setup panel

    • Sheet metal specific parameters driven by rules


Sheet metal tools9 l.jpg
Sheet Metal Tools

  • Sheet Metal Styles

    • Bend Tab


Sheet metal tools10 l.jpg
Sheet Metal Tools

  • Sheet Metal Styles

    • Bend Transitions

    • Controls the intersection of edges across a bend in the flattened sheet.


Sheet metal tools11 l.jpg
Sheet Metal Tools

  • Sheet Metal Styles

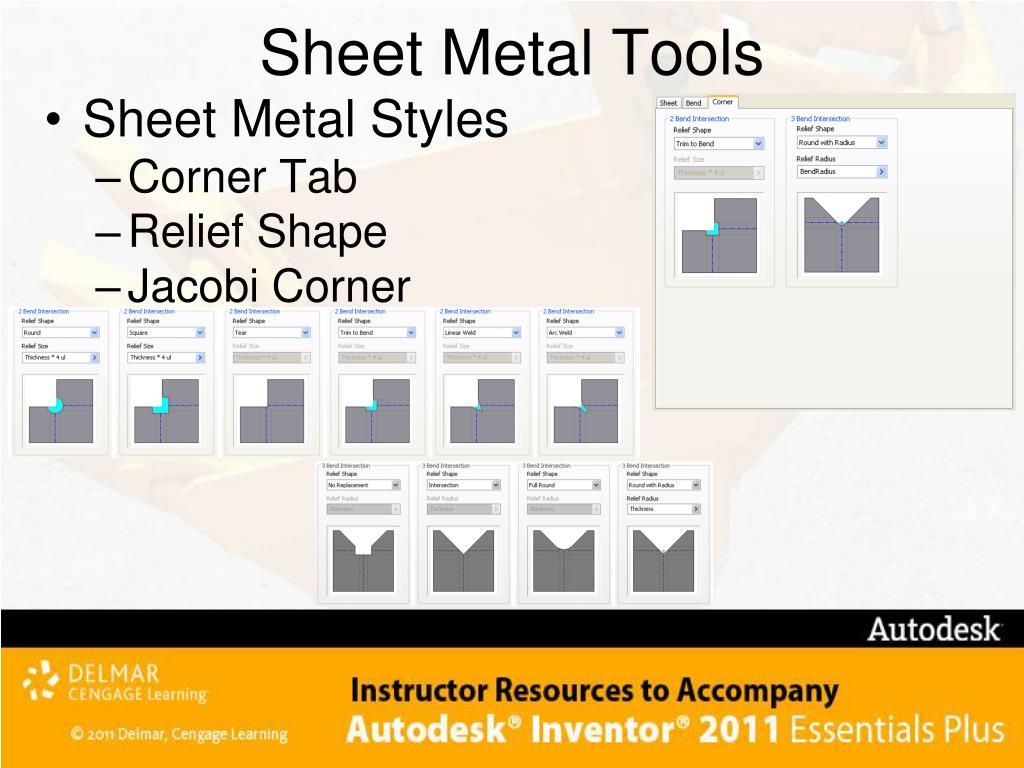

    • Corner Tab

    • Relief Shape

    • Jacobi Corner


Sheet metal tools12 l.jpg
Sheet Metal Tools

  • Sheet Metal Unfold Method

    • Linear – KFactor Value

    • Bend Table


Custom equation method l.jpg
Custom Equation Method

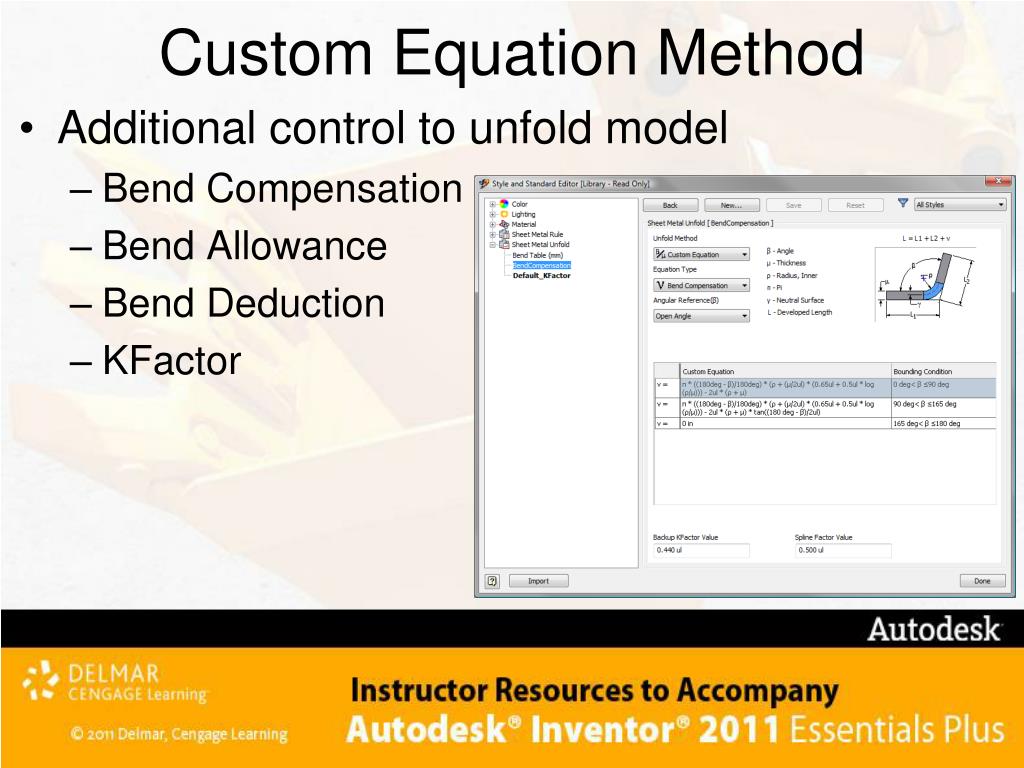

  • Additional control to unfold model

    • Bend Compensation

    • Bend Allowance

    • Bend Deduction

    • KFactor


Sheet metal tools14 l.jpg
Sheet Metal Tools

  • Sheet Metal Defaults

    • After you define sheet metal rules

    • Use the Sheet Metal Defaults tool to select the rule that is active for the sheet metal part


Sheet metal tools15 l.jpg
Sheet Metal Tools

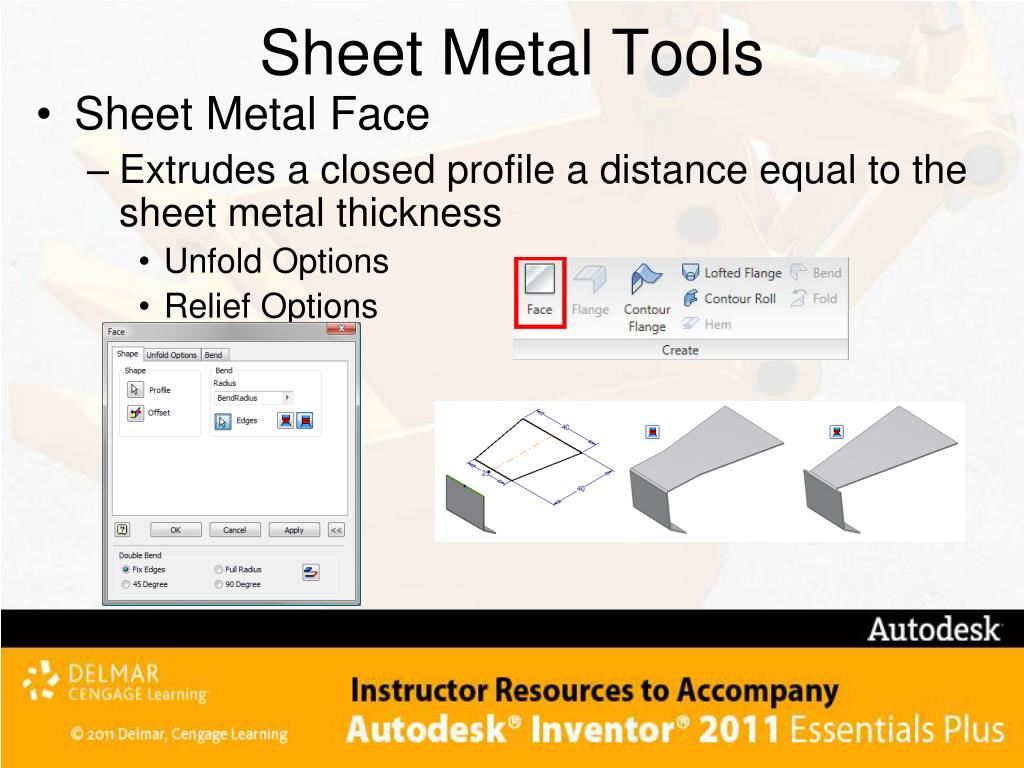

  • Sheet Metal Face

    • Extrudes a closed profile a distance equal to the sheet metal thickness

      • Unfold Options

      • Relief Options


Sheet metal tools16 l.jpg
Sheet Metal Tools

  • Contour Flange

    • Created from an open sketch profile

      • Bends are added at sharp intersections


Sheet metal tools17 l.jpg
Sheet Metal Tools

  • Flange

    • Creates a sheet metal face and bend to an existing face

    • Extends the full length of the selected edge

    • Corner Edits – click glyph in corner


Exercise 10 1 l.jpg
Exercise 10-1

  • Creating Sheet Metal Parts


Contour roll l.jpg

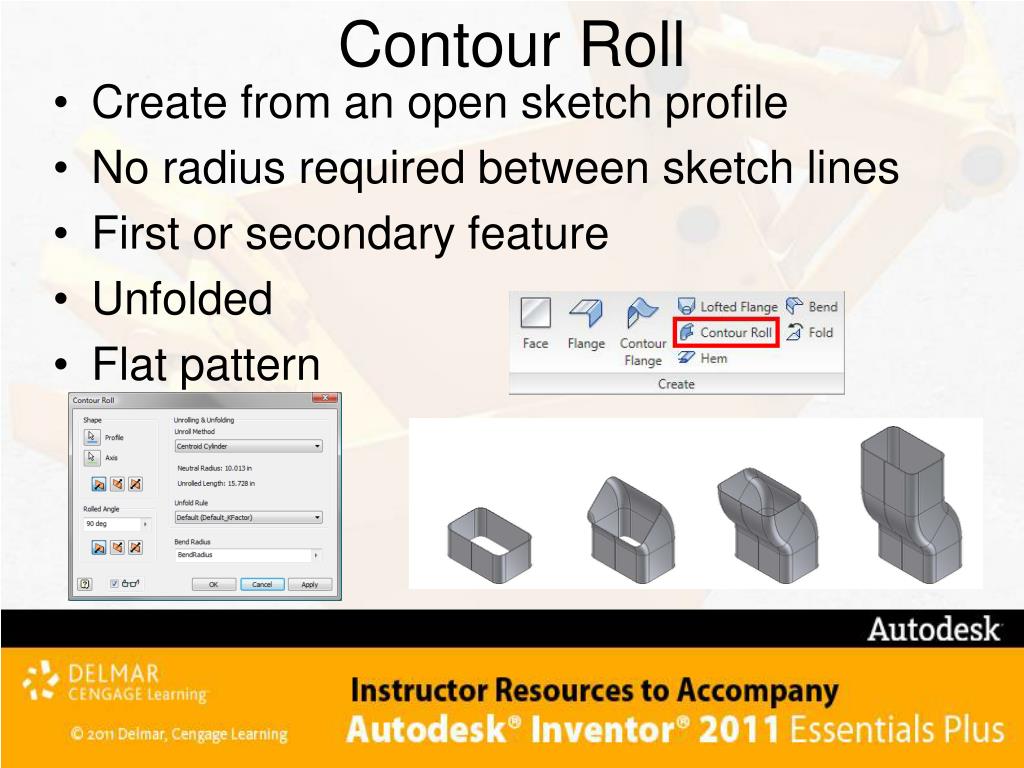

Contour Roll

  • Create from an open sketch profile

  • No radius required between sketch lines

  • First or secondary feature

  • Unfolded

  • Flat pattern


Lofted flange l.jpg
Lofted Flange

  • Create transitions from one shape to another

  • Two sketches

  • Output

    • Die form

    • Press break


Slide21 l.jpg

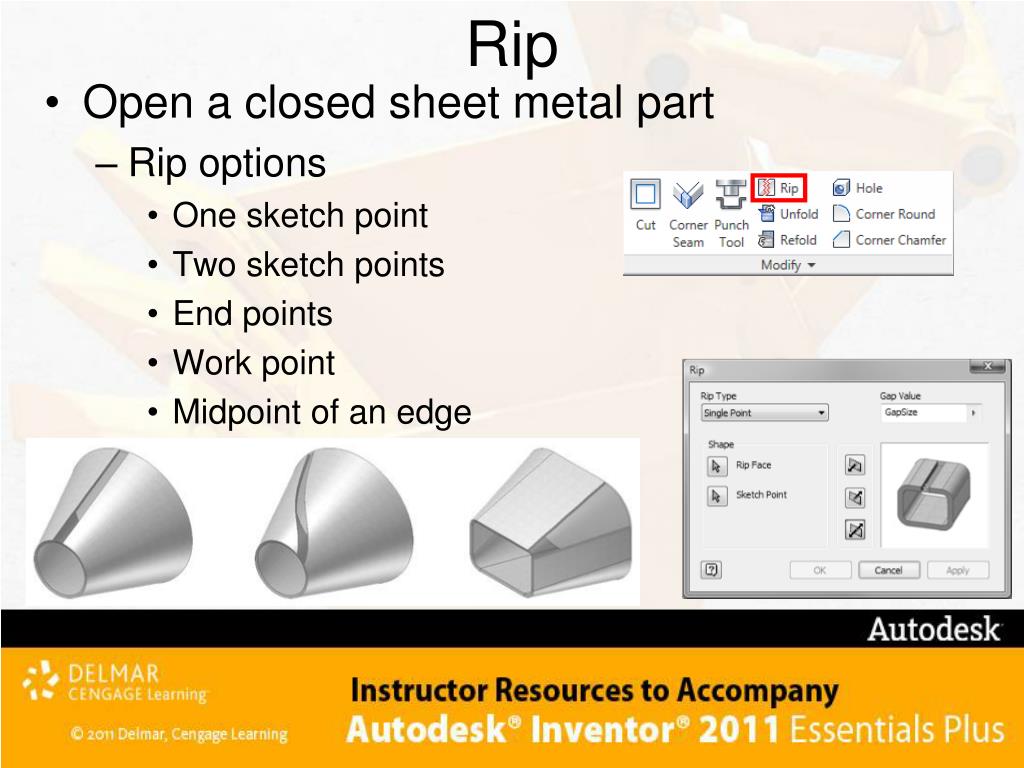

Rip

  • Open a closed sheet metal part

    • Rip options

      • One sketch point

      • Two sketch points

      • End points

      • Work point

      • Midpoint of an edge


Exercise 10 2 l.jpg
Exercise 10-2

  • Lofted Flanges, Contour Roll, and Rips


Sheet metal tools23 l.jpg
Sheet Metal Tools

  • Hem

    • Eliminate sharp edges

    • Strengthen an open edge of a face

    • Material is folded back over a face with a small gap



Sheet metal tools25 l.jpg
Sheet Metal Tools

  • Fold

    • Turns a flat pattern into a folded model

    • Add folds at sketched lines


Sheet metal tools26 l.jpg
Sheet Metal Tools

  • Bend

    • Child objects of other features

      • When two faced connect

    • Connect disjointed face


Exercise 10 4 l.jpg
Exercise 10-4

  • Modifying Sheet Metal Parts


Sheet metal tools28 l.jpg
Sheet Metal Tools

  • Cut

    • Sheet Metal tab > Modify panel > Cut

      • Distance of the cut is equal to the Thickness parameter

    • Project Flat Pattern

      • Cut Across Bend

      • Define Distance


Sheet metal tools29 l.jpg
Sheet Metal Tools

  • Unfold/Refold

    • Unfold selected or all bends

    • Add feature

    • Refold selected or all bends


Exercise 10 5 l.jpg
Exercise 10-5

  • Cut Across Bend


Sheet metal tools31 l.jpg
Sheet Metal Tools

  • Corner Seam

    • Created when three faces meet

    • Create mitered gaps between coplanar faces


Sheet metal tools32 l.jpg
Sheet Metal Tools

  • Corner Round

    • Sheet Metal specific Fillet tool

  • Corner Chamfer

    – Sheet Metal specific Chamfer tool


Sheet metal tools33 l.jpg
Sheet Metal Tools

  • Create Punch

    • iFeature

      • Center Point

      • Parameters

      • Punch ID

      • Custom Depth

      • Simplified Sketch


Sheet metal tools34 l.jpg
Sheet Metal Tools

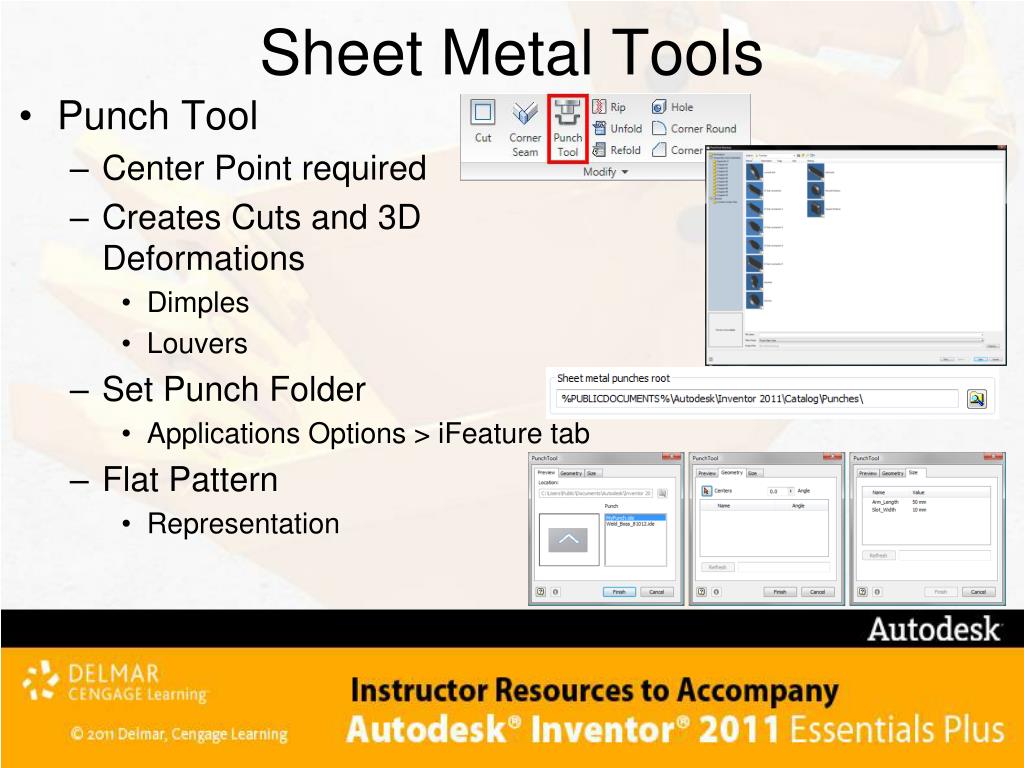

  • Punch Tool

    • Center Point required

    • Creates Cuts and 3D Deformations

      • Dimples

      • Louvers

    • Set Punch Folder

      • Applications Options > iFeature tab

    • Flat Pattern

      • Representation


Exercise 10 6 l.jpg
Exercise 10-6

  • Punch Tool


Sheet metal tools36 l.jpg
Sheet Metal Tools

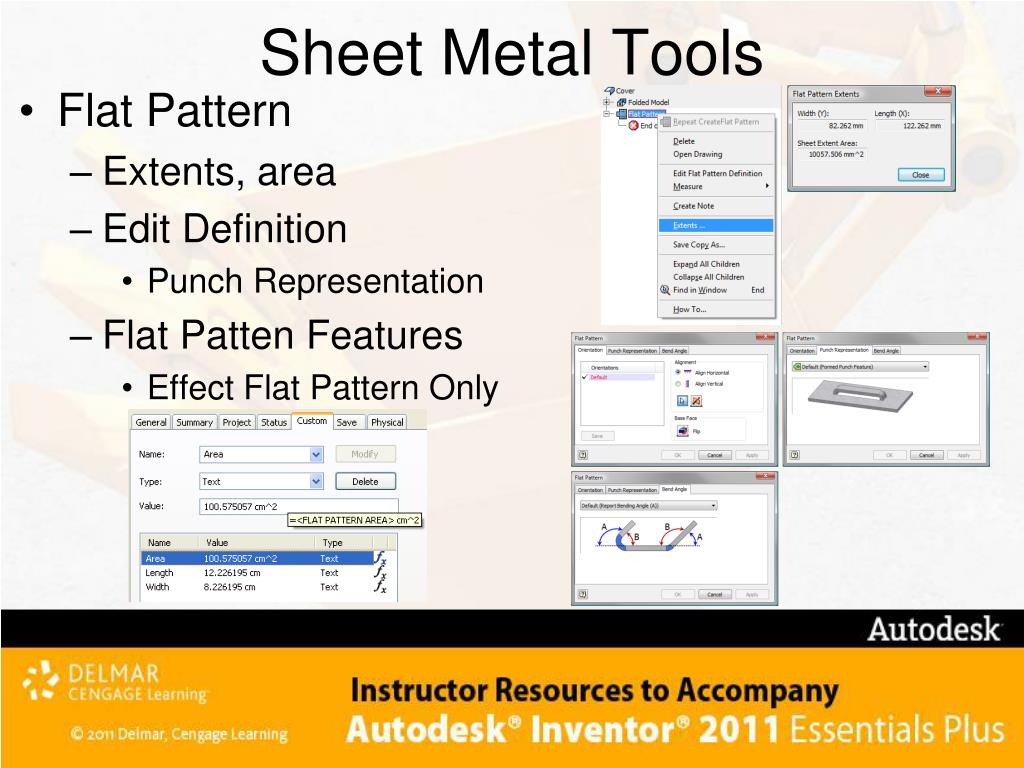

  • Flat Pattern

    • Represents the starting point for sheet metal part manufacturing

    • Creates a 3D model of the unfolded part

      • Displayed in a 2D drawing view

      • Flat Pattern – Browser

      • Flat Pattern – Extents, area


Sheet metal tools37 l.jpg
Sheet Metal Tools

  • Flat Pattern

    • Extents, area

    • Edit Definition

      • Punch Representation

    • Flat Patten Features

      • Effect Flat Pattern Only


Sheet metal tools38 l.jpg
Sheet Metal Tools

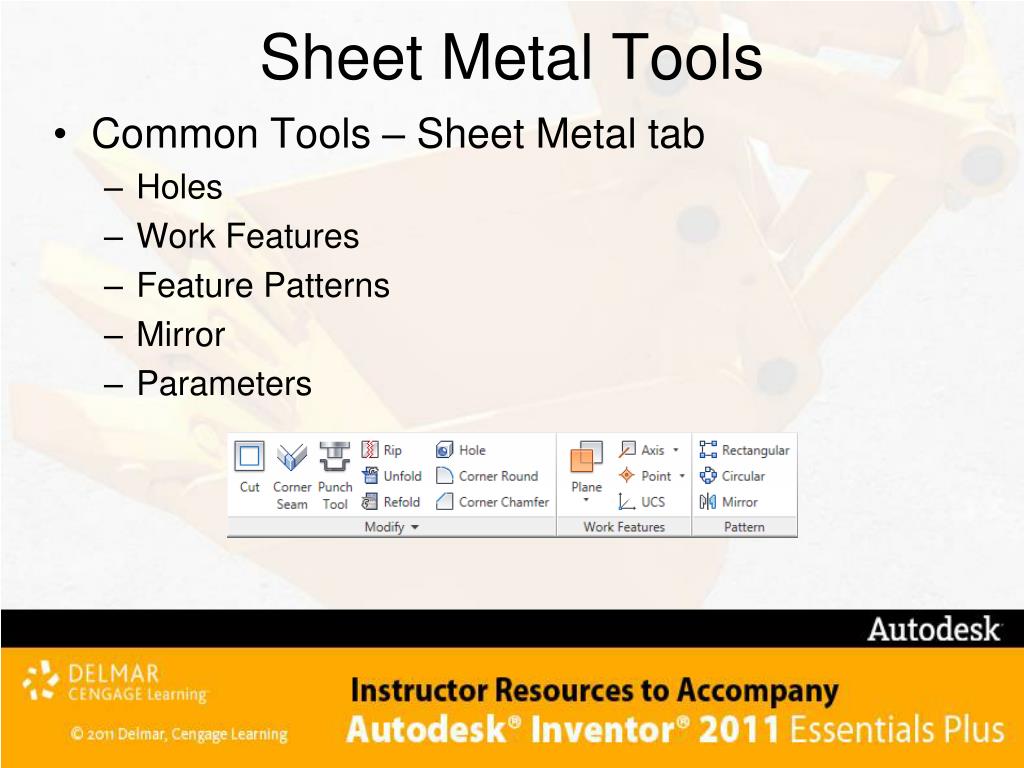

  • Common Tools – Sheet Metal tab

    • Holes

    • Work Features

    • Feature Patterns

    • Mirror

    • Parameters


Detailing sheet metal designs l.jpg
Detailing Sheet Metal Designs

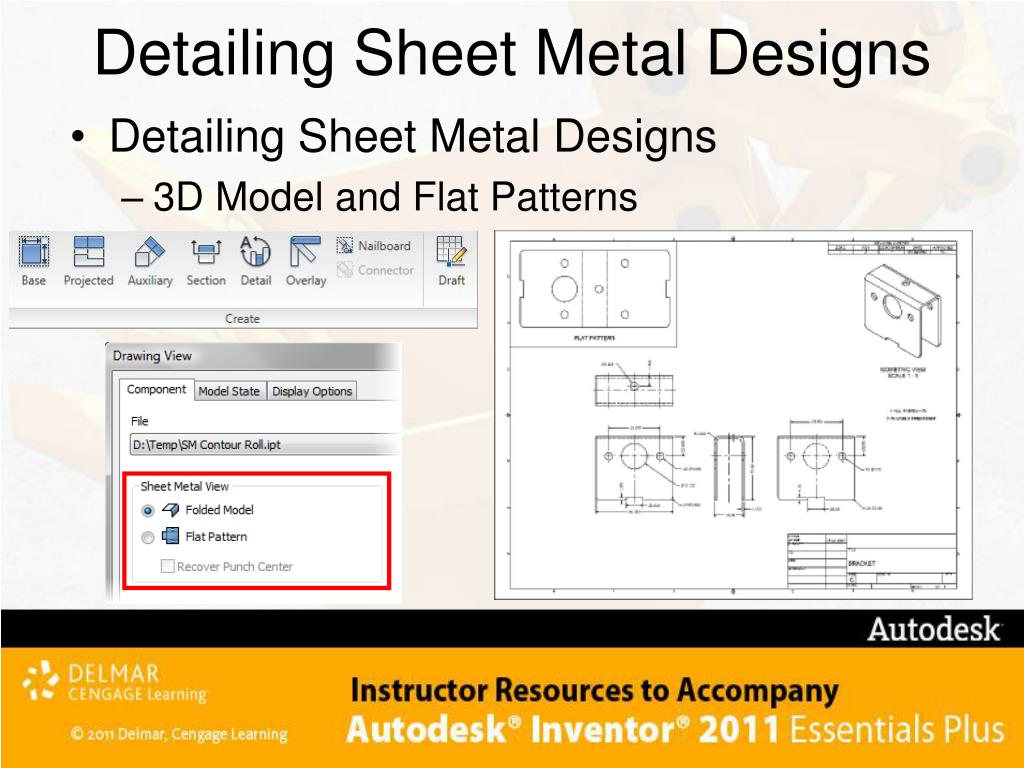

  • Detailing Sheet Metal Designs

    • 3D Model and Flat Patterns


Exercise 10 7 l.jpg
Exercise 10-7

  • Documenting Sheet Metal Designs


Applying your skills l.jpg
Applying Your Skills

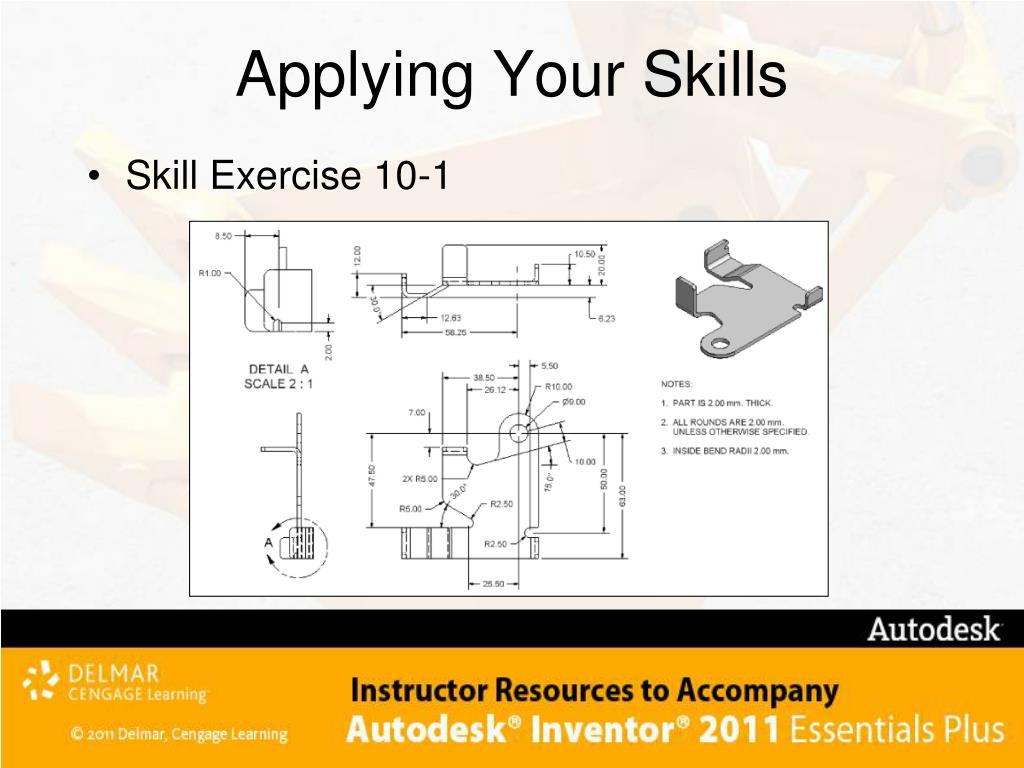

  • Skill Exercise 10-1


Checking your skills l.jpg
Checking Your Skills

  • The base feature of a sheet metal part is most often a:

    • Revolve

    • Face

    • Extrude

    • Flange

  • What is the correct procedure to change the edges connected by a bend feature?

    • Suppress the existing bend, and add a new bend.

    • Delete the existing bend, and add a new bend.

    • Edit the bend, and select the new edges.

    • Create a corner seam between the desired faces.

  • Which command would you use to create a full-length rectangular face off of an existing face edge?

    • Flange

    • Extrude

    • Face

    • Bend

  • What action is required to update a flat pattern model?

    • Right-click on the flat pattern in the browser, and select Update.

    • Erase the existing flat pattern, and recreate it.

    • Create a new flat pattern drawing view.

    • The flat pattern is updated automatically.

      Continued….


  • Checking your skills continued l.jpg
    Checking Your Skills - continued

    • True__ False__ Sheet metal parts can contain features created with Autodesk Inventor modeling tools.

    • True__ False__ Sheet Metal Style settings cannot be overridden; a new style must be created for different settings.

    • True__ False__ During the creation of a sheet metal face, the face can extend to meet another face and connect to it with a bend.

    • True__ False__ A sheet metal cut that used the Distance extents option must be created equal to the Thickness parameter.

    • What is a common term for a three-bend intersection?

    • True__ False__ When creating a sheet metal punch, you can select an alternate 2D representation to display in flat patterns and drawing views.
