earth slope stability analysis part ii

Earth Slope Stability Analysis – Part II

M. Zoghi, Ph.D., P.E.

Department of Civil & Environmental Engineering

Idaho State University

Fall 2008

slide2

Outline

Review

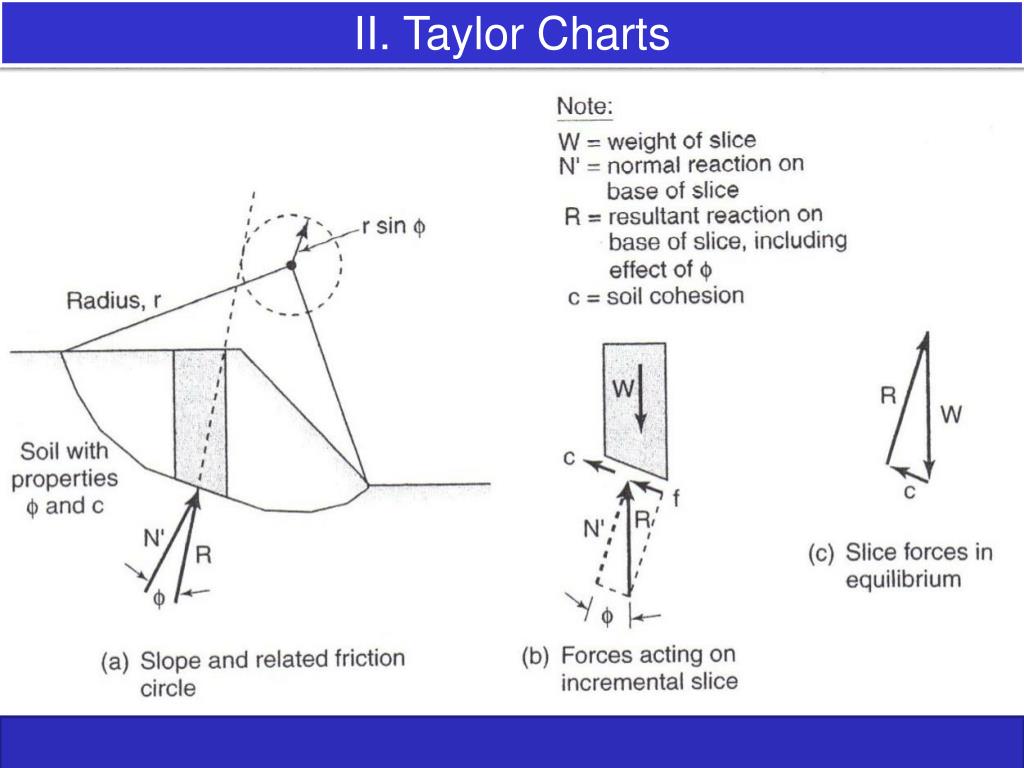

Taylor Charts

Bishop – Morganstern Charts

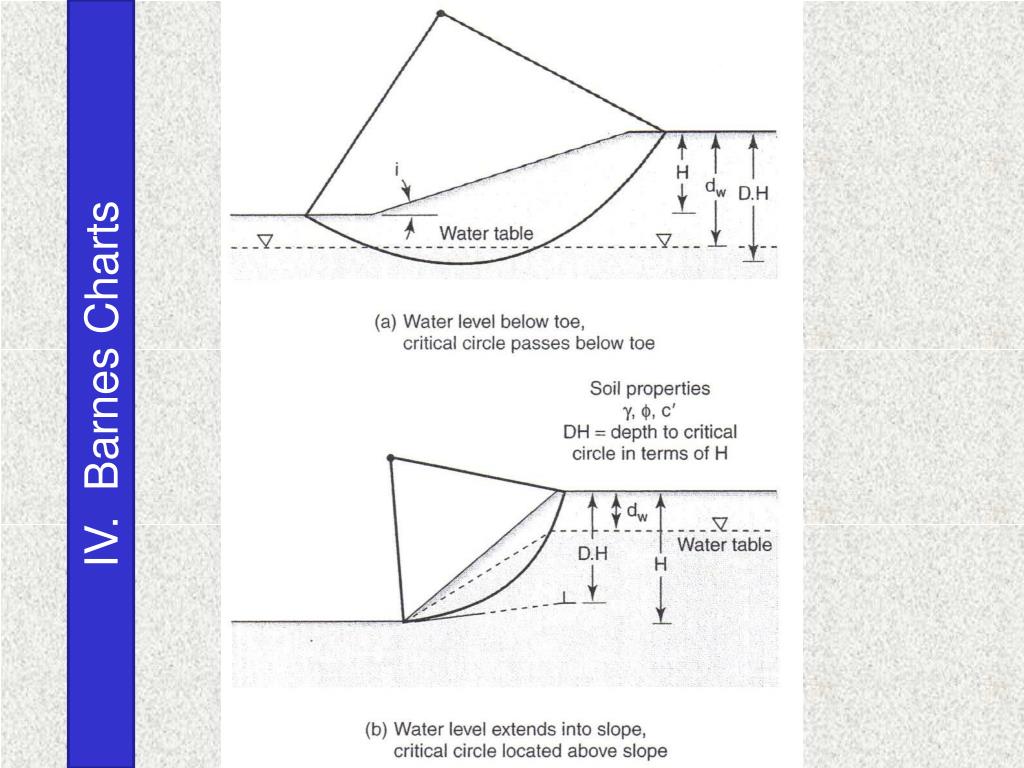

Barnes Charts

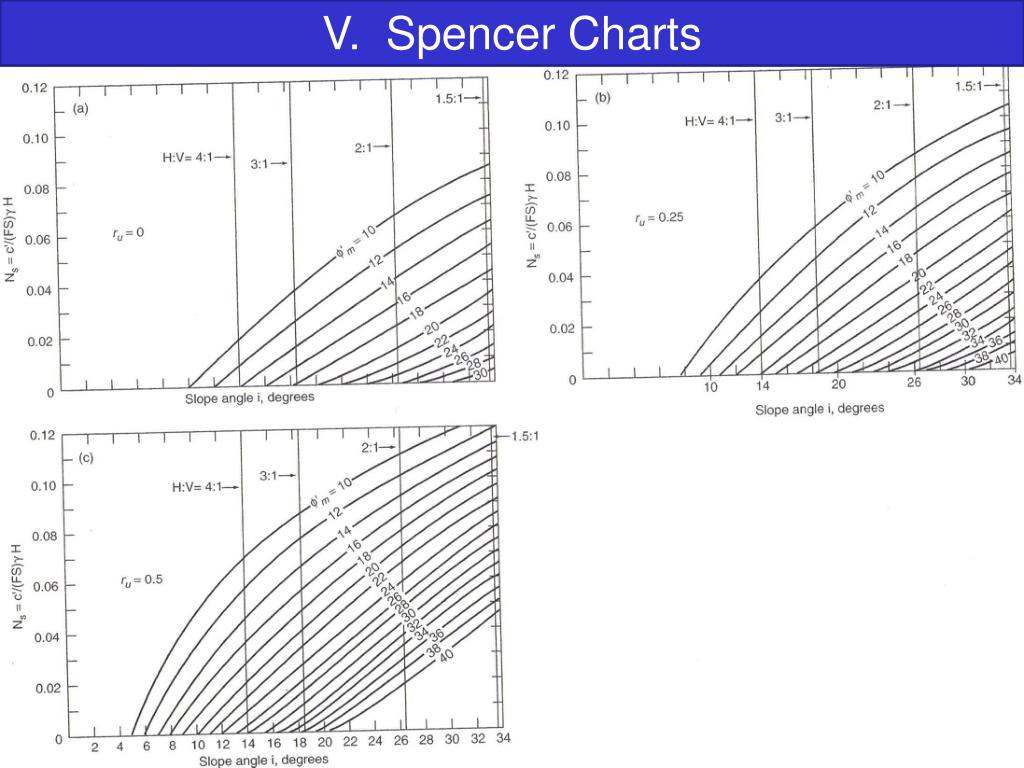

Spencer Charts

Morgansern Charts for Rapid Drawdown

Stabilization Techniques

Examples

slide21

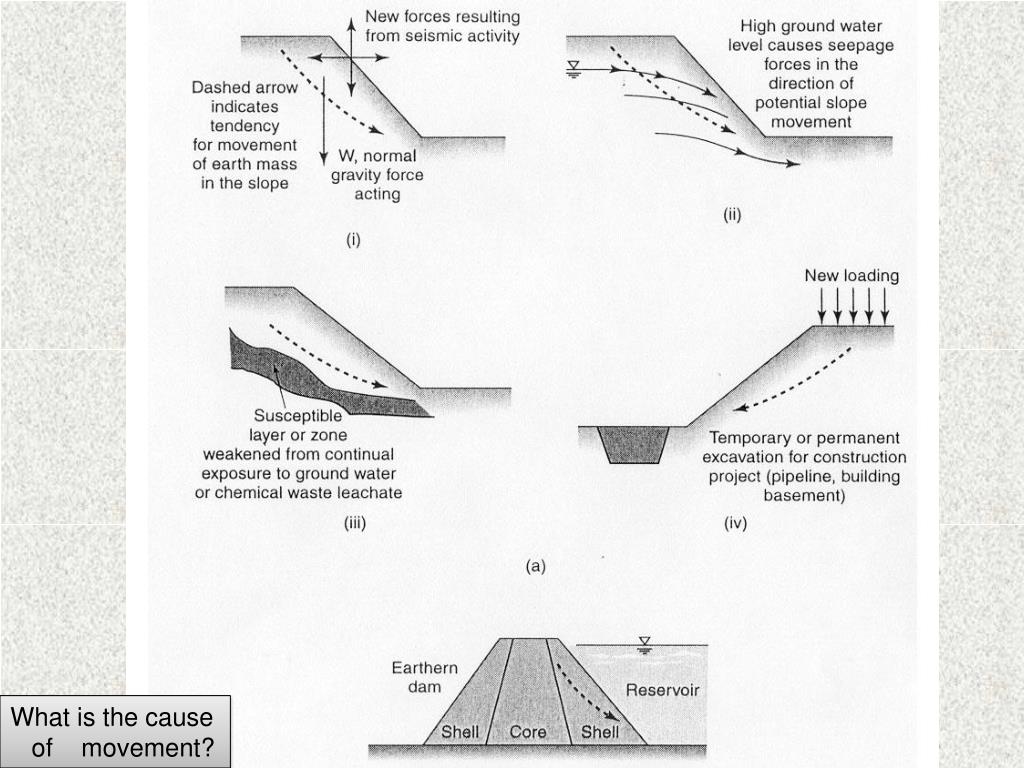

What is the cause

of movement?

monitoring techniques
Monitoring Techniques

Where is the location of slip surface?

stabilization methods

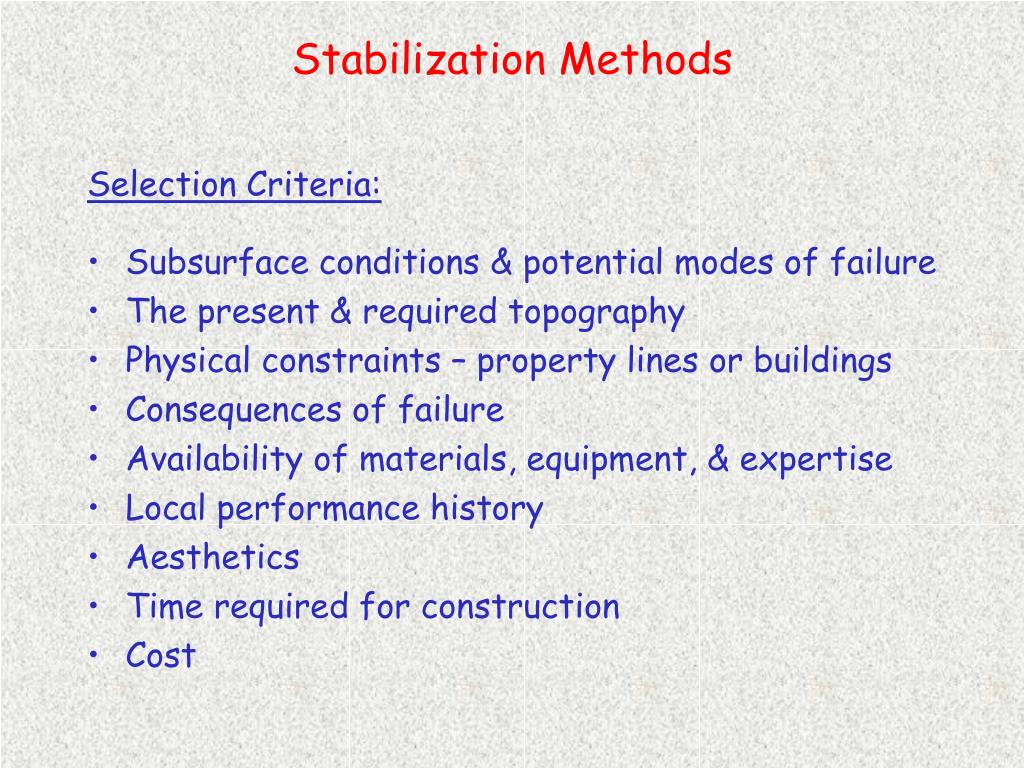

Stabilization Methods

Selection Criteria:

  • Subsurface conditions & potential modes of failure
  • The present & required topography
  • Physical constraints – property lines or buildings
  • Consequences of failure
  • Availability of materials, equipment, & expertise
  • Local performance history
  • Aesthetics
  • Time required for construction
  • Cost
drainage of slopes

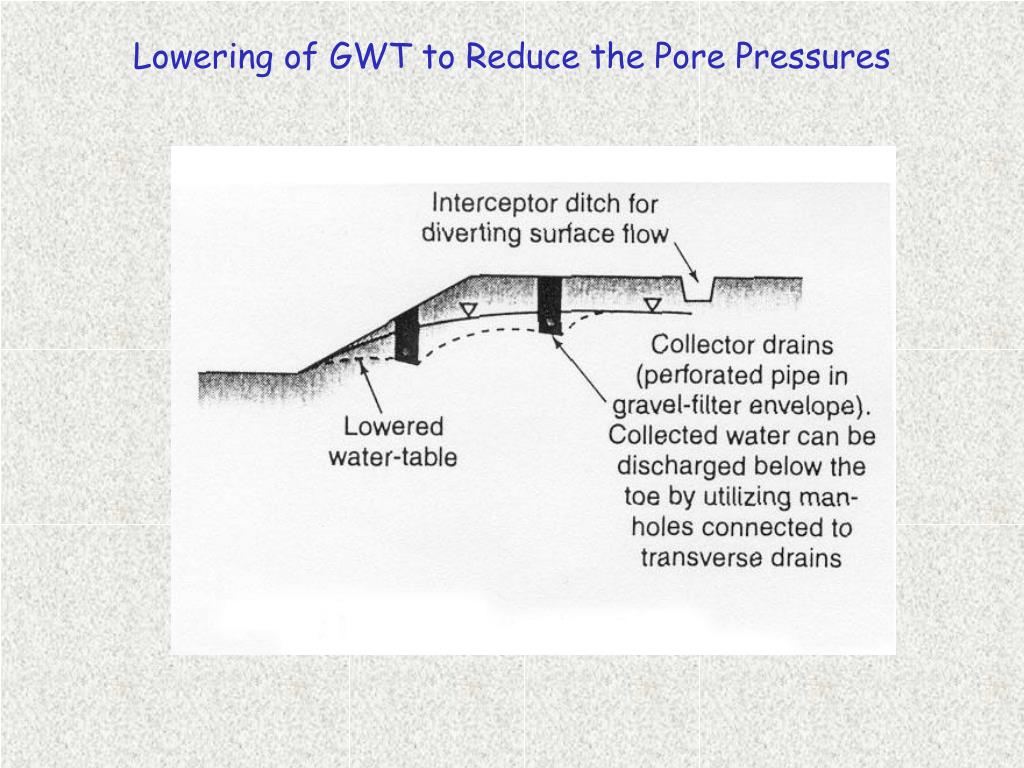

Drainage of Slopes

Drains are added to stabilize slopes
