a convex polynomial that is not sos convex

A Convex Polynomial that is not SOS-Convex

Amir Ali Ahmadi

Pablo A. Parrilo

Laboratory for Information and Decision SystemsMassachusetts Institute of Technology

FRG: Semidefinite Optimization and Convex Algebraic Geometry

May 2009 - MIT

deciding convexity

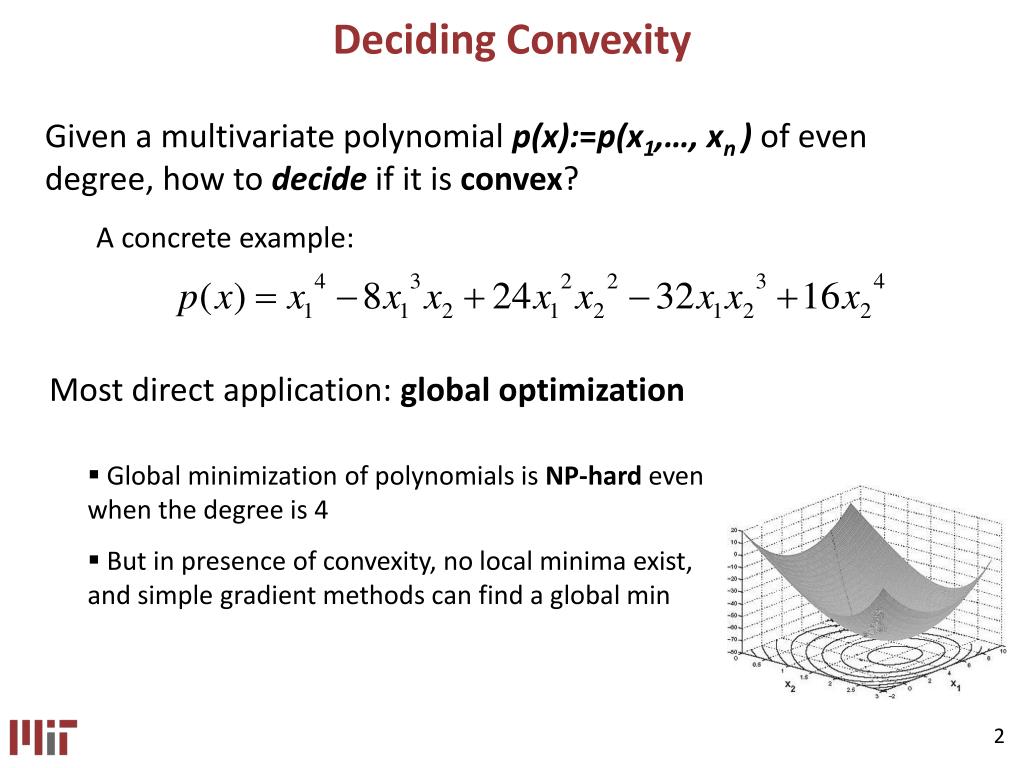

Deciding Convexity

Given a multivariate polynomial p(x):=p(x1,…, xn ) of even degree, how to decide if it is convex?

A concrete example:

Most direct application: global optimization

  • Global minimization of polynomials is NP-hard even when the degree is 4
  • But in presence of convexity, no local minima exist, and simple gradient methods can find a global min
other applications
Other Applications

In many problems, we would like to parameterize a family of convex polynomials that perhaps:

  • serve as a convex envelope to a non-convex function
  • approximate a more complicated function
  • fit data samples with “small” error

To address these questions, we need an understanding of the algebraic structure of the set of convex polynomials

[Magnani, Lall, Boyd]

convexity and the second derivative

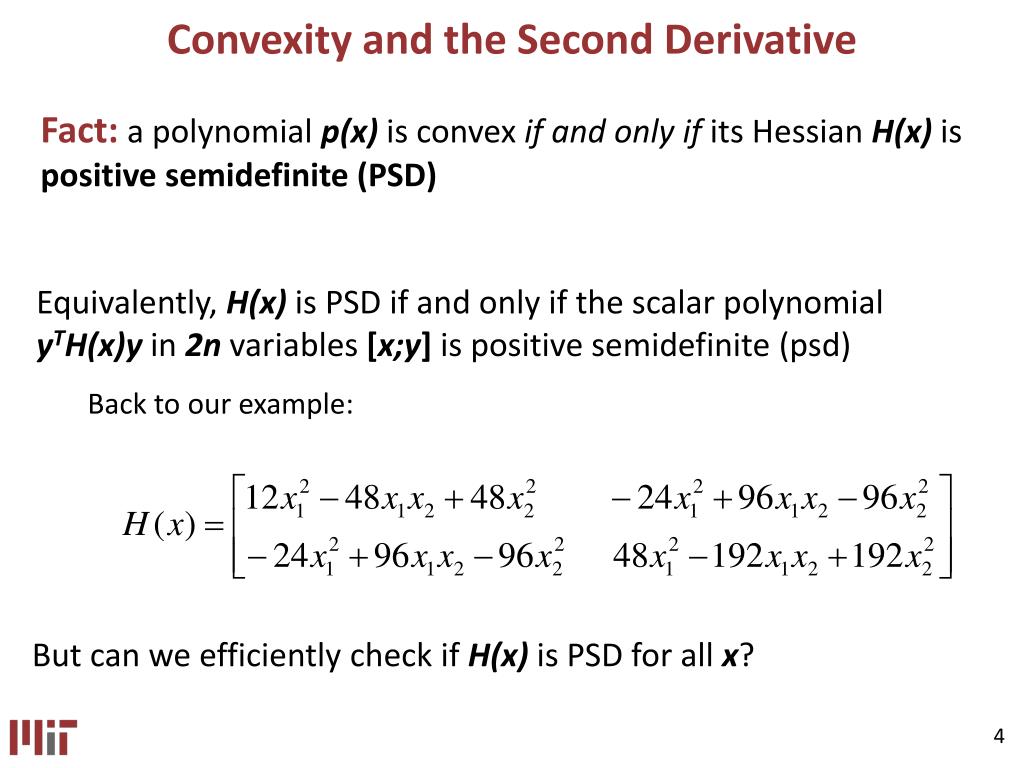

Convexity and the Second Derivative

Fact: a polynomial p(x) is convex if and only if its Hessian H(x) is positive semidefinite (PSD)

Equivalently, H(x) is PSD if and only if the scalar polynomial yTH(x)y in 2n variables [x;y] is positive semidefinite (psd)

Back to our example:

But can we efficiently check if H(x) is PSD for all x?

complexity of deciding convexity

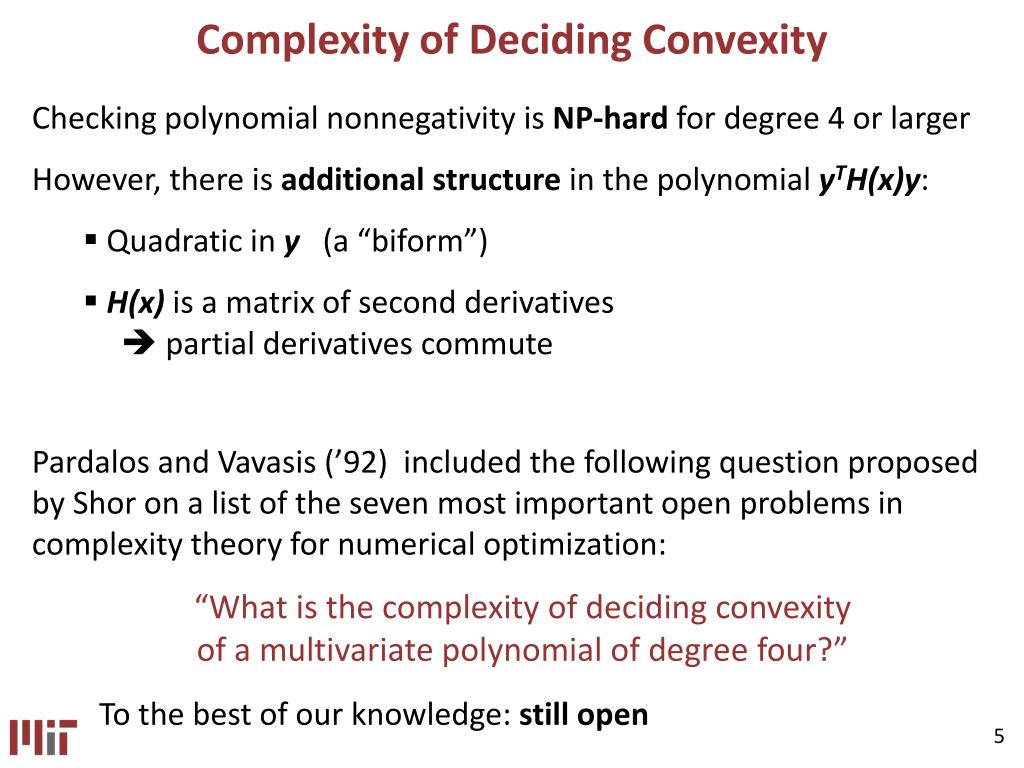

Complexity of Deciding Convexity

Checking polynomial nonnegativity is NP-hard for degree 4 or larger

However, there is additional structure in the polynomial yTH(x)y:

  • Quadratic in y (a “biform”)
  • H(x) is a matrix of second derivatives partial derivatives commute

Pardalos and Vavasis (’92) included the following question proposed by Shor on a list of the seven most important open problems in complexity theory for numerical optimization:

“What is the complexity of deciding convexity of a multivariate polynomial of degree four?”

To the best of our knowledge: still open

sos convexity

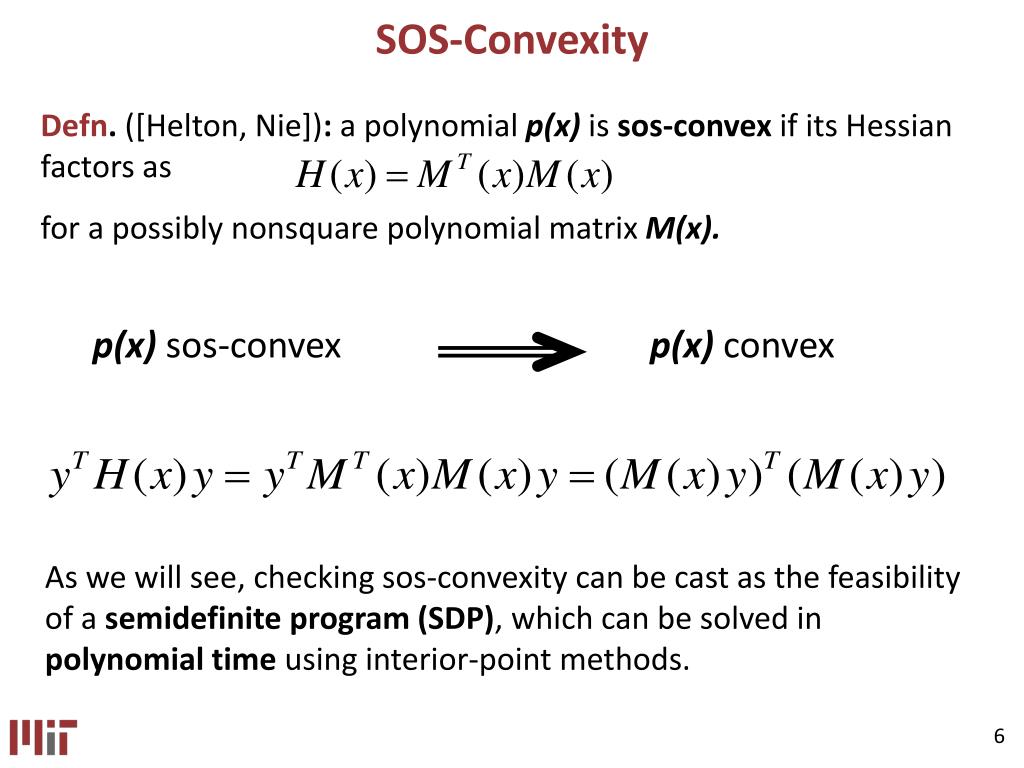

Defn. ([Helton, Nie]): a polynomial p(x) is sos-convex if its Hessian factors as

for a possibly nonsquare polynomial matrix M(x).

As we will see, checking sos-convexity can be cast as the feasibility of a semidefinite program (SDP), which can be solved in polynomial time using interior-point methods.

sos convexity ctnd

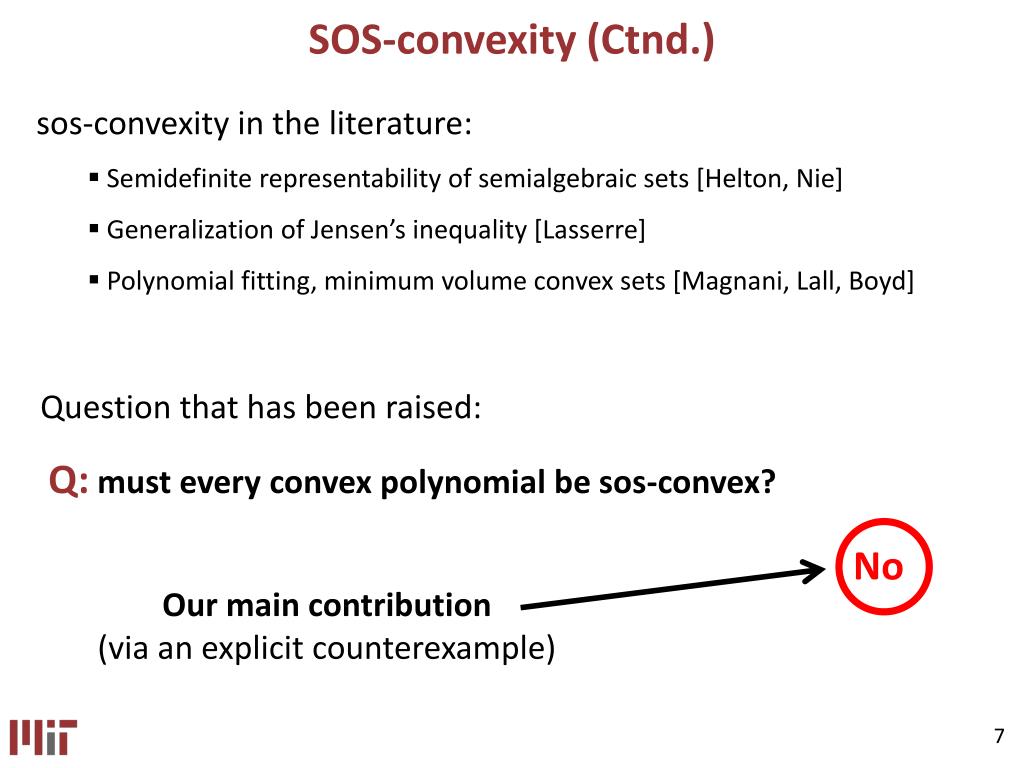

SOS-convexity (Ctnd.)


Our main contribution(via an explicit counterexample)

sos-convexity in the literature:

  • Semidefinite representability of semialgebraic sets [Helton, Nie]
  • Generalization of Jensen’s inequality [Lasserre]
  • Polynomial fitting, minimum volume convex sets [Magnani, Lall, Boyd]

Question that has been raised:

Q: must every convex polynomial be sos-convex?

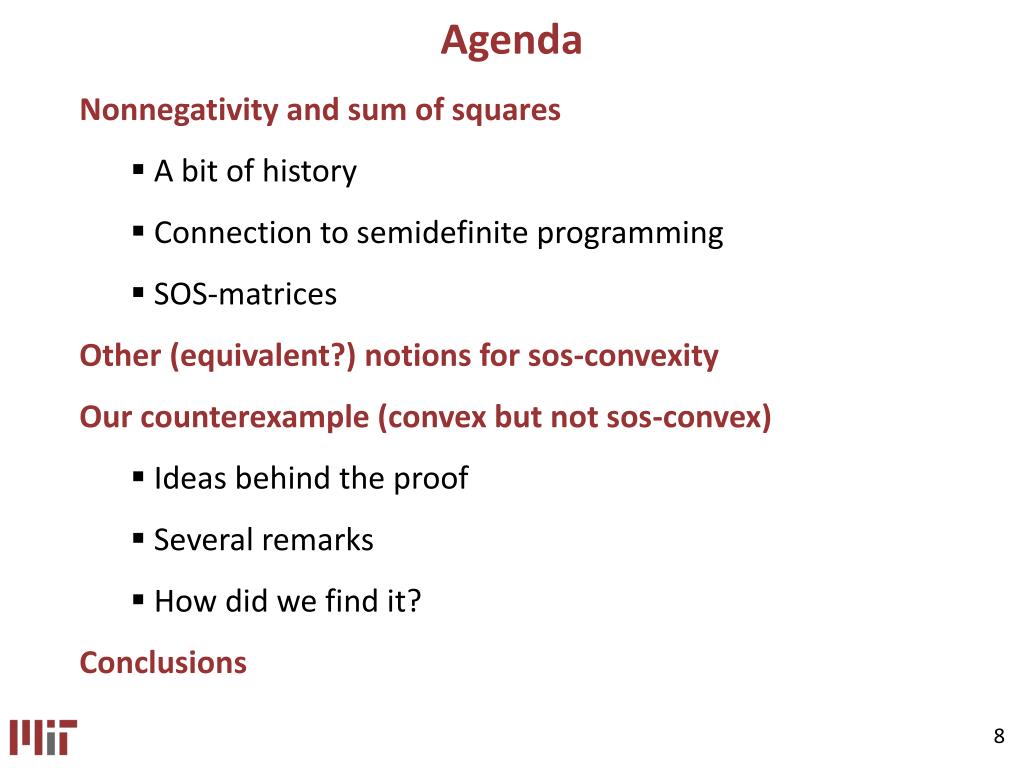

  • Nonnegativity and sum of squares
    • A bit of history
    • Connection to semidefinite programming
    • SOS-matrices

Other (equivalent?) notions for sos-convexity

Our counterexample (convex but not sos-convex)

    • Ideas behind the proof
    • Several remarks
    • How did we find it?


nonnegative and sum of squares polynomials
Nonnegative and Sum of Squares Polynomials

Defn.Apolynomial p(x) is nonnegative or positive semidefinite (psd) if

Defn.Apolynomial p(x) is a sum of squares (sos) if there exist some other polynomials q1(x),…, qm(x) such that

  • p(x) sos  p(x) psd (obvious)
  • When is the converse true?
hilbert s 1888 paper
Hilbert’s 1888 Paper

In 1888, Hilbert proved that a nonnegativepolynomial p(x) of degree d in n variables must be sosonly in the following cases:

  • n=1(univariate polynomials of any degree)
  • d=2(quadratic polynomials in any number of variables)
  • n=2 andd=4(bivariate quartics)

In all other cases, there are polynomials that are psd but not sos

the celebrated example of motzkin

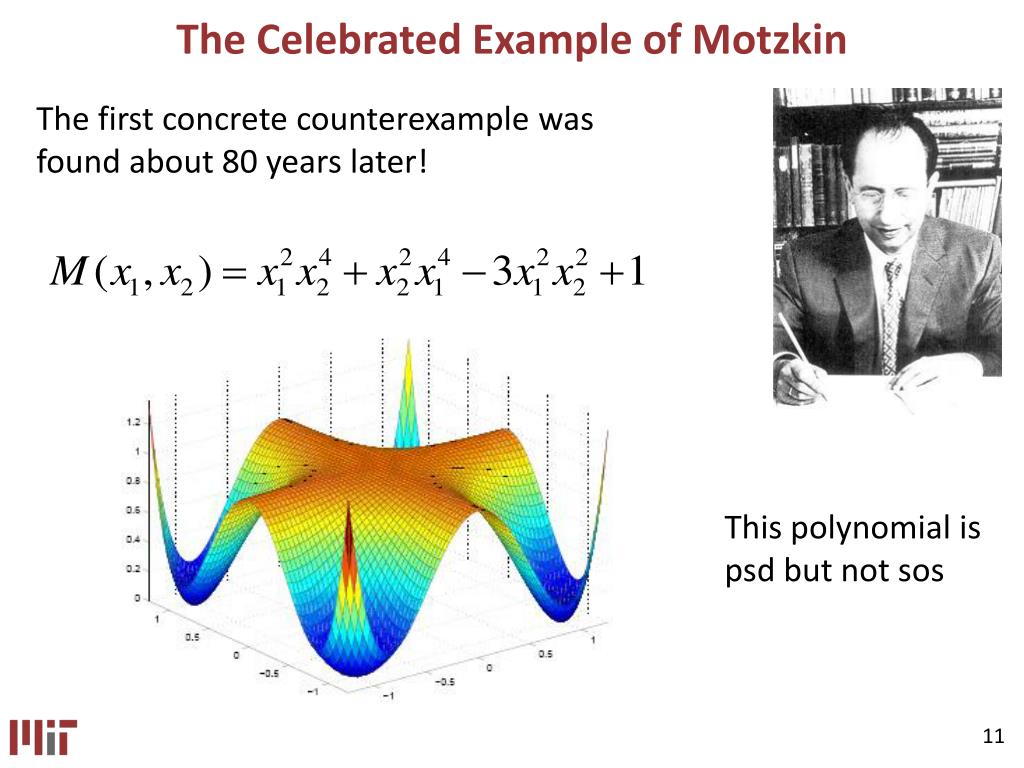

The Celebrated Example of Motzkin

The first concrete counterexample was found about 80 years later!

This polynomial is psd but not sos

sum of squares and semidefinite programming

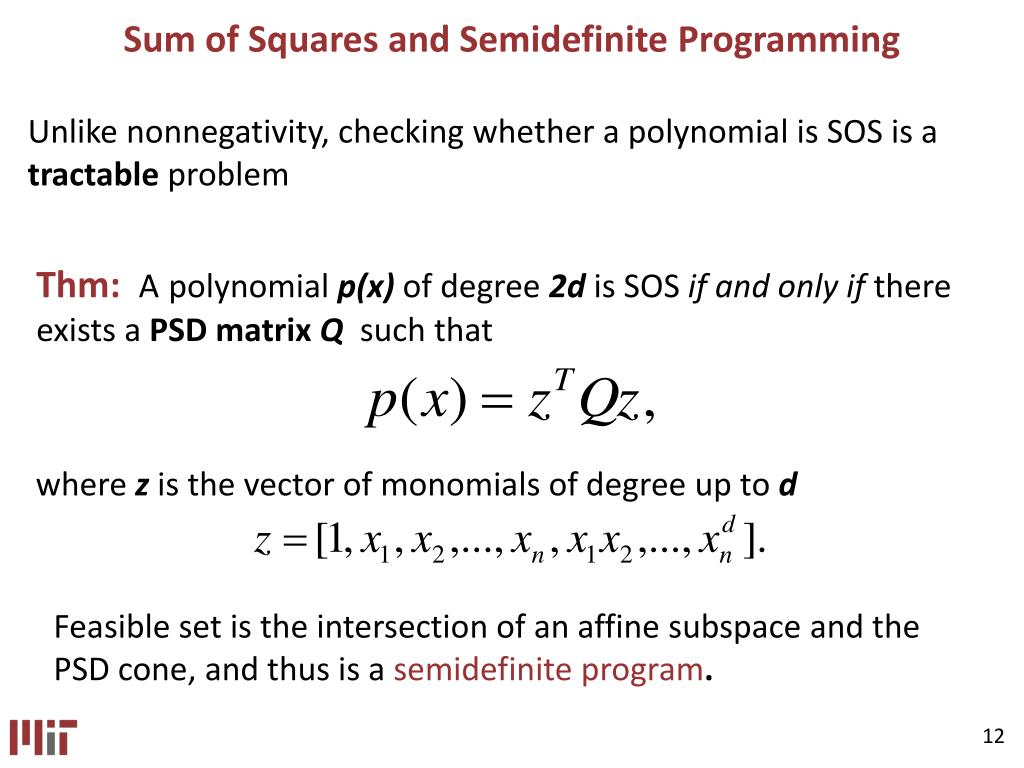

Sum of Squares and Semidefinite Programming

Unlike nonnegativity, checking whether a polynomial is SOS is a tractable problem

Thm:Apolynomial p(x) of degree 2d is SOS if and only if there exists a PSD matrixQ such that

where z is the vector of monomials of degree up to d

Feasible set is the intersection of an affine subspace and the PSD cone, and thus is a semidefinite program.

sos matrices

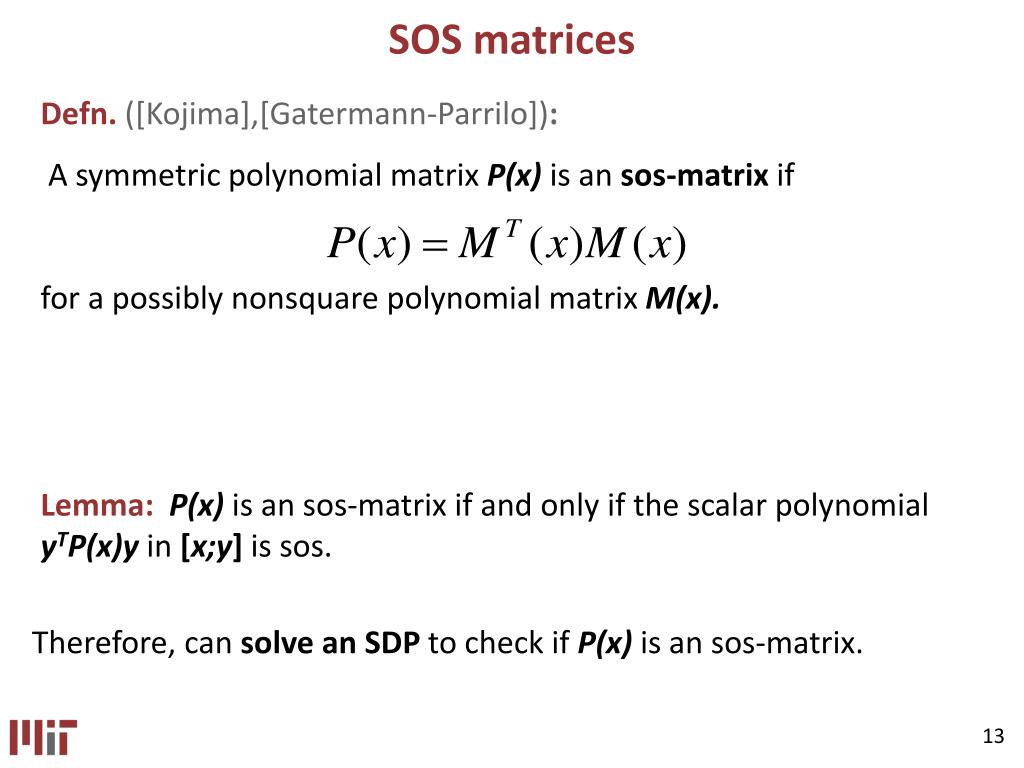

SOS matrices


A symmetric polynomial matrix P(x) is an sos-matrix if

for a possibly nonsquare polynomial matrix M(x).

Lemma:P(x) is an sos-matrix if and only if the scalar polynomial yTP(x)y in [x;y] is sos.

Therefore, can solve an SDP to check if P(x) is an sos-matrix.

psd matrices may not be sos

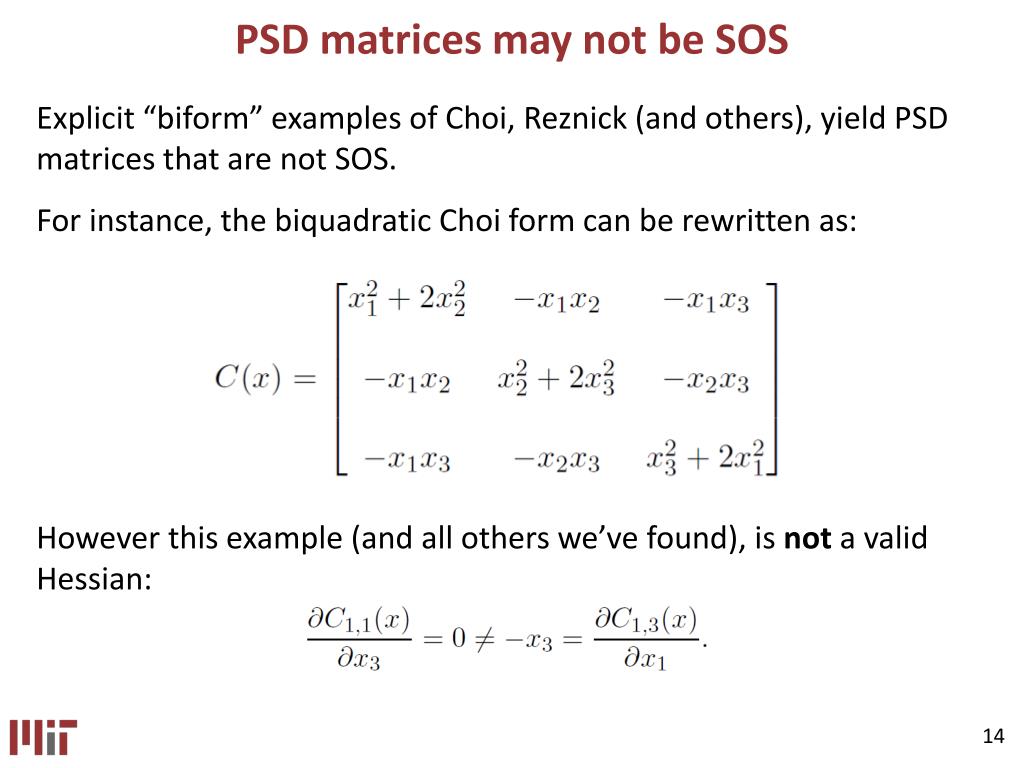

PSD matrices may not be SOS

Explicit “biform” examples of Choi, Reznick (and others), yield PSD matrices that are not SOS.

For instance, the biquadratic Choi form can be rewritten as:

However this example (and all others we’ve found), is not a valid Hessian:

equivalent notions for convexity

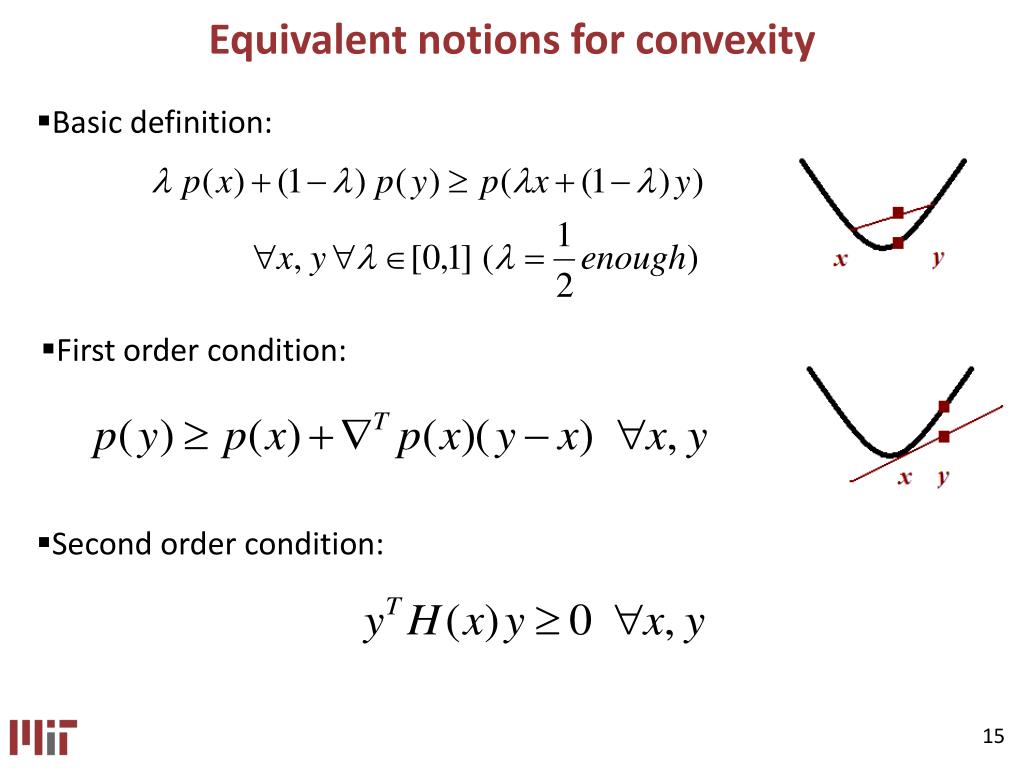

Equivalent notions for convexity
  • Basic definition:
  • First order condition:
  • Second order condition:
each condition can be sos ified

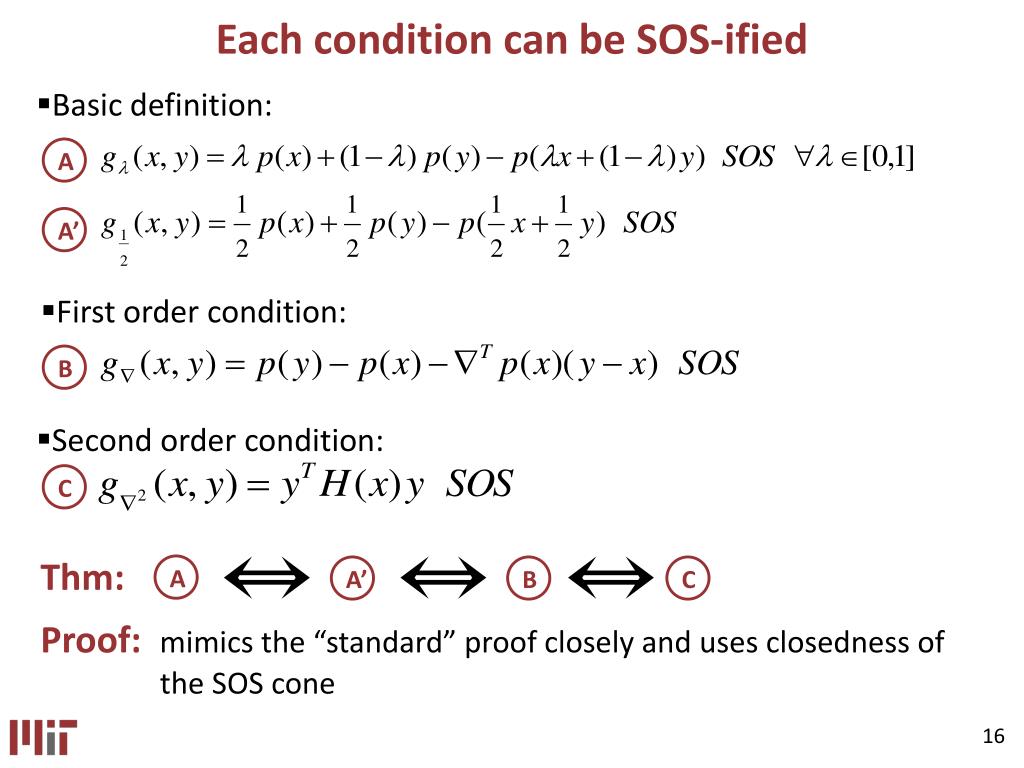

Each condition can be SOS-ified
  • Basic definition:
  • First order condition:
  • Second order condition:


Proof:mimics the “standard” proof closely and uses closedness of the SOS cone









a convex polynomial that is not sos convex17

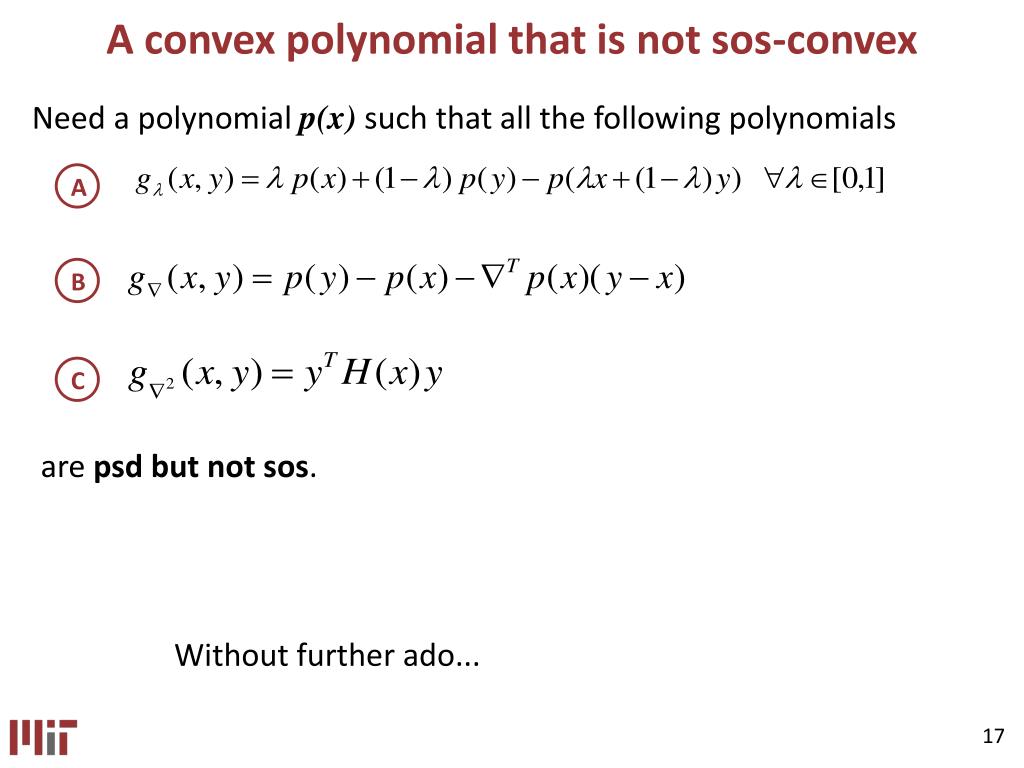

A convex polynomial that is not sos-convex

Need a polynomial p(x) such that all the following polynomials

are psd but not sos.




Without further ado...

our counterexample

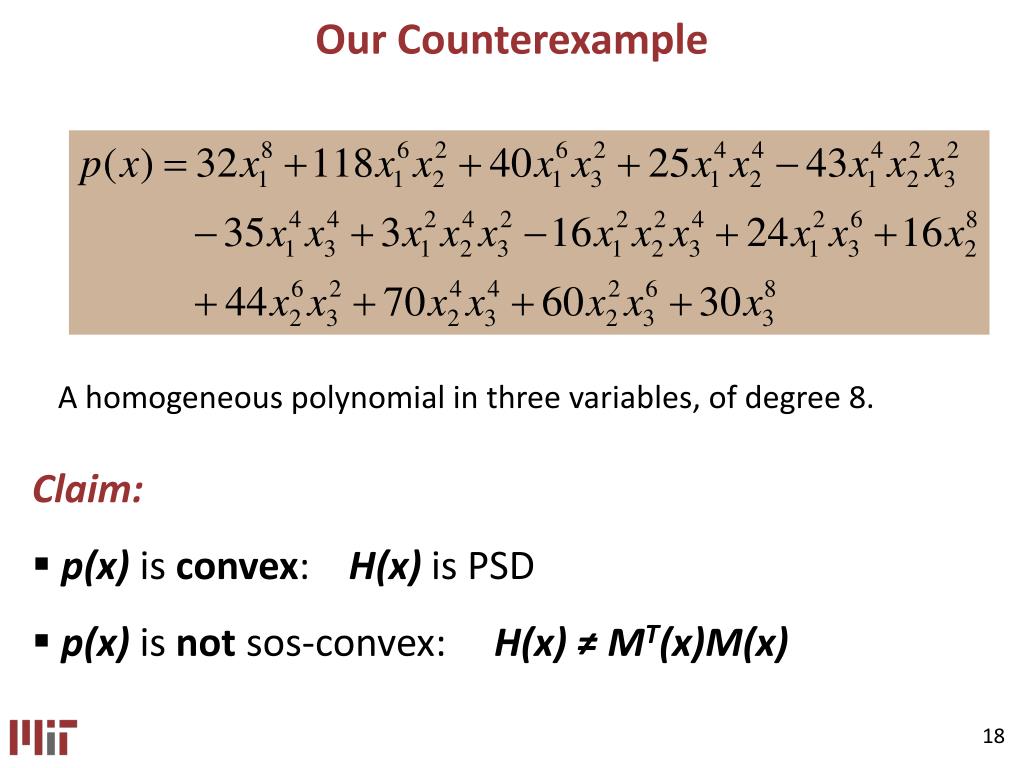

Our Counterexample

A homogeneous polynomial in three variables, of degree 8.


  • p(x) is convex: H(x) is PSD
  • p(x) is not sos-convex: H(x) ≠ MT(x)M(x)
proof h x is psd

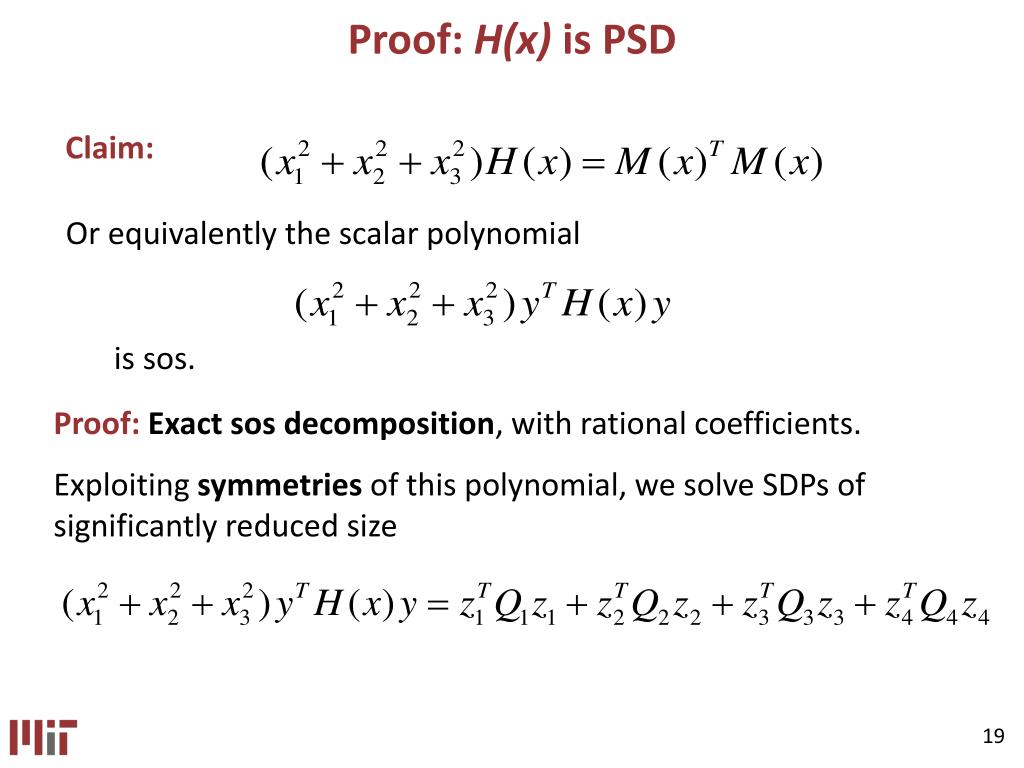

Proof: H(x) is PSD


Or equivalently the scalar polynomial

is sos.

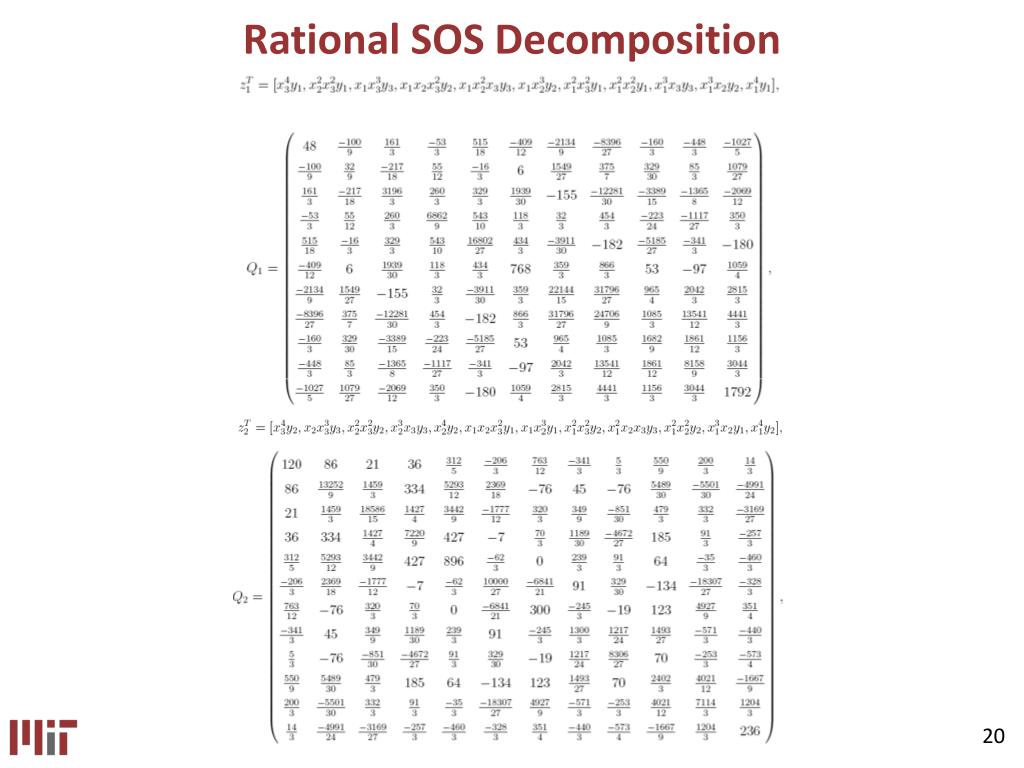

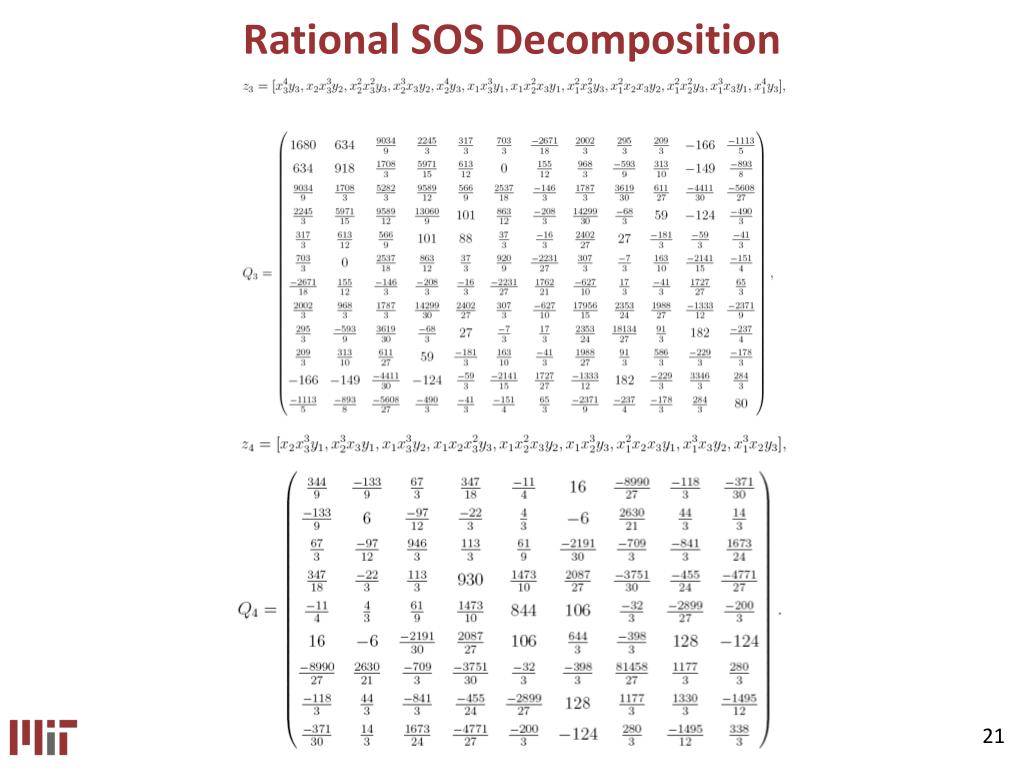

Proof:Exact sos decomposition, with rational coefficients.

Exploiting symmetries of this polynomial, we solve SDPs of significantly reduced size

proof h x m t x m x
Proof: H(x)≠MT(x)M(x)

Therefore, it suffices to show that

is not sos.

We do this by a duality argument.

Lemma:if H(x) is an sos-matrix, then all its 2n-1 principal minors are sos polynomials. In particular, all diagonal elements are sos.

Proof:follows from the Cauchy-Binet formula.

separating hyperplane

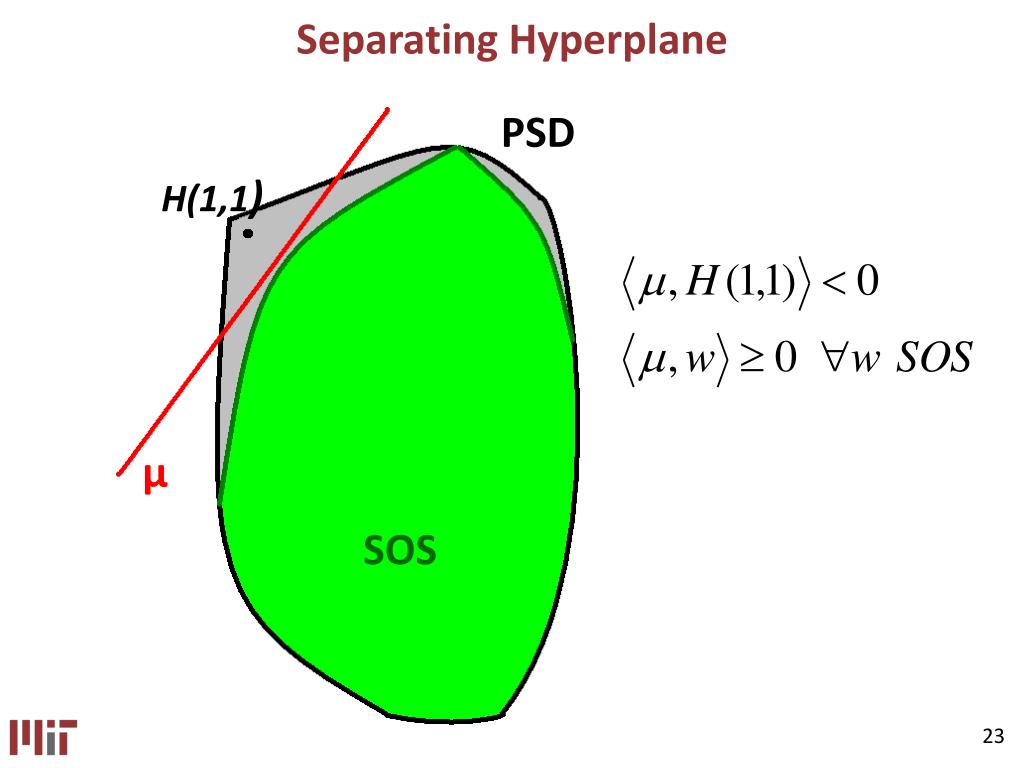

Separating Hyperplane





a few remarks

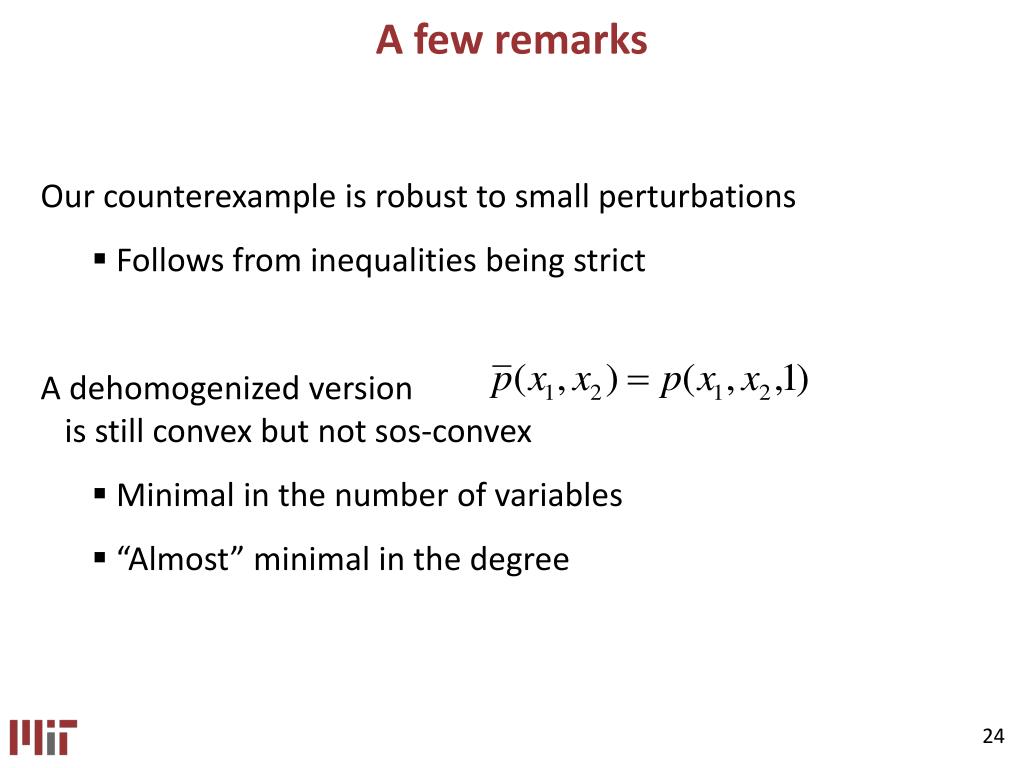

A few remarks

Our counterexample is robust to small perturbations

  • Follows from inequalities being strict

A dehomogenized version is still convex but not sos-convex

  • Minimal in the number of variables
  • “Almost” minimal in the degree
how did we find this polynomial

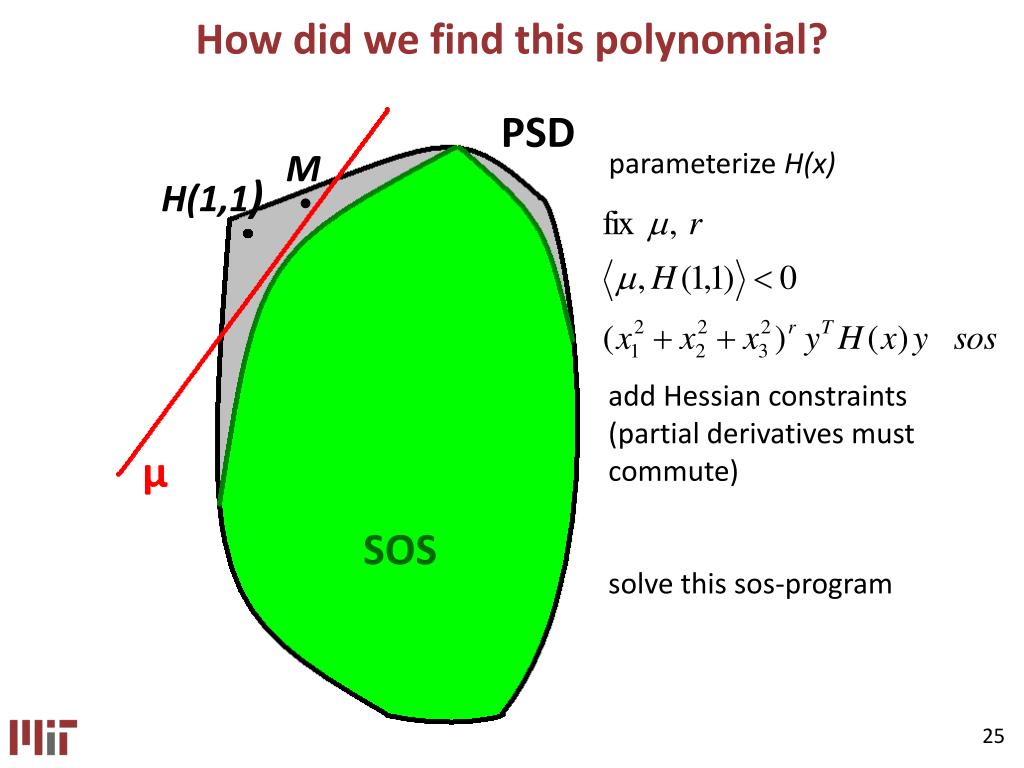

How did we find this polynomial?



parameterize H(x)


add Hessian constraints (partial derivatives must commute)

solve this sos-program



messages to take home

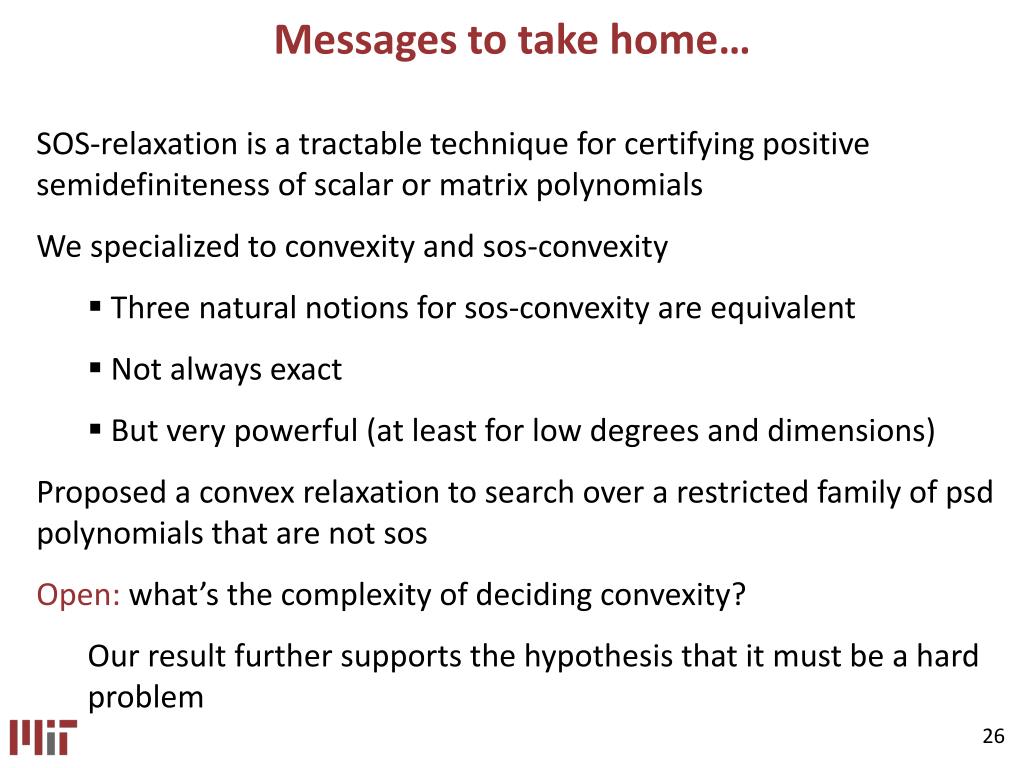

Messages to take home…

SOS-relaxation is a tractable technique for certifying positive semidefiniteness of scalar or matrix polynomials

We specialized to convexity and sos-convexity

  • Three natural notions for sos-convexity are equivalent
  • Not always exact
  • But very powerful (at least for low degrees and dimensions)

Proposed a convex relaxation to search over a restricted family of psd polynomials that are not sos

Open: what’s the complexity of deciding convexity?

Our result further supports the hypothesis that it must be a hard problem

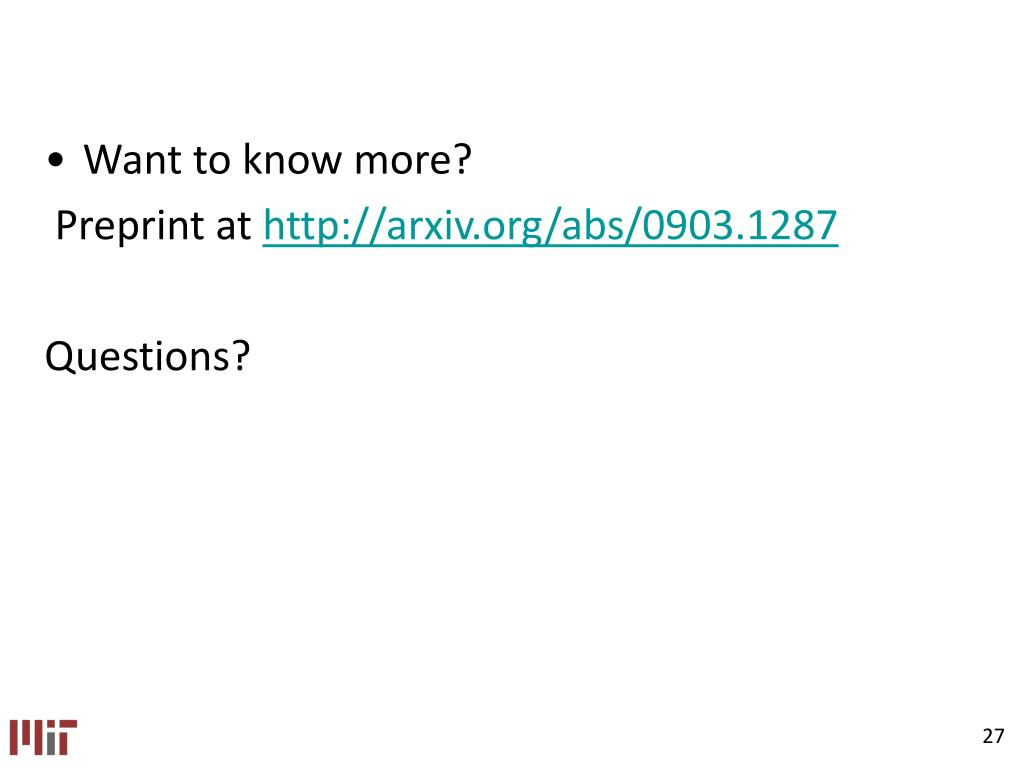

Want to know more?

Preprint at http://arxiv.org/abs/0903.1287
