  1. Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios Tim Schlippe, Wolf Quaschningk, Tanja Schultz

  2. Outline • Motivation and Goals • Experimental Setup • Grapheme-to-phoneme converters • Data • Experiments and Results • Single grapheme-to-phoneme converters’ performance • Phoneme-level combinationscheme • Adding web-driven grapheme-to-phoneme converters • Automatic speech recognition experiments • Conclusion and Future Work Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  3. Motivation • About 7.100 languages exist in the world (www.ethnologue.com) • only few languages have speech processing systems • Pronunciation dictionaries needed for text-to-speech and automatic speech recognition (ASR) • Manual production of pronunciations slow and costly • 19.2–30s / word for Afrikaans (Davel and Barnard, 2004) • Automatic grapheme-to-phoneme (G2P) conversion • But: Consistency pronunciations first at ~3.7k word-pronunciation pairs for training (30k phoneme tokens)  Methodstoreducemanualeffort Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  4. Goals • Common approaches use their single favorite G2P conversion tool • Idea: • Use synergy effects of multiple G2P converters • Close in performance but at the same time produce an output that differs in their errors • Provides complementary information  Achievepronunciationswithhigherqualitythroughcombinationof G2P converteroutputs • Reducemanualeffort in semi-automaticmethods • Impact on ASR performance Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  5. Grapheme-to-phoneme converters (Accordingto(Bisaniand Ney, 2008)) c a r s K AX 9r S Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  6. different grade of G2P relationship Data different amountsofsmalltrainingdatasizestosimulatelowresources • Languages: • English, German, French, Spanish • Dictionaries: • English: CMU dictionary • German, Spanish: GlobalPhone • French: QuaeroProject • Data sets (randomlychosen): • Training: 200, 500, 1k, 5k, 10k word-pronunciationpairs • Development / testset: 10k word-pronunciationpairs(disjunctive) Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  7. Analysis of Single G2P Converter Outputs Lower PERs withincreasingamountoftrainingdata Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios Edit distancetoreferencepronunciations at phonemelevel (phonemeerror rate (PER))

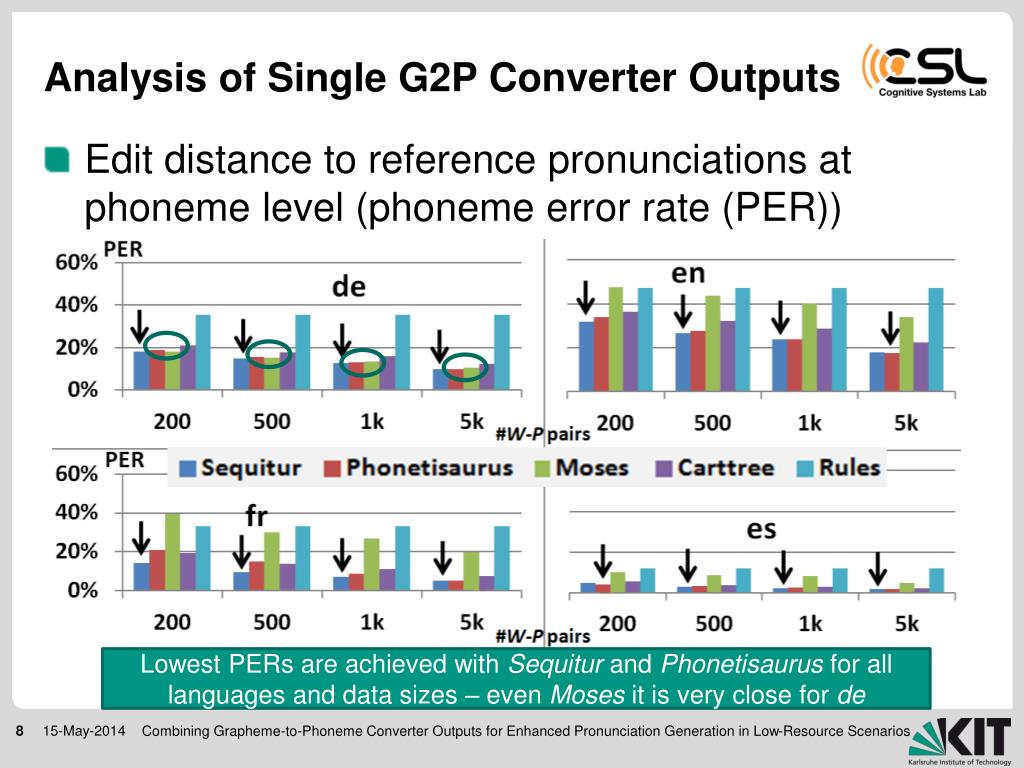

  8. Analysis of Single G2P Converter Outputs Lowest PERs are achieved with Sequitur and Phonetisaurus for all languages and data sizes – even Mosesit is very close for de Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios Edit distancetoreferencepronunciations at phonemelevel (phonemeerror rate (PER))

  9. Analysis of Single G2P Converter Outputs For200 en and fr W-P pairs, Rules outperforms Moses Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios Edit distancetoreferencepronunciations at phonemelevel (phonemeerror rate (PER))

  10. Phoneme-level combinationscheme Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios • Based on ROVER (Fiscus, 1997)(Recognizer Output Voting Error Reduction)(traditionally at wordlevel) • VotingModule • byfrequencyofoccurence, since G2P confidencescoresnot reliable

  11. Phoneme-level combinationscheme Converter Output PER PLC output PER Sequitur G2P k EH 9r ZH 25% Phonetisaurus K AA ZH 25% CART K AE ZH 50% K AA 9r ZH 0% Moses K AA 9r S 25% 1:1 G2P (Rules) K AX 9r S 50% Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios • Example(trainedwith 200 W-P pairs): • Reference: cars K AA 9r ZH

  12. Phoneme-level combination de In 10 of 16 cases  combination equal or better Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios • Relative PER changecomparedtobestsingleconverteroutput

  13. Phoneme-level combination de Most improvement for de and en ASR experiments Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios • Relative PER changecomparedtobestsingleconverteroutput

  14. Phoneme-level combination de es (most regular G2P relationship) never improvements Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios • Relative PER changecomparedtobestsingleconverteroutput

  15. Wiktionary 39 Wiktionary editions with more than 1k IPA prons. (June 2012) Growth of Wiktionary entries over several years ((meta.wikimedia.org/wiki/List ofWiktionaries T. Schlippe, S. Ochs, T. Schultz: Web-basedtoolsandmethodsfor rapid pronunciationdictionarycreation, Speech Communication, vol. 56, pp. 101 – 118, January 2014 Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  16. Wiktionary 4.6k W-P pairs Internal consistency (PER %) 1.5k W-P pairs 3.8k W-P pairs 3.3k W-P pairs Additional G2P convertersbasedon word-pronunciationpairsin Wiktionary Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  17. Data • Filtered web-derivedpronunciations • Fullyautomaticmethodsfrom(Schlippe, 2012a, 2012b, 2014) • ~15% witheachfilteringmethod Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  18. Phoneme-level combination PLC-unfiltWDP already better than w/oWDP Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios Relative PER changecomparedtobestsingleconverteroutput

  19. Phoneme-level combination 23.1% rel. PER reduction Filtering web-derived pronunciations helps Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios Relative PER changecomparedtobestsingleconverteroutput

  20. ASR experiments • As in PER evaluation: Sequiturand Phonetisaurus very good in most cases • However: Rules results in lowest WERs for most scenarios Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios Replacedictionaries in de & enrecognizerswithpronunciationsgeneratedwith G2P converters Train anddecodethesystems Word Error Rate (WER)

  21. ASR experiments In only 1 case PLC-w/oWDPbetter or equal best single converter Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  22. ASR experiments Filtering web-derived word-pronunciation pairs hels. Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  23. ASR experiments Confusion Network Combination (CNC) outperforms PLC Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  24. ASR experiments In 9cases Adding system with PLC in helps in CNC Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  25. Conclusion and Future Work • In most cases, PLC comes close validated reference pronunciations more thanthesingleconverters • Web-derived word-pronunciation pairs can further improve quality (Filteringthe web datahelpful) • Weighting single G2P converters’ outputs gave no improvement • according to performance on devset • according to converters‘ confidences • Potential to enhance semi-automatic pronunciation dictionary creation by reducing the human editingeffort Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  26. Conclusion and Future Work • Positive impact of the combination in terms of lower PERs had only little influence on the WERs of our ASR systems • Including systems with pronunciation dictionaries that have been built with PLCto CNC can lead to improvements • Future work: • Embedding PLCand web-derivedpronunciationsintothesemi-automatic pronunciation dictionary creation • Further languages and further G2P converters Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  27. благодари́м за внима́ние! Combining Grapheme-to-Phoneme Converter Outputs for Enhanced Pronunciation Generation in Low-Resource Scenarios

  28. References Pronunciation Extraction Through Cross-lingual Word-to-Phoneme Alignment

  29. References Pronunciation Extraction Through Cross-lingual Word-to-Phoneme Alignment

  30. References Pronunciation Extraction Through Cross-lingual Word-to-Phoneme Alignment
