  1. Unit 31 Nitrogenous fertilizers & sulphuric acid

  2. How do green plants make their own food? • By Photosynthesis • Green plants make use of carbon dioxide and water, in the presence of light and chlorophyll, make glucose (starch) and oxygen.

  3. What are needed for healthy plant? • Green plants make their food in photosynthesis. Any more things needed? • Mineral salts (elements) are needed. What are they? • They are nitrogen, phosphorus, and potassium. • These are removed from the soil when crops are harvested. • Thus, fertilizers have to be added for restoring minerals to the soil.

  4. Why these elements are good for plants?

  5. Types of fertilizers • Natural fertilizers - compost (decaying organic matter) and manure. • Artificial fertilizers - a mixture of compounds containing the elements, nitrogen, phosphorus and potassium. (e.g., ammonium sulphate or amonium nitrate)

  6. Changing nitrogen gas (in air) into compounds • How? • In thunderstorm (lightning) (with electric spark), nitrogen and oxygen combine to form nitrogen oxide. • N2(g) + O2(g) 2NO(g) • Nitrogen monoxide then combines with oxygen in air to form nitrogen dioxide. • 2NO(g) + O2(g)  2NO2(g)

  7. Changing nitrogen gas into compounds • Nitrogen dioxide dissolves in rainwater to form dilute nitric acid. • 2NO2(g) + H2O(l) HNO2(aq) + HNO3(aq) • 4NO2(g) + O2(g) + 2H2O(l)  4HNO3(aq) • Sources of nitrate ions (natural fertilizers).

  8. Nitrogen in soil • Nitrogen-fixing bacteria in the roots of peas and beans for changing nitrogen into nitrates.

  9. Nitrogenous fertilizers

  10. Percentage by mass of nitrogen in fertilizers • Calculate the percentage by mass of nitrogen in ammonia nitrate. • Formula of ammonium nitrate ? • Mass of 1 mole of ammonium nitrate ? • Mass of nitrogen in 1 mole of ammonium nitrate ? • Mass percentage of nitrogen in ammonium nitrate ??

  11. Percentage by mass of nitrogen in ammonium sulphate • Formula of ammonium sulphate ? • Molar mass of ammonium sulphate ? • Mass percentage of nitrogen in ammonium sulphate ??

  12. Calculation example • 1 kg of ammonium sulphate is sold at a price of $2. Calculate the cost of buying 1 kg of nitrogen by buying ammonium sulphate.

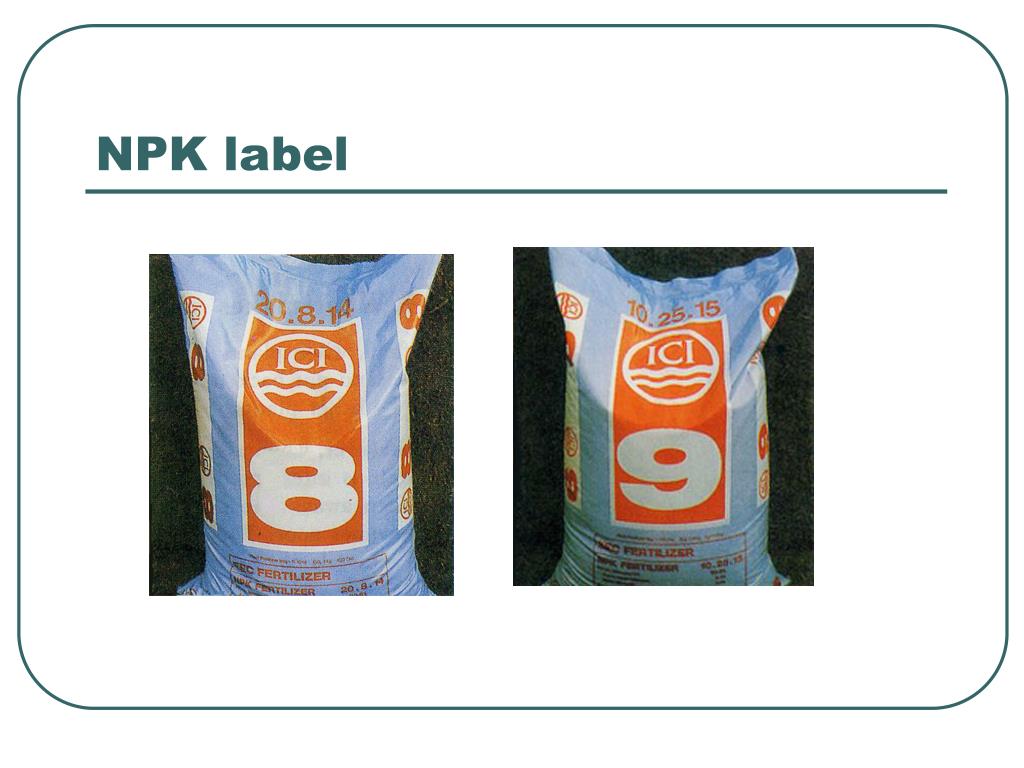

  13. NPK label

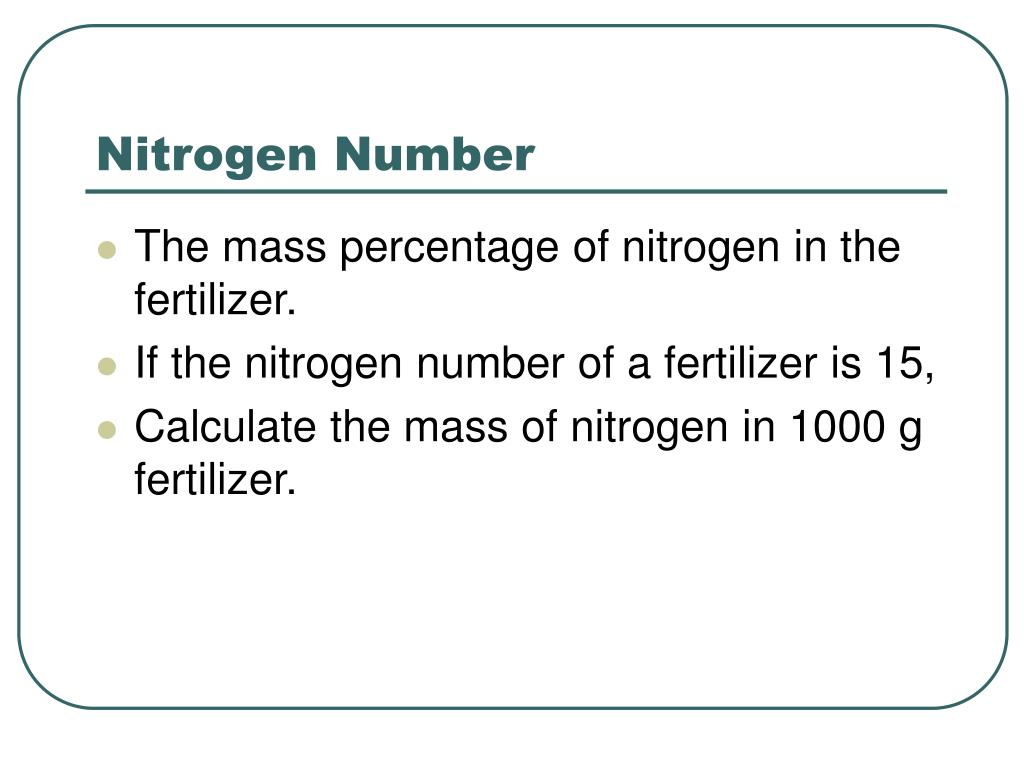

  14. Nitrogen Number • The mass percentage of nitrogen in the fertilizer. • If the nitrogen number of a fertilizer is 15, • Calculate the mass of nitrogen in 1000 g fertilizer.

  15. Phosphorus Number • the mass percentage of phosphorus in the form of P2O5 present in the fertilizer. • If the NPK label of a fertilizer is 16.8.24., calculate the mass percentage of phosphorus in the fertilizer.

  16. Potassium number • the mass percentage of potassium in the form of K2O present in the fertilizer. • If the NPK label of a fertilizer is 16.8.24., calculate the mass percentage of potassium in the fertilizer

  17. How to prepare a fertilizer (ammonium sulphate) in the laboratory? • How?? • What chemicals are needed? • What are their formulae? • Write an equation for the reaction involved.

  18. Experimental Steps (Procedures) • Pipette 25.0 cm3 ammonia solution into a conical flask. • Add a few drops of methyl orange (indicator). Colour in alkali: yellow • Fill the burette with dilute sulphuric acid. • Titrate the ammonia solution with dilute sulphuric acid until the methyl indicator turns from ______ to ______ . (I.e. the end point is reached.)

  19. Experimental Steps (Procedures) • Mix 25.0 cm3 of ammonia solution with the required volume of dilute sulphuric acid without any indicator. • Warm to saturate the salt solution. • Allow it to crystallize slowly to give large crystals of ammonium sulphate. • Filter off the crystals and dry crystals between filter paper.

  20. Haber Process • Industrial Manufacture of ammonia • By the direct combination of nitrogen and hydrogen • In the presence of fine divided iron catalyst. • N2(g) + 3H2(g) 2NH3(g)

  21. What is a catalyst? • Name an enzyme (a biological catalyst). • A catalyst is a substance that will alter / change (usually speed up) the rate of a chemical reaction. • Catalysts are usually transition metals or compounds of transition metals.

  22. Flow diagram of Haber Process

  23. Raw materials of Haber Process • Nitrogen – from the fractional distillation of liquid air • Hydrogen – from the reaction of steam with methane or naphtha. • CH4(g) + H2O(g) CO(g) + 3H2(g)

  24. Finely divided iron catalyst • Fine-divided – in powder form • Why ? • To Increase the surface area of the catalyst.

  25. ‘Poisoning’ of the catalyst • Impurities, such as sulphides and carbon monoxide, adhere on the surface of the solid catalyst. – “poisoning of the catalyst”. • Raw materials, nitrogen and hydrogen are purified, before passing over the red-hot catalyst.

  26. Reaction Conditions of Haber Process • Nitrogen to hydrogen volume ratio =1:3 • Compressed to a pressure of 200 atmospheres. • Pass over the red-hot iron catalyst at 500oC. • N2(g) + 3H2(g) 2NH3(g) Exothermic • Percentage yield : 15%

  27. Ways to improve (increase) the yield of ammonia • By removing ammonia (product) from the reaction mixture. • By liquefying ammonia or by dissolving ammonia in water. • Removing ammonia and the recycle of unreacted nitrogen and hydrogen. Increase the yield of ammonia. (More ammonia) • Heat released in the reaction is absorbed by the heat exchanger for heating the incoming new reactants.

  28. Preparing ammonia in the laboratory • Ammonia – a weak alkali. • Prepared by heating a salt of weak alkali with a strong alkali. • Heating ammonium salt with a strong alkali. • NH4Cl + NaOH  NH3 + NaCl + H2O • A colourless gas with irritating smell which turns moist (wet) red litmus paper blue is given out. • Ammonia gas is poisonous.

  29. Heating ammonium salt with sodium hydroxide

  30. Test for ammonia gas • With a characteristic irritating smell (no a chemical test) • Turns moist red litmus paper blue. • NH3(aq) + H2O(l) NH4+(aq) + OH-(aq) • Put a glass rod wetted with concentrated hydrochloric acid near a gas jar (tube) of ammonia gas. A dense white fume of ammonium chloride is formed. • NH3(g) + HCl(g)  NH4Cl(s)

  31. Ammonia solution as a weak alkali • What is a weak alkali? • Partly ionized in aqueous solution. • NH3(aq) + H2O(l) NH4(aq) + OH-(aq) • What do you see when limited amount of aqueous ammonia is added into copper(II) sulphate solution? • Pale blue precipitate is formed. • Cu2+(aq) + 2OH-(aq) Cu(OH)2(s)

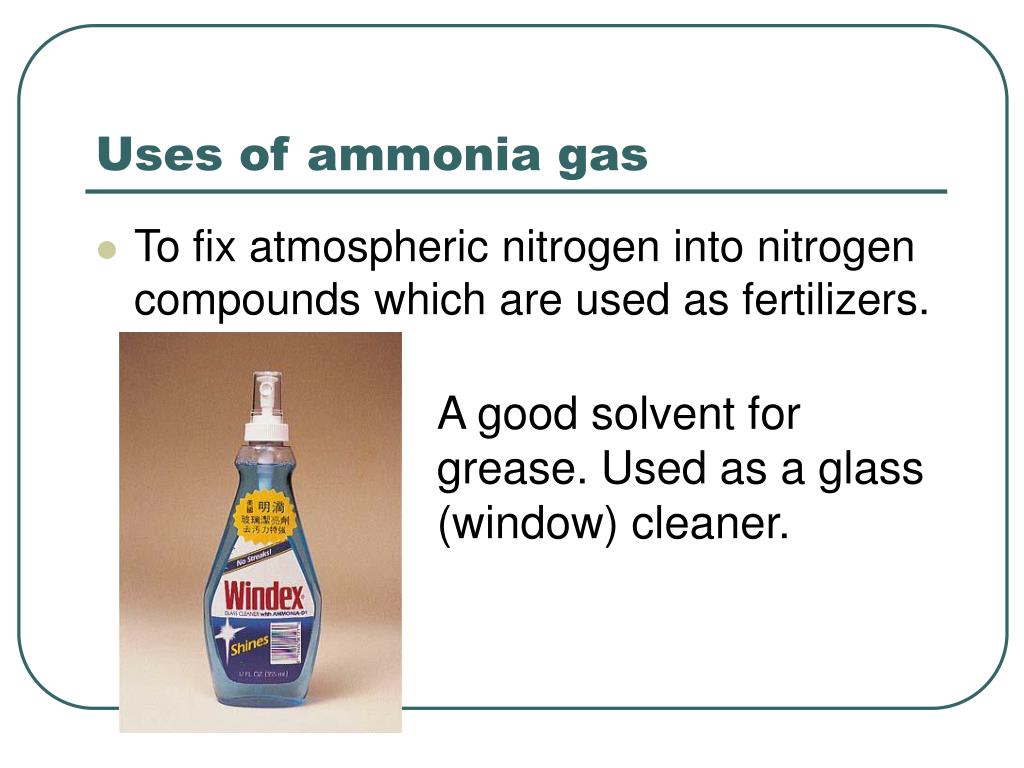

  32. Uses of ammonia gas • To fix atmospheric nitrogen into nitrogen compounds which are used as fertilizers. A good solvent for grease. Used as a glass (window) cleaner.

  33. Uses of ammonia gas • Used as a freezing agent (refrigerant) in refrigerators. • An important starting chemical for preparing nitric acid and fertilizers.

  34. Industrial manufacture of nitric acid (Ostwald Process) • Oxidation number of nitrogen in ammonia ?? • Oxidation number of nitrogen in nitric acid ??? • By catalytic oxidation of ammonia • Ammonia is oxidized catalytically by oxygen in the presence finely divided platinum catalyst. • 4NH3(g) + 5O2(g) 4NO(g) + 6H2O(g)

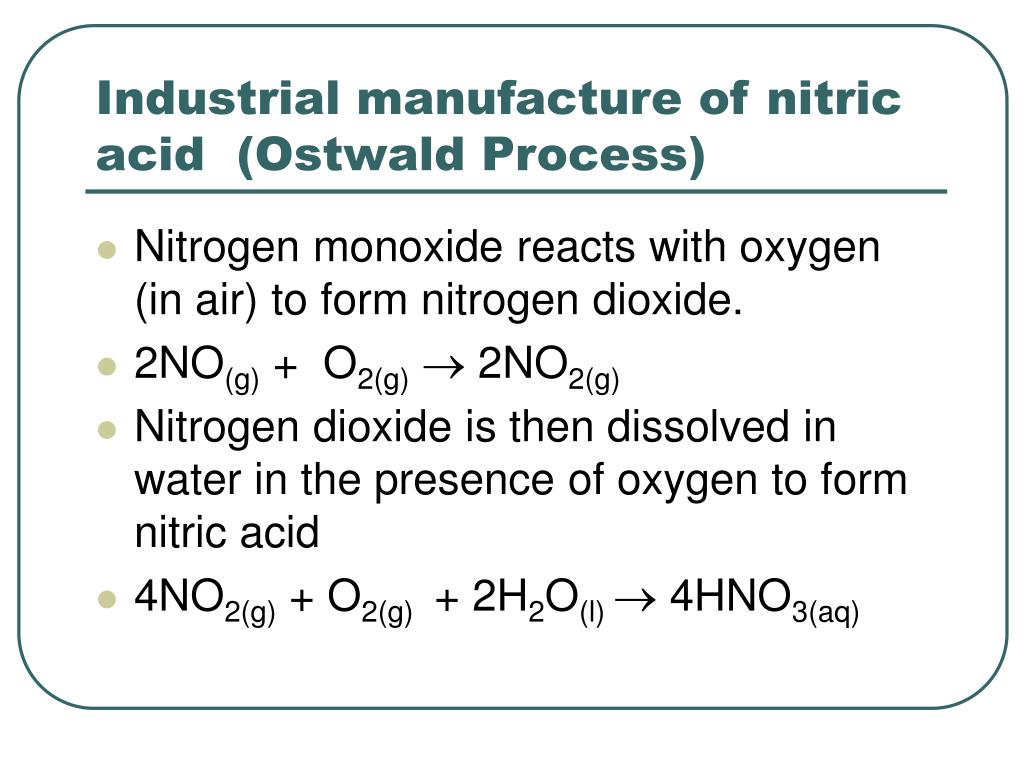

  35. Industrial manufacture of nitric acid (Ostwald Process) • Nitrogen monoxide reacts with oxygen (in air) to form nitrogen dioxide. • 2NO(g) + O2(g) 2NO2(g) • Nitrogen dioxide is then dissolved in water in the presence of oxygen to form nitric acid • 4NO2(g) + O2(g) + 2H2O(l)  4HNO3(aq)

  36. Uses of nitric acid • For making fertilizers. • For making monomers of the polymer – nylon. • For making explosives. • For making drugs.

  37. Contact Process for the manufacture of concentrated sulphuric acid • Raw materials: ??? • Sulphur dioxide, SO2 • By burning sulphur in air • S(s) + O2(g) SO2(g) • By roasting metal sulphide ore • 2ZnS(s) + 3O2(g)  2ZnO(s) + 2SO2(g) • Oxygen from air

  38. Contact Process • To prevent the ‘poisoning’ of the catalyst by purifying the raw materials. • Catalyst used • Finely divided platinum – expensive, (more efficient) • Or vanadium(V) oxide, V2O5 (cheaper)

  39. Reaction conditions • Sulphur dioxide and oxygen mixed in the ratio of 2 to 1. • Temperature : 450oC • A pressure of one or two atmospheres. • 2SO2(g) + O2(g)  2SO3(g) Exothermic • Percentage yield of SO3 : 90%

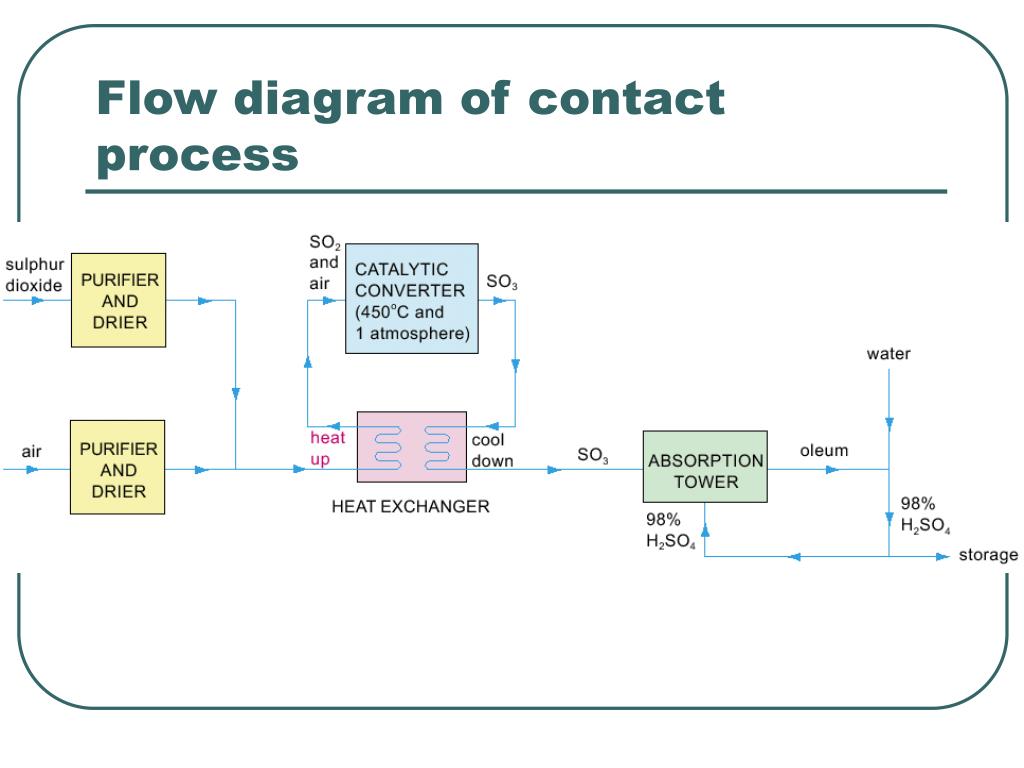

  40. Flow diagram of contact process

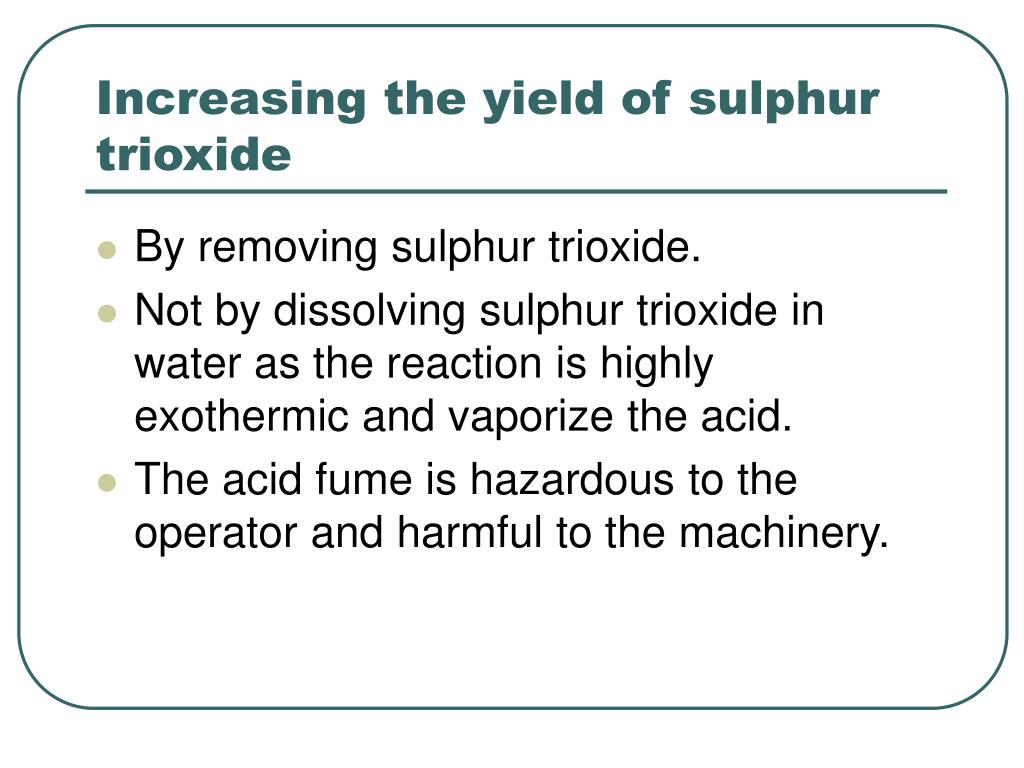

  41. Increasing the yield of sulphur trioxide • By removing sulphur trioxide. • Not by dissolving sulphur trioxide in water as the reaction is highly exothermic and vaporize the acid. • The acid fume is hazardous to the operator and harmful to the machinery.

  42. Removing sulphur trioxide • Dissolving sulphur trioxide in concentrated sulphuric acid to form oleum (fuming sulphuric acid) • SO3(g) + H2SO4(l) H2S2O7(l) • Oleum is then carefully diluted in right proportion to give concentrated sulphuric acid • H2S2O7(l) + H2O(l) 2H2SO4(l)

  43. Uses of sulphuric acid • For the manufacturing of fertilizers. • For the manufacture of soapless detergents and dyestuffs..

  44. Paint Additives • For the manufacture of paint additives • Metal sulphates are soluble in water except calcium sulphate, barium sulphate and lead(II) sulphate • Mixing a soluble calcium / barium salt solution with a soluble sulphate solution. • Ca2+(aq) + SO42-(aq) CaSO4(s) • Ba2+(aq) + SO42-(aq) BaSO4(s)

  45. Uses of concentrated sulphuric acid
