proprioceptive neuromuscular facilitation

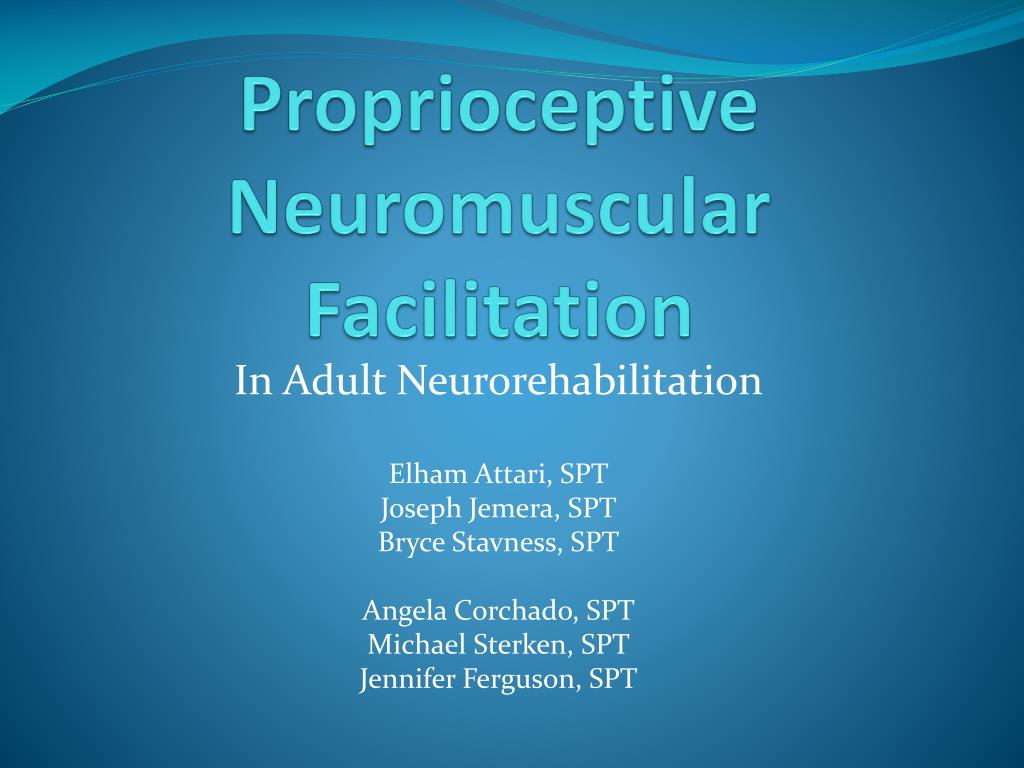

Proprioceptive Neuromuscular Facilitation

In Adult Neurorehabilitation

Elham Attari, SPT

Joseph Jemera, SPT

Bryce Stavness, SPT

Angela Corchado, SPT

Michael Sterken, SPT

Jennifer Ferguson, SPT

learning objectives

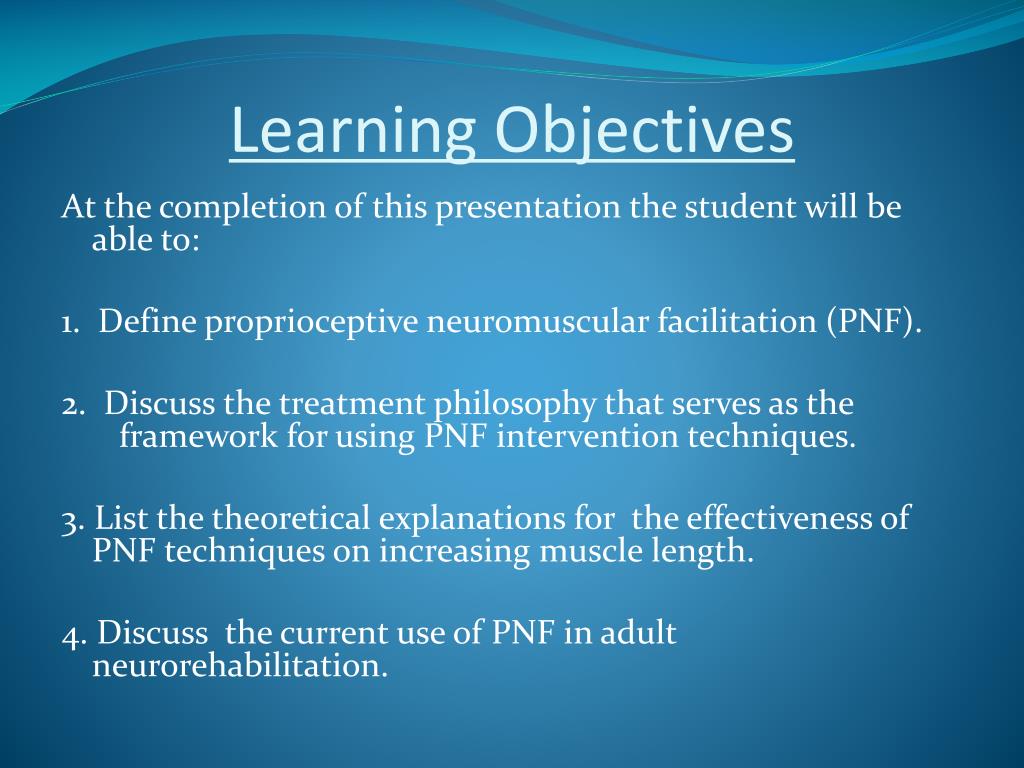

Learning Objectives

At the completion of this presentation the student will be able to:

1. Define proprioceptive neuromuscular facilitation (PNF).

2. Discuss the treatment philosophy that serves as the framework for using PNF intervention techniques.

3. List the theoretical explanations for the effectiveness of PNF techniques on increasing muscle length.

4. Discuss the current use of PNF in adult neurorehabilitation.

learning objectives cont
Learning Objectives (cont.)

5. Discuss the efficacy of PNF as a neurorehabilitation intervention technique based upon the most current literature.

6. Discuss the implications of PNF research on PT Practice.

history of pnf
History of PNF?
  • .

Developed by: Dr. Herman Kabat and Maggie Knott in the late 1940s and early 1950s as a means of rehabilitation for neurological disorders such as multiple sclerosis, cerebral palsy and poliomyelitis.

pnf definition

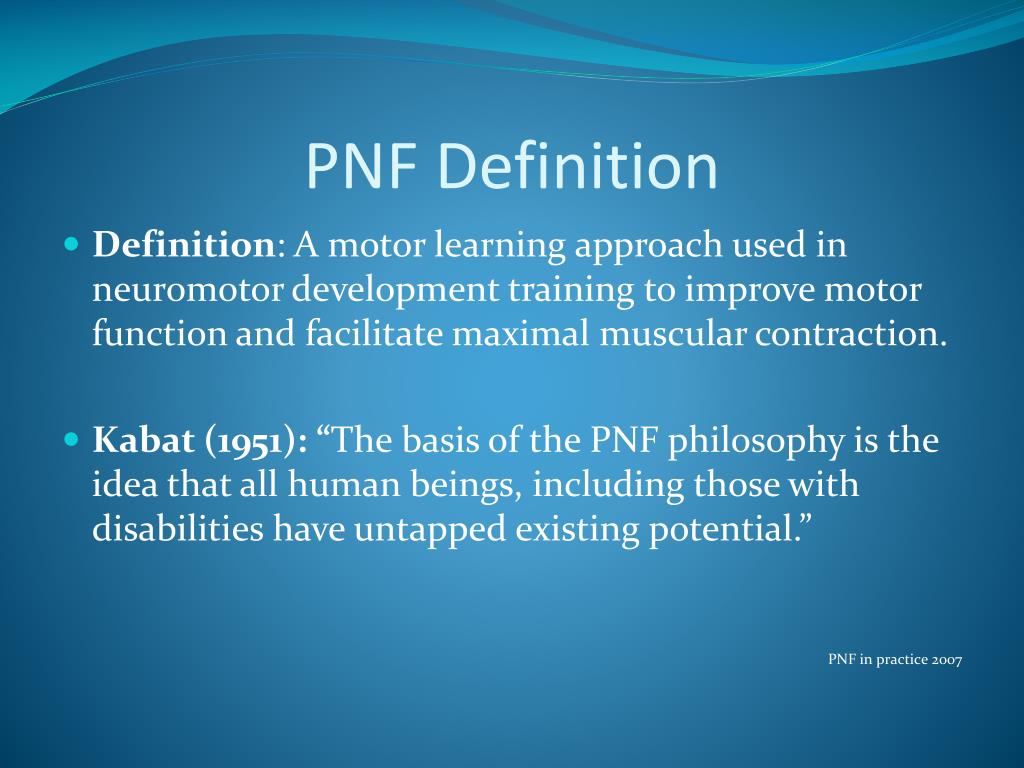

PNF Definition

Definition: A motor learning approach used in neuromotor development training to improve motor function and facilitate maximal muscular contraction.

Kabat (1951): “The basis of the PNF philosophy is the idea that all human beings, including those with disabilities have untapped existing potential.”

PNF in practice 2007

pnf philosophy

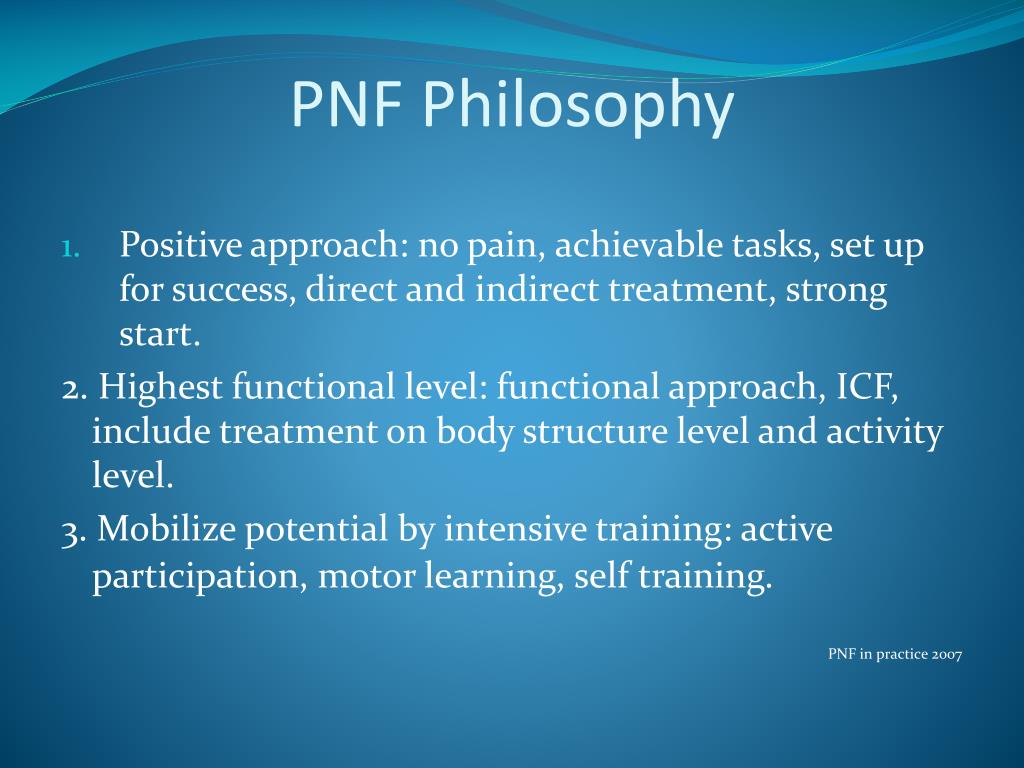

PNF Philosophy

Positive approach: no pain, achievable tasks, set up for success, direct and indirect treatment, strong start.

2. Highest functional level: functional approach, ICF, include treatment on body structure level and activity level.

3. Mobilize potential by intensive training: active participation, motor learning, self training.

PNF in practice 2007

philosophy cont

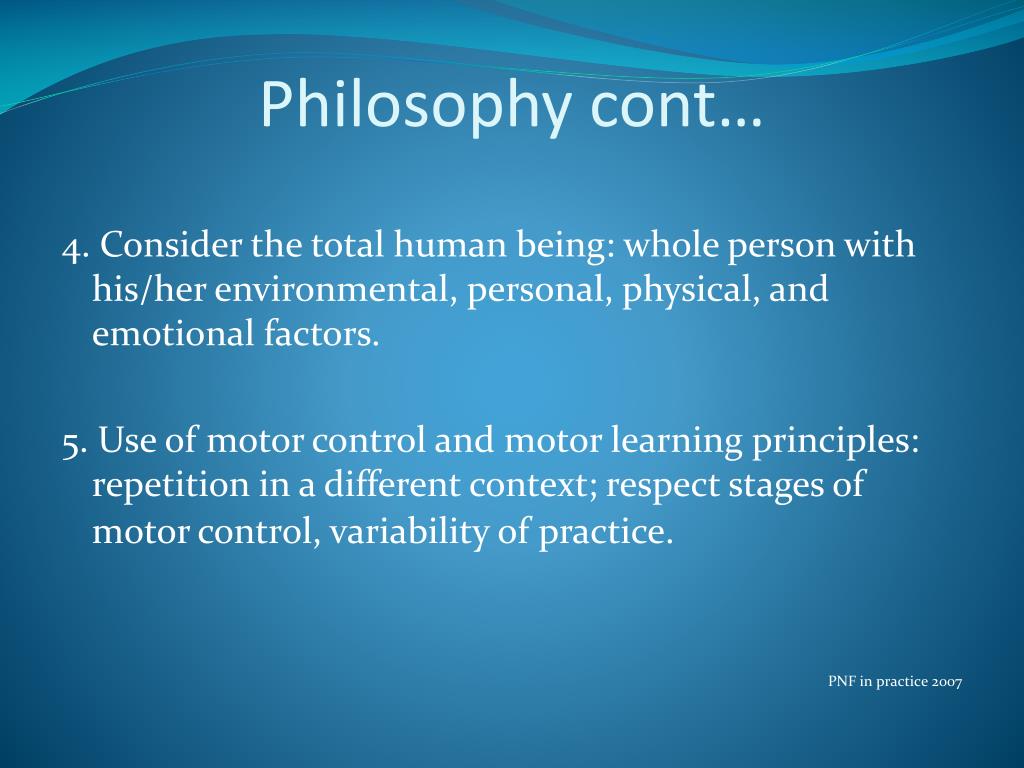

Philosophy cont…

4. Consider the total human being: whole person with his/her environmental, personal, physical, and emotional factors.

5. Use of motor control and motor learning principles: repetition in a different context; respect stages of motor control, variability of practice.

PNF in practice 2007

how is pnf used today

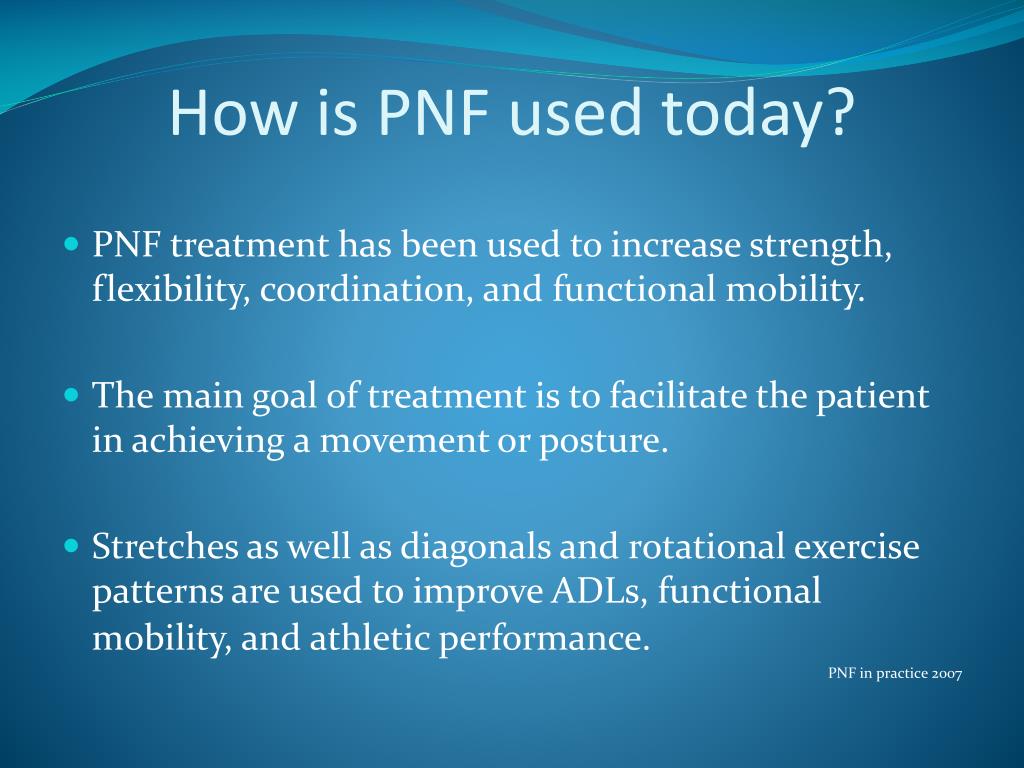

How is PNF used today?

PNF treatment has been used to increase strength, flexibility, coordination, and functional mobility.

The main goal of treatment is to facilitate the patient in achieving a movement or posture.

Stretches as well as diagonals and rotational exercise patterns are used to improve ADLs, functional mobility, and athletic performance.

PNF in practice 2007

pnf today cont

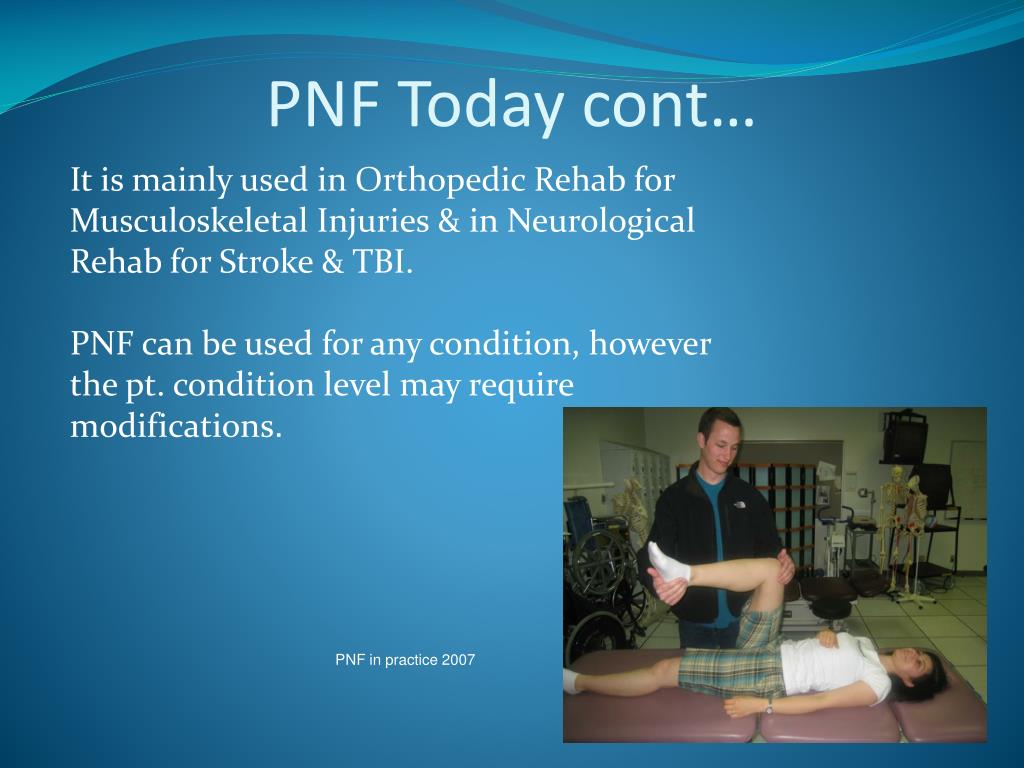

PNF Today cont…

It is mainly used in Orthopedic Rehab for Musculoskeletal Injuries & in Neurological Rehab for Stroke & TBI.

PNF can be used for any condition, however the pt. condition level may require modifications.

PNF in practice 2007

pnf stretching

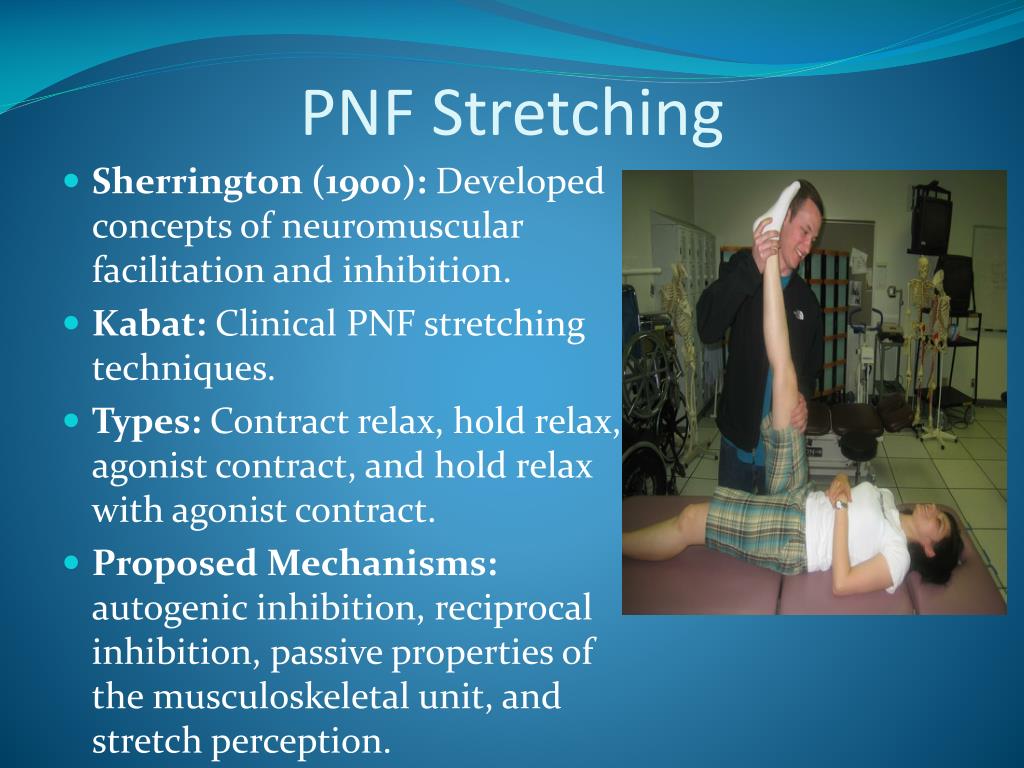

PNF Stretching

Sherrington (1900): Developed concepts of neuromuscular facilitation and inhibition.

Kabat: Clinical PNF stretching techniques.

Types: Contract relax, hold relax, agonist contract, and hold relax with agonist contract.

Proposed Mechanisms: autogenic inhibition, reciprocal inhibition, passive properties of the musculoskeletal unit, and stretch perception.

pnf for strength
PNF for Strength

PNF utilizes two types of contractions: Isotonic and Isometric.

Uses manual contacts to produce motor responses that influence the stimulation of skin and other receptors.

When applying these exercises, it is important to apply the appropriate resistance.

This resistance is meant to facilitate the muscles to contract, improve motor control, and improve strength.PNF in practice 2007

dickstein et al 1986

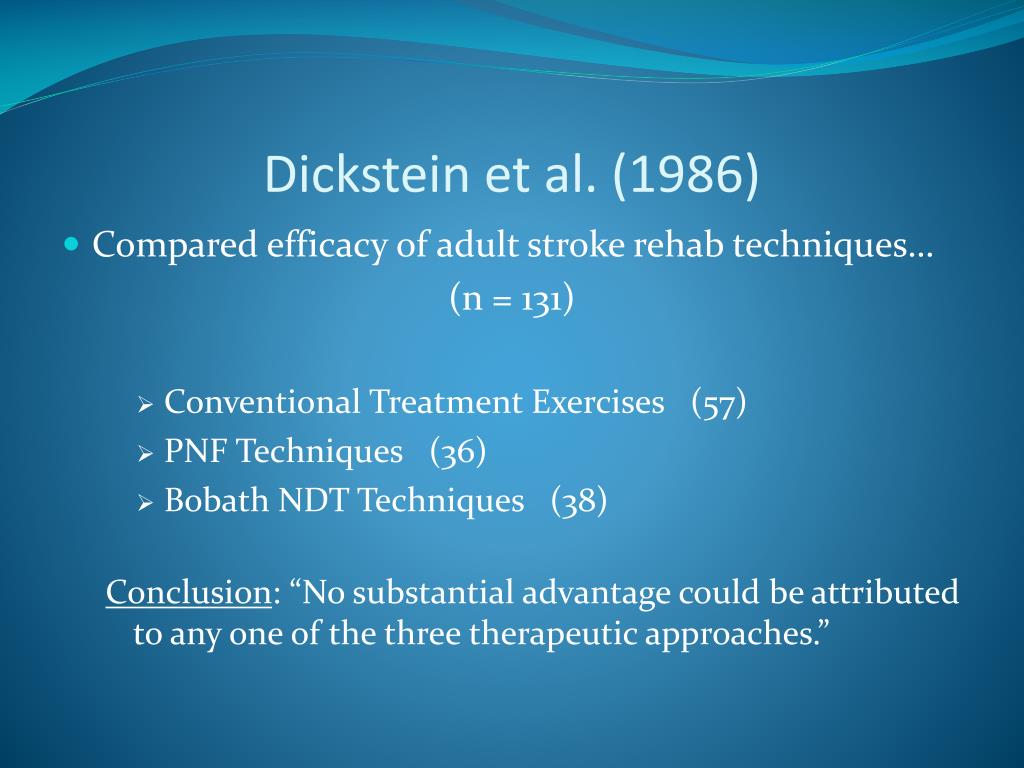

Dickstein et al. (1986)
  • Compared efficacy of adult stroke rehab techniques…

(n = 131)

      • Conventional Treatment Exercises (57)
      • PNF Techniques (36)
      • Bobath NDT Techniques (38)

Conclusion: “No substantial advantage could be attributed to any one of the three therapeutic approaches.”

trueblood et al 1989

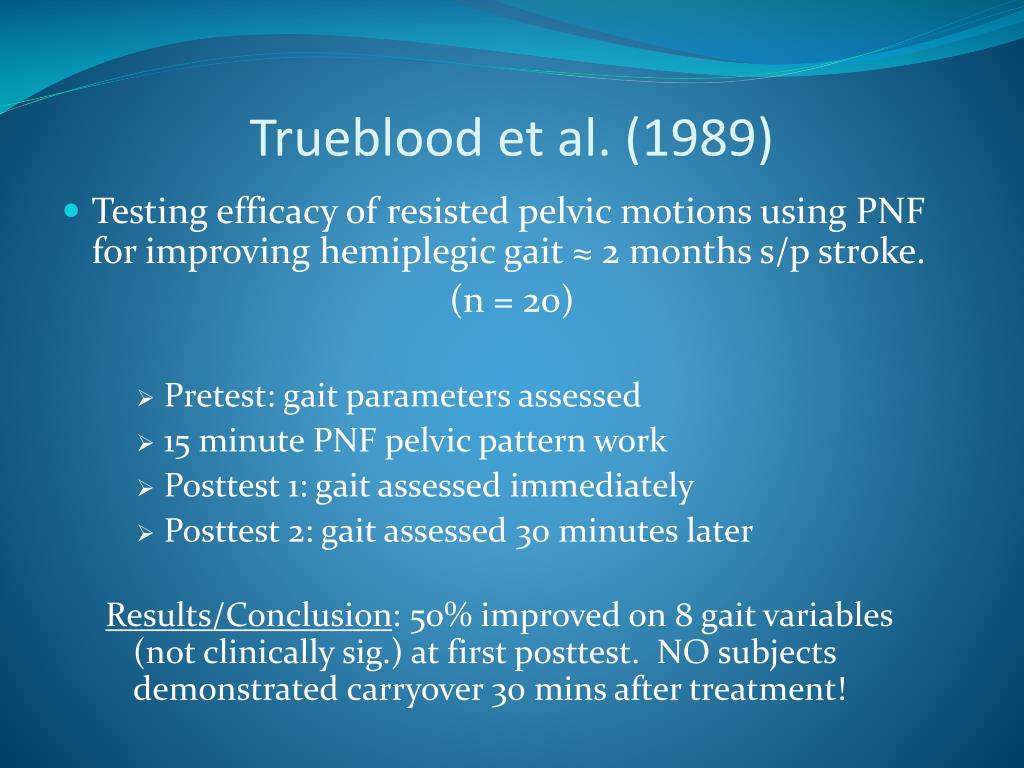

Trueblood et al. (1989)
  • Testing efficacy of resisted pelvic motions using PNF for improving hemiplegic gait ≈ 2 months s/p stroke.

(n = 20)

      • Pretest: gait parameters assessed
      • 15 minute PNF pelvic pattern work
      • Posttest 1: gait assessed immediately
      • Posttest 2: gait assessed 30 minutes later

Results/Conclusion: 50% improved on 8 gait variables (not clinically sig.) at first posttest. NO subjects demonstrated carryover 30 mins after treatment!

wang ry 1994

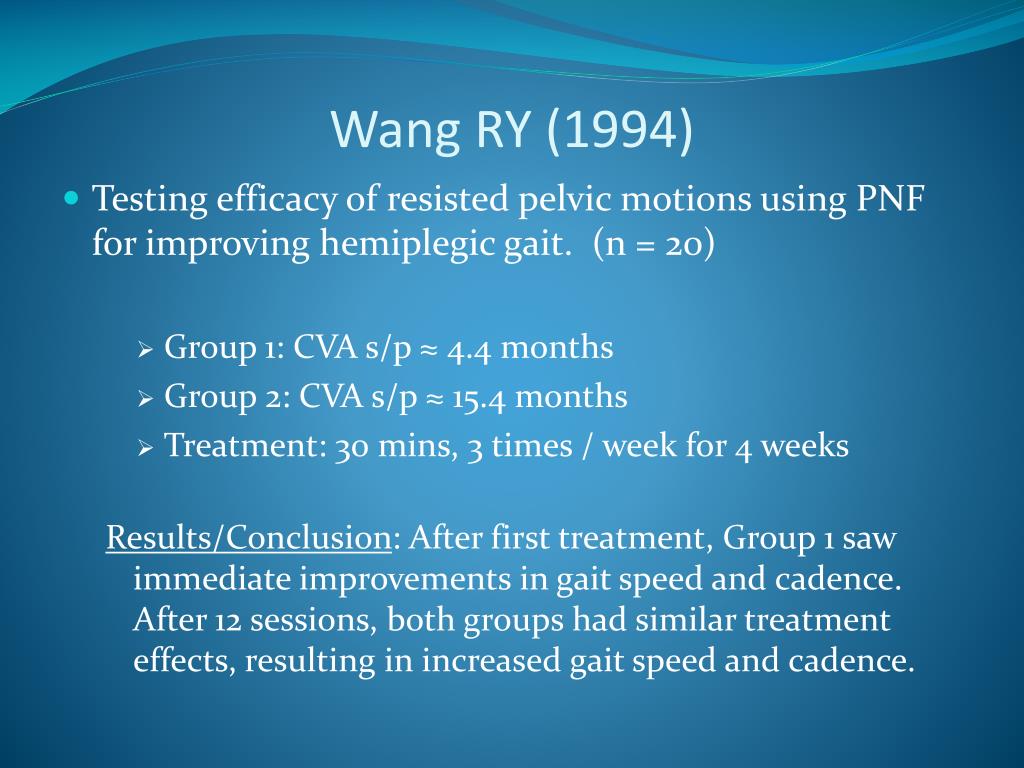

Wang RY (1994)
  • Testing efficacy of resisted pelvic motions using PNF for improving hemiplegic gait. (n = 20)
      • Group 1: CVA s/p ≈ 4.4 months
      • Group 2: CVA s/p ≈ 15.4 months
      • Treatment: 30 mins, 3 times / week for 4 weeks

Results/Conclusion: After first treatment, Group 1 saw immediate improvements in gait speed and cadence. After 12 sessions, both groups had similar treatment effects, resulting in increased gait speed and cadence.

trueblood et al 1989 wang 1994 both used the same pnf techniques for pelvic motion to improve gait
Trueblood et al. (1989) & Wang (1994) both used the same PNF techniques for pelvic motion to improve gait…
why the mixed results
Why the mixed results?

Trueblood et al. (1989)

Wang RY (1994)

  • Treatment Time: 15 minutes
  • Dosage:

4 sets of 5 reps with one

minute rest intervals.

  • Patients were treated and tested for ONE session.
  • Treatment Time: 30 minutes
  • Dosage:

10 mins rythmic initiation,

10 mins slow reversal,

10 mins agonistic reversals.

  • Patients were treated and tested for TWELVE sessions.
kraft et al 1992

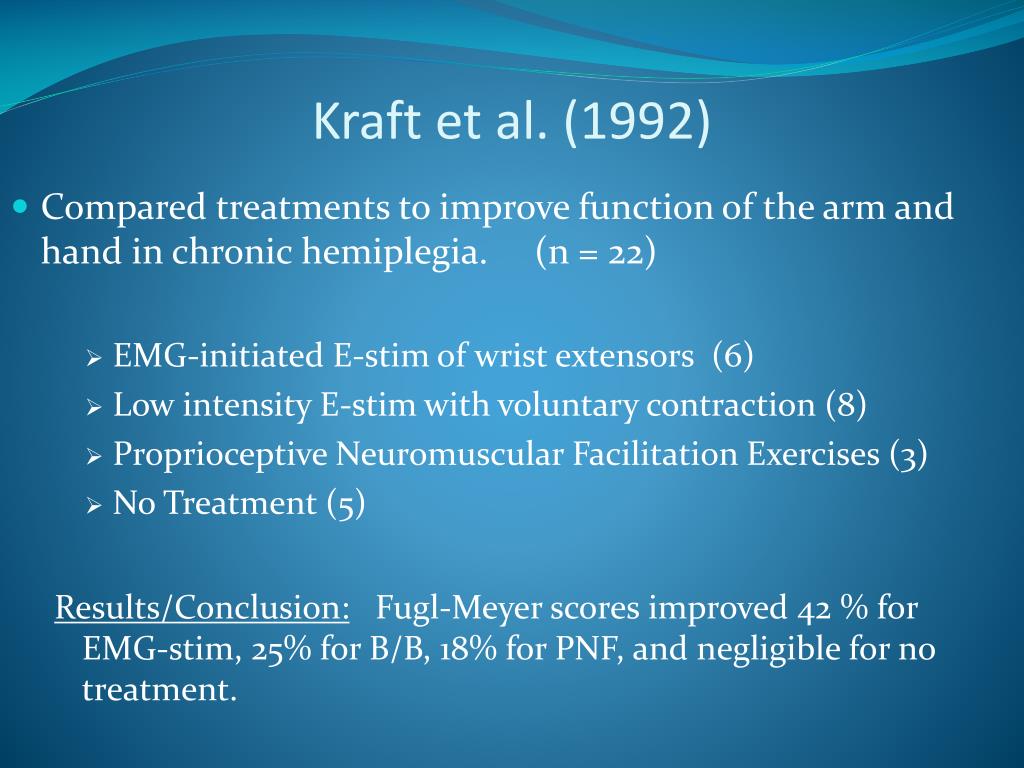

Kraft et al. (1992)
  • Compared treatments to improve function of the arm and hand in chronic hemiplegia. (n = 22)
      • EMG-initiated E-stim of wrist extensors (6)
      • Low intensity E-stim with voluntary contraction (8)
      • Proprioceptive Neuromuscular Facilitation Exercises (3)
      • No Treatment (5)

Results/Conclusion: Fugl-Meyer scores improved 42 % for EMG-stim, 25% for B/B, 18% for PNF, and negligible for no treatment.

problems with kraft et al 1992

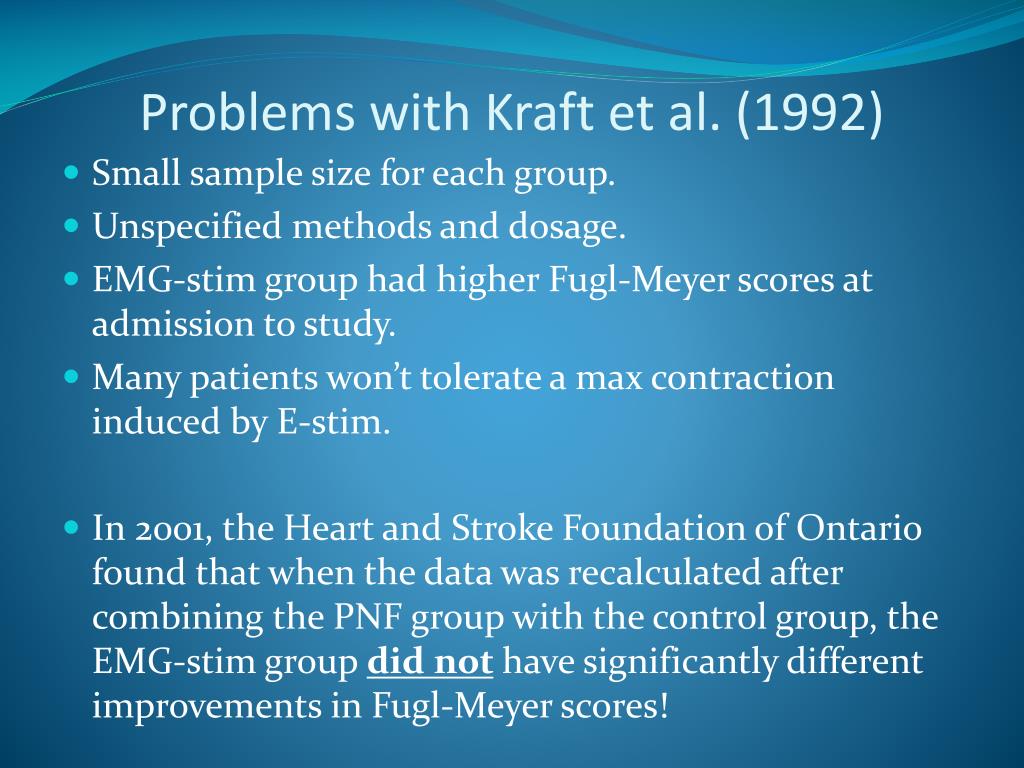

Problems with Kraft et al. (1992)
  • Small sample size for each group.
  • Unspecified methods and dosage.
  • EMG-stim group had higher Fugl-Meyer scores at admission to study.
  • Many patients won’t tolerate a max contraction induced by E-stim.
  • In 2001, the Heart and Stroke Foundation of Ontario found that when the data was recalculated after combining the PNF group with the control group, the EMG-stim group did nothave significantly different improvements in Fugl-Meyer scores!
management of the post stroke arm and hand 2001 hsfo recommendations
Management of the Post Stroke Arm and Hand 2001 HSFO recommendations…
  • http://profed.heartandstroke.ca/ClientImages/1/PostStrokeArmAndHandFinal2002%5B1%5D.pdf
yildirim sa erden z kilinc m 2007

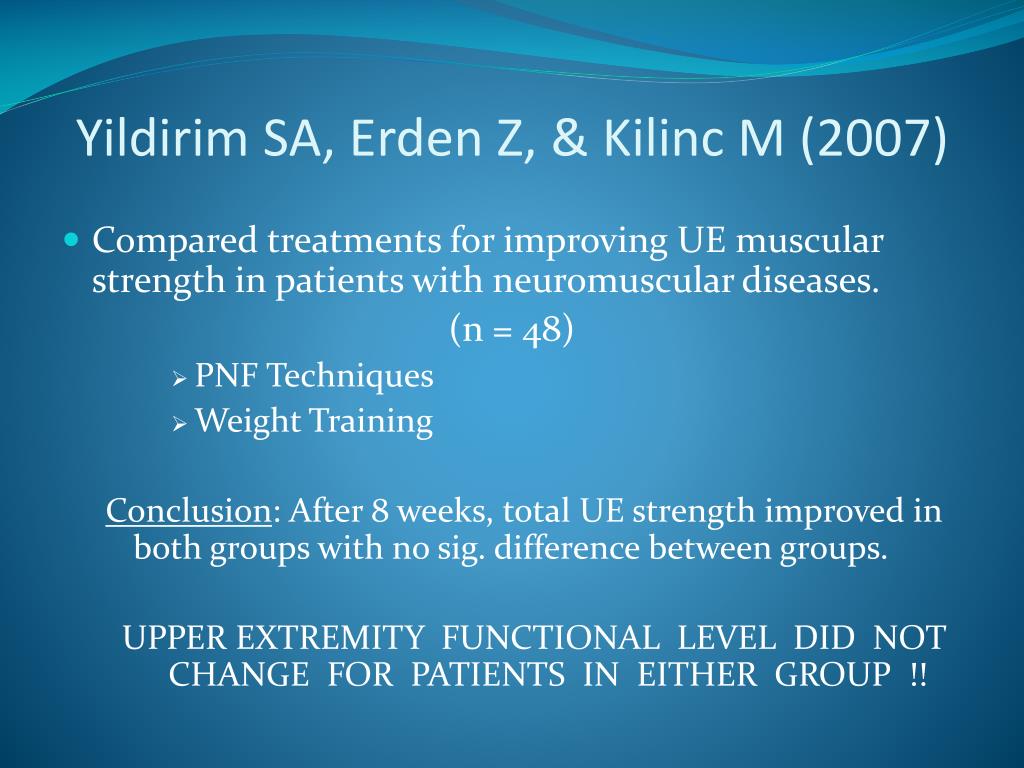

Yildirim SA, Erden Z, & Kilinc M (2007)
  • Compared treatments for improving UE muscular strength in patients with neuromuscular diseases.

(n = 48)

        • PNF Techniques
        • Weight Training

Conclusion: After 8 weeks, total UE strength improved in both groups with no sig. difference between groups.

UPPER EXTREMITY FUNCTIONAL LEVEL DID NOT CHANGE FOR PATIENTS IN EITHER GROUP !!

other research

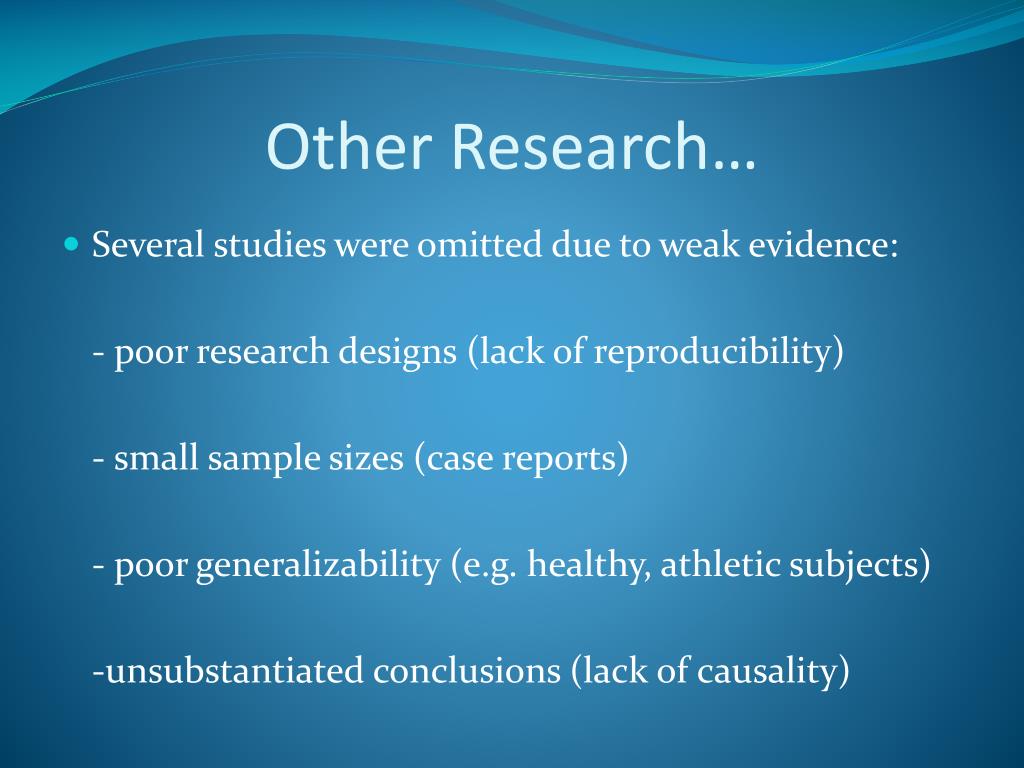

Other Research…
  • Several studies were omitted due to weak evidence:

- poor research designs (lack of reproducibility)

- small sample sizes (case reports)

- poor generalizability (e.g. healthy, athletic subjects)

-unsubstantiated conclusions (lack of causality)

conceptual framework for pt practice

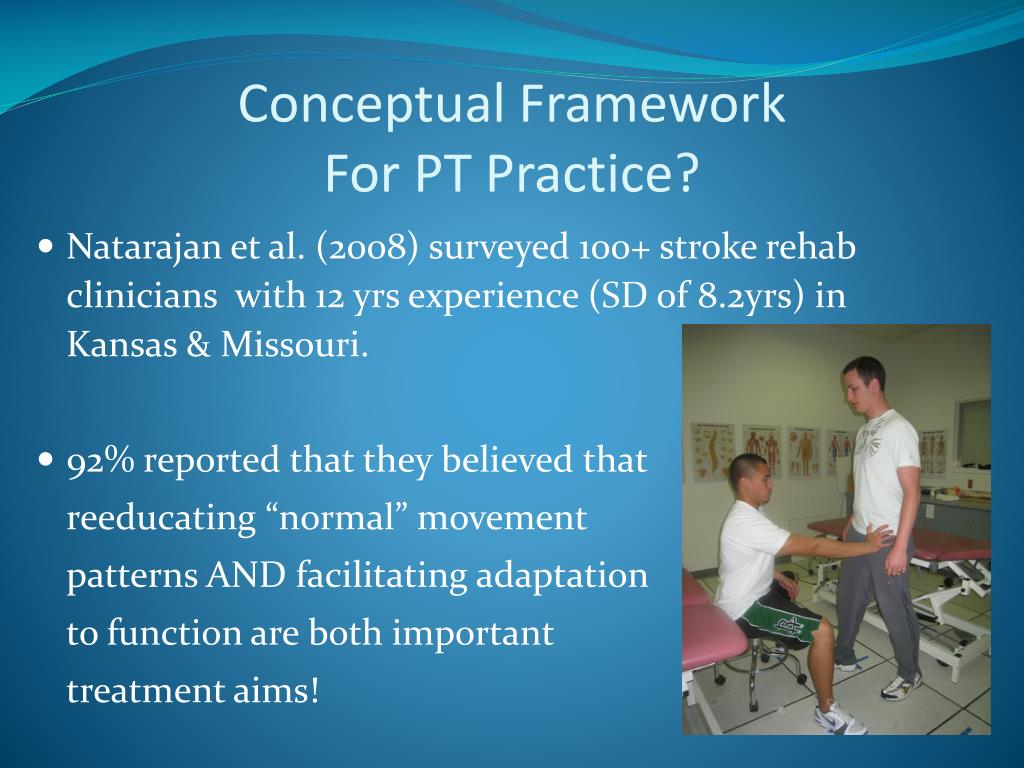

Conceptual FrameworkFor PT Practice?
  • Natarajan et al. (2008) surveyed 100+ stroke rehab clinicians with 12 yrs experience (SD of 8.2yrs) in Kansas & Missouri.
  • 92% reported that they believed that

reeducating “normal” movement

patterns AND facilitating adaptation

to function are both important

treatment aims!

slide24

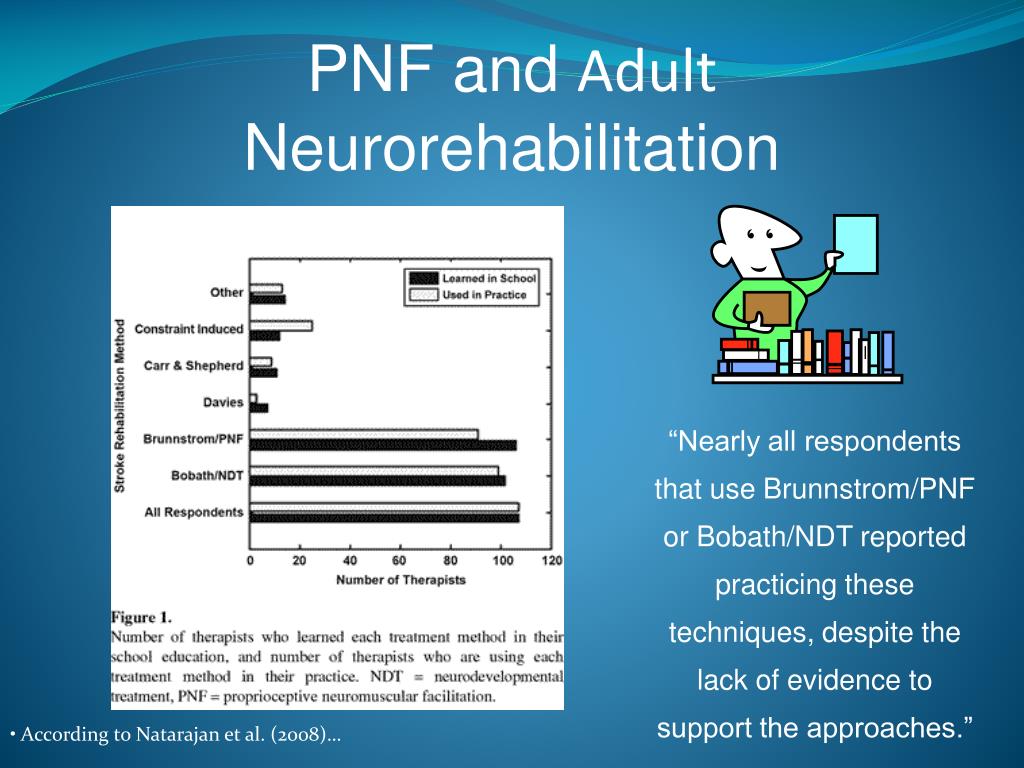

PNF and Adult Neurorehabilitation

“Nearly all respondents that use Brunnstrom/PNF or Bobath/NDT reported practicing these techniques, despite the lack of evidence to support the approaches.”

  • According to Natarajan et al. (2008)…
slide25

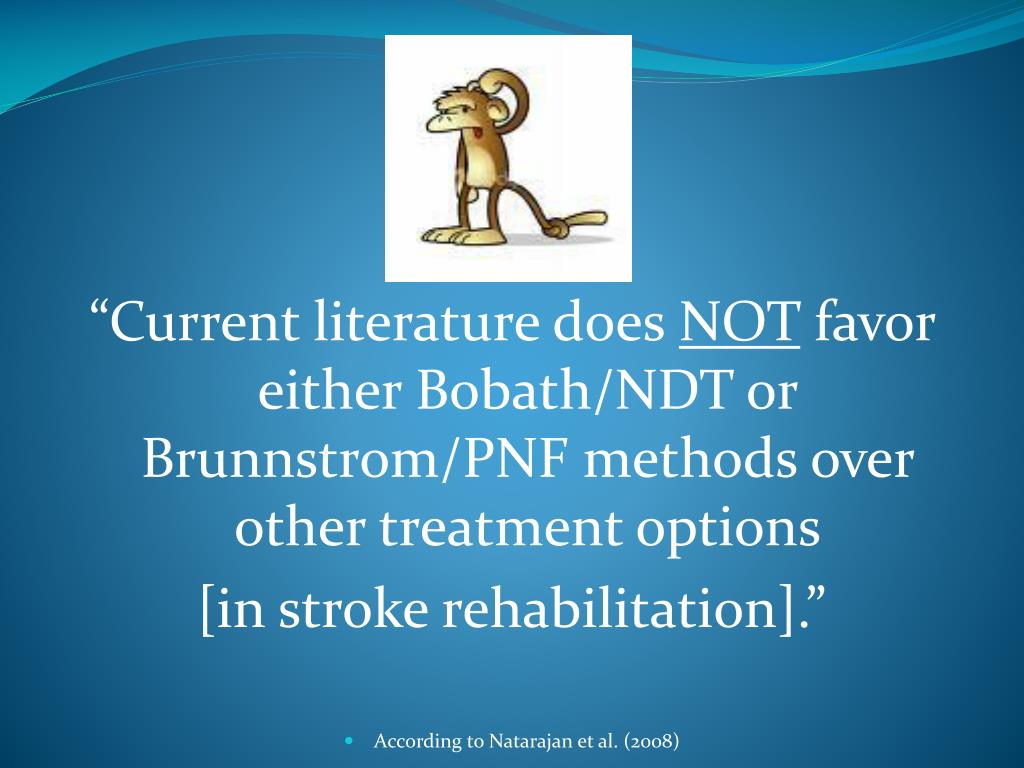

“Current literature does NOT favor either Bobath/NDT or Brunnstrom/PNF methods over other treatment options

[in stroke rehabilitation].”

  • According to Natarajan et al. (2008)
slide26

So why are clinicians choosing PNF for neurorehabilitation treatment?

  • Though clinicians recognize there is limited evidence, PNF provides:
    • Time efficient treatment
    • Treatment of multiple joints/muscles
    • Movement through functional patterns
    • Safe motion
implications of pnf on pt practice
Implications of PNF on PT Practice
  • Not enough evidence to use PNF as sole treatment in neurorehabilitation patients.
  • PNF stretching is supported

by evidence when used to

treat “healthy populations.”

slide28

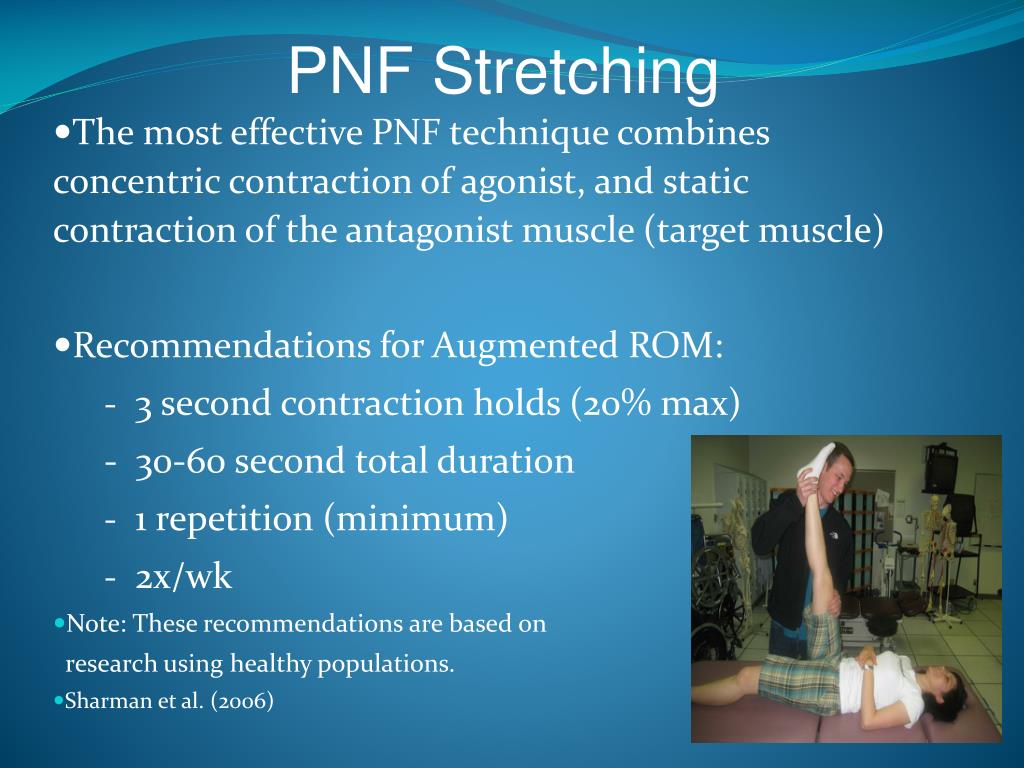

PNF Stretching

  • The most effective PNF technique combines concentric contraction of agonist, and static contraction of the antagonist muscle (target muscle)
  • Recommendations for Augmented ROM:
    • 3 second contraction holds (20% max)
    • - 30-60 second total duration
    • 1 repetition (minimum)
    • 2x/wk
  • Note: These recommendations are based on
  • research using healthy populations.
  • Sharman et al. (2006)
slide29

Should you Employ PNF?

  • In reference to your patients impairments and functional limitations….
  • 1. Does PNF fit in your conceptual framework for
  • clinical practice?
  • 2. Could PNF address your patient’s problems?
  • 3. Is PNF considered EBP for your pt. population?**
  • Yes to all 3 = Yes to PNF
  • **PNF use in neurorehab lacks evidence but can be used in conjunction with other EB interventions!!
references

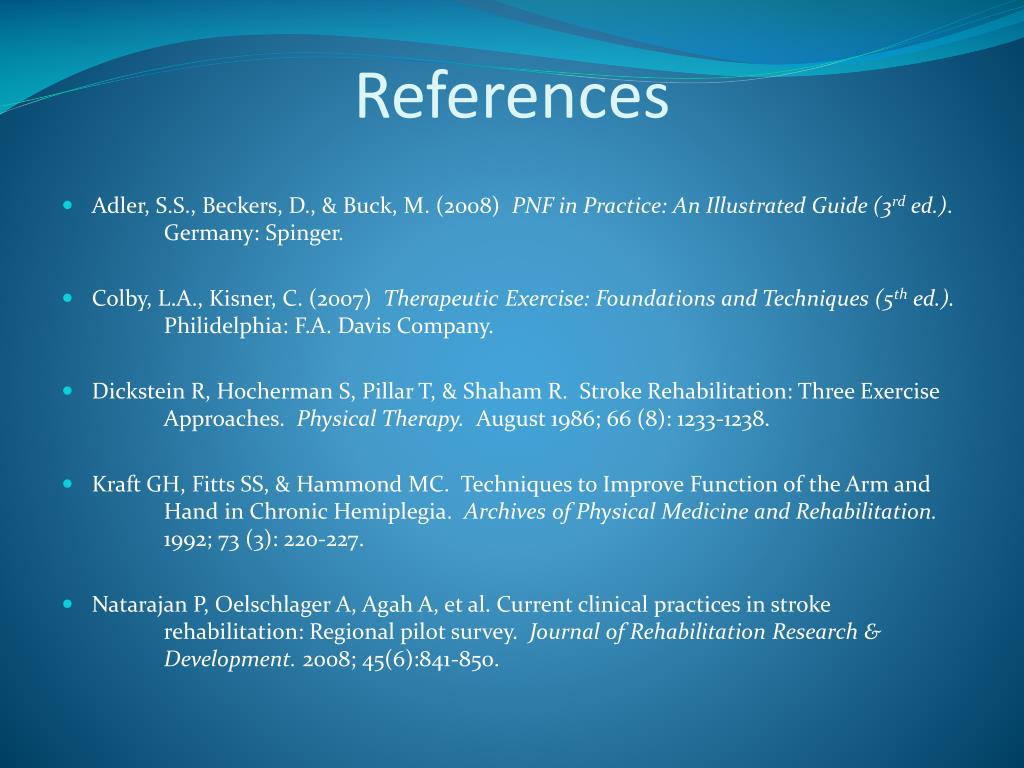

References
  • Adler, S.S., Beckers, D., & Buck, M. (2008) PNF in Practice: An Illustrated Guide (3rd ed.). Germany: Spinger.
  • Colby, L.A., Kisner, C. (2007) Therapeutic Exercise: Foundations and Techniques (5th ed.). Philidelphia: F.A. Davis Company.
  • Dickstein R, Hocherman S, Pillar T, & Shaham R. Stroke Rehabilitation: Three Exercise Approaches. Physical Therapy. August 1986; 66 (8): 1233-1238.
  • Kraft GH, Fitts SS, & Hammond MC. Techniques to Improve Function of the Arm and Hand in Chronic Hemiplegia. Archives of Physical Medicine and Rehabilitation. 1992; 73 (3): 220-227.
  • Natarajan P, Oelschlager A, Agah A, et al. Current clinical practices in stroke rehabilitation: Regional pilot survey. Journal of Rehabilitation Research & Development. 2008; 45(6):841-850.
references cont
References (cont.)
  • Sharman MJ, Cresswell AG, & Riek S. Proprioceptive Neuromuscular Facilitation Stretching: Mechanisms and Clinical Implications. Sports Medicine. 2006;

36 (11): 929-939.

  • Trueblood PR, Walker JM, Perry J, & Gronley JK. Pelvic Exercise and Gait in Hemiplegia. Physical Therapy. January 1989; 69 (1): 18-26.
  • Wang RY. Effect of Proprioceptive Neuromuscular Facilitation on the Gait of Patients with Hemiplegia of Long and Short Duration. Physical Therapy. December 1994; 74 (12): 1108-1115.
  • Yamashiro, K.M. Proprioception Neuromuscular Facilitation Level 1.
  • Yildirim SA, Erden Z, & Kilinc M. Comparison of the Effects of Proprioceptive Neuromuscular Facilitation Techniques and Weight Training in Patients with Neuromuscular Diseases. [Abstract.] Fizyoterapi Rehabilitasyon. August 2007; 18 (2): 65-71.
review learning objectives
Review Learning Objectives

1. Define proprioceptive neuromuscular facilitation (PNF).

2. Discuss the treatment philosophy that serves as the framework for using PNF intervention techniques.

3. List the theoretical explanations for the effectiveness of PNF techniques on increasing muscle length.

4. Discuss the current use of PNF in adult neurorehabilitation.

5. Discuss the efficacy of PNF as a neurorehabilitation intervention technique based upon the most current literature.

6. Discuss the implications of PNF research on PT Practice.
