Presentation Transcript

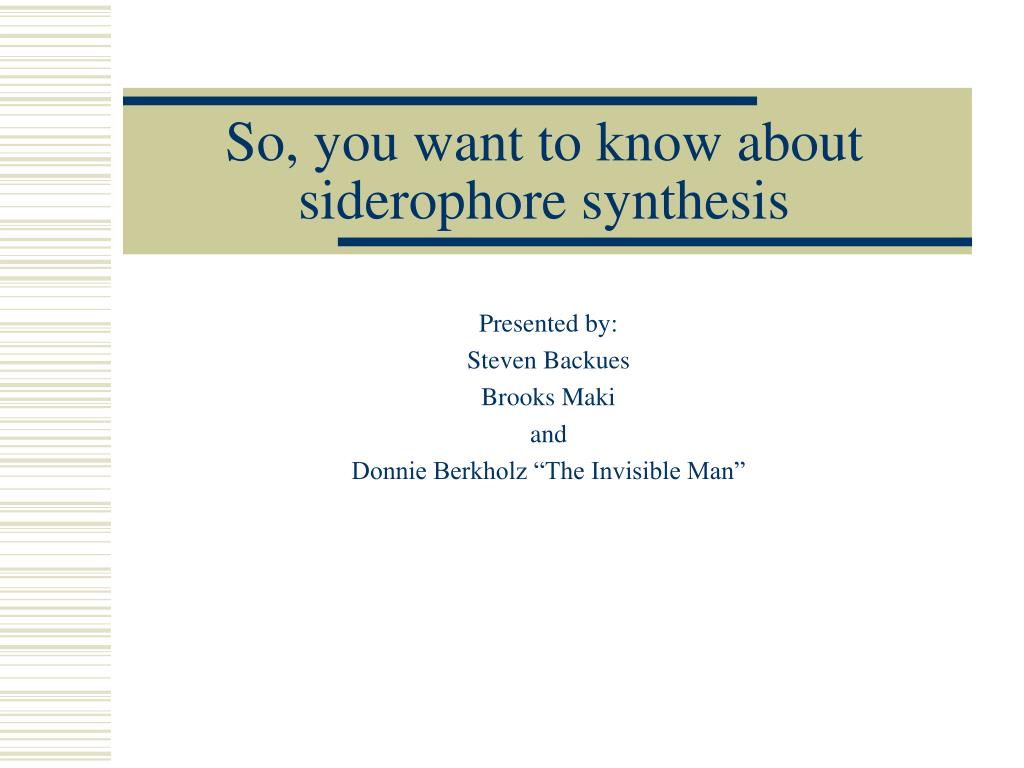

so you want to know about siderophore synthesis

So, you want to know about siderophore synthesis

Presented by:

Steven Backues

Brooks Maki

and

Donnie Berkholz “The Invisible Man”

hydroxamic acid groups
Hydroxamic Acid Groups
  • N-Alkylation of O-substituted Hydroxamic acid.
  • Formation of an oxime from an aldehyde and a hydroxylamine. Followed by reduction and acylation
  • These derivatives allowed synthesis of several siderophores and their analogues

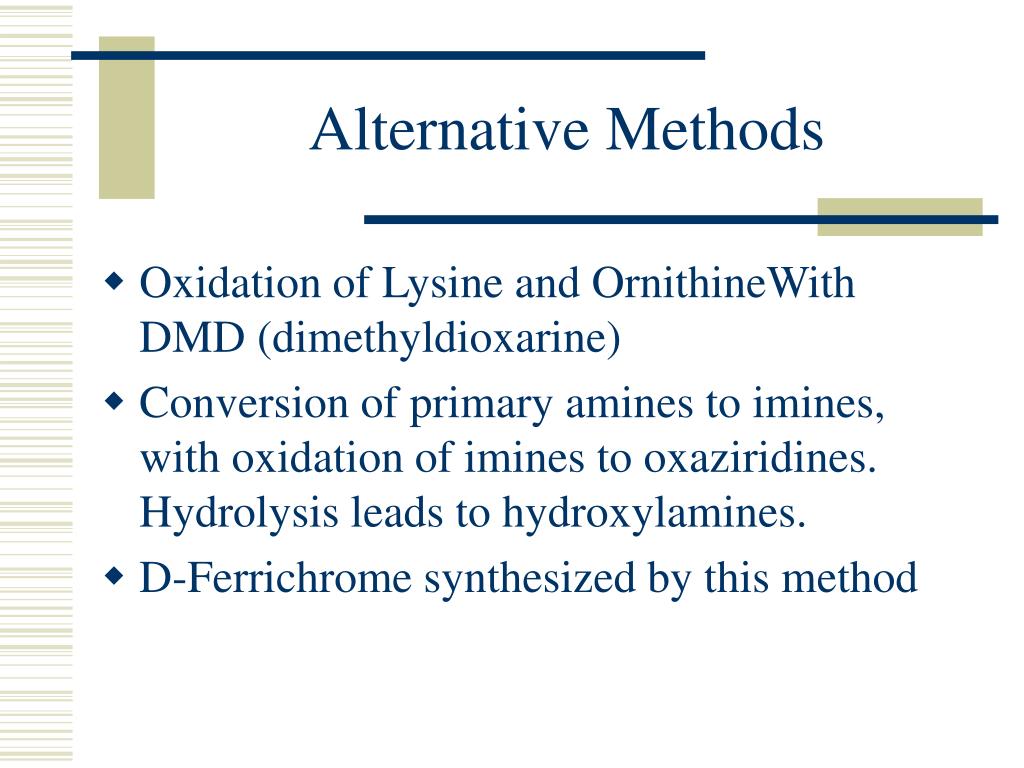

alternative methods
Alternative Methods
  • Oxidation of Lysine and OrnithineWith DMD (dimethyldioxarine)
  • Conversion of primary amines to imines, with oxidation of imines to oxaziridines. Hydrolysis leads to hydroxylamines.
  • D-Ferrichrome synthesized by this method

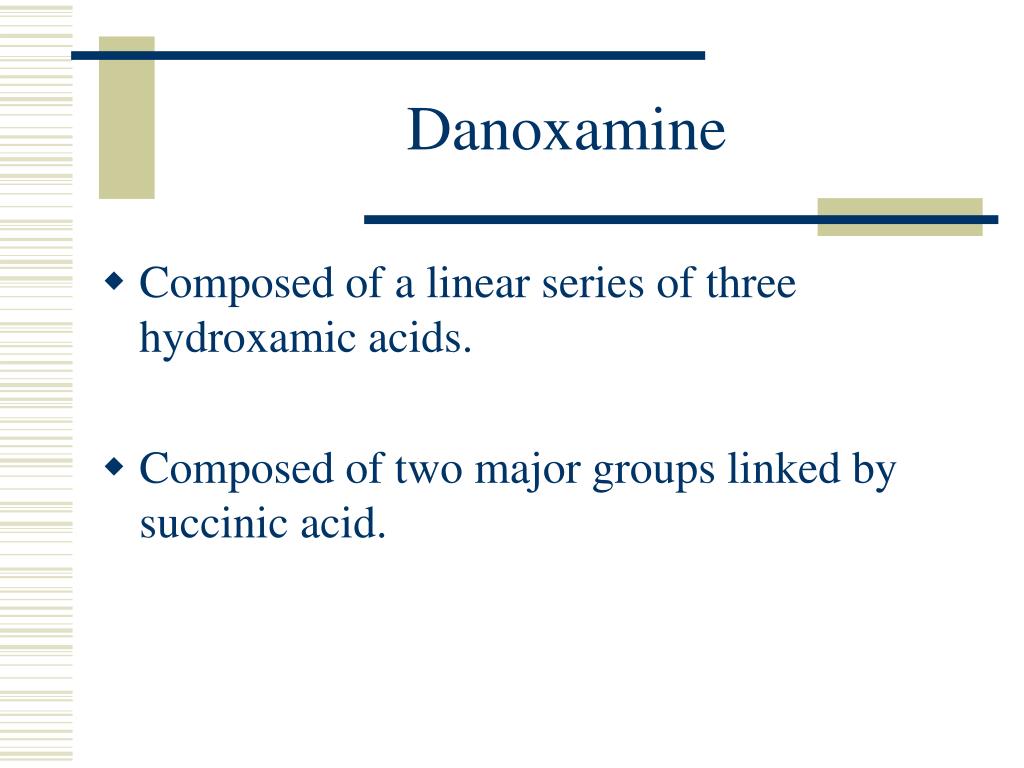

danoxamine
Danoxamine
  • Composed of a linear series of three hydroxamic acids.
  • Composed of two major groups linked by succinic acid.

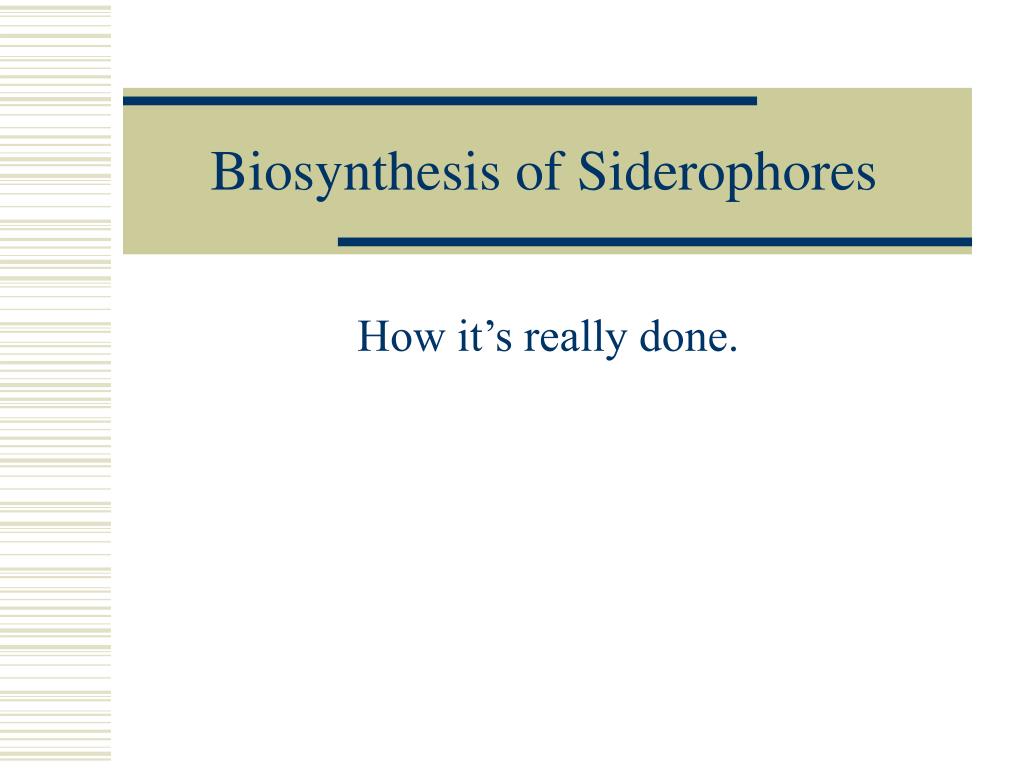

biosynthesis of siderophores

Biosynthesis of Siderophores

How it’s really done.

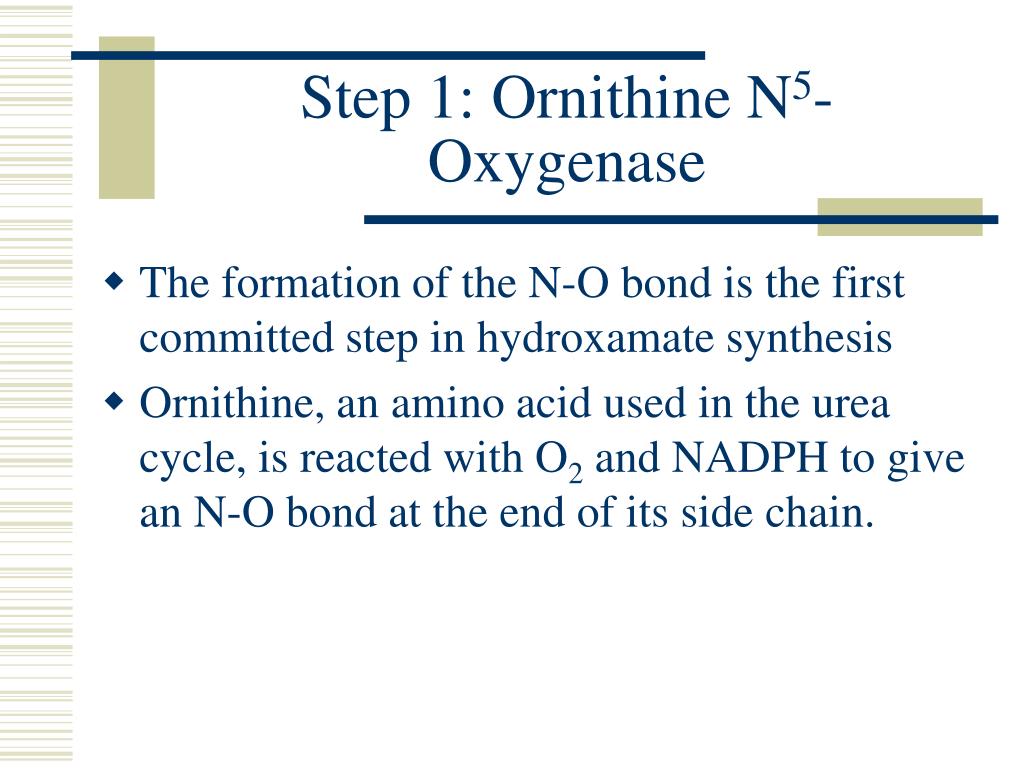

step 1 ornithine n 5 oxygenase
Step 1: Ornithine N5-Oxygenase
  • The formation of the N-O bond is the first committed step in hydroxamate synthesis
  • Ornithine, an amino acid used in the urea cycle, is reacted with O2 and NADPH to give an N-O bond at the end of its side chain.

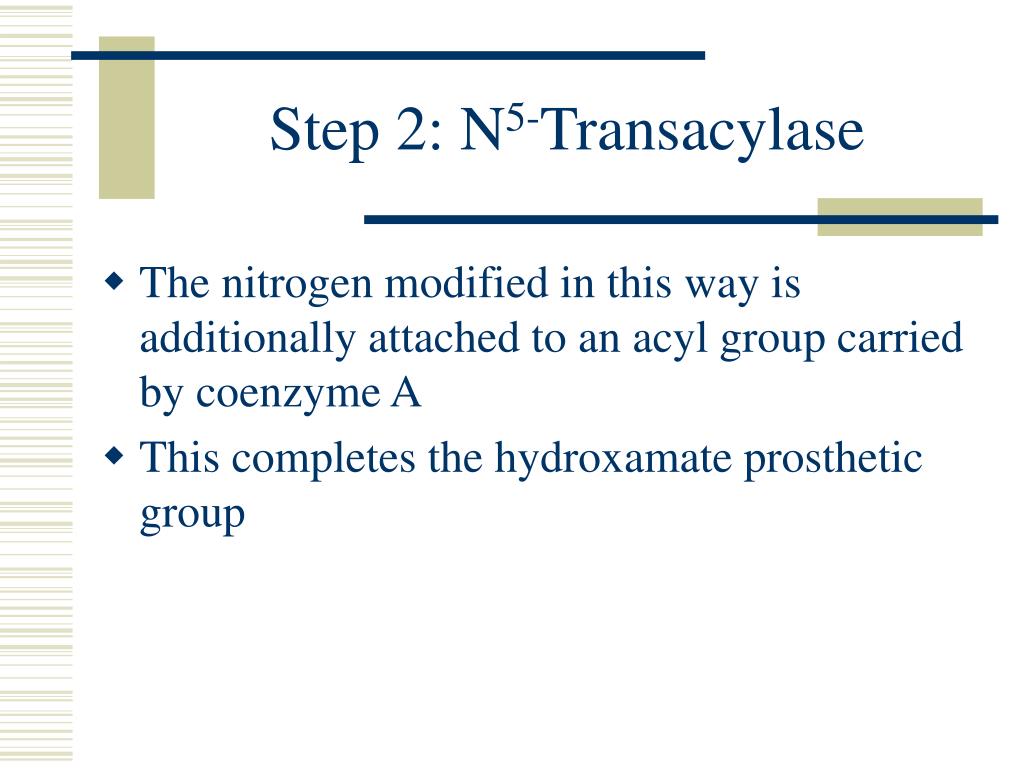

step 2 n 5 transacylase
Step 2: N5-Transacylase
  • The nitrogen modified in this way is additionally attached to an acyl group carried by coenzyme A
  • This completes the hydroxamate prosthetic group
step 3 non ribosomal peptide synthetase
Step 3: Non-ribosomal Peptide Synthetase
  • This synthetase is a large complex with many subdomains, including an adenylation domain, a thiolation domain, and a condensation domain.

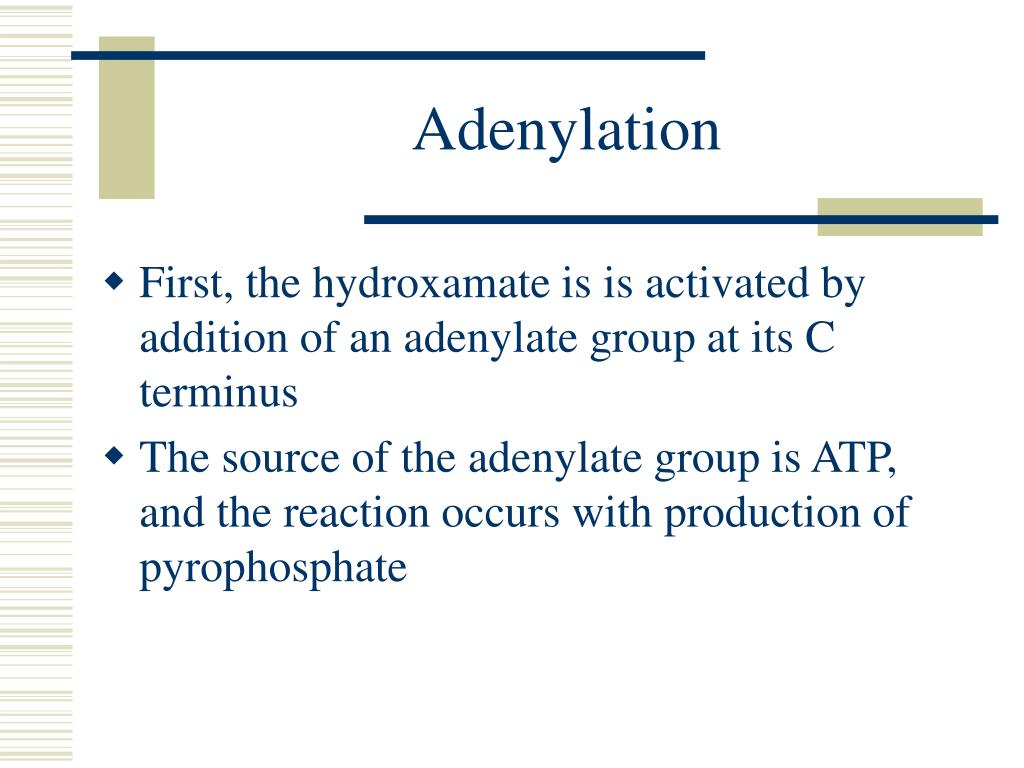

adenylation
Adenylation
  • First, the hydroxamate is is activated by addition of an adenylate group at its C terminus
  • The source of the adenylate group is ATP, and the reaction occurs with production of pyrophosphate

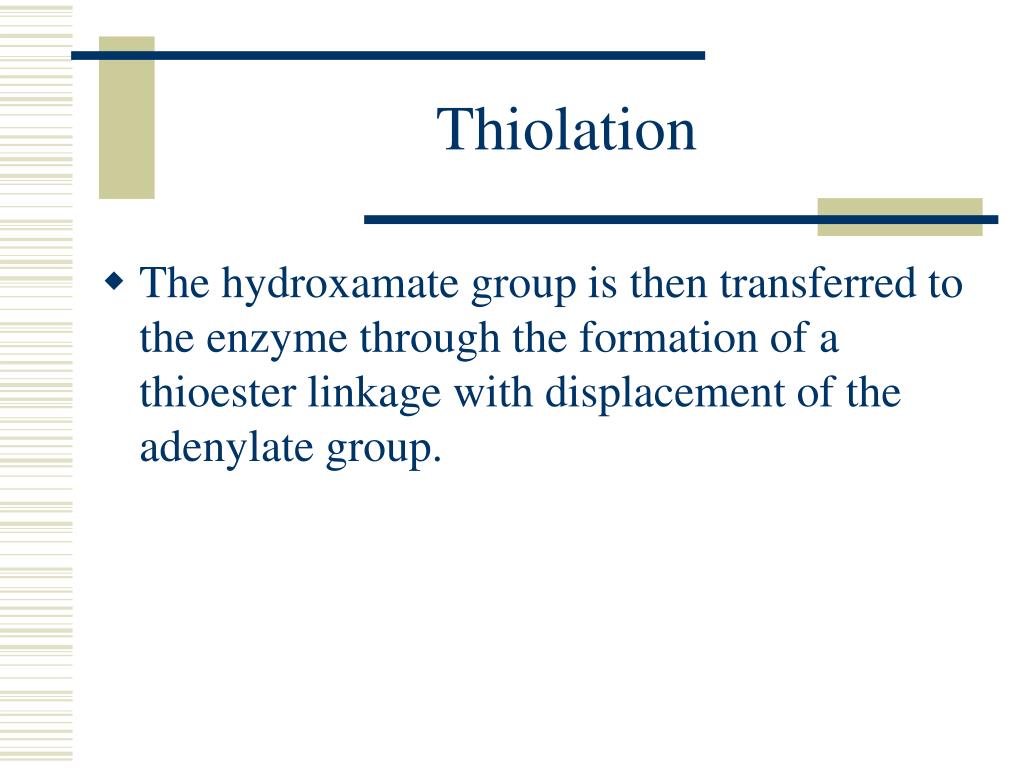

thiolation
Thiolation
  • The hydroxamate group is then transferred to the enzyme through the formation of a thioester linkage with displacement of the adenylate group.

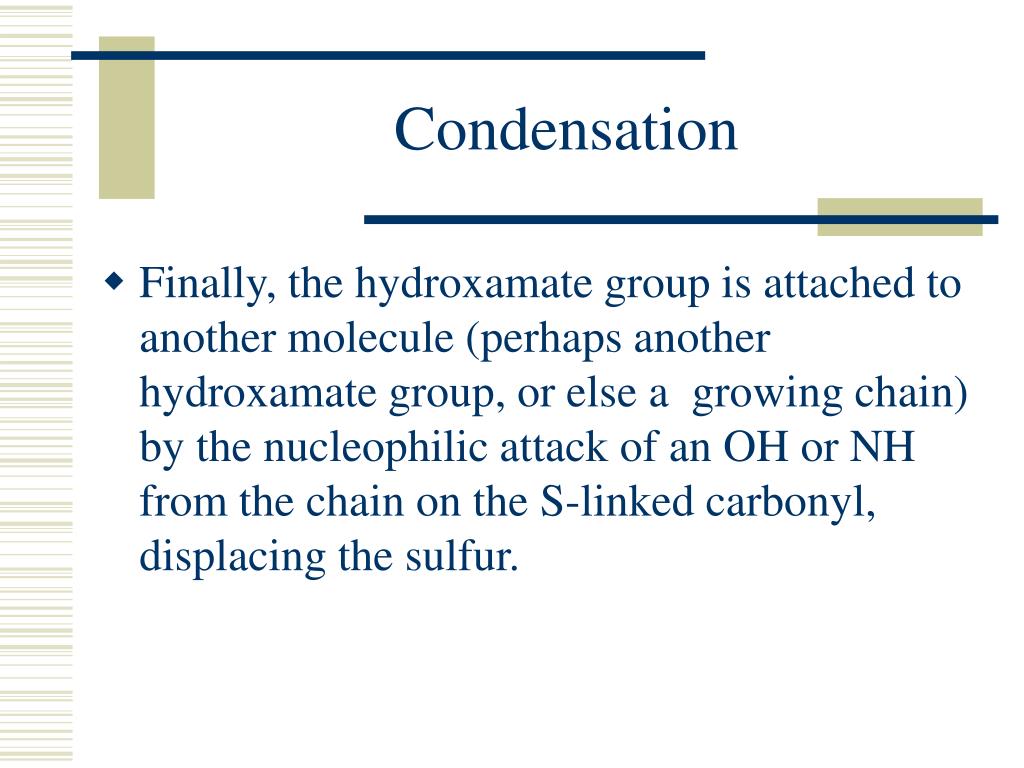

condensation
Condensation
  • Finally, the hydroxamate group is attached to another molecule (perhaps another hydroxamate group, or else a growing chain) by the nucleophilic attack of an OH or NH from the chain on the S-linked carbonyl, displacing the sulfur.

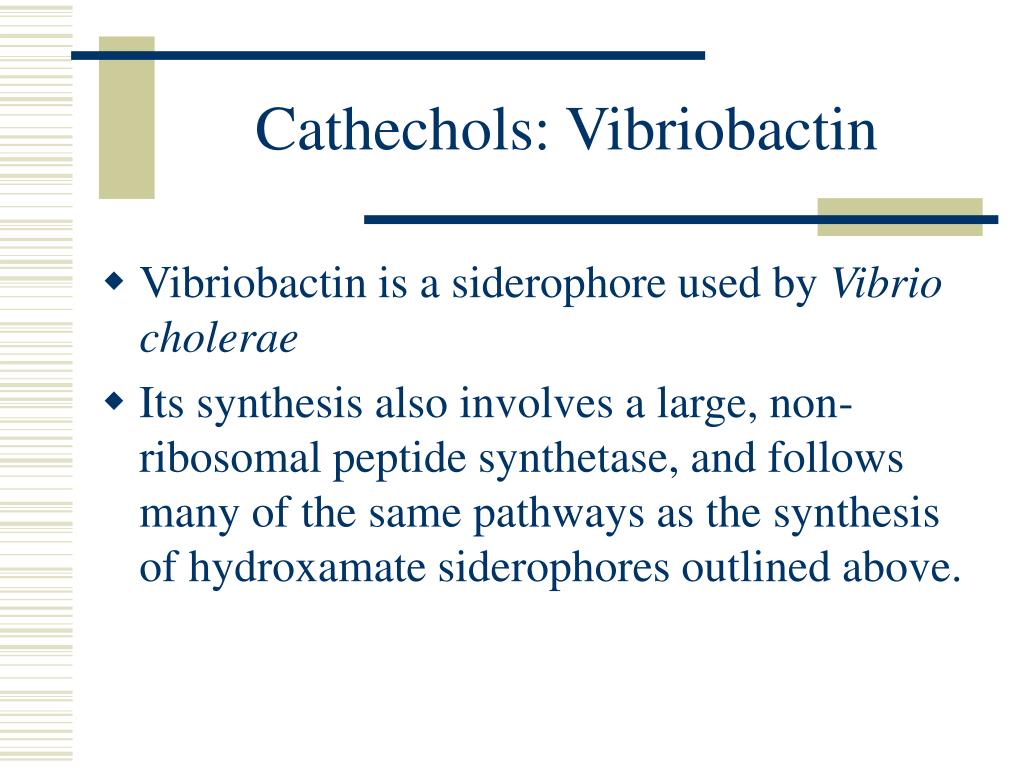

cathechols vibriobactin

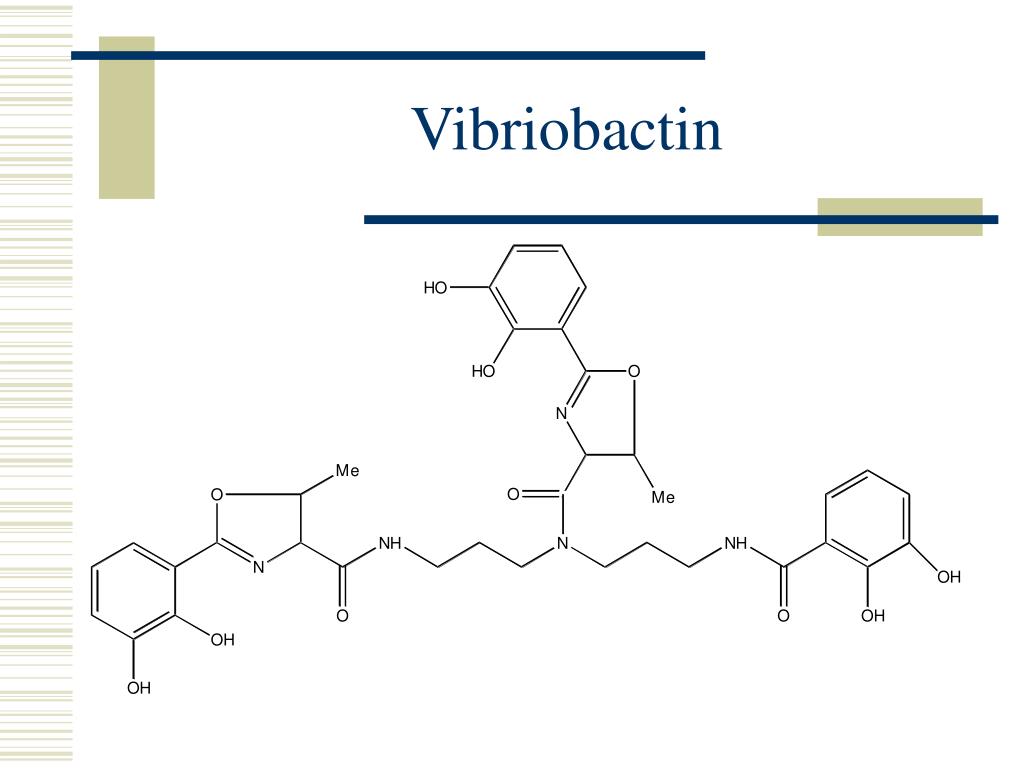

Cathechols: Vibriobactin
  • Vibriobactin is a siderophore used by Vibrio cholerae
  • Its synthesis also involves a large, non-ribosomal peptide synthetase, and follows many of the same pathways as the synthesis of hydroxamate siderophores outlined above.

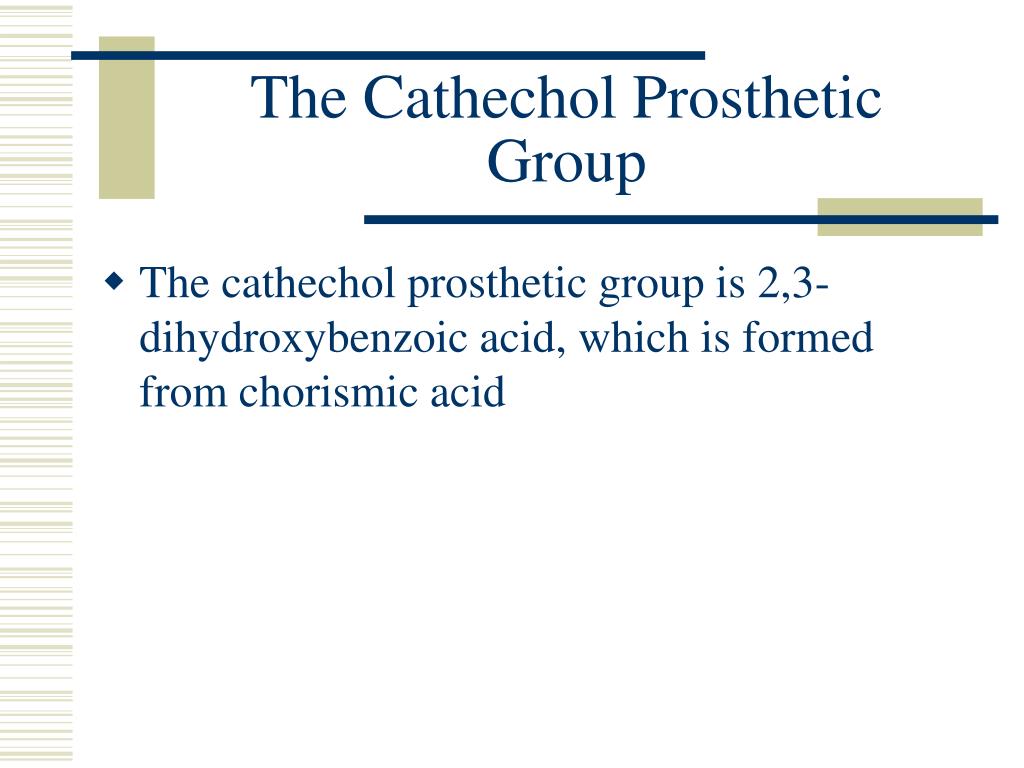

the cathechol prosthetic group
The Cathechol Prosthetic Group
  • The cathechol prosthetic group is 2,3-dihydroxybenzoic acid, which is formed from chorismic acid

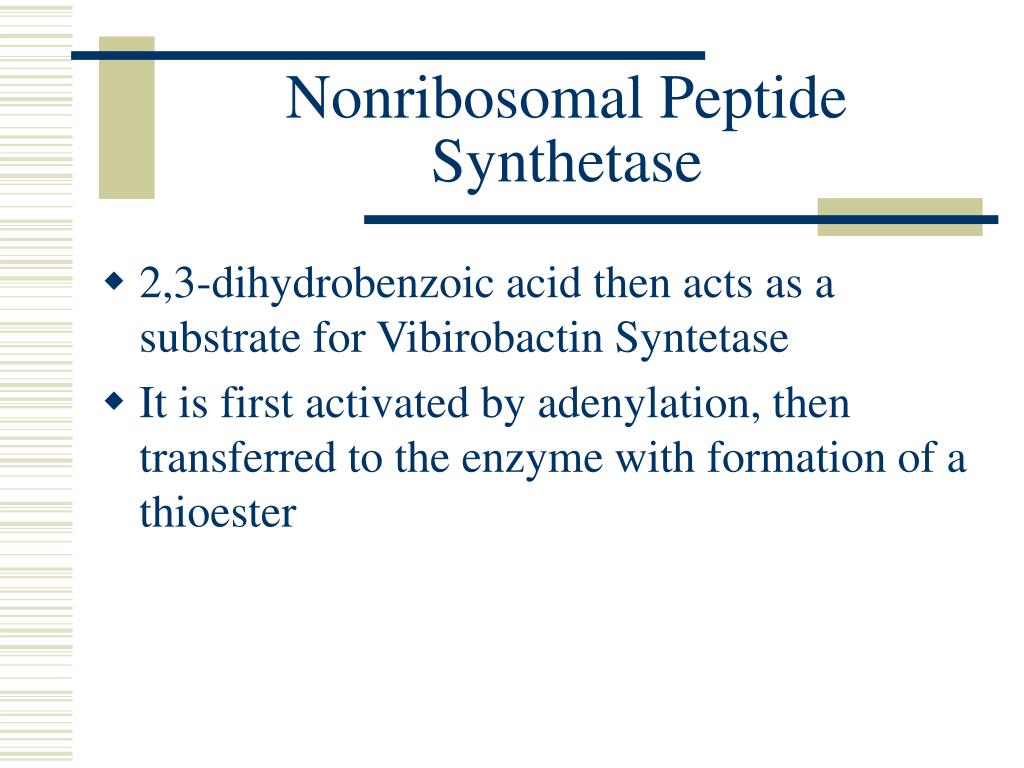

nonribosomal peptide synthetase
Nonribosomal Peptide Synthetase
  • 2,3-dihydrobenzoic acid then acts as a substrate for Vibirobactin Syntetase
  • It is first activated by adenylation, then transferred to the enzyme with formation of a thioester

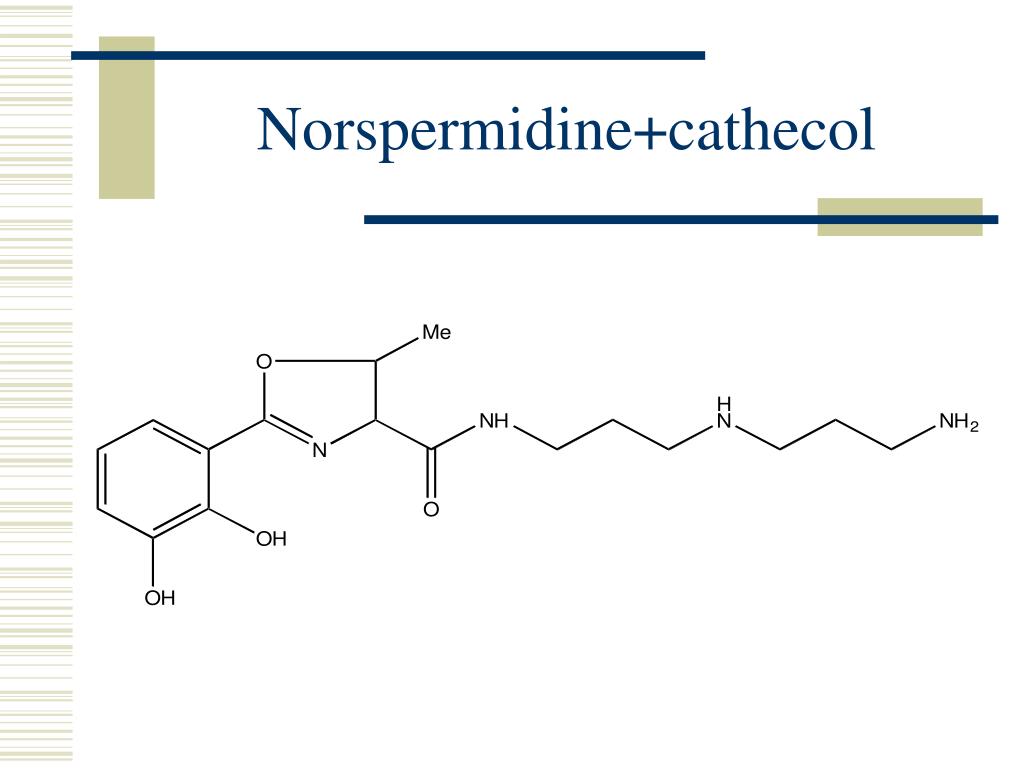

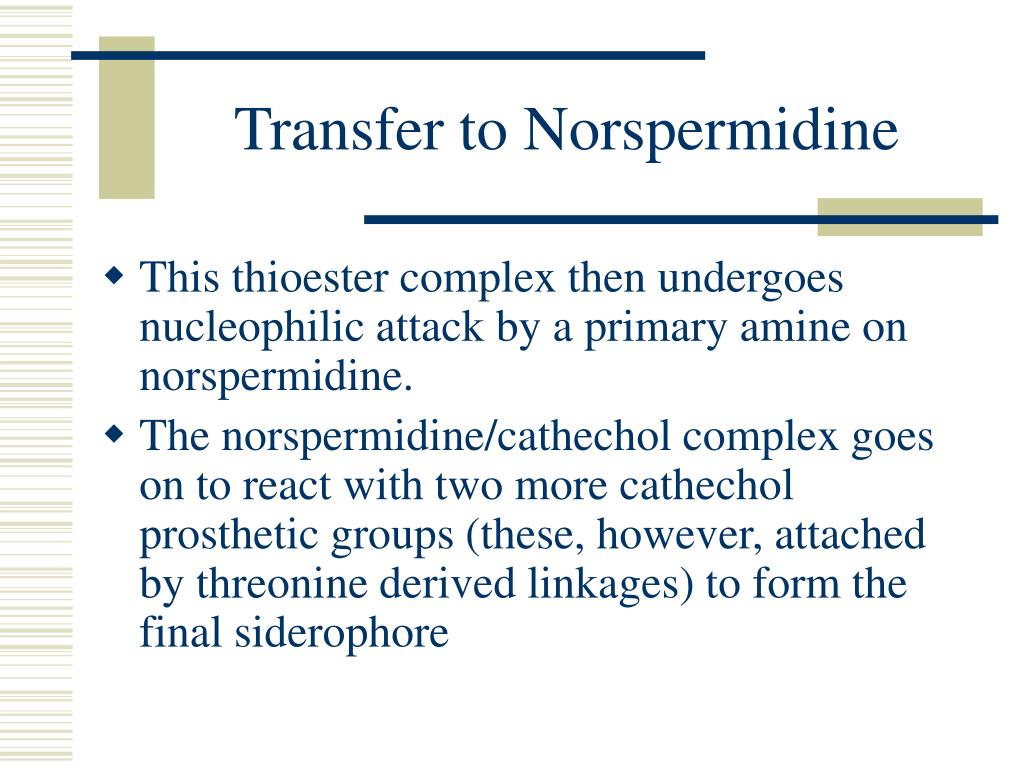

transfer to norspermidine
Transfer to Norspermidine
  • This thioester complex then undergoes nucleophilic attack by a primary amine on norspermidine.
  • The norspermidine/cathechol complex goes on to react with two more cathechol prosthetic groups (these, however, attached by threonine derived linkages) to form the final siderophore

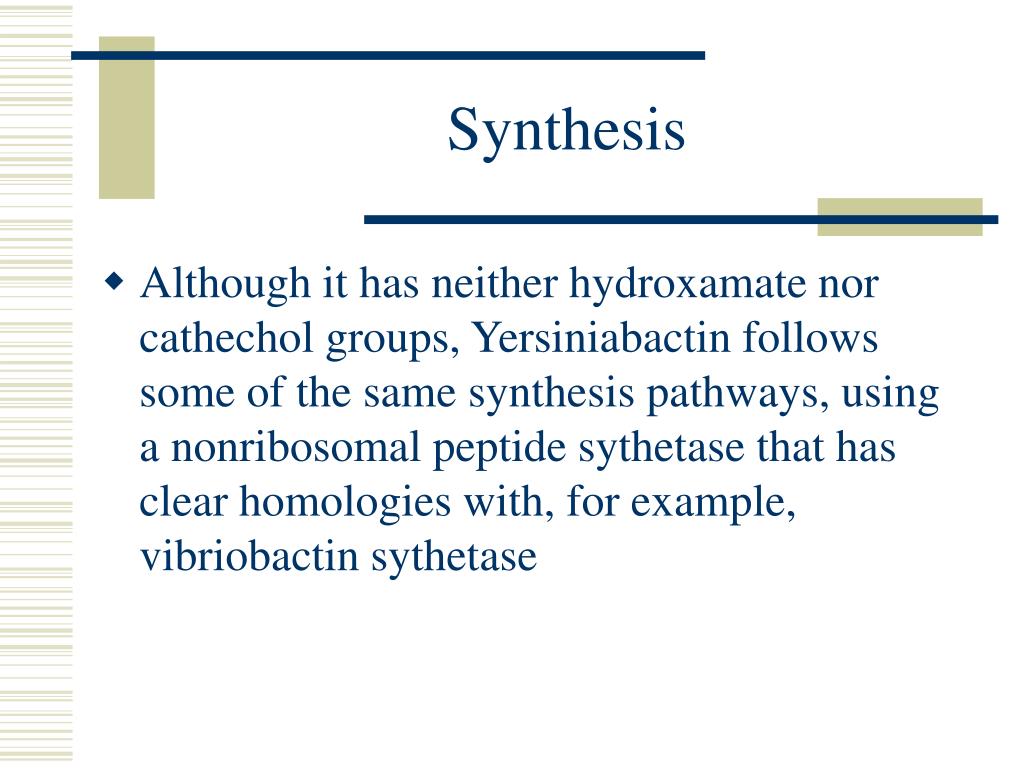

synthesis
Synthesis

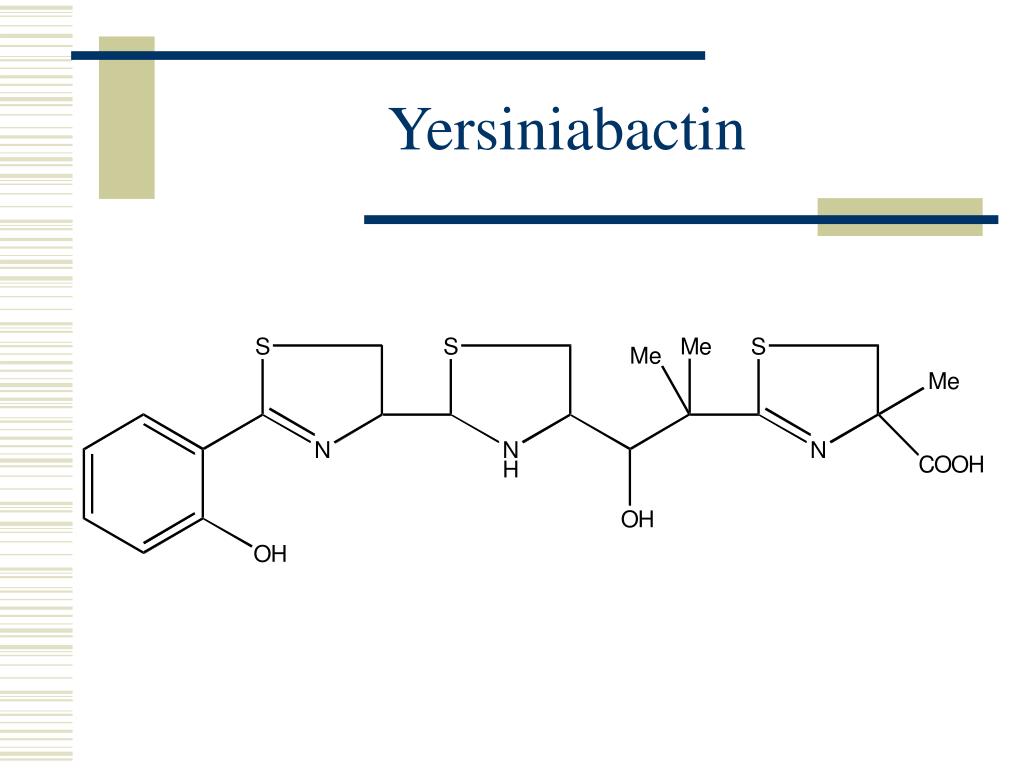

  • Although it has neither hydroxamate nor cathechol groups, Yersiniabactin follows some of the same synthesis pathways, using a nonribosomal peptide sythetase that has clear homologies with, for example, vibriobactin sythetase

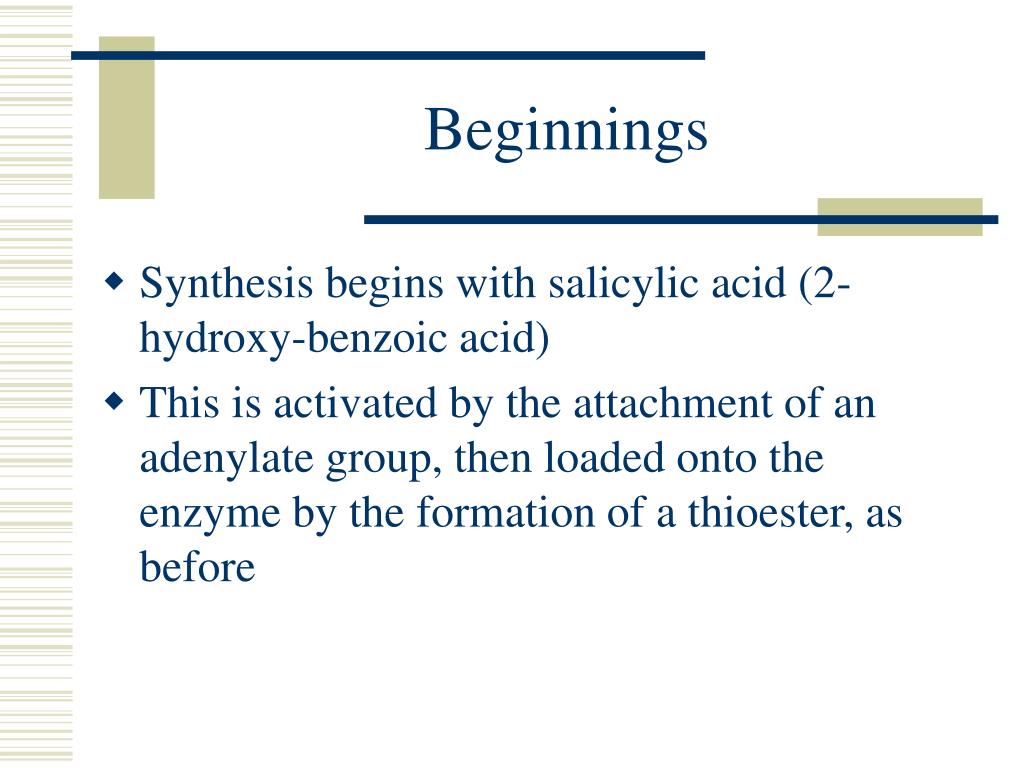

beginnings
Beginnings
  • Synthesis begins with salicylic acid (2-hydroxy-benzoic acid)
  • This is activated by the attachment of an adenylate group, then loaded onto the enzyme by the formation of a thioester, as before
elongation
Elongation
  • At the same time, two cystines are also activated then loaded onto the same enzyme, also via a thioester linkage
  • Then, in the condensation/cyclization domain, the salicyate group is transferred onto one of the cystines, which is then cyclized.
  • This cyclization is an unusual property of this particular synthetaes
completion
Completion
  • A second cystine is added, and also cyclized, and the resulting molecule undergoes the addition of a malonyl group, S-adenosylmethionine, and an additional cystine to complete the synthesis
overview
Overview:
  • The use of a large, multidomain nonribosomal peptide synthetase was a common element of all of these syntheses.
  • All of these processes included the activation of a substrate by adenylation and the transfer to a thioester linkage with the enzyme, followed by condensation to form a longer chain. This is similar to the process followed in biosynthesis of fatty acids.
references
References
  • Roosenberg, J.M. and Miller, M.J. Total Synthesis of the Siderophore Danoxamine. J. Org. Chem. 2000 Vol. 65 No. 16. 4833 – 4838.
  • Lin, Y. and Miller, M.J. Synthesis of Siderophore Components by and Indirect Oxidation Method. J. Org. Chem. 1999 Vol. 64 No. 20. 7451 – 7458.
  • Gaspar, M., Grazina, R., Bodor, A., Farkas, E., and Santos, M.A. Macrocyclic tetraamine tris(hydroxamate) ligand. J. Chem Soc. 1999 799 – 806.
  • Duhme, A.K. Synthesis of two dioxomolybdenum complexes of a siderophore analogue. J. Chem. Soc. 1997 773 – 778.
  • Atkinson, A. Bacterial Iron Transport. Biochemistry. 1998. 15965 - 15973
