  1. DETERMINING THE FERRITE CORE PERMEABILITY www.cosmoferrites.com

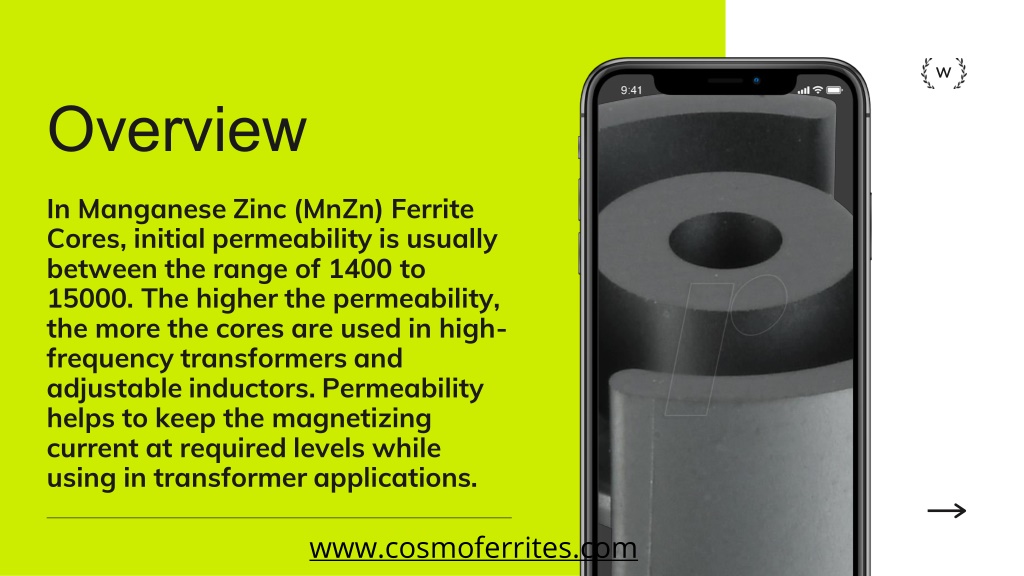

  2. W Overview In Manganese Zinc (MnZn) Ferrite Cores, initial permeability is usually between the range of 1400 to 15000. The higher the permeability, the more the cores are used in high- frequency transformers and adjustable inductors. Permeability helps to keep the magnetizing current at required levels while using in transformer applications. www.cosmoferrites.com

  3. W What is Ferrite Core Permeability? Permeability is the level of magnetization obtained by a material when a magnetic field is applied to it. Greek symbol μ represents permeability. It helps us to measure the degree of a material’s resistance to the magnetic field and shows the capability of magnetic lines of force to penetrate through a material. www.cosmoferrites.com

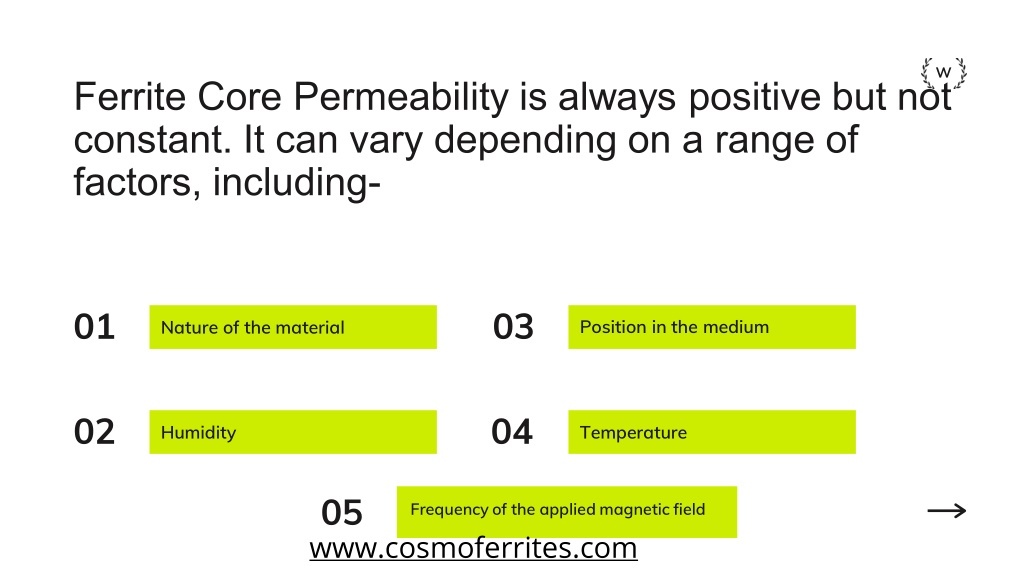

  4. W Ferrite Core Permeability is always positive but not constant. It can vary depending on a range of factors, including- 01 03 Position in the medium Nature of the material 02 04 Humidity Temperature 05 www.cosmoferrites.com Frequency of the applied magnetic field

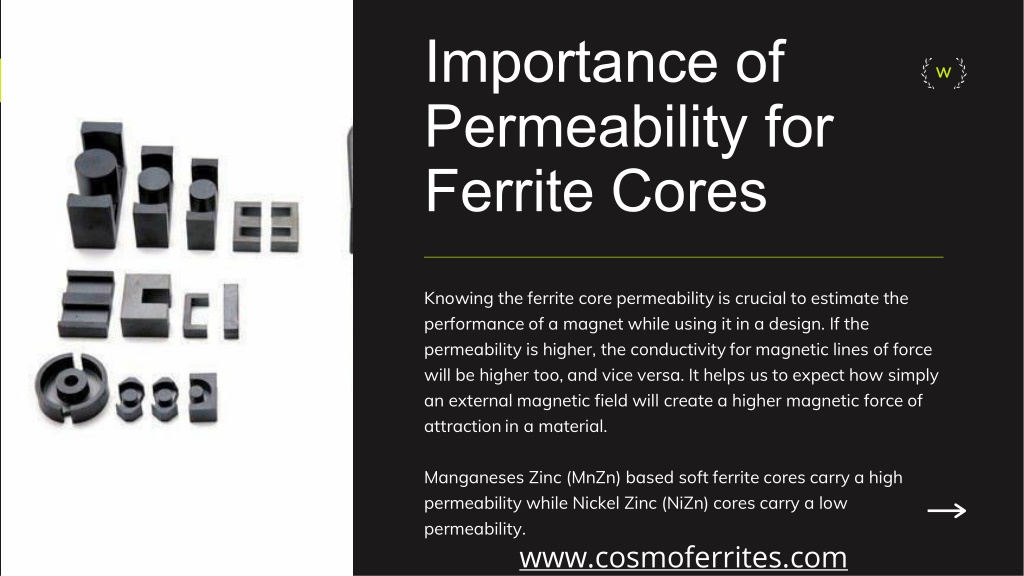

  5. Importance of Permeability for Ferrite Cores W Key takeaways: Knowing the ferrite core permeability is crucial to estimate the performance of a magnet while using it in a design. If the permeability is higher, the conductivity for magnetic lines of force will be higher too, and vice versa. It helps us to expect how simply an external magnetic field will create a higher magnetic force of attraction in a material. Manganeses Zinc (MnZn) based soft ferrite cores carry a high permeability while Nickel Zinc (NiZn) cores carry a low permeability. www.cosmoferrites.com

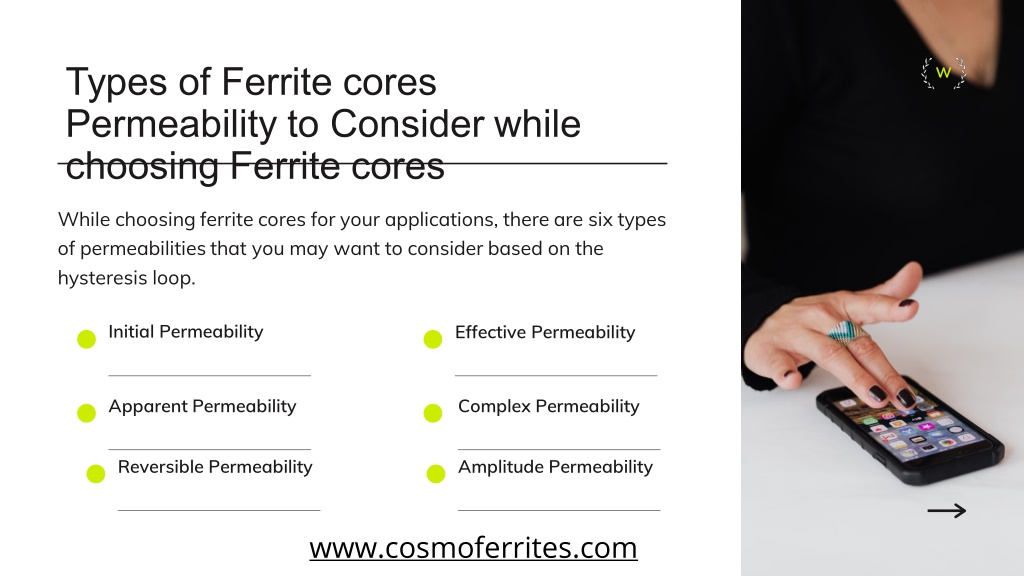

  6. Types of Ferrite cores Permeability to Consider while choosing Ferrite cores W While choosing ferrite cores for your applications, there are six types of permeabilities that you may want to consider based on the hysteresis loop. Initial Permeability Effective Permeability Apparent Permeability Complex Permeability Reversible Permeability Amplitude Permeability www.cosmoferrites.com

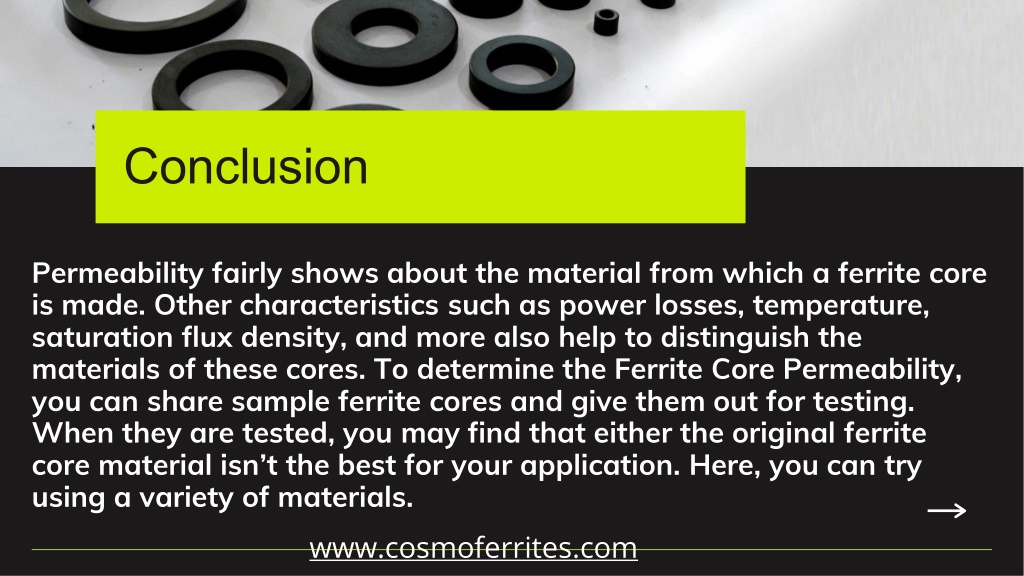

  7. W Conclusion Permeability fairly shows about the material from which a ferrite core is made. Other characteristics such as power losses, temperature, saturation flux density, and more also help to distinguish the materials of these cores. To determine the Ferrite Core Permeability, you can share sample ferrite cores and give them out for testing. When they are tested, you may find that either the original ferrite core material isn’t the best for your application. Here, you can try using a variety of materials. www.cosmoferrites.com
