Determining the Ferrite Core Permeability

In Manganese Zinc (MnZn) Ferrite Cores, initial permeability is usually between the range of 1400 to 15000. The higher the permeability, the more the cores are used in high-frequency transformers and adjustable inductors. Permeability helps to keep the magnetizing current at required levels while using in transformer applications. Also, high magnetic permeability in combination with low electrical conductivity helps to prevent eddy currents in the ferrite cores. This allows the cores to offer the benefit of low eddy current losses even in different frequencies.

cosmoferrites121
Download Presentation

Determining the Ferrite Core Permeability

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. DETERMINING THE FERRITE CORE PERMEABILITY www.cosmoferrites.com

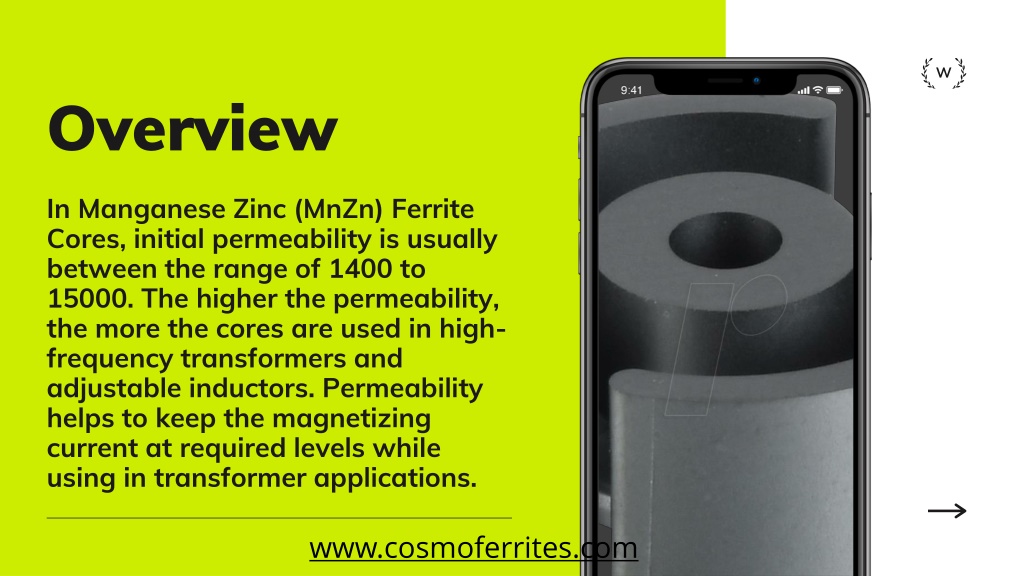

  2. Overview W In Manganese Zinc (MnZn) Ferrite Cores, initial permeability is usually between the range of 1400 to 15000. The higher the permeability, the more the cores are used in high-frequency transformers and adjustable inductors. Permeability helps to keep the magnetizing current at required levels while using in transformer applications. www.cosmoferrites.com

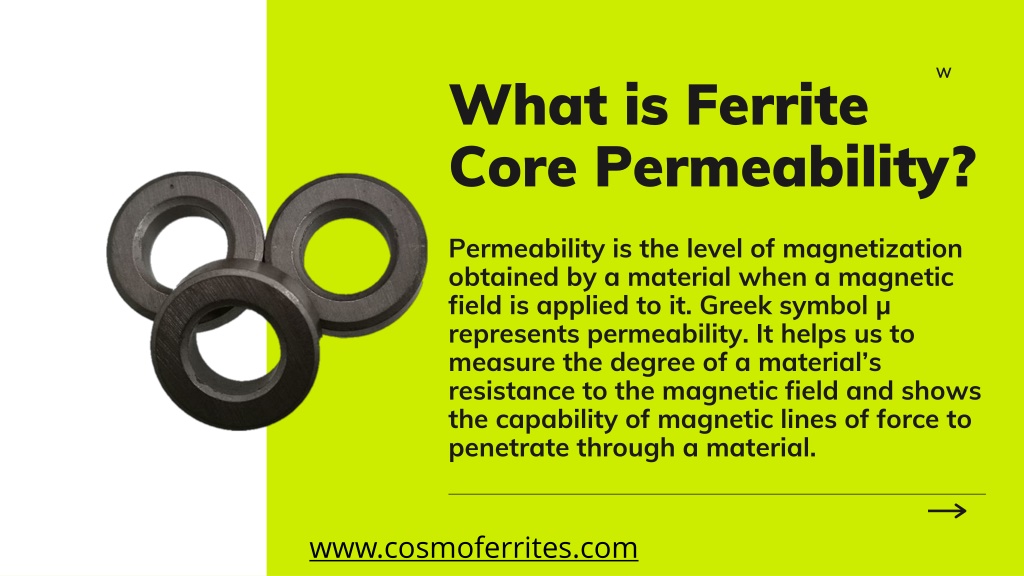

  3. What is Ferrite Core Permeability? W Permeability is the level of magnetization obtained by a material when a magnetic field is applied to it. Greek symbol μ represents permeability. It helps us to measure the degree of a material’s resistance to the magnetic field and shows the capability of magnetic lines of force to penetrate through a material. www.cosmoferrites.com

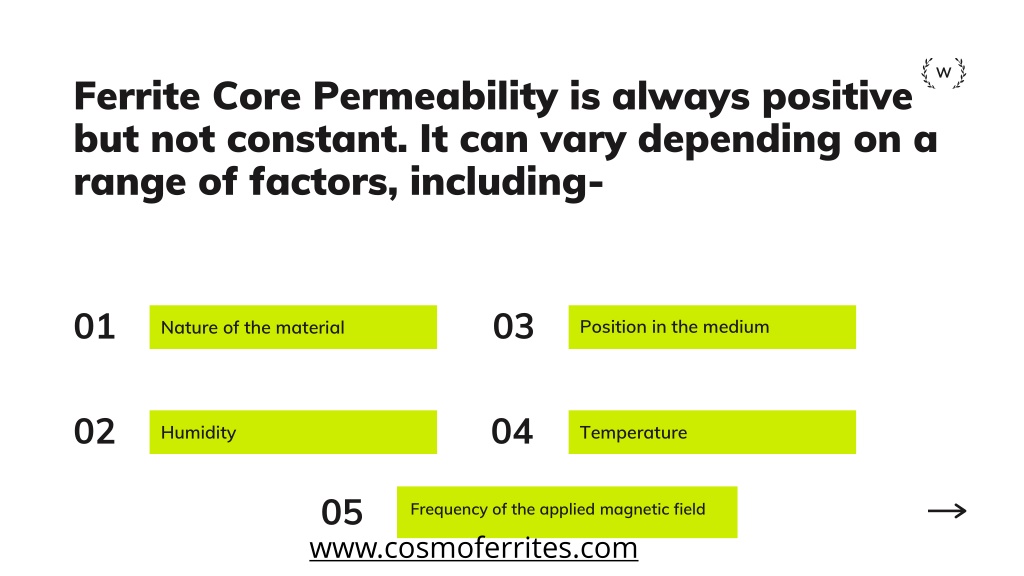

  4. W Humidity Nature of the material Position in the medium Temperature Frequency of the applied magnetic field Ferrite Core Permeability is always positive but not constant. It can vary depending on a range of factors, including- 01 03 02 04 05 www.cosmoferrites.com

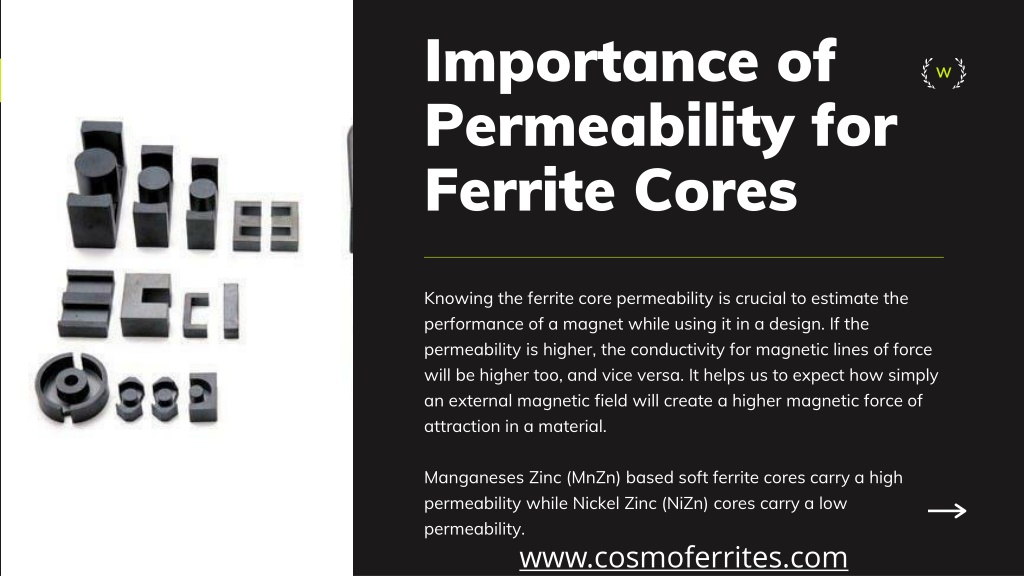

  5. Importance of Permeability for Ferrite Cores W Key takeaways: Knowing the ferrite core permeability is crucial to estimate the performance of a magnet while using it in a design. If the permeability is higher, the conductivity for magnetic lines of force will be higher too, and vice versa. It helps us to expect how simply an external magnetic field will create a higher magnetic force of attraction in a material. Manganeses Zinc (MnZn) based soft ferrite cores carry a high permeability while Nickel Zinc (NiZn) cores carry a low permeability. www.cosmoferrites.com

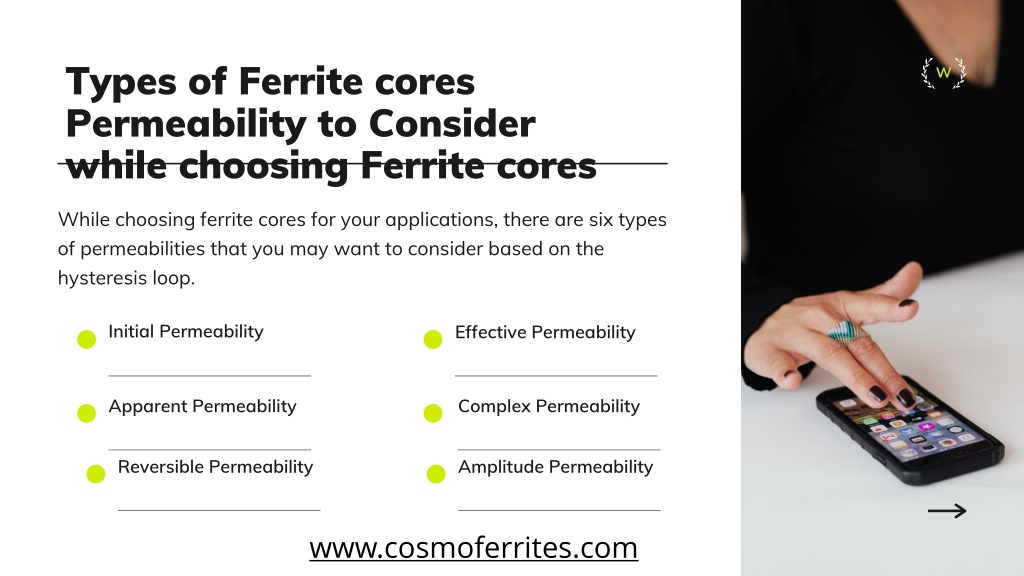

  6. Complex Permeability Initial Permeability Effective Permeability Apparent Permeability Reversible Permeability Amplitude Permeability W While choosing ferrite cores for your applications, there are six types of permeabilities that you may want to consider based on the hysteresis loop. Types of Ferrite cores Permeability to Consider while choosing Ferrite cores www.cosmoferrites.com

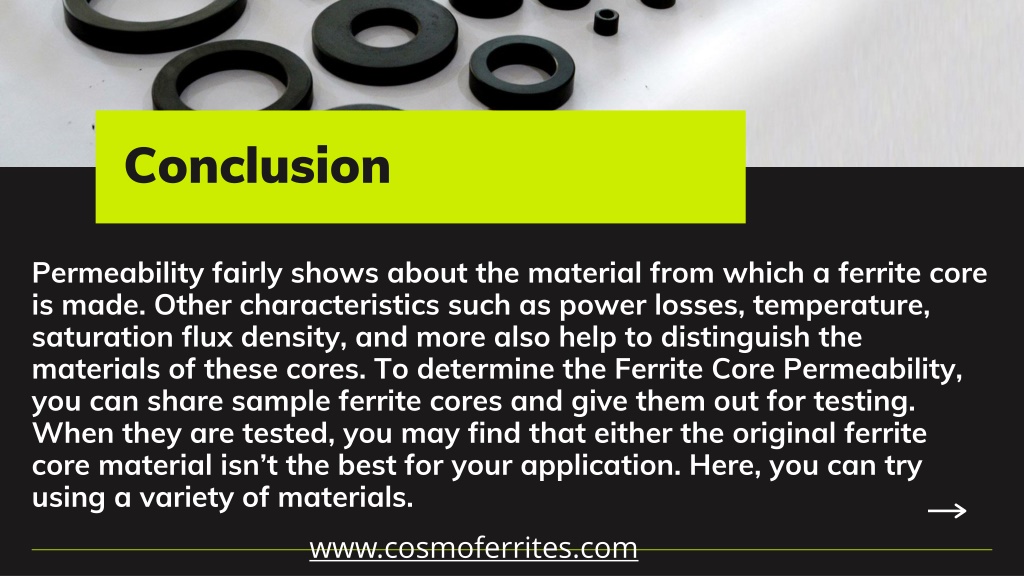

  7. Permeability fairly shows about the material from which a ferrite core is made. Other characteristics such as power losses, temperature, saturation flux density, and more also help to distinguish the materials of these cores. To determine the Ferrite Core Permeability, you can share sample ferrite cores and give them out for testing. When they are tested, you may find that either the original ferrite core material isn’t the best for your application. Here, you can try using a variety of materials. W Conclusion www.cosmoferrites.com

  8. Phone Number Email Address Website 11493988 sales@cosmoferrites.com www.cosmoferrites.com Contact Us www.cosmoferrites.com
