12-Channel-ECG-Machine-MD-TEM-1000

Medical Deals 12-Channel ECG Machineu2014selectable rhythm lead and full 12-channel print output. It includes a 10-inch touchscreen interface, USB and RS232 connectivity, and binary-mode ECG with interpretation. Built-in floating and defibrillation protection ensures patient safety.

coraldean
Download Presentation

12-Channel-ECG-Machine-MD-TEM-1000

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

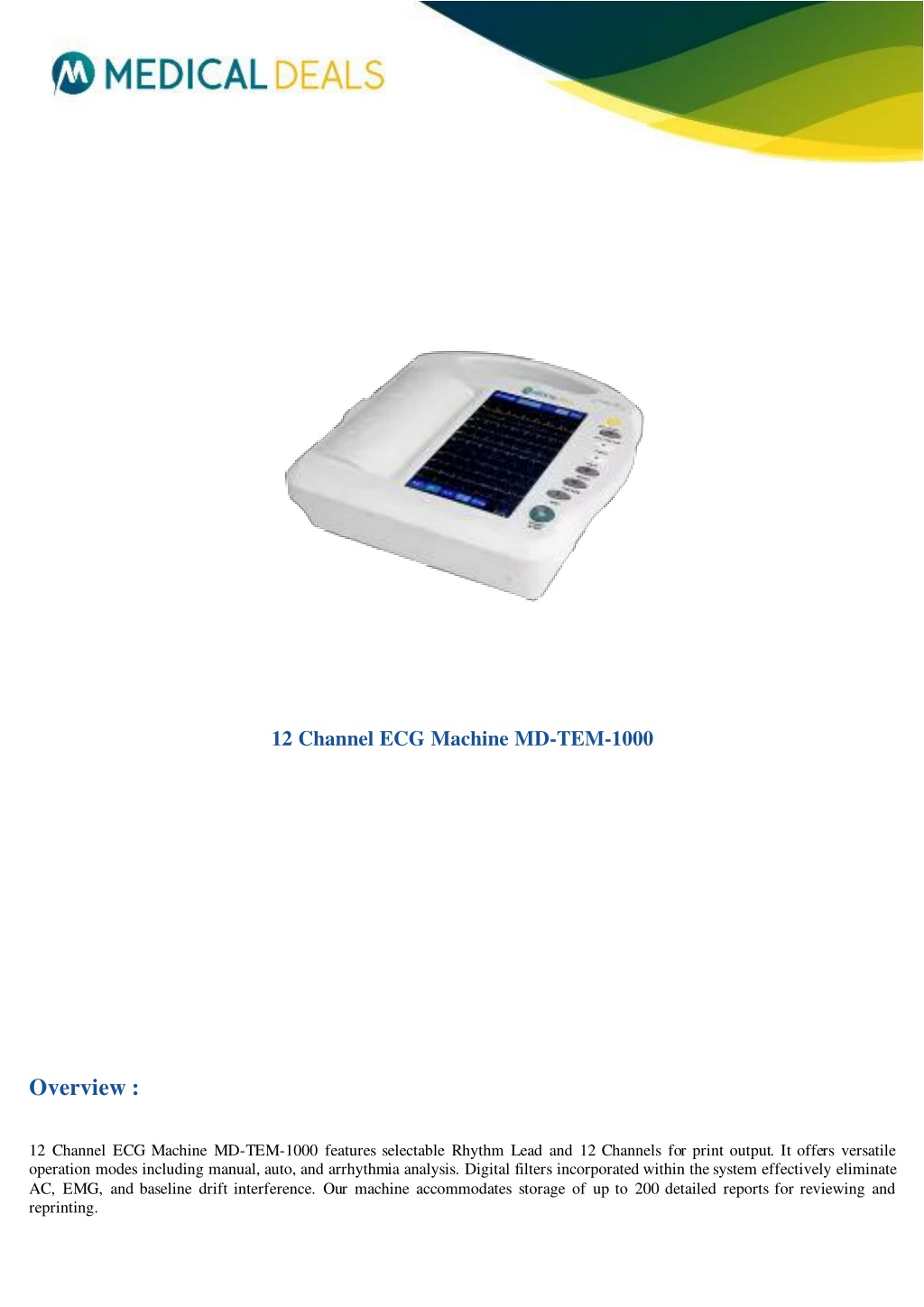

  1. 12 Channel ECG Machine MD-TEM-1000 Overview : 12 Channel ECG Machine MD-TEM-1000 features selectable Rhythm Lead and 12 Channels for print output. It offers versatile operation modes including manual, auto, and arrhythmia analysis. Digital filters incorporated within the system effectively eliminate AC, EMG, and baseline drift interference. Our machine accommodates storage of up to 200 detailed reports for reviewing and reprinting.

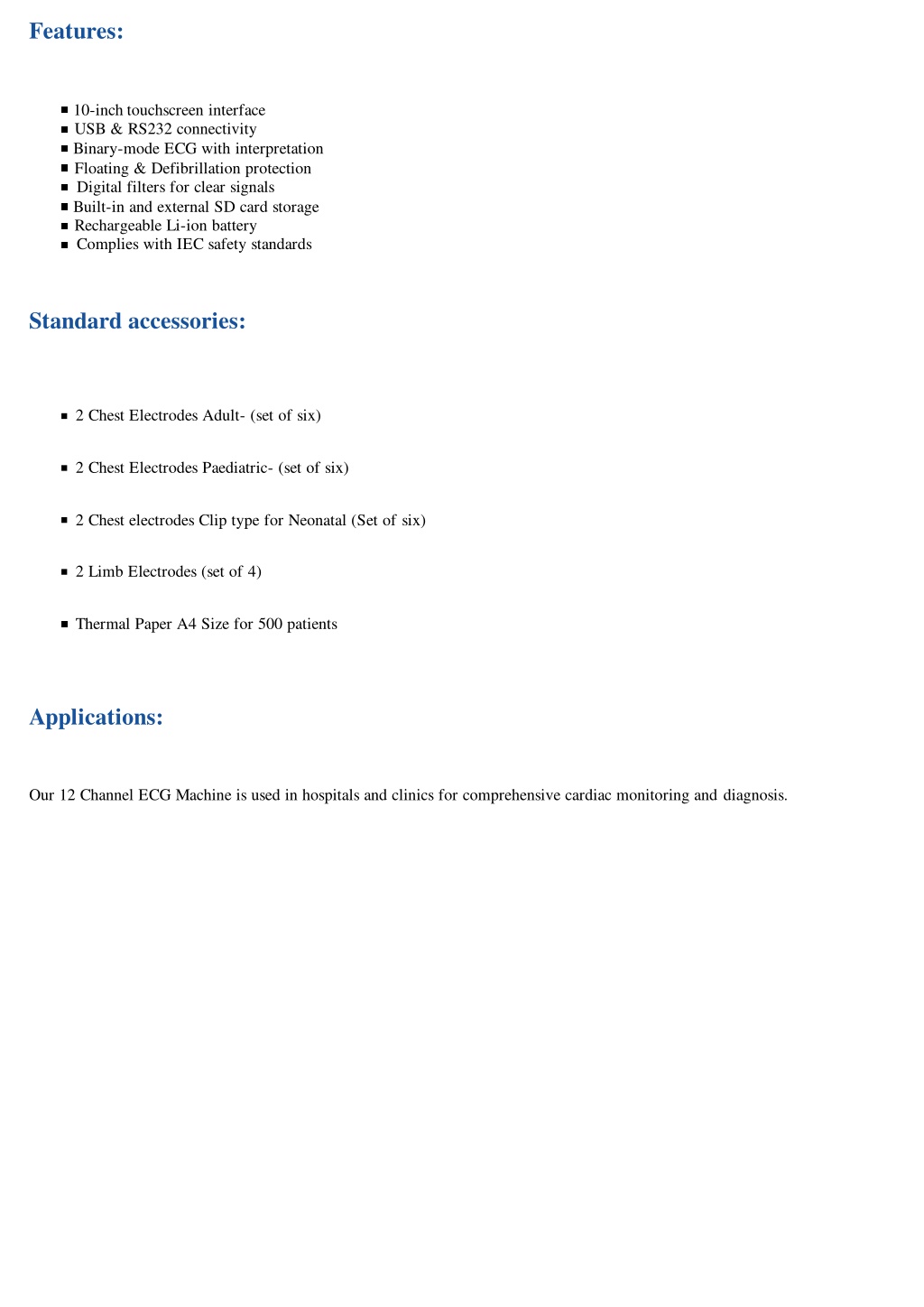

  2. Features: 10-inch touchscreen interface USB & RS232 connectivity Binary-mode ECG with interpretation Floating & Defibrillation protection Digital filters for clear signals Built-in and external SD card storage Rechargeable Li-ion battery Complies with IEC safety standards Standard accessories: 2 Chest Electrodes Adult- (set of six) 2 Chest Electrodes Paediatric- (set of six) 2 Chest electrodes Clip type for Neonatal (Set of six) 2 Limb Electrodes (set of 4) Thermal Paper A4 Size for 500 patients Applications: Our 12 Channel ECG Machine is used in hospitals and clinics for comprehensive cardiac monitoring and diagnosis.

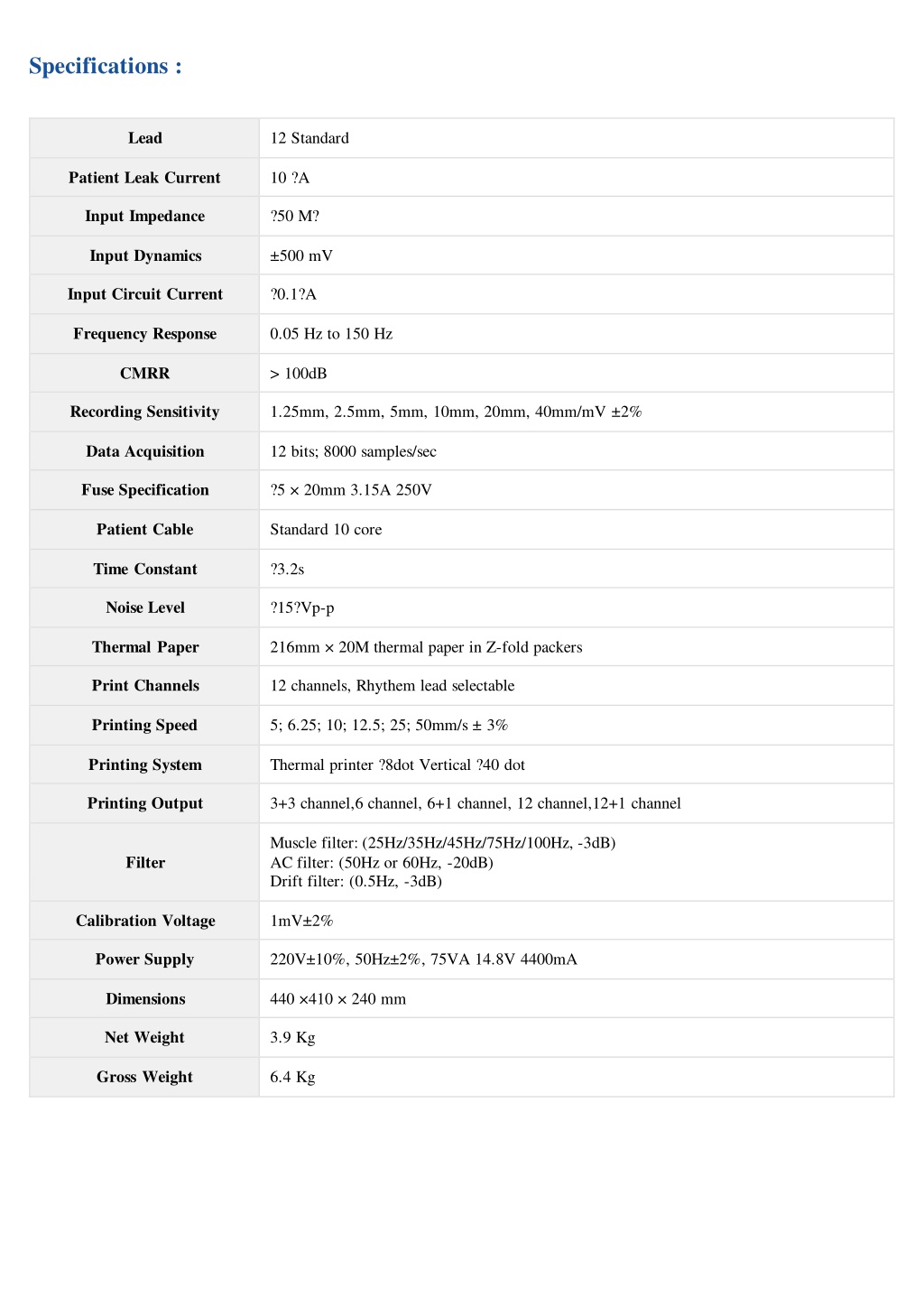

  3. Specifications : Lead 12 Standard Patient Leak Current 10 ?A Input Impedance ?50 M? Input Dynamics ±500 mV Input Circuit Current ?0.1?A Frequency Response 0.05 Hz to 150 Hz CMRR > 100dB Recording Sensitivity 1.25mm, 2.5mm, 5mm, 10mm, 20mm, 40mm/mV ±2% Data Acquisition 12 bits; 8000 samples/sec Fuse Specification ?5 × 20mm 3.15A 250V Patient Cable Standard 10 core Time Constant ?3.2s Noise Level ?15?Vp-p Thermal Paper 216mm × 20M thermal paper in Z-fold packers Print Channels 12 channels, Rhythem lead selectable Printing Speed 5; 6.25; 10; 12.5; 25; 50mm/s ± 3% Printing System Thermal printer ?8dot Vertical ?40 dot Printing Output 3+3 channel,6 channel, 6+1 channel, 12 channel,12+1 channel Muscle filter: (25Hz/35Hz/45Hz/75Hz/100Hz, -3dB) AC filter: (50Hz or 60Hz, -20dB) Drift filter: (0.5Hz, -3dB) Filter Calibration Voltage 1mV±2% Power Supply 220V±10%, 50Hz±2%, 75VA 14.8V 4400mA Dimensions 440 ×410 × 240 mm Net Weight 3.9 Kg Gross Weight 6.4 Kg

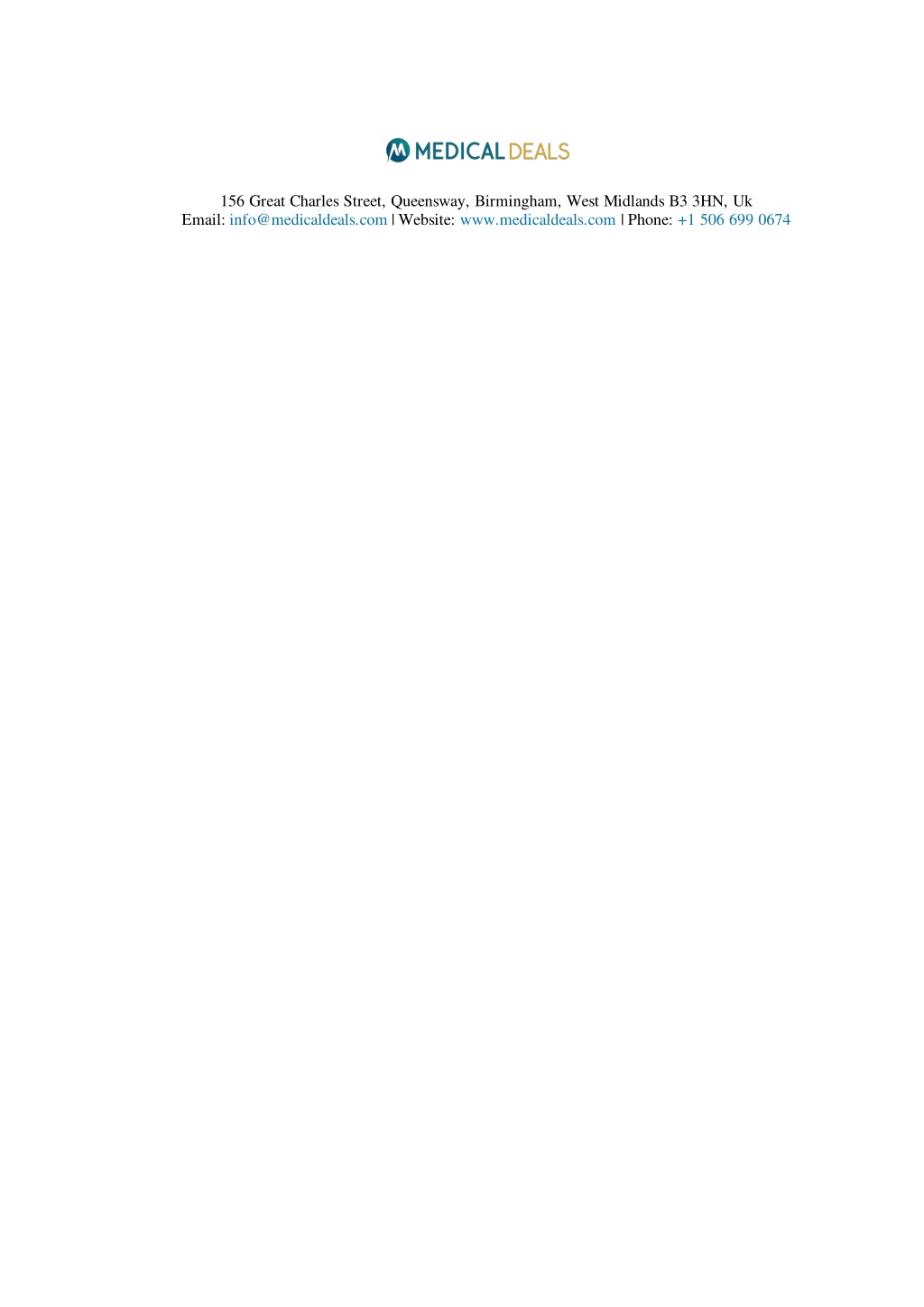

  4. 156 Great Charles Street, Queensway, Birmingham, West Midlands B3 3HN, Uk Email: info@medicaldeals.com | Website: www.medicaldeals.com | Phone: +1 506 699 0674
