sms packaging scenarios

SMS Packaging Scenarios

Mulkandov Arthur

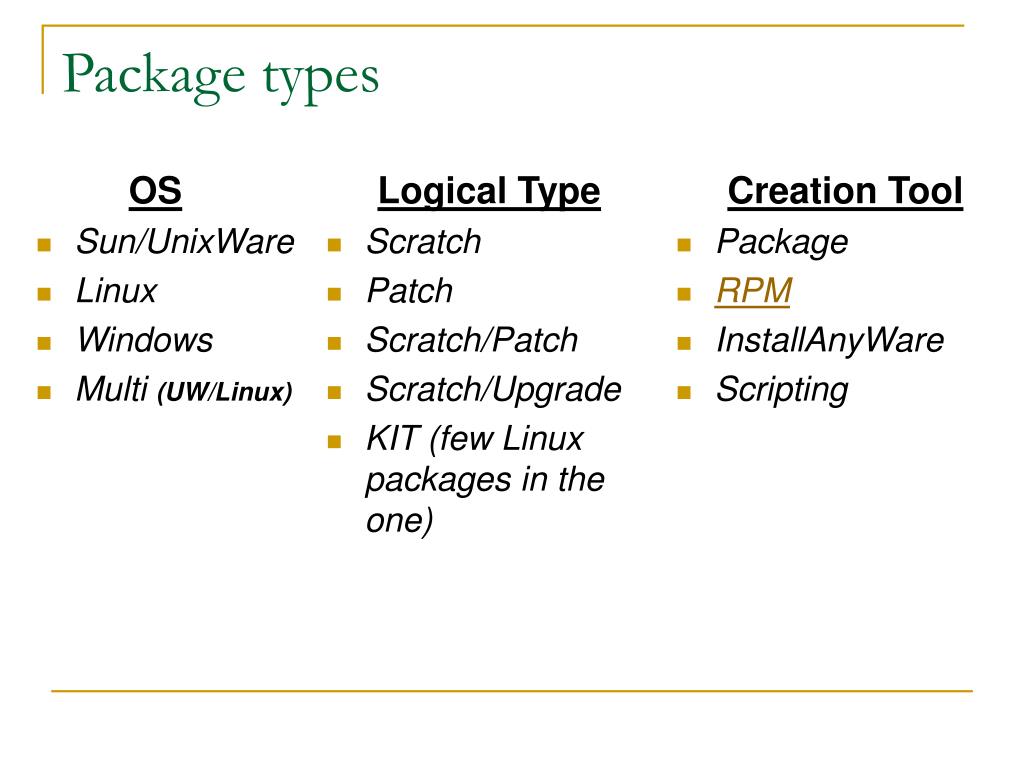

package types
OS

Sun/UnixWare

Linux

Windows

Multi (UW/Linux)

Logical Type

Scratch

Patch

Scratch/Patch

Scratch/Upgrade

KIT (few Linux packages in the one)

Package types

Creation Tool

  • Package
  • RPM
  • InstallAnyWare
  • Scripting

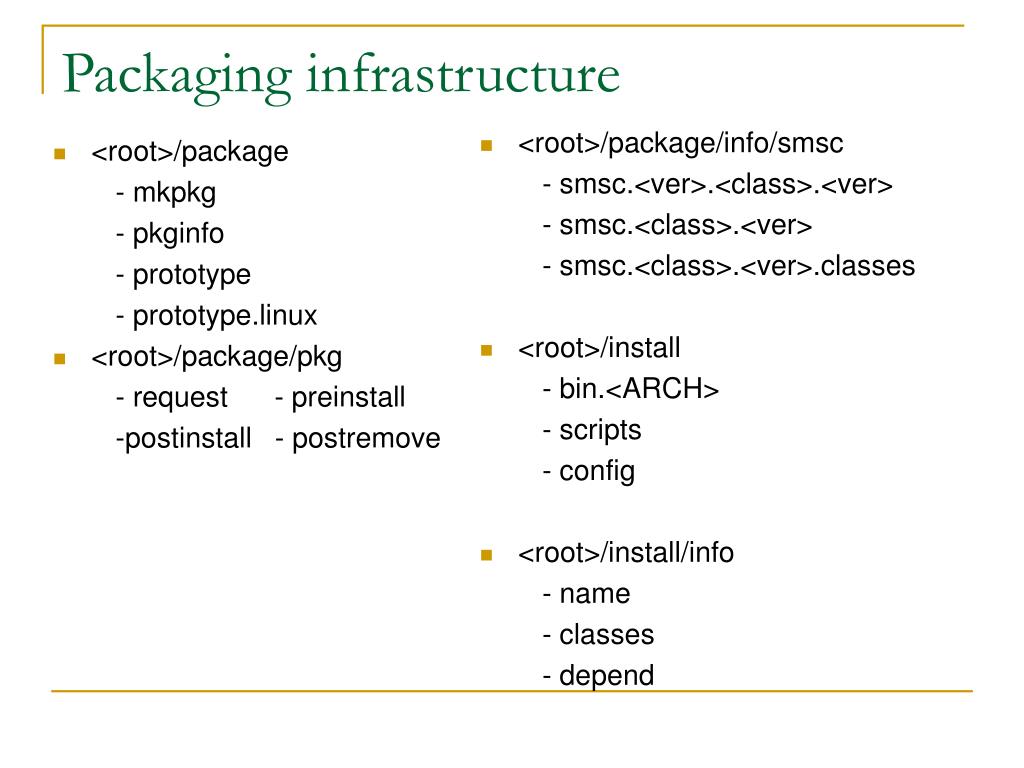

packaging infrastructure
<root>/package

- mkpkg

- pkginfo

- prototype

- prototype.linux

<root>/package/pkg

- request - preinstall

-postinstall - postremove

<root>/package/info/smsc

- smsc.<ver>.<class>.<ver>

- smsc.<class>.<ver>

- smsc.<class>.<ver>.classes

<root>/install

- bin.<ARCH>

- scripts

- config

<root>/install/info

- name

- classes

- depend

Packaging infrastructure
pkginfo

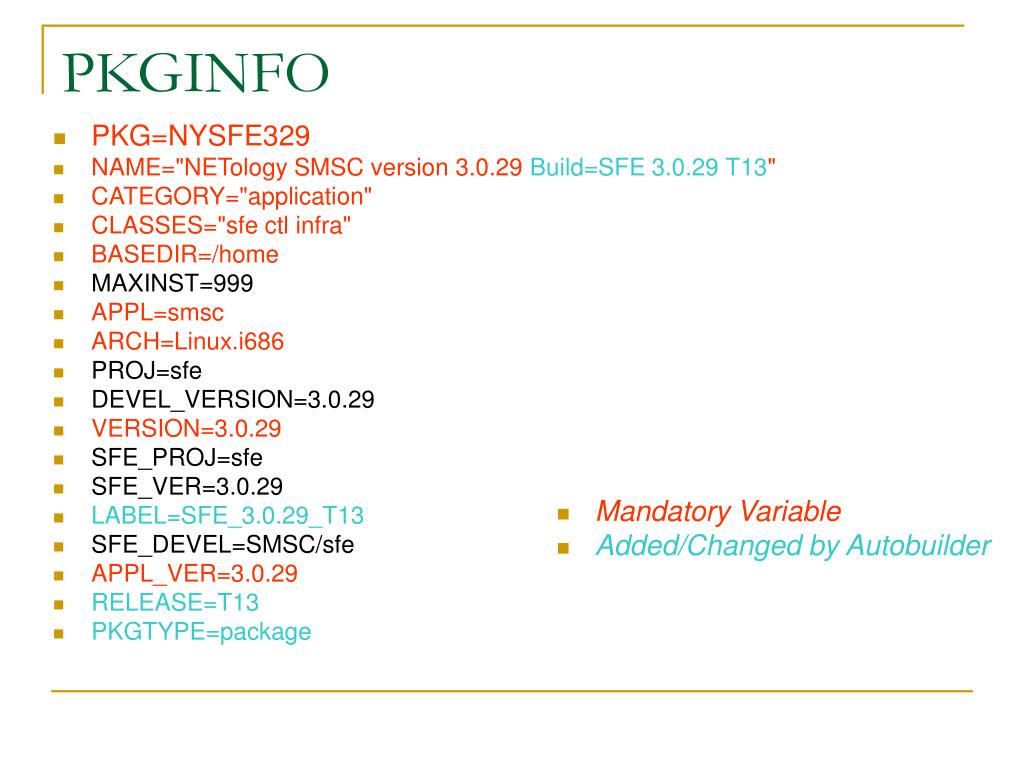

PKGINFO
  • PKG=NYSFE329
  • NAME="NETology SMSC version 3.0.29 Build=SFE 3.0.29 T13"
  • CATEGORY="application"
  • CLASSES="sfe ctl infra"
  • BASEDIR=/home
  • MAXINST=999
  • APPL=smsc
  • ARCH=Linux.i686
  • PROJ=sfe
  • DEVEL_VERSION=3.0.29
  • VERSION=3.0.29
  • SFE_PROJ=sfe
  • SFE_VER=3.0.29
  • LABEL=SFE_3.0.29_T13
  • SFE_DEVEL=SMSC/sfe
  • APPL_VER=3.0.29
  • RELEASE=T13
  • PKGTYPE=package
  • Mandatory Variable
  • Added/Changed by Autobuilder
logical types

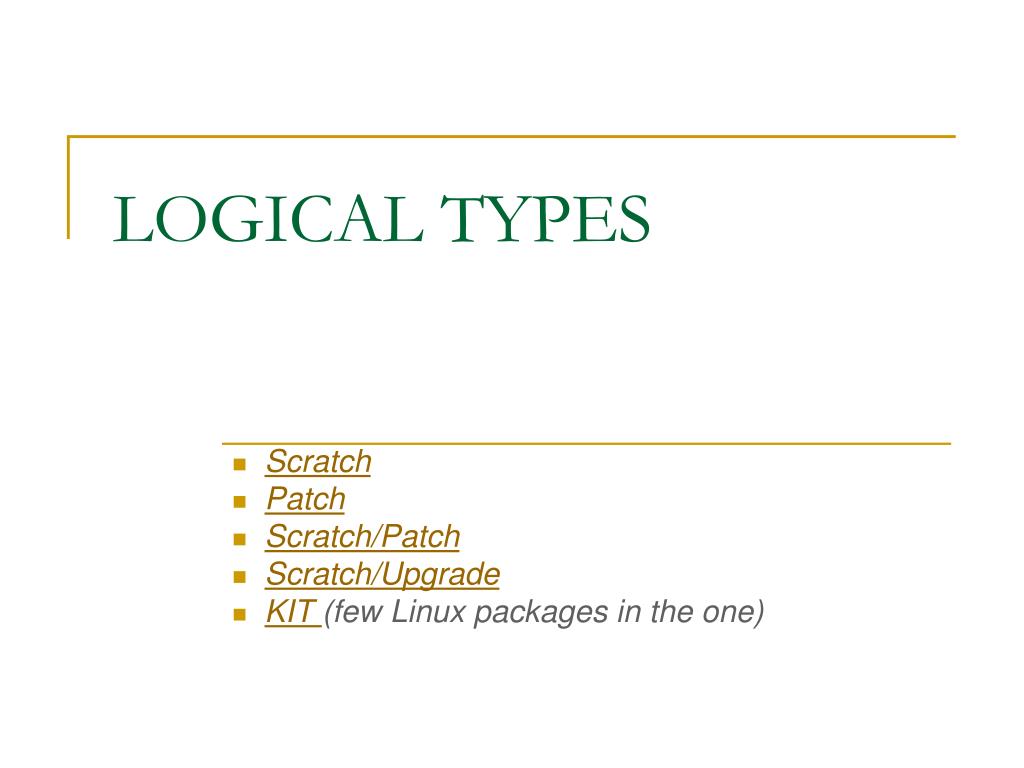

LOGICAL TYPES

Scratch

Patch

Scratch/Patch

Scratch/Upgrade

KIT (few Linux packages in the one)

scratch package preparation
SCRATCH package preparation
  • <root>/package/mkpkg

Script for creation “prototype” file, all <root>/package/info/smsc/* files

  • <root>/package/pkginfo
  • <root>/package/pkg/

request pre/postinstall pre/postremove

These scripts maybe replicated from old “SCRATCH” release of the same component.

  • <root>/bin/<ARCH> (must be dir. or link to the right bin.??? directory)
  • <root>/install/bin.<ARCH>(must be dir. or link to the right install/bin.??? Or bin.??? directory)

Maybe created for all OSs

patch package preparation
PATCH package preparation
  • <root>/package/pkginfo
  • <root>/package/prototype (for Solaris/UnixWare)
  • <root>/package/prototype.linux (for Linux)
  • <root>/package/pkg/

request pre/postinstall pre/postremove

  • <root>/bin/<ARCH>(must be dir. or link to the right bin.??? directory)
  • <root>/install/bin.<ARCH>(must be dir. or link to the right install/bin.??? Or bin.??? directory)
  • /clearcase_home/macros/make_patch.pl

This script creates pkginfo, prototype, prototype.linux and all <root>/package/pkg/* scripts.

Must be started from integ view, <root>/package directory on the Solaris machine.

patch package preparation1

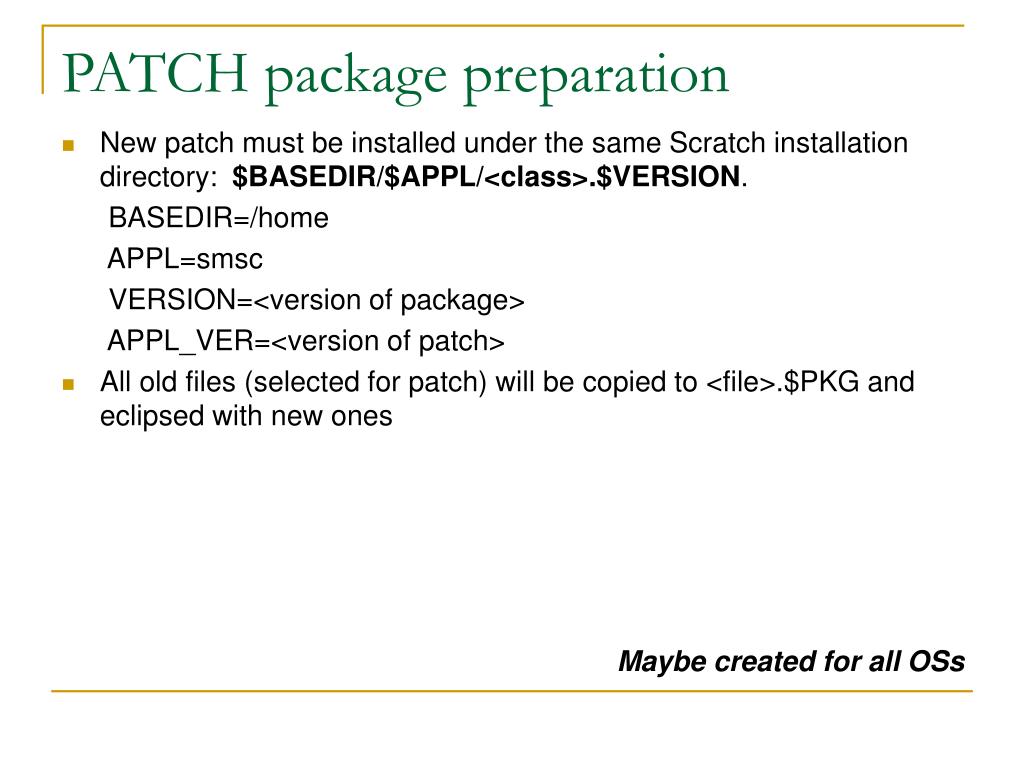

PATCH package preparation
  • New patch must be installed under the same Scratch installation directory: $BASEDIR/$APPL/<class>.$VERSION.

BASEDIR=/home

APPL=smsc

VERSION=<version of package>

APPL_VER=<version of patch>

  • All old files (selected for patch) will be copied to <file>.$PKG and eclipsed with new ones

Maybe created for all OSs

scratch patch package preparation

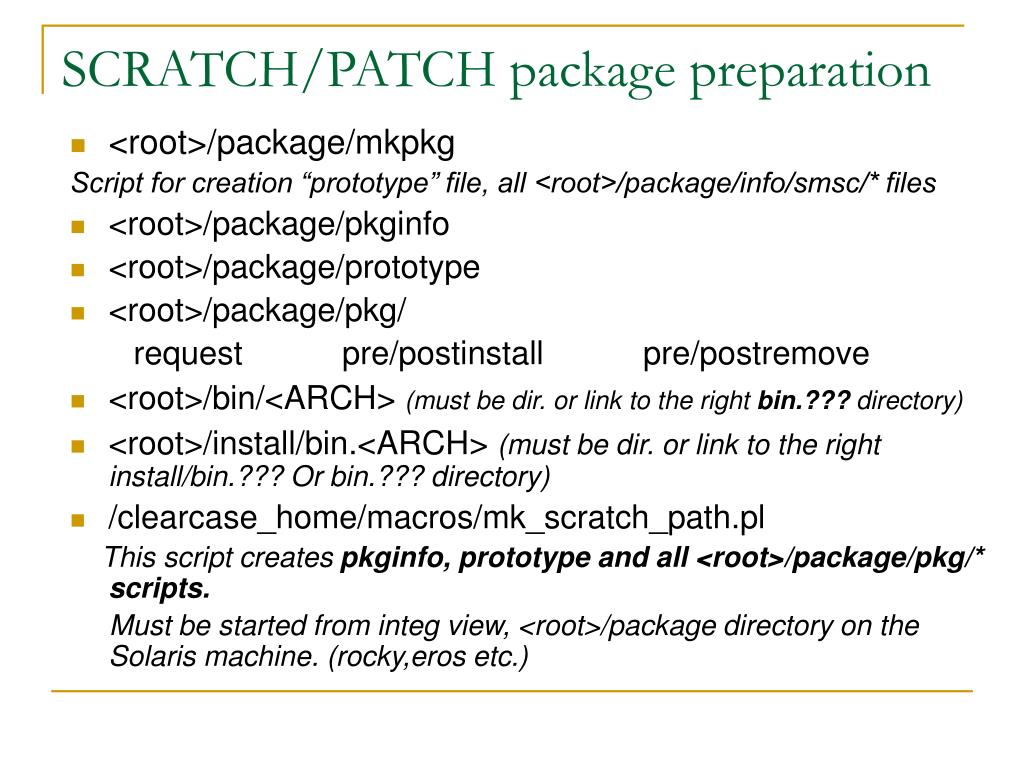

SCRATCH/PATCH package preparation
  • <root>/package/mkpkg

Script for creation “prototype” file, all <root>/package/info/smsc/* files

  • <root>/package/pkginfo
  • <root>/package/prototype
  • <root>/package/pkg/

request pre/postinstall pre/postremove

  • <root>/bin/<ARCH>(must be dir. or link to the right bin.??? directory)
  • <root>/install/bin.<ARCH>(must be dir. or link to the right install/bin.??? Or bin.??? directory)
  • /clearcase_home/macros/mk_scratch_path.pl

This script creates pkginfo, prototype and all <root>/package/pkg/* scripts.

Must be started from integ view, <root>/package directory on the Solaris machine. (rocky,eros etc.)

scratch patch package preparation1

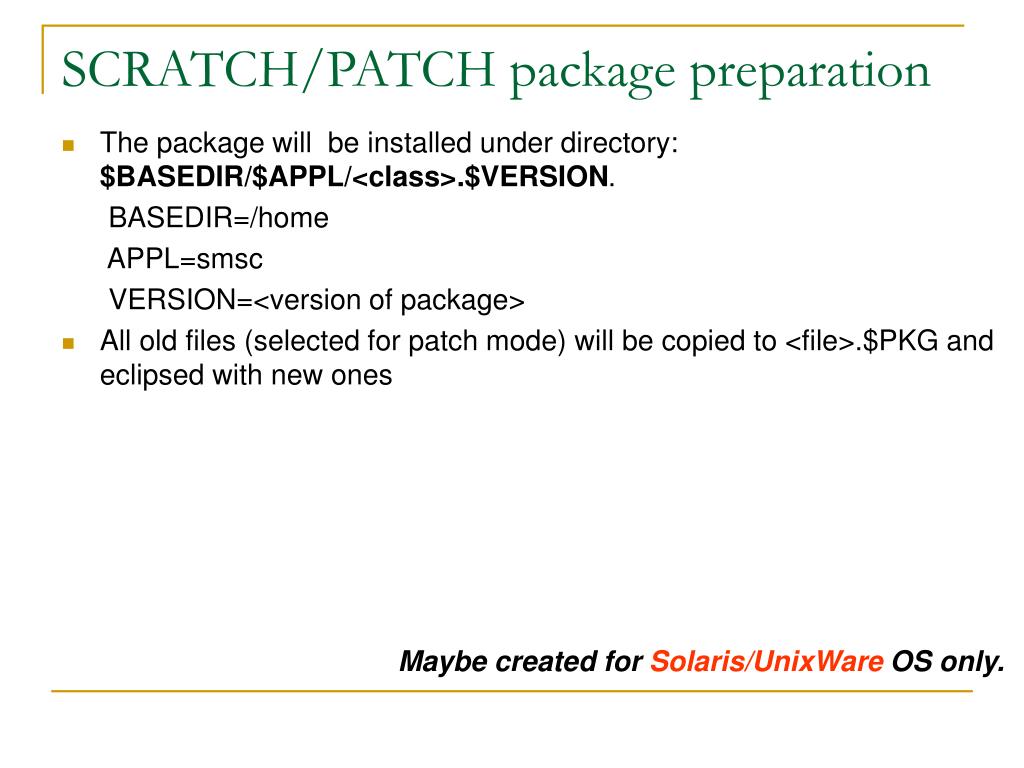

SCRATCH/PATCH package preparation
  • The package will be installed under directory: $BASEDIR/$APPL/<class>.$VERSION.

BASEDIR=/home

APPL=smsc

VERSION=<version of package>

  • All old files (selected for patch mode) will be copied to <file>.$PKG and eclipsed with new ones

Maybe created for Solaris/UnixWare OS only.

scratch upgrade package preparation

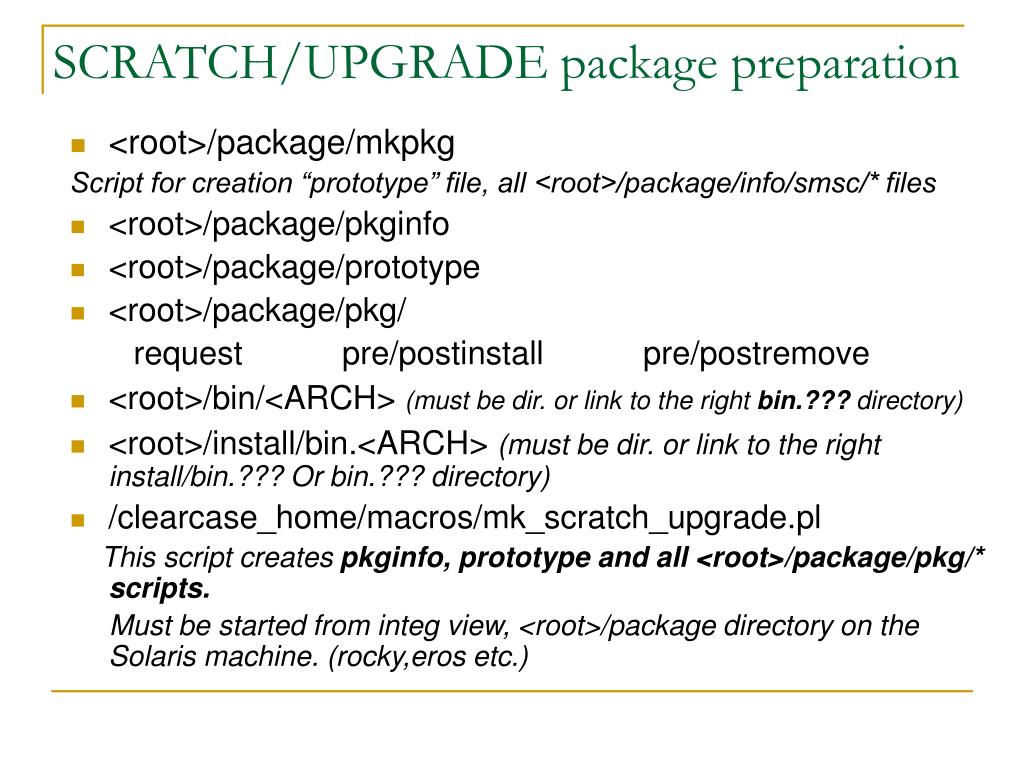

SCRATCH/UPGRADE package preparation
  • <root>/package/mkpkg

Script for creation “prototype” file, all <root>/package/info/smsc/* files

  • <root>/package/pkginfo
  • <root>/package/prototype
  • <root>/package/pkg/

request pre/postinstall pre/postremove

  • <root>/bin/<ARCH>(must be dir. or link to the right bin.??? directory)
  • <root>/install/bin.<ARCH>(must be dir. or link to the right install/bin.??? Or bin.??? directory)
  • /clearcase_home/macros/mk_scratch_upgrade.pl

This script creates pkginfo, prototype and all <root>/package/pkg/* scripts.

Must be started from integ view, <root>/package directory on the Solaris machine. (rocky,eros etc.)

kit linux package preparation

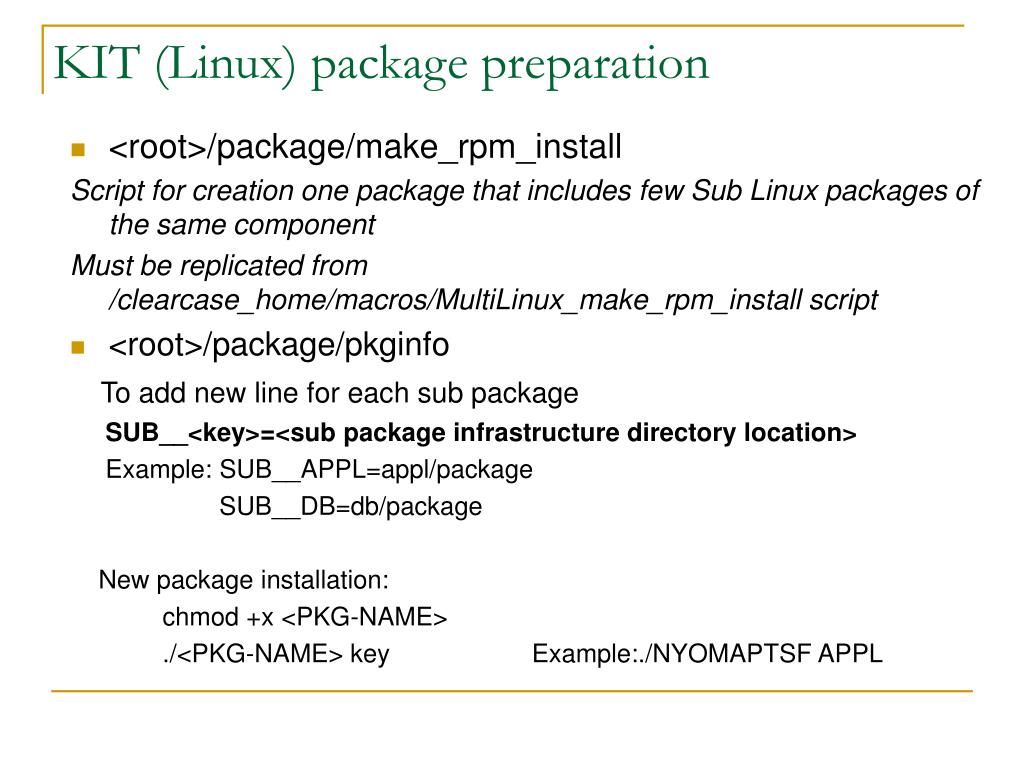

KIT (Linux) package preparation
  • <root>/package/make_rpm_install

Script for creation one package that includes few Sub Linux packages of the same component

Must be replicated from /clearcase_home/macros/MultiLinux_make_rpm_install script

  • <root>/package/pkginfo

To add new line for each sub package

SUB__<key>=<sub package infrastructure directory location>

Example: SUB__APPL=appl/package

SUB__DB=db/package

New package installation:

chmod +x <PKG-NAME>

./<PKG-NAME> key Example:./NYOMAPTSF APPL

slide13

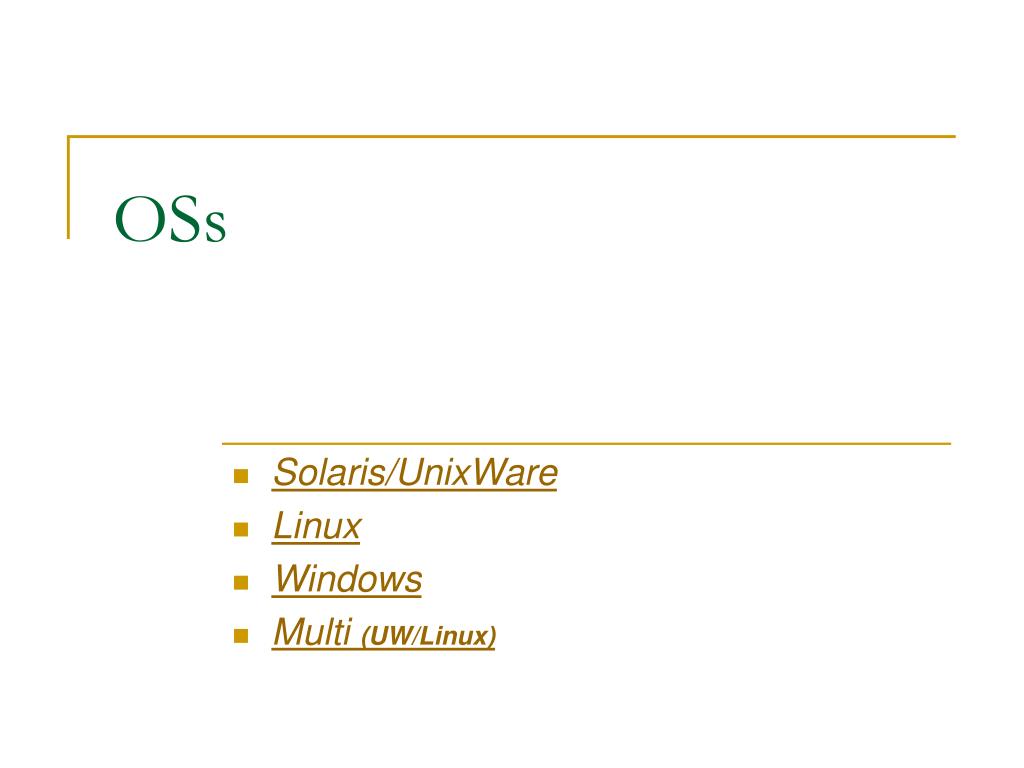

OSs

Solaris/UnixWare

Linux

Windows

Multi (UW/Linux)

unixware package preparation

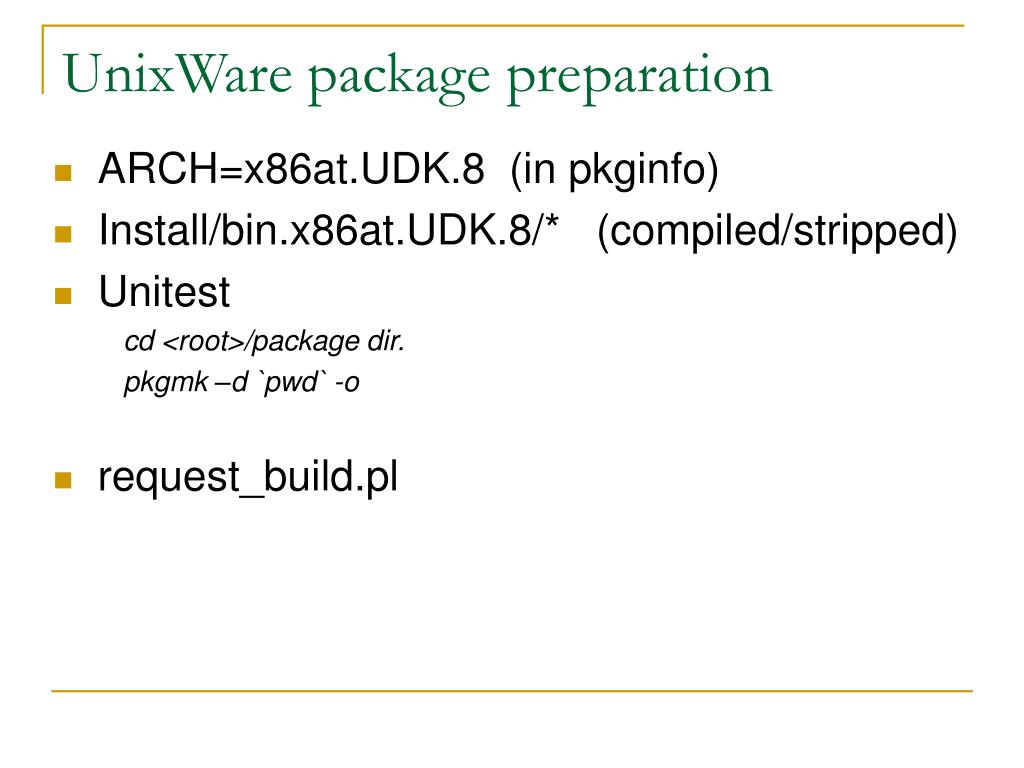

UnixWare package preparation
  • ARCH=x86at.UDK.8 (in pkginfo)
  • Install/bin.x86at.UDK.8/* (compiled/stripped)
  • Unitest

cd <root>/package dir.

pkgmk –d `pwd` -o

  • request_build.pl
linux package preparation

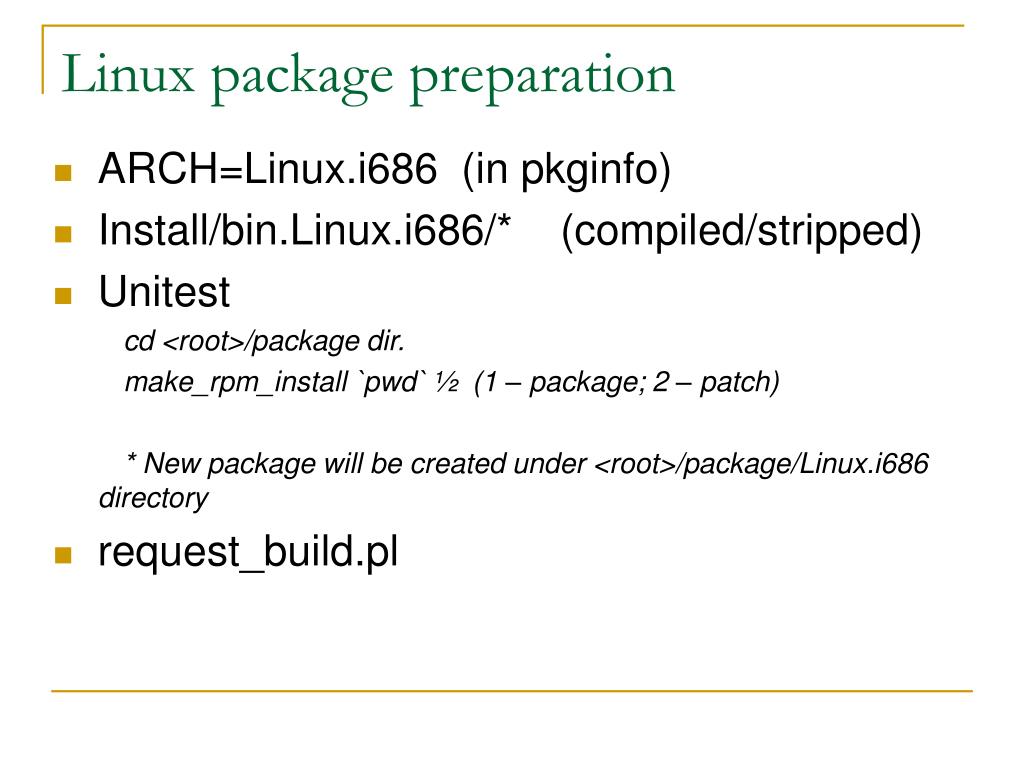

Linux package preparation
  • ARCH=Linux.i686 (in pkginfo)
  • Install/bin.Linux.i686/* (compiled/stripped)
  • Unitest

cd <root>/package dir.

make_rpm_install `pwd` ½ (1 – package; 2 – patch)

* New package will be created under <root>/package/Linux.i686 directory

  • request_build.pl
multi package preparation
MULTI package preparation
  • ARCH=multi (in pkginfo)
  • Install/bin.x86at.UDK.8/* (compiled/stripped)
  • Install/bin.Linux.i686/* (compiled/stripped)
  • Unitest

cd <root>/package dir.

mkpkg_multi

Script to creation multi package that can be installed on UnixWare (x86at.UDK.8) and Linux (Linux.i686)

*This script performs binaries copy and strip action

* New package will be created under <root>/package/multi directory

  • request_build.pl
sms autobuilding tools

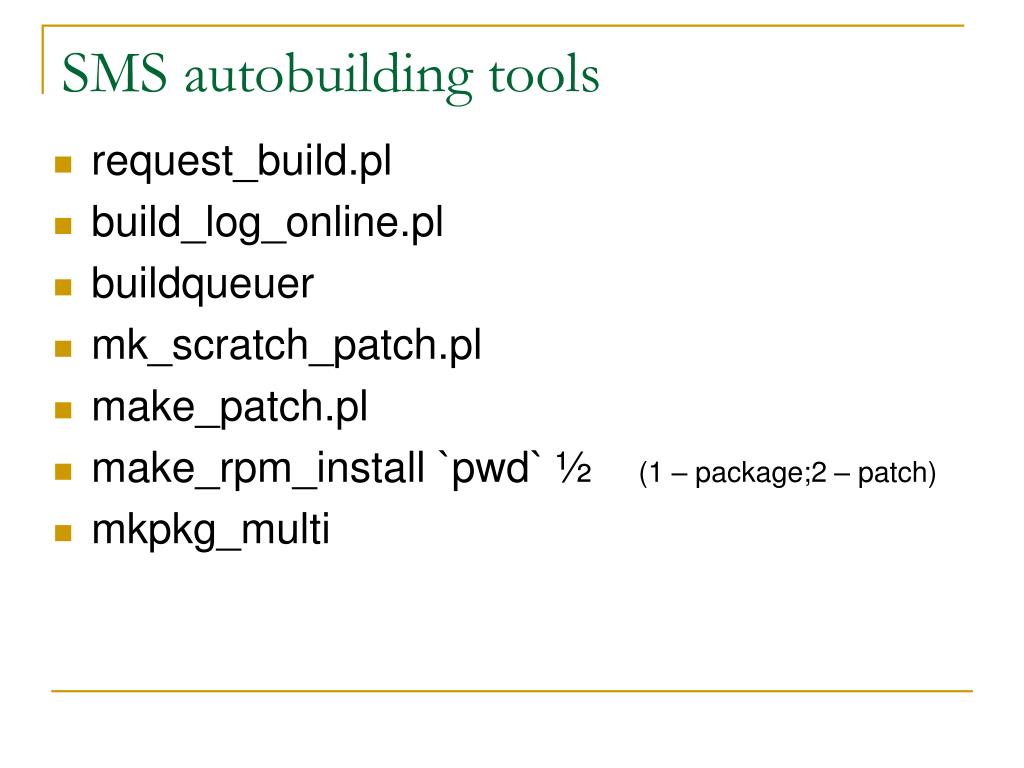

SMS autobuilding tools
  • request_build.pl
  • build_log_online.pl
  • buildqueuer
  • mk_scratch_patch.pl
  • make_patch.pl
  • make_rpm_install `pwd` ½ (1 – package;2 – patch)
  • mkpkg_multi
autobuilder functionality

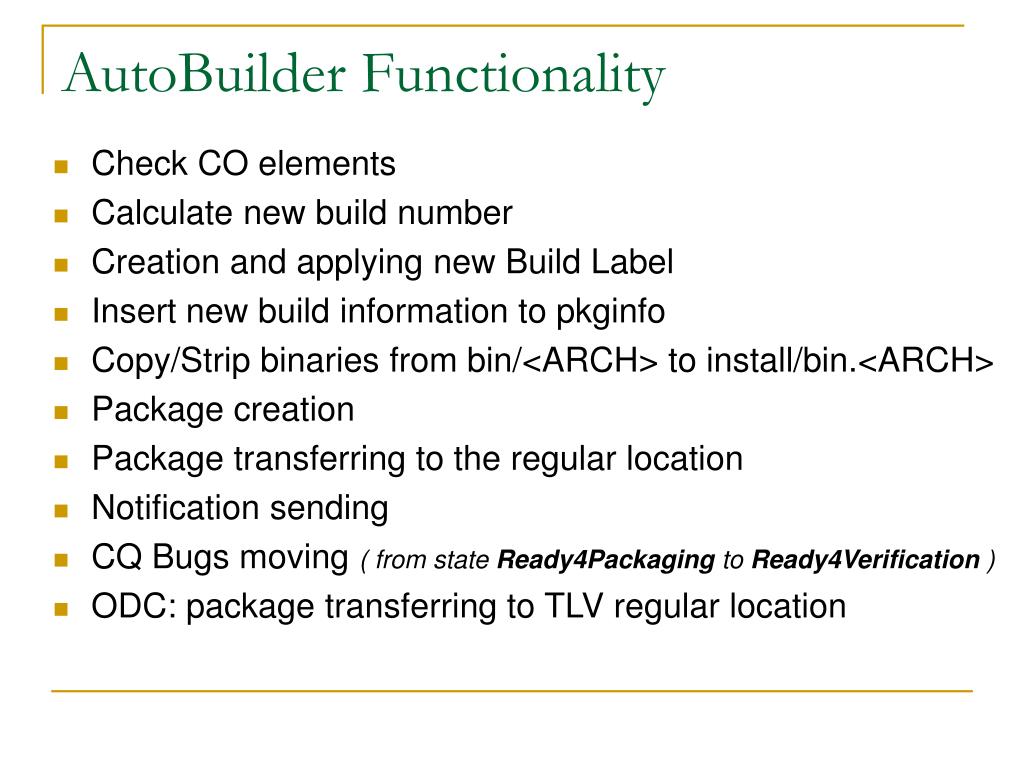

AutoBuilder Functionality
  • Check CO elements
  • Calculate new build number
  • Creation and applying new Build Label
  • Insert new build information to pkginfo
  • Copy/Strip binaries from bin/<ARCH> to install/bin.<ARCH>
  • Package creation
  • Package transferring to the regular location
  • Notification sending
  • CQ Bugs moving ( from state Ready4Packaging to Ready4Verification )
  • ODC: package transferring to TLV regular location
