Phylum Arthropoda

Subphylum Crustacea : Aquatic Mandibulates. Phylum Arthropoda. Diversity. Over 67,000 species worldwide Live in aquatic environments (both ocean and freshwater) Can burrow, creep on bottom of ocean floor Some are sessile/permanently fixed (barnacles)

coby
Download Presentation

Phylum Arthropoda

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Subphylum Crustacea: Aquatic Mandibulates Phylum Arthropoda

  2. Diversity • Over 67,000 species worldwide • Live in aquatic environments (both ocean and freshwater) • Can burrow, creep on bottom of ocean floor • Some are sessile/permanently fixed (barnacles) • Examples include: crabs, crayfish, lobster, shrimp, water fleas, brine shrimp, barnacle, daphnia, fish louse (parasite), krill, pill bugs (rolliepollies) • Called crustaceans

  3. Diversity • Some are edible (lobster, shrimp, crayfish, crabs) • Others are parasites to other ocean-going organisms • Fill a wide range of ecological roles and have enormous variation • Food, bioindicators, etc • Called Mandibulates • Why? Because of the many pairs of sensory, chewing, food-handling appendages

  4. Characteristics of Aquatic Mandibulates • Most have two body regions: • 1) Abdomen • Long narrow • Tail region • Includes the telsonand uropod

  5. Characteristics of Aquatic Mandibulates • Most have two body regions: • 2) Cephalothorax • fused head and thorax—chest region, • appendages attached to this segment • covered by a carapace • Def: a cuticle composed of chitin, protein and calcareous material • Used for protection but is very flexible • Carapace covers most of the cephalothorax

  6. Characteristics of Aquatic Mandibulates • Appendages • All appendages are biramous (two main branches) • First two pair: • Antennae (2 pair – this distinguishes them from all other arthropods) • Next pair: • Jaw-like mandibles • Used to chew and crush food • Next pair: • Maxillae • Used to hold food

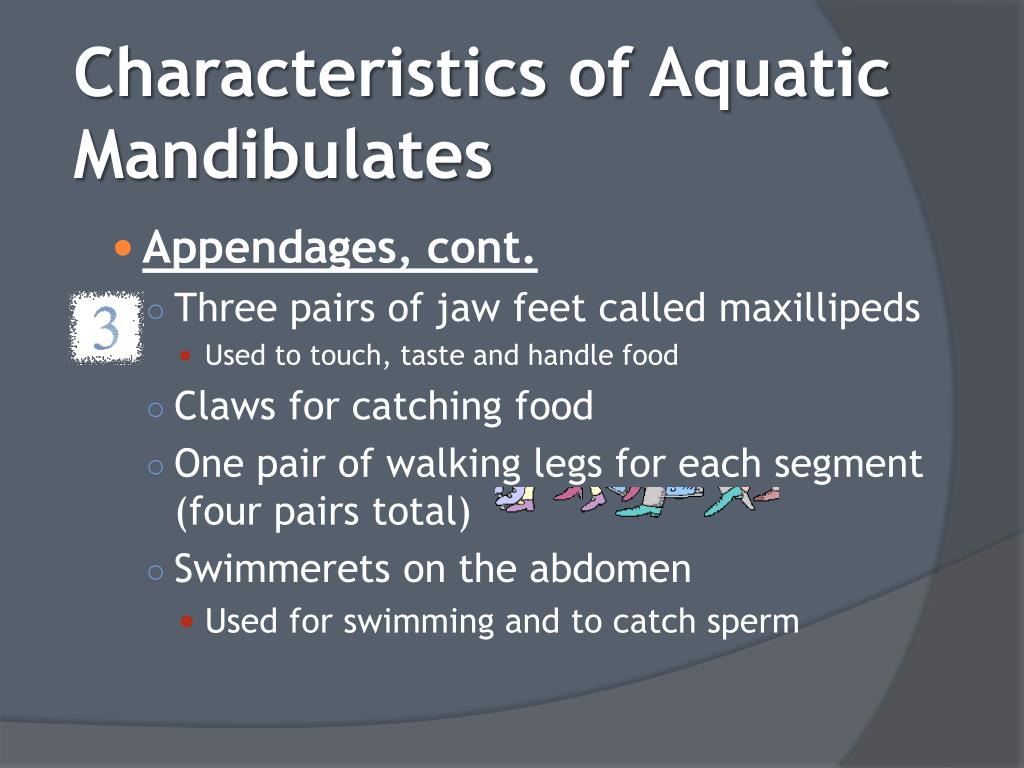

  7. Characteristics of Aquatic Mandibulates • Appendages, cont. • Three pairs of jaw feet called maxillipeds • Used to touch, taste and handle food • Claws for catching food • One pair of walking legs for each segment (four pairs total) • Swimmerets on the abdomen • Used for swimming and to catch sperm

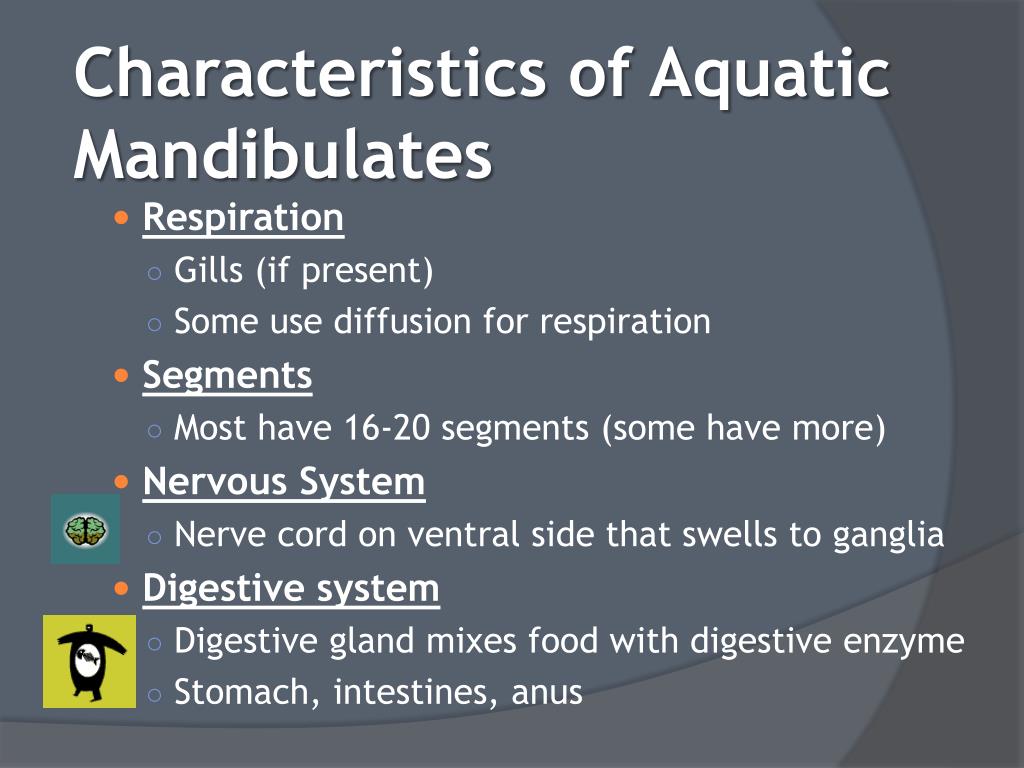

  8. Characteristics of Aquatic Mandibulates • Respiration • Gills (if present) • Some use diffusion for respiration • Segments • Most have 16-20 segments (some have more) • Nervous System • Nerve cord on ventral side that swells to ganglia • Digestive system • Digestive gland mixes food with digestive enzyme • Stomach, intestines, anus

  9. Characteristics of Aquatic Mandibulates • Excretory system • Green gland—regulates amount of salt in body • Reproduction • Gonopores—pores that release reproductive cells • The position of these varies according to sex • Location: at the base of a pair of swimmerets or on segments without legs

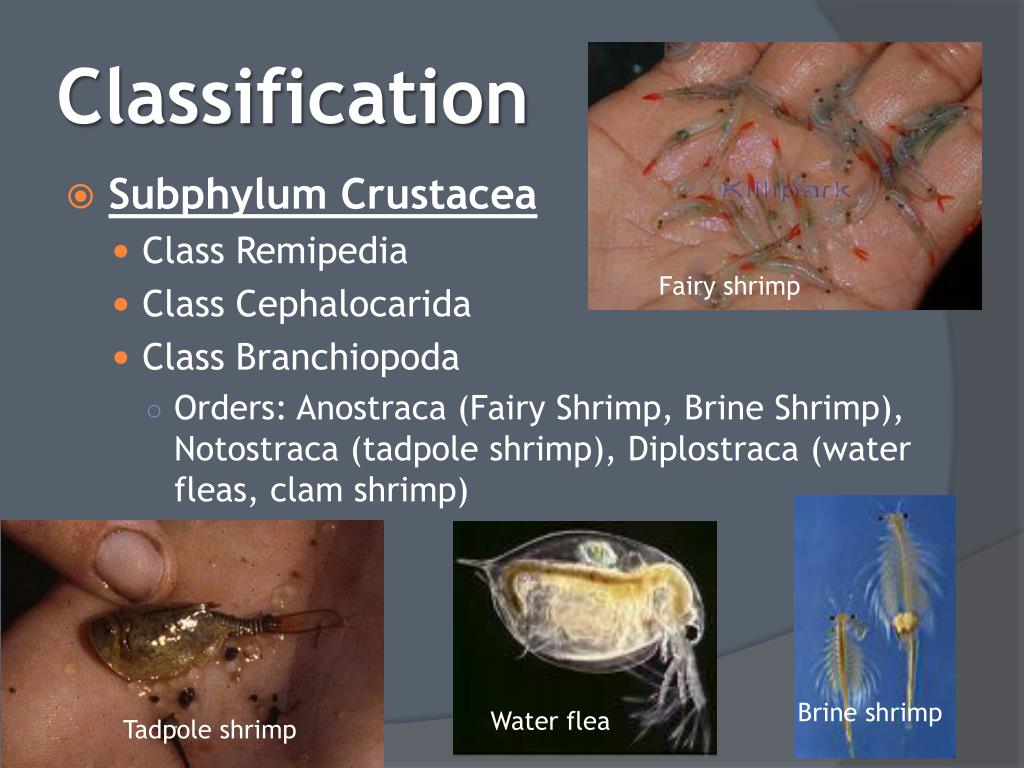

  10. Classification • Subphylum Crustacea • Class Remipedia • Class Cephalocarida • Class Branchiopoda • Orders: Anostraca (Fairy Shrimp, Brine Shrimp), Notostraca (tadpole shrimp), Diplostraca (water fleas, clam shrimp) Fairy shrimp Brine shrimp Water flea Tadpole shrimp

  11. Classification • Subphylum Crustacea, cont. • Class Ostracoda • Class Maxillopoda • Subclasses: Copepoda, Tantulocarida, Branchiura (fish lice), Cerripedia (barnacles) • Class Malocostraca • Orders: Isopoda (pill bug), Amphipoda, Euphasiacea (krill), Decapoda (shrimps, crabs, lobsters) Fish lice Copepods

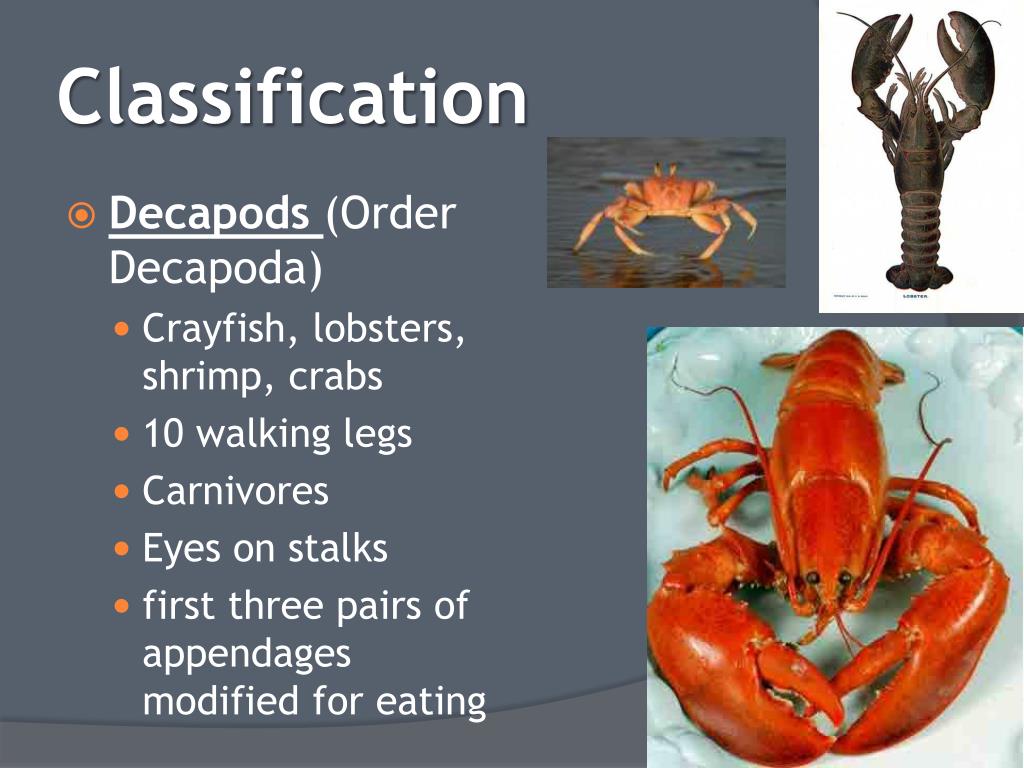

  12. Classification • Decapods (Order Decapoda) • Crayfish, lobsters, shrimp, crabs • 10 walking legs • Carnivores • Eyes on stalks • first three pairs of appendages modified for eating

  13. Classification • Isopods (Order Isopoda) • Pill bugs, sow bugs • Feed on dead, decaying matter • Obtain oxygen from air/moist soil • no carapace • eyes are not stalked • gills on appendages

  14. Classification • Cerripeds (Subclass Cerripedia) • Barnacles • Shelled, sessile • No eyes, gills, heart or blood vessels Giant Barnacles

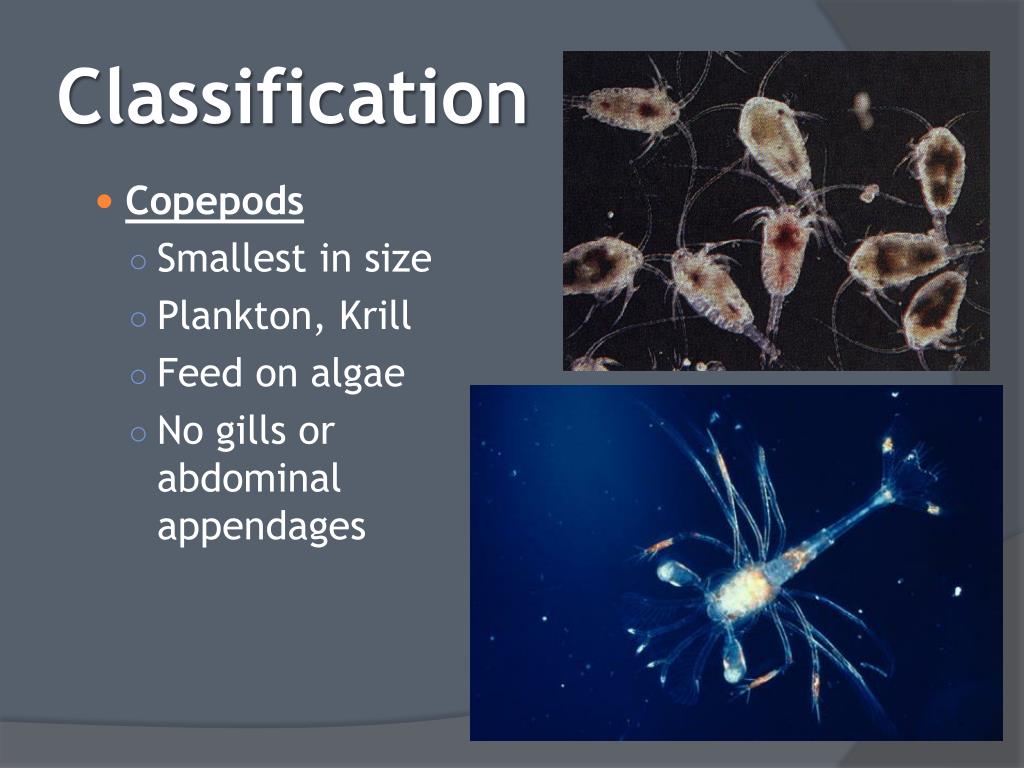

  15. Classification • Copepods • Smallest in size • Plankton, Krill • Feed on algae • No gills or abdominal appendages

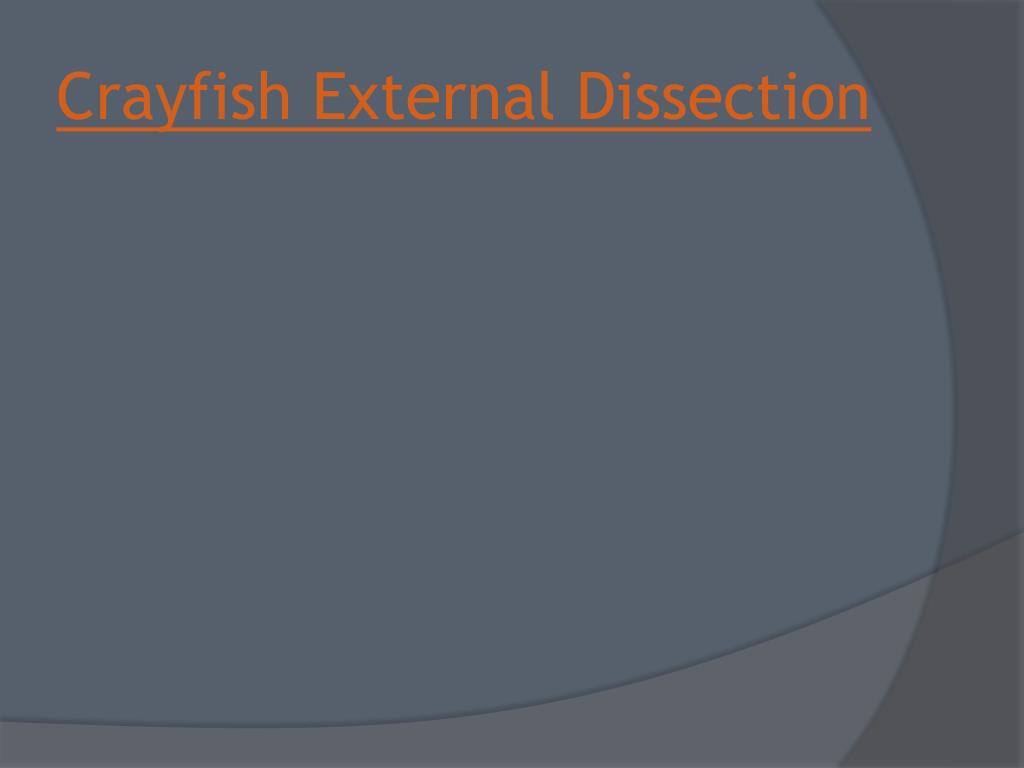

  16. Crayfish External Dissection

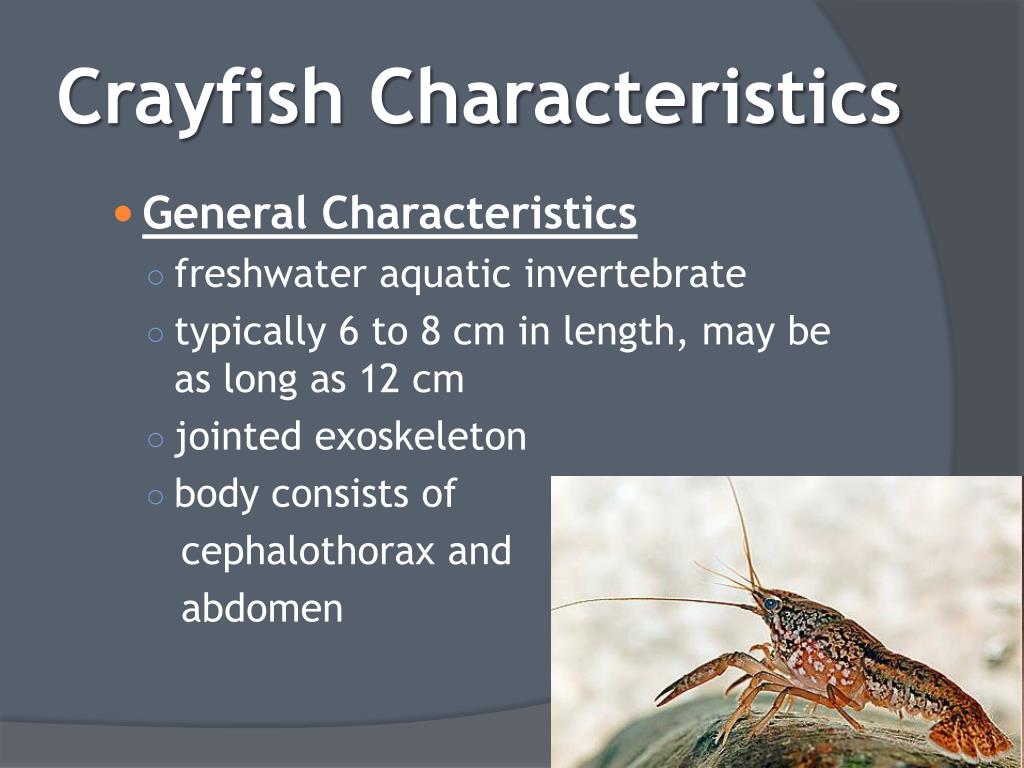

  17. Crayfish Characteristics • General Characteristics • freshwater aquatic invertebrate • typically 6 to 8 cm in length, may be as long as 12 cm • jointed exoskeleton • body consists of cephalothorax and abdomen

  18. Crayfish Characteristics • General Characteristics, cont. • paired, jointed appendages • head has 2 pairs of antennae, 1 pair of mandibles, and 2 pairs of maxillae • undergoes ecdysis (shedding of the exoskeleton to accomplish an increase in body size)

  19. Crayfish Characteristics • Digestive System • The digestive tract consists of: • 1) the foregut, • includes an enlarged stomach (grinding) • 2) the midgut • 3) the hindgut (functions in water and salt) regulation. • 4) anus • 5) digestive gland • secretes digestive enzymes and aids in the absorption of the products of digestion.

  20. Crayfish Characteristics • Excretory System • Excretory organs are called the antennal glands • They excrete the waste products of blood filtration; • Ammonia is the primary waste product. • Ammonia is also excreted across the gill surfaces and by diffusion across thin parts of the exoskeleton.

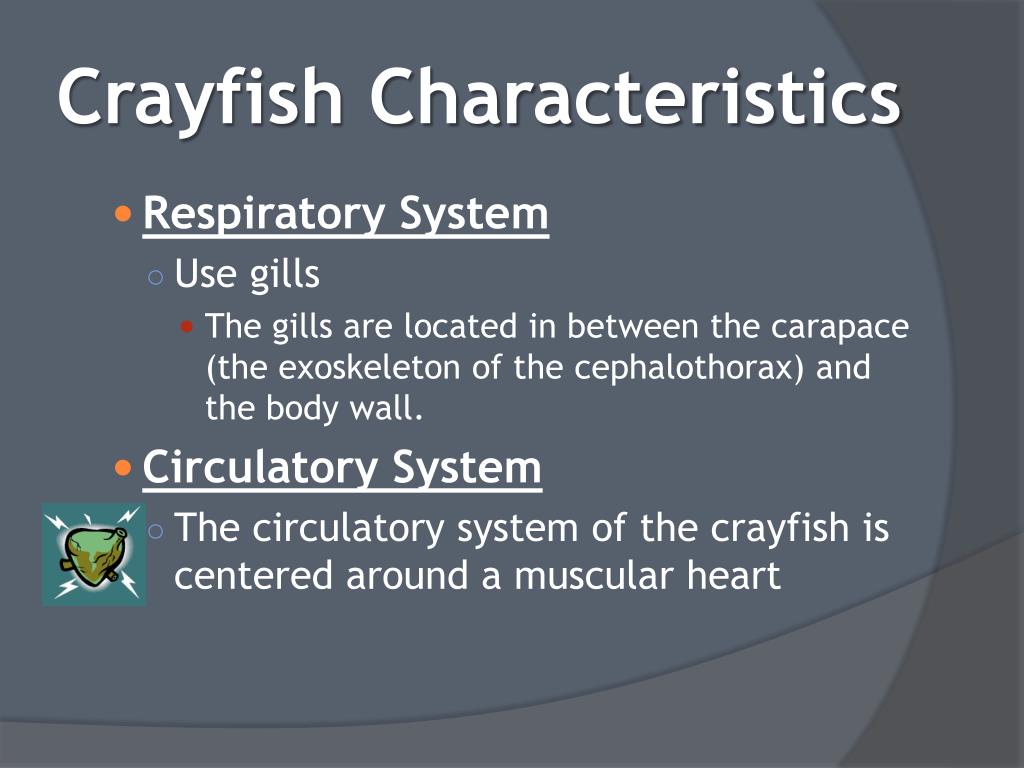

  21. Crayfish Characteristics • Respiratory System • Use gills • The gills are located in between the carapace (the exoskeleton of the cephalothorax) and the body wall. • Circulatory System • The circulatory system of the crayfish is centered around a muscular heart

  22. Crayfish Characteristics • Nervous System • The crayfish nervous system is composed of a ventral nerve cord • Concentrated ganglia (anterior end) • Giant neurons in the ventral nerve cord function in escape responses.

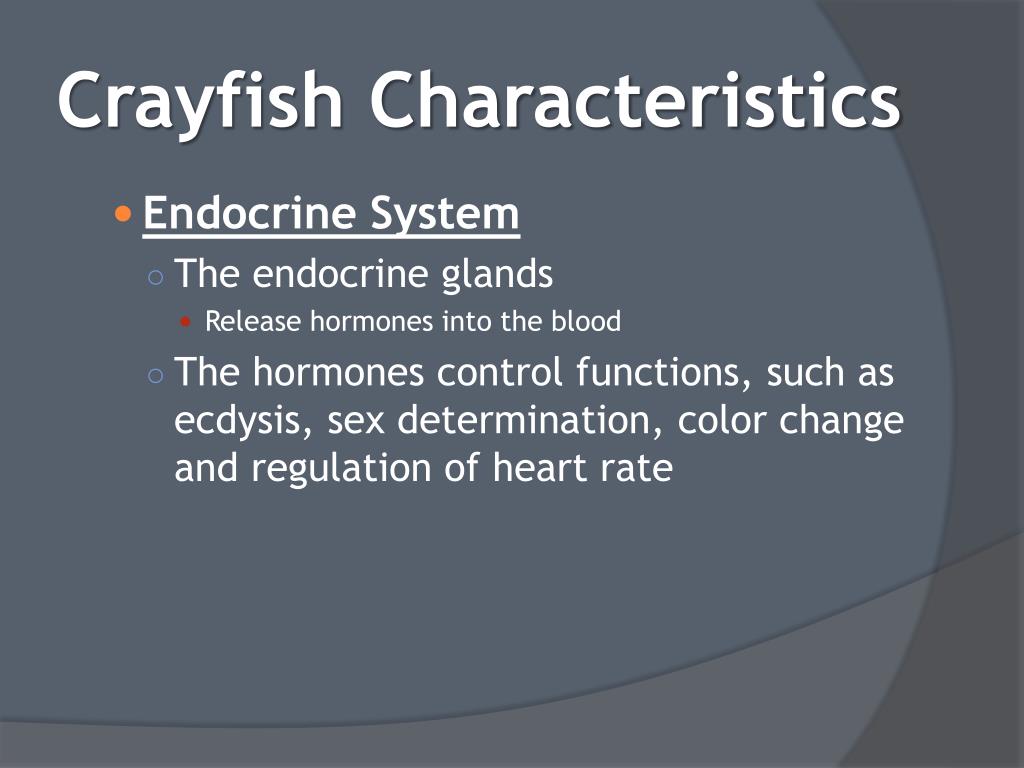

  23. Crayfish Characteristics • Endocrine System • The endocrine glands • Release hormones into the blood • The hormones control functions, such as ecdysis, sex determination, color change and regulation of heart rate

  24. Crayfish Characteristics • Sensory Structures • Chemoreceptors • Tactile receptors • function in equilibrium, balance, and position senses • Statocysts • functions in movement and orientation • Ocelli (simple eye) • allows larvae to go toward or away from light • does not form images • Compound eyes • mounted on moveable eyestalks • lens system made of 14,000 individual receptors

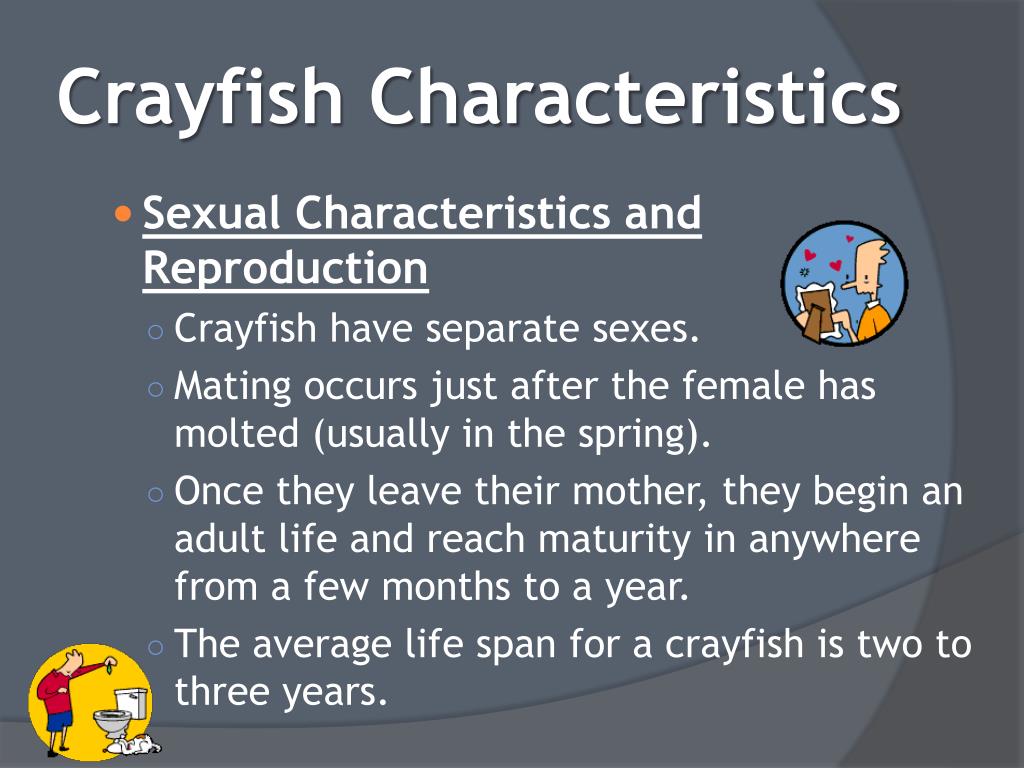

  25. Crayfish Characteristics • Sexual Characteristics and Reproduction • Crayfish have separate sexes. • Mating occurs just after the female has molted (usually in the spring). • Once they leave their mother, they begin an adult life and reach maturity in anywhere from a few months to a year. • The average life span for a crayfish is two to three years.

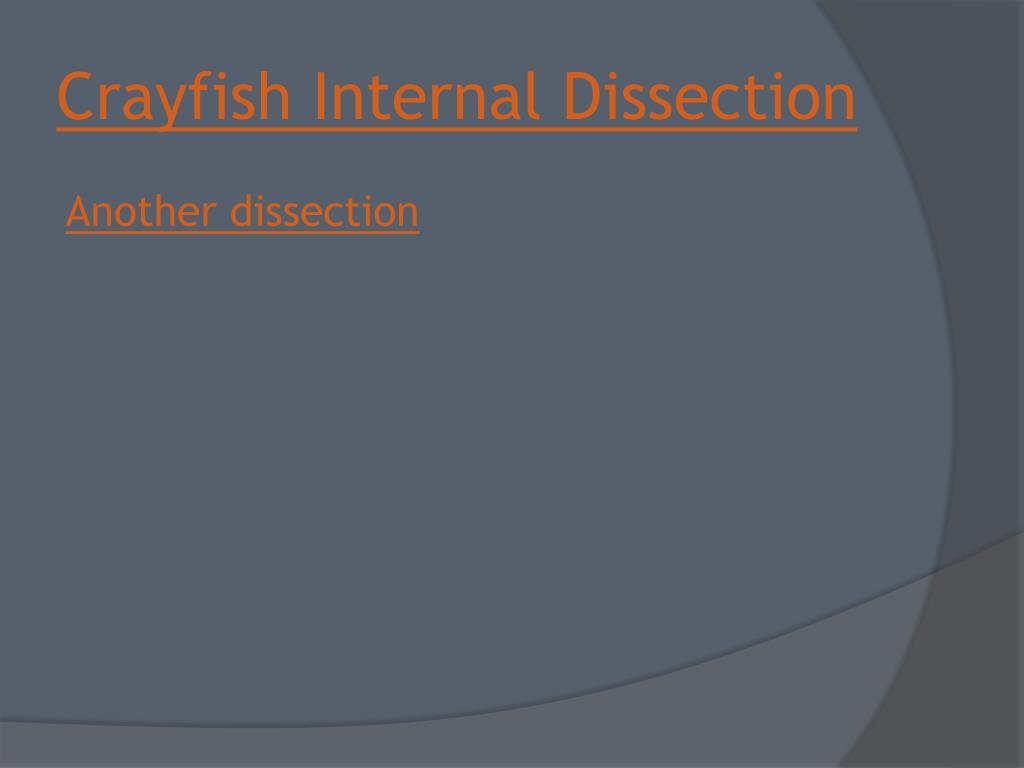

  26. Crayfish Internal Dissection Another dissection

  27. Crayfish Characteristics • Predator / Prey Relationships • Feed on living animals and plants, • Also consume a fair amount of dead plants, dead or dying animals, and detritus. • Crayfish are omnivores. • Crayfish do not prey on larger animals, such as fish

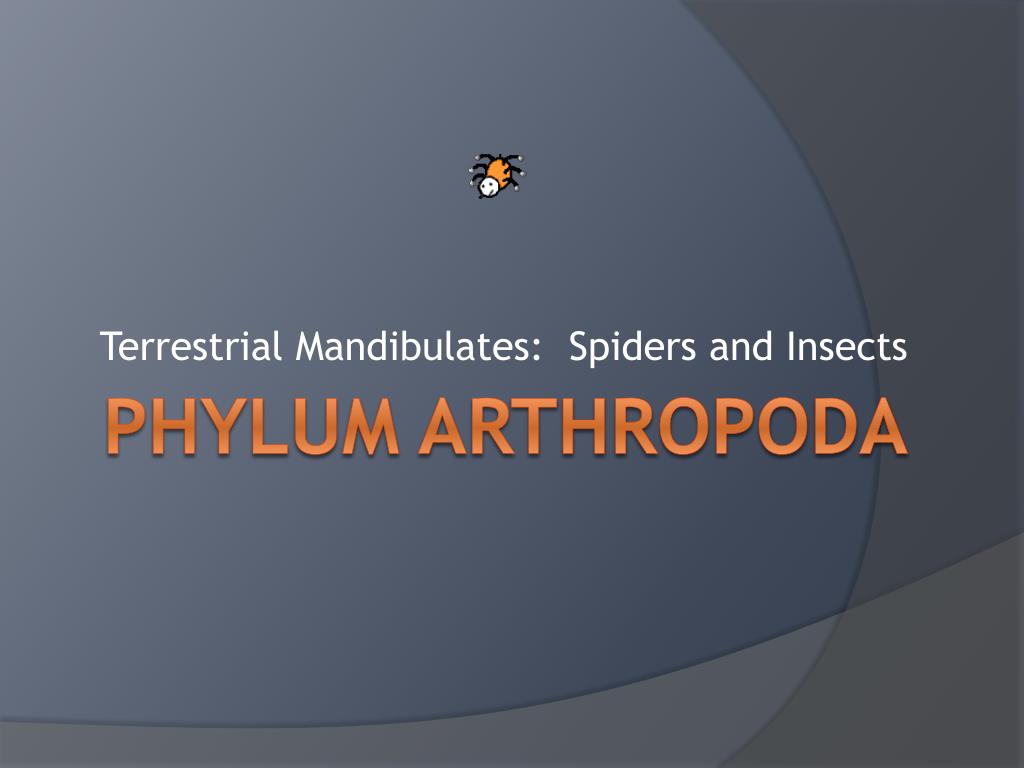

  28. Terrestrial Mandibulates: Spiders and Insects Phylum Arthropoda

  29. Characteristics • Segmented bodies • Jointed appendages • Specialized for eating, sensing, reproduction, defense and movement • Exoskeleton • Hard covering on the outside of the animal • Limits the growth of the organism (must shed) • Muscles are attached to this layer • Secreted by underlying epidermis • Shed (molted) at intervals

  30. Characteristics • Bilateral symmetry • Muscular system • Complex • Contains two types of muscles • Body cavity • Coelom is smaller in size   • Most of body cavity consists of hemocoel (sinuses, or spaces, in the tissues) • Filled with blood

  31. Characteristics • Digestion • Complete digestive system  • Esophagus, crop, gizzard, midgut, hindgut and anus • Mouthparts modified from appendages and adapted for different methods of feeding • Circulatory System • Open system • Dorsal contractile heart, arteries

  32. Characteristics • Respiration • Obtain oxygen through: • 1) body surface (diffusion), • 2) gills, • 3) tracheal (air tubes) – carry oxygen to muscles • 4) book lungs • Spiracles—small openings in the exoskeleton through which air opens

  33. Characteristics • Water retention—3 structures • 1) Malpighian tubules— • excretory structures that remove metabolic wastes from blood and return water to the cells • 2) Exoskeleton— • prevents water evaporation • 3) Book Lungs— • gas exchange without water loss (also used in respiration)

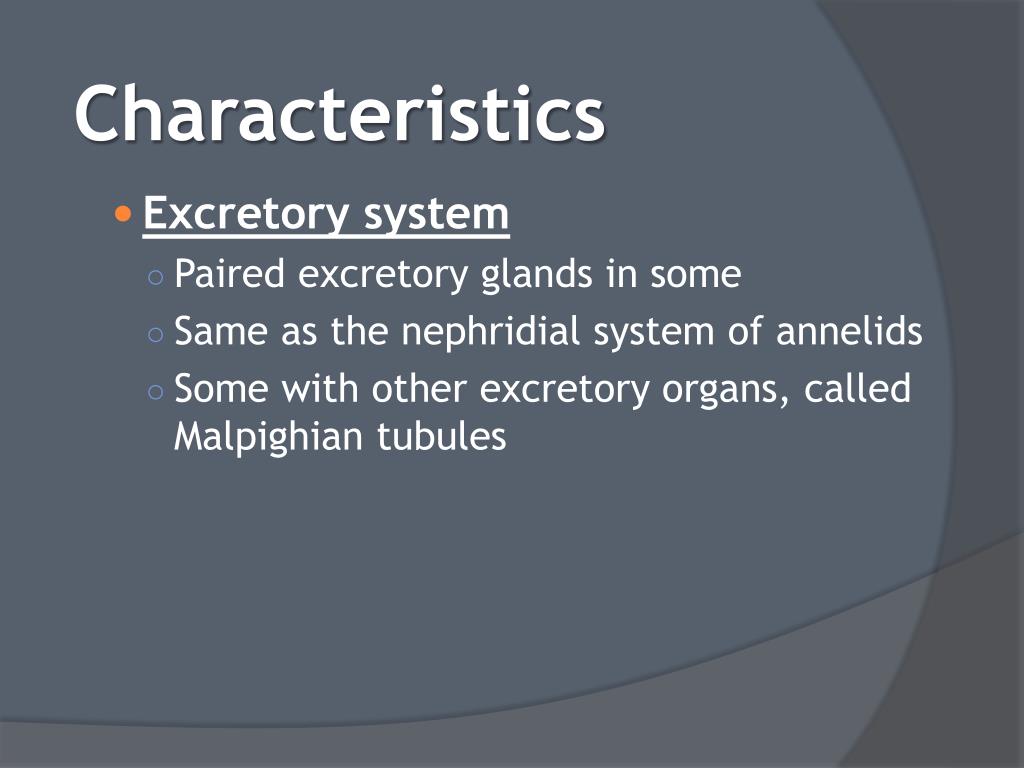

  34. Characteristics • Excretory system • Paired excretory glands in some • Same as the nephridial system of annelids  • Some with other excretory organs, called Malpighian tubules

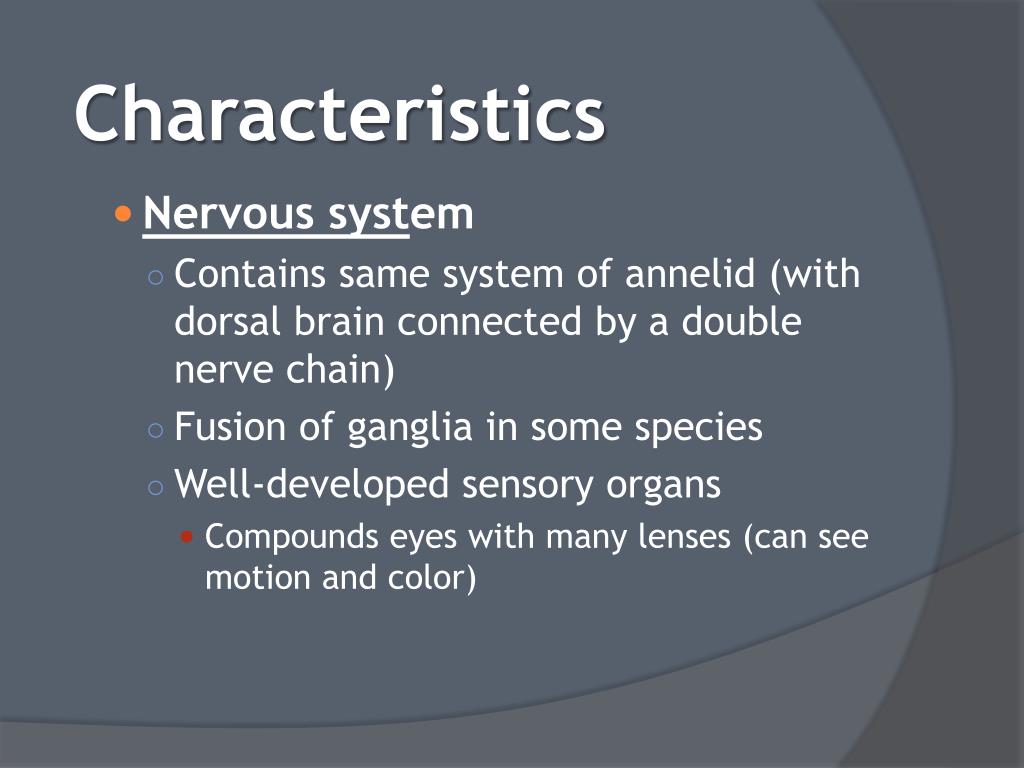

  35. Characteristics • Nervous system • Contains same system of annelid (with dorsal brain connected by a double nerve chain) • Fusion of ganglia in some species   • Well-developed sensory organs • Compounds eyes with many lenses (can see motion and color)

  36. Characteristics • Reproduction • Sexes usually separate, • Paired reproductive organs and ducts;   • Usually internal fertilization; • often go through metamorphosis (change in body form  larva to adult)

  37. Classification • Phylum Arthropoda(most diverse phylum) • Subgroups of Terrestrial Arthropods: • Subphylum Chelicerata – • Characteristics of all: • six pairs of appendages that include • a pair of chelicerae, • a pair of pedipalps, and • 4 pairs of walking legs • No mandibles and no antennae.   • Suck up liquid food from their prey. • Two body segments (abdomen and cephalothorax)

  38. Classification • Class Merostomata– • Horseshoe crabs are practically unchanged • Have an unsegmented, horseshoe-shaped carapace, and a broad abdomen, which has a long spine like telson. • Book gills are exposed.   • They feed at night on worms and small mollusks and are harmless to humans. • Include horseshoe crabs

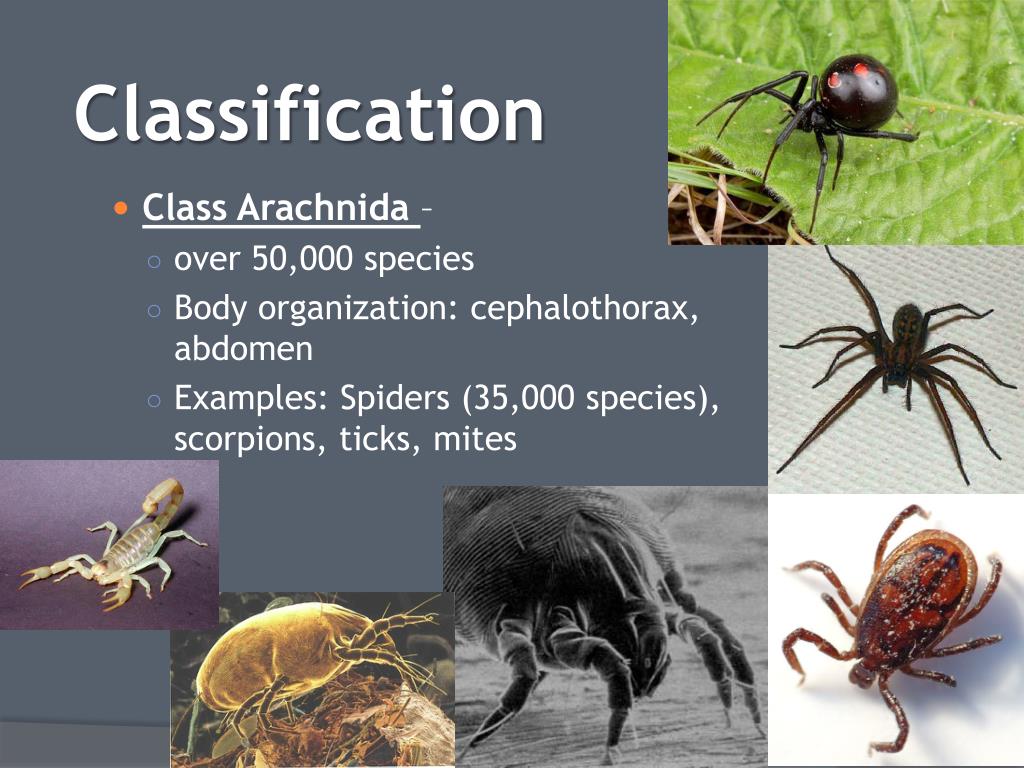

  39. Classification • Class Arachnida– • over 50,000 species • Body organization: cephalothorax, abdomen • Examples: Spiders (35,000 species), scorpions, ticks, mites

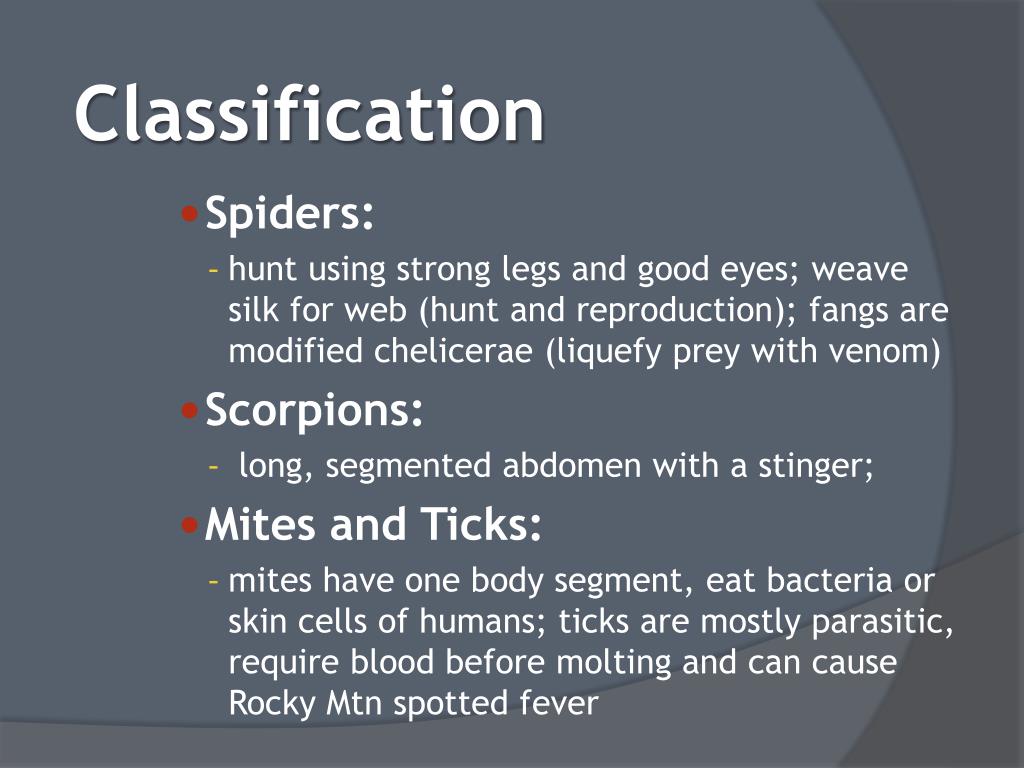

  40. Classification • Spiders: • hunt using strong legs and good eyes; weave silk for web (hunt and reproduction); fangs are modified chelicerae (liquefy prey with venom) • Scorpions: • long, segmented abdomen with a stinger; • Mites and Ticks: • mites have one body segment, eat bacteria or skin cells of humans; ticks are mostly parasitic, require blood before molting and can cause Rocky Mtn spotted fever

  41. Classification • Subphylum Uniramia– • Characteristics: • Appendages are unbranched.   • Includes the insects and the myriapods (centipedes and millipedes). • Heads resemble the crustacean head but have only one pair of antennae, instead of two. • Also have a tympanic membrane for sound  • Have mandibles and two pairs of maxillae • Respiration is by body surface and tracheal systems, • Although juveniles, if aquatic, may have gills.

  42. Classification • Class Chilopoda- • They are active predators with a preference for moist places such as under logs or stones, where they feed on earthworms, insects, etc.   • Each segment (they have between 10 and 70), except the one behind the head and the last two, bears one pair of appendages. • Include: centipedes

  43. Classification • Class Diplopoda– • Include Millipedes • Have cylindrical bodies made up of 25 to 100 segments. • Abdominal segments each have two pairs. • Millipedes are less active than centipedes • Generally herbivorous, living on decayed plant and animal matter

  44. Classification • Class Insecta– • Most numerous and diverse of all arthropods. • (There are more species of insects than species in all the other classes of animals combined!!) • Have three pairs of legs • Usually have two pairs of wings (although some have one pair of wings, or none)   • Body organization: head, thorax, and abdomen. • The head usually bears a pair of large compound eyes, a pair of antennae, and usually three ocelli.
