Process of Breathing

Process of Breathing. “movement of air from outside the body to the lungs”. Diaphragm is the principle muscle in controlling breathing  upon stimulation, will contract. Air outside  Air inside. PRESSURE CHANGES. High pressure  Low pressure.

clio-shields
Download Presentation

Process of Breathing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

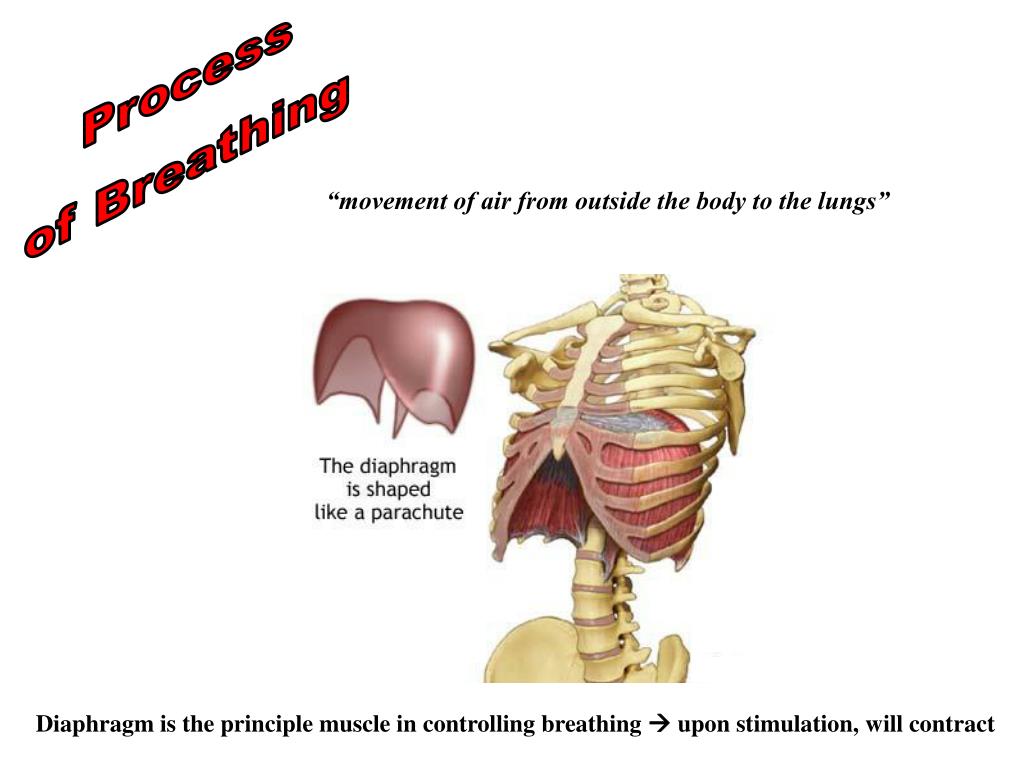

  1. Process of Breathing “movement of air from outside the body to the lungs” Diaphragm is the principle muscle in controlling breathing  upon stimulation, will contract

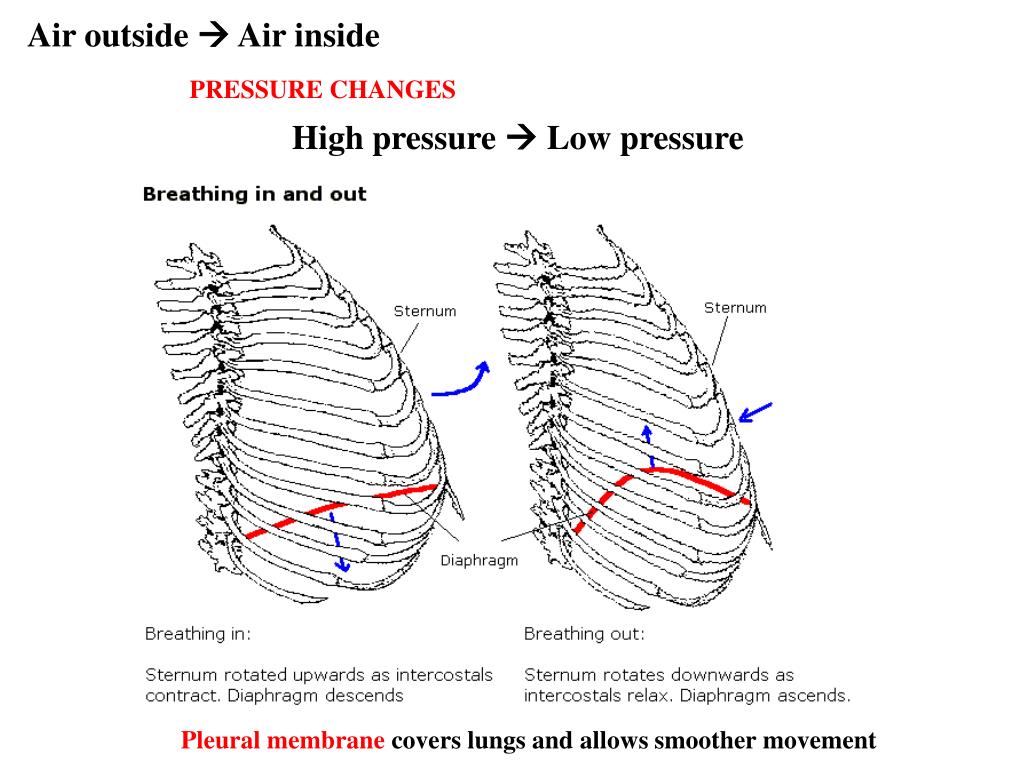

  2. Air outside  Air inside PRESSURE CHANGES High pressure  Low pressure Pleural membrane covers lungs and allows smoother movement

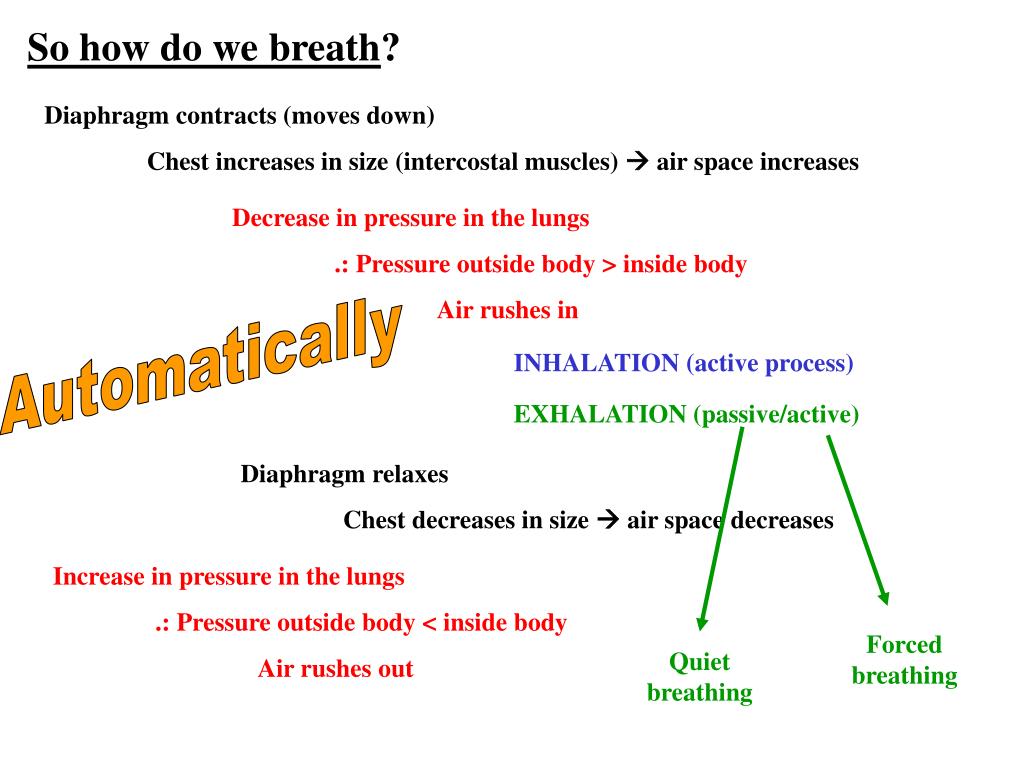

  3. So how do we breath? Diaphragm contracts (moves down) Chest increases in size (intercostal muscles)  air space increases Decrease in pressure in the lungs .: Pressure outside body > inside body Air rushes in Automatically INHALATION (active process) EXHALATION (passive/active) Diaphragm relaxes Chest decreases in size  air space decreases Increase in pressure in the lungs .: Pressure outside body < inside body Air rushes out Forced breathing Quiet breathing

  4. Ventilation (VE ) “The volume of air that is moved in 1 minute.” Air in and out VE(L/min)= VT(L) x f(breaths/min) • Tidal Volume • volume of air in each breath • rest = 0.5 L/min • max = 3-4 L/min • Respiratory frequency • number of breaths per minute • rest = 12 breaths/min • max = 30-40 breaths/min Ventilation at maximum?

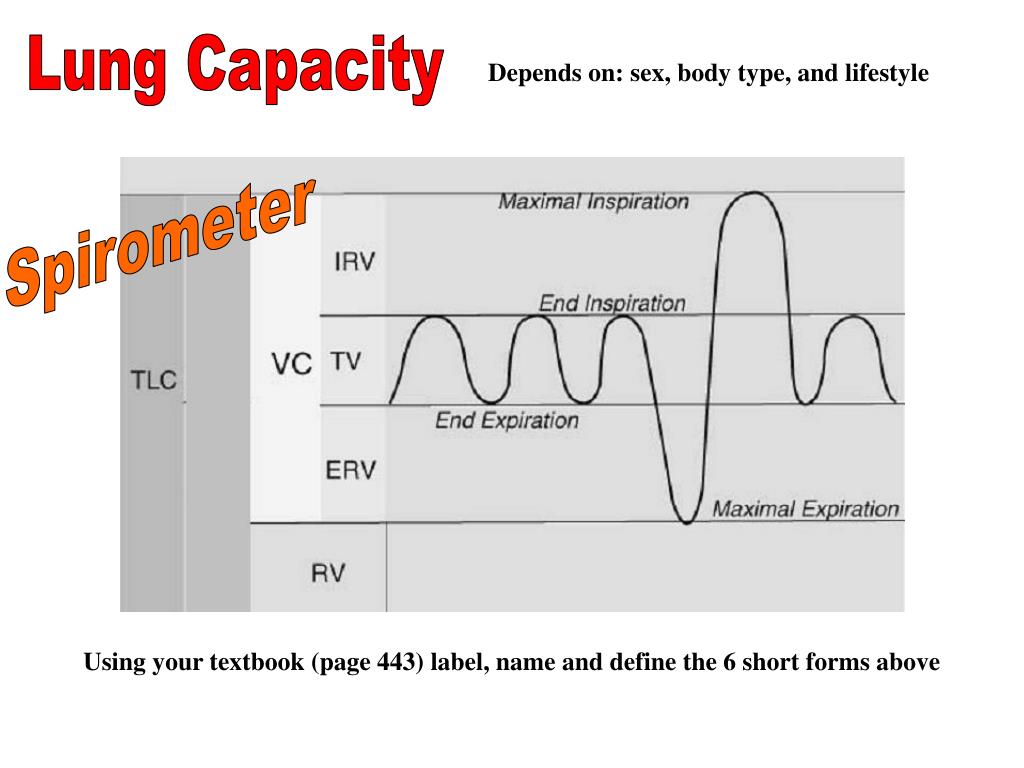

  5. Lung Capacity Depends on: sex, body type, and lifestyle Spirometer Using your textbook (page 443) label, name and define the 6 short forms above

  6. So we’ve got the air to the lungs. . . Lung Volumes Static vs Dynamic -volumes determined by structure of lung -volumes dependent on movement of air TLC = VC + RV • Total Lung Capacity • max air lungs hold • Vital Capacity • max air exhaled following max inhale • Residual Volume • remaining air in lungs after max exhale

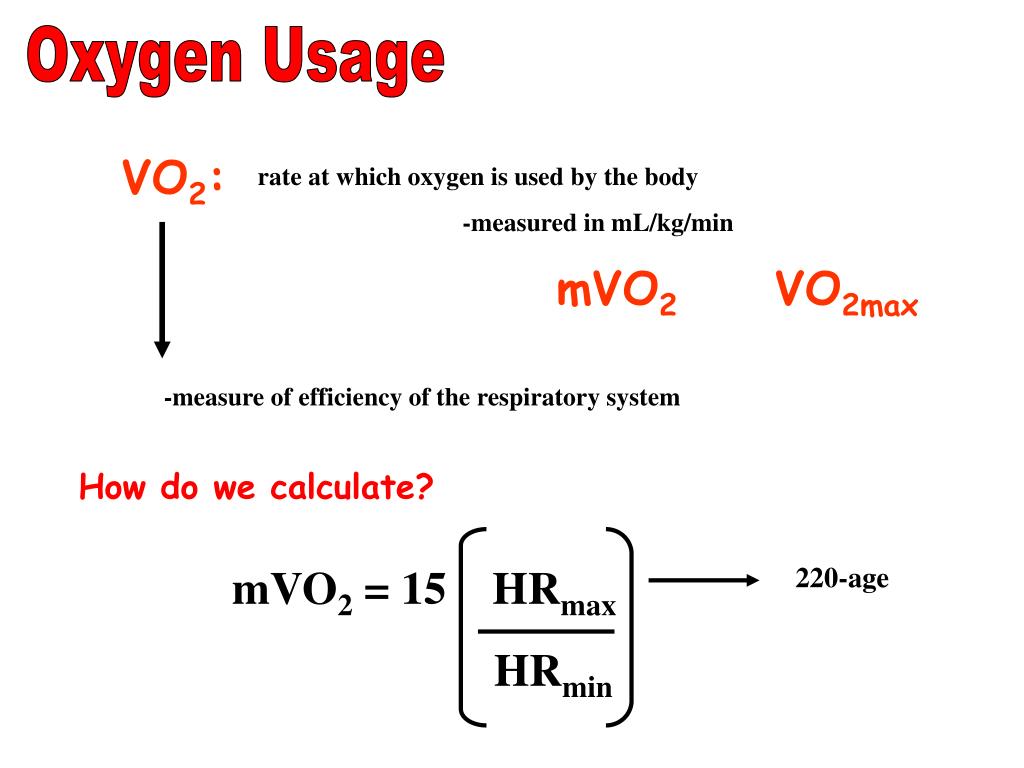

  7. Oxygen Usage VO2: rate at which oxygen is used by the body -measured in mL/kg/min mVO2 VO2max -measure of efficiency of the respiratory system How do we calculate? mVO2 = 15 HRmax HRmin 220-age

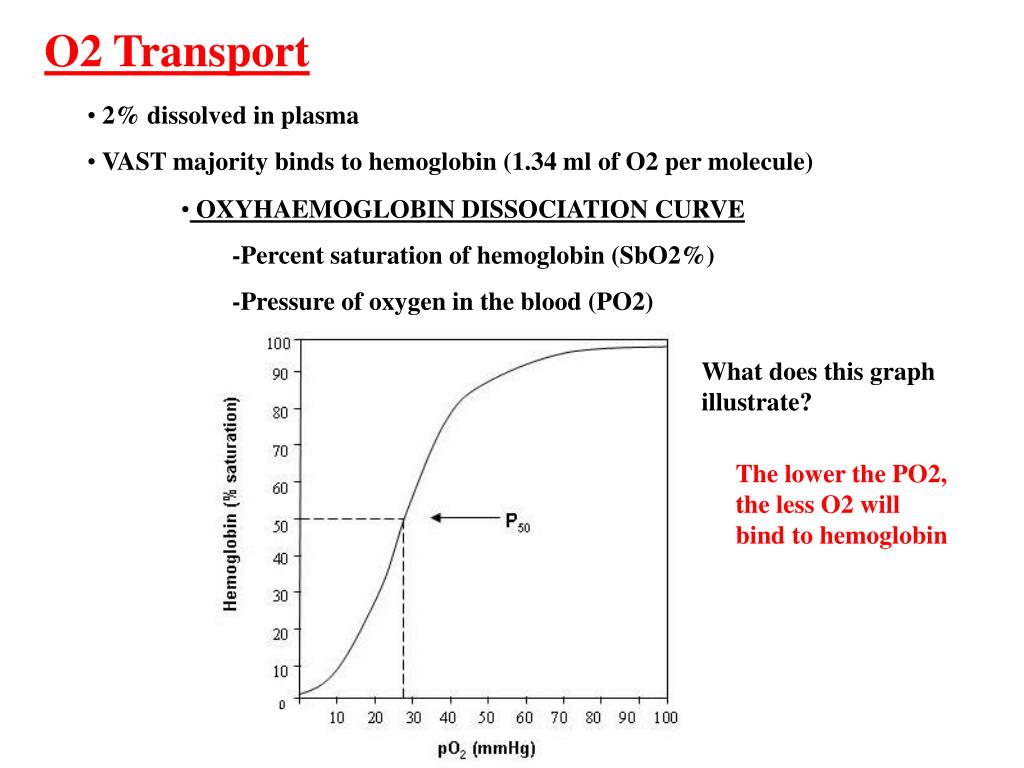

  8. O2 Transport • 2% dissolved in plasma • VAST majority binds to hemoglobin (1.34 ml of O2 per molecule) • OXYHAEMOGLOBIN DISSOCIATION CURVE • -Percent saturation of hemoglobin (SbO2%) • -Pressure of oxygen in the blood (PO2) What does this graph illustrate? The lower the PO2, the less O2 will bind to hemoglobin

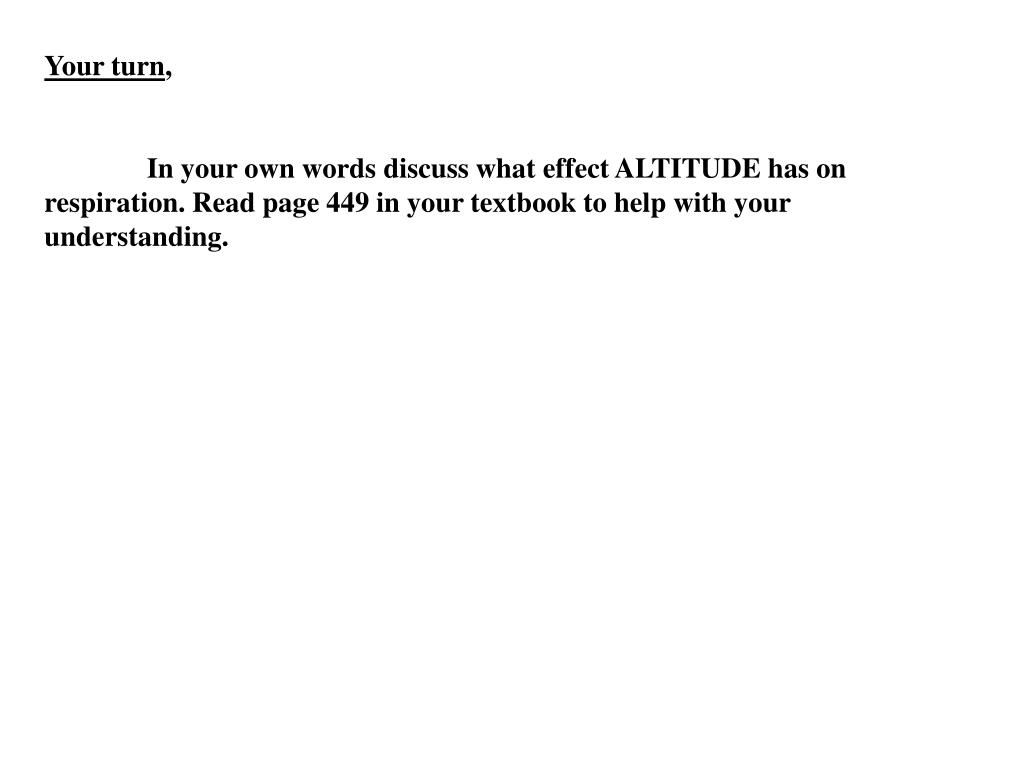

  9. Your turn, In your own words discuss what effect ALTITUDE has on respiration. Read page 449 in your textbook to help with your understanding.
