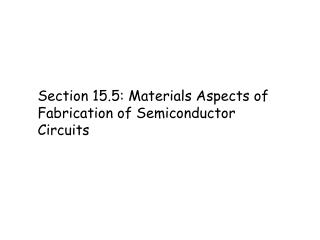

Section 15.5: Materials Aspects of Fabrication of Semiconductor Circuits

Loading in 2 Seconds...

play fullscreen
1 / 11

Section 15.5: Materials Aspects of Fabrication of Semiconductor Circuits - PowerPoint PPT Presentation


  • 126 Views
  • Uploaded on

Section 15.5: Materials Aspects of Fabrication of Semiconductor Circuits. Si. Over 98% of devices are made of Si. Diamond Cubic crystal. 1. Metallurgical grade Si (99%) 2. Semiconductor grade Si (ppb) 3. Single crystal growth 4. Wafer 5. Oxidation 6. Photolithography 7. Doping

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Section 15.5: Materials Aspects of Fabrication of Semiconductor Circuits' - clea


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

Si

Over 98% of devices are made of Si

Diamond Cubic crystal

slide3

1. Metallurgical grade Si (99%)

2. Semiconductor grade Si (ppb)

3. Single crystal growth

4. Wafer

5. Oxidation

6. Photolithography

7. Doping

8. Epitaxial Growth

9. Metallization

slide4

1. Metallurgical Grade Si from sand

Earth’s crust (about 100km): Mostly Si (26%) and O (49%) !!

Reduction of sand by carbon in an electric arc furnace

99% pure: suitable for electronic applications but not for electronic devices

slide5

2. Semiconductor Grade Si

Step 1

Step 2

Fractional distillation of trichlorosilane to remove impurities

Step 3

Chemical Vapour Deposition of electronic grade Si from pure trichlorosilane

3 single crystal growth
3. Single Crystal Growth

(A) Czochralski method (CZ)

SG Si melted into a silica crucible

Si melt does not dissolve silica. Only imprity is that of O.

Seed crystal of desired orientation <100> or <111> is inroduced

Dipped into the melt (T>Tm), rotated (6-8 rpm) and pulled (50-100 mm hr-1)

Crucible rotated in opposite direction (10-12 rpm) and lifted upwards to compensate for the falling level of the melt

Dopants introduced into the melt

Dia: 200-300 mm, Length 1-2 m

3 single crystal growth contd
3. Single Crystal Growth (Contd.)

(B) Float Zone technique (FZ)

No crucible: Lower O contamination

Smaller Diameter : 75 mm

slide9

4. Wafer manufacture

Single crystal produced by CZ or FZ is ground to uniform cylindrical shape

Crystal orientation is determined by single crystal x-ray diffraction. Important for further processing as the chips are separated along easy cleavage lines

Primary flats are ground to indicate orientation and secondary flat to indicate whether the material is n-type or p-type

The boule is cut into thin circular wafers using inner diameter slicing or wire saw

Past : 200 mm dia; 725 m thickness

Current: 300 mm; 775 m

Future: 450 mm; 925 m

<110>

Wafer is etched to remove damaged layer and polished to a mirror finish

slide10

Wafer manufacture

Primary and secondary flats

<110>

slide11

5. Oxidation

Excellent quality of oxide is one of the reasons why Si has been preferred over Ge for semiconductor device

Role of Oxide:

1. As a mask against diffusion or ion implantation

2. provide a passive electrical and chemical layer

3. isolate various devices

4. a component of MOS

Volume of oxide> volume of Si => compressive stress in the oxide film=> no danger of cracking

Two kinds of oxidation:

1. Dry

2. Wet
