About qnap
About QNAP

  • QNAP, with more than 8 years experience in embedded systems, is devoted to be world's leading company in IA (Internet Appliance) field.

  • Successful experience in developing innovative IA products.

    • Most Advanced Digital Surveillance Systems (Digital Video Recorder, Network Video Recorder)

    • Best synergy in storage and surveillance

    • Most Extensive Networking Storage (RAID, NAS)

    • NMP (Network Multimedia Player)

Awards


About qnap

QNAP Core Technology

NAS

Network

Attached

Storage

NMP

Network

Multimedia

Player

NVR

Network

Surveillance

System

  • QNAP is one of the few NAS suppliers who owns three core technology ---

  • NAS

  • NVR

  • Media Player


About qnap

Core Competence

The Top-notch R&D Team in the Industry!!!

  • Software Team (over 32 engineers)

    • Pioneer in embedded Linux technology

    • High performance and high reliability server & video technology

    • Extensive experience in RISC I/O processor

    • Experts in TCP/IP offload engine technology

    • Most complete self-developed management software

    • Advanced network distributed management technology

  • Hardware Team (over 12 engineers)

    • Top notch E/E and ME design engineer team

    • Partner with major chipset vendors: Intel/VIA/Freescale/Marvell/Silicon Image

    • ID/ME/Thermal in house design & simulation capability

Quality, Reliability and Compatibility are the Key Factors for the Success of QNAP and Our Partners

  • Hardware Test:

    • Rigid stress test, reliability/stability test

    • Performance test, function test

    • Compatibility test

    • EMI test

  • Software Test:

    • Full function test

    • Compatibility test

    • Real environment 32 clients NetBench test

  • Most Stringent Quality Controlled Manufacturing

    • SMT/DIP Facility/Assembly Facility

    • Well setup IQC/IPQC/OQC system

32 Clients Simulation

Chamber

EMI Lab


Qnap product line overview

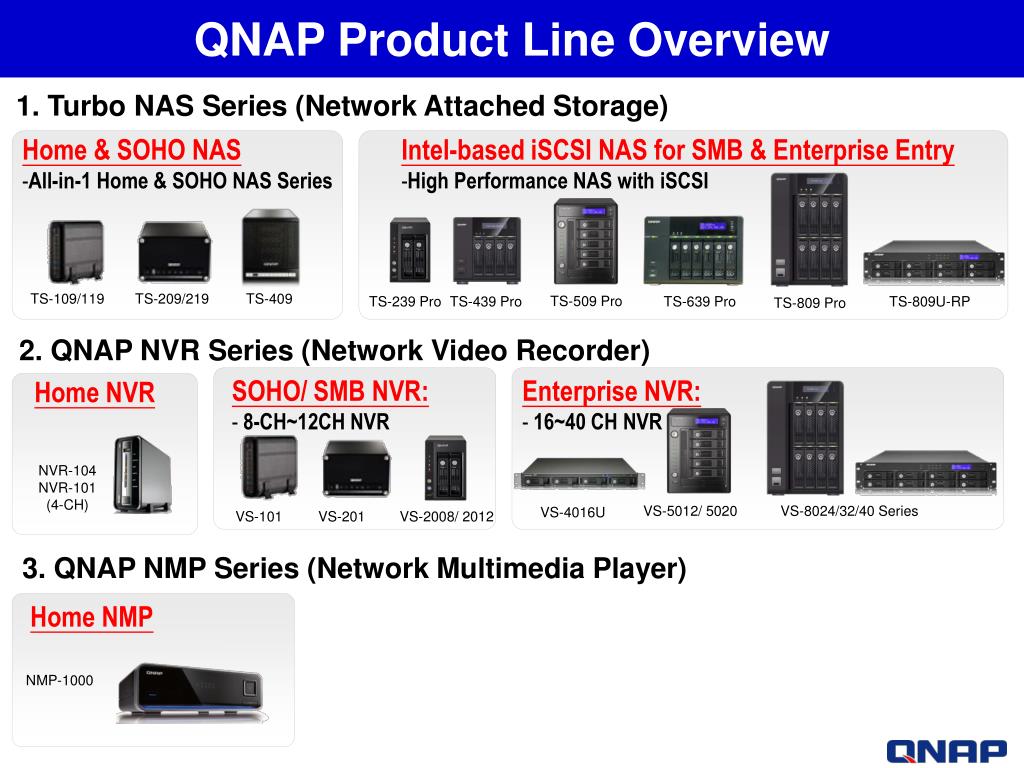

QNAP Product Line Overview

1. Turbo NAS Series (Network Attached Storage)

  • Home & SOHO NAS

  • All-in-1 Home & SOHO NAS Series

  • Intel-based iSCSI NAS for SMB & Enterprise Entry

  • High Performance NAS with iSCSI

TS-109/119

TS-209/219

TS-409

TS-509 Pro

TS-239 Pro

TS-439 Pro

TS-639 Pro

TS-809U-RP

TS-809 Pro

2. QNAP NVR Series (Network Video Recorder)

  • SOHO/ SMB NVR:

  • 8-CH~12CH NVR

  • Enterprise NVR:

  • 16~40 CH NVR

Home NVR

NVR-104

NVR-101

(4-CH)

VS-5012/ 5020

VS-8024/32/40 Series

VS-4016U

VS-101

VS-201

VS-2008/ 2012

3. QNAP NMP Series (Network Multimedia Player)

Home NMP

NMP-1000



Recognition from media around the world

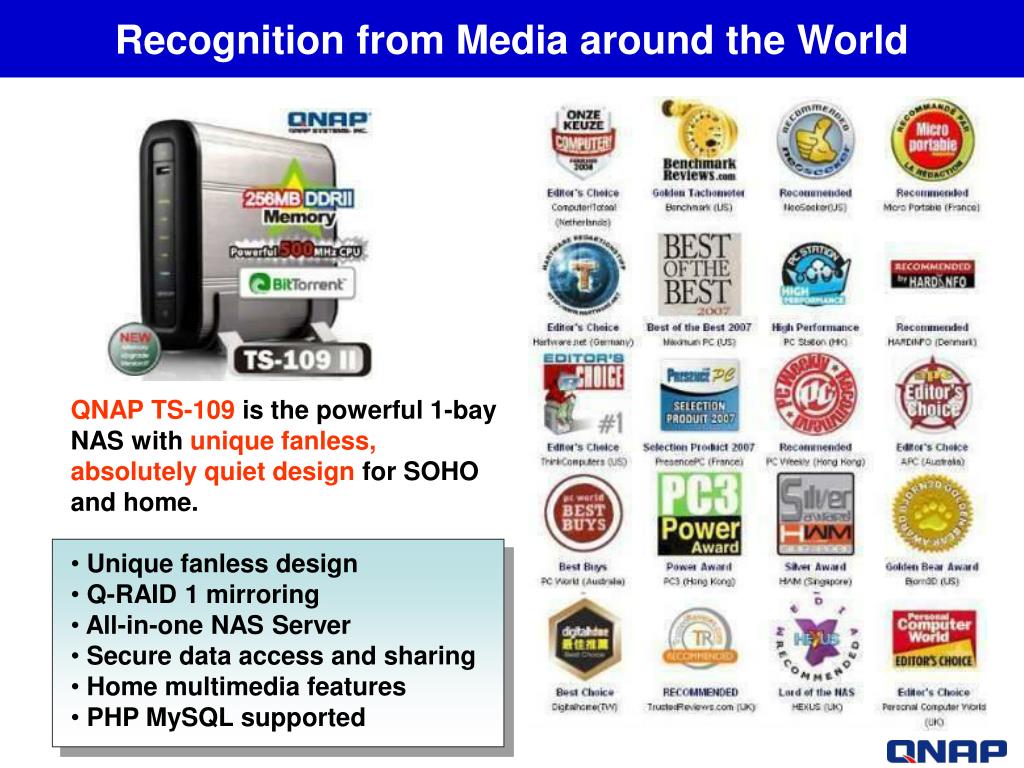

Recognition from Media around the World

  • QNAP TS-109 is the powerful 1-bay NAS with unique fanless, absolutely quiet design for SOHO and home.

  • Unique fanless design

  • Q-RAID 1 mirroring

  • All-in-one NAS Server

  • Secure data access and sharing

  • Home multimedia features

  • PHP MySQL supported


Recognition from media around the world1
Recognition from Media around the World

  • QNAP TS-209 is the first 2-bay SOHO NAS with hot-swap design for SOHO and home.

  • RAID 0/1/JBOD and Single Disk

  • All-in-one NAS Server

  • Secure data access and sharing

  • Home multimedia features


Recognition from media around the world2

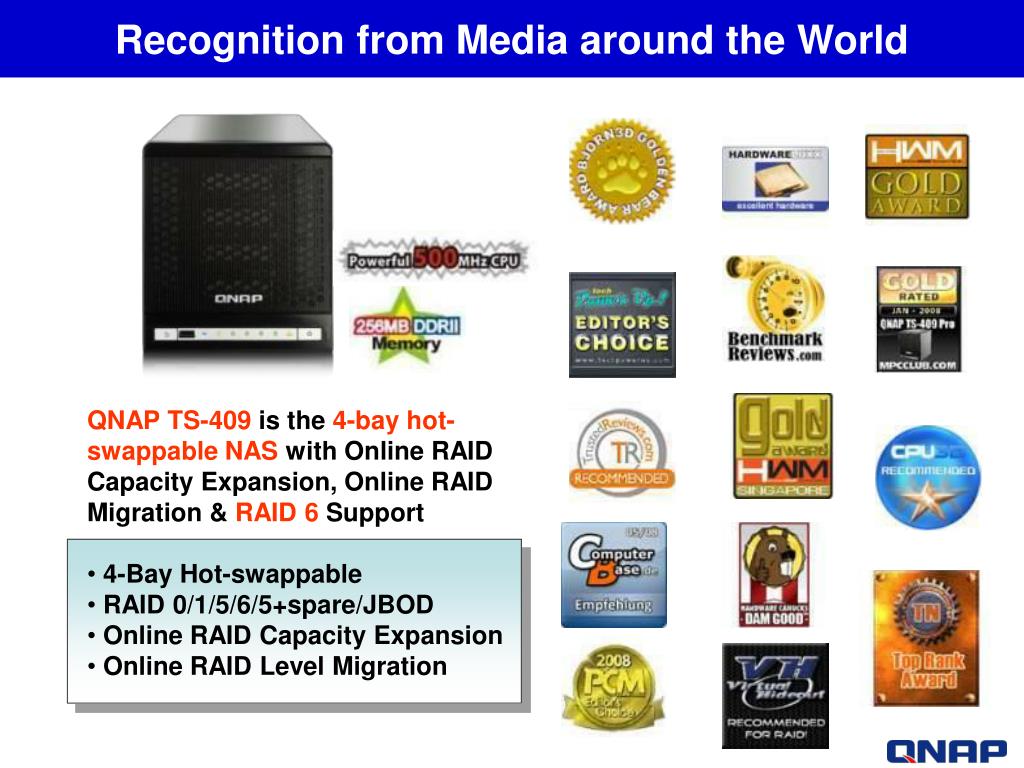

Recognition from Media around the World

  • QNAP TS-409 is the 4-bayhot-swappable NAS with Online RAID Capacity Expansion, Online RAID Migration & RAID 6 Support

  • 4-Bay Hot-swappable

  • RAID 0/1/5/6/5+spare/JBOD

  • Online RAID Capacity Expansion

  • Online RAID Level Migration


Recognition from media around the world3

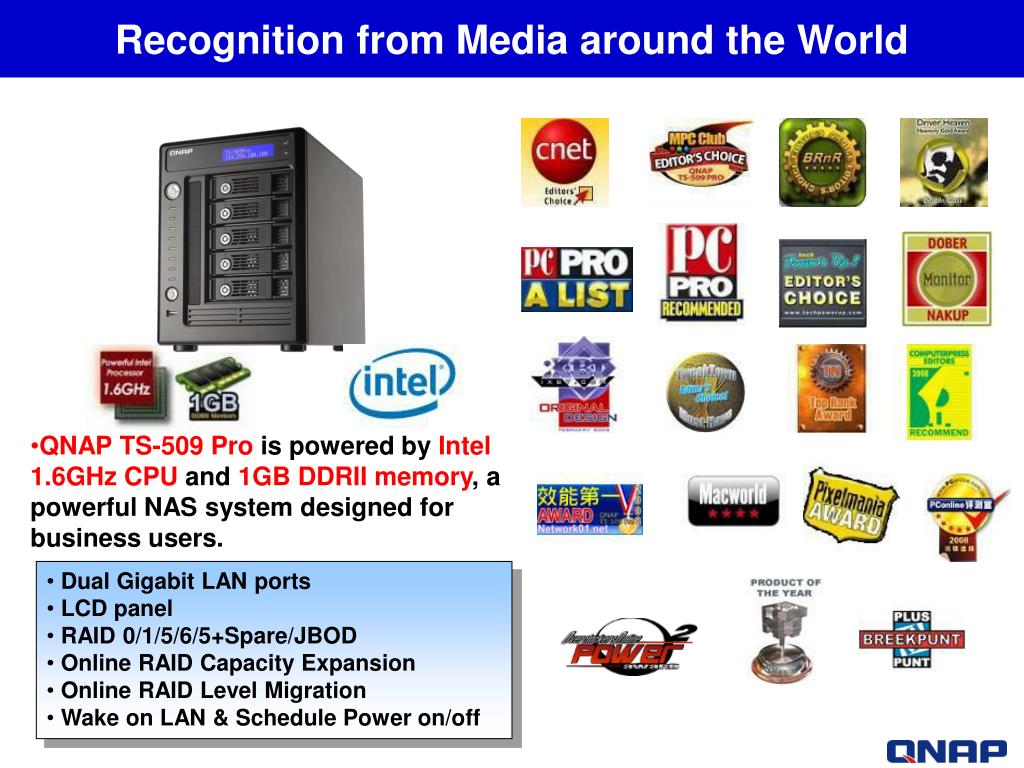

Recognition from Media around the World

  • QNAP TS-509 Pro is powered by Intel 1.6GHz CPU and 1GB DDRII memory, a powerful NAS system designed for business users.

  • Dual Gigabit LAN ports

  • LCD panel

  • RAID 0/1/5/6/5+Spare/JBOD

  • Online RAID Capacity Expansion

  • Online RAID Level Migration

  • Wake on LAN & Schedule Power on/off


About qnap

High Performance, Energy-saving ATOM NAS Server

  • QNAP TS-239 Pro, TS-439 Pro and TS-639 Pro are powered by Intel 1.6GHz ATOM CPU and 1GB DDRII memory, a powerful NAS system designed for business users.

  • Dual Gigabit LAN ports

  • LCD panel

  • RAID 0/1/5/6/5+Spare/JBOD

  • Online RAID Capacity Expansion

  • Online RAID Level Migration

  • Wake on LAN & Schedule Power on/off

  • Low Power Consumption


About qnap

8-bay, High Performance & Large Storage Solution

Solid, Powerful, and Reliable Storage Solution for Business & Vertical App.

  • Supports SATA I/II HDD, up to 16TB storage capacity

  • Linux-embedded DOM-basedarchitecture

  • RAID 0, 1, 5, 6, 5+Spare, 6+Spare, JBOD

  • Online RAID Capacity Expansion & Online RAID Level Migration

  • File server for cross-platform file sharing

  • FTP server

  • iSCSI target for storage expansion

  • Remote replication through Rsync

  • Dual Gigabit LAN for network fail-over or load-balancing

  • Complete log system for secure access control

  • Email or SMS text alert

  • Wake-on-LAN & handy LCD panel for ease of management

8-bay Tower

8-bay 2UChassis


About qnap

  • File Server

  • FTP Server

  • Backup Server

  • Web Server

  • MySQL Server

  • Remote Replication

  • Mirror Station

  • Printer Server

  • Media Server

  • Multimedia Station

  • Download Station

  • iTunes Server

QNAP NAS Market Positioning

QNAP NAS Servers are Positioned at High End Market Segmentation. It is a Powerful and Professional All-in-1NAS Server for Business, SOHO, Educational Market and Home Users!!!

  • TS-119 series for Business Users

  • 1-bay, Fanless NAS Server

  • Unique Q-RAID 1

  • 2-bay, hot-swappable NAS Server

  • RAID 1 Mirroring

  • With Unique iSCSI Supported

  • 4, 5, 6, 8-bay NAS for Business Users

  • RAID 5, 6, with Hot-spare

  • Online RAID Capacity Expansion & Level Migration

  • Comprhensive Log Systems,…

Other Storage Products in the Market


About qnap

QNAP Storage Product Line (April, 2009)

WS-411U

TS-411U

6-8

Bay

TS-809U-RP

TS-639 Pro

TS-809 Pro

SMB/ Enterprise

5-Bay

TS-509 Pro

4-Bay

TS-439 Pro

TS-409 Pro

TS-409

TS-409U

TS-439U-RP

Home/ SOHO

2-Bay

TS-239

TS-219

TS-209 Pro III

Personal

TS-119

1-Bay

TS-109 Pro II

QBack-35S

QBack-25

QBack-25S


About qnap

QNAP NAS System with Intel Platform

  • Intel Core2Duo 2.8GHz CPU + 2GB DDRII RAM

  • Dual Gigabit LAN ports

  • USBx4

  • Redundant Power Supply

  • Intel 420 1.6GHz CPU + 1GB DDRII RAM

  • eSATA x1, USBx5

Celeron (1.6GHz)

& Core2Duo

(2.8GHz)

TS-809U-RP

TS-809 Pro

TS-509 Pro

ATOM (1.6GHz)

TS-439 Pro

TS-239 Pro

TS-859 Pro

(Q3, 2009)

TS-639 Pro

  • Optional Redundant PSU

(June, 2009)

  • Intel ATOM 1.6GHz CPU + 1GB DDRII RAM

  • Dual Gigabit LAN ports

  • LCD panel

  • eSATAx2, USB x5

TS-439U-RP

2.5’’ w/ ATOM (1.6GHz)

2.5’’, 8bay

(June, 2009)

2.5’’, 4bay

(June, 2009)

SS-839 Pro

SS-439 Pro

2-Bay

5-bay

6-bay

8-bay

4-bay


About qnap

QNAP NAS Competitive Advantage

  • All-in-one NAS Server with All Kind of Server Application

  • iSCSI Target Support

  • Online HDD Capacity Expansion

  • Online RAID Migration

  • HDD S.M.A.R.T(Self-monitoring Analysis and Reporting Technology)

  • Comprehensive Log Systems

  • Encrypted File System to Protect Sensitive Data Leakage

  • DOM Architecture – Dual OS Backup

  • Dual Gigabit LAN Port – Failover, Load Balance,

  • Easy Management for IT Administrator

  • Most Complete Back up, Free Replication and Remote Replication Software Bundled

  • 2-External SATA Expansion

  • Windows ADS, SSL Security, UPS, Wake up on LAN, Schedule, Power On-Off


Qnap all in 1 turbo nas
QNAP All-in-1 Turbo NAS

File

Server

Surveillance

Station

Printer

Server

Multimedia

Station

All-in-1

NAS

Server

Backup

Server

Music

Station

Disaster

Recovery

Download Station

Email

Server

MySQL

Server

Web

Server

FTP

Server


All in 1 nas applications for enterprise smb

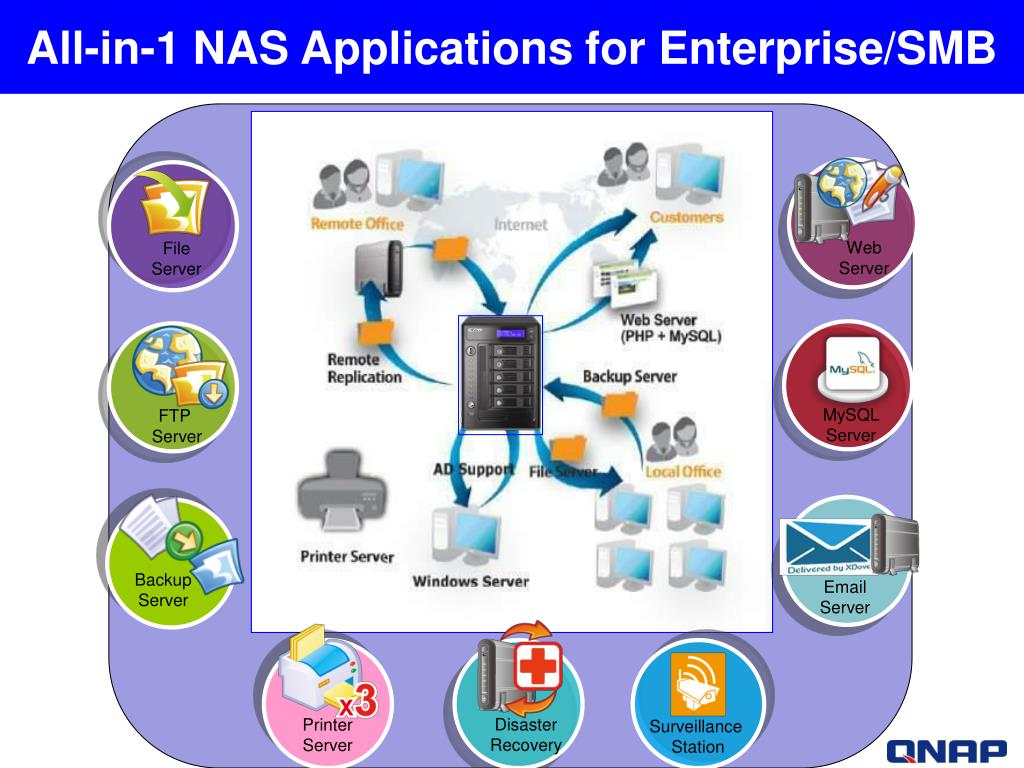

All-in-1 NAS Applications for Enterprise/SMB

Web

Server

File

Server

MySQL

Server

FTP

Server

Backup

Server

Email

Server

Disaster

Recovery

Printer

Server

Surveillance

Station


All in 1 nas applications for soho home
All-in-1 NAS Applications for SOHO/Home

Multimedia

Station

Music

Station

Download Station

File

Server

Printer

Server

FTP

Server

Web

Server

Backup

Server

Disaster

Recovery

Surveillance

Station
