Biologically Inspired Computing: Introduction

1. Biologically Inspired Computing: Introduction This is lecture one of `Biologically Inspired Computing’ Contents: Course structure, Motivation for BIC , BIC vs Classical computing, overview of BIC techniques

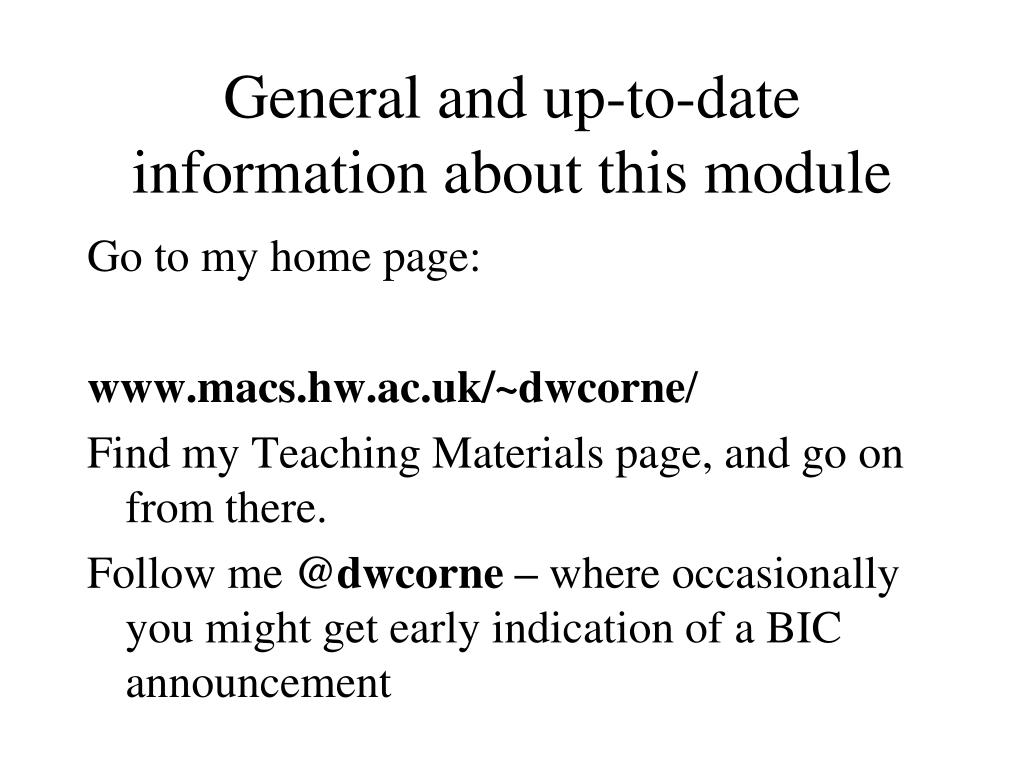

2. General and up-to-date information about this module Go to my home page: www.macs.hw.ac.uk/~dwcorne/ Find my Teaching Materials page, and go on from there. Follow me @dwcorne – where occasionally you might get early indication of a BIC announcement

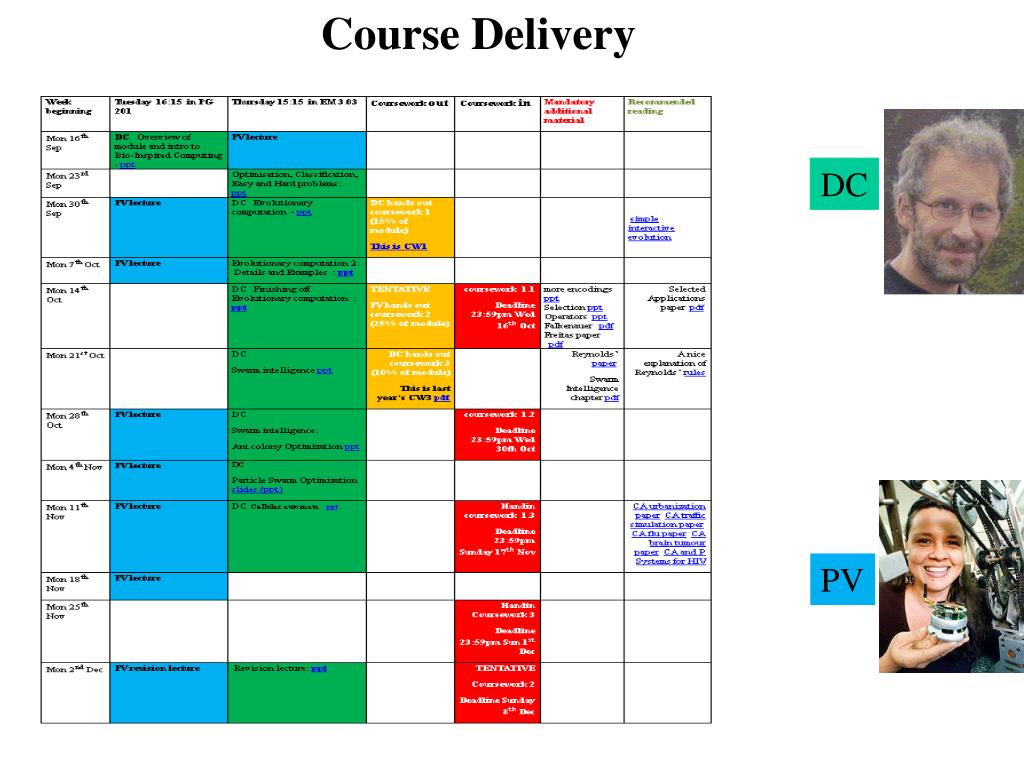

3. Course Delivery DC PV

4. Examinable materials (DC) • All the slides (all online) • A few additional papers and notes provided online Exam + Coursework (whole module) CW1 15% CW2 20% CW3 15% Exam: 50% c/w 1: FIVE very brief reports in form of PPT slides – out 22nd Feb hand in ONE on 16th Oct, ONE on 30th Oct, TWO on 17th Nov c/w 2: probably out ~18th Oct, in ~8th Dec c/w 3: Question-based assignment - out 24th Oct, hand in 1st Dec Will advise later about c/w 2 In all DC cases hand in by email with the coursework as a ppt or pdf attachment, emailled to DWC at dwcorne@gmail.com, subject line either: “BIC CW1 Prog” or “BIC CW2”. Include your name in the pdf!

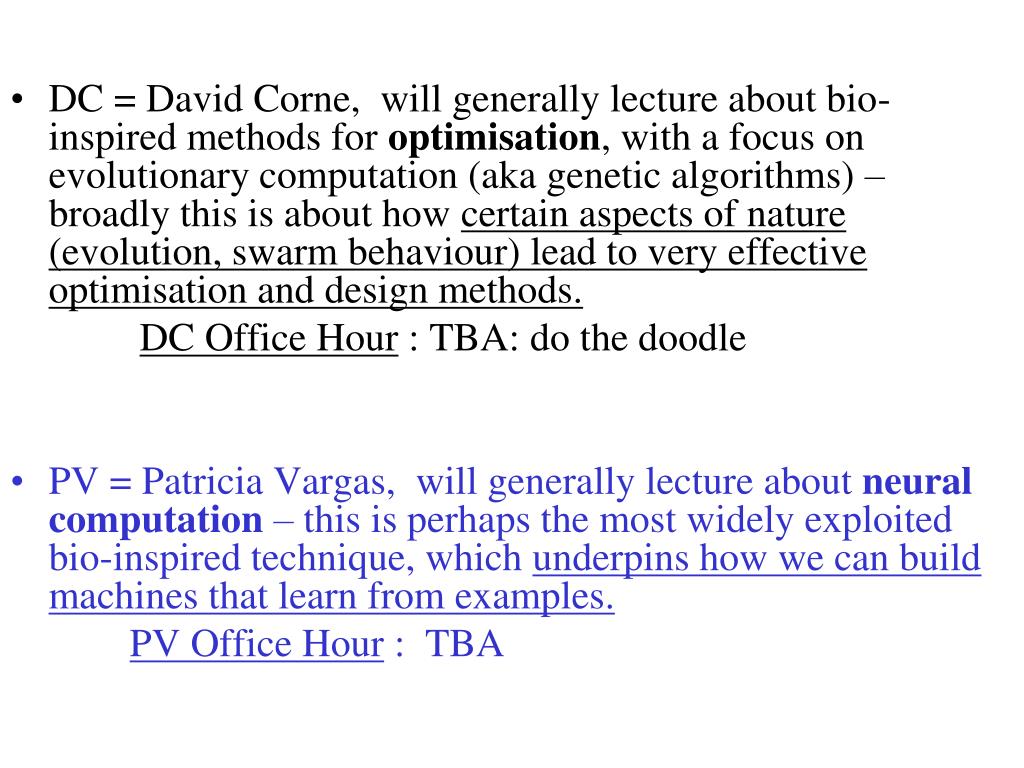

5. DC = David Corne, will generally lecture about bio-inspired methods for optimisation, with a focus on evolutionary computation (aka genetic algorithms) – broadly this is about how certain aspects of nature (evolution, swarm behaviour) lead to very effective optimisation and design methods. DC Office Hour : TBA: do the doodle • PV = Patricia Vargas, will generally lecture about neural computation – this is perhaps the most widely exploited bio-inspired technique, which underpins how we can build machines that learn from examples. PV Office Hour : TBA

6. More about the DC Coursework CW1: handout sheet will be provided Tuesday 22nd. Broadly, it will ask you to write 4 PPT Slides – 1each for 4 DIFFERENT applications of evolutionary computation. You will use google (google scholar recommended), or otherwise, to search for research articles that describing interesting, important, and diverse examples of EC being applied, and explain them in these slides. hand in ONE on 16th Oct, ONE on 30th Oct, TWO on 17th Nov - the idea of this is to keep you engaged, rather than doing it at last minute. Also, feedback on first will be in time for the next two, and feedback on those will be in time for the last two. CW2: Will probably be a programming assignment combining DWC and PV material – i.e. evolutionary computation and neural networks. About the Exam Answer THREE Questions from FOUR

7. This Lecture Lecture 1: Classical computation vs biological computation Motivation for biologically inspired computation Overview of some biologically inspired things

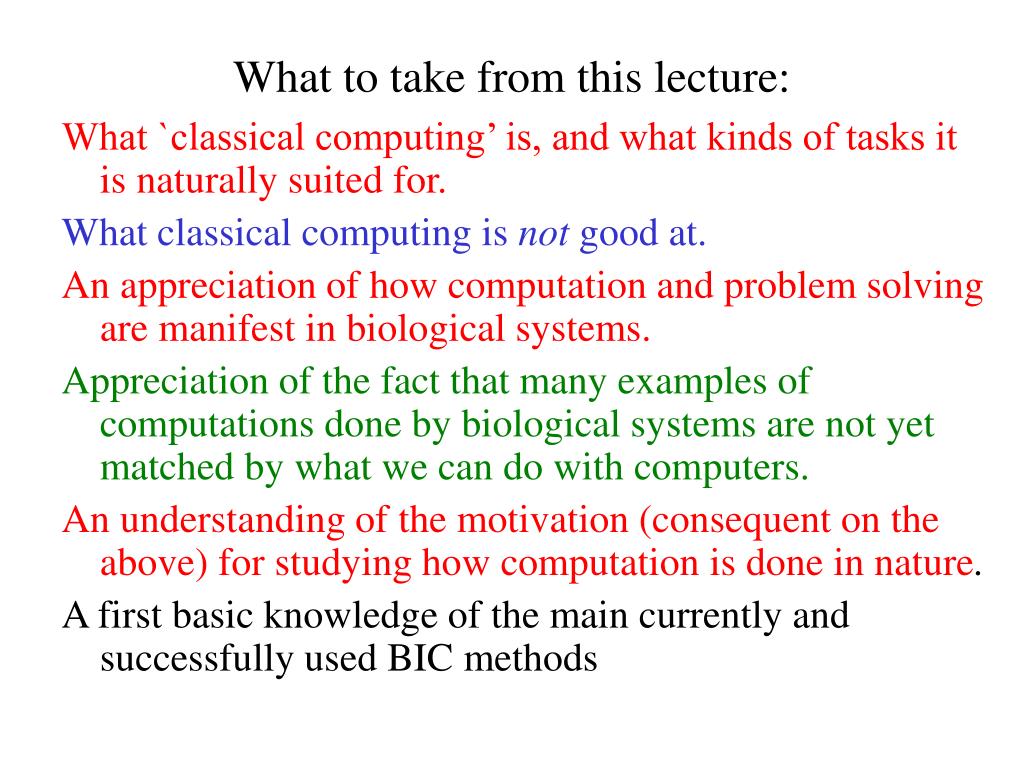

8. What to take from this lecture: What `classical computing’ is, and what kinds of tasks it is naturally suited for. What classical computing is not good at. An appreciation of how computation and problem solving are manifest in biological systems. Appreciation of the fact that many examples of computations done by biological systems are not yet matched by what we can do with computers. An understanding of the motivation (consequent on the above) for studying how computation is done in nature. A first basic knowledge of the main currently and successfully used BIC methods

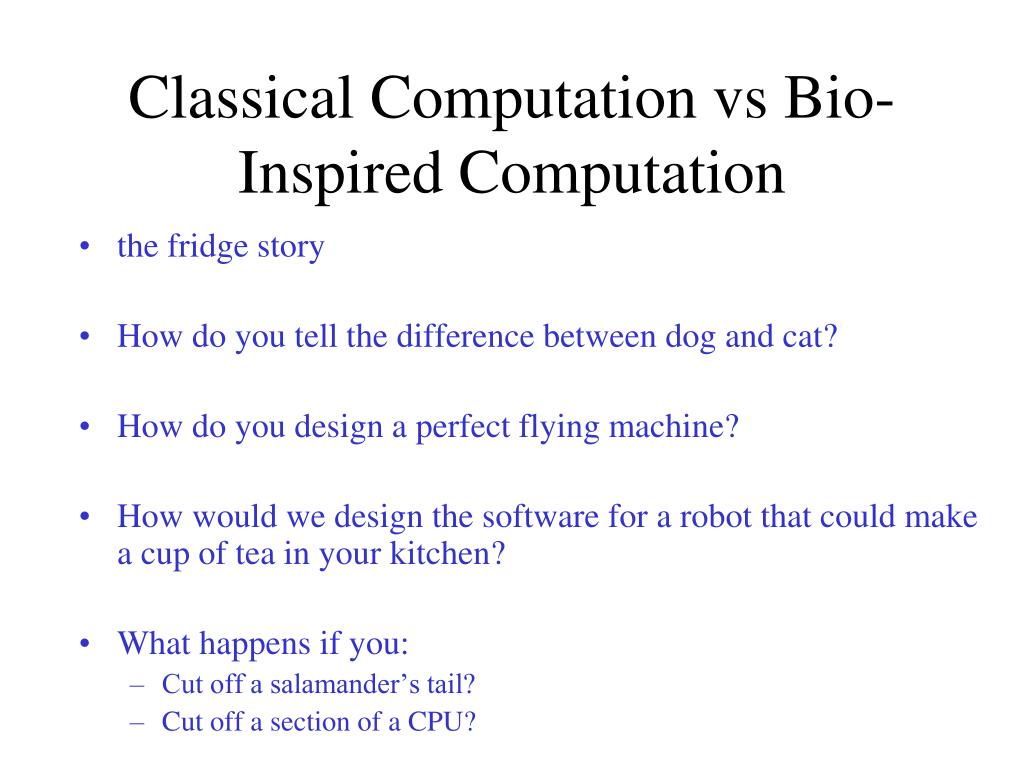

9. Classical Computation vs Bio-Inspired Computation • the fridge story • How do you tell the difference between dog and cat? • How do you design a perfect flying machine? • How would we design the software for a robot that could make a cup of tea in your kitchen? • What happens if you: • Cut off a salamander’s tail? • Cut off a section of a CPU?

10. Classical Computation vs Bio-Inspired Computation Classical computing is good at: Number-crunching Thought-support (glorified pen-and-paper) Rule-based reasoning Constant repetition of well-defined actions. Classical computing is bad at: Pattern recognition Robustness to damage Dealing with vague and incomplete information; Adapting and improving based on experience

11. Why don’t we have software that can do the following things well? • Automatically locate a small outburst of violent behaviour in a football crowd • Classify a plant species from a photograph of a leaf. • Make a cup of tea?

12. Pattern Recognition andOptimisation These two things tend to come up a lot when we think of what we would like to be able to do with software, but usually can’t do. But these are things that seems to be done very well indeed in Biology. So it seems like a good idea to study how these things are done in biology – i.e. (usually) how computation is done by biological machines

13. Basic notes on pattern recognitionand optimisation Pattern recognition is often called classification Formally, a classification problem is like this: We have a set of things: S (e.g. images, videos, smells, vectors, …) We have n possible classes, c1, c2, …, cn, and we know that everything in S should be labelled with precisely one of these classes. In computational terms, the problem is: Can we design a computational process that takes a thing s (from S) as its input, and always outputs the correct class label for s?

14. Classification: examples 1 2 3 4 5 6 7 8 9

15. Some notes about those examples • The idea of these examples is to: • Remind you that pattern recognition is something you do easily, and all the time, and you (probably) do it much better than we can do with classical computation. (e.g. 1, 2, 3, 5) • Remind (or inform) you that such complex pattern recognition problems are not yet done well by software (e.g. 1, 2, 3, 5) • Indicate that there are some very important problems that we would like to solve with software (9, 8, 6, 2, 7 are obvious, but of course we would like to do all nine and much more ), which are classification problems, and note that these are just as hard as examples 1, 2, 3, 5. • So, hopefully we can learn how brains do 1, 2, 5 etc …, so that we can build machines that find land mines, tell fake from genuine signatures, diagnose disease, and so on …

16. How brains seem to do pattern recognition – more in PV lectures The business end of this is made of lots of these joined in networks like this Much of our own “computations” are performed in/by this network

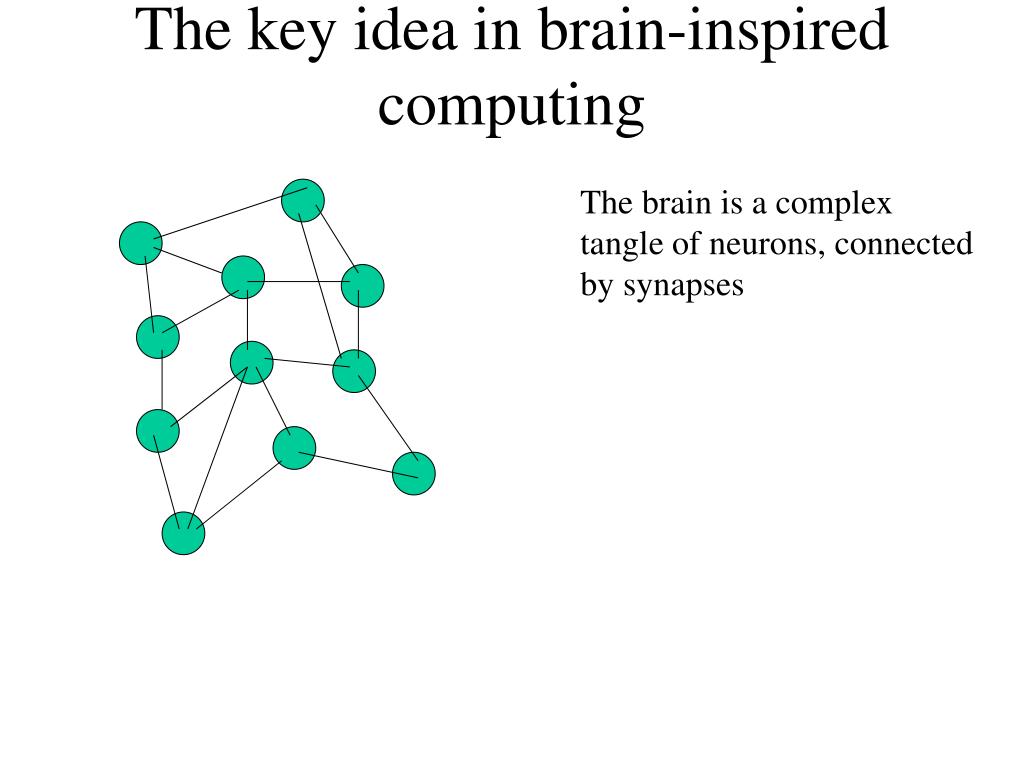

17. The key idea in brain-inspired computing The brain is a complex tangle of neurons, connected by synapses

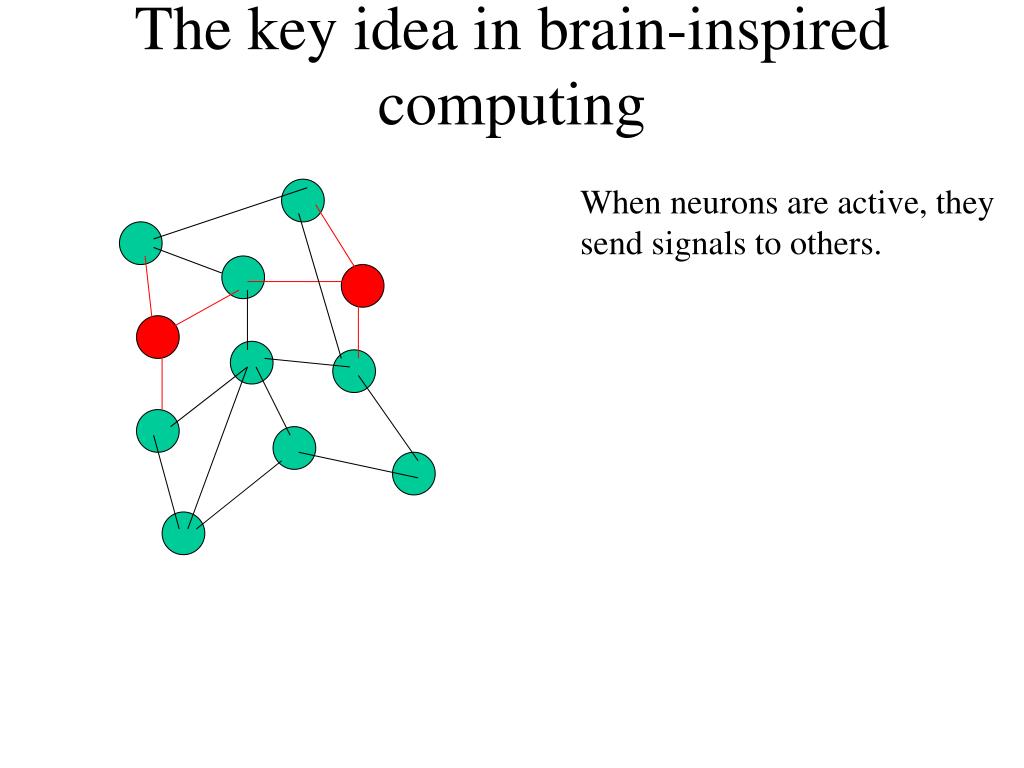

18. The key idea in brain-inspired computing When neurons are active, they send signals to others.

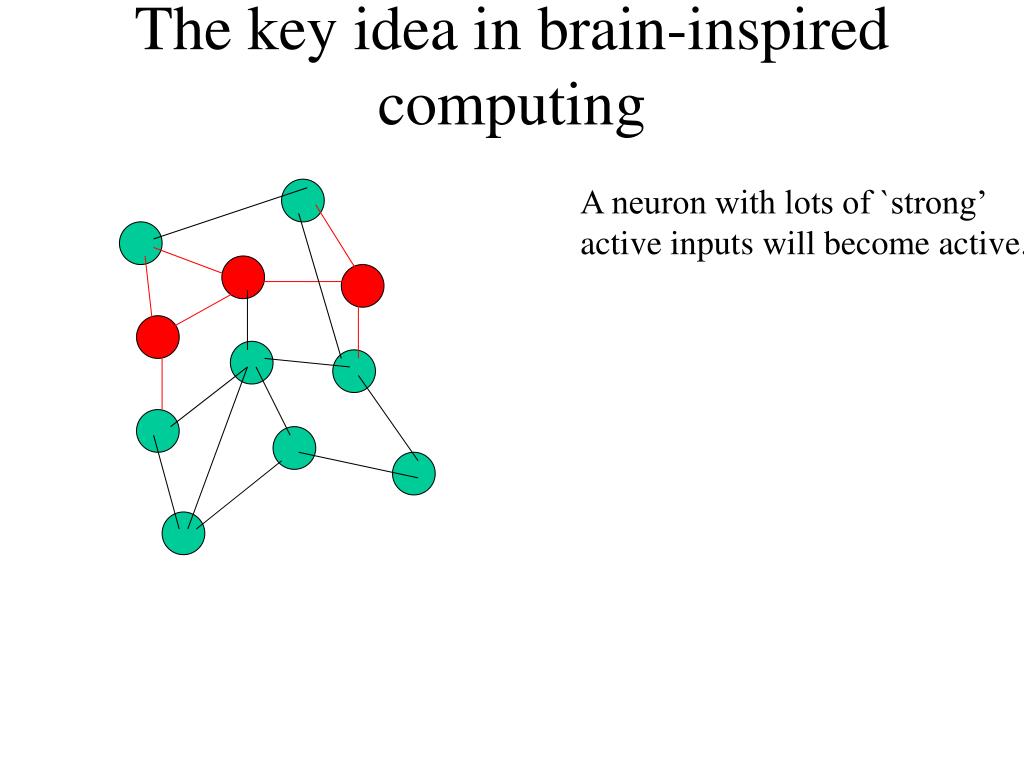

19. The key idea in brain-inspired computing A neuron with lots of `strong’ active inputs will become active.

20. The key idea in brain-inspired computing And, when connected neurons are active at the same time, the link between them gets stronger

21. The key idea in brain-inspired computing So, suppose these neurons happen to be active when you see a fluffy animal with big eyes, small ears and a pointed face

22. The key idea in brain-inspired computing So, suppose these neurons happen to be active when you see a fluffy animal with big eyes, small ears and a pointed face … and suppose your mother then says “Cat”, which excites this additional neuron.

23. The key idea in brain-inspired computing Links will then strengthen between the active neurons So when you see a similar animal again, this neuron will probably Automatically be activated, helping you classify it. A slightly different group of neurons will respond to dogs, and sometimes both the “cat” and “dog” group will be active, but one will be more active than the other …

24. Notice this in particular What happens if we damage a single neuron (remember, in reality there will be thousands involved in simple classification-style computations)? Compare this with damaging a line of code. In classical computing we provide rules; but biology seems to learn gradually from examples.

25. Which is the best? 110 000 101 100 111 001 011 010 Basic Notes on Optimisation We have 3 items as follows: (item 1: 20kg; item2: 75kg; item 3: 60kg) Suppose we want to find the subset of items with total weight closest to 100kg. Well done, you just searched the space of possible subsets. You also found the optimal one. If the above set of subsets is called S, and the subsets themselves are s1, s2, s3, etc …, you just optimised the function “closest_to_100kg(s)”; i.e. you found the s which minimises the function |(weight—100)| .

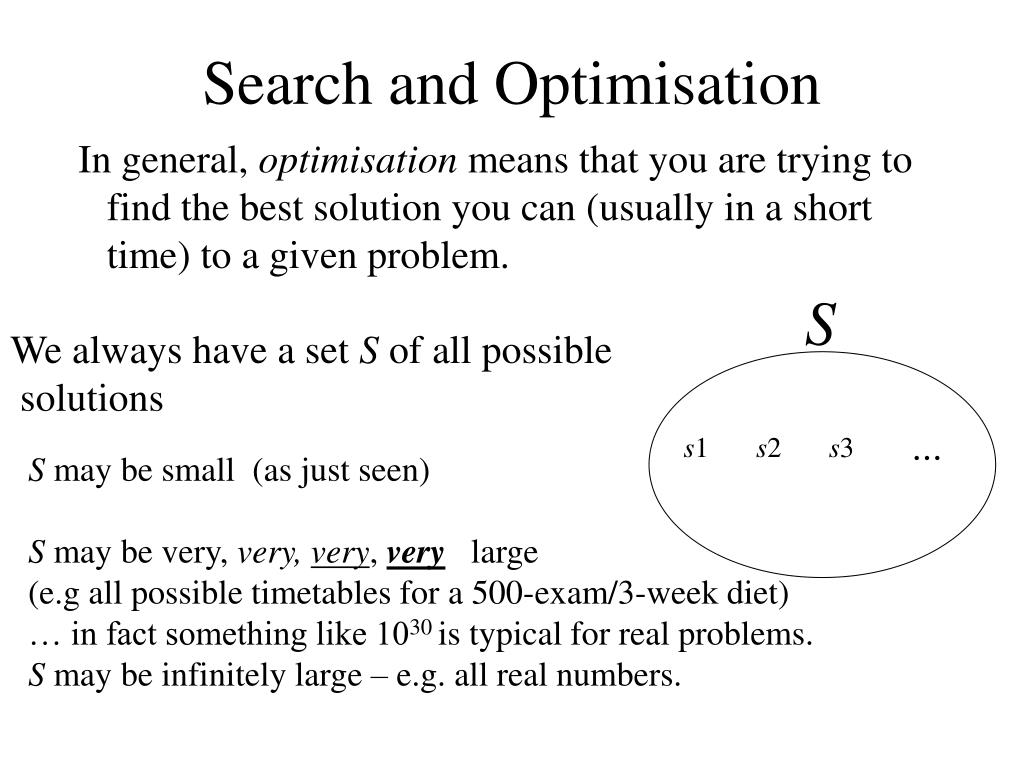

26. Search and Optimisation In general, optimisation means that you are trying to find the best solution you can (usually in a short time) to a given problem. S We always have a set S of all possible solutions … s1 s2 s3 S may be small (as just seen) S may be very, very, very, very large (e.g all possible timetables for a 500-exam/3-week diet) … in fact something like 1030 is typical for real problems. S may be infinitely large – e.g. all real numbers.

27. How Biology Optimises We wish to design something – we want the best possible (or, at least a very good) design. The set S is the set of all possible designs. It is always much too large to search through this set one by one, however we want to find good examples in S. In nature, this problem seems to be solved wonderfully well, again and again and again, by evolution Nature has designed millions of extremely complex machines, each almost ideal for their tasks (assuming an environment that doesn’t go haywire), using evolution as the only mechanism. Clearly, this is worth trying for solving problems in science and industry.

28. Quick overview of BIC techniques we will learn about Evolutionary algorithms: Use nature’s evolution mechanism to evolve solutions to all kinds of problems. E.g. to find a very aerodynamic wing design, we essentially simulate evolution of a population of wing designs. Good designs stay in the population and breed to, poor designs die out. EAs are highly successful and come in many variants. We will do quite a lot on EAs. EAs are all about optimisation, however classification is also an optimisation problem, so EAs work there too …

29. A genetically optimized three-dimensional truss with improved frequency response. An EA-optimized concert-hall design, which improves on human designs in terms of sound quality averaged over all listening points.

30. Swarm Intelligence How do swarms of birds, fish, etc … manage to move so well as a unit? How do ants manage to find the best sources of food in their environment? Answers to these questions have led to some very powerful new optimisation methods, that are different to EAs. These include ant colony optimisation, and particle swarm optimisation. Also, only by studying how real swarms work are we able to simulate realistic swarming behaviour (e.g. as done in Jurassic Park, Finding Nemo, etc …)

31. Kohonen Networks PV will teach you about neural computation, which is largely about how we can teach machines to do classification and pattern recognition – but there is a more fundamental type of neural-inspired method, which relates to making sense of the world around us without being trained or taught: this is what a Kohnonen network does Cellular Automata Cellular Automata (CA) are very simple computational systems that produce very complex behaviour, including `lifelike’ reproduction. CAs, as we will see, are also very useful for explaining/simulating biological pattern generation and other behaviours

32. Neural Computing Pattern recognition using neural networks is the most widely used form of BIC in industry and science. We will learn about the most common and successful types of neural network. This is Stanley, winner of the DARPA grand Challenge – a great example of bio-inspired computing winning over all other entries, which were largely `classical’

33. Next time • Before we get into looking at Evolutionary Algorithms (as well as • other methods that do optimisation), we need to understand certain • things about optimisation, such as • When we need clever methods to do it, and when we don’t • What alternatives there are to EAs – no point designing • an EA for an optimisation problem if it can be solved far • more simply. • So, on Thursday I will tell you about that, and then we start with • Evolutionary computation next Tuesday.
