  1. 2012 – The Year in Review

  2. The Fleets - 2012 TypeWestern BuiltEastern BuiltTotal Turbojets 21,479 1,065 22,544 Turboprops 4,817 1,195 6,012 Business Jets 17,642 Source: Ascend - A Flight Global Advisory Service

  3. CFITLOCExcursion Major Accidents Commercial Jets 1 January 2012 to 31 December 2012 Source: Ascend - A Flight Global Advisory Service

  4. Commercial Jet Major Accidents 2000 through 2012 20 19 19 19 15 16 17 17 14 13 13 13 10 11 5 7 2001 02 03 04 05 06 07 08 09 10 11 12 Eastern Built Source: Ascend

  5. Major Accident Rate Western-Built Commercial Jets 1999 – 2012 Accident rate per million departures Source: Ascend

  6. CFITLOCExcursion Major Accidents Commercial Jets 1 January 2013 to 10 April 2013 Source: Ascend - A Flight Global Advisory Service

  7. Major Accidents Commercial Turboprops (> 14 seats) 1 January 2012 to 31 December 2012 Source: Ascend - A Flight Global Advisory Service CFIT

  8. Commercial Turboprop Major Accidents 2000 through 2012 40 39 35 30 33 31 25.9 (12 years) 31 25 29 21.4 (5 years) 24 24 20 22 23 21 21 20 20 15 17 10 5 2001 02 03 04 05 06 07 08 09 10 11 12 Eastern Built

  9. Major Accidents Commercial Turboprops (> 14 seats) 1 January 2013 to 10 April 2013 Source: Ascend - A Flight Global Advisory Service CFIT

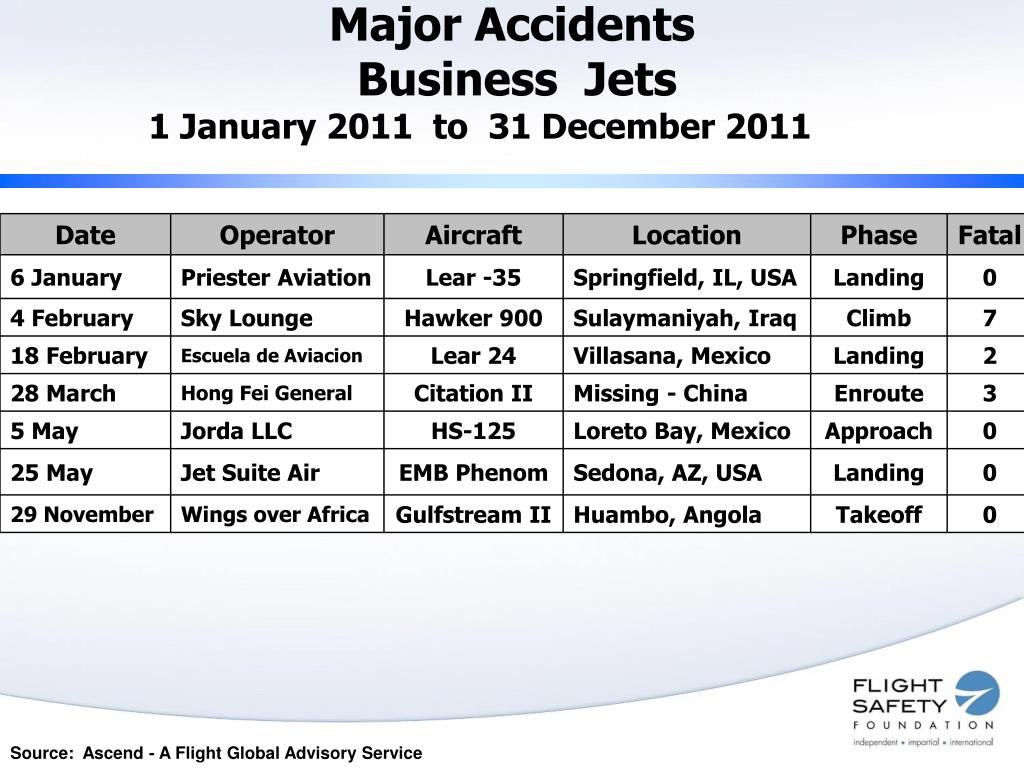

  10. Major Accidents Business Jets 1 January 2011 to 31 December 2011 Source: Ascend - A Flight Global Advisory Service

  11. Major Accidents Business Jets 1 January 2012 to 31 December 2012 Source: Ascend - A Flight Global Advisory Service

  12. Business Jet Major Accidents 2000 through 2012 20 15 15 14 14 10 10.5 13 12 11 9 8 8 8 5 7 7 2001 02 03 04 05 06 07 08 09 10 11 12

  13. Business Jet Major Accident Rate 2000 through 2012 (Accidents per 1,000 Aircraft) 1.0 .75 8 Year Average: .67 .50 4 Year Average: .52 .25 2005 06 07 08 09 10 11 12

  14. Major Accidents Business Jets 1 January 2013 to 10 April 2013 Source: Ascend - A Flight Global Advisory Service

  15. Approach and Landing Major Accidents Commercial Jets 1 January 2012 through 31 December 2012

  16. Business Jet Major Accidents 2000 through 2012 63% of Business Jet Major Accidents were Approach and Landing Accidents 20 ALA Accidents 15 15 14 14 13 10 11 10.5 12 9 8 9 8 11 8 8 8 8 7 6.5 7 7 7 5 6 6 5 5 5 4 4 07 08 2000 01 02 03 04 05 06 09 10 11 12

  17. Controlled Flight into Terrain Major AccidentsCommercial Jets1 January 2012 though 31 December 2012 Sources: Honeywell (Don Bateman), Ascend

  18. Over the last 6 years, 23 of 82 turboprop major accidents has been a CFIT– that’s 28%, or more than 1 of every 4 !

  19. Upset Aircraft Loss of Control Unusual Attitudes Lack of Control Upset Aircraft Stall Extended Envelope Advanced Maneuvering

  20. Upset Aircraft Accident An upset accident is an accident in which an aircraft is upset and unintentionally flown into a position from which the crew is unable to recover due to either aircrew, aircraft, environmental, or a combination of these factors.

  21. Over 25 degrees nose up • Over 10 degrees nose down • Greater than 45 degrees bank • Airspeed inappropriate for conditions

  22. Aircraft Upset Major Accidents Commercial Jets 1 January 2012 through 31 December 2012 None in 2012

  23. Aircraft Upset Major Accidents Commercial Jets 1999 through 2012 6 Number of Accidents 4

  24. Upset Aircraft • No good visual references • * IMC • * Night • * Over Water or lightless/featureless land - Distraction involved - Initial movement imperceptible (2 degrees/sec) - Initial correction often in wrong direction - One of crew has good or better SA – but wait too long to correct the situation - The pilot who got into the upset situation is theleast likely one to be able to recover from it

  25. Stalls 1. #1 Factor: Angle of Attack 2. Low Speed warning systems ? 3. For airspeed issues --Pitch and Power 4. Modern aircraft know their AOA Why doesn’t the crew ?

  26. Runway Excursion Data Update Added 2007 - 2010 Data Base now covers 16 Years 1995-2010

  27. Runway Safety Accident Data1995 – 2010 NumberAverage Incursions: 11 (.7/year) 1.0/year Confusion: 6 (.3/year) 40.6/Year Excursions: 650

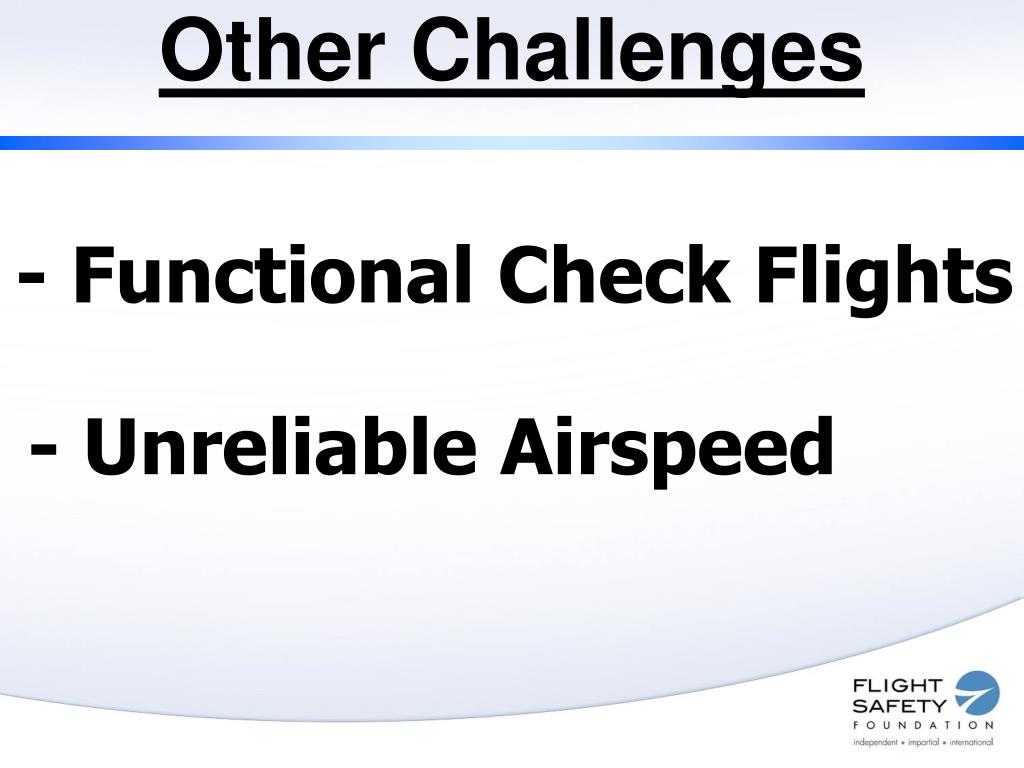

  28. Other Challenges - Functional Check Flights - Unreliable Airspeed

  29. Functional Check Flights - Symposium February 2011 - Vancouver - EASA Rulemaking on FCF (NPA published) • FCF Steering Team • * Boeing • * Airbus * Bombardier * Embraer * Gulfstream - FCF Compendium

  30. Flight Safety Foundation Functional Check Flight Compendium • Introduction • “Be Prepared” paper • FCF Guidelines Document - Preparation - Ground Phase - Flight Phase (25 Modules: e.g. Auto Pilot, Air Conditioning, APU) • FCF Symposium Material

  31. Unreliable Airspeed The Issue Historical and recent accidents and incidents have highlighted the increased risk associated with unreliable airspeed (URA) events • Industry Steering Group Formed Created URA Philosophy and Guidelines

  32. URA Philosophy • The keys to successfully dealing with a URA event are recognition, procedures, and training • The aircrew’s recognition of and initial reaction to a URA event are critical • Manufacturers should attempt to ensure unreliable airspeed events are clearly identifiable to aircrews • The most important function of the aircrew during an in- flight URA event is to maintain control over the aircraft’s flight trajectory and energy situation by selection of attitude and power settings so that the aircrafts flight parameters remain within normal limits

  33. URA Philosophy - Crews should be aware of the instruments and critical systems that are not affected by a URA event (e.g. attitude displays, engines) - Procedures and training for URA events should include the effect of a URA event on other aircraft systems, and potential alerts/warnings and indication system inaccuracies that could be expected - Crew coordination and communication are important elements in successfully addressing a URA event

  34. URA Guidelines - URA procedures should provide information on attitude and power settings that enable crews to maintain the aircrafts flight parameters within normal limits during in-flight unreliable airspeed events for all phases of flight - URA procedures should address the availability and use of independent alternate sources of airspeed information (e.g. GPS, inertial, angle of attack, etc.) - URA procedures should include memory items for critical immediate action steps - Training programs addressing URA should exist at beginning (ab initio/MPL), initial, and recurrent levels - URA training should include both simulator and academic phases

  35. 2012 Summary

  36. Aviation Safety 2012 • Record year for commercial jets • Record year for commercial turboprops • Average year for business jets • CFIT continues to be a challenge – and it is making a strong comeback as the leading killer • There are many challenges out there, and FSF is addressing many of them: * Runway Excursions • * Upset Aircraft • * Functional Check Flights * Unreliable Airspeed

  37. Some Things to Think About • Upset Aircraft not a major issue in business aviation • CFIT not a major issue in business aviation • ALA is a major issue in business aviation • - Over 75 % of accidents over last 4 years • - Majority of those were runway excursions Data and Risk Management
