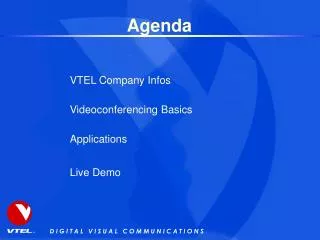

  1. Agenda VTEL Company Infos Videoconferencing Basics Applications Live Demo

  2. VTEL Corporation • 25,000 installed systems • Customers in 61 countries • 26 VTEL offices • 740 employees • $ 160 Million Sales

  3. Full Line of Packaged Systems Personal Settop Workgroup Enterprise Simple User Interfaces Network Management Interoperability

  4. User Interfaces There is no „The interface for everybody“ !!!!

  5. Position of VC in the DE segment

  6. What do you need to do it ? • Videoconferencing systems • Peripherals • Reliable transport medium

  7. Videoconferencing System • Easy to use • Reliable • High Quality • 3 Media: Audio, Video and Data • Dual Monitor • PC based • LAN, WEB Access

  8. Peripherals • Maincamera(s) • Document Camera • Electronic Whiteboard • Everything you use during normal lessons

  9. Transport medium • ISDN (90%)(connection oriented, reliable) • IP/LAN/WAN Internet (6%)(packet oriented, (no) bandwidth guarantied !!! • ATM Links (3%)(ideal but expensive)

  10. Bandwidth requirement • ISDN (min. for prof. quality) • 384 kBit/s (6B channels) • 30 fps, 7 kHz Audio • LAN / IP • 1 Mbit/s Bandwidth guarantied • 30 fps, 7 kHz Audio

  11. Distance Education • Collaboration • Linkingclassrooms

  12. Distance Learning in Transition Bring the World Into the classroom • Internet • Institutional LAN • CD-ROM • Universities • Student teams • Business • Outside experts

  13. Access • Advanced placement • Dual enrollment • Diverse learning groups • Cross-cultural • Urban-suburban-rural • Intrastate-international • Special populations

  14. Education and Training of today- New Model • Bring the World Into the Classroom • Internet • Organizational LAN • Universities • Working teams • Business • Outside experts • Satellite System • Audio graphics

  15. VC and Streaming Video • Important is the combination • Linking some classrooms with traditional VC • Enable other (unlimited) to be also in the same lesson as listener from home office or any other location • Enable the students to review any lesson at a later time.

  16. VC and Streaming Video Appl.

  17. Streaming Video User View

  18. Live Demo from Austin Texas Bern Switzerland Austin Texas 8677 km ISDN Link 8 B Channels 512 kBit/s

  19. Backup Slides Slides to us if the connection to Austin does not work

  20. Camera NLT Conference Web-Site Reflector RECOS Reflector VPN ISP TVStation Architecture View From RECOS or NLT Web-Site URL Reflector Capture & Encoding View From RECOS or NLT Web-Site URL

  21. Small Classroom Model Touch-to-Talk Microphones Teacher

  22. Classroom Example Motion Receive

  23. Training Auditorium

  24. Meeting Notes Collaboration Application sharing, Internet/Intranet, SmartBoard Local print capability Paper/Slides Automatic import of Powerpoint slides into PenPal SmartView Different Types of Meeting Information Before During Info on Network Hard Copy Electronic

  25. H.320 MCU SNMP MGMT Use IP network to manage and administer the video network H.320 Based Systems Add Video Network Management

  26. NetworkManagementConsole SmartVideoNet Manager Worldwide videoconferencing — managed remotely IP Data Network (LAN)

  27. H.320 MCU SNMP MGMT ISDN T1/E1 H.320 Based Systems FILE SERVERS PRINTERS Internet VTEL’s Leadership Capability Today

  28. Canon Trinitron Address Book Address Book Bob Mary Bob 191.277.391.152IP H.323 Mary 512-438-1046ISDN H.320 Evolution from Switched to IP Systems VTEL’s Dual Mode Systems Automatic Routing to correct network

  29. Evolution from Switched to IP Networks IP Starts on Campus (Local) • IP network wiring already • installed in building • Plug video systems into any • LAN outlet--no other setup • System has IP address so • calls find the system

  30. Evolution from Switched to IP Networks H.323/H.320 Hybrid Network H.323 MCU SNMP Management ISDN T1/E1 H.323 Based Systems Gateway H.320 Gatekeeper

  31. Switched Network Video Enabled LANs on CampusSwitched Circuits for WAN IP Network IP Network IP Network

  32. End of Phase II -- IP end to end (H.323 LAN/WAN Conferencing) Router Router H.323 MCU H.323 H.323 Based Systems Quality of Service Protocols Implemented on All Routers in WAN

  33. Router H.323 MCU Router H.323 SNMP Management ISDN T1/E1 H.323 Based Systems Gateway Application Server H.320 Gatekeeper Printer H.323 Internet Phase II--Typical Video Communications Network
