MAG 41 Portable Thermal Imager

MAG 41 Portable Thermal Imager. Overview. The MAG41 portable thermal imager equipped with 384x288 uncooled Microbolometer FPPA detector, 5Mage pixel visual image module,and 3.5 inch 640x480 touch screen LCD display.

chika
Download Presentation

MAG 41 Portable Thermal Imager

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

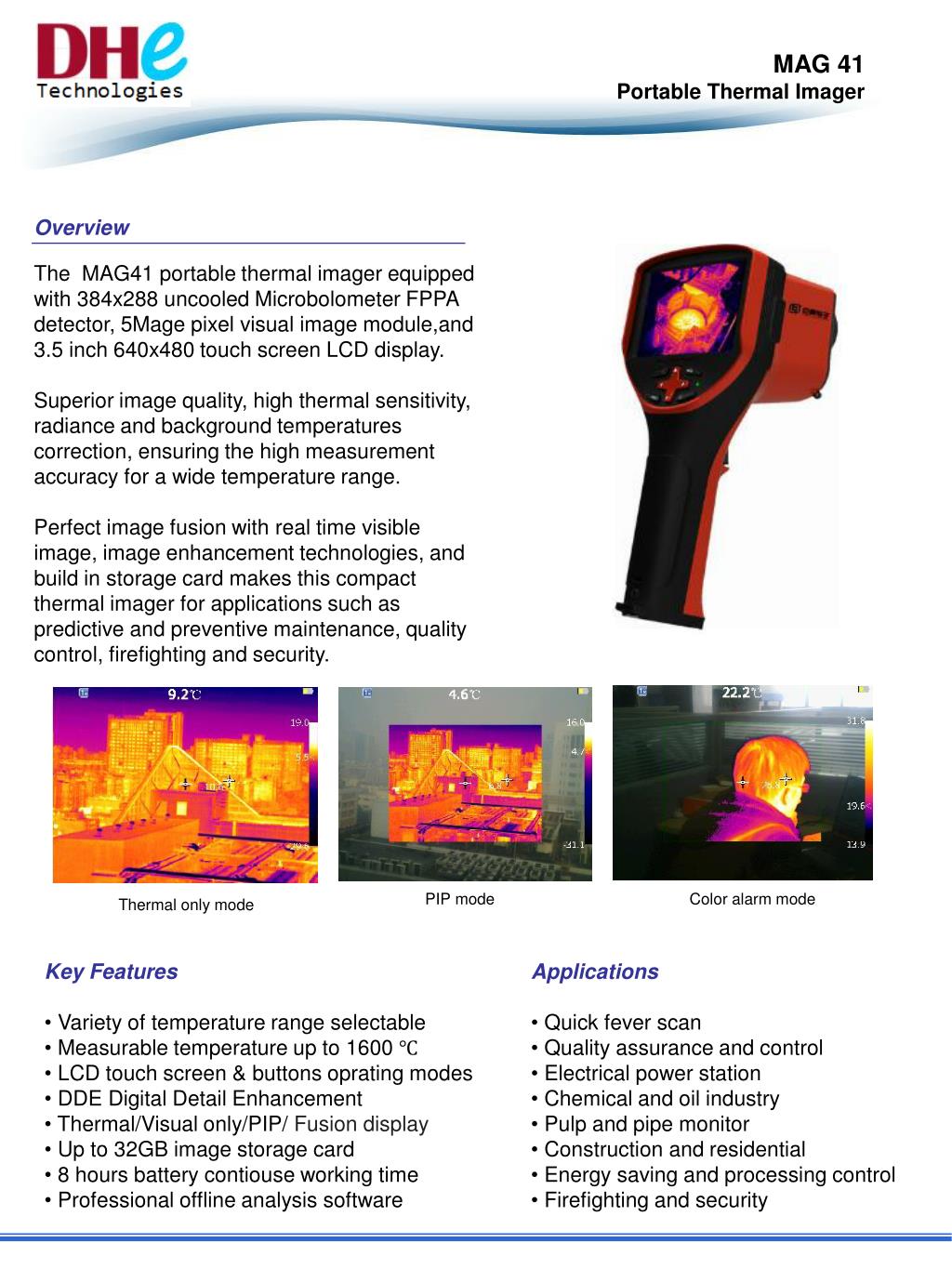

  1. MAG 41 • Portable Thermal Imager Overview The MAG41 portable thermal imager equipped with 384x288 uncooled Microbolometer FPPA detector, 5Mage pixel visual image module,and 3.5 inch 640x480 touch screen LCD display. Superior image quality, high thermal sensitivity, radiance and background temperatures correction, ensuring the high measurement accuracy for a wide temperature range. Perfect image fusion with real time visible image, image enhancement technologies, and build in storage card makes this compact thermal imager for applications such as predictive and preventive maintenance, quality control, firefighting and security. PIP mode Color alarm mode Thermal only mode • Key Features • Variety of temperature range selectable • Measurable temperature up to 1600 ℃ • LCD touch screen & buttons oprating modes • DDE Digital Detail Enhancement • Thermal/Visual only/PIP/ Fusion display • Up to 32GB image storage card • 8 hours battery contiouse working time • Professional offline analysis software • Applications • Quick fever scan • Quality assurance and control • Electrical power station • Chemical and oil industry • Pulp and pipe monitor • Construction and residential • Energy saving and processing control • Firefighting and security

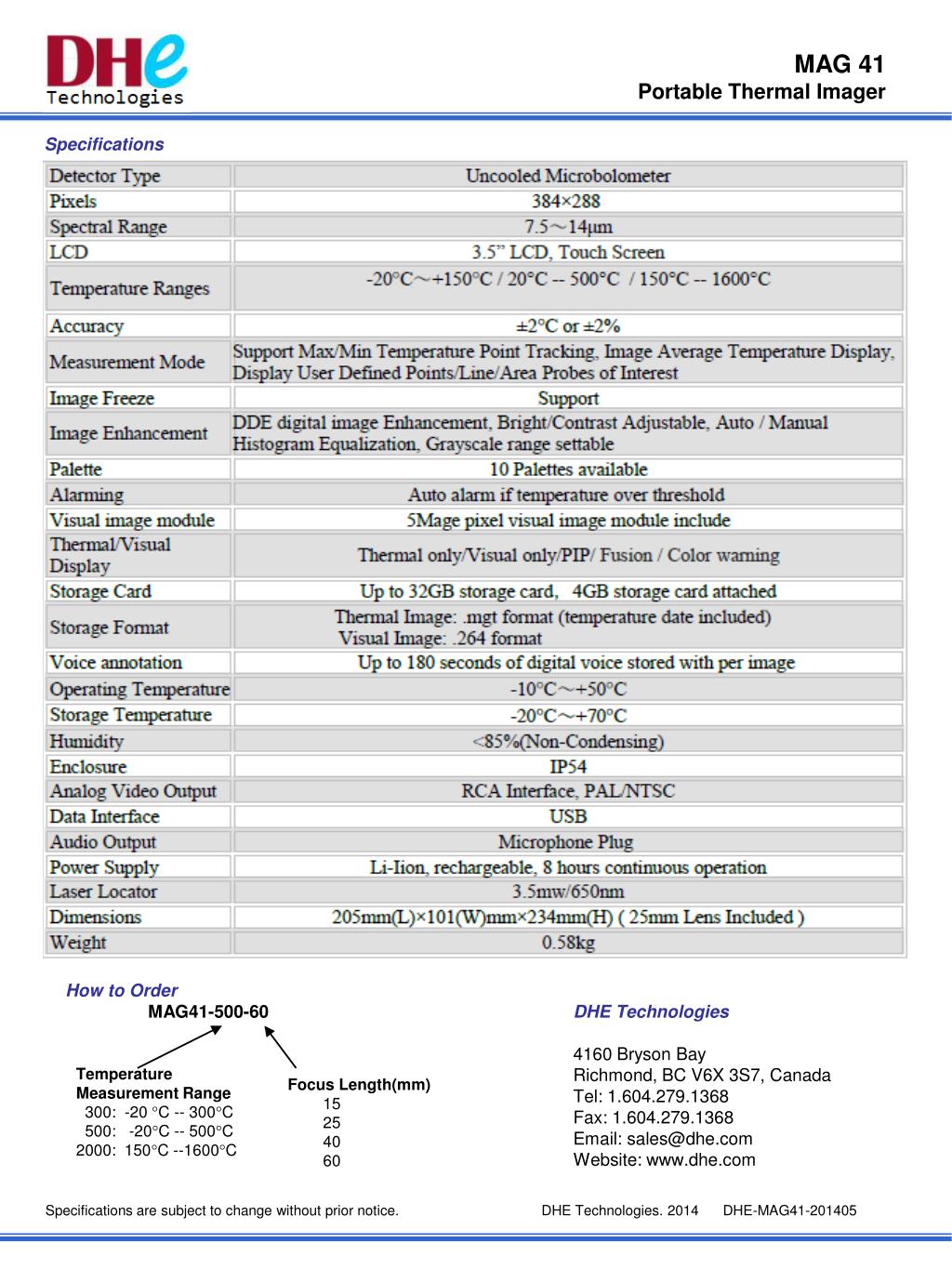

  2. MAG 41 • Portable Thermal Imager Specifications How to Order MAG41-500-60 DHE Technologies 4160 Bryson Bay Richmond, BC V6X 3S7, Canada Tel: 1.604.279.1368 Fax: 1.604.279.1368 Email: sales@dhe.com Website: www.dhe.com Temperature Measurement Range 300: -20 C -- 300C 500: -20C -- 500C 2000: 150C --1600C Focus Length(mm) 15 25 40 60 Specifications are subject to change without prior notice. DHE Technologies. 2014 DHE-MAG41-201405
