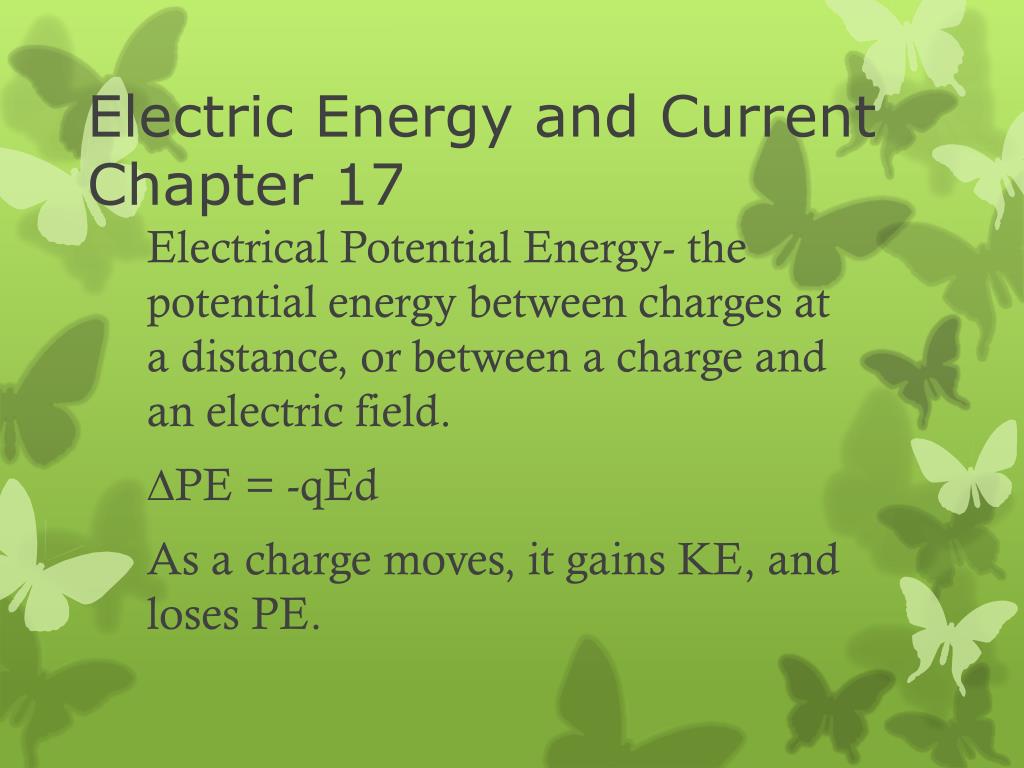

Electric Energy and Current Chapter 17. Electrical Potential Energy- the potential energy between charges at a distance, or between a charge and an electric field. ∆PE = -qEd As a charge moves, it gains KE, and loses PE. Potential Difference- the work that must be done to move a charge.

chesmu
Download Presentation

Electric Energy and Current Chapter 17

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Electric Energy and Current Chapter 17 Electrical Potential Energy- the potential energy between charges at a distance, or between a charge and an electric field. ∆PE = -qEd As a charge moves, it gains KE, and loses PE.

  2. Potential Difference- the work that must be done to move a charge. • Many different names- Potential, Potential Difference, Voltage, Emf. Symbol is V, units are V = J/C. DV = DPE/q DV = -Ed V = kq/r In order to have energy stored, you must keep the terminals of the battery at different potential (ie different levels of charge)

  3. The gap between electrodes in a spark plug is .060 cm. Producing an electric spark in a gasoline-air engine requires an electric field of 3x106V/m. What minimum potential difference must be supplied?

  4. Capacitance- the abilityof a conductor to store energy in the form of electrically separated charges. • Symbol is C, unit is the Farad, F. • C = Q/V 1 Farad = 1 Coulomb/Volt • Parallel plate Capacitor (most common) C = e0A/d A=area, d= distance between plates e0= 8.85 E-12

  5. A capacitor connected to a 12V battery source hold 36μC of charge on each plate. What is the capacitance?

  6. Capacitance can be changed by putting something between the plates of a capacitor. We call this a dielectric. • A dielectric is an insulating material- examples are glass, rubber, wood, waxed paper, etc. Molecules in dielectric become polarized, line up with electric field. This allows for a weaker electric field between the plates, so the plates can store more charge. • Capacitance increases with a dielectric.

  7. An example of a capacitor is the flash in a camera. • Energy stored in a charged capacitor • PE = ½ QV • Since Q = CV, PE = ½ CV2 • Usually capacitance and charge are small units • pF = 10-12 F • nC = 10-9 C • mC = 10-6 C

  8. Find the electrical potential energy stored in the capacitor in the previous problem
