  1. ■ Topics on TES from Japan after the 7２th EXCO Meeting (Aibling,Germany) Big problem : Japanese Energy Condition ・DestroyedNuclear Power Plant (4 Reactors) by “Earthquake and Tumani”onMarch 11, 2011 We can not to operate NPP after Periodical Inspection because of Social Condition ・Every Nuclear Power Plants in JAPAN sttoped on May 5, 2012 (54 Reactors : total 48.88 million kW)

  2. Transitions in the Electric Power supply by 10 Japanese Utilities nuclear(29% ; 2009)

  3. ■Comparison Electric comsumption situation ( onPeak Load day) of several Building which has TES HVAC System between bifore the Disaster and last year(after the Disaster :We had to save the electric demand)

  4. Daiich Seimei Insurance Co. Ltd • Kawagoe Office Building • Kawagoe City in Saitama Prefecture 7,001㎡（8F） 戸塚センター（神奈川県横浜市） 13th, September, 2011 (Tue) ▲24％ Reduction Electric demand (estimate) without TES HVAC System 13th, September, 2011 (Tue) Cooling for TES Electricity ［kW］ ( night time operation) Cooling by Refrigirator Operation Lighting & Outlet, etc. ［h］

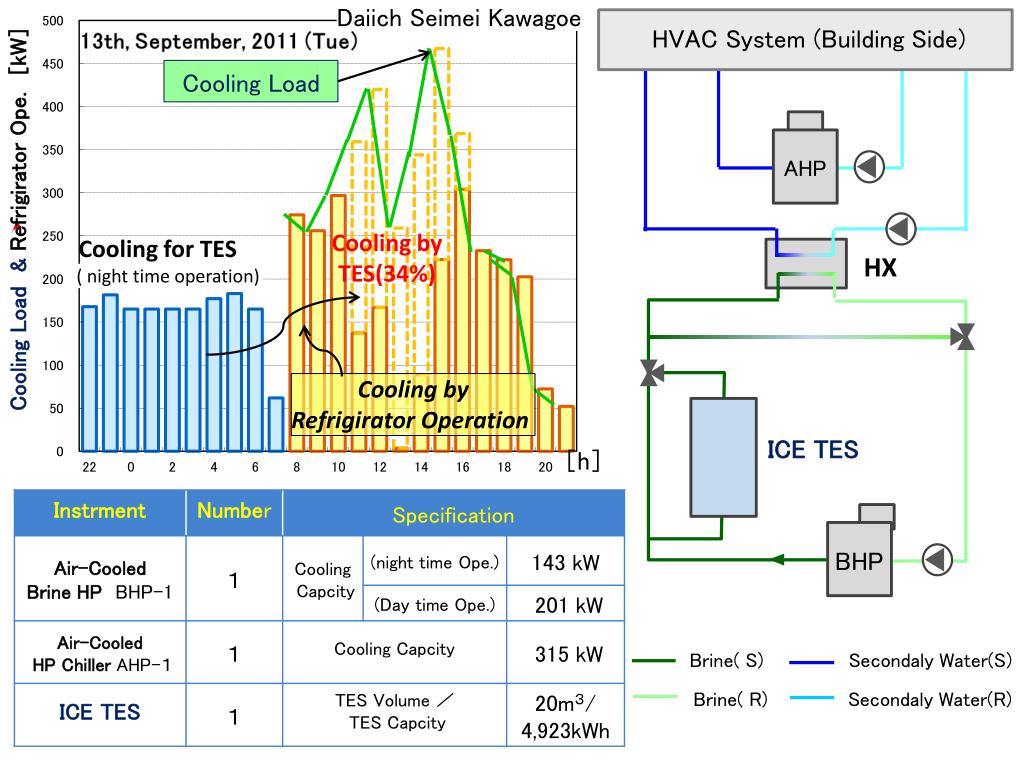

  5. Daiich Seimei Kawagoe • HVAC System (Building Side) • Daiich Seimei Insurance Co. Ltd • Kawagoe Office • Cooling Load AHP Cooling Load & Refrigirator Ope. ［kW］ Cooling by TES(34%) Cooling for TES HX ( night time operation) Cooling by Refrigirator Operation • ICE TES ［h］ BHP Secondaly Water(S) Brine( S) Secondaly Water(R) Brine( R)

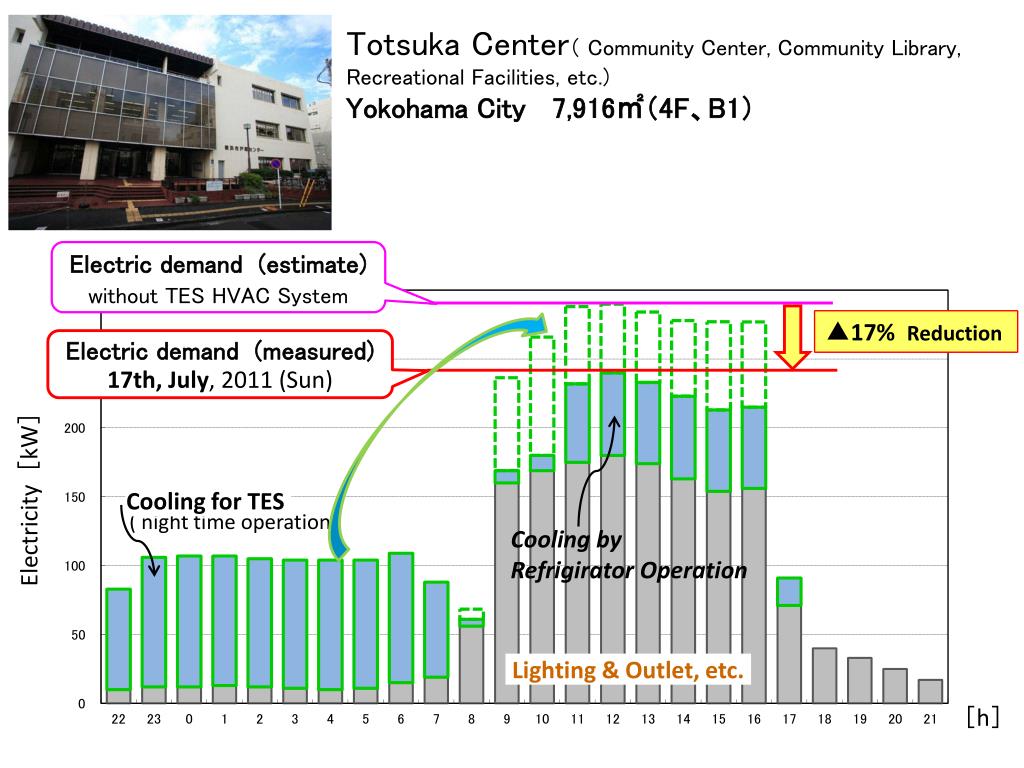

  6. Totsuka Center（ Community Center, Community Library, Recreational Facilities, etc.) • Yokohama City 7,916㎡（4F、B1） 戸塚センター（神奈川県横浜市） • Electric demand (measured) • 17th, July, 2011 (Sun) Electric demand (estimate) without TES HVAC System ▲17% Reduction Electricity ［kW］ Cooling for TES ( night time operation) Cooling by Refrigirator Operation Lighting & Outlet, etc. ［h］

  7. Totsuka Center HVAC System (Building Side) • 17th, July, 2011 (Sun) • Cooling Load HX Cooling Load & Refrigirator Ope. ［kW］ Cooling by TES (81%) Cooling by Refrigirator Operation Cooling for TES ( night time operation) • ICE TES ［h］ BHP-1 BHP-2 Secondaly Water(S) Brine( S) Secondaly Water(R) Brine( R)

  8. Ion Mall Sakai Kita-Hanada Sakai City (Floor area 171,055㎡, Central HVAC area 73,111 ㎡, 5F) • Electric demand (measured) • 15th, July, 2011 (Fri) 14th, Aug, 2011 (Sat) ▲5%Reduction Electric demand (estimate) without TES HVAC System Cooling by Refrigirator Operation Cooling for TES ( night time operation) Lighting & Outlet, etc.

  9. Ion Mall Sakai • Cooling Load • HVAC System (Building Side) 14th, Aug, 2011 (Sat) Cooling by TES(40%) Cooling for TES ( night time operation) Cooling Load & Refrigirator Ope. ［kW］ HX Cooling by Refrigirator Operation • ICE • TES ［h］ BTR-1 ITR-1 BTR-2 Secondaly Water(S) Brine( S) Secondaly Water(R) Brine( R)

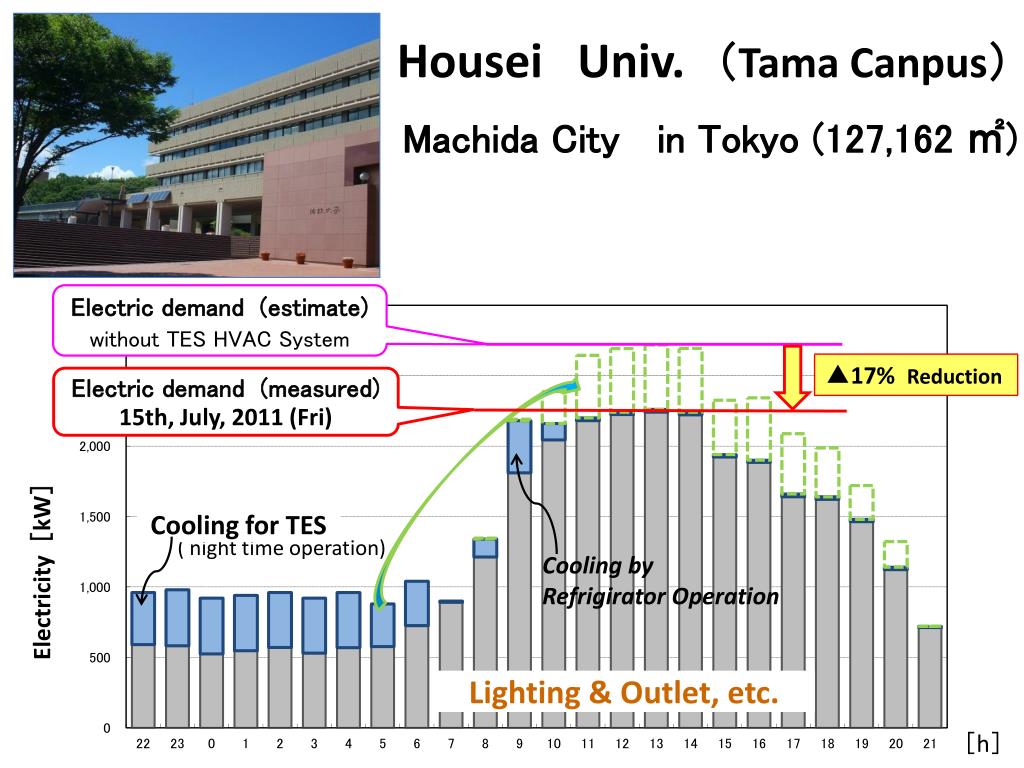

  10. HouseiUniv.　（Tama Canpus） Machida City in Tokyo (127,162 ㎡) • Electric demand (measured) • 15th, July, 2011 (Fri) Electric demand (estimate) without TES HVAC System ▲17% Reduction Electricity ［kW］ Cooling by Refrigirator Operation Lighting & Outlet, etc. ［h］

  11. HouseiUniv. • HVAC System (Building Side) 15th, July, 2011 (Fri) • Cooling Load HX-1 Cooling by TES (84%) HX-2 Cooling for TES Cooling by Refrigirator Operation ( night time operation) ［h］ • ICE TES • BHP-1～5 Secondaly Water(S) Brine( S) Secondaly Water(R) Brine( R)

  12. ChuuouUniv.　（Tama Canpus） Hachiouji City in Tokyo (160,000 ㎡) • Electric demand (measured) • 15th, July, 2011 (Fri) Electric demand (estimate) without TES HVAC System Electricity ［kW］ Cooling for TES Cooling by Refrigirator Operation ( night time operation) Lighting & Outlet, etc. ［h］

  13. Cooling Load • HVAC System (Building Side) ChuuouUniv. 氷蓄熱槽1 水蓄熱槽1 Cooling by TES(30%) Cooling Load & Refrigirator Ope. ［kW］ Cooling for TES ( night time operation) BHP- 1～2 Sub-StationⅠ Cooling by Refrigirator Operation • HVAC System (Building Side) ［h］ 氷蓄熱槽2 水蓄熱槽2 BHP- 3～4 AHP- 3～4 AHP- 1～2 Sub-StationⅡ TR-1

  14. Meiji PharmaceuticalUniv. Kiyose City in Tokyo (45,988 ㎡) • Electric demand (measured) • 15th, July, 2011 (Fri) 15th, July, 2011 (Fri) Electric demand (estimate) without TES HVAC System ▲14%Reduction Cooling for TES ( night time operation) Cooling by Refrigirator Operation Electricity ［kW］ Lighting & Outlet, etc.

  15. Meiji PharmaceuticalUniv. ④放熱 • HVAC System (Building Side : 24h cooling Zone) • (Building Side : • 8h cooling Zone) • Cooling Load 15th, July, 2011 (Fri) ②夜間蓄熱 Cooling by TES(33%) ③24時間冷房＋昼間追掛 Cooling for TES HX ( night time operation) BHP-1 AR-1 B-1～3 HX Cooling by Refrigirator Operation AHP-1 ［h］ HX • ICE • TES Secondaly Water(S) Brine( S) Secondaly Water(R) Brine( R)

  16. １０　Electric Power companies in Japan This Summer ▲10% moreelectrik demand reduction is asked ▲5% moreelectrik demand reduction is asked Tohoku-EPCO Kansai-EPCO Kyushuu-EPCO Tokyo-EPCO

  17. １号館（免震） ２号館（制震） ４号館（制震） IPF約5％ 冷温水縦型蓄熱槽 冷水縦型蓄熱槽＋氷スラリー 冷水縦型蓄熱槽 冷温水縦型蓄熱槽 ３号館 氷 蓄熱槽 温水槽 熱源系統概念図

  18. 東京千住キャンパス工事現況（H23.2.23.） ４号館（Ｓ棟）　連結縦型蓄熱槽　設置状況 ボイド梁部に懸垂 （容積率に入らず） 連結縦型蓄熱槽 搬入時 フランジ・フレキ 連結縦型蓄熱槽 （ h=約10mφ2650） ５連結で218.1m3×２基 ３連結で127.2m3×２基 吹抜部へ下降させ設置

  19. 連結縦型蓄熱槽 （ h=約10mφ2650）　 ３連結で127.2m3×２基 東京千住キャンパス工事現況（H23.2.23.） ４号館（Ｓ棟）　連結縦型蓄熱槽　１層目（２缶）　設置状況

  20. ロッジア 交流プラザ（オープンエアー・床冷暖） 1階免震床と地階の境界 地面がぬかるんでいるのは、 雨ではなく地下水位が高いため 東京千住キャンパス工事現況（H23.2.14.） 1号館（W棟）　ロッジア北側の地中熱利用の熱交換用チューブ埋設　施工状況　

  21. ●地中熱利用床冷暖房（二次側配管敷設） 地中熱ヒートポンプ 冷房：２０kW 暖房：１６ kW 内径：13A、　　8系統 総延長：1484ｍ 敷設面積：225㎡ 架橋ポリエチレン管 を敷設中

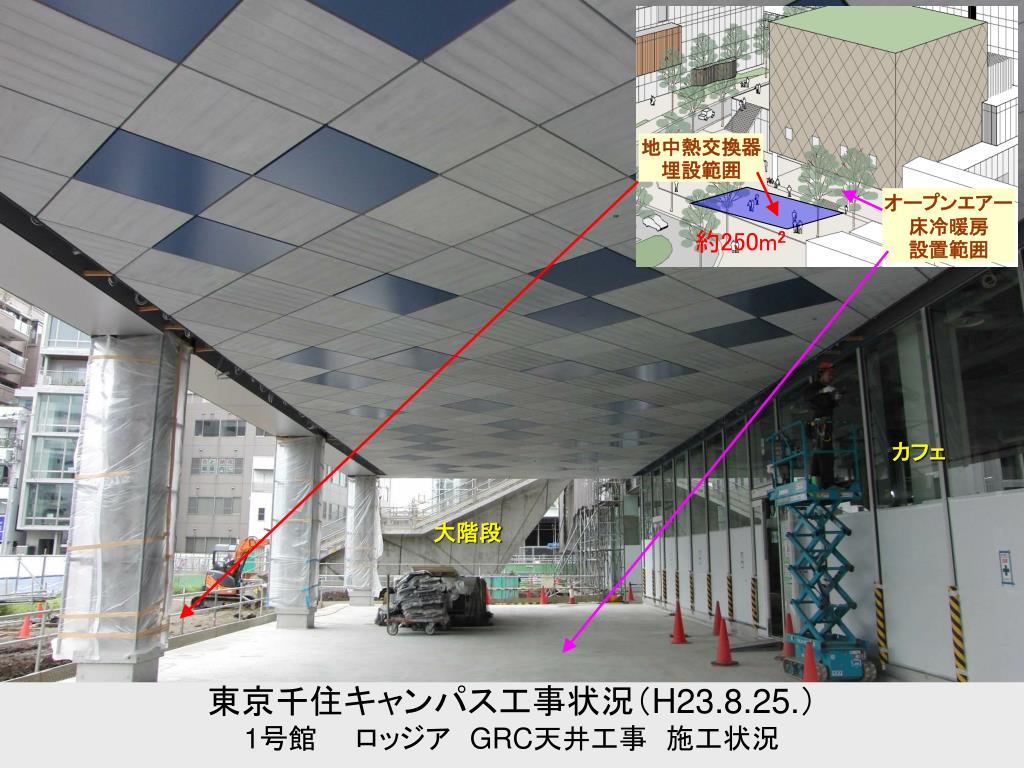

  22. 地中熱交換器　埋設範囲 オープンエアー床冷暖房　　　設置範囲 約250m2 カフェ 大階段 東京千住キャンパス工事状況（H23.8.25.） 1号館　　ロッジア　GRC天井工事　施工状況
