  1. Servision Product Presentation

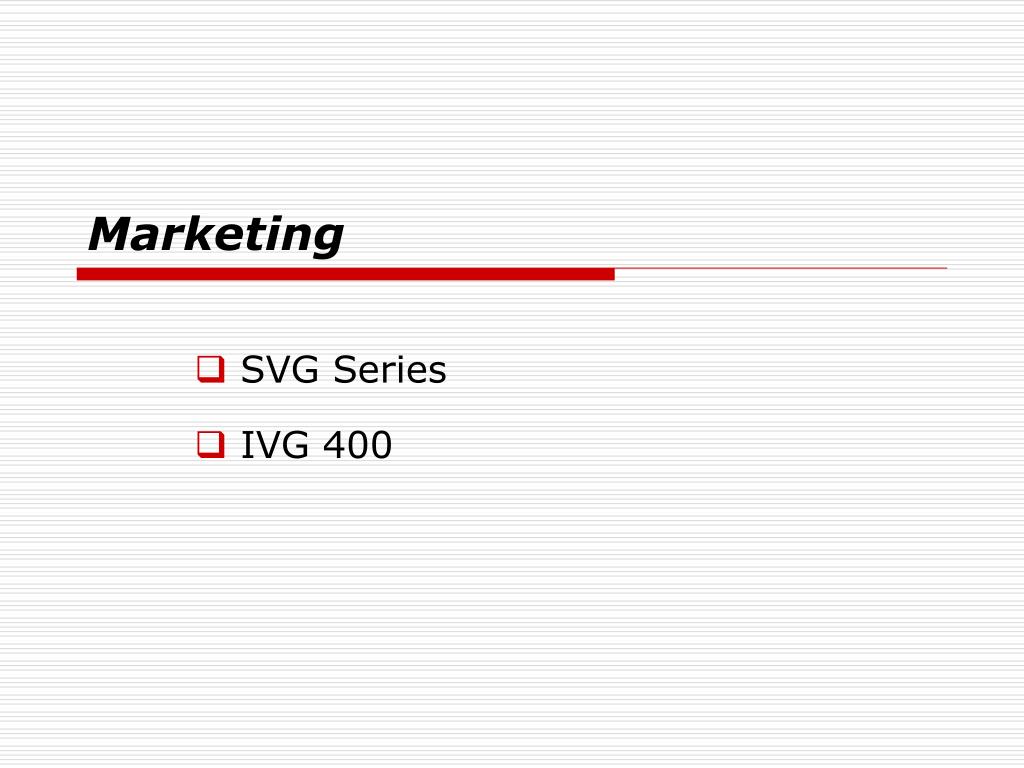

  2. Marketing • SVG Series • IVG 400

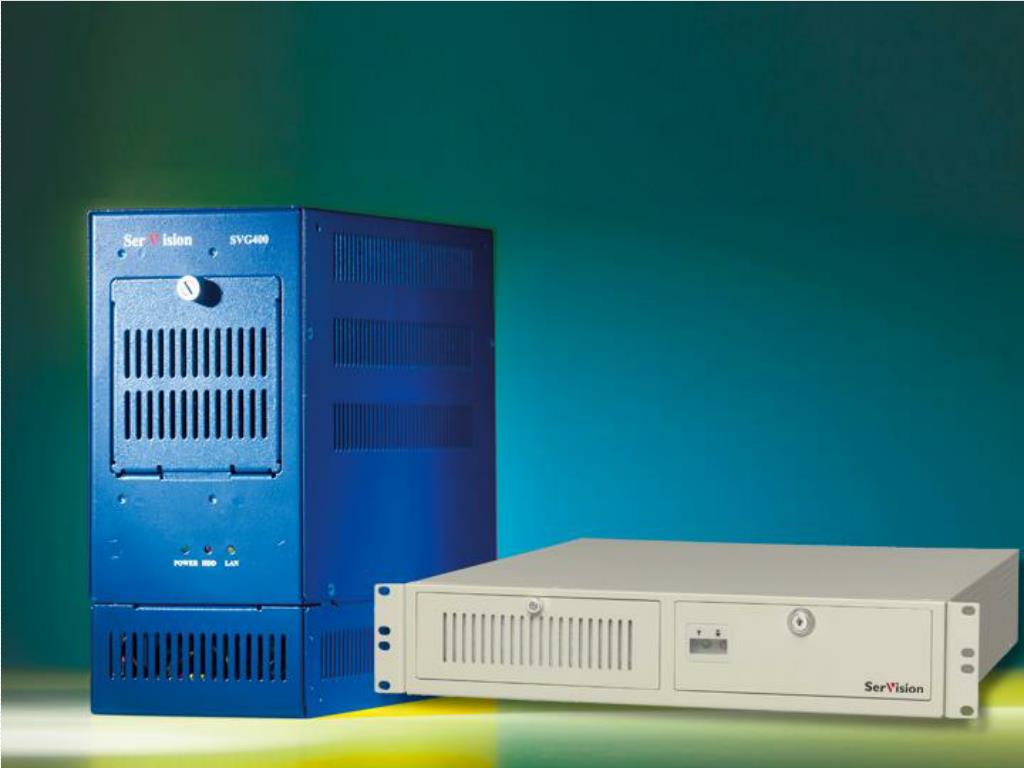

  3. SVG400, 400-8, 1000

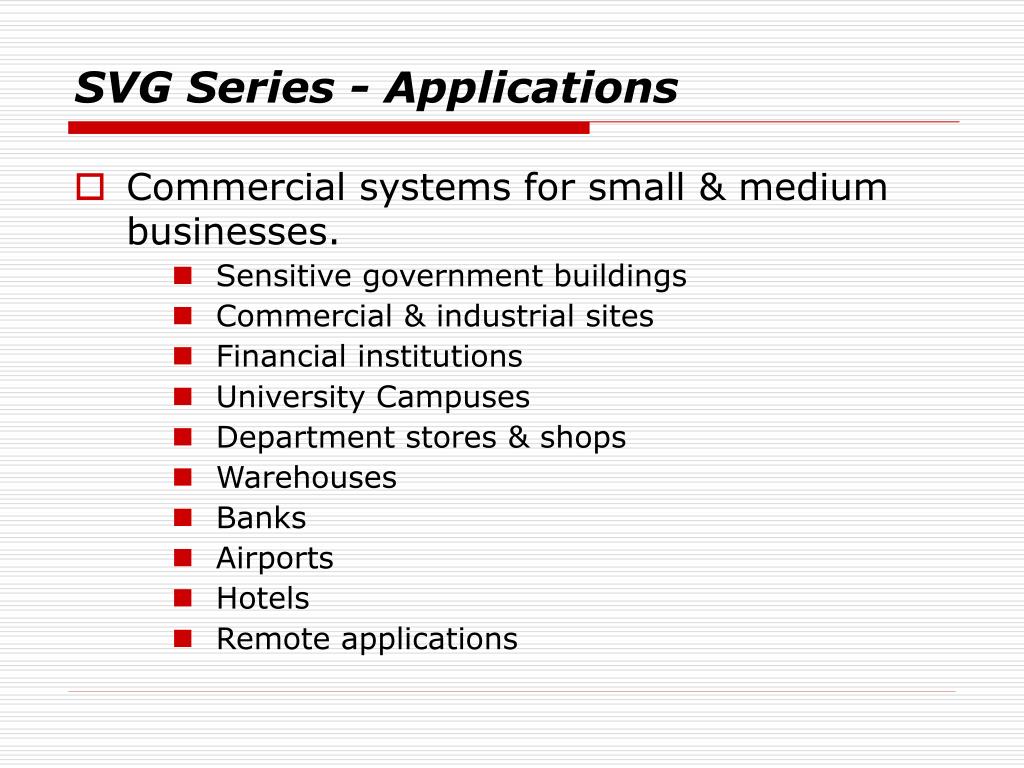

  4. SVG Series - Applications • Commercial systems for small & medium businesses. • Sensitive government buildings • Commercial & industrial sites • Financial institutions • University Campuses • Department stores & shops • Warehouses • Banks • Airports • Hotels • Remote applications

  5. SVG Video Gateway –Live CCTV Video to Central Stations, PCs & Mobile Handsets • Live, high quality video recording and transmission over cellular & wired networks to control centers, mobile phones & PDAs ADSL

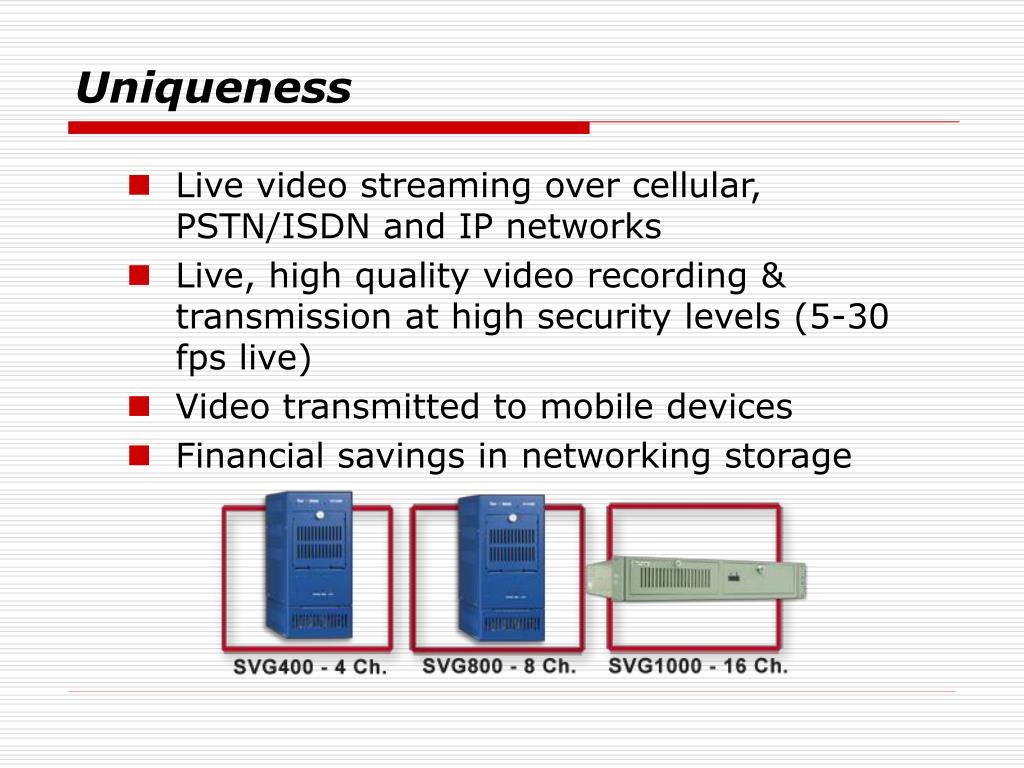

  6. Uniqueness • Live video streaming over cellular, PSTN/ISDN and IP networks • Live, high quality video recording & transmission at high security levels (5-30 fps live) • Video transmitted to mobile devices • Financial savings in networking storage

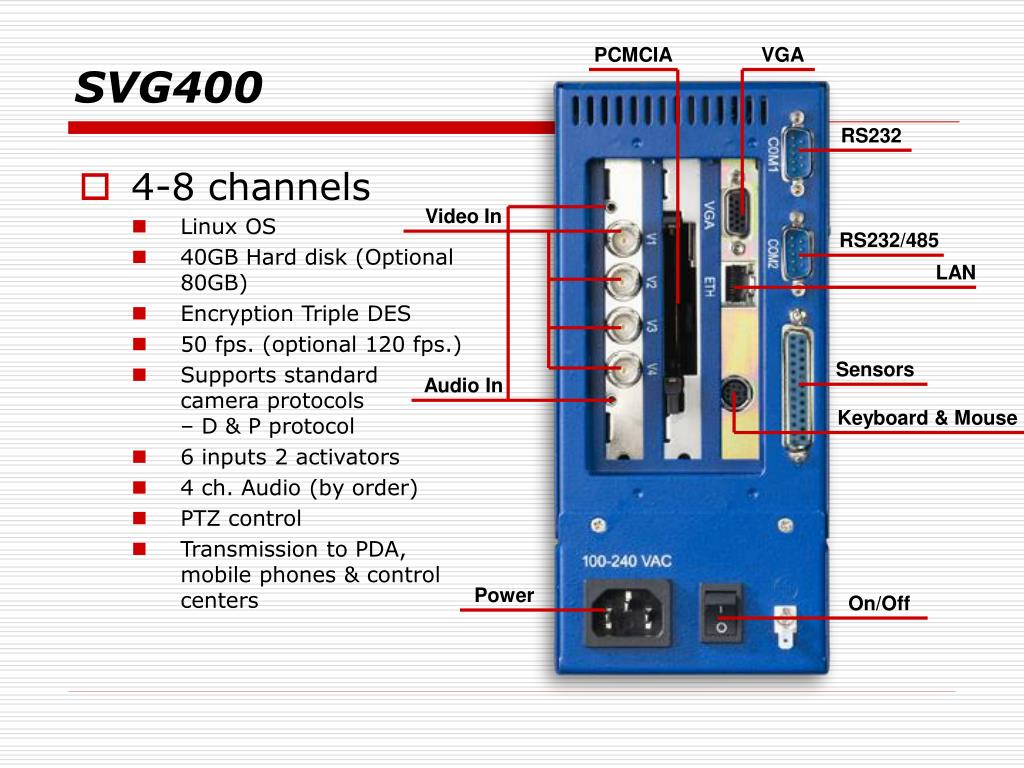

  7. SVG400 PCMCIA VGA RS232 • 4-8 channels • Linux OS • 40GB Hard disk (Optional 80GB) • Encryption Triple DES • 50 fps. (optional 120 fps.) • Supports standard camera protocols – D & P protocol • 6 inputs 2 activators • 4 ch. Audio (by order) • PTZ control • Transmission to PDA, mobile phones & control centers Video In RS232/485 LAN Sensors Audio In Keyboard & Mouse Power On/Off

  8. SVG1000 • 16 channel system • 4 Ch. Audio • 250GB • 200 FPS • SMS & e-mail notification • Transmission to PDA, mobile phones & control centers On/Off Video & Audio In Power LAN Monitor RS232 RS232/485 USB Keyboard & Mouse Sensors

  9. The SVG Series Provides • Highly reliable integrated surveillance system using a Linux operating system • Event driven recording including Pre and Post alarm • Complete encryption of the transmitted video stream prevents possible interception • Video motion detection with user defined filters for regions of interest • Notification via SMS or e-mail • Remote PTZ camera control • Supported by control center and PC programs SVG Spec Sheet

  10. IVG400

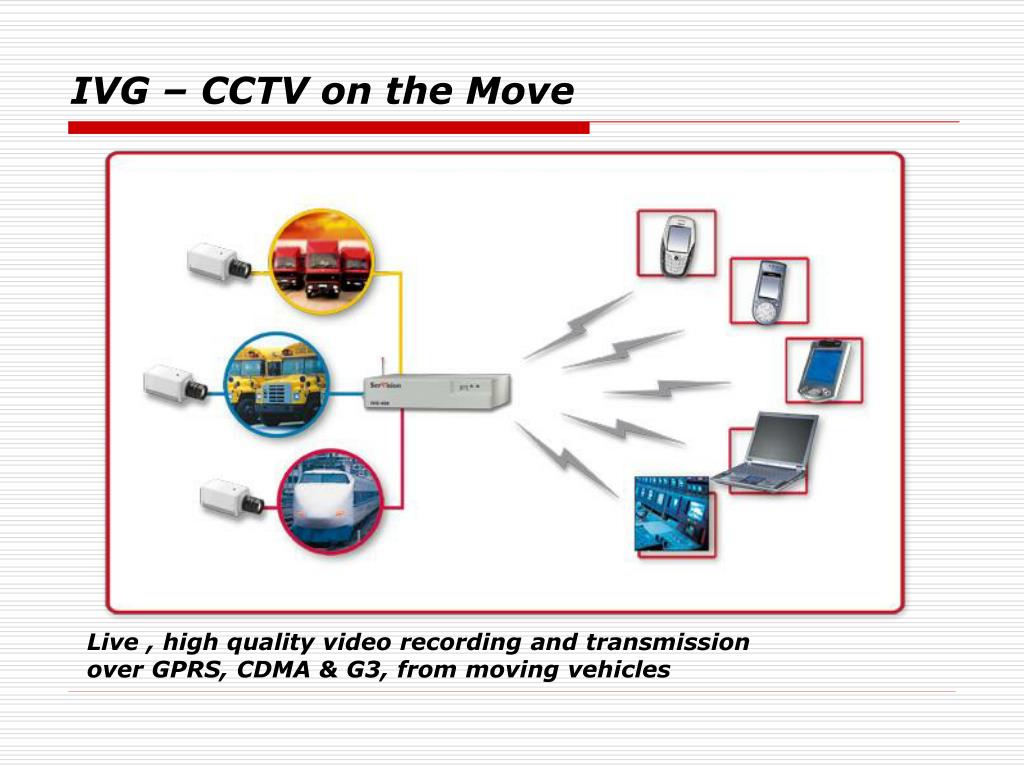

  11. IVG – CCTV on the Move Live , high quality video recording and transmission over GPRS, CDMA & G3, from moving vehicles

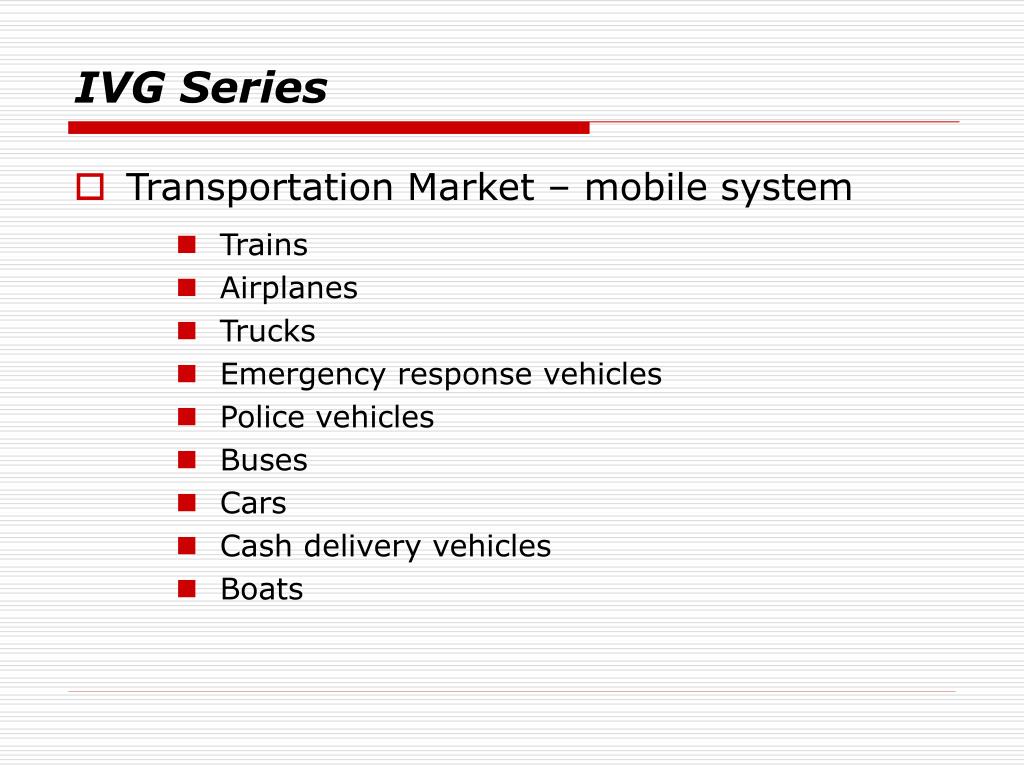

  12. IVG Series • Transportation Market – mobile system • Trains • Airplanes • Trucks • Emergency response vehicles • Police vehicles • Buses • Cars • Cash delivery vehicles • Boats

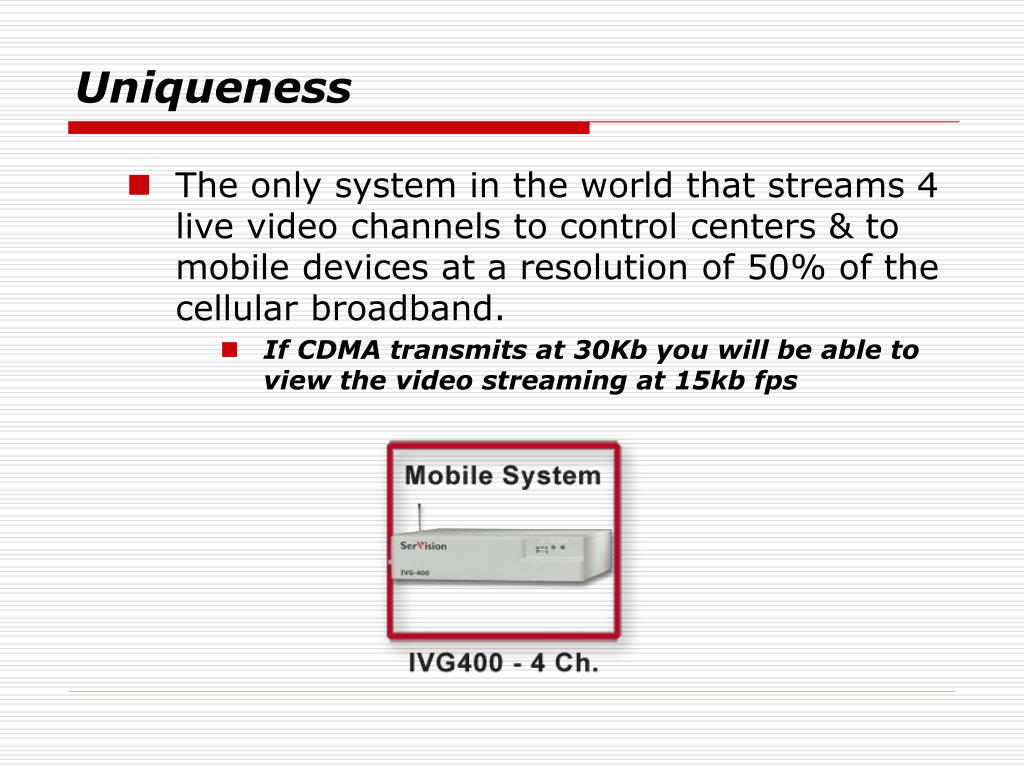

  13. Uniqueness • The only system in the world that streams 4 live video channels to control centers & to mobile devices at a resolution of 50% of the cellular broadband. • If CDMA transmits at 30Kb you will be able to view the video streaming at 15kb fps

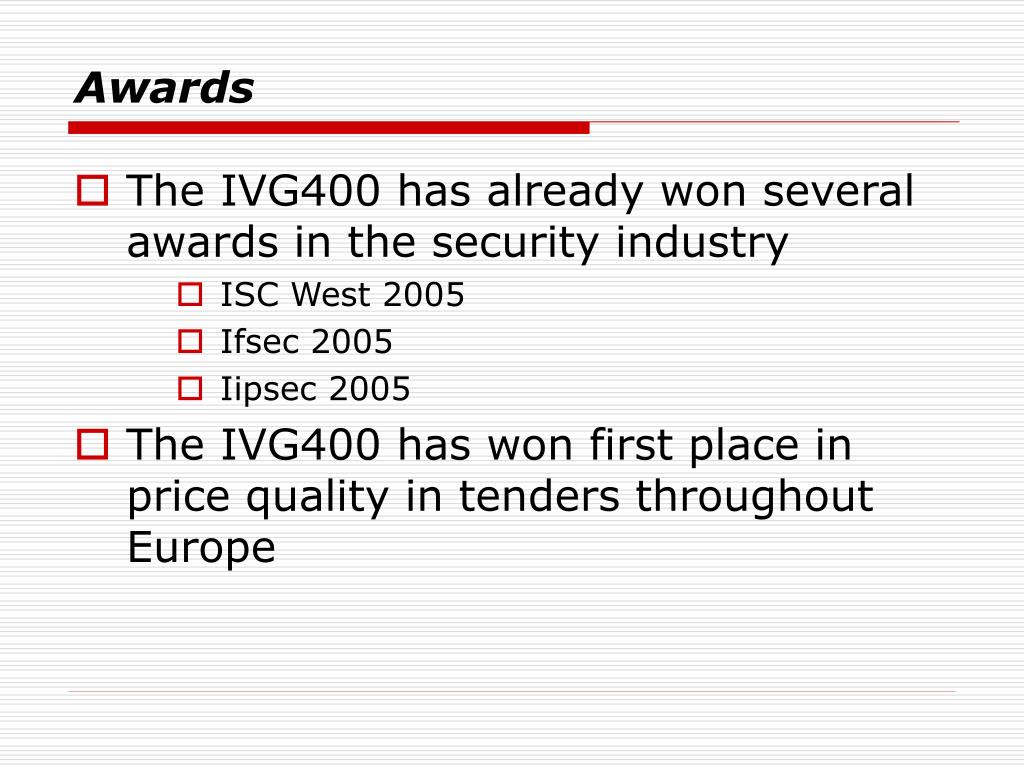

  14. Awards • The IVG400 has already won several awards in the security industry • ISC West 2005 • Ifsec 2005 • Iipsec 2005 • The IVG400 has won first place in price quality in tenders throughout Europe

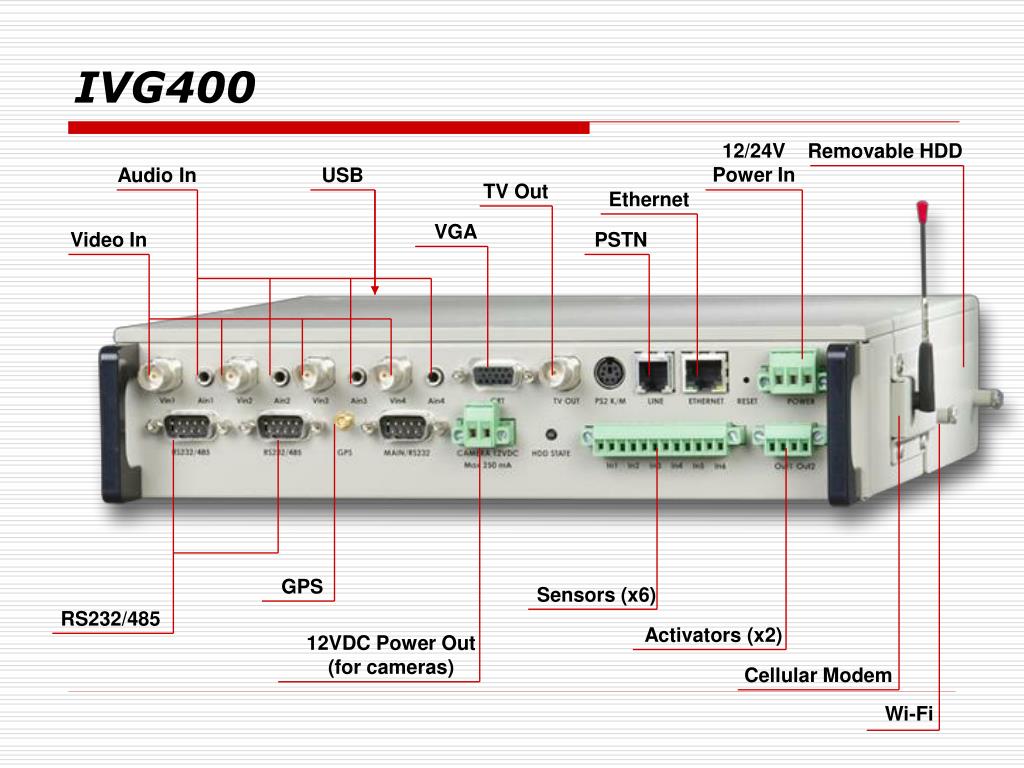

  15. IVG400 12/24V Power In Removable HDD Audio In USB TV Out Ethernet VGA Video In PSTN GPS Sensors (x6) RS232/485 Activators (x2) 12VDC Power Out (for cameras) Cellular Modem Wi-Fi

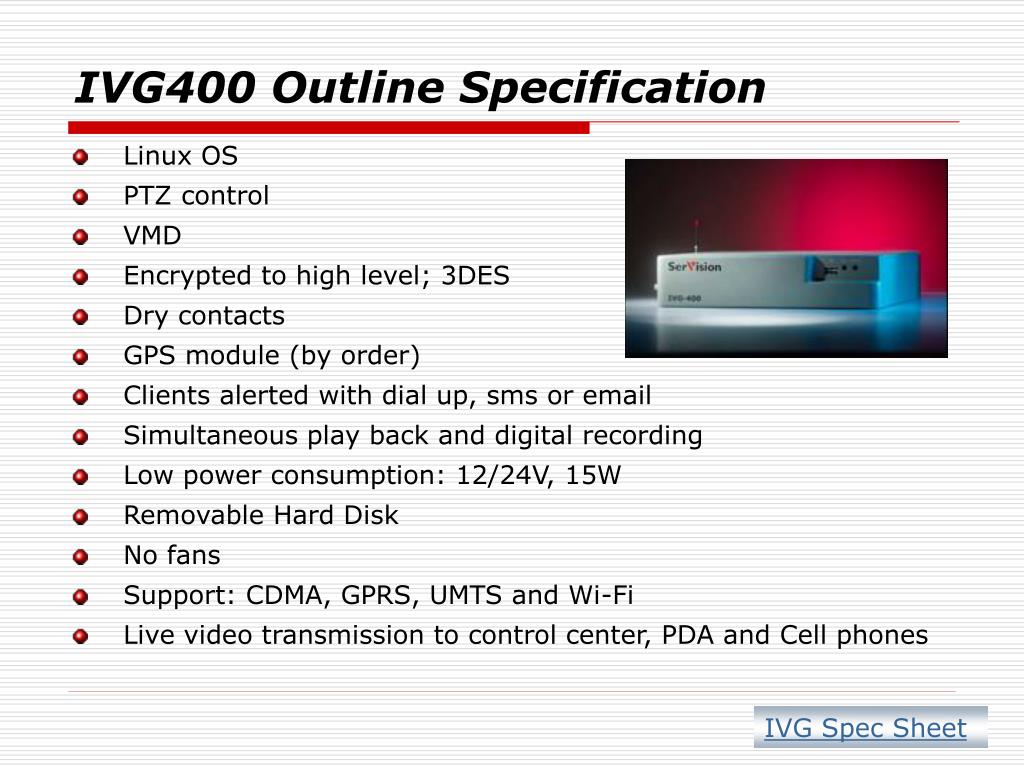

  16. IVG400 Outline Specification • Linux OS • PTZ control • VMD • Encrypted to high level; 3DES • Dry contacts • GPS module (by order) • Clients alerted with dial up, sms or email • Simultaneous play back and digital recording • Low power consumption: 12/24V, 15W • Removable Hard Disk • No fans • Support: CDMA, GPRS, UMTS and Wi-Fi • Live video transmission to control center, PDA and Cell phones IVG Spec Sheet

  17. Mobile Applications • Servision believes that the IVG400 is the most suitable video gateway system for transportation in the US Homeland Security Market

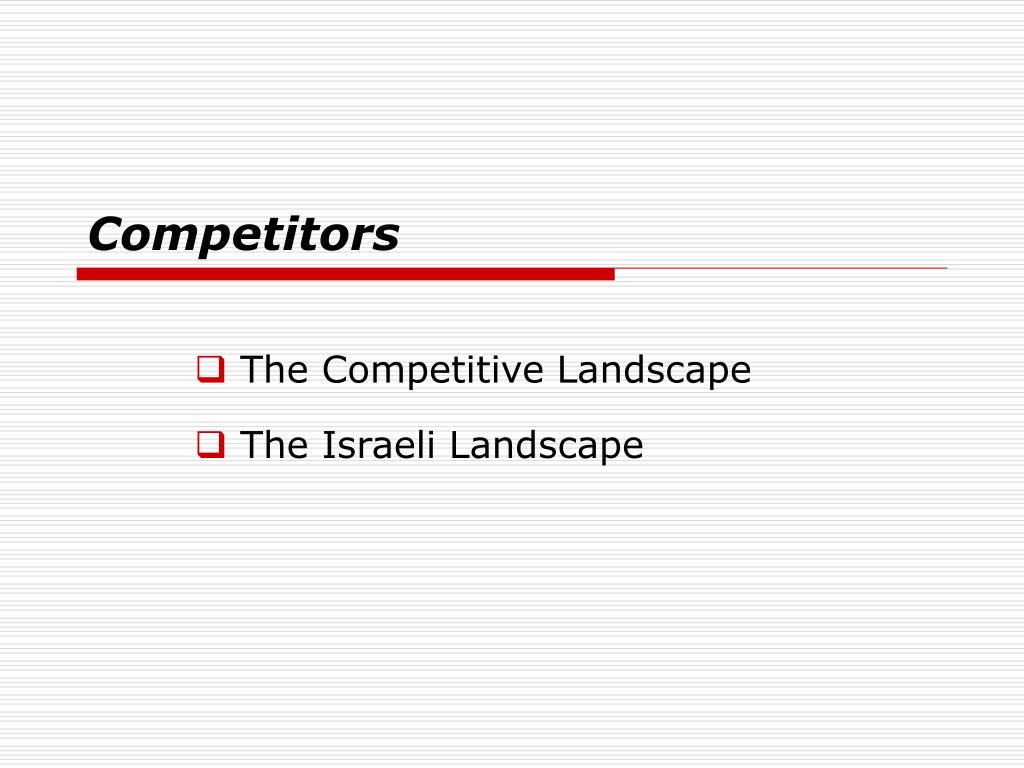

  18. Competitors • The Competitive Landscape • The Israeli Landscape

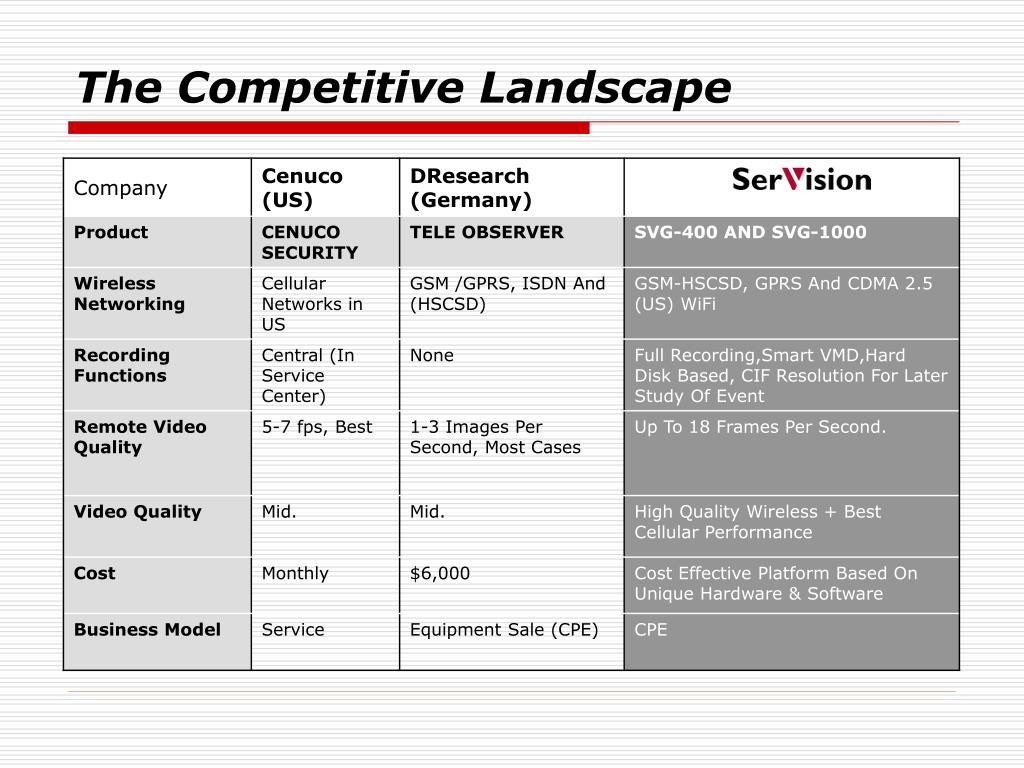

  19. The Competitive Landscape

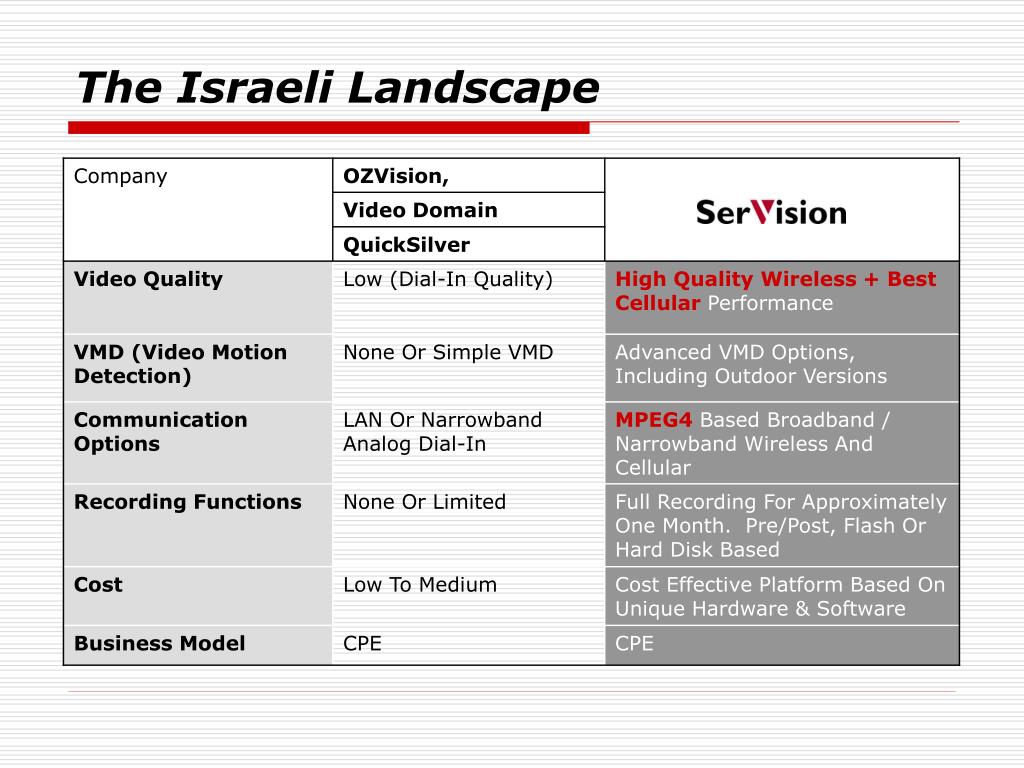

  20. The Israeli Landscape

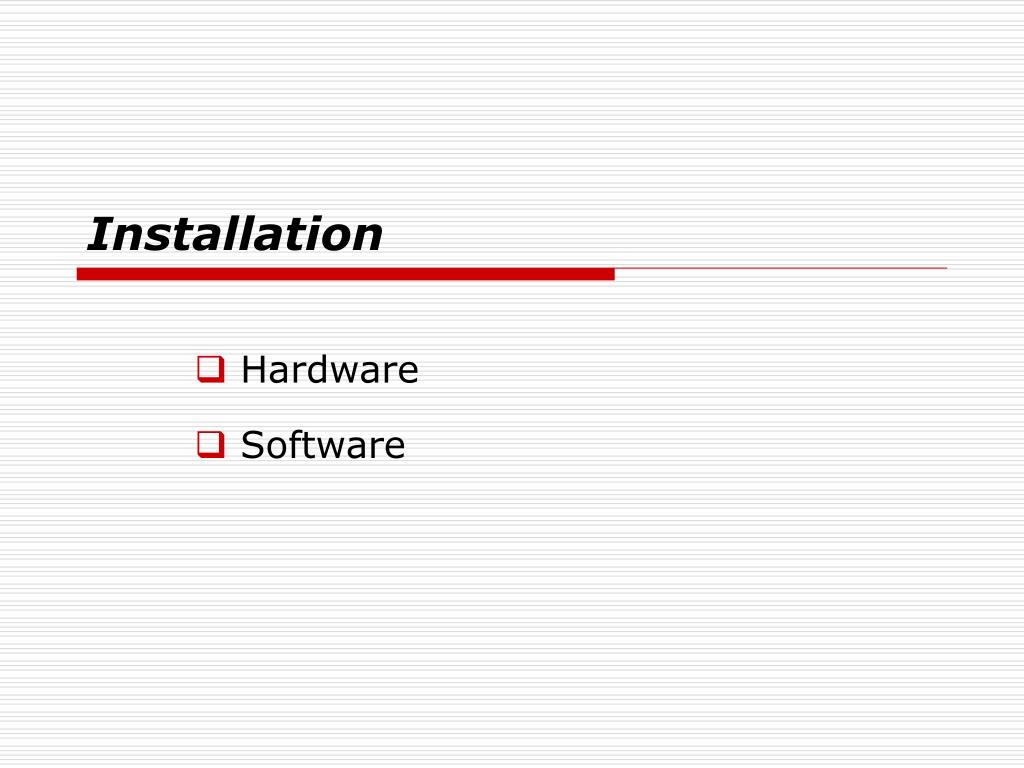

  21. Installation • Hardware • Software

  22. Hardware • The Server - SVGateway • The SVGateway acts as the gateway for video, audio and sensor inputs and for client requests. • The client communicates with the gateway via the PC host’s internet connection. • Configuration of the system is done via the Web-Max (see installation guide)

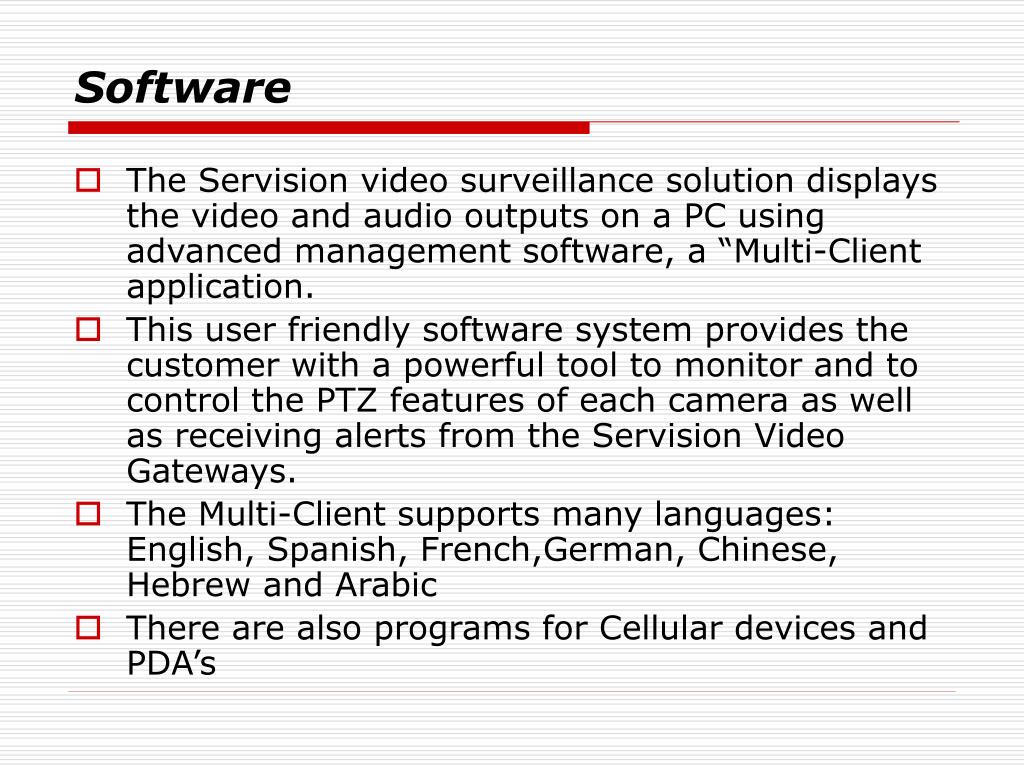

  23. Software • The Servision video surveillance solution displays the video and audio outputs on a PC using advanced management software, a “Multi-Client application. • This user friendly software system provides the customer with a powerful tool to monitor and to control the PTZ features of each camera as well as receiving alerts from the Servision Video Gateways. • The Multi-Client supports many languages: English, Spanish, French,German, Chinese, Hebrew and Arabic • There are also programs for Cellular devices and PDA’s

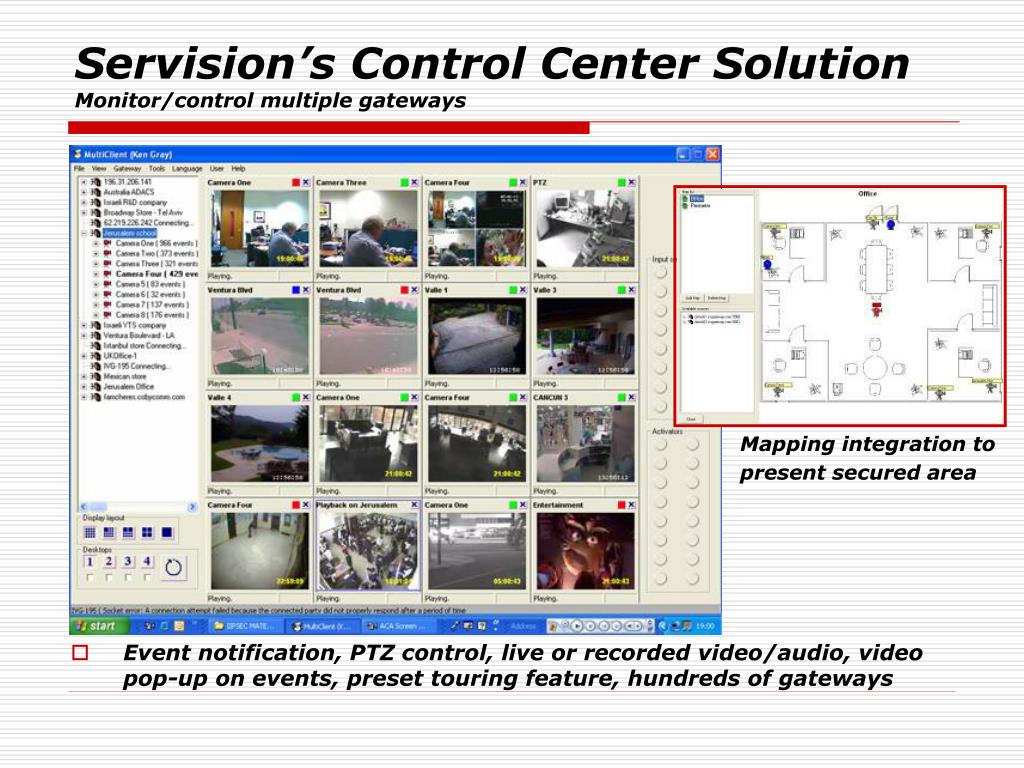

  24. Servision’s Control Center SolutionMonitor/control multiple gateways Mapping integration to present secured area • Event notification, PTZ control, live or recorded video/audio, video pop-up on events, preset touring feature, hundreds of gateways

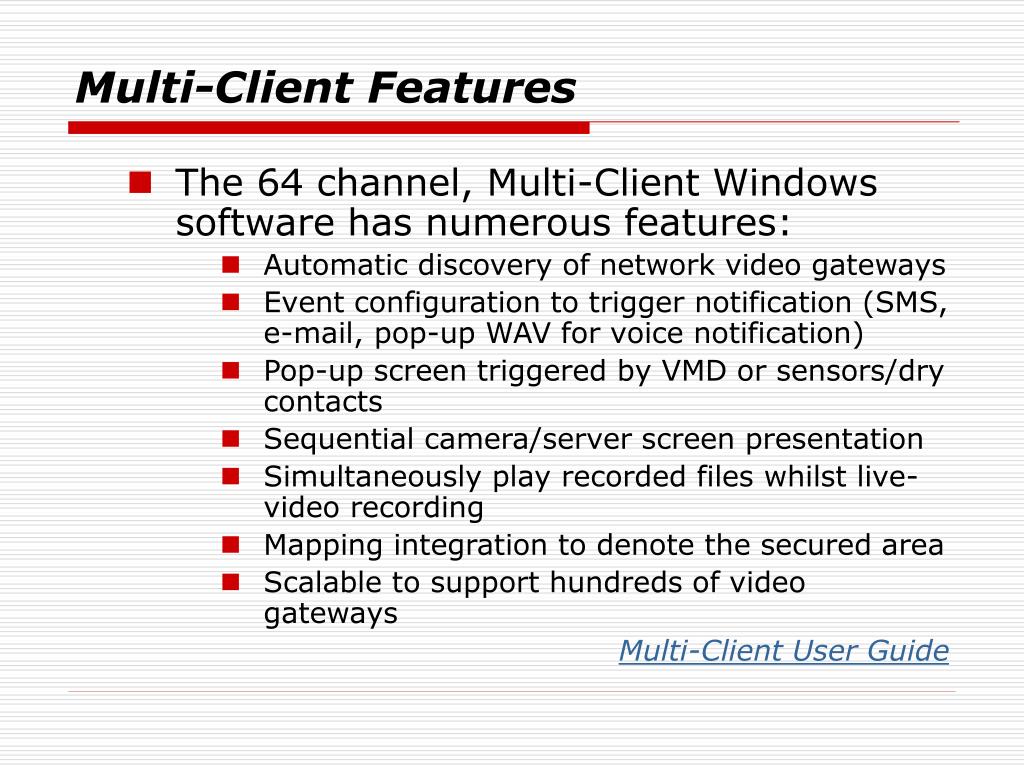

  25. Multi-Client Features • The 64 channel, Multi-Client Windows software has numerous features: • Automatic discovery of network video gateways • Event configuration to trigger notification (SMS, e-mail, pop-up WAV for voice notification) • Pop-up screen triggered by VMD or sensors/dry contacts • Sequential camera/server screen presentation • Simultaneously play recorded files whilst live-video recording • Mapping integration to denote the secured area • Scalable to support hundreds of video gateways Multi-Client User Guide
