Presentation Transcript
slide1

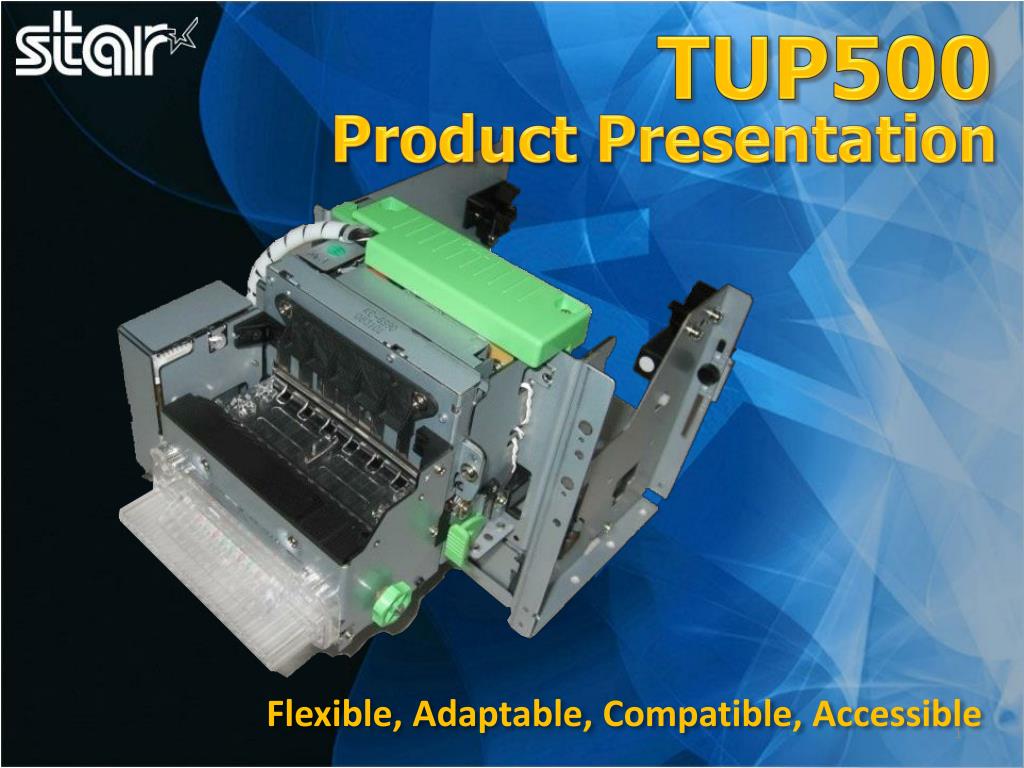

TUP500

Product Presentation

Flexible, Adaptable, Compatible, Accessible

slide2

TUP500 – Examples of Use

  • “KIOSK” for utility payment:
    • Gas bill
    • Electricity bill
    • Phone bill
  • “ATM” or any financial
  • automatic payment system
  • “Coupon Terminal”
  • “Multipurpose Ticket Terminal”:
    • Airlines: e-ticket
    • Rail or bus: tickets
    • Amusement park
tup500 s high performance
TUP500’s High Performance
  • High Print Speed Support
      • 44RPM or 220mm/sec
      • Default print speed is 180mm/sec
    • Prints a 12in receipt in 3 seconds
    • Reduces customer wait time
    • Provides multiple tickets in record time
    • Increases the number of customers serviced per hour
    • Increases ROI of the entire Kiosk terminal
  • Double Resolution Capability
      • 406dpi
    • Gray scale capability
    • Sharper image quality for pictures and maps
    • Professional looking graphics
tup500 s high performance1
TUP500’s High Performance
  • Low Power/Energy Consumption
      • 2.4 Watts (Voltage Amp) when idle
      • 41 Watts while printing
      • 26.4 Watts in low consumption mode when printing
    • Reduces electrical cost
    • Supported when limited current is available
    • Saves Energy; Environmentally friendly
    • Support PoweredUSB specification
tup500 s high performance2
TUP500’s High Performance
  • Low Paper Consumption
    • Smaller default top margin (11mm; with back feed is 3mm)
    • Environmentally friendly
  • Star Raster Driver/ Image Buffer Method
    • Provides for continuous printing of up to 300mm pause-free
    • Reduces customer wait time
    • Able to serve more customers per hour
tup500 s high reliability
TUP500’s High Reliability
  • Mechanical Life: 60Million Lines
    • MCBF: 60Million Lines
  • Cutter: 1Million Cuts
  • Presenter: 1 Million Documents
  • Print Head: 100KM
  • Less down time and maintenancecost = increased ROI
tup500 s impressive features
TUP500’s Impressive Features
  • Looping Presenter- Delivers the document afterit is completed rather thanduring; avoids paper jams andpossible vandalism.
  • Document Capture

- Retracts unclaimed documents to keep valuable information from being exposed.

- Provides a clean exit for each document, preventing a possible paper jam or printer malfunction

impressive features cont d
Impressive Features (cont’d)
  • Two-color Bezel (Snout) Option:
    • Eye catching flashing LED alerting delivereddocument
    • Provides visual information in case the printerhas an issue
    • Simplify Kiosk design in providing a low cost and professional appearance of the document output
  • Wide range of interfaces available Ethernet, USB, PoweredUSB, Serial, and Parallel.
    • Connect your printer directly to a network without using a server or “middle man”
    • Monitor the printer’s status from a remote location
tup500 s impressive features1

Adaptable

TUP500’s Impressive Features
  • Maintenance and Status Tools
    • Monitors in real-time status of the printer
    • Monitors/resets maintenance counters*
    • *the maintenance counters track the printer’s usage.
tup500 s easy accessibility

Flexible/Accessible

TUP500’s Easy Accessibility
  • “Flip Open” Mechanism
    • Provides quick access for routine cleanings
    • Effortless clearance of paper jams
  • Centered Adjustable Paper Width Capability
    • Provides the ability to print on paper from 45 to 82.5mm
    • Ensures consistent Print quality over the print width.
  • Durable Design: Metal Frame
    • Reduces potential damage during installation
    • Ensures consistent performance during the product life.
    • Treated metal to eliminate any potential rust when used in humid environments
tup500 s easy accessibility1

Accessible/ Flexible

TUP500’s Easy Accessibility
  • Integrated Printer Control Panel
    • Simple testing
    • Effortless configuration
  • Semi- Automatic Paper Loading
    • Quick paper loading operation

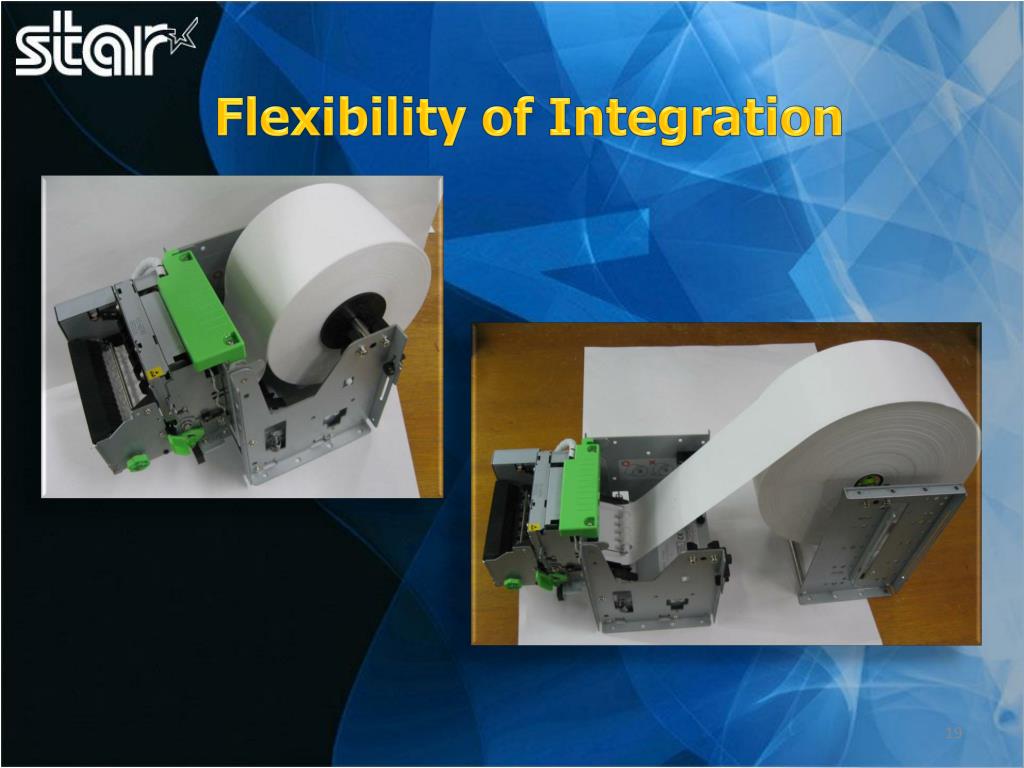

  • Re-positionable Control Board
    • Allows for flexible designs
    • Optimizes space availability in the Kiosk
    • Support paper roll to be under the printer
drivers available

Compatible

Drivers Available
  • Windows
    • Windows Printer Driver
    • OPOS Driver (Ver.1.8.8)
    • JavaPOS Driver (Ver.1.9.13)
    • USB Vendor Class Driver
  • Mac/Linux
    • CUPS Driver
    • JavaPOS Driver (Ver.1.9.13)
  • Windows 2000 SP3~, XP and Vista 32/64
  • Windows 2000 SP3~, XP and Vista 32
  • Windows 2000 SP3~, XP and Vista 32/64
  • Windows 2000 SP3~, XP and Vista 32
  • Windows 2000 SP3~, XP and Vista 32/64
  • Windows 2000 SP3~, XP and Vista 32
  • Mac : OS-X 10.5

All Drivers, Tools and Manuals can be found on www.starmicronics.com

developers aids

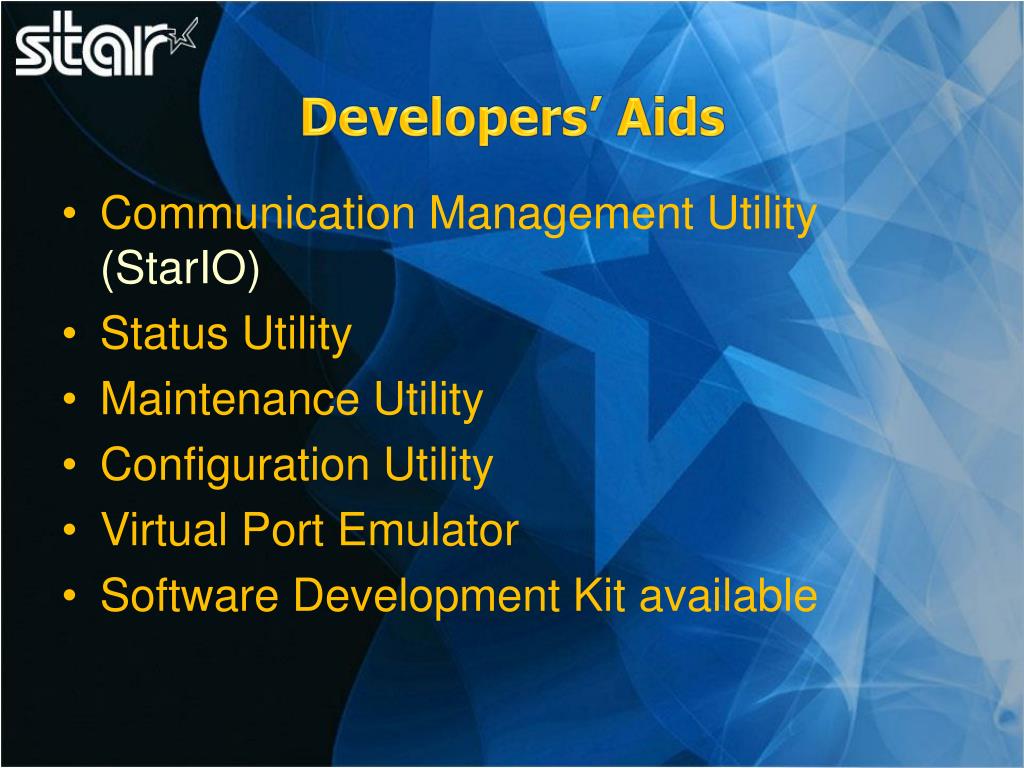

Developers’ Aids
  • Communication Management Utility (StarIO)
  • Status Utility
  • Maintenance Utility
  • Configuration Utility
  • Virtual Port Emulator
  • Software Development Kit available
star micronics tup500
Star Micronics TUP500
  • Flexible & Adaptable
    • Customizable design
    • Impressive features
  • Compatible
    • Supports popular operating systems
  • Accessible
    • Design and ease of use
tup500 s options
TUP500’s Options

Large Paper Roll Holder

Swappable Interface-Serial, Parallel, USB, Ethernet

Power Supply (PS-60A)

Plus Software Developer’s Kit

LED Bezel
