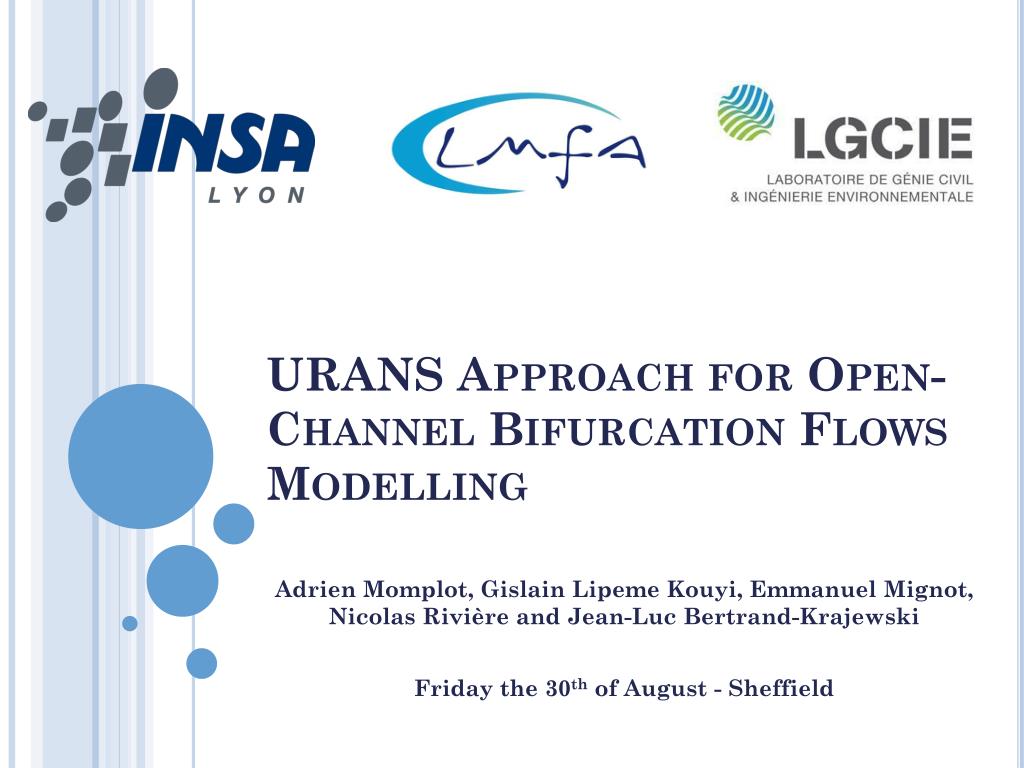

URANS Approach for Open-Channel Bifurcation Flows Modelling. Adrien Momplot , Gislain Lipeme Kouyi , Emmanuel Mignot , Nicolas Rivière and Jean-Luc Bertrand- Krajewski Friday the 30 th of August - Sheffield. OUTLINE. Motivations/Background Objectives Material and Methods Results

chana
Download Presentation

URANS Approach for Open-Channel Bifurcation Flows Modelling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. URANSApproach for Open-ChannelBifurcationFlowsModelling AdrienMomplot, GislainLipemeKouyi, Emmanuel Mignot, Nicolas Rivière and Jean-Luc Bertrand-Krajewski Friday the 30th of August - Sheffield

  2. OUTLINE • Motivations/Background • Objectives • Material and Methods • Results • Conclusions SPN7 - Session: Monitoring and New Technologies Momplot et al.

  3. MOTIVATIONS • Singularities are often encountered in sewers (junctions, bifurcations, CSOs, etc.) and exhibit: • 3D pattern not understood with 1D or 2D modelling • High turbulence • Complex mixing processes and complex pollutant transport • European Water Framework directive imposes monitoring of quality and quantity of conveyed water • What about monitoring of dividing flows ? SPN7 - Session: Monitoring and New Technologies Momplot et al.

  4. MOTIVATIONS • Bifurcations instrumentation ? • Discharge repartition process in downstream branches • Contaminants transport/monitoring through the bifurcation SPN7 - Session: Monitoring and New Technologies moundsvillewwtp.com Neary and Sotiroupolous (1996)

  5. MOTIVATIONS • 3D CFD modelling based on RANS equations to understand complex 3D flows • However strong dependence on: • Parameters (mesh, boundary conditions) • Numerical options (turbulence models, wall functions, discretization schemes, etc.) SPN7 - Session: Monitoring and New Technologies Momplot et al.

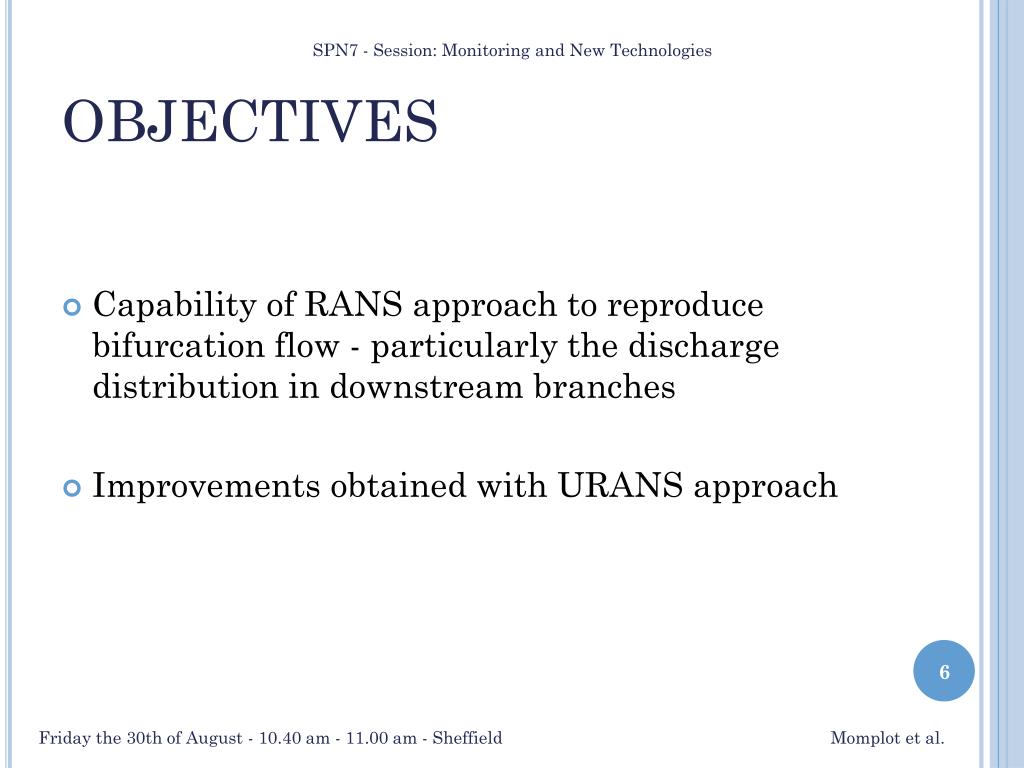

  6. OBJECTIVES • Capability of RANS approach to reproduce bifurcation flow - particularly the discharge distribution in downstream branches • Improvements obtained with URANS approach SPN7 - Session: Monitoring and New Technologies Momplot et al.

  7. MATERIAL AND METHODS • Experiments performed in the channel intersection facility at the LMFA (Laboratoire de Mécanique des Fluides et d’Acoustique, INSA – LYON) SPN7 - Session: Monitoring and New Technologies Momplot et al.

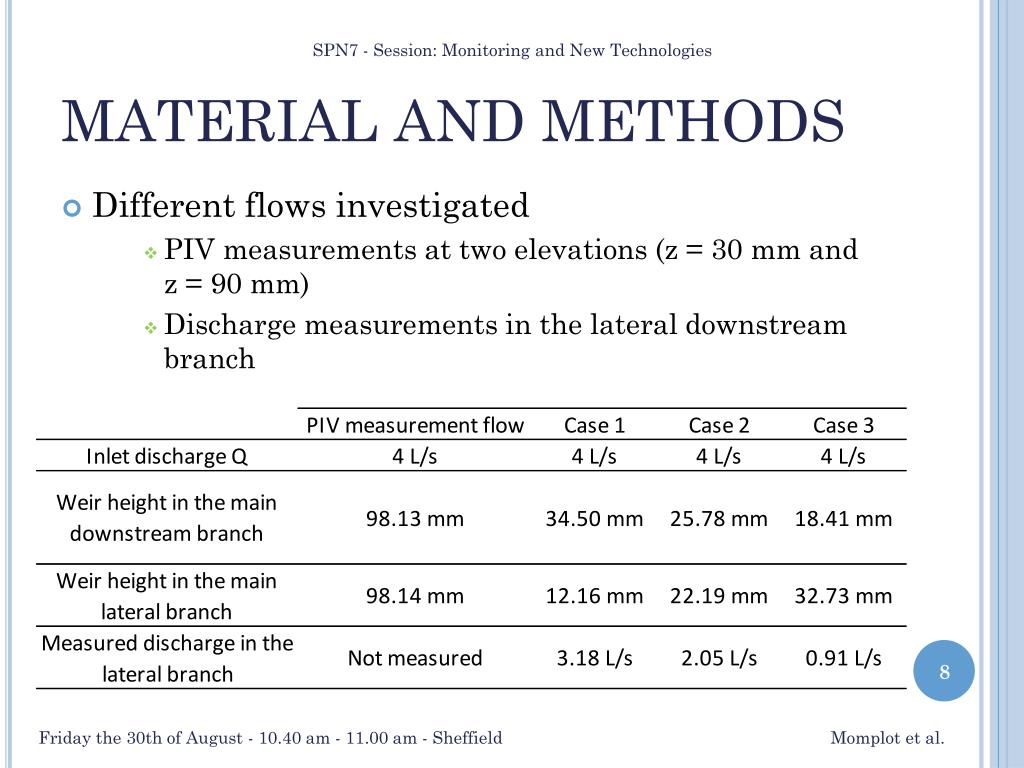

  8. MATERIAL AND METHODS • Different flows investigated • PIV measurements at two elevations (z = 30 mm and z = 90 mm) • Discharge measurements in the lateral downstream branch SPN7 - Session: Monitoring and New Technologies Momplot et al.

  9. MATERIAL AND METHODS • Methodology: • RANS approach validation based on PIV measurements • Verification of the discharge distribution using the validated RANS model • Check the URANS improvements SPN7 - Session: Monitoring and New Technologies Momplot et al.

  10. MATERIAL AND METHODS • Optimum mesh is obtained when no significant improvements are observed with further refinements • Cell size Δx*Δy*Δz = 1mm*1mm*5mm in downstream branches SPN7 - Session: Monitoring and New Technologies Momplot et al.

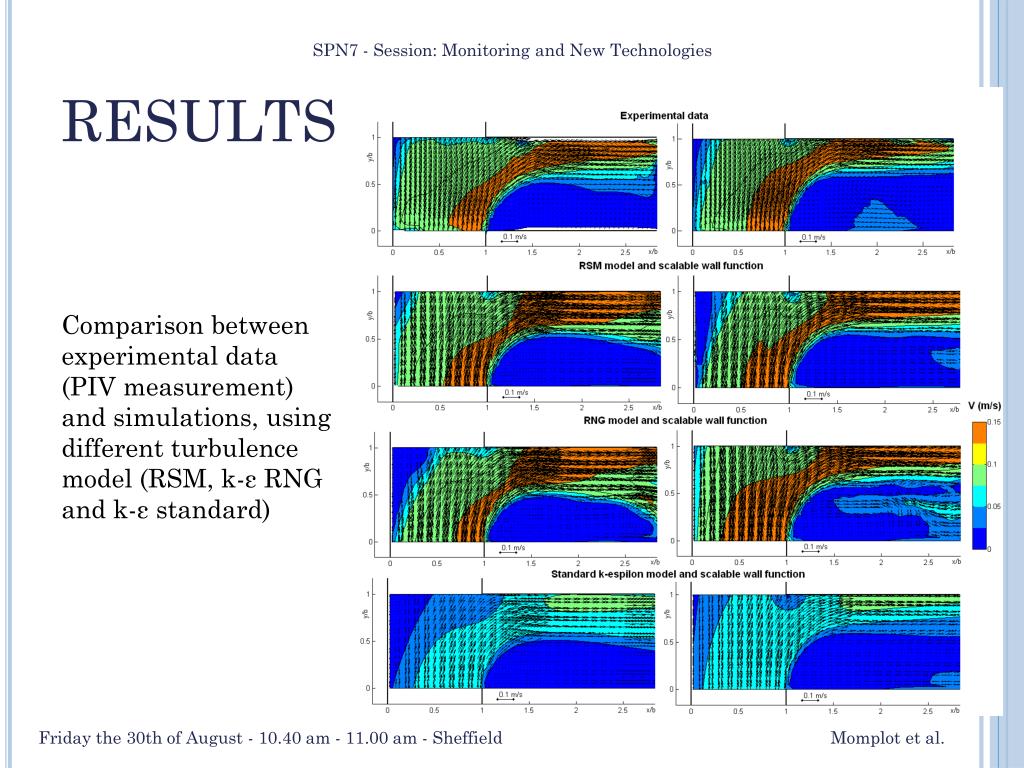

  11. RESULTS Comparison between experimental data (PIV measurement) and simulations, using different turbulence model (RSM, k-ε RNG and k-ε standard) SPN7 - Session: Monitoring and New Technologies Momplot et al.

  12. RESULTS Model setup • Turbulence model: RSM • Wall function: scalable • Free surface representation: VOF model • Boundary conditions: mass-flow inlet for inlet, pressure outlet for outlets • Spatial discretisation scheme: Body-Force Weighted for pressure and Second-Order Upwind for other variables SPN7 - Session: Monitoring and New Technologies Momplot et al.

  13. RESULTS Discharge distribution: • RANS - steady state simulations give poor quantitative results for Case 1 (most quantitative studies have 10% as a maximum value for relative error) • Case 2 and 3 representations are better SPN7 - Session: Monitoring and New Technologies Momplot et al.

  14. RESULTS • URANS calculations are performed for Case 2, using the steady solution as an initial state SPN7 - Session: Monitoring and New Technologies Momplot et al.

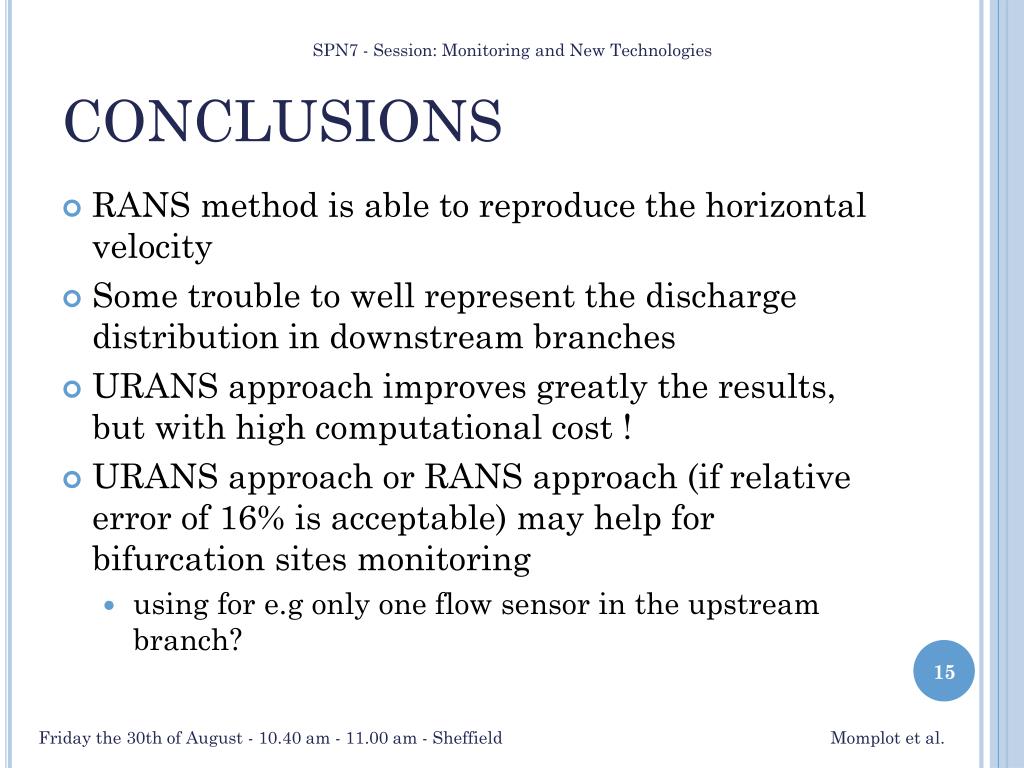

  15. CONCLUSIONS • RANS method is able to reproduce the horizontal velocity • Some trouble to well represent the discharge distribution in downstream branches • URANS approach improves greatly the results, but with high computational cost ! • URANS approach or RANS approach (if relative error of 16% is acceptable) may help for bifurcation sites monitoring • using for e.g only one flow sensor in the upstream branch? SPN7 - Session: Monitoring and New Technologies Momplot et al.
