Presentation Transcript
nelac update

NELAC Update

News You Can Use

Stephen Arms

Bureau of Laboratories

Environmental Laboratory Certification Program

64e 1 fac amendments january 24 2005

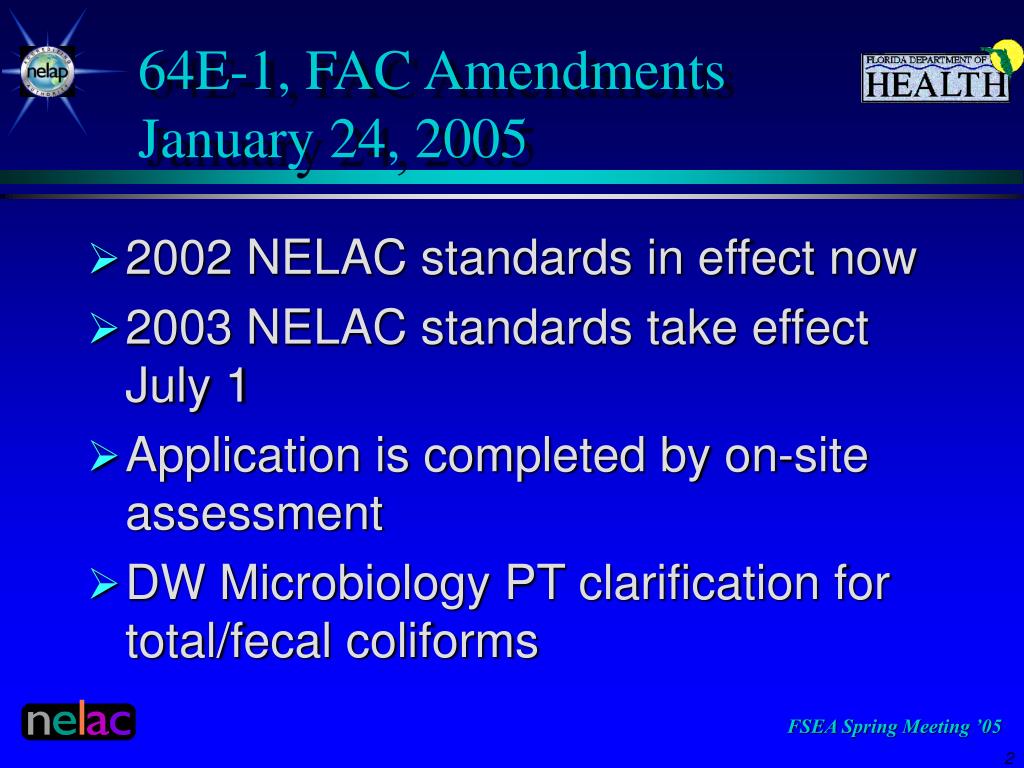

64E-1, FAC AmendmentsJanuary 24, 2005
  • 2002 NELAC standards in effect now
  • 2003 NELAC standards take effect July 1
  • Application is completed by on-site assessment
  • DW Microbiology PT clarification for total/fecal coliforms
nelac chapter 5

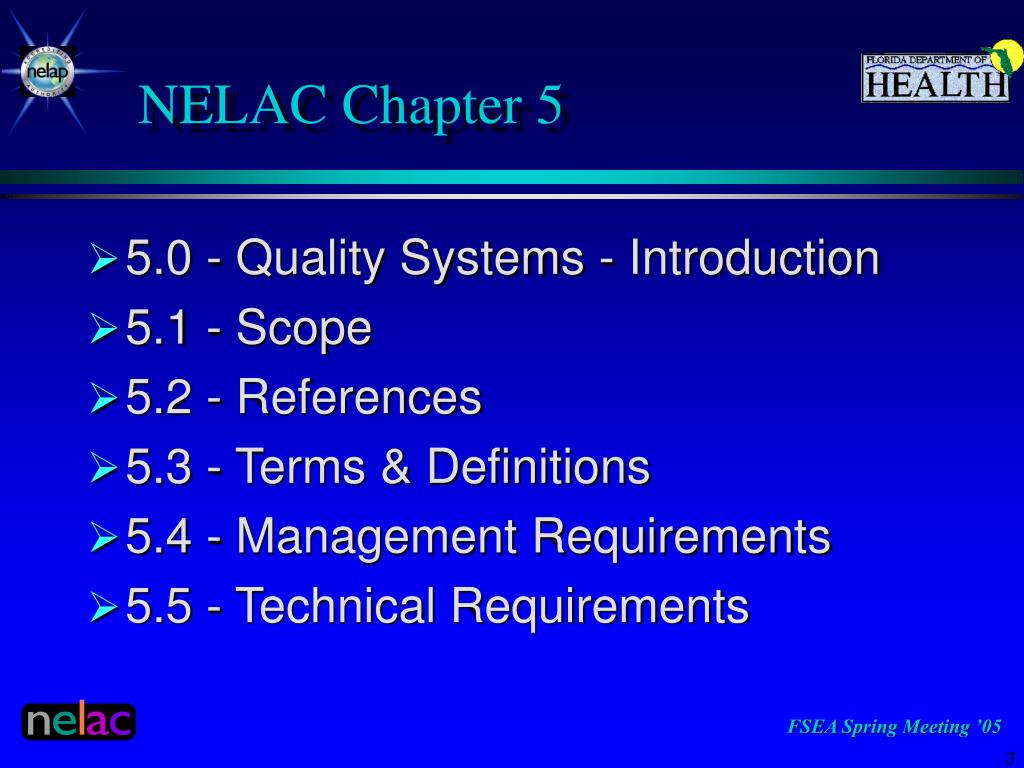

NELAC Chapter 5
  • 5.0 - Quality Systems - Introduction
  • 5.1 - Scope
  • 5.2 - References
  • 5.3 - Terms & Definitions
  • 5.4 - Management Requirements
  • 5.5 - Technical Requirements
introduction 03

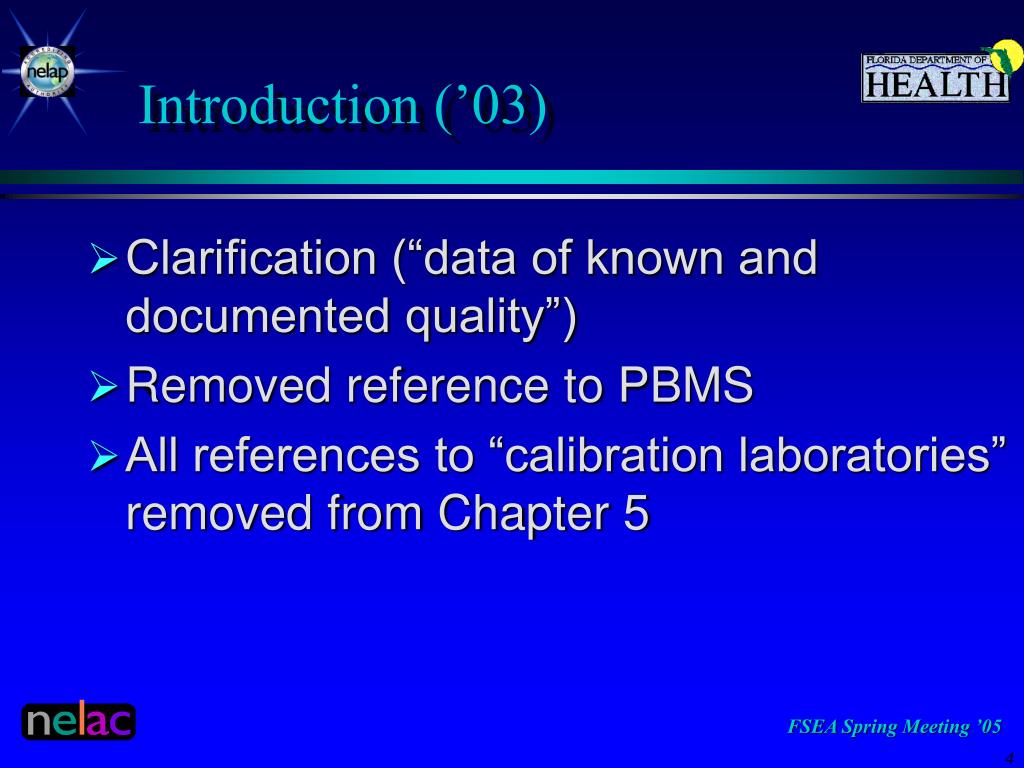

Introduction (’03)
  • Clarification (“data of known and documented quality”)
  • Removed reference to PBMS
  • All references to “calibration laboratories” removed from Chapter 5
management requirements
Management Requirements
  • 5.4.5 - Subcontracting
    • Laboratory is responsible for the subcontractor’s work, except where the client or regulatory agency specifies the subcontractor
    • Laboratory maintains a register of subcontractors and documents compliance with subcontracting requirements
  • 5.4.5.2 - Gain client’s approval when “possible” not when “appropriate” (’03)

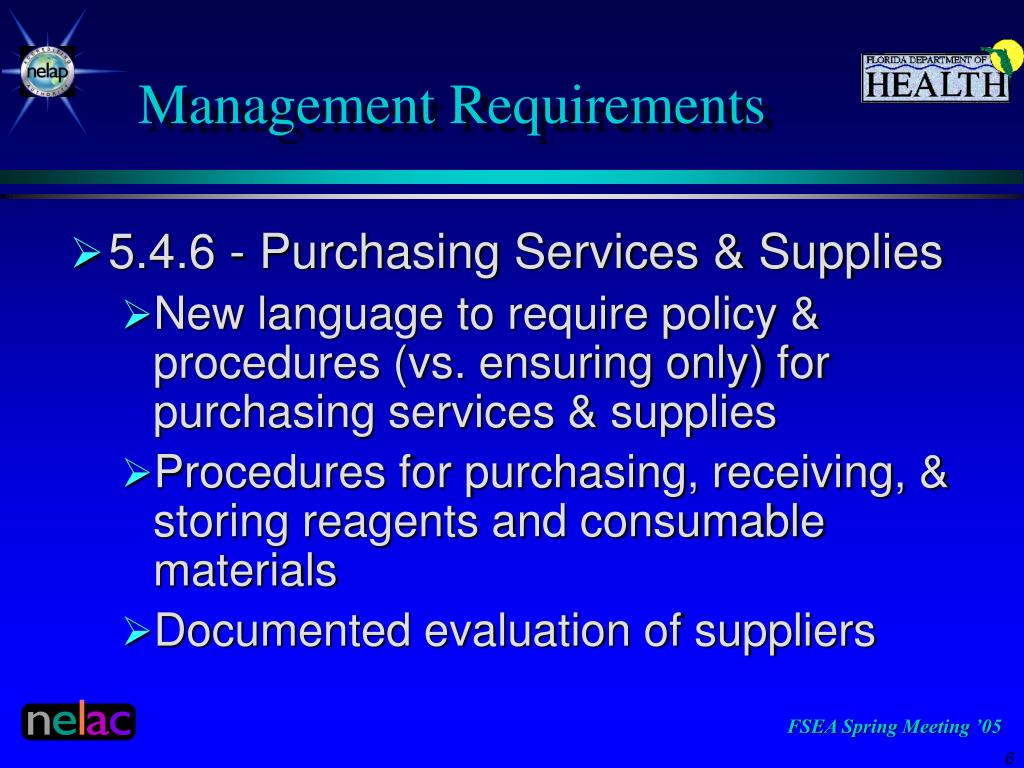

management requirements1
Management Requirements
  • 5.4.6 - Purchasing Services & Supplies
    • New language to require policy & procedures (vs. ensuring only) for purchasing services & supplies
    • Procedures for purchasing, receiving, & storing reagents and consumable materials
    • Documented evaluation of suppliers
management requirements2
Management Requirements
  • 5.4.9 - Control of Nonconforming Work (New in '02)
    • Implement policy & procedures when work does not conform to lab’s own procedures or to client’s requirements
    • Designate responsibilities & authorities for managing nonconforming work
    • Take actions immediately when nonconforming work is identified
control of nonconforming work 5 4 9 cont d

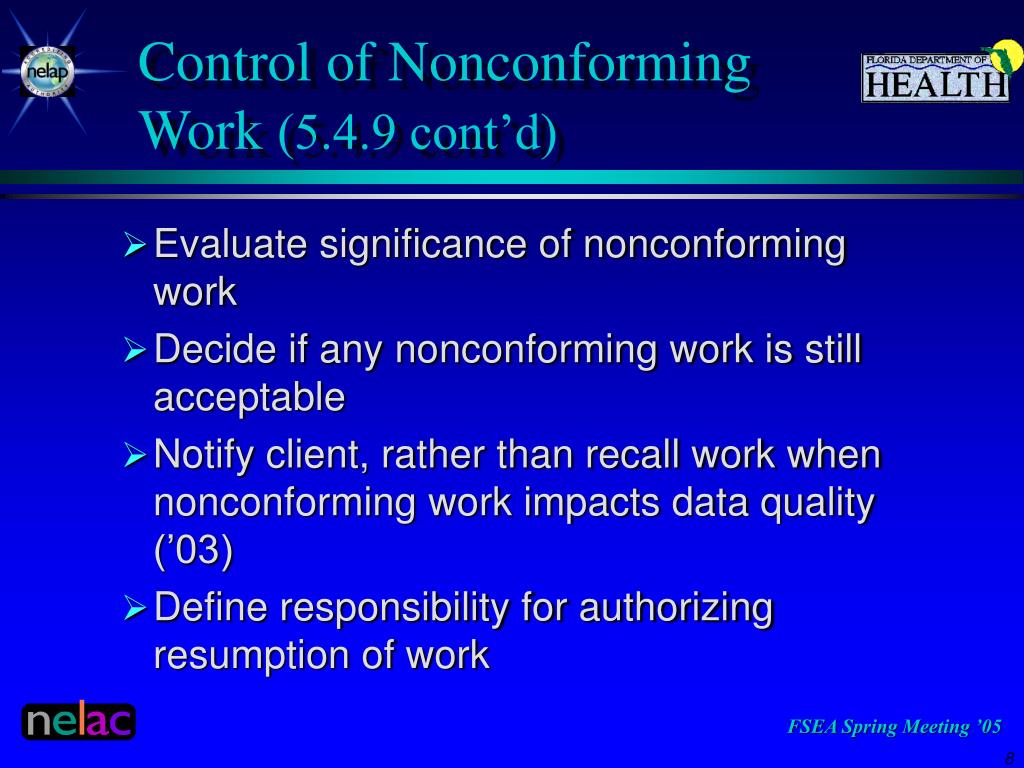

Control of NonconformingWork (5.4.9 cont’d)
  • Evaluate significance of nonconforming work
  • Decide if any nonconforming work is still acceptable
  • Notify client, rather than recall work when nonconforming work impacts data quality (’03)
  • Define responsibility for authorizing resumption of work

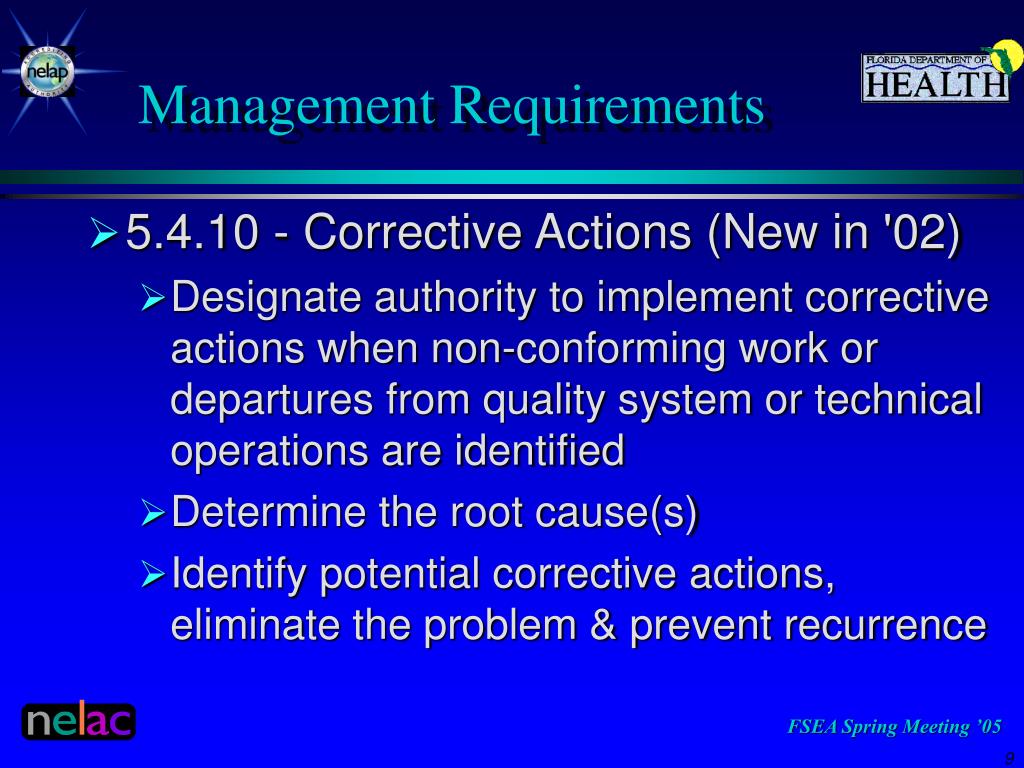

management requirements3
Management Requirements
  • 5.4.10 - Corrective Actions (New in '02)
    • Designate authority to implement corrective actions when non-conforming work or departures from quality system or technical operations are identified
    • Determine the root cause(s)
    • Identify potential corrective actions, eliminate the problem & prevent recurrence

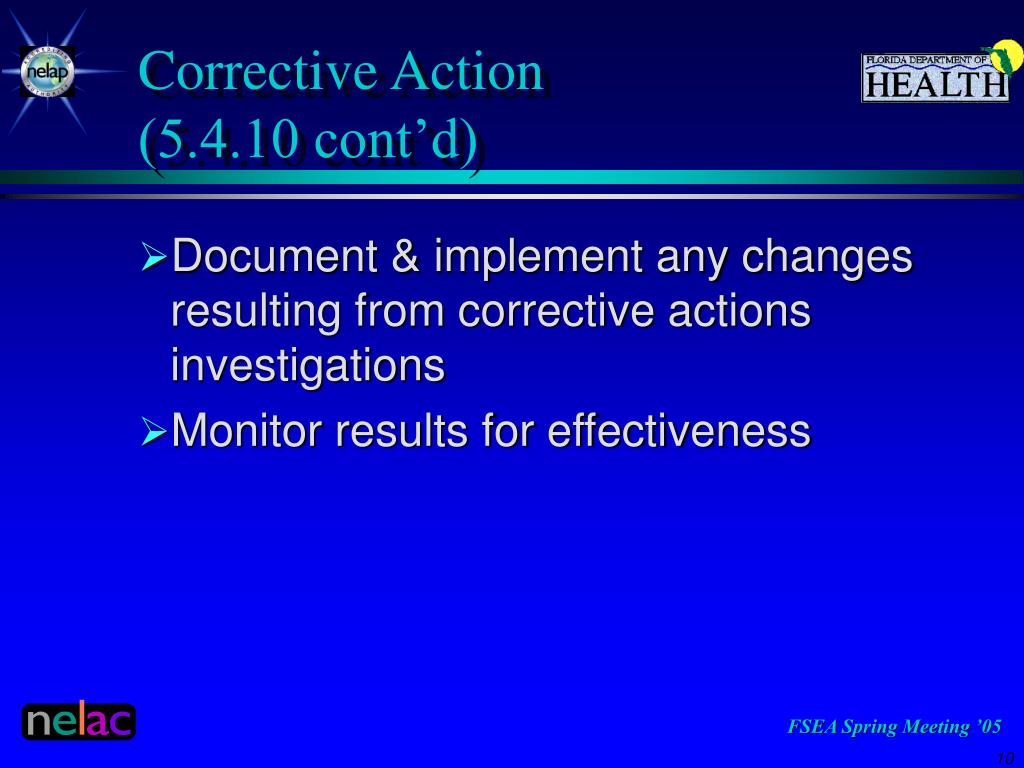

corrective action 5 4 10 cont d
Corrective Action(5.4.10 cont’d)
  • Document & implement any changes resulting from corrective actions investigations
  • Monitor results for effectiveness
management requirements4
Management Requirements
  • 5.4.11 - Preventive Action (New in '02)
    • Identify needed improvements & potential problems
    • Develop, implement, & monitor preventive action plans
    • Procedures include initiating such actions & applying controls to ensure effectiveness
management requirements5
Management Requirements
  • 5.4.12.2 - Technical Records - Retain records (for a defined period) of:
    • original observations
    • derived data
    • sufficient info to establish an audit trail
    • calibration records
    • staff records
    • copy of each test report

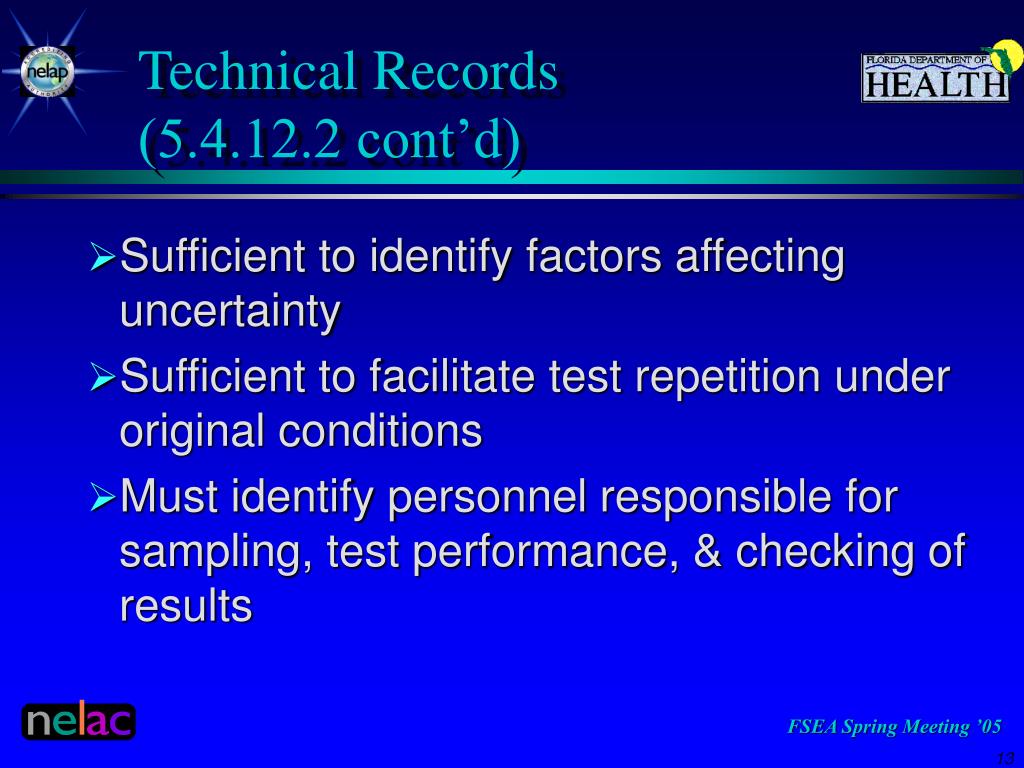

technical records 5 4 12 2 cont d
Technical Records(5.4.12.2 cont’d)
  • Sufficient to identify factors affecting uncertainty
  • Sufficient to facilitate test repetition under original conditions
  • Must identify personnel responsible for sampling, test performance, & checking of results
technical records 5 4 12 3
Technical Records (5.4.12.3)

Document reason for error correction if other than for a transcription error (’03)

management requirements6

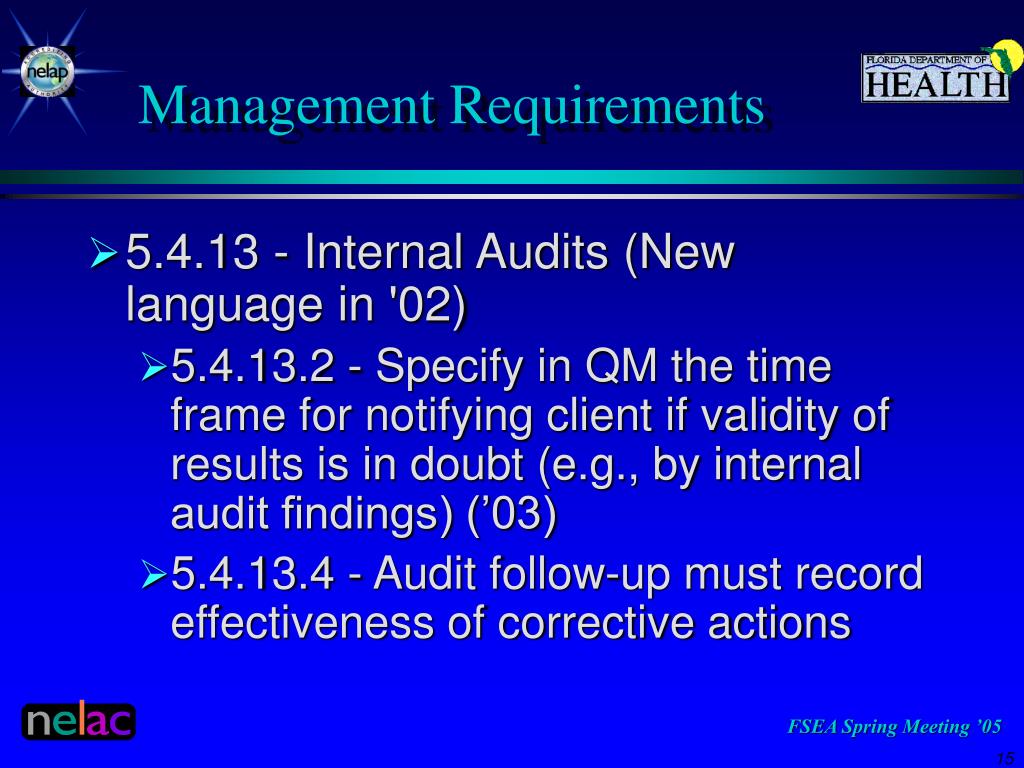

Management Requirements
  • 5.4.13 - Internal Audits (New language in '02)
    • 5.4.13.2 - Specify in QM the time frame for notifying client if validity of results is in doubt (e.g., by internal audit findings) (’03)
    • 5.4.13.4 - Audit follow-up must record effectiveness of corrective actions
technical requirements
Technical Requirements

5.5.2 - Personnel (New language in '02)

  • Goals for education, training, & skills
  • Policy & procedures for identifying training needs & providing training
  • Training program relevant to present & anticipated tasks
  • Employed or contracted
  • Ensure supervision, competence, & QS-compliant work
personnel

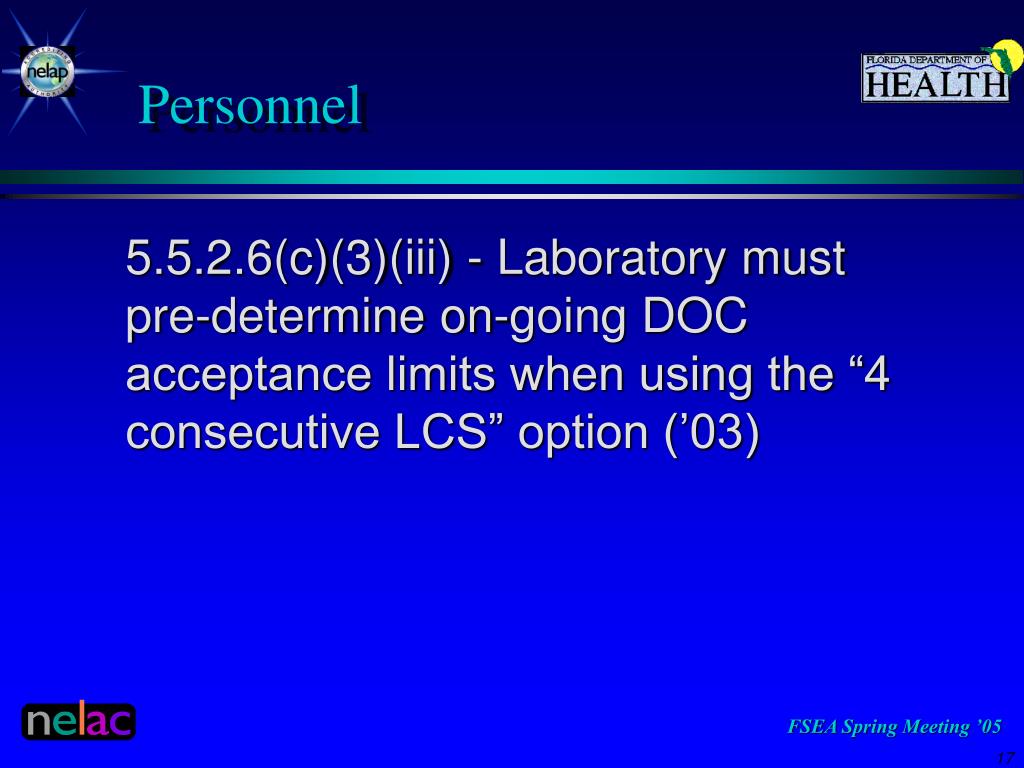

Personnel

5.5.2.6(c)(3)(iii) - Laboratory must pre-determine on-going DOC acceptance limits when using the “4 consecutive LCS” option (’03)

personnel1
Personnel

5.5.2.7 – Annual data integrity training

  • Organizational mission as related to honesty and full disclosure
  • Procedures
  • Documentation
  • Consequences
  • Management support
technical requirements1

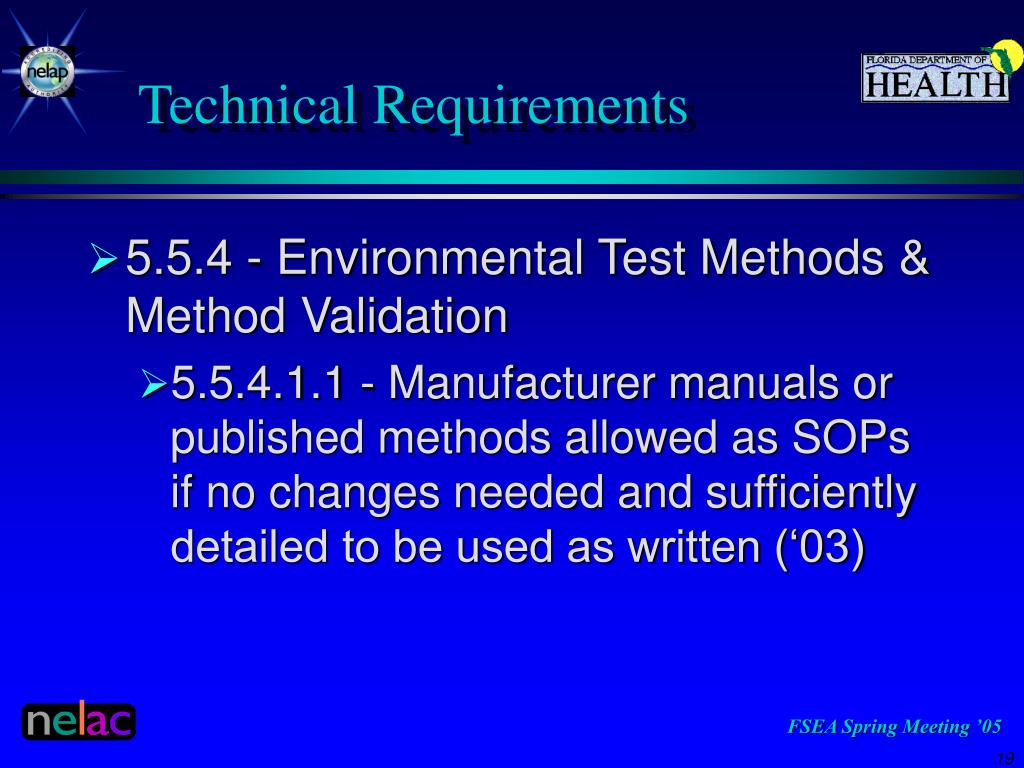

Technical Requirements
  • 5.5.4 - Environmental Test Methods & Method Validation
    • 5.5.4.1.1 - Manufacturer manuals or published methods allowed as SOPs if no changes needed and sufficiently detailed to be used as written (‘03)
test methods method validation
Test Methods &Method Validation
  • 5.5.4.2 - Selection of Methods
    • Preferentially use methods published in international, regional, or national standards
    • Use latest valid edition unless inappropriate or impossible
    • Supplement with additional details, when necessary, to ensure consistent application
    • Use any method specified by the client; inform client if this method is inappropriate or out-of-date

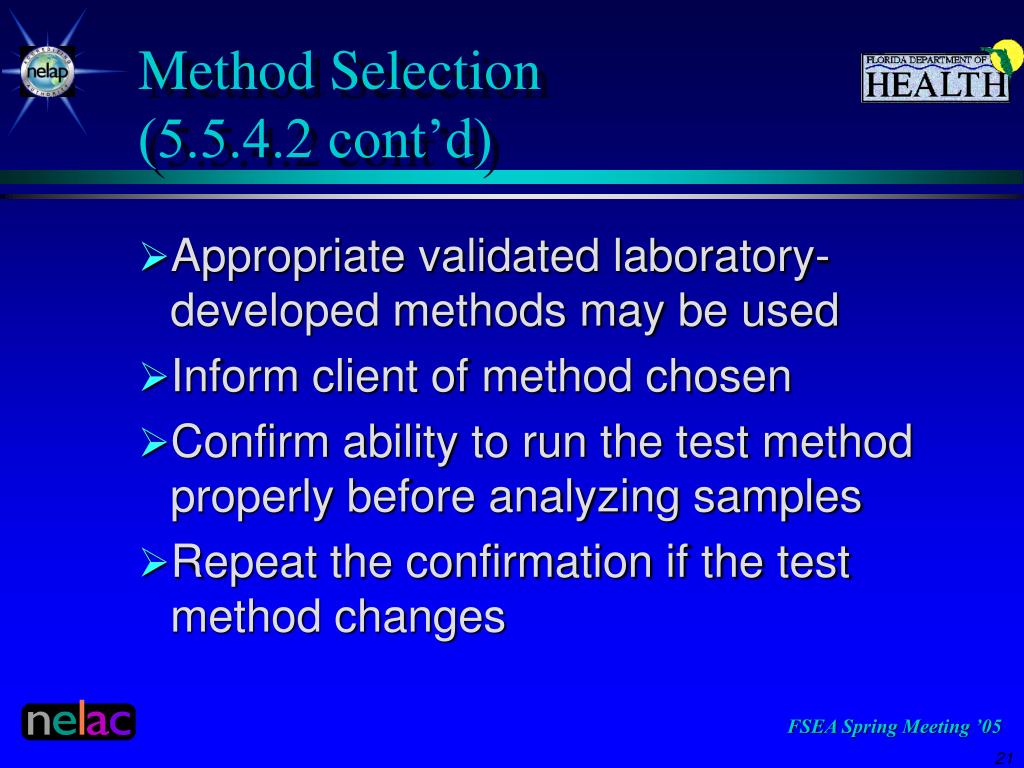

method selection 5 5 4 2 cont d
Method Selection(5.5.4.2 cont’d)
  • Appropriate validated laboratory-developed methods may be used
  • Inform client of method chosen
  • Confirm ability to run the test method properly before analyzing samples
  • Repeat the confirmation if the test method changes
test methods method validation1

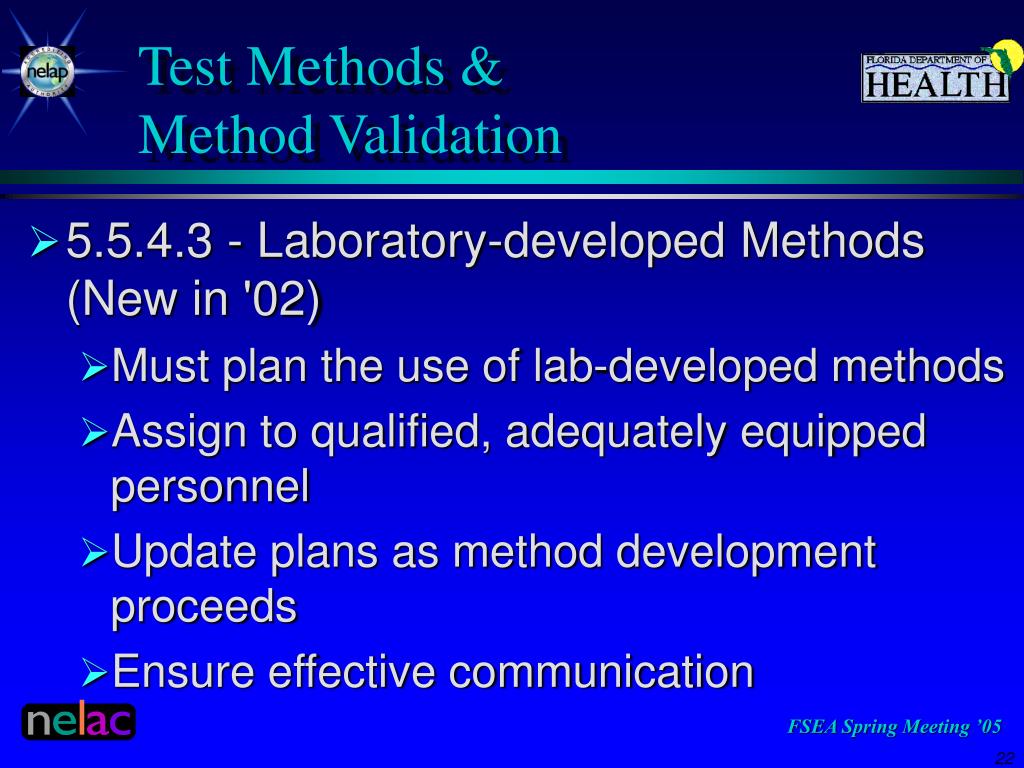

Test Methods &Method Validation
  • 5.5.4.3 - Laboratory-developed Methods (New in '02)
    • Must plan the use of lab-developed methods
    • Assign to qualified, adequately equipped personnel
    • Update plans as method development proceeds
    • Ensure effective communication

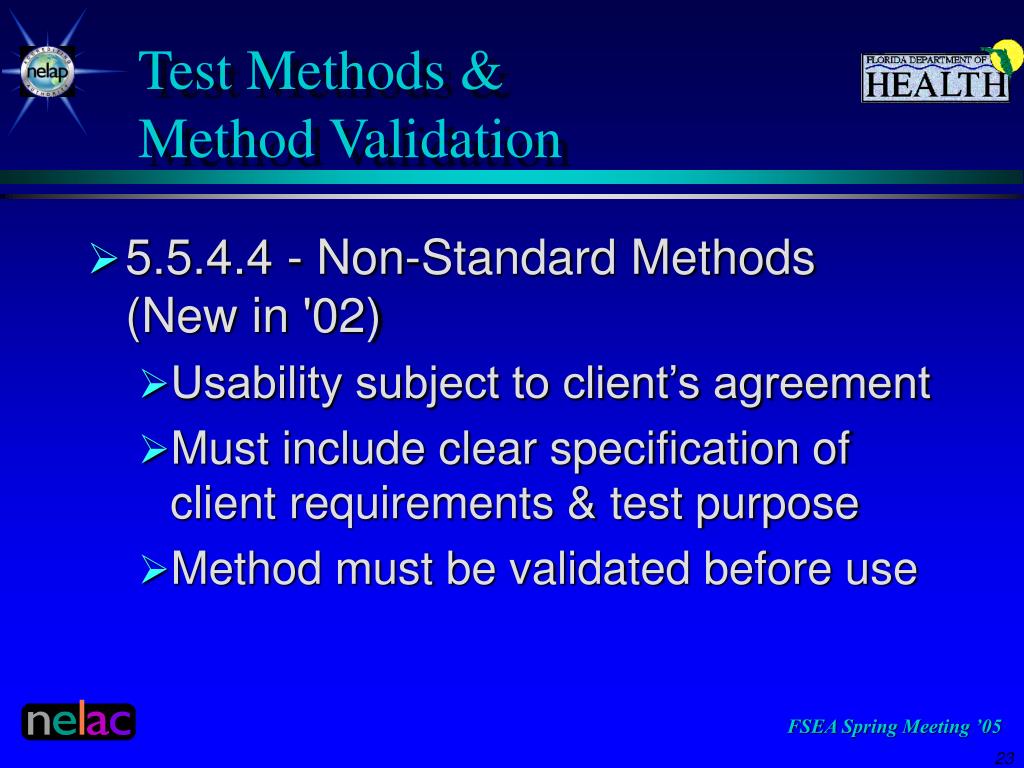

test methods method validation2
Test Methods &Method Validation
  • 5.5.4.4 - Non-Standard Methods (New in '02)
    • Usability subject to client’s agreement
    • Must include clear specification of client requirements & test purpose
    • Method must be validated before use
test methods method validation3

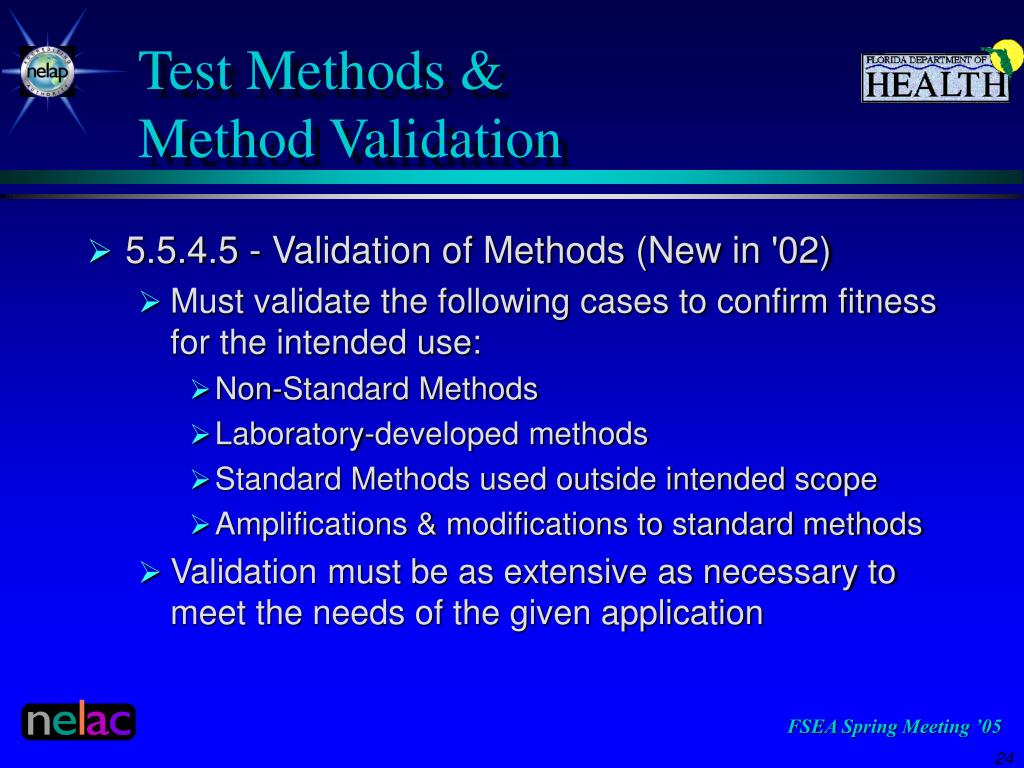

Test Methods &Method Validation
  • 5.5.4.5 - Validation of Methods (New in '02)
    • Must validate the following cases to confirm fitness for the intended use:
      • Non-Standard Methods
      • Laboratory-developed methods
      • Standard Methods used outside intended scope
      • Amplifications & modifications to standard methods
    • Validation must be as extensive as necessary to meet the needs of the given application
validation of methods 5 5 4 5 cont d
Validation of Methods(5.5.4.5 cont’d)
  • Record validation procedures used, results obtained, & statement as to whether the test method is fit for the intended use (Appendix C.3 requirements at a minimum (’03))
  • Range & accuracy of values must be relevant to the client’s needs
test methods method validation4
Test Methods &Method Validation
  • 5.5.4.6 - Estimation of Uncertainty of Measurement (New in '02)
    • Laboratory must apply procedures for estimating uncertainty of measurement
    • If actual calculations of uncertainty cannot be done, attempt to identify all components of uncertainty & make a reasonable estimate based on performance, scope, experience, & validation data
measurement uncertainty estimates 5 5 4 6 cont d

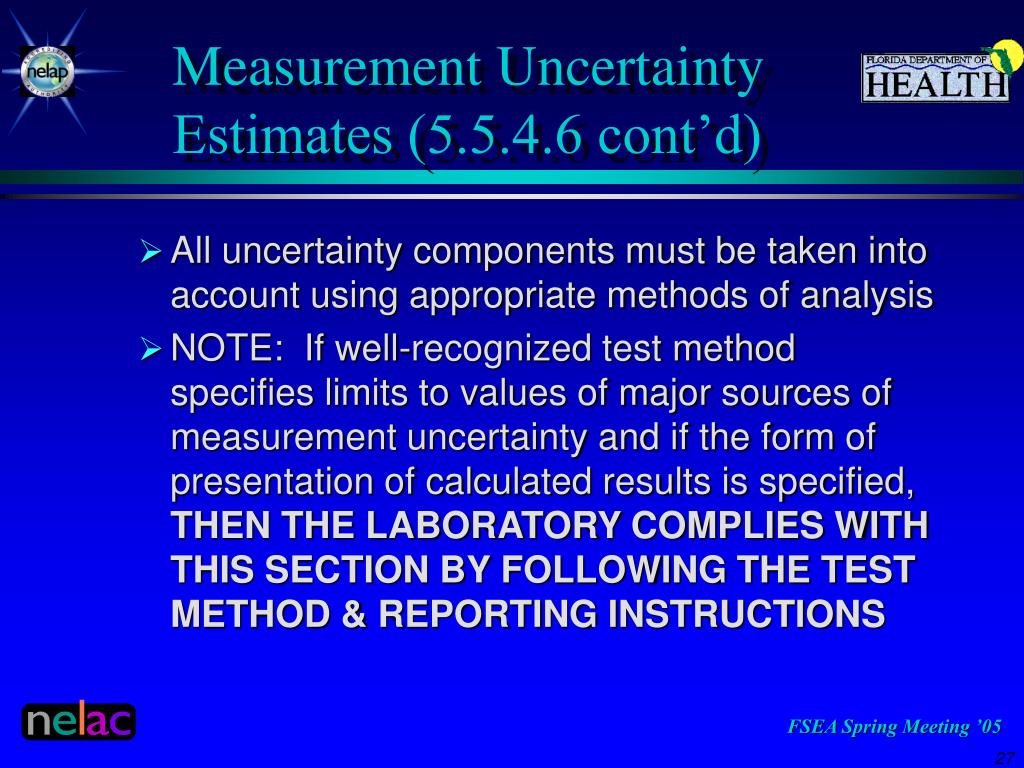

Measurement UncertaintyEstimates (5.5.4.6 cont’d)
  • All uncertainty components must be taken into account using appropriate methods of analysis
  • NOTE: If well-recognized test method specifies limits to values of major sources of measurement uncertainty and if the form of presentation of calculated results is specified, THEN THE LABORATORY COMPLIES WITH THIS SECTION BY FOLLOWING THE TEST METHOD & REPORTING INSTRUCTIONS

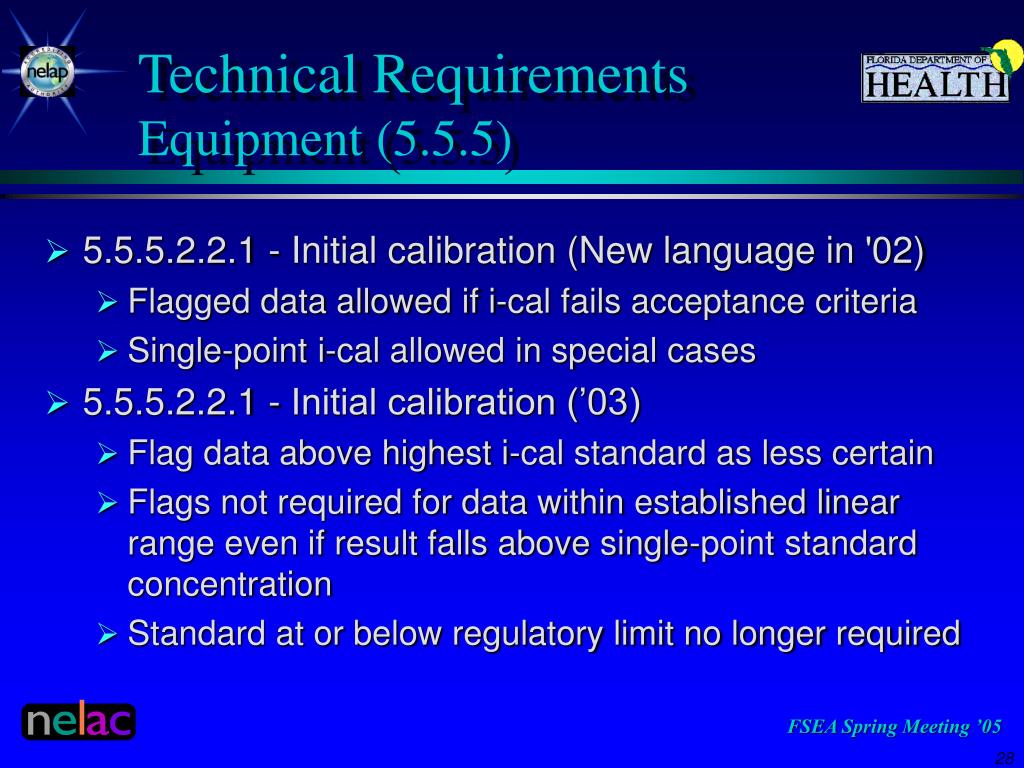

technical requirements equipment 5 5 5
Technical RequirementsEquipment (5.5.5)
  • 5.5.5.2.2.1 - Initial calibration (New language in '02)
    • Flagged data allowed if i-cal fails acceptance criteria
    • Single-point i-cal allowed in special cases
  • 5.5.5.2.2.1 - Initial calibration (’03)
    • Flag data above highest i-cal standard as less certain
    • Flags not required for data within established linear range even if result falls above single-point standard concentration
    • Standard at or below regulatory limit no longer required
equipment 5 5 5 cont d
Equipment (5.5.5 cont’d)
  • 5.5.5.4 - Uniquely identify each item of equipment & software used for testing & significant to the result
  • 5.5.5.5 - Logs include checks for compliance with specifications, location (’03), but not necessarily future maintenance (’03)
  • 5.5.5.6 - Procedures for safe handling, transport, storage, use, & planned maintenance of equipment

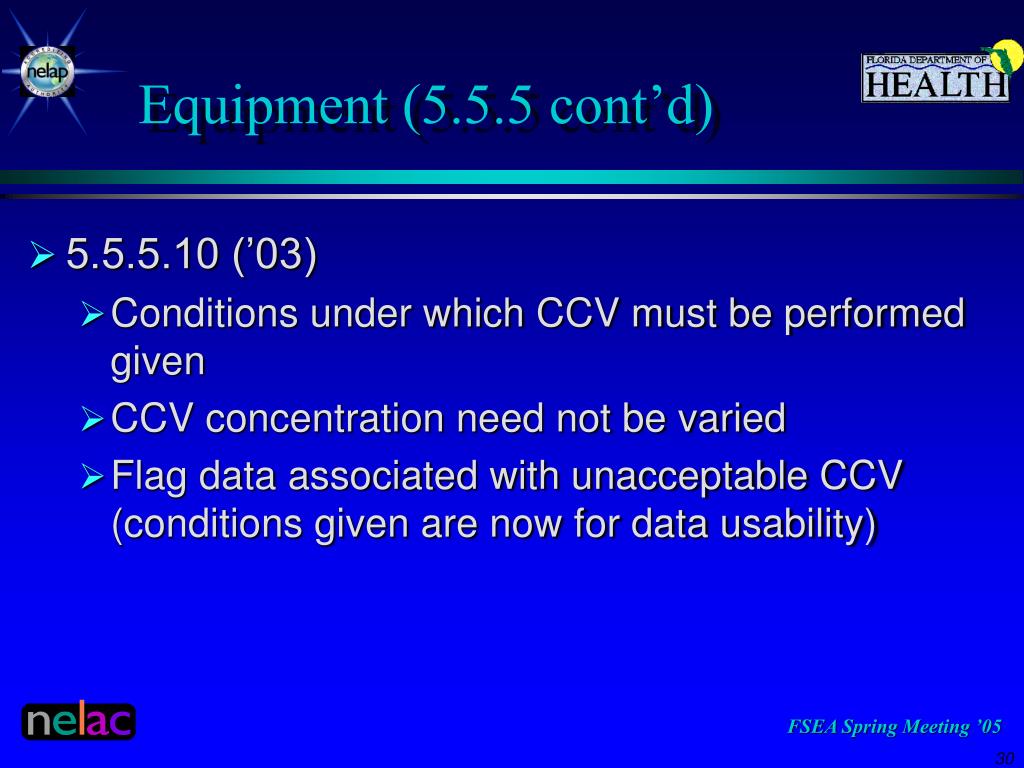

equipment 5 5 5 cont d1
Equipment (5.5.5 cont’d)
  • 5.5.5.10 (’03)
    • Conditions under which CCV must be performed given
    • CCV concentration need not be varied
    • Flag data associated with unacceptable CCV (conditions given are now for data usability)

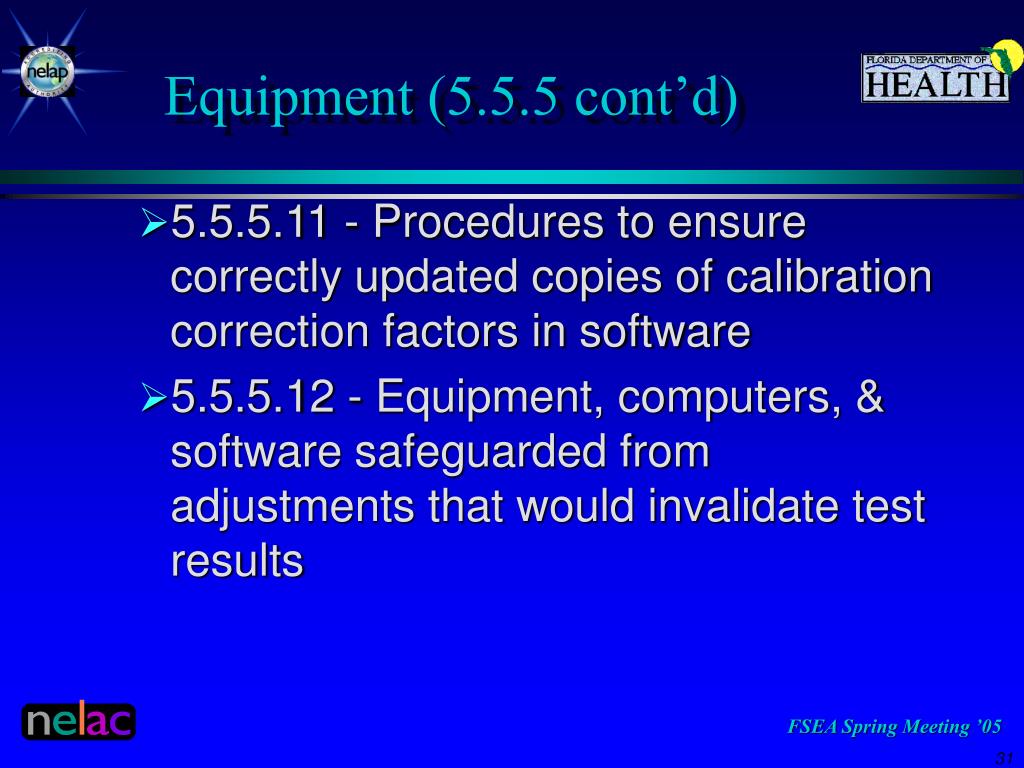

equipment 5 5 5 cont d2
Equipment (5.5.5 cont’d)
  • 5.5.5.11 - Procedures to ensure correctly updated copies of calibration correction factors in software
  • 5.5.5.12 - Equipment, computers, & software safeguarded from adjustments that would invalidate test results

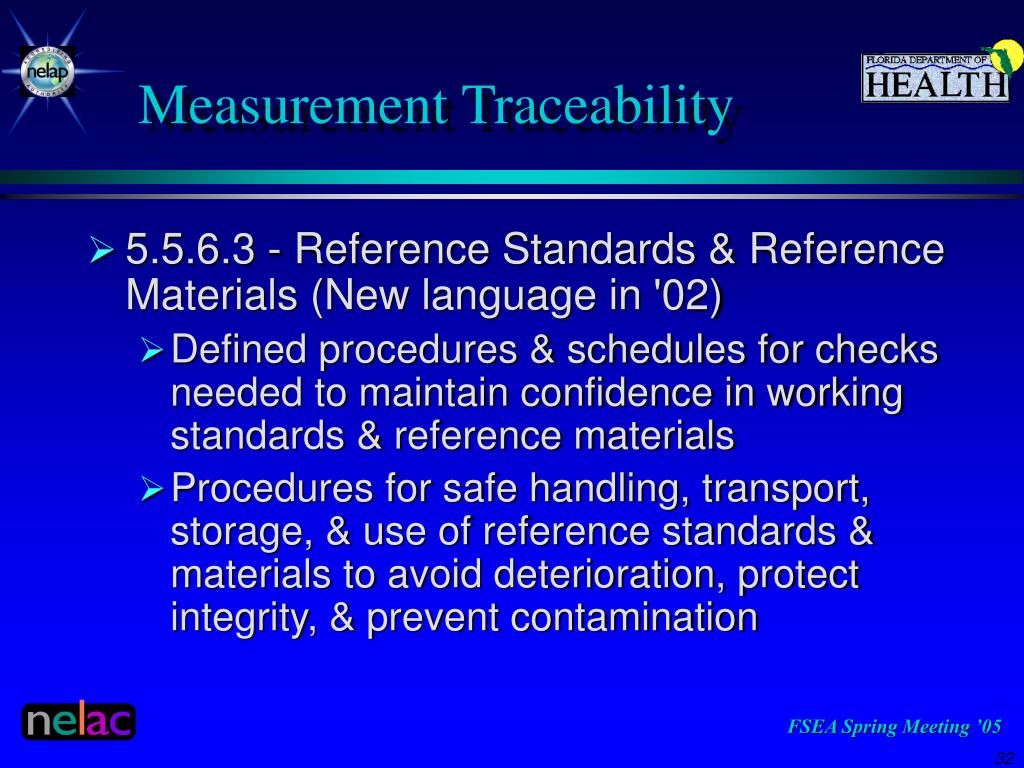

measurement traceability
Measurement Traceability
  • 5.5.6.3 - Reference Standards & Reference Materials (New language in '02)
    • Defined procedures & schedules for checks needed to maintain confidence in working standards & reference materials
    • Procedures for safe handling, transport, storage, & use of reference standards & materials to avoid deterioration, protect integrity, & prevent contamination

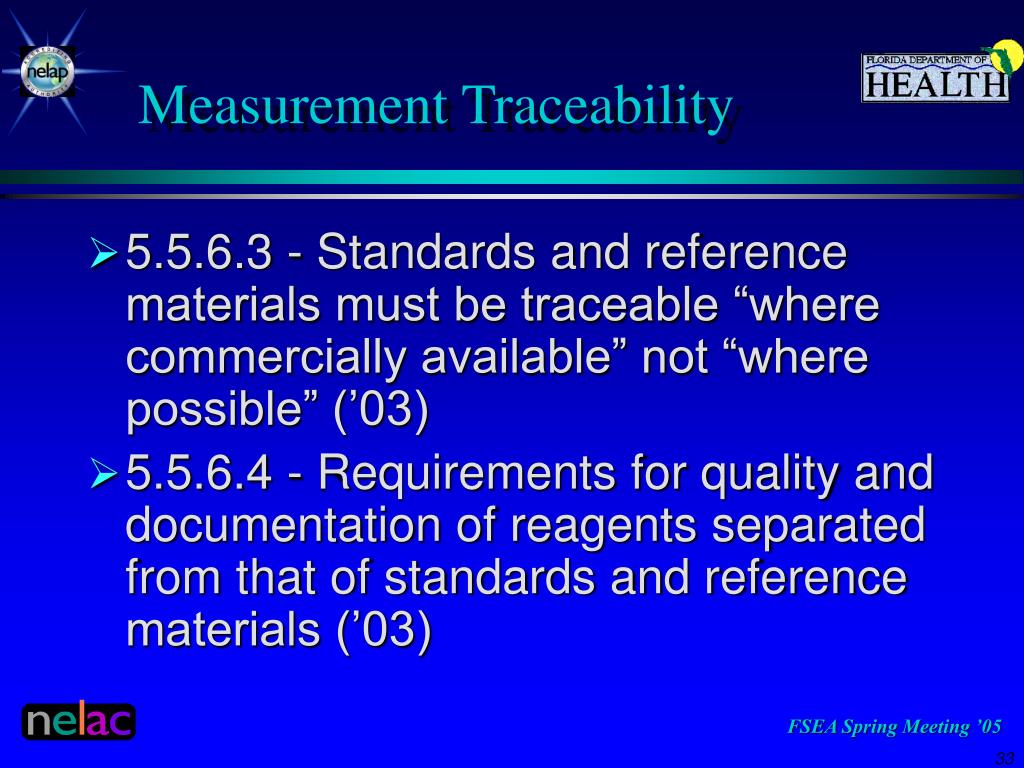

measurement traceability1
Measurement Traceability
  • 5.5.6.3 - Standards and reference materials must be traceable “where commercially available” not “where possible” (’03)
  • 5.5.6.4 - Requirements for quality and documentation of reagents separated from that of standards and reference materials (’03)
technical requirements2
Technical Requirements
  • 5.5.8 - Handling of Samples (New language in '02)
    • Procedures for transport, storage, receipt, handling, protection, retention, & disposal of samples
    • Procedures have all provisions necessary to protect sample integrity & protect interests of the laboratory & client
handling of samples 5 5 8 cont d

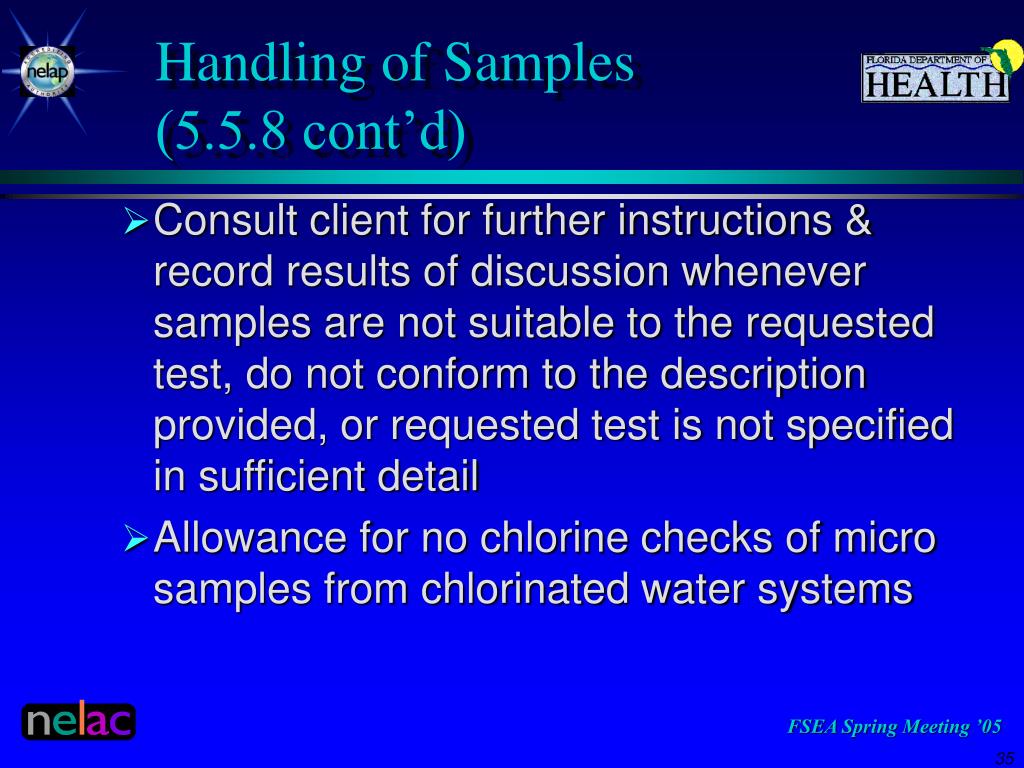

Handling of Samples(5.5.8 cont’d)
  • Consult client for further instructions & record results of discussion whenever samples are not suitable to the requested test, do not conform to the description provided, or requested test is not specified in sufficient detail
  • Allowance for no chlorine checks of micro samples from chlorinated water systems
technical requirements3

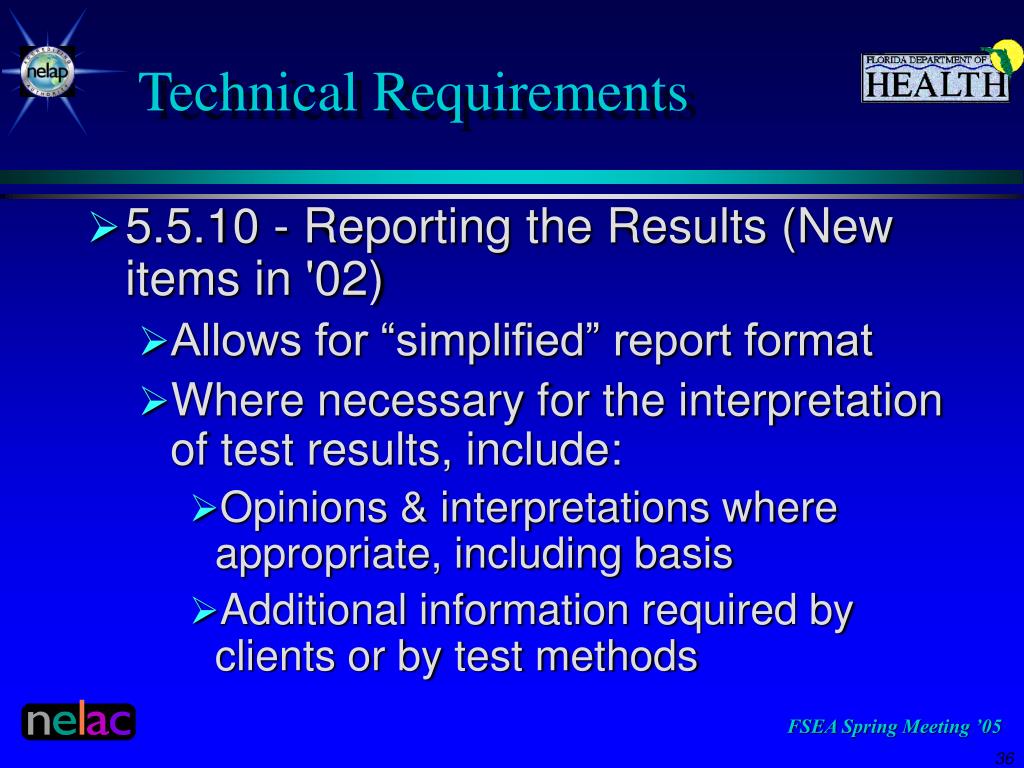

Technical Requirements
  • 5.5.10 - Reporting the Results (New items in '02)
    • Allows for “simplified” report format
    • Where necessary for the interpretation of test results, include:
      • Opinions & interpretations where appropriate, including basis
      • Additional information required by clients or by test methods

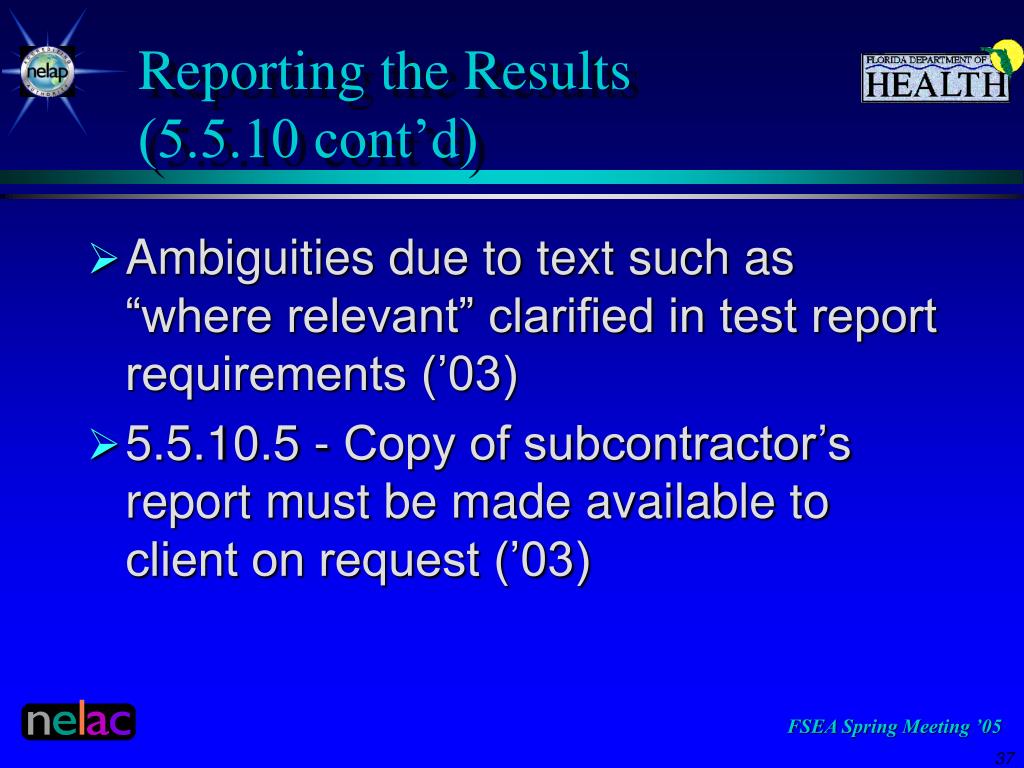

reporting the results 5 5 10 cont d
Reporting the Results(5.5.10 cont’d)
  • Ambiguities due to text such as “where relevant” clarified in test report requirements (’03)
  • 5.5.10.5 - Copy of subcontractor’s report must be made available to client on request (’03)
appendices

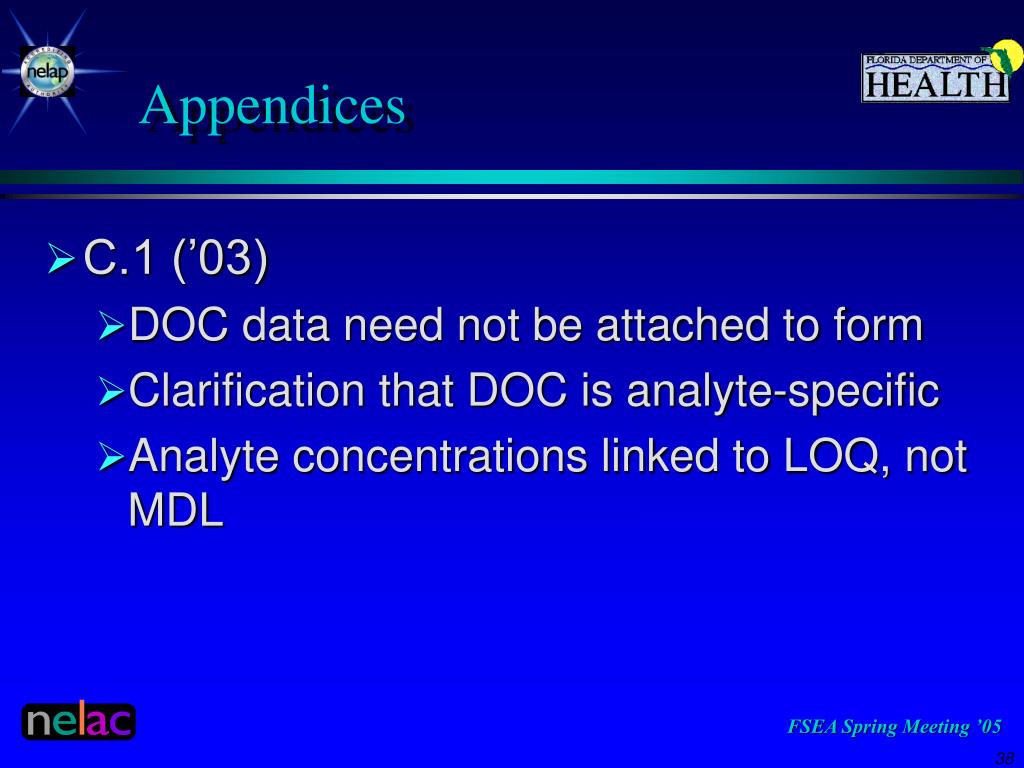

Appendices
  • C.1 (’03)
    • DOC data need not be attached to form
    • Clarification that DOC is analyte-specific
    • Analyte concentrations linked to LOQ, not MDL

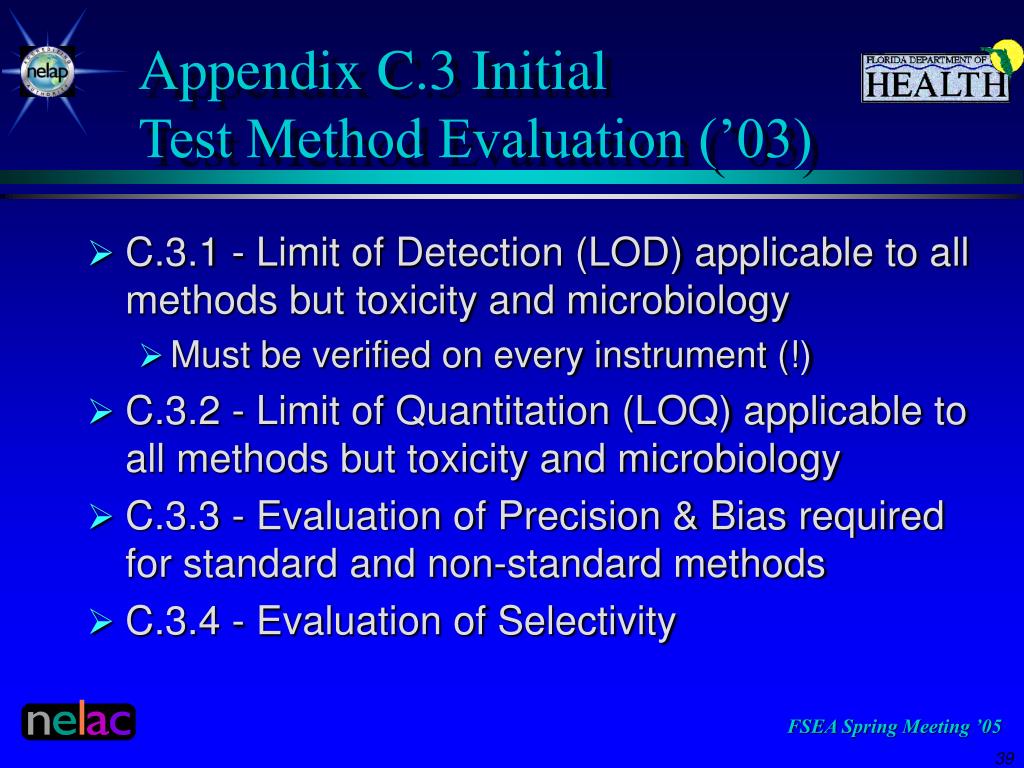

appendix c 3 initial test method evaluation 03
Appendix C.3 InitialTest Method Evaluation (’03)
  • C.3.1 - Limit of Detection (LOD) applicable to all methods but toxicity and microbiology
    • Must be verified on every instrument (!)
  • C.3.2 - Limit of Quantitation (LOQ) applicable to all methods but toxicity and microbiology
  • C.3.3 - Evaluation of Precision & Bias required for standard and non-standard methods
  • C.3.4 - Evaluation of Selectivity
appendix d 03
Appendix D (’03)
  • D.1.1.1 - Documented corrective action required for contaminated blanks
  • D.1.1.2.1
    • LCS is a “quality system” matrix
    • New section on LCS acceptance specs
appendix d cont d
Appendix D (cont’d)
  • D.1.2.1 - LOD
    • Requirement to include all processing steps moved to C.3
    • Not required if no results are reported outside calibration range (Required nonetheless by FDEP, with exceptions)
    • Verify LOD annually for each FOA by procedure in C.3 on every instrument to be used for analysis and reporting

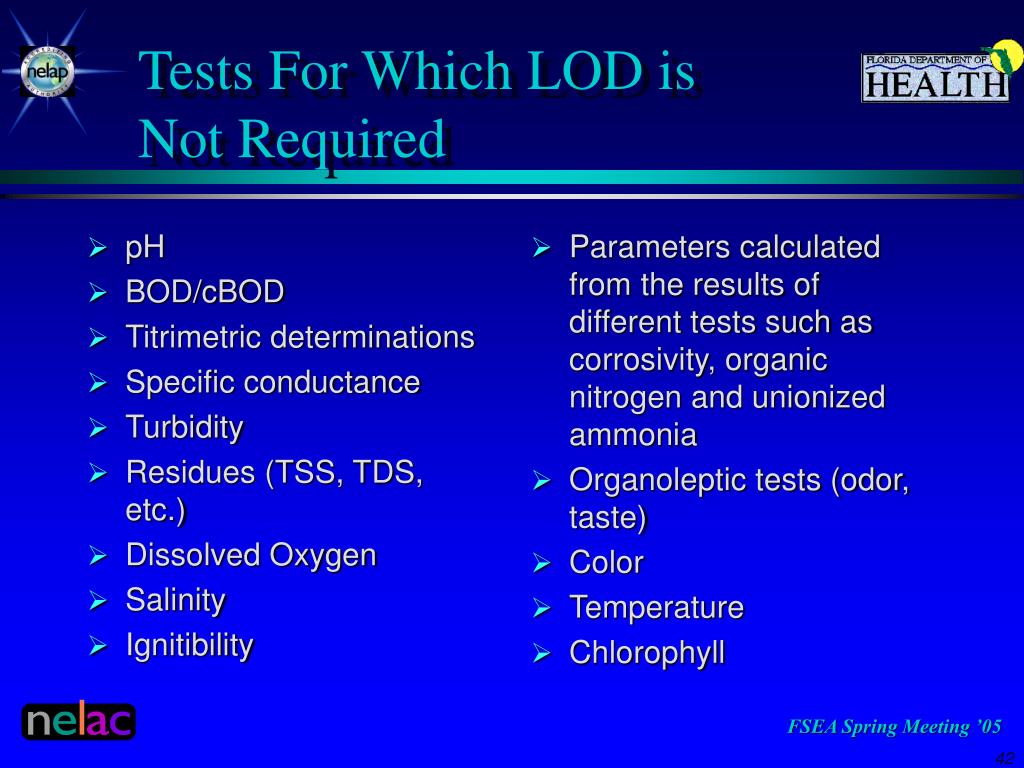

tests for which lod is not required
pH

BOD/cBOD

Titrimetric determinations

Specific conductance

Turbidity

Residues (TSS, TDS, etc.)

Dissolved Oxygen

Salinity

Ignitibility

Parameters calculated from the results of different tests such as corrosivity, organic nitrogen and unionized ammonia

Organoleptic tests (odor, taste)

Color

Temperature

Chlorophyll

Tests For Which LOD isNot Required
appendix d cont d1
Appendix D (cont’d)
  • D.1.2.2
    • LOQ must be above LOD
    • Verify LOQ annually unless LOD is verified
  • D.1.5 - Retention time windows replaced with general selectivity evaluation
appendices1
Appendices
  • D.3 Microbiology Testing
    • D.3.1 Filtration sterility checks specified
    • D.3.6 Laboratory allowed to make media from basic ingredients if better than commercial
  • D.5.4 - Air LOD specs replaced with section D.1.2.1
improvements and reminders technical director 4 1 1 1

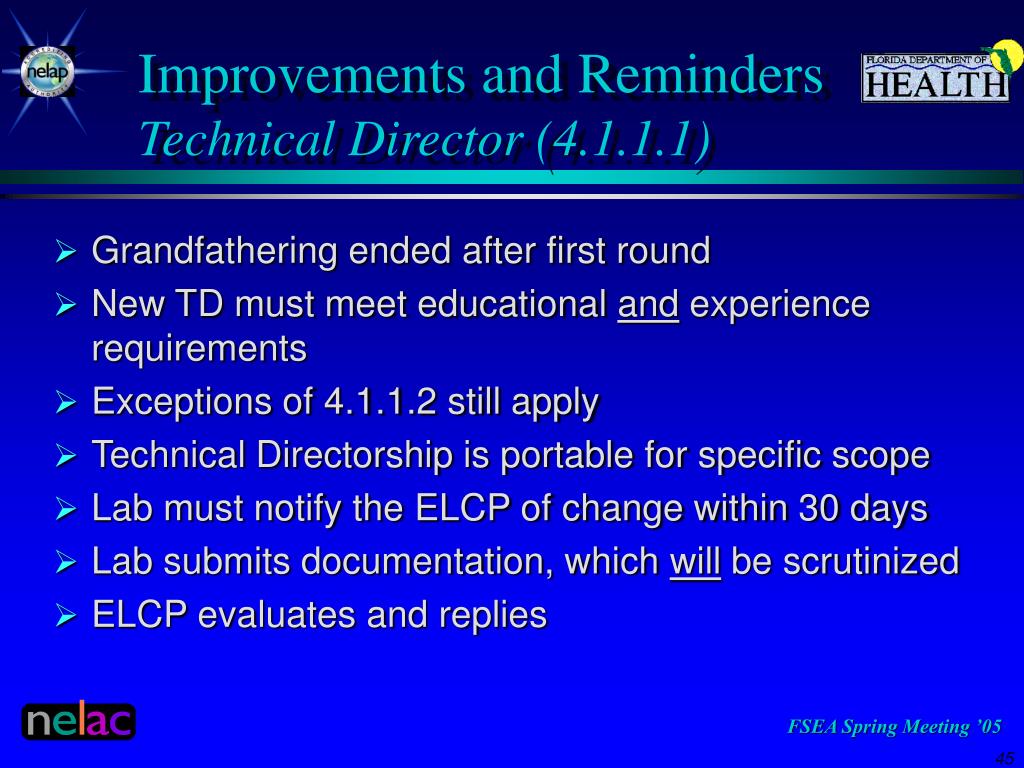

Improvements and RemindersTechnical Director (4.1.1.1)
  • Grandfathering ended after first round
  • New TD must meet educational and experience requirements
  • Exceptions of 4.1.1.2 still apply
  • Technical Directorship is portable for specific scope
  • Lab must notify the ELCP of change within 30 days
  • Lab submits documentation, which will be scrutinized
  • ELCP evaluates and replies
improvements and reminders on going doc 5 5 2 6 c
Improvements and Reminders“On-going DOC (5.5.2.6(c))”

Analyst training files must contain documentation of:

  • Technical training courses
  • Using latest version of quality documentation and test method
  • Continued proficiency

Appendix C certificate unnecessary

improvements and reminders latest version of the test method 5 5 4 2 1

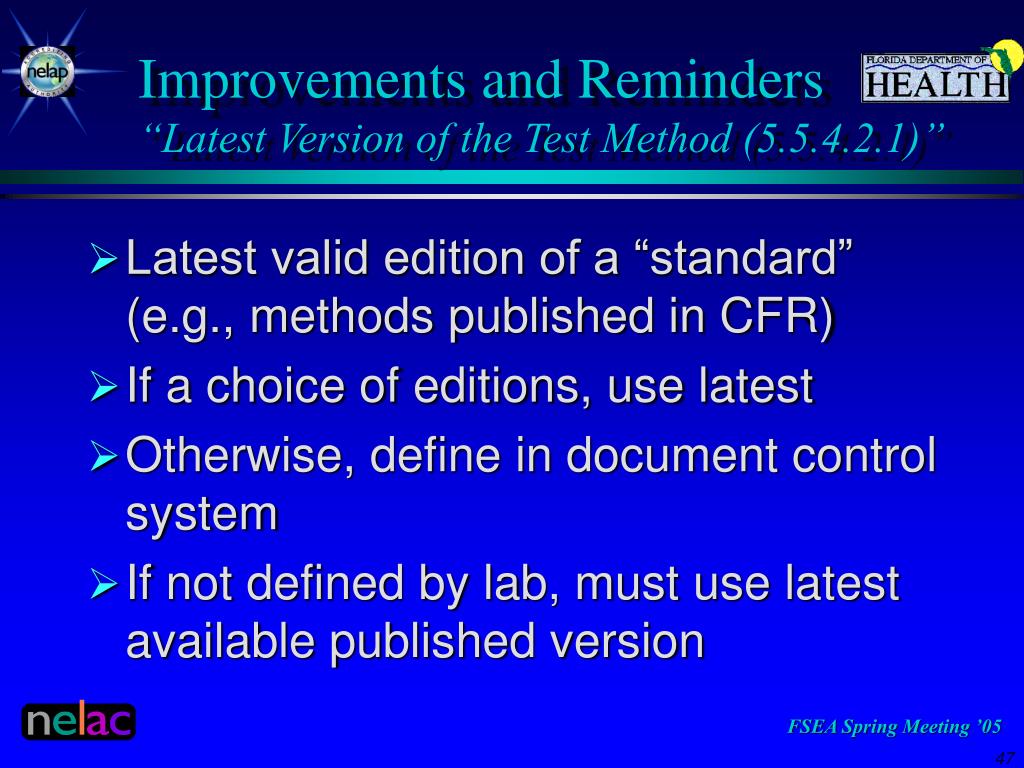

Improvements and Reminders“Latest Version of the Test Method (5.5.4.2.1)”
  • Latest valid edition of a “standard” (e.g., methods published in CFR)
  • If a choice of editions, use latest
  • Otherwise, define in document control system
  • If not defined by lab, must use latest available published version
improvements and reminders proficiency testing frequency

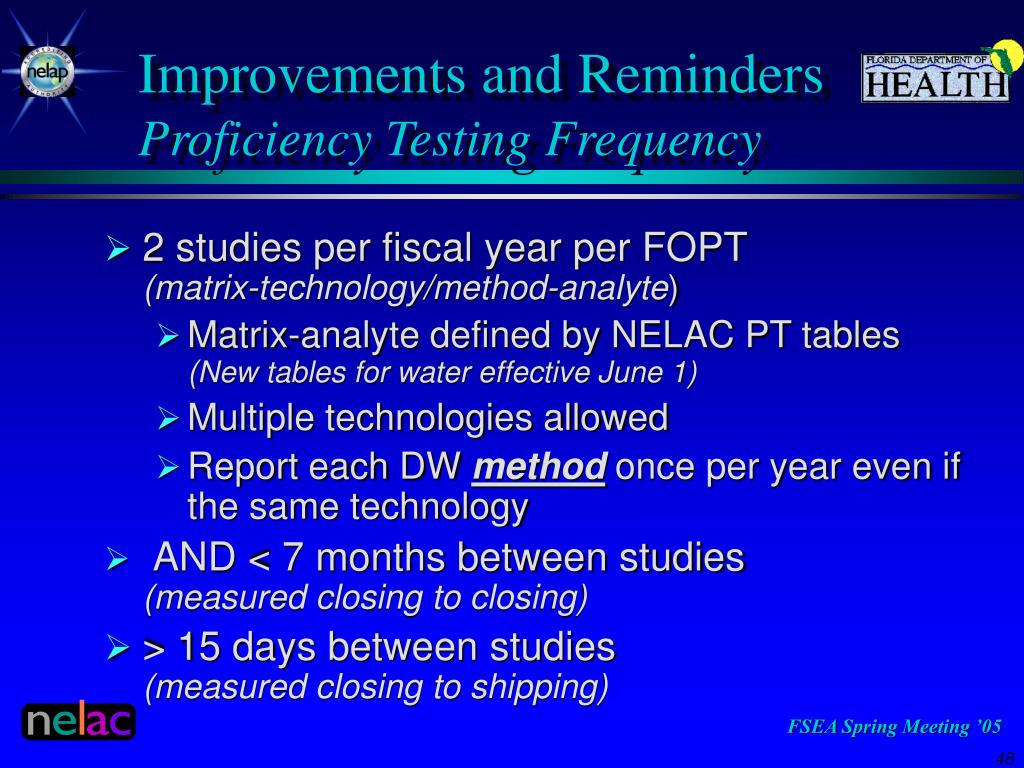

Improvements and RemindersProficiency Testing Frequency
  • 2 studies per fiscal year per FOPT(matrix-technology/method-analyte)
    • Matrix-analyte defined by NELAC PT tables(New tables for water effective June 1)
    • Multiple technologies allowed
    • Report each DW method once per year even if the same technology
  • AND < 7 months between studies(measured closing to closing)
  • > 15 days between studies(measured closing to shipping)
improvements and reminders proficiency testing types
Improvements and RemindersProficiency Testing Types
  • “Regular” studies required for routine bi-annual testing
  • “Supplemental” studies allowed only for remedial action or expansionof scope
improvements and reminders proficiency testing performance
Improvements and RemindersProficiency Testing Performance
  • Passing 2 of the latest 3 attempts is acceptable
  • Non-participation within 7 months counts as a failure
  • Run PTs like samples (or, if preferred, run samples like PTs)
improvements and reminders proficiency testing reporting
Improvements and RemindersProficiency Testing Reporting
  • Report the correct method identifier
  • Prior to study closing, designate DOH to receive the final report
  • Unless the fault of the provider, reports cannot be changed after the results are released
web stuff
Web Stuff

Application, Rules, Checklists http://www.dep.state.fl.us/labs/qa/dohforms.htmInformation on Certified Laboratorieshttp://www.dep.state.fl.us/labs/cgi-bin/aams/index.aspNELAC Standards, PT Tableshttp://www.epa.gov/nerlesd1/land-sci/nelac/index.htmlsteve_arms@doh.state.fl.us904-791-1502
