Motion planning

Motion Planning

MajdSrour


Definition
Definition

  • Motion planning refers to the computational process of moving from one place to another in the presence of obstacles.


Work space
Work space

  • The physical space in which the robot of finite-size. – Real world


Configuration space only translation
Configuration Space (Only translation)

  • The configuration space is a transformation from the physical space in which the robot is of finite-size into another space in which the robot is treated as a point.

  • The configuration space is obtained by shrinking the robot to a point, while growing the obstacles by the size of the robot.


Work space vs configuration space
Work space vs Configuration space


Free space
Free Space

  • The free space of a configuration space simply consists of the areas not occupied by obstacles.  Any configuration within this space is called a free configuration.


Free path
Free Path

  • The free path between an initial configuration and a goal configuration is the path which lies completely in free space and does not come into contact with any obstacles.


Motion planning1
Motion Planning

  • Problems (from easy to hard) :

    • Completely knownstatic Obstacles

    • Completely known dynamic Obstacles

    • Partially Known static Obstacles

    • Partially Known dynamic Obstacles


Roadmap approach
Roadmap Approach

  • Visibility Graph

  • Voronoi method

  • Cell Decomposition


Visibility graph

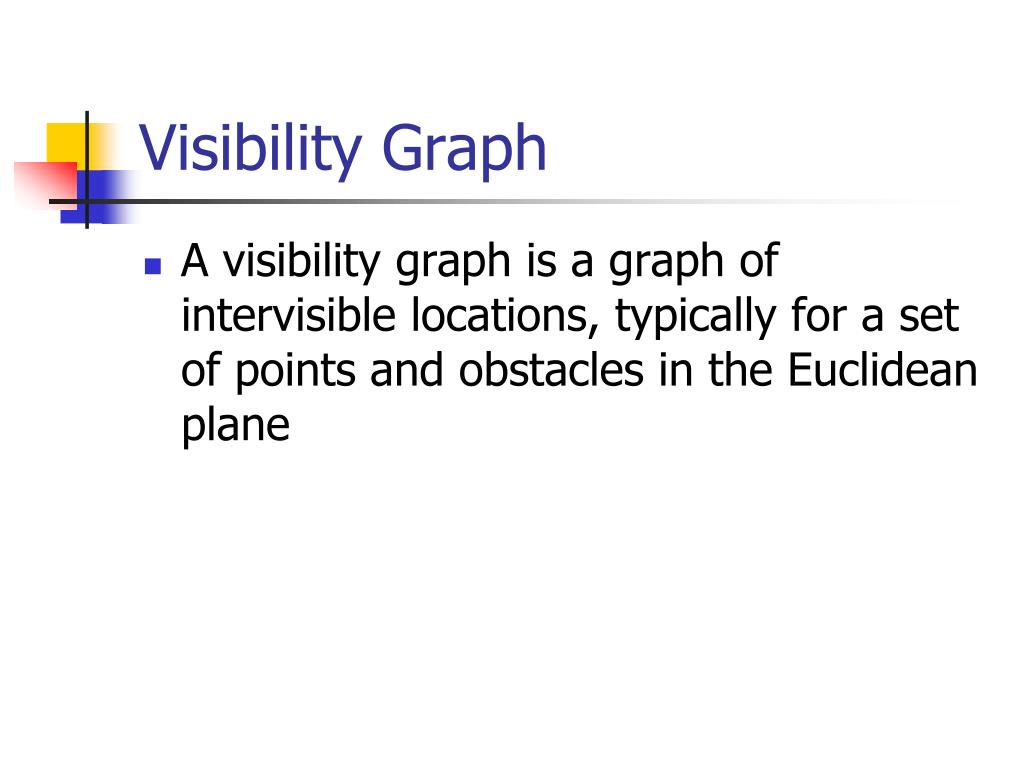

Visibility Graph

  • A visibility graph is a graph of intervisible locations, typically for a set of points and obstacles in the Euclidean plane


Visibility graph1
Visibility Graph

  • Given a set S of disjoint (open) polygons..


Visibility graph2
Visibility Graph

  • Let V(S) be the vertex of S


Visibility graph3
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.


Visibility graph4
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph5
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph6
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph7
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph8
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph9
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph10
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph11
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph12
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph13
Visibility Graph

  • Let V(S) be the vertex of S

  • Letbe the visibility graph of S.

  • Where:


Visibility graph14
Visibility Graph

  • Corollary: The shortest path between P_start and P_goal corresponds to a shortest path in


Finding the shortest path
Finding the shortest path

  • We’ll use Dijkstra algorithm in order to find the shortest path in G

  • For each

  • return


Dijkstra
Dijkstra

  • Assign to every node a distance value of infinity, and to the first node 0

  • Mark all nodes as unvisited, set initial node as current

  • For current node, consider all of its unvisited neighbors and calculate their tentative distances

  • When we are done considering all of the neighbors of the current node, mark the current node as visited and remove it from the unvisited set. A visited node will never be checked again; its distance recorded now is final and minimal.

  • If the destination node has been marked visited then stop.

  • Set the unvisited node marked with the smallest tentative distance as the next "current node" and go back to step 3.


Example
Example

  • Find shortest path from a to z

  • http://www.youtube.com/watch?v=UG7VmPWkJmA
