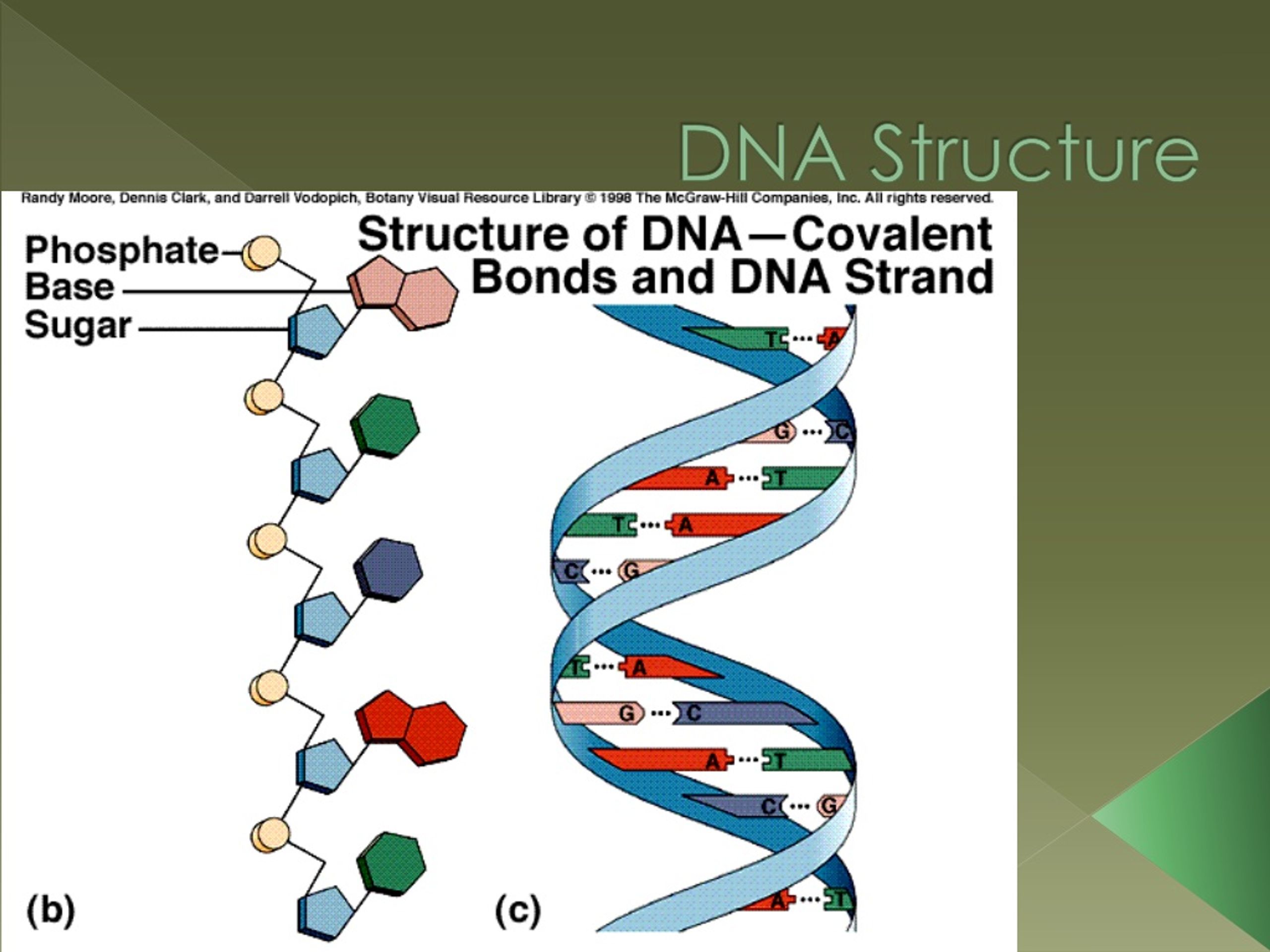

  1. DNA Structure

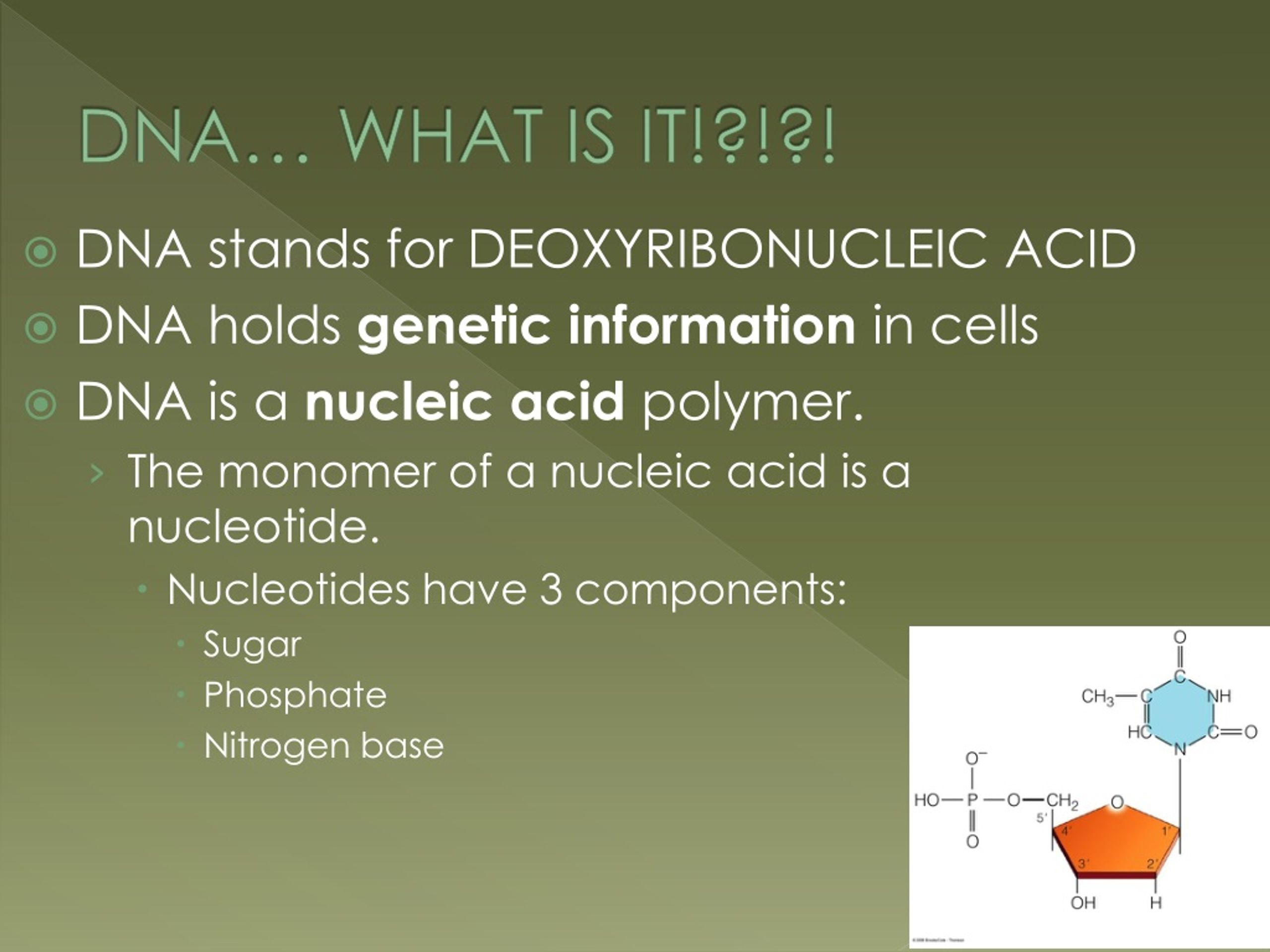

  2. DNA… WHAT IS IT!?!?! • DNA stands for DEOXYRIBONUCLEIC ACID • DNA holds genetic information in cells • DNA is a nucleic acid polymer. • The monomer of a nucleic acid is a nucleotide. • Nucleotides have 3 components: • Sugar • Phosphate • Nitrogen base

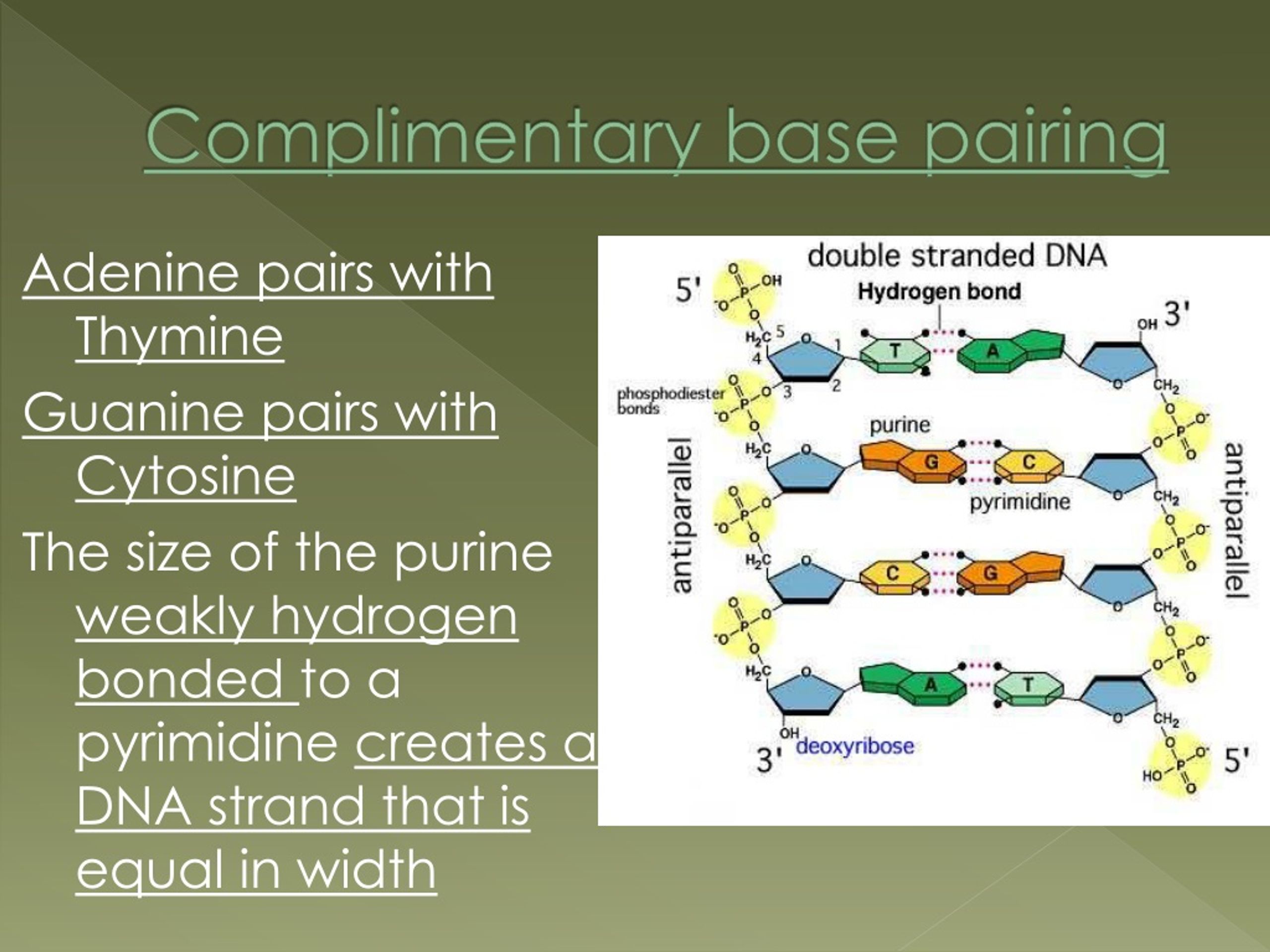

  3. Complimentary base pairing Adenine pairs with Thymine Guanine pairs with Cytosine The size of the purine weakly hydrogen bonded to a pyrimidine creates a DNA strand that is equal in width

  4. Complimentary base pairing continued • The opposite arrangement of the nucleotides gives the DNA strands direction and allows for the antiparallel orientation.

  5. Complimentary base pairing continued • The covalent bond between the sugar and phosphate gives the DNA two STRONG backbones  Get out your nucleotide…number the carbons on your nucleotide now

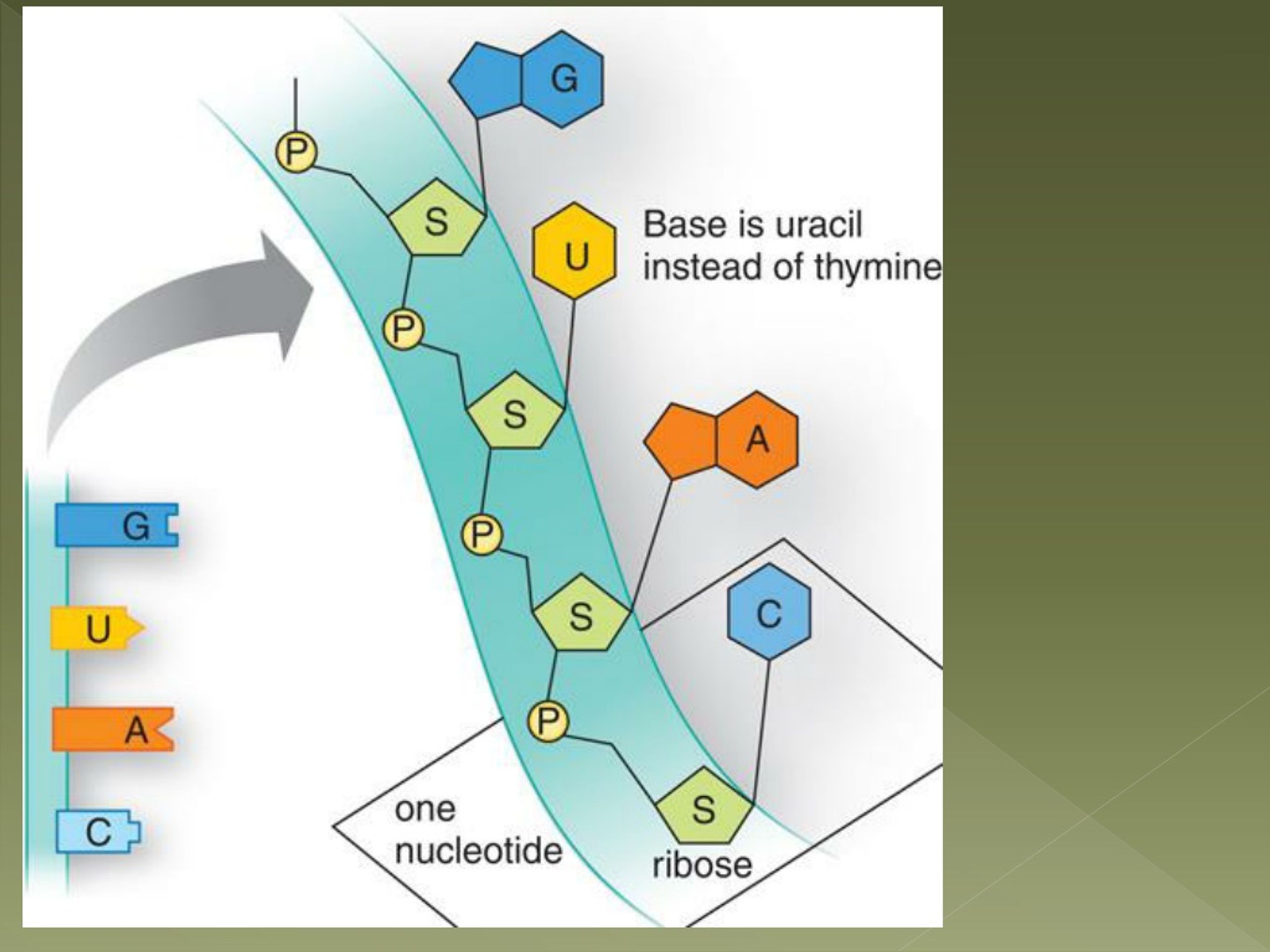

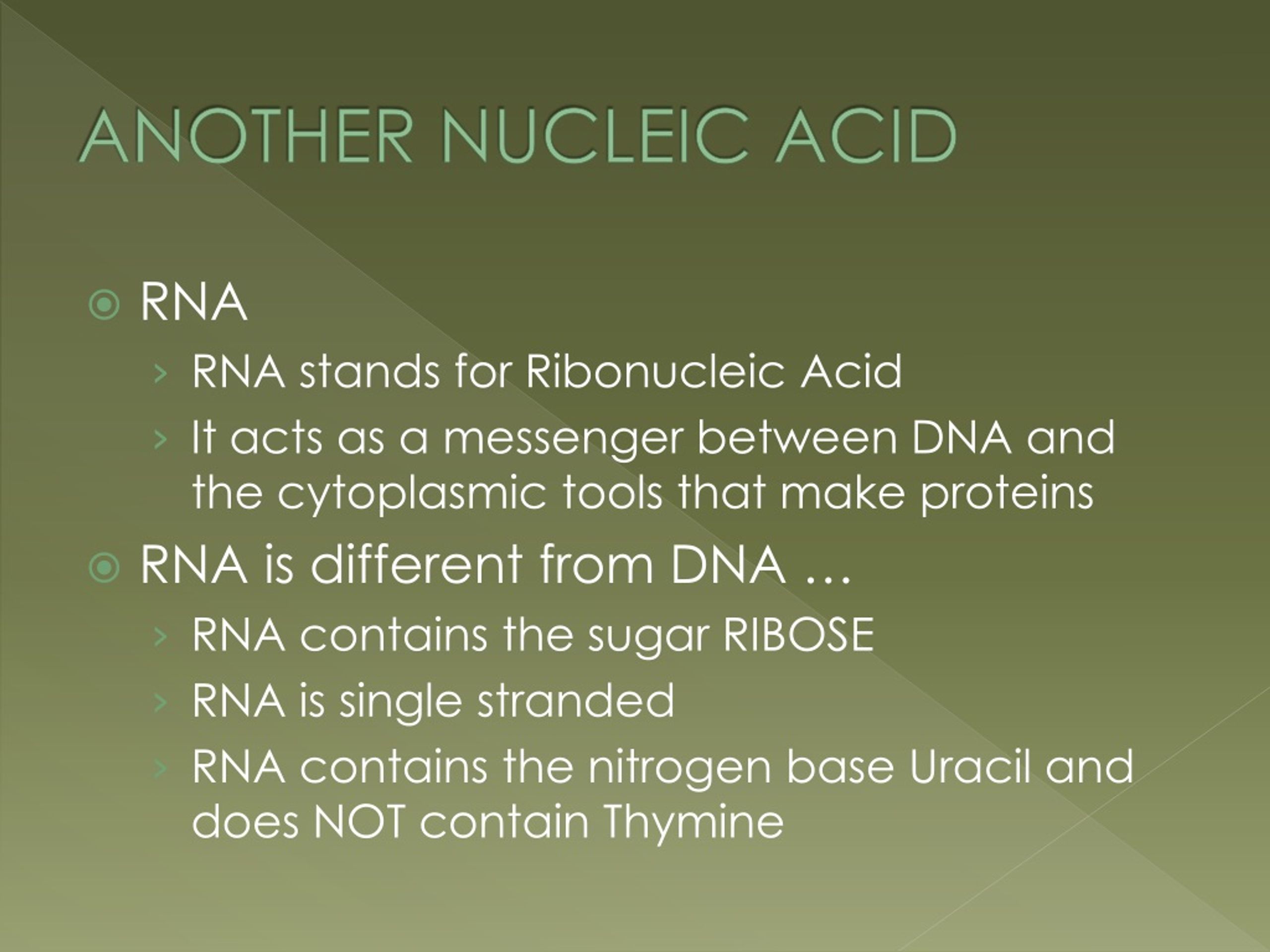

  6. ANOTHER NUCLEIC ACID • RNA • RNA stands for Ribonucleic Acid • It acts as a messenger between DNA and the cytoplasmic tools that make proteins • RNA is different from DNA … • RNA contains the sugar RIBOSE • RNA is single stranded • RNA contains the nitrogen base Uracil and does NOT contain Thymine

  7. p

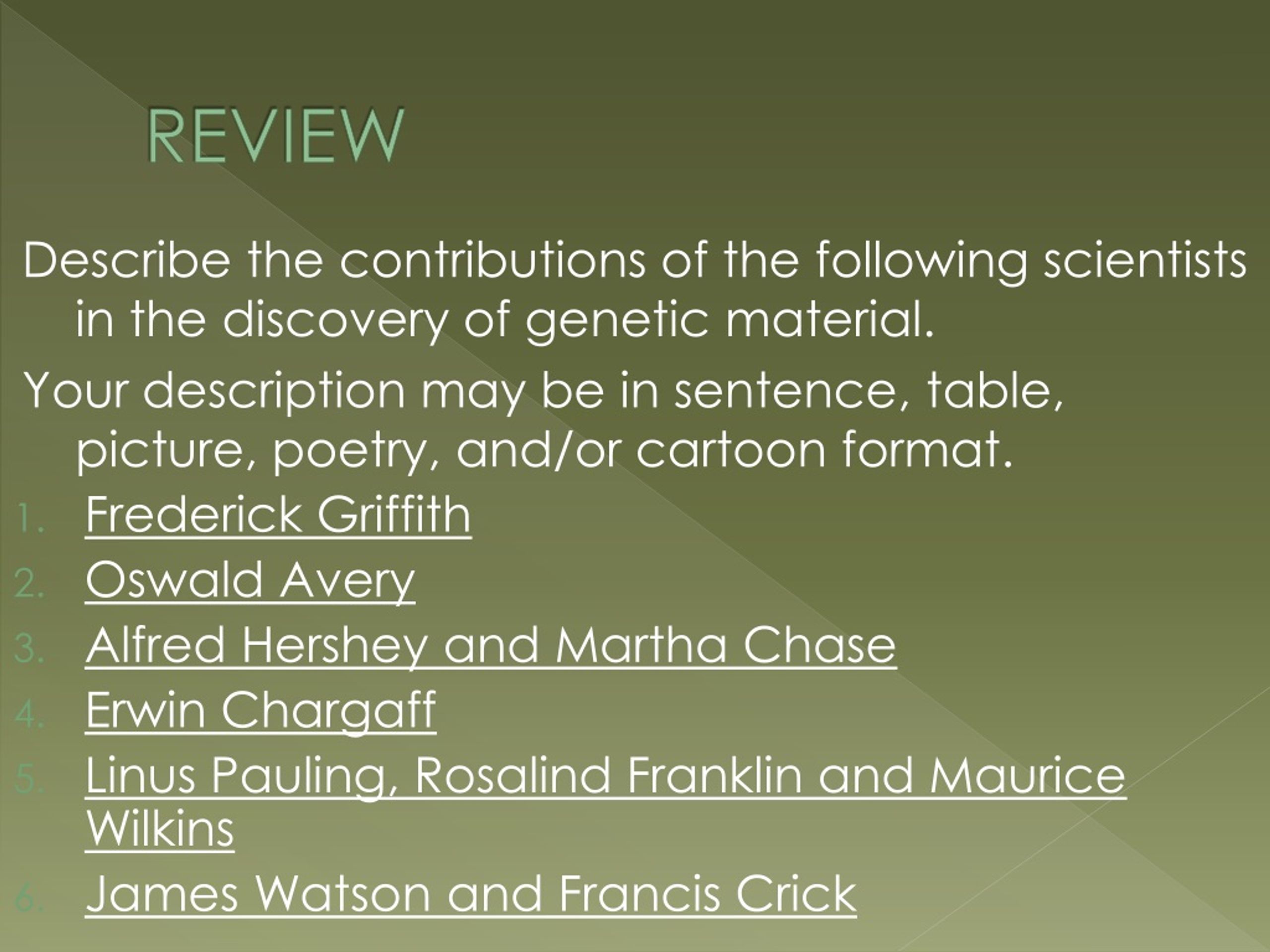

  8. REVIEW Describe the contributions of the following scientists in the discovery of genetic material. Your description may be in sentence, table, picture, poetry, and/or cartoon format. • Frederick Griffith • Oswald Avery • Alfred Hershey and Martha Chase • Erwin Chargaff • Linus Pauling, Rosalind Franklin and Maurice Wilkins • James Watson and Francis Crick

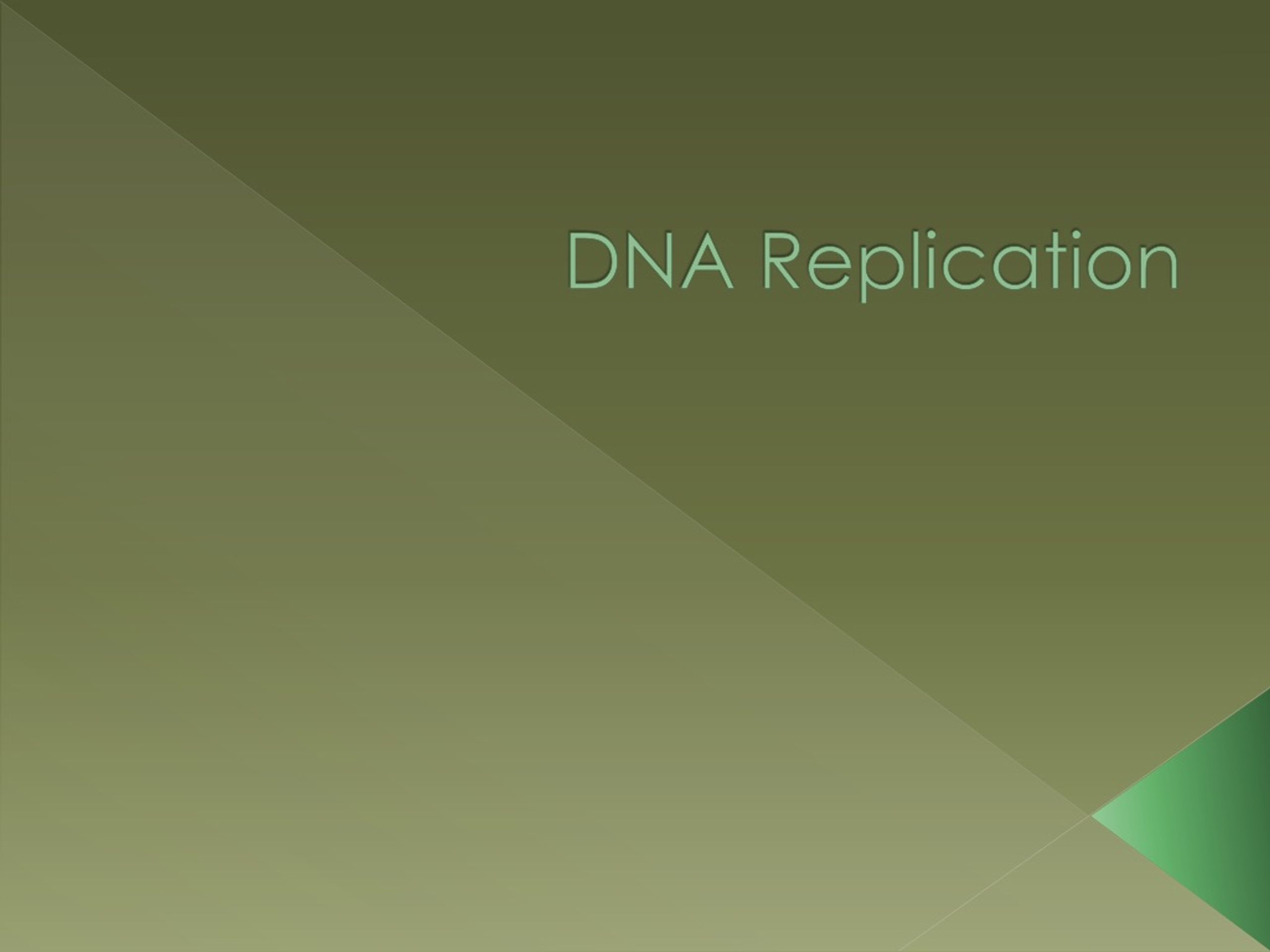

  9. DNA Replication

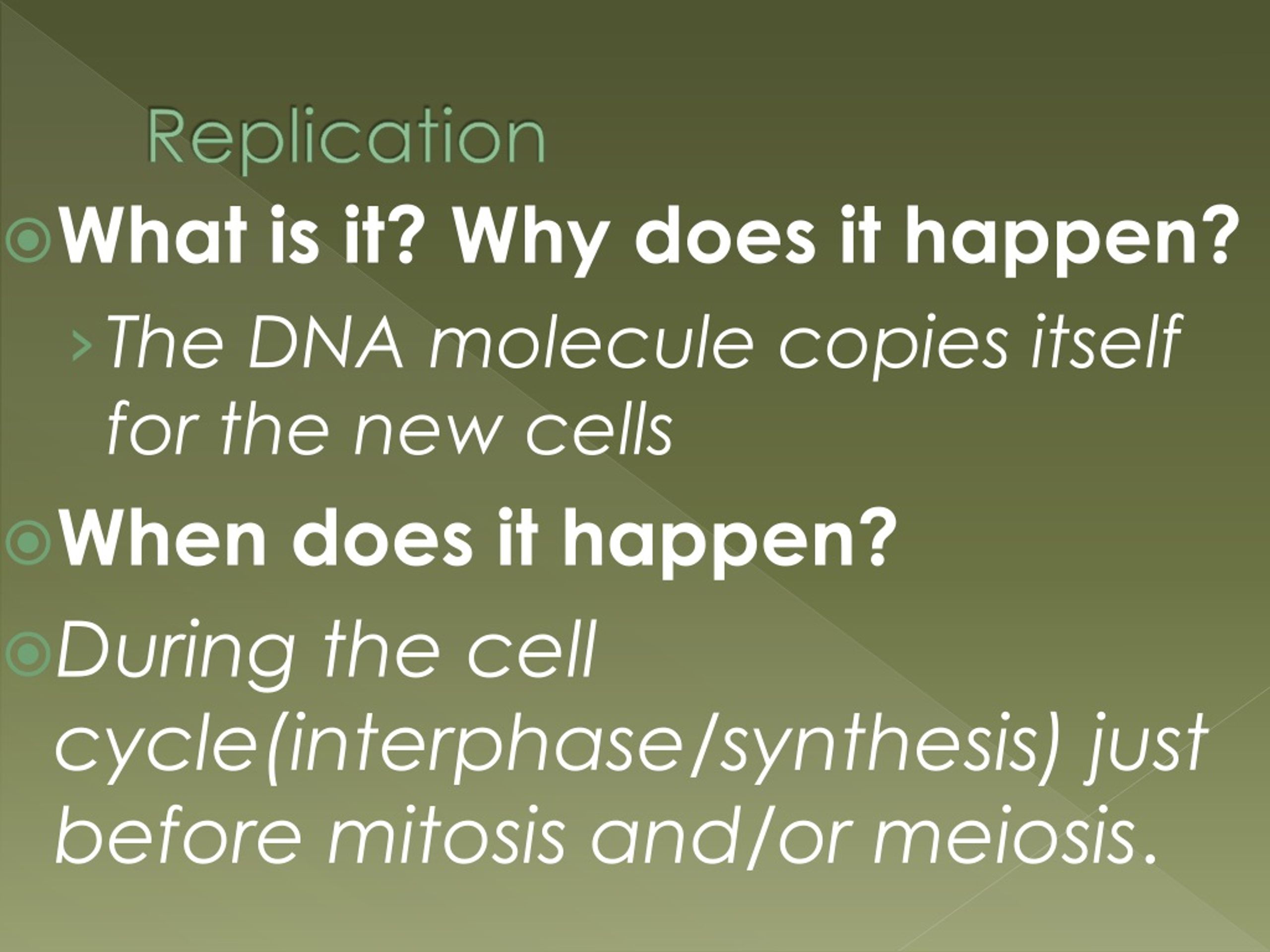

  10. Replication • What is it? Why does it happen? • The DNA molecule copies itself for the new cells • When does it happen? • During the cell cycle(interphase/synthesis) just before mitosis and/or meiosis.

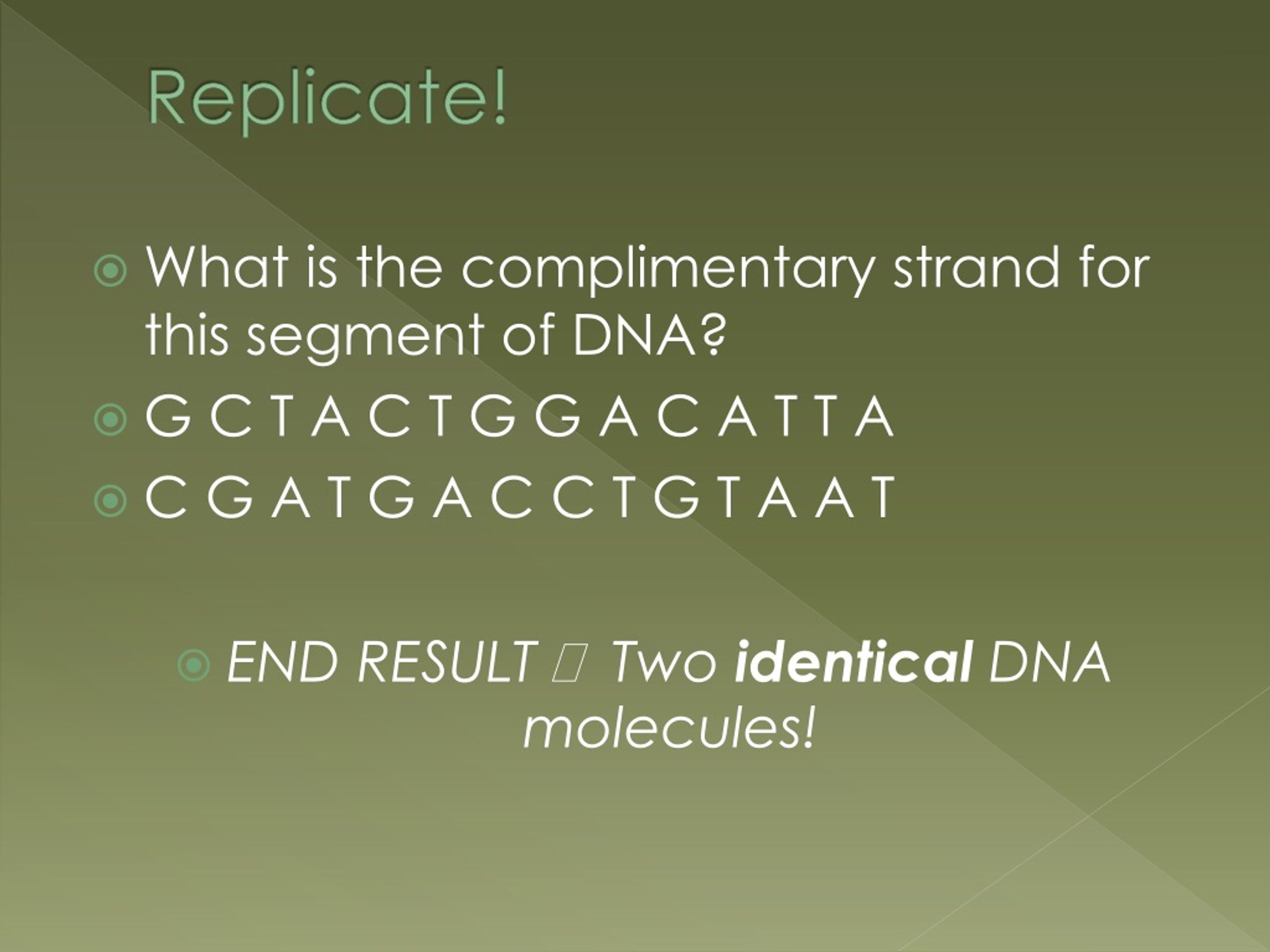

  11. Replicate! • What is the complimentary strand for this segment of DNA? • G C T A C T G G A C A T T A • C G A T G A C C T G T A A T • END RESULT  Two identical DNA molecules!

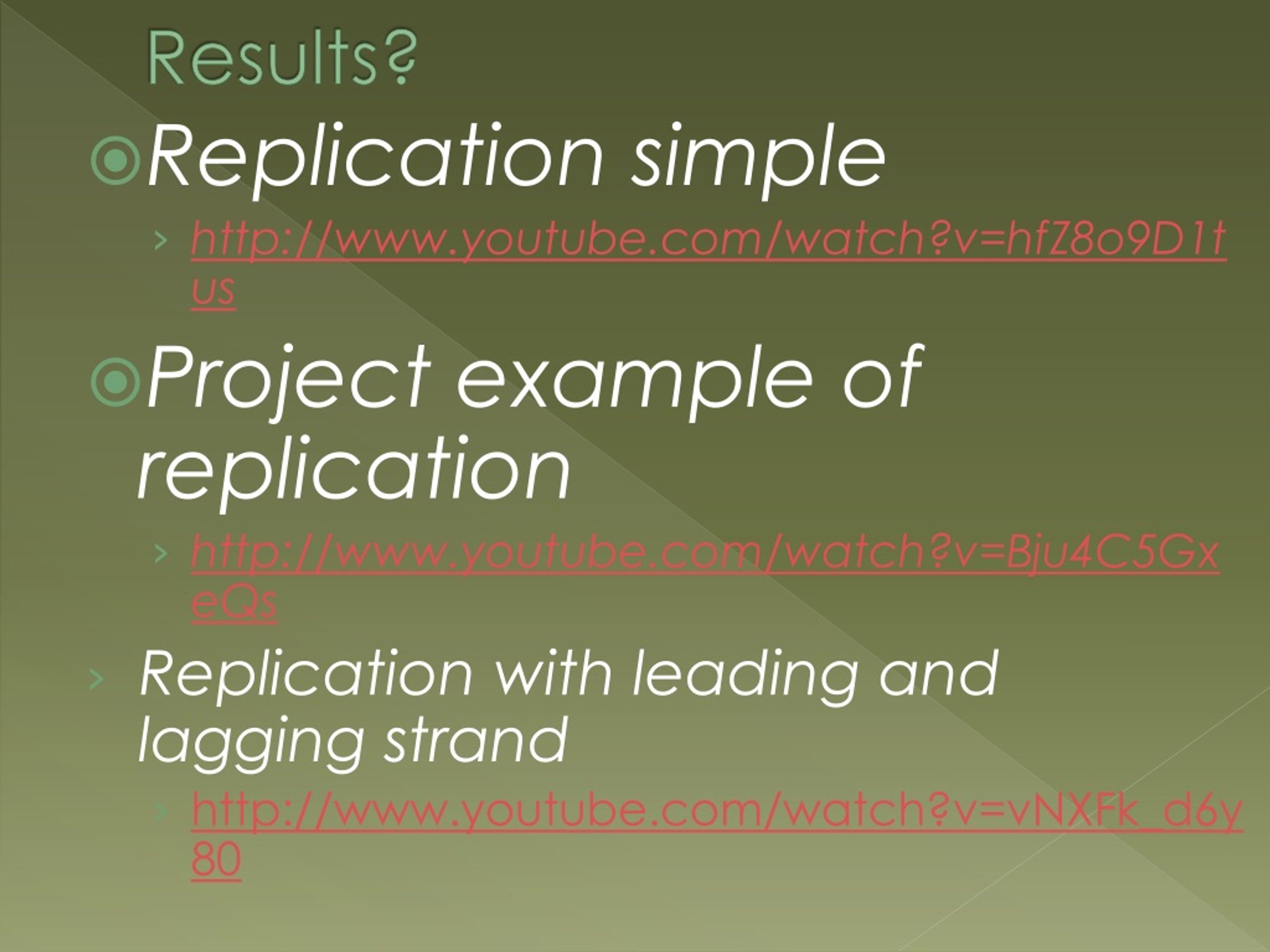

  12. Results? • Replication simple • http://www.youtube.com/watch?v=hfZ8o9D1tus • Project example of replication • http://www.youtube.com/watch?v=Bju4C5GxeQs • Replication with leading and lagging strand • http://www.youtube.com/watch?v=vNXFk_d6y80

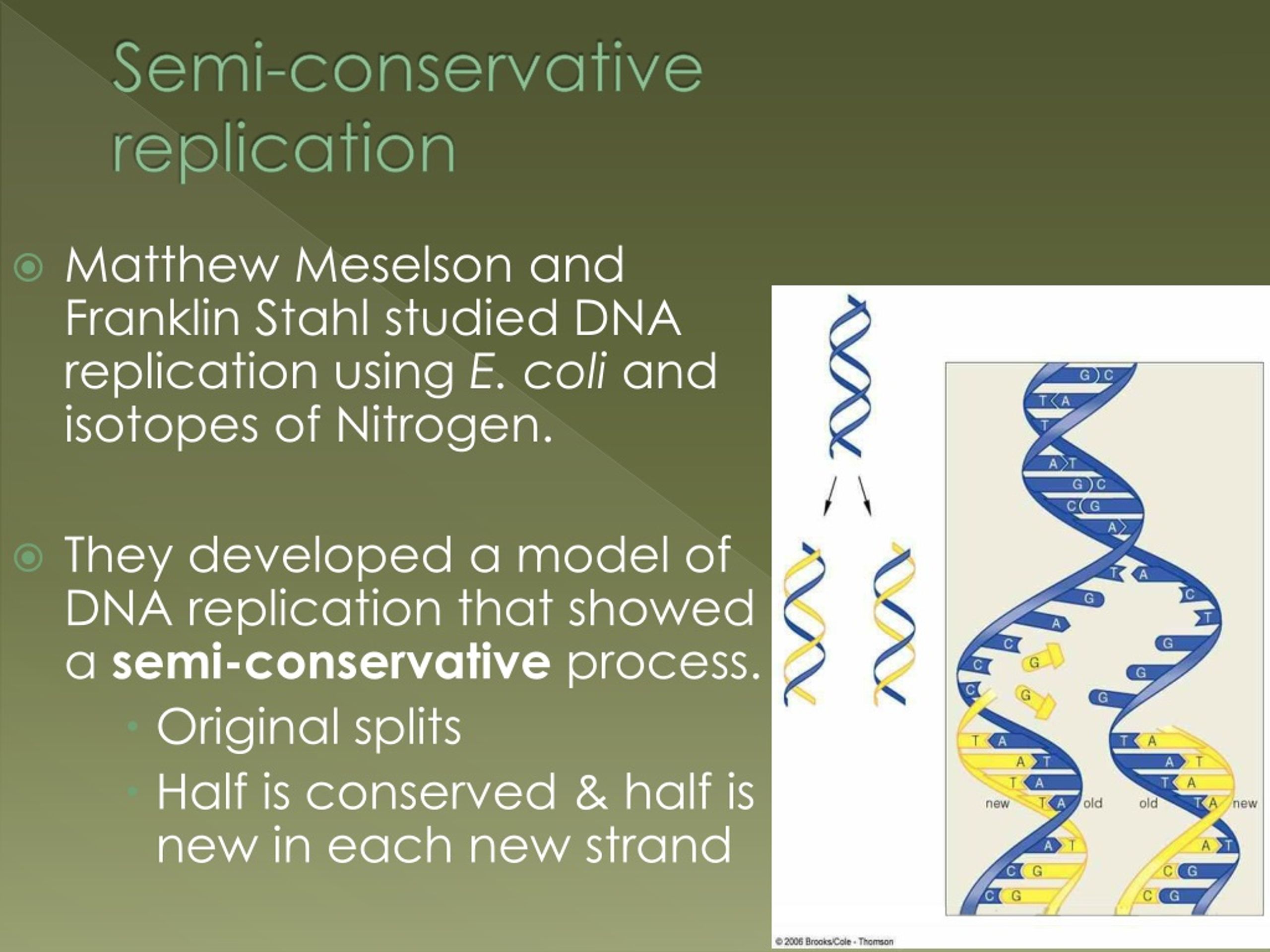

  13. Semi-conservative replication • Matthew Meselson and Franklin Stahl studied DNA replication using E. coli and isotopes of Nitrogen. • They developed a model of DNA replication that showed a semi-conservative process. • Original splits • Half is conserved & half is new in each new strand

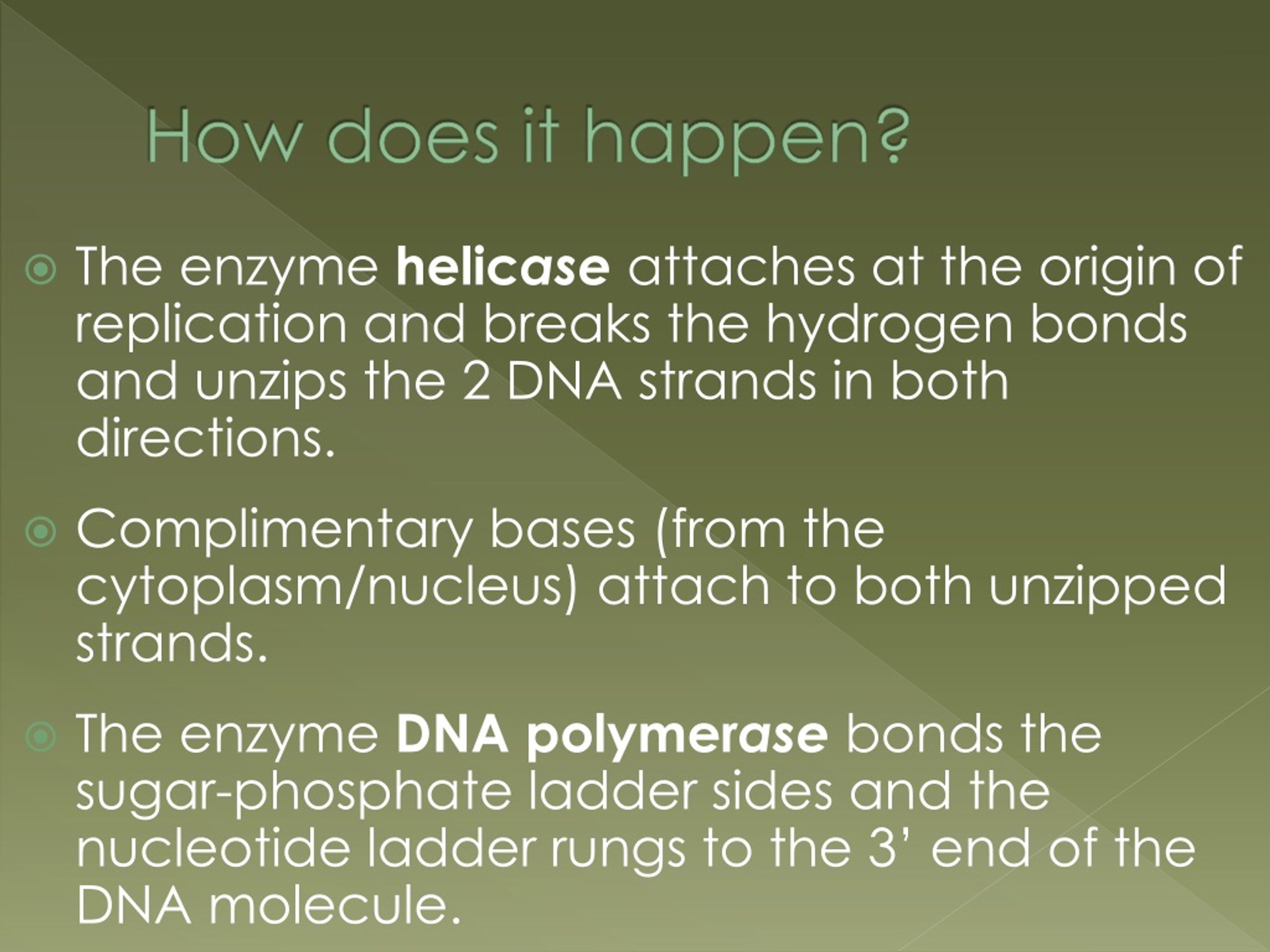

  14. How does it happen? • The enzyme helicase attaches at the origin of replication and breaks the hydrogen bonds and unzips the 2 DNA strands in both directions. • Complimentary bases (from the cytoplasm/nucleus) attach to both unzipped strands. • The enzyme DNA polymerase bonds the sugar-phosphate ladder sides and the nucleotide ladder rungs to the 3’ end of the DNA molecule.

  15. How does it happen? Continued… • Two strands of DNA are replicated in different directions • Strand one (the leading strand 5’  3’) can replicate continuously

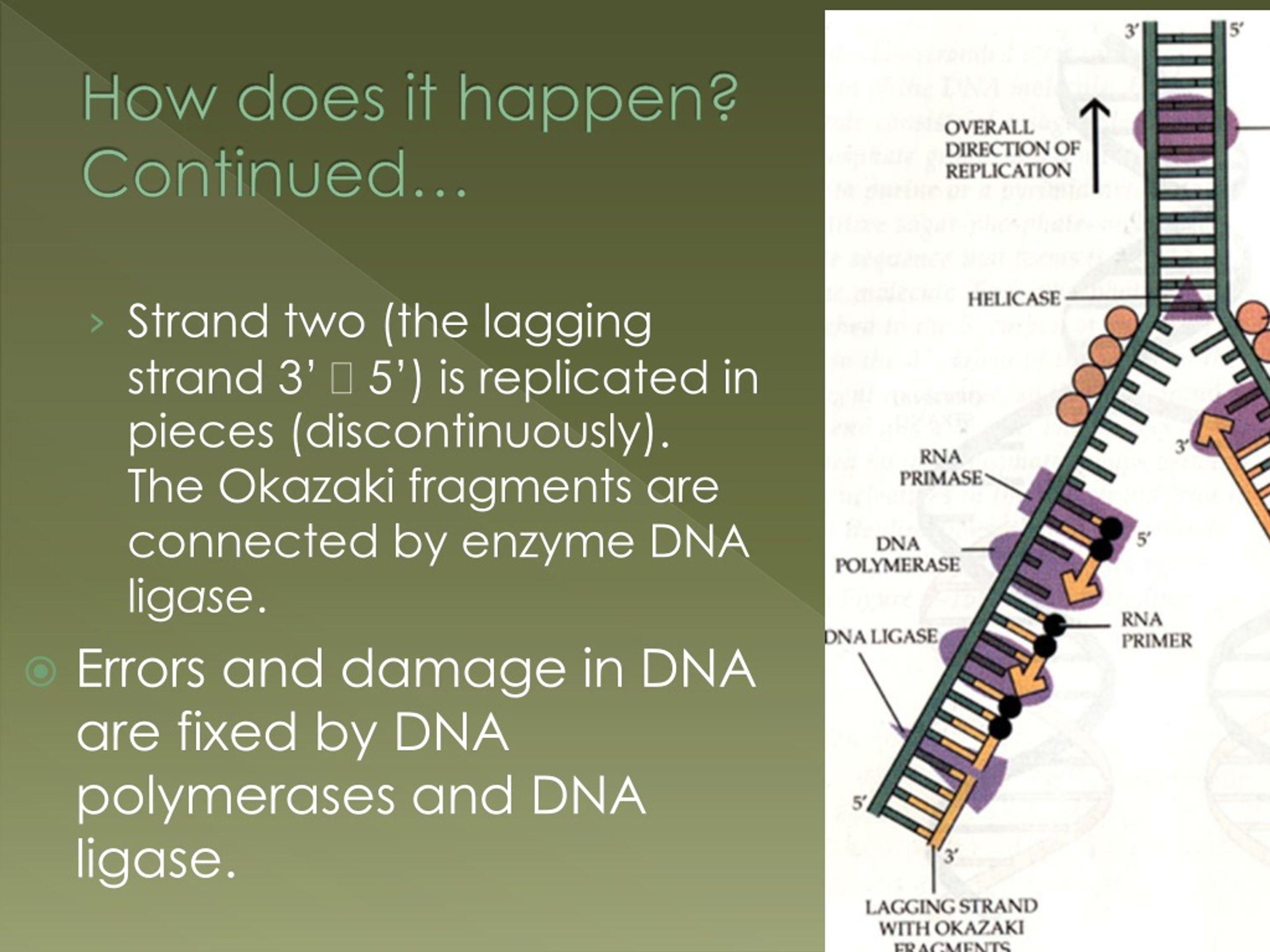

  16. How does it happen? Continued… • Strand two (the lagging strand 3’  5’) is replicated in pieces (discontinuously). The Okazaki fragments are connected by enzyme DNA ligase. • Errors and damage in DNA are fixed by DNA polymerases and DNA ligase.
