MPT-01 Medical Packaging Tester

The Medical Packaging Tensile Tester is designed to evaluate the tensile strength and elasticity of medical packaging materials. Primarily used in the medical device and pharmaceutical industries, this instrument tests the durability and integrity of packaging materials like blister packs, pouches, and films. The test involves applying a controlled tensile force to the sample until failure occurs, measuring properties such as elongation, tensile strength, and resistance to tearing.

cell6
Download Presentation

MPT-01 Medical Packaging Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

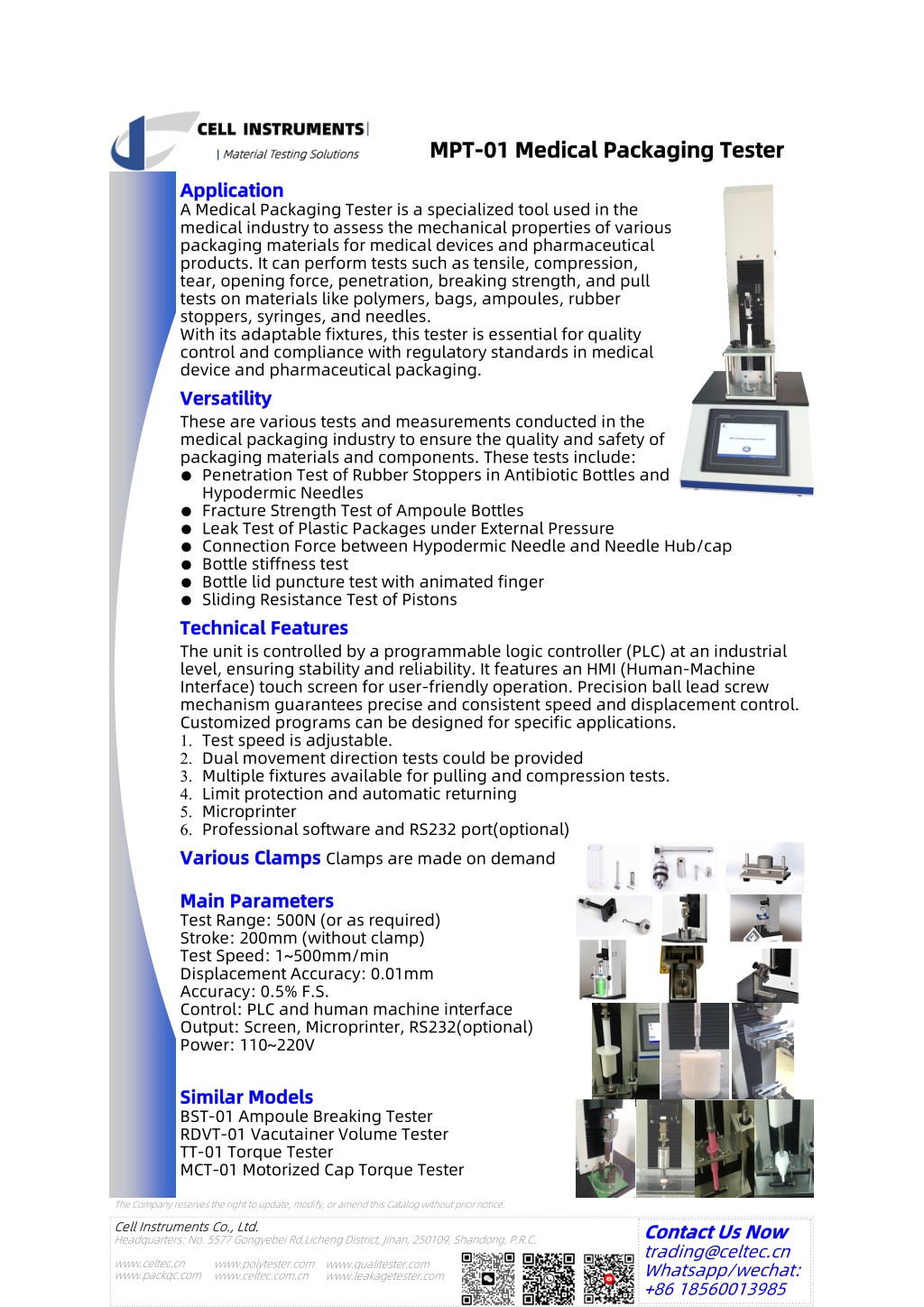

  1. MPT MPT- -01 Medical Packaging Tester 01 Medical Packaging Tester Application Application A Medical Packaging Tester is a specialized tool used in the medical industry to assess the mechanical properties of various packaging materials for medical devices and pharmaceutical products. It can perform tests such as tensile, compression, tear, opening force, penetration, breaking strength, and pull tests on materials like polymers, bags, ampoules, rubber stoppers, syringes, and needles. With its adaptable fixtures, this tester is essential for quality control and compliance with regulatory standards in medical device and pharmaceutical packaging. Versatility Versatility These are various tests and measurements conducted in the medical packaging industry to ensure the quality and safety of packaging materials and components. These tests include: ● Penetration Test of Rubber Stoppers in Antibiotic Bottles and Hypodermic Needles ● Fracture Strength Test of Ampoule Bottles ● Leak Test of Plastic Packages under External Pressure ● Connection Force between Hypodermic Needle and Needle Hub/cap ● Bottle stiffness test ● Bottle lid puncture test with animated finger ● Sliding Resistance Test of Pistons Technical Features Technical Features The unit is controlled by a programmable logic controller (PLC) at an industrial level, ensuring stability and reliability. It features an HMI (Human-Machine Interface) touch screen for user-friendly operation. Precision ball lead screw mechanism guarantees precise and consistent speed and displacement control. Customized programs can be designed for specific applications.  Test speed is adjustable.  Dual movement direction tests could be provided  Multiple fixtures available for pulling and compression tests.  Limit protection and automatic returning  Microprinter  Professional software and RS232 port(optional) Various Clamps Various Clamps Clamps are made on demand Main Parameters Main Parameters Test Range: 500N (or as required) Stroke: 200mm (without clamp) Test Speed: 1~500mm/min Displacement Accuracy: 0.01mm Accuracy: 0.5% F.S. Control: PLC and human machine interface Output: Screen, Microprinter, RS232(optional) Power: 110~220V Similar Models Similar Models BST-01 Ampoule Breaking Tester RDVT-01 Vacutainer Volume Tester TT-01 Torque Tester MCT-01 Motorized Cap Torque Tester The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
