Dart Impact Tester for Packaging - Presto Group

The Dart Impact Tester is an essential instrument in the field of packaging testing, specifically designed to evaluate the impact resistance of plastic films and sheets. This testing equipment is crucial for industries where ensuring the durability and protective capabilities of packaging materials is paramount. <br><br>Know More -- https://www.prestogroup.com/products/dart-impact-tester/<br>

Prestogroup1
Download Presentation

Dart Impact Tester for Packaging - Presto Group

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

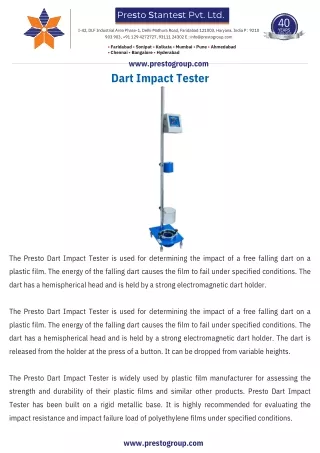

  1. Presto Stantest Pvt. Ltd. 40 YEARS 1983-2023 ING I I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com NST TIME S NT T UME R ESTE D TE ST • Faridabad • Sonipat • Kolkata • Mumbai • Pune • Ahmedabad • Chennai • Bangalore • Hyderabad www.prestogroup.com Dart Impact Tester The Presto Dart Impact Tester is used for determining the impact of a free falling dart on a plastic film. The energy of the falling dart causes the film to fail under specified conditions. The dart has a hemispherical head and is held by a strong electromagnetic dart holder. The Presto Dart Impact Tester is used for determining the impact of a free falling dart on a plastic film. The energy of the falling dart causes the film to fail under specified conditions. The dart has a hemispherical head and is held by a strong electromagnetic dart holder. The dart is released from the holder at the press of a button. It can be dropped from variable heights. The Presto Dart Impact Tester is widely used by plastic film manufacturer for assessing the strength and durability of their plastic films and similar other products. Presto Dart Impact Tester has been built on a rigid metallic base. It is highly recommended for evaluating the impact resistance and impact failure load of polyethylene films under specified conditions. www.prestogroup.com

  2. Presto Stantest Pvt. Ltd. 40 YEARS 1983-2023 ESTE D TE STING I I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com TIME S NT T UME NSTR • Faridabad • Sonipat • Kolkata • Mumbai • Pune • Ahmedabad • Chennai • Bangalore • Hyderabad www.prestogroup.com Specifications Inside diameter of clamp: 127mm Diameter of dart head : Method A – 38 mm, Method B - 50.8 mm ± 0.13 mm Height of fall :660 mm and 1524 mm(Adjustable) Maximum weight holding capacity of Dart Holding Mechanism: 2Kg Dart Head Material: Method A - Phenolic & Method B - Steel Least Count of Height Adjustable Clamp: 1 mm Type of test: Free-Falling Dart Release Mechanism: Electromagnetic dart hold/release mechanism Clamping Unit: Circular annular clamping unit with zero slippage Counter : Digital. Vaccum Pump of CFM 1.8, 1/4 Hp Motor is provided with it. Electrical Requirement: Single Phase 220 V AC Features Built on a rigid metallic base. Strong Electromagnetic dart holder. Dart released at the press of a button. Reliable, the fast and accurate measurement of variable heights. Electromagnetic Hold and release mechanism for dart Drop Height adjustable clamp Inbuilt Digital counter for counting number of falls during single test operation Hot Air Oven I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : +91 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com www.prestogroup.com
