  1. Team 01 : QuadSquadPackaging Specifications & Design Dennis Lazar the ECE quadcopter senior design project @ Purdue University

  2. Abstract • Android controlled quadcopter (Google Maps) • Connect via Bluetooth • GPS, compass, barometer, battery management • Flight controller board the ECE quadcopter senior design project @ Purdue University

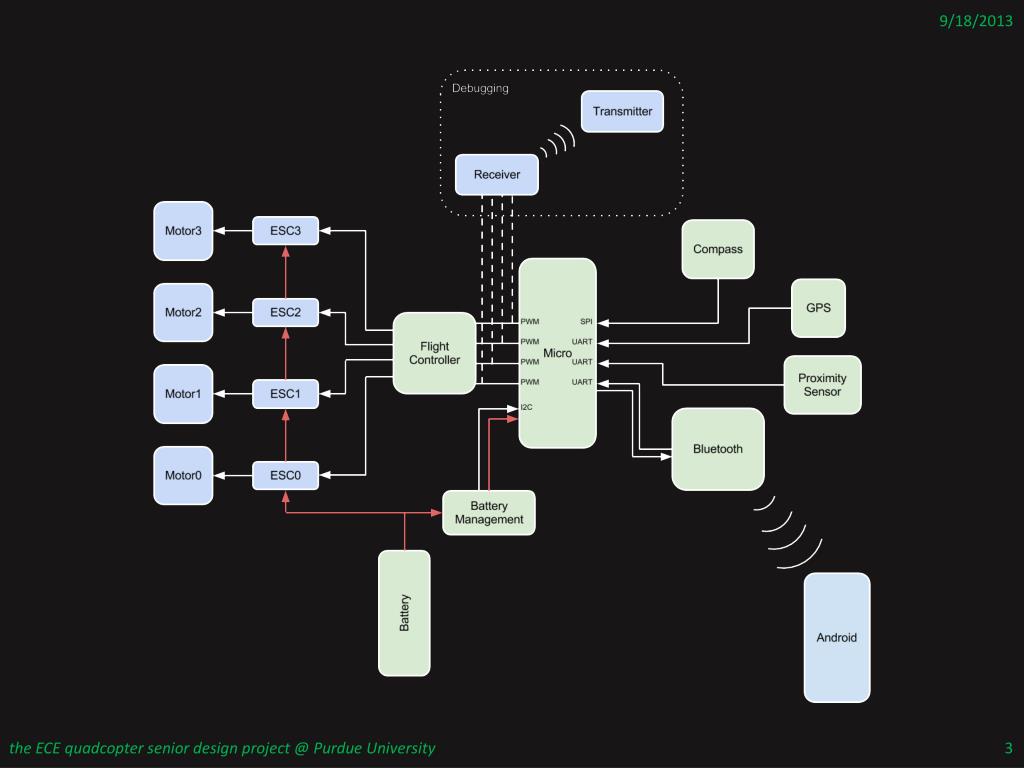

  3. the ECE quadcopter senior design project @ Purdue University

  4. Project-Specific Success Criteria An ability to … • determine the position of the quadcopter using GPS • control the copter using an Android device over a Bluetooth interface • automatically take-off and land • fly-by-waypoint using GPS coordinates • monitor the state of battery charge and relay back to user the ECE quadcopter senior design project @ Purdue University

  5. Packaging Constraints • Mass, balanced • ~ 1400 grams (3 lbs) • Safe & sturdy • Shielding around propellers • Survive crashes • Parts must fit on quadcopter frame • 22” wing span • ~6x6” of flat space for components the ECE quadcopter senior design project @ Purdue University

  6. Parrot AR.Drone 2.0 Good: • Light, well-balanced • Properly fitted frame Bad: • Styrofoam body can wear/tear easily the ECE quadcopter senior design project @ Purdue University

  7. DJI Phantom Good: • Light, well-balanced • Sturdy body Bad: • Propellers exposed the ECE quadcopter senior design project @ Purdue University

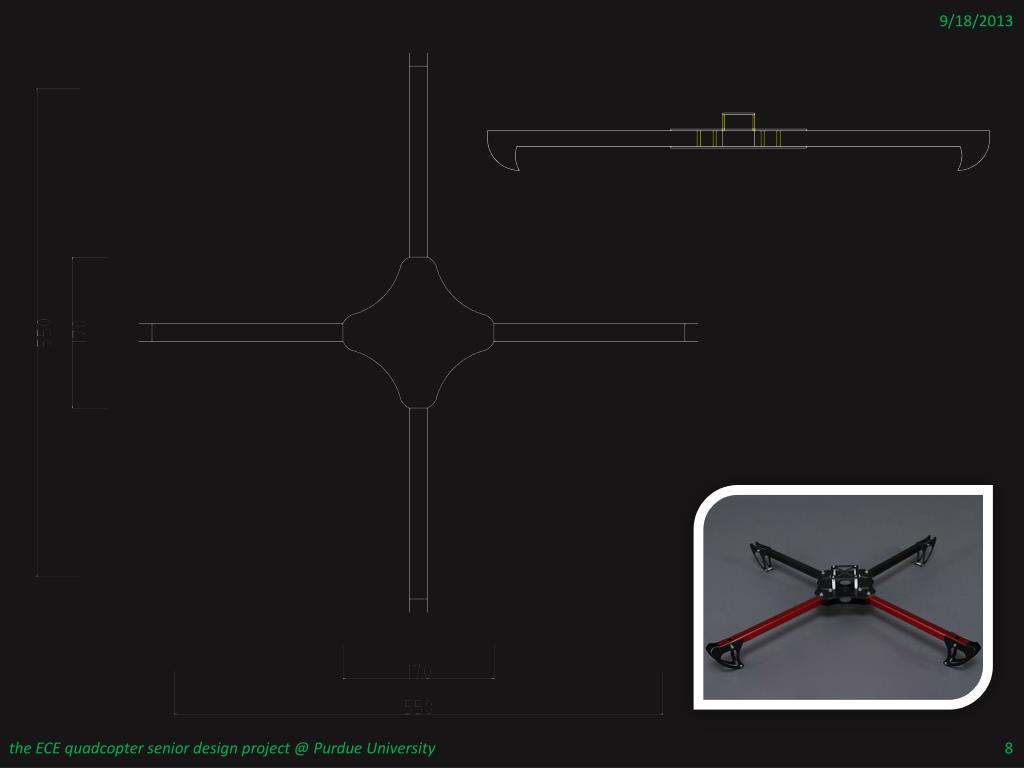

  8. the ECE quadcopter senior design project @ Purdue University

  9. battery the ECE quadcopter senior design project @ Purdue University

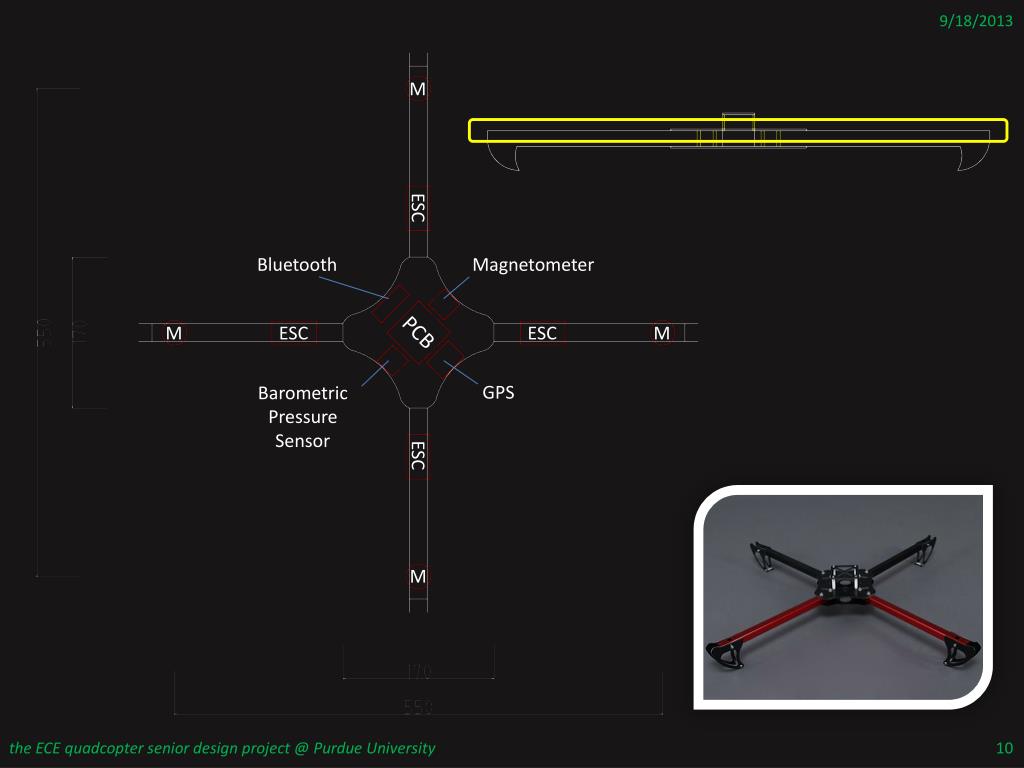

  10. M ESC Bluetooth Magnetometer PCB M ESC ESC M GPS Barometric Pressure Sensor ESC M the ECE quadcopter senior design project @ Purdue University

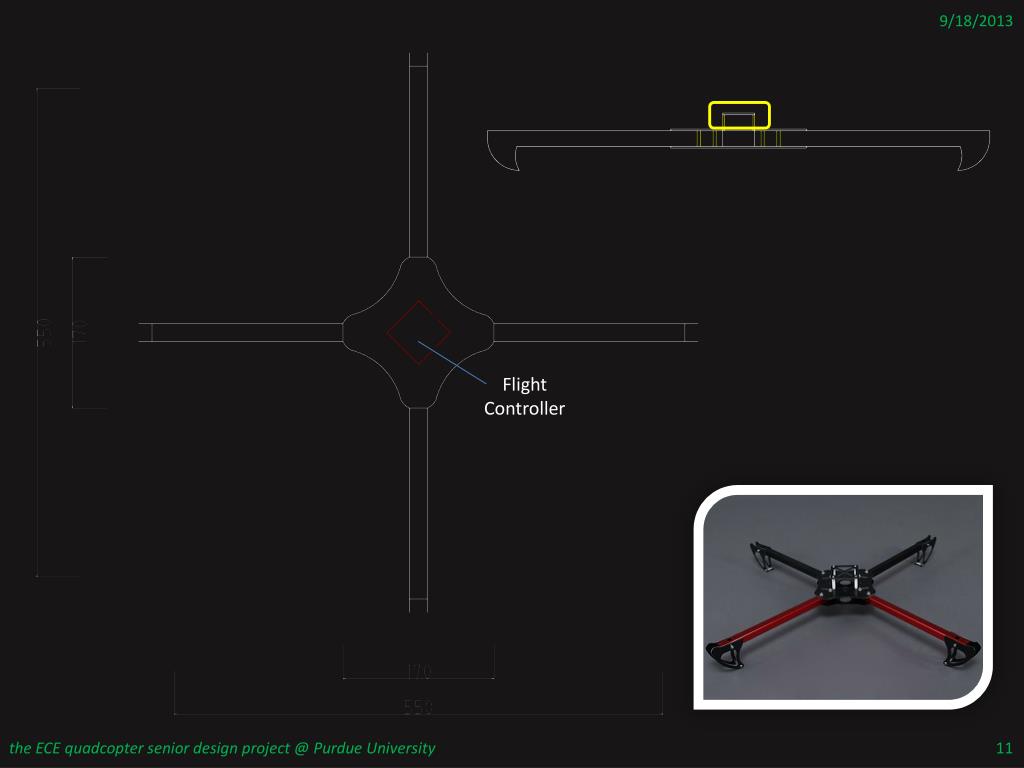

  11. Flight Controller the ECE quadcopter senior design project @ Purdue University

  12. Questions?? the ECE quadcopter senior design project @ Purdue University
