Presentation Transcript
aquaspy soil moisture monitoring program details
No equipment purchase.

No contract.

Low risk 60 day trial period.

Full equipment replacement warranty.

User friendly AgWISE software included.

Full data interpretation service & support included via AquaSpy agronomists and local dealers/field technicians.

Fully integrated weather station, frost alarm, flow meter and EC readings available.

AquaSpy Soil Moisture Monitoring Program Details
slide4
Proven TDR capacitance soil moisture sensing technology.
  • High definition digital probes with sensors positioned every 4 inches for a more detailed and dynamic view of entire soil profile.
  • Capacity for soil specific calibration
  • Continuous data collection and logging.
  • 20”, 40” & 60” Probe lengths.
slide6

Putting the Data to work Using the soil moisture data to optimize growth conditions, reduce costs and increase yields

slide7

Real time decision making at a glance

Below Refill Point

2 Days to Irrigation

Readily Available

Above Full Point

data drilldown detailed agronomic analysis
Data drilldown & detailed agronomic analysis
  • Multi Sensor Sum Graph
    • daily water use rate
    • irrigation effectiveness
    • when to irrigate
    • how much to irrigate
    • establish upper & lower limits
  • Individual Sensor Layer Graph
    • through drainage & infiltration rates
    • where most root activity occurs
    • soil moisture stress at each layer
slide9

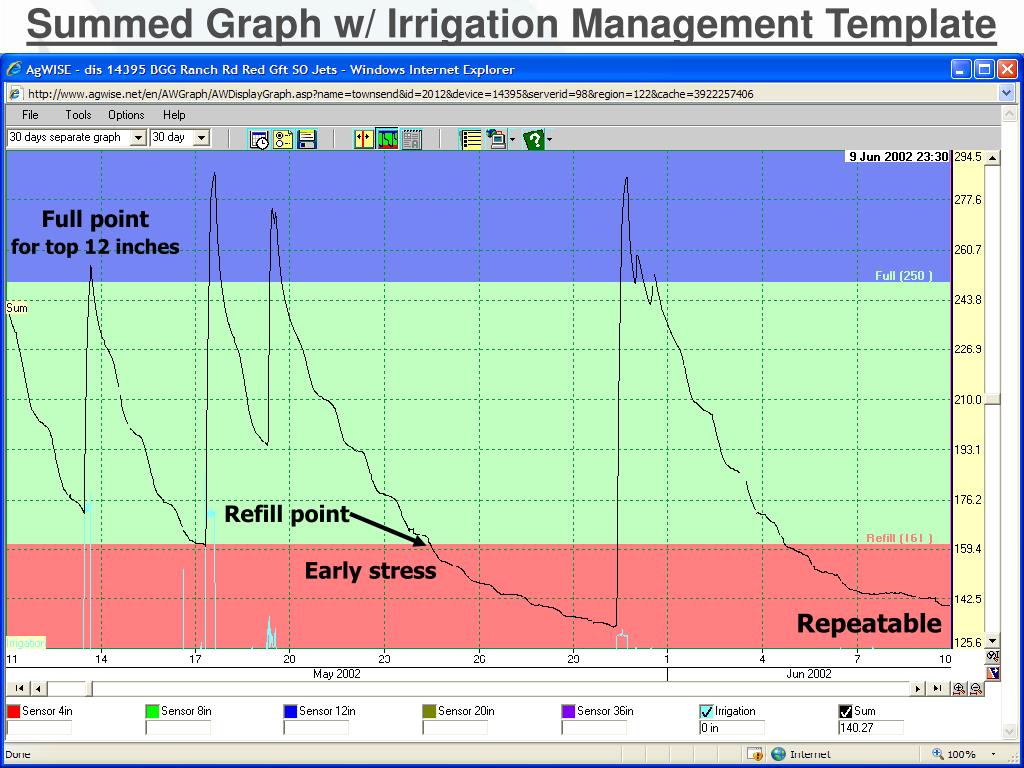

Summed Graph w/ Irrigation Management Template

Full point

for top 12 inches

Refill point

Early stress

Repeatable

slide11

Individual Sensor Layer Graph

Day-night stepping indicates root activity at 4, 8, 12 inches

4-inch dries out

Rain

Rain

4 hrs.

6 hrs.

No root activity at 20 & 36-inch levels (no stepping)

metspy mp7 weather station
MetSpy® MP7 Weather Station
  • MP7 Full ET Weather Station
    • Air Temperature
    • Relative Humidity
    • Barometric Pressure
    • Rainfall
    • Wind Speed and Direction
    • PAR (photosynthetically active radiation)

PAR Sensor

summary
Summary
  • AquaSpy is the worlds largest manufacturer of soil moisture sensors with over 85,000 deployed globally.
  • The AquaSpy subscription service is user friendly, well supported and has a low cost of entry.
  • The AgWISE software was designed by growers for growers.
  • The AquaSpy system enables growers to maintain optimal root growth conditions resulting in higher yields and reduced resource costs.
  • The AquaSpy system increases profits.
