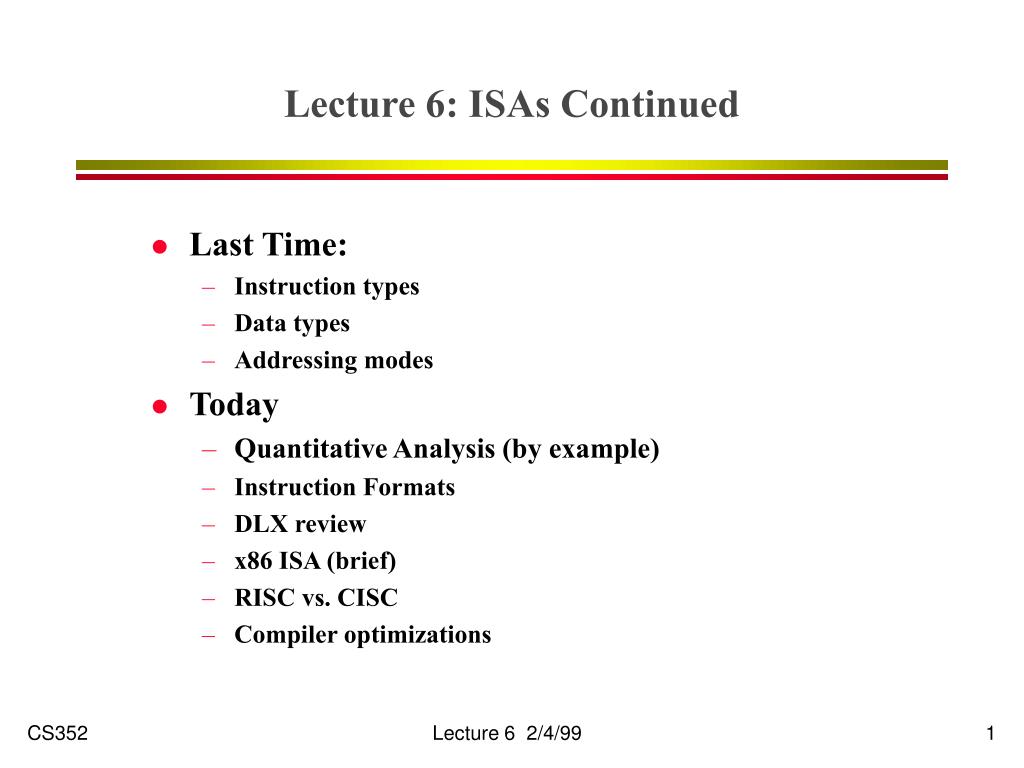

  1. Lecture 6: ISAs Continued Last Time: Instruction types Data types Addressing modes Today Quantitative Analysis (by example) Instruction Formats DLX review x86 ISA (brief) RISC vs. CISC Compiler optimizations

  2. Review of ISA Principles • Good ISA design • KISS! - only implement necessities (encodings, address modes, etc.) • FOG: Frequency, Orthogonality, Generality • Instruction Types • ALU ops, Data movement, Control • Addressing modes • Matched to program usage (local vars, globals, arrays) • Program Control • Conditional/unconditional branches and jumps • Where to store conditions • PC relative and absolute

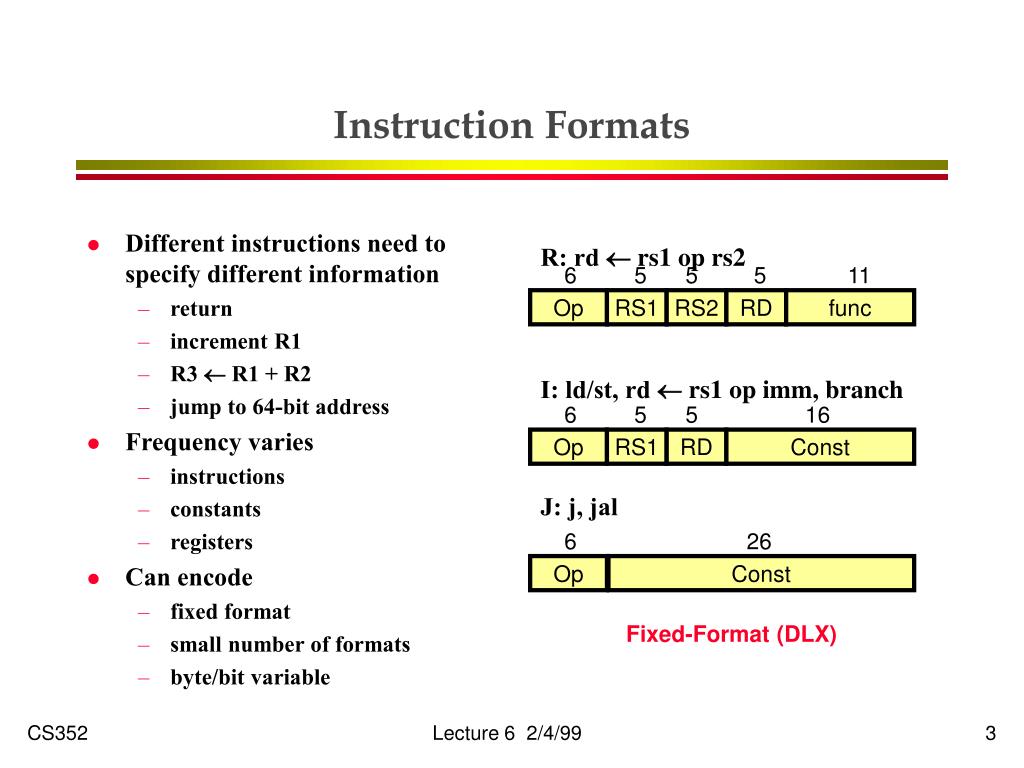

  3. 6 5 5 5 11 Op RS1 RS2 RD func 6 5 5 16 Op RS1 RD Const 6 26 Op Const Instruction Formats • Different instructions need to specify different information • return • increment R1 • R3  R1 + R2 • jump to 64-bit address • Frequency varies • instructions • constants • registers • Can encode • fixed format • small number of formats • byte/bit variable R: rd  rs1 op rs2 I: ld/st, rd  rs1 op imm, branch J: j, jal Fixed-Format (DLX)

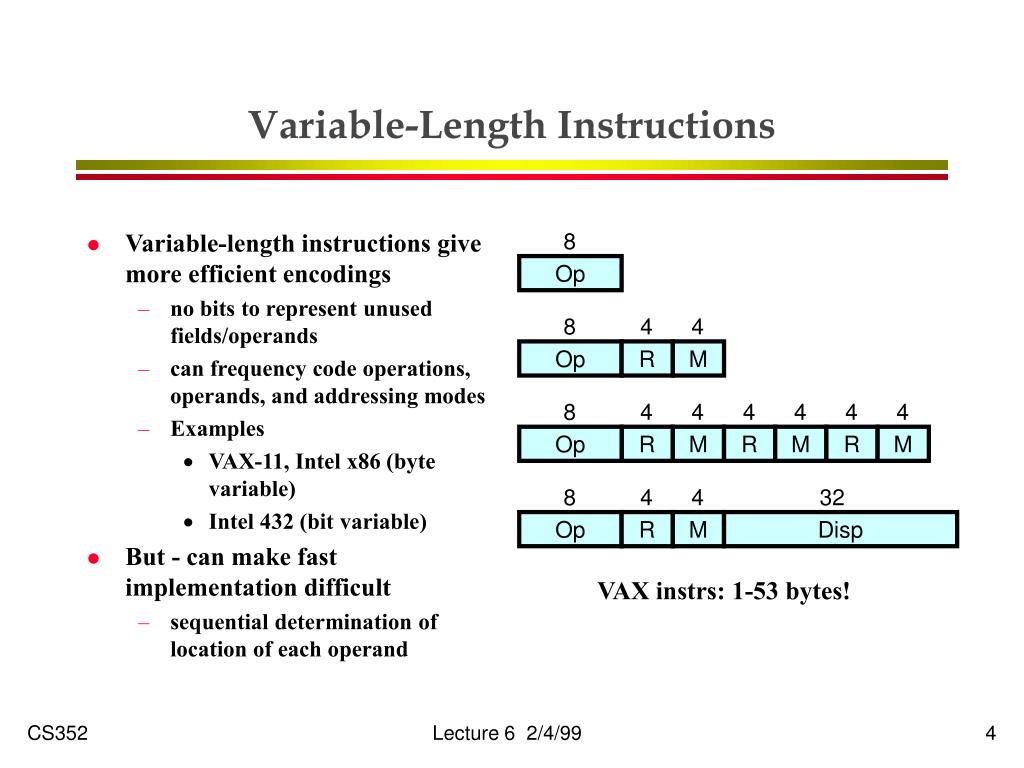

  4. 8 Op 4 4 4 4 4 4 4 4 4 4 R R R R R M M M M M Variable-Length Instructions • Variable-length instructions give more efficient encodings • no bits to represent unused fields/operands • can frequency code operations, operands, and addressing modes • Examples • VAX-11, Intel x86 (byte variable) • Intel 432 (bit variable) • But - can make fast implementation difficult • sequential determination of location of each operand 8 Op 8 Op 8 32 Op Disp VAX instrs: 1-53 bytes!

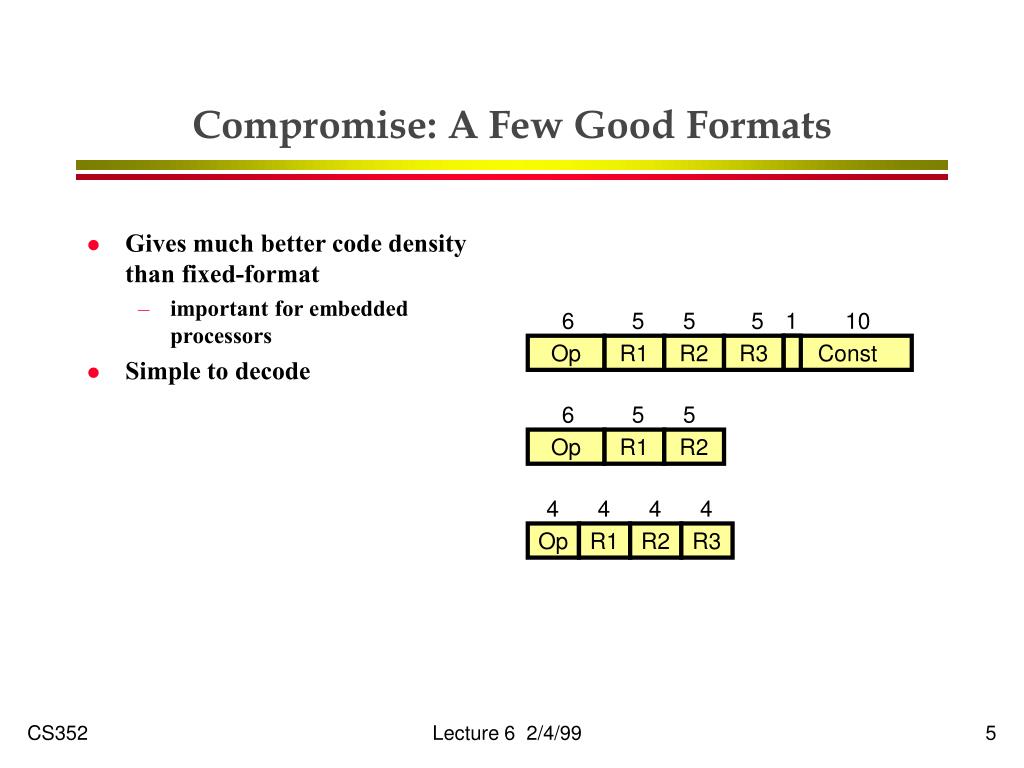

  5. Compromise: A Few Good Formats • Gives much better code density than fixed-format • important for embedded processors • Simple to decode 6 5 5 5 1 10 Op R1 R2 R3 Const 6 5 5 Op R1 R2 4 4 4 4 Op R1 R2 R3

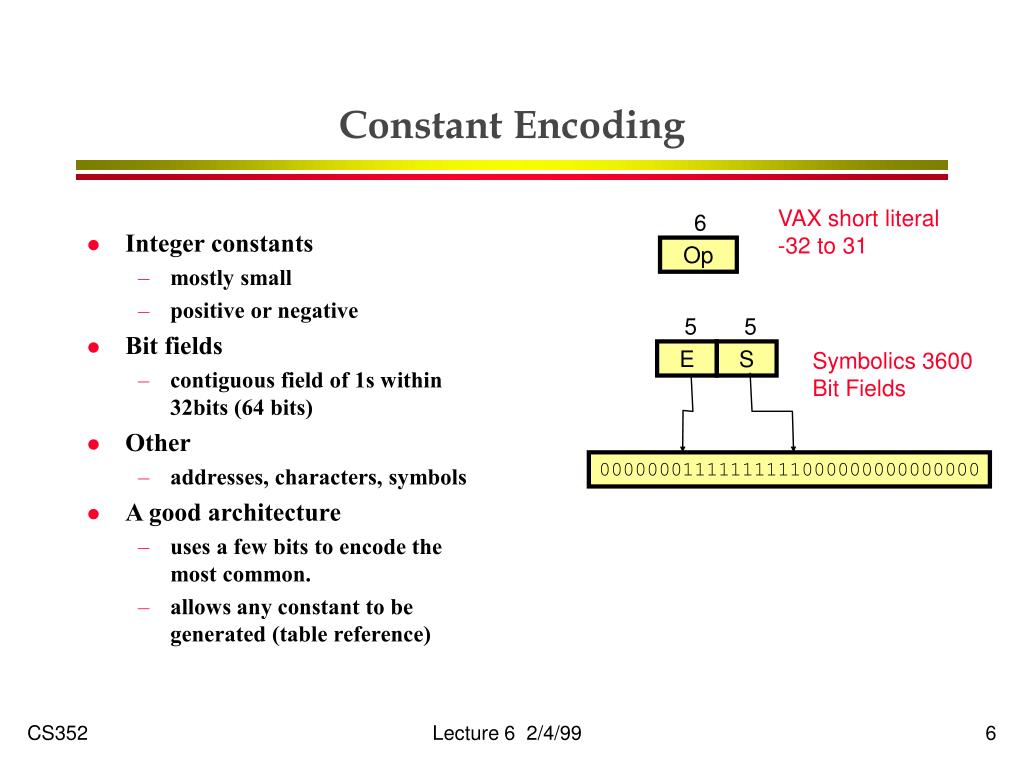

  6. Integer constants mostly small positive or negative Bit fields contiguous field of 1s within 32bits (64 bits) Other addresses, characters, symbols A good architecture uses a few bits to encode the most common. allows any constant to be generated (table reference) Constant Encoding VAX short literal -32 to 31 6 Op 5 5 E S Symbolics 3600 Bit Fields 00000001111111111000000000000000

  7. DLX ISA • 32 GP Integer registers, 32 FP registers (16 DP) • R0 = 0 • 8, 16, and 32 bit data types • Load/Store architecture (no memory operations in ALU ops) • Simple addressing modes • Immediate R1  0x23 • Displacement R2  d(Rx) ….. 0(R3), 0x1000(R0) • Simple fixed instruction format (3 types), 90 instructions • Similar to MIPS instruction set • Designed for fast hardware (pipelining) + optimizing compilers

  8. 6 5 5 5 11 Op RS1 RS2 RD func 6 5 5 16 F30 F2 F3 F31 Op RS1 RD Const F0 F1 6 26 Op Const DLX ISA (a visual) IP R: rd  rs1 op rs2 R31 I: ld/st, rd  rs1 op imm, branch R1 R0 J: j, jal Fixed-Format

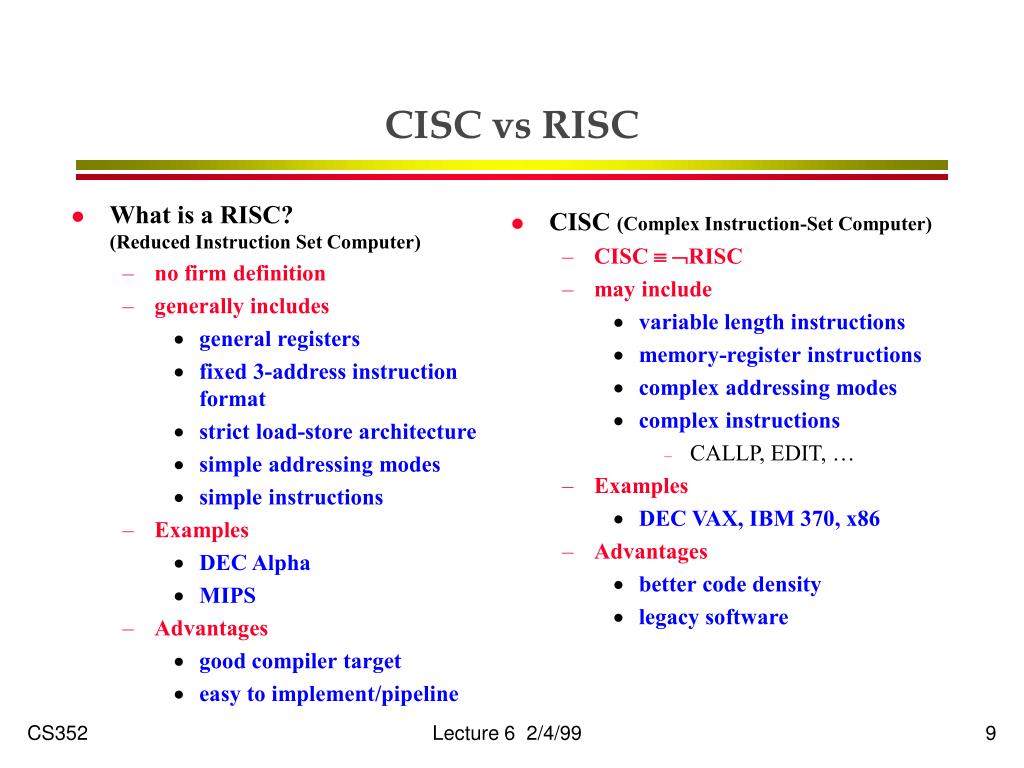

  9. What is a RISC? (Reduced Instruction Set Computer) no firm definition generally includes general registers fixed 3-address instruction format strict load-store architecture simple addressing modes simple instructions Examples DEC Alpha MIPS Advantages good compiler target easy to implement/pipeline CISC (Complex Instruction-Set Computer) CISC  RISC may include variable length instructions memory-register instructions complex addressing modes complex instructions CALLP, EDIT, … Examples DEC VAX, IBM 370, x86 Advantages better code density legacy software CISC vs RISC

  10. Role of the Optimizing Compiler C source code Front End (Language Specific) IR Procedure InliningLoop Transformations HW/SW complexity tradeoffs High-Level Optimizations IR Common SubExp Elim. Code Motion Global Optimizations Machine-IR Instruction Scheduling Register Allocation Machine Dependent Code Generator Machine binary code

  11. Example: Loop Optimization sum=0; for(i=0;i<max;i++) sum+=x[i]; LW R1, X ADD R2,R0,#MAX SLLI R2,R2,#2 ADD R2,R1,R2 ADD R3,R0,R0 LOOP: LW R4,R1 ADD R3,R3,R4 ADD R1,R1,#4 SLT R5,R1,R2 BNEZ R5,LOOP CONT: LW R1, X ADD R2,R0,R0 ADD R3,R0,R0 LOOP: SLT R5,R2,#MAX BEQZ R5,CONT LW R4,R1 ADD R3,R3,R4 ADD R1,R1,#4 ADD R2,R2,#1 J LOOP CONT: 5 7 LW R1, X ADD R2,R0,R0 ADD R3,R0,R0 LOOP: LW R4,R1 ADD R3,R3,R4 ADD R1,R1,#4 ADD R2,R2,#1 SLT R5,R2,#MAX BNEZ R5,LOOP CONT: 6 Loop Reordering Induction Variable Analysis

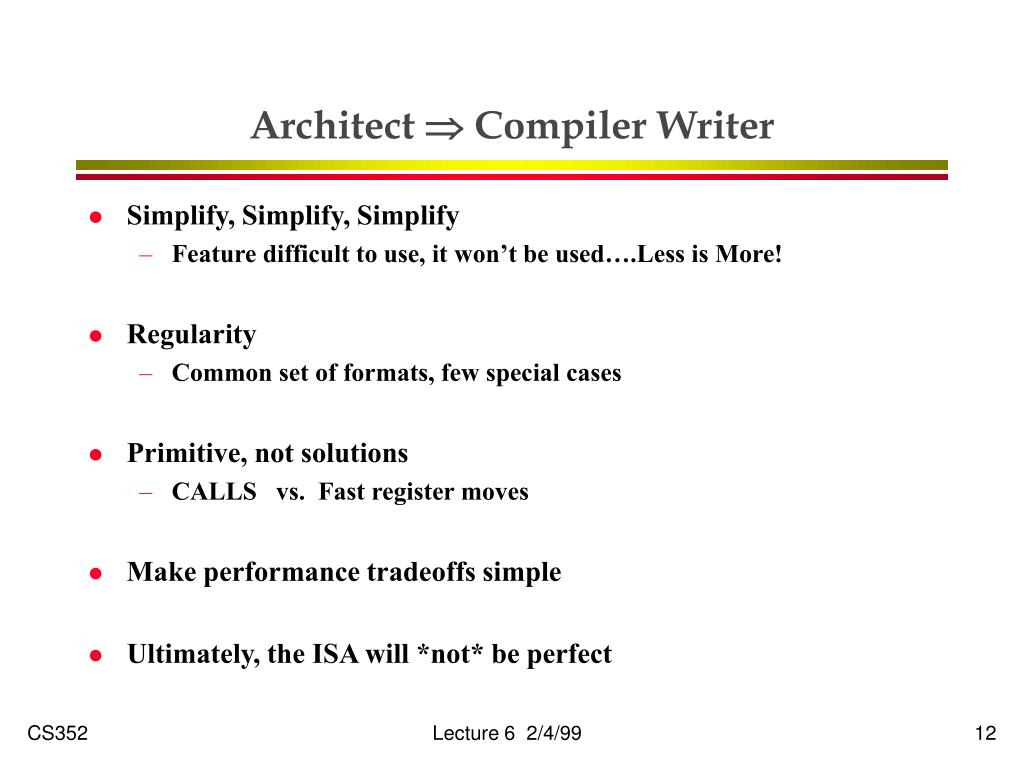

  12. Architect  Compiler Writer • Simplify, Simplify, Simplify • Feature difficult to use, it won’t be used….Less is More! • Regularity • Common set of formats, few special cases • Primitive, not solutions • CALLS vs. Fast register moves • Make performance tradeoffs simple • Ultimately, the ISA will *not* be perfect

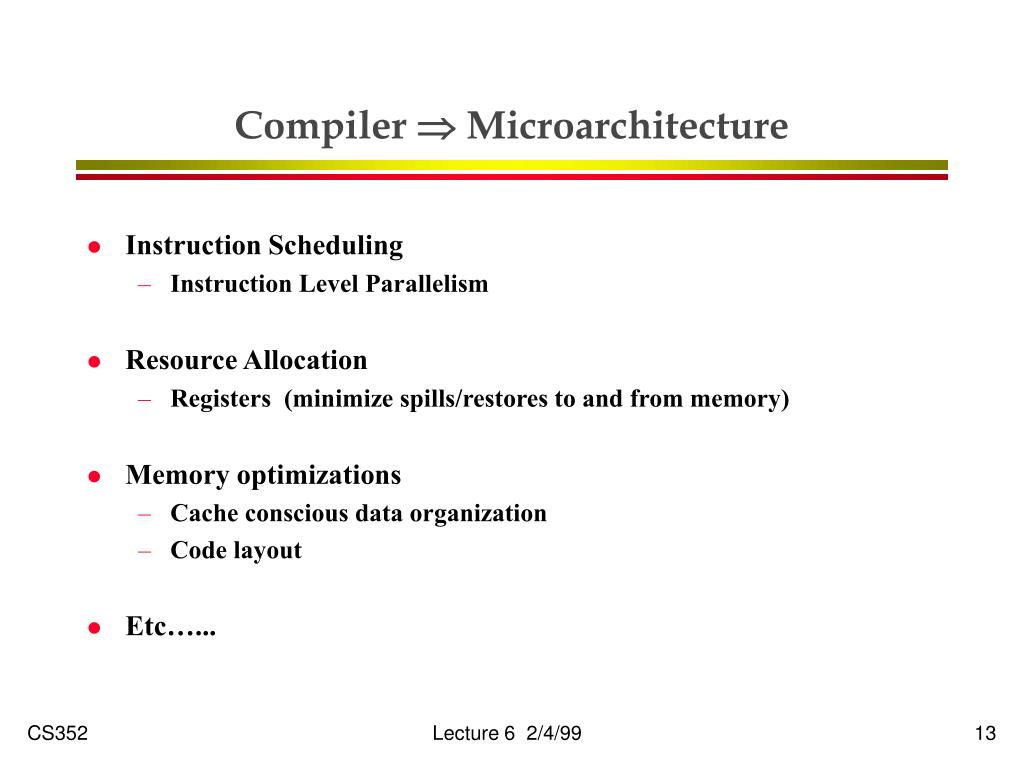

  13. Compiler  Microarchitecture • Instruction Scheduling • Instruction Level Parallelism • Resource Allocation • Registers (minimize spills/restores to and from memory) • Memory optimizations • Cache conscious data organization • Code layout • Etc…...

  14. Next Time • MICROARCHITECTURE!!!!! • Enough with the paint job - what’s under the hood! • Logic Design Review • Registers • Multiplexors • Arithmetic units • Simple DLX processor
