medianet user defined adaptive scheduling for streaming data

MediaNet: User-defined Adaptive Scheduling for Streaming Data

Michael Hicks

Adithya Nagarajan

University of Maryland

Robbert van Renesse

Cornell University

motivation

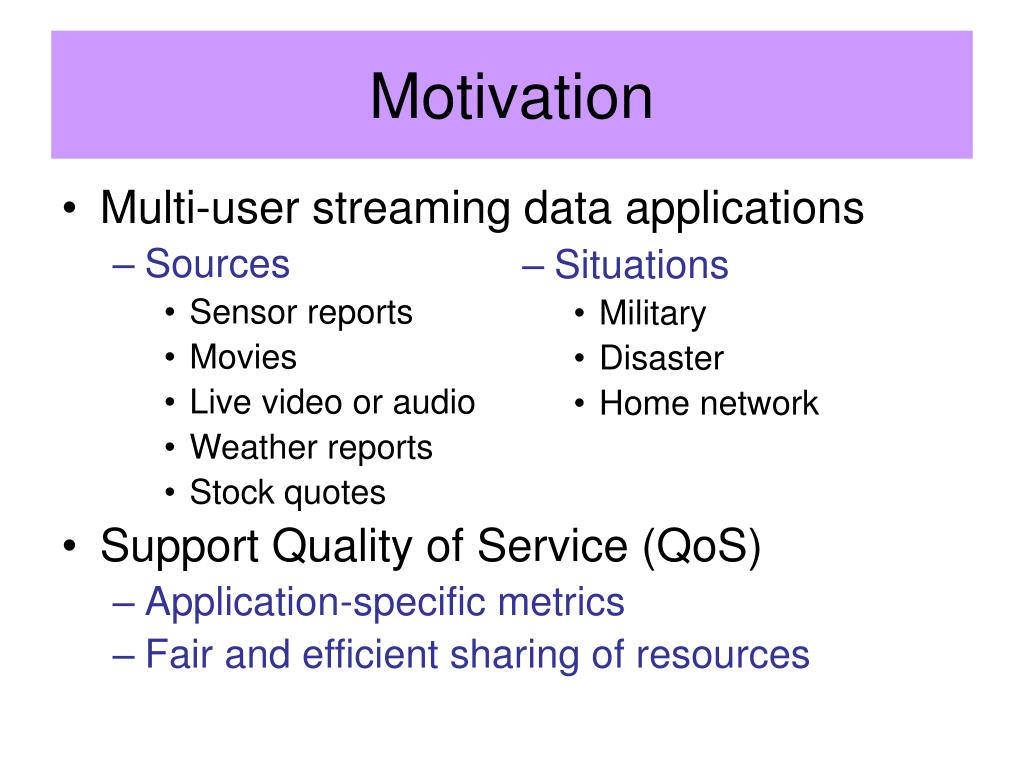

Motivation
  • Multi-user streaming data applications
    • Sources
      • Sensor reports
      • Movies
      • Live video or audio
      • Weather reports
      • Stock quotes
  • Support Quality of Service (QoS)
    • Application-specific metrics
    • Fair and efficient sharing of resources
  • Situations
    • Military
    • Disaster
    • Home network
medianet
MediaNet
  • Adaptive
    • Schedules flows using available resources
    • Adapts to loads not under its control
  • User-directed
    • Adaptations are directed by users, based on relative preferences and user priority
  • Comprehensive
    • Global view of the network, accounting for overall network utilization, and per-user utility
slide4

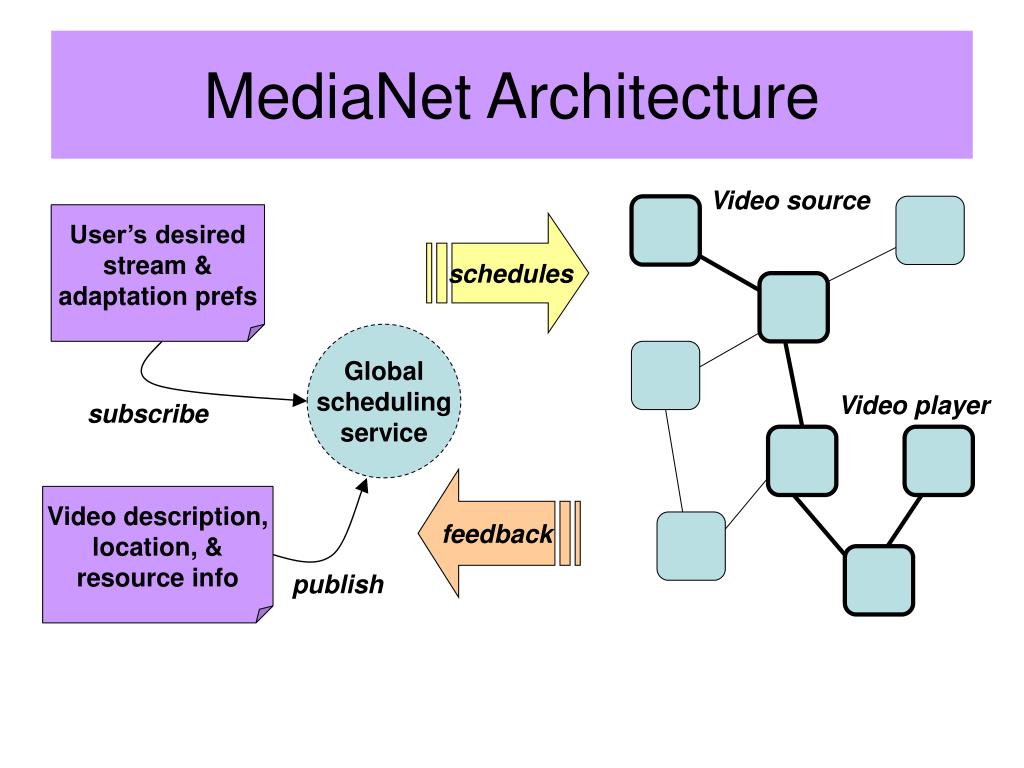

MediaNet Architecture

Video source

User’s desired

stream &

adaptation prefs

schedules

Global

scheduling

service

Video player

subscribe

feedback

Video description,

location, &

resource info

publish

slide5

Streaming Computations

  • Continuous Media Network (CMN)
    • Directed acyclic graph of operations
      • frame droppers, transcoders, compressors and decompressors, filters, aggregators, etc.
  • User specification
    • One or more CMN’s, each with associated utility value
  • Goal: Maximize users’ utility while utilizing the network efficiently
operations

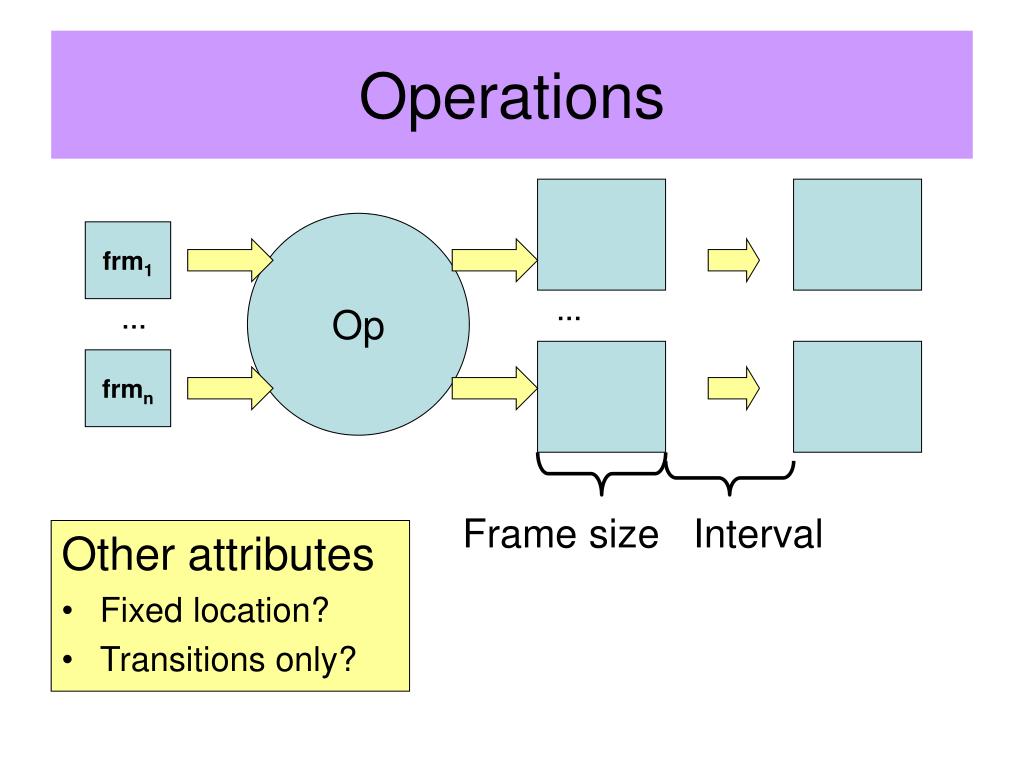

Operations

Op

frm1

frmn

Frame size

Interval

  • Other attributes
  • Fixed location?
  • Transitions only?
example user specification

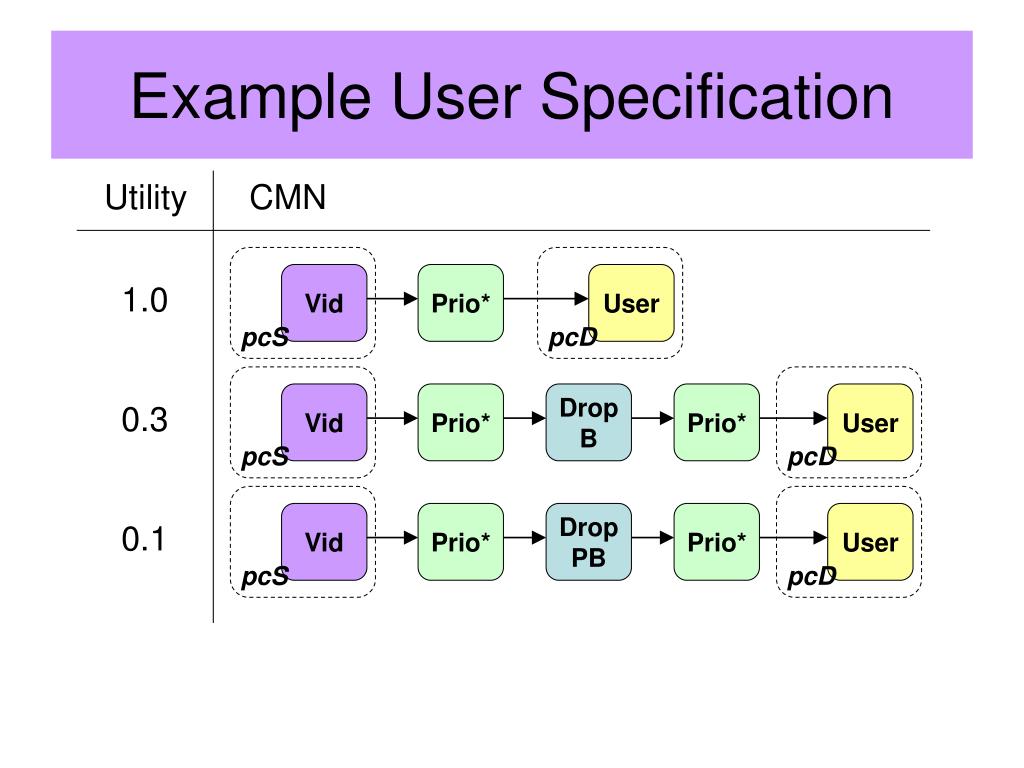

Example User Specification

Utility

CMN

Vid

Prio*

User

1.0

pcS

pcD

Vid

Prio*

Drop

B

Prio*

User

0.3

pcS

pcD

Vid

Prio*

Drop

PB

Prio*

User

0.1

pcS

pcD

global scheduling service
Global Scheduling Service
  • Schedules each user specification on the actual network
    • Locates each operation on a node
    • Inserts send and receive operations between nodes; can have varying transport attributes
  • Scheduling choices based on current network resources (i.e. operates on-line)
global scheduling algorithm
Global Scheduling Algorithm
  • Simulated annealing technique
    • Cost function for network configurations
    • Maximize minimum utility for all users, plus
      • Optimize individual user utilities above minimum
      • Use best-cost configuration at these utilities
  • Cost function
    • Relates resource cost of a configuration to the total resources available (CPU, bandwidth)
creating configurations

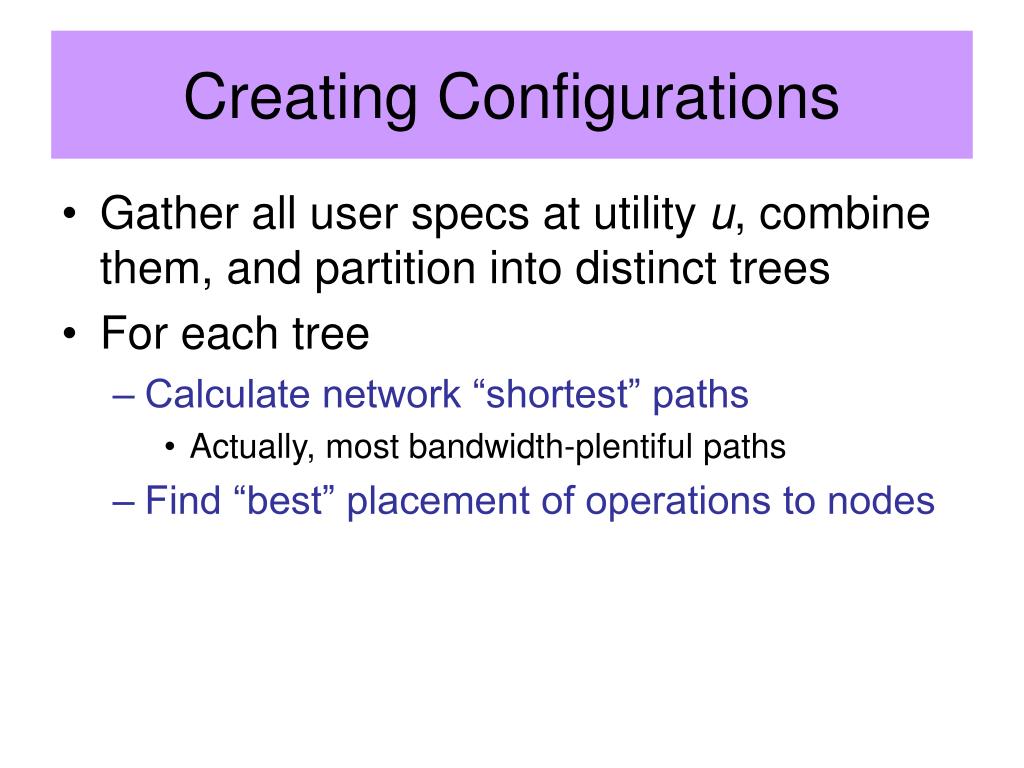

Creating Configurations
  • Gather all user specs at utility u, combine them, and partition into distinct trees
  • For each tree
    • Calculate network “shortest” paths
      • Actually, most bandwidth-plentiful paths
    • Find “best” placement of operations to nodes
example creating config

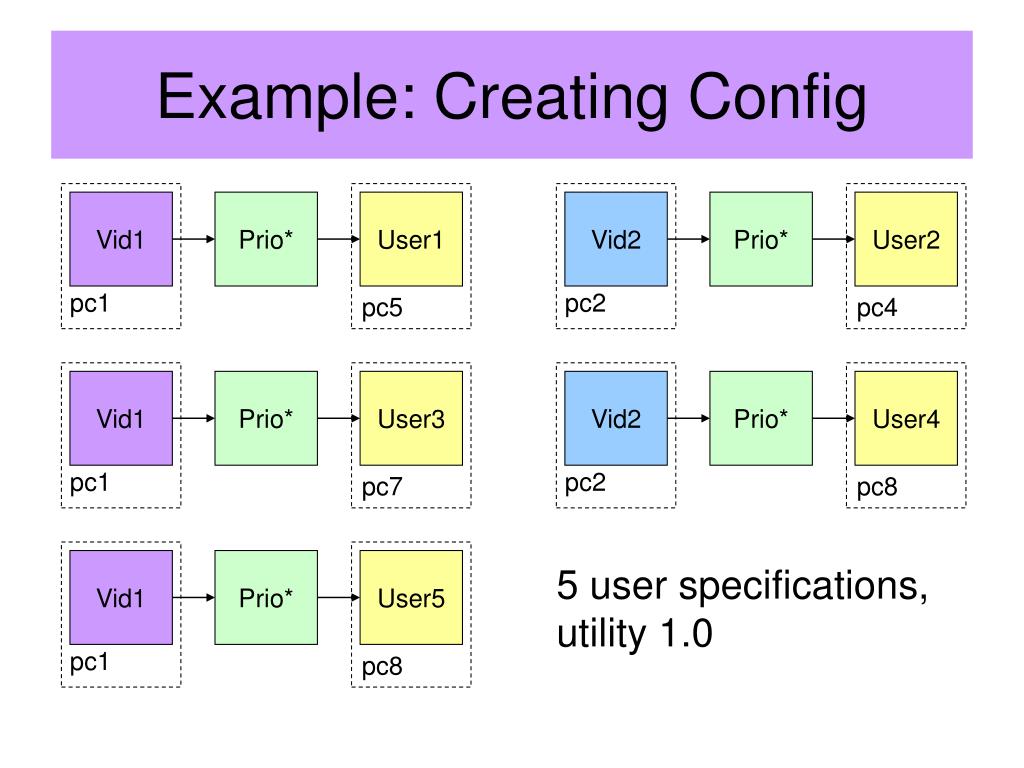

Example: Creating Config

Vid1

Prio*

User1

Vid2

Prio*

User2

pc1

pc2

pc5

pc4

Vid1

Prio*

User3

Vid2

Prio*

User4

pc1

pc2

pc7

pc8

Vid1

Prio*

User5

5 user specifications, utility 1.0

pc1

pc8

example creating config1
Example: Creating Config

Vid1

Prio*

User1

Vid2

Prio*

User2

pc1

pc2

pc5

pc4

User3

User4

pc7

pc8

User5

Combining the specs

pc8

example scheduling
Example: Scheduling

pc1

pc5

pc7

300

150

300

300

pc3

pc4

300

150

300

pc2

pc6

pc8

300

1. Initial network conditions

example scheduling1

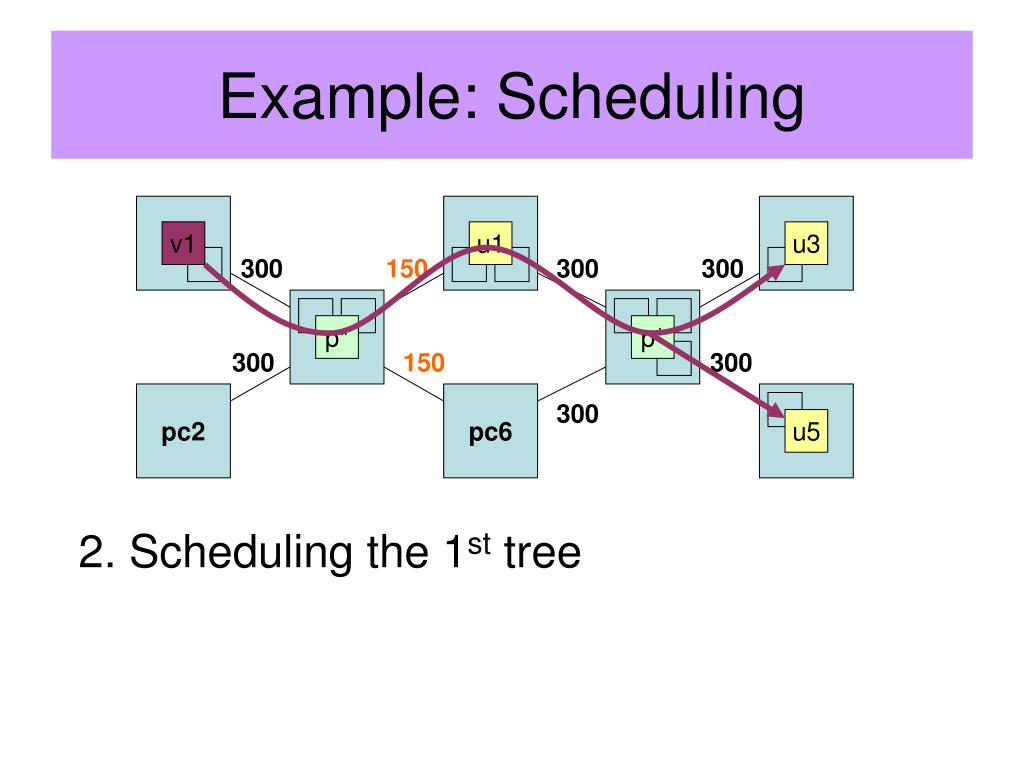

Example: Scheduling

pc1

pc5

pc7

v1

u1

u3

300

150

300

300

pc3

pc4

p*

p*

300

150

300

pc2

pc6

pc8

300

u5

2. Scheduling the 1st tree

example scheduling2
Example: Scheduling

pc1

pc5

pc7

v1

u1

u3

150

0

150

150

pc3

pc4

p*

p*

300

150

150

pc2

pc6

pc8

300

u5

3. Adjusting edge weights

example scheduling3
Example: Scheduling

pc1

pc5

pc7

v1

u1

u3

150

0

150

150

pc3

pc4

p*

p*

300

150

150

pc2

pc6

pc8

300

u2

v2

p*

u5

u4

4. Scheduling the 2nd tree

prototype implementation
Prototype Implementation
  • Global scheduling service
    • implemented on a single node
    • eventually hierarchical
  • Local, per-node schedulers
    • monitor and report available bandwidth; eventually CPU + memory usage
    • implement local CMNs
  • Global scheduler reconfigures schedules on-line
local scheduling

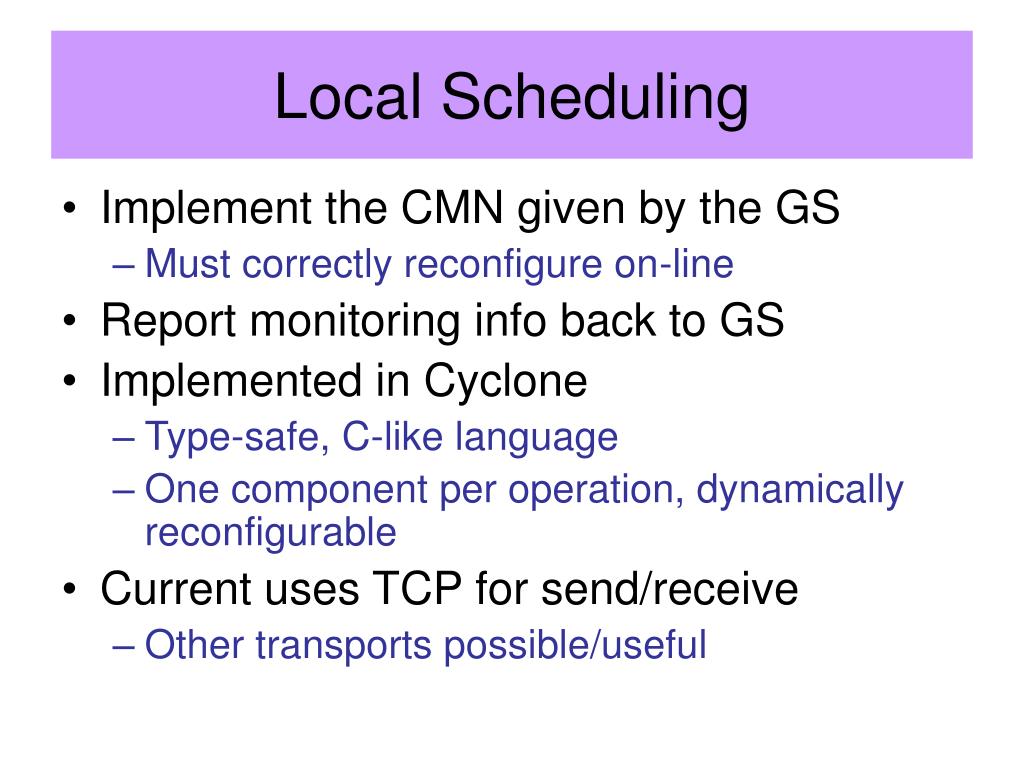

Local Scheduling
  • Implement the CMN given by the GS
    • Must correctly reconfigure on-line
  • Report monitoring info back to GS
  • Implemented in Cyclone
    • Type-safe, C-like language
    • One component per operation, dynamically reconfigurable
  • Current uses TCP for send/receive
    • Other transports possible/useful
monitoring
Monitoring
  • Monitor available bandwidth
    • Keep track of TCP throughput, attempted vs. actual bandwidth
  • Report to global scheduler when
    • attempted ≠ actual bandwidth (i.e. at peak)
    • after a regular timeout
  • Too pessimistic
    • “creep” bandwidth estimate additively to optimistically attempt higher utility configs
on line reconfiguration
On-line Reconfiguration
  • New configuration is applied in parallel with the current configuration
    • Old operations are “flushed” along the dataflow path
    • New operations are enabled when all old ones are flushed on a particular node
  • Challenges
    • Rapid reconfiguration
    • Low disruption to stream
experiments

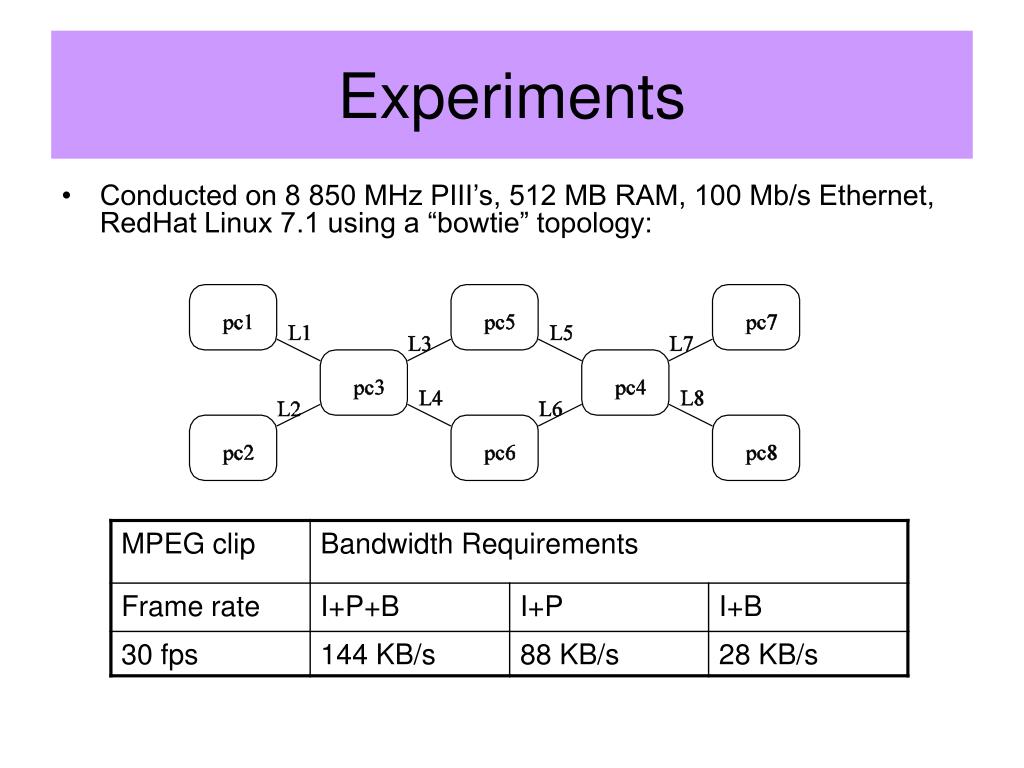

Experiments
  • Conducted on 8 850 MHz PIII’s, 512 MB RAM, 100 Mb/s Ethernet, RedHat Linux 7.1 using a “bowtie” topology:
single flow performance comparison
Single-flow Performance Comparison

No adaptation

Priority-based frame dropping

Local, proactive frame dropping

MediaNet

multi user performance2
Multi-User Performance

B frame dropping op

multi user performance3
Multi-User Performance

B frame dropping op

related work
Related Work
  • Layered Multicast
  • In-network stream processors
    • MEGA, Active Nets
  • Flow planning systems
    • Ninja, Darwin, CANS, End-to-End Paths, Conductor, PATHS, Choi et al.
  • Reservation-based QoS
    • OMEGA
future work
Future Work
  • Hierarchy of global schedulers
    • Better scalability
  • Scaling user utilities
    • Based on user priority and resource usage
    • Enforces fairness
  • Better on-line monitoring
  • More experiments
    • Real wireless
    • Simulation for larger scenarios
conclusions
Conclusions
  • Application-specific QoS via user specs
  • High network utilization and per-user utility via global scheduling:
    • Share resources between flows in a multicast-like manner, but generalized to CMNs
    • Utilize multiple, redundant paths
    • Intelligently place operations to reduce network utilization
  • Adapts to resource availabilities on-line
for more information

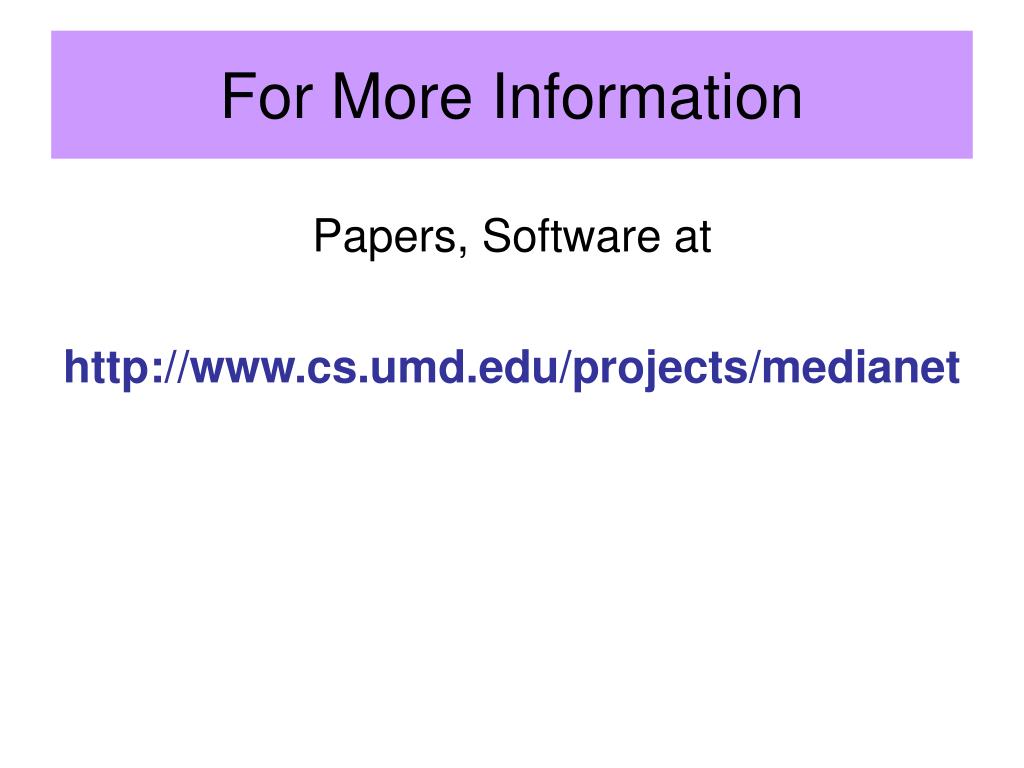

For More Information

Papers, Software at

http://www.cs.umd.edu/projects/medianet
