1. EE314Microprocessor Systems Chapter 2 An Introduction to the 80x86 Microprocessor Family Objectives: Real-mode and protected-mode operation The register set of 80x86 family The addressing capabilities and data types that may be used Based on "An Introduction to the Intel Family of Microprocessors" by James L. Antonakos

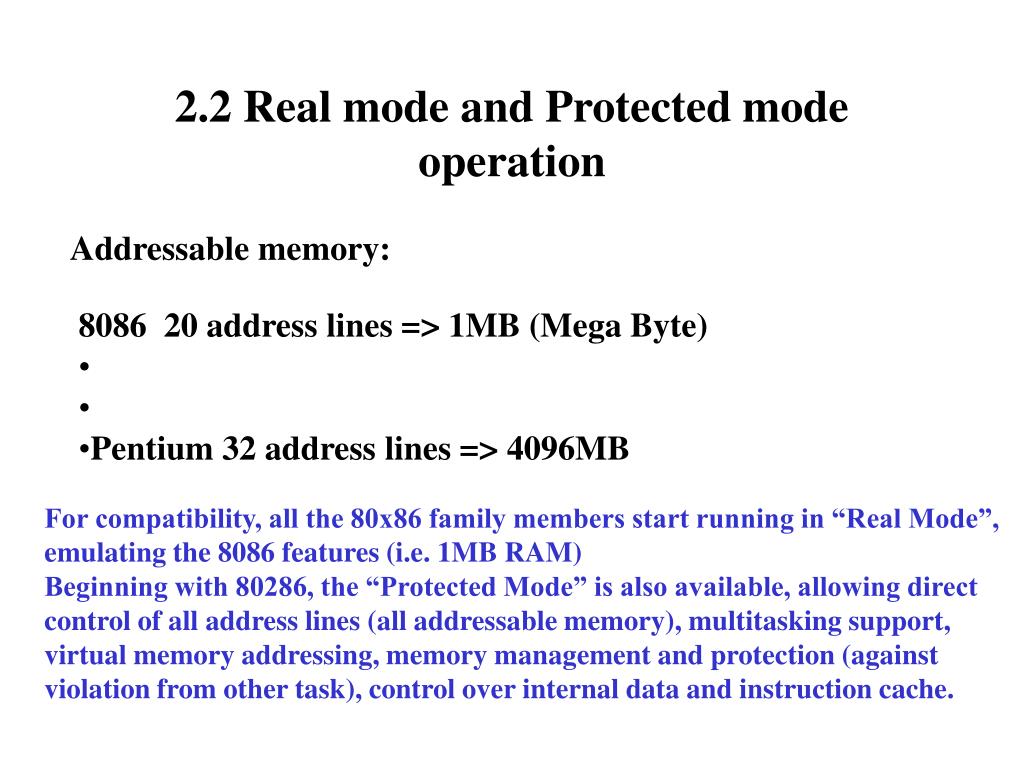

2. 2.2 Real mode and Protected mode operation Addressable memory: • 8086 20 address lines => 1MB (Mega Byte) • Pentium 32 address lines => 4096MB For compatibility, all the 80x86 family members start running in “Real Mode”, emulating the 8086 features (i.e. 1MB RAM) Beginning with 80286, the “Protected Mode” is also available, allowing direct control of all address lines (all addressable memory), multitasking support, virtual memory addressing, memory management and protection (against violation from other task), control over internal data and instruction cache.

3. 15 . . . 8,7 . . . 0 15 . . . 8,7 . . . 0 31 . . . . . . 16,15 . . . 8,7 . . . 0 2.3 The Software Model of 80x86 Family Accumulator Base Count Data Base Pointer Source Index Destination Index Code Segment Data Segment Stack Segment Extra Segment FS GS Extended registers, only on 80386 and higher CPUs Instruction Pointer Stack Pointer Flags 32 bit registers, 80386 or higher only 8 bit registers 16 bit registers

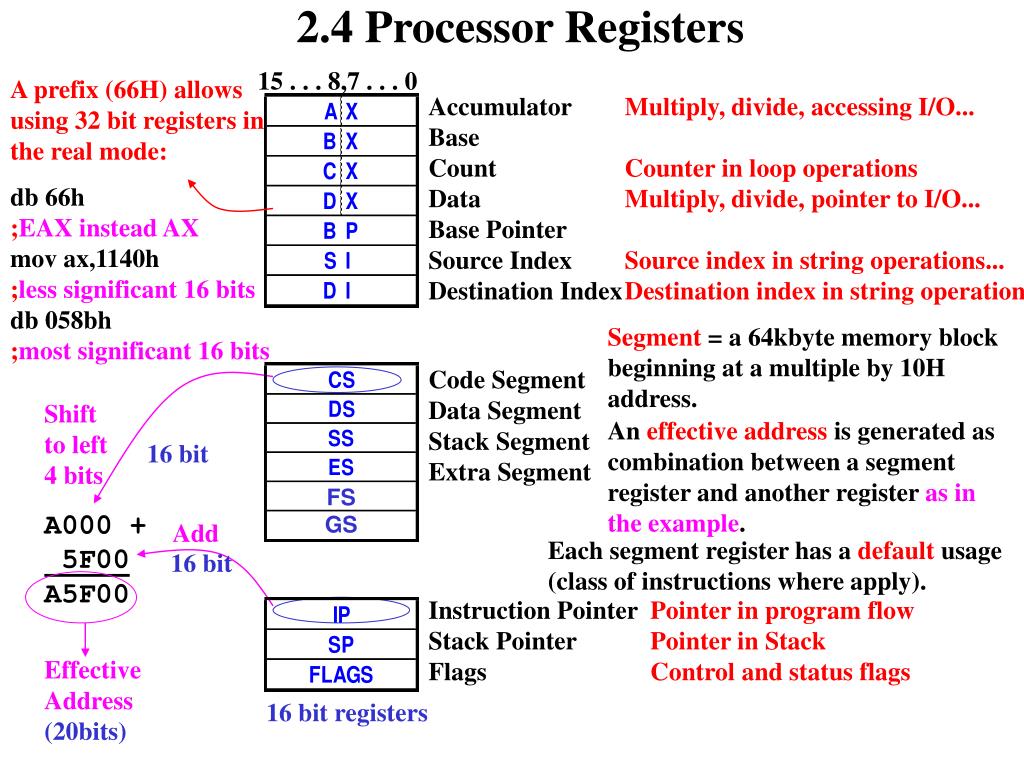

4. 15 . . . 8,7 . . . 0 A prefix (66H) allows using 32 bit registers in the real mode: db 66h ;EAX instead AX mov ax,1140h ;less significant 16 bits db 058bh ;most significant 16 bits 2.4 Processor Registers Accumulator Base Count Data Base Pointer Source Index Destination Index Multiply, divide, accessing I/O... Counter in loop operations Multiply, divide, pointer to I/O... Source index in string operations... Destination index in string operations Segment = a 64kbyte memory block beginning at a multiple by 10H address. Code Segment Data Segment Stack Segment Extra Segment Shift to left 4 bits An effective address is generated as combination between a segment register and another register as in the example. 16 bit FS GS A000 + 5F00 A5F00 Add Each segment register has a default usage (class of instructions where apply). 16 bit Instruction Pointer Stack Pointer Flags Pointer in program flow Pointer in Stack Control and status flags Effective Address (20bits) 16 bit registers

5. 2.4 Processor RegistersFlag register CF PF AF ZF SF TF IF DF OF IOPL NT Carry Flag Parity Flag Auxiliary carry Flag Zero Flag Sign Flag Trace Flag Interrupt enable Flag Direction Flag Overflow Flag I/O Priority Level Nested Task Contains Carry out of MSB of result Indicates if result has even parity Contains Carry out of bit 3 in AL Indicates if result equals zero Indicates if result is negative Provides a single step capability for debugging Enables/disables interrupts Controls pointer updating during string operations Indicates that an overflow occurred in result Priority level of current task (two bits) Indicates if current task is nested

6. 2.5 Data OrganizationBits, Bytes, Words, Double-words Possible Values Binary Hexadecimal Decimal 0,1 0,1 0,1 0...1111 0...F 0…15 0…1111,1111 0…FF 0…255 0…(16 ‘1’s) 0…FFFF 0…65,535 0…(32 ‘1’s) 0…FFFFFFFF 0...4,294,967,295 Name Bit Nibble Byte Word Double Word Size BInary digiT 4 bits 8 bits 16 bits = 2 bytes 32 bits = 4 bytes Byte swapping: if a word has to be stored into an 8 bit wide memory at address adr, its low byte is stored at adr and its high byte at adr+1. If a word is read from an 8 bit memory at address adr, the low byte is loaded from adr and the high byte from adr+1. Rule:low significance <=> low address

7. 2.5 Data OrganizationAssembler directives DB, DW, DUP and EQU. Define Byte reserves memory for a byte and assign to itthe specified value. ... 0003 0D 0004 30 0005 C8 0006 3A 0007 CE ... Decimal, binary, octal or hexadecimal numbers can be used. Example 0000 .DATA 0000 03 NUM1 DB 3 0001 04 NUM2 DB 100B 0002 00 NUM3 DB ? 0003 0D 30 C8 3A CE NUMS DB 15O,48,200,3AH,0CEH 0008 48 69 24 MSG DB ’Hi$’ 000E 0006 WX DW 6 0010 03E8 WY DW 1000 0012 1234 ABCD WZ DW 1234H,0ABCDH 0016 0000 TEMP DW ? 0018 000A [00] SRS DB 10 DUP(0) 0022 0007 [0000] TIME DW 7 DUP(?) =000D TOP EQU 13 =157C MORE EQU 5500 A list of values can be used. A ’character string’ generates the associate ASCII bytes Byte swapping 0012 34 0013 12 0014 CD 0015 AB ... Similarly, Define Word reserves memory space for a word and assign to itthe specified value. A numerical value begins with a decimal digit, or a non-significant “0” is added Duplicate repeats n times the value between ( ). Equate directive assign a value to a constant without memory space reservation. A label is assigned the address of the first byte involved in its statement. A “?” reserves memory space without assigning values.

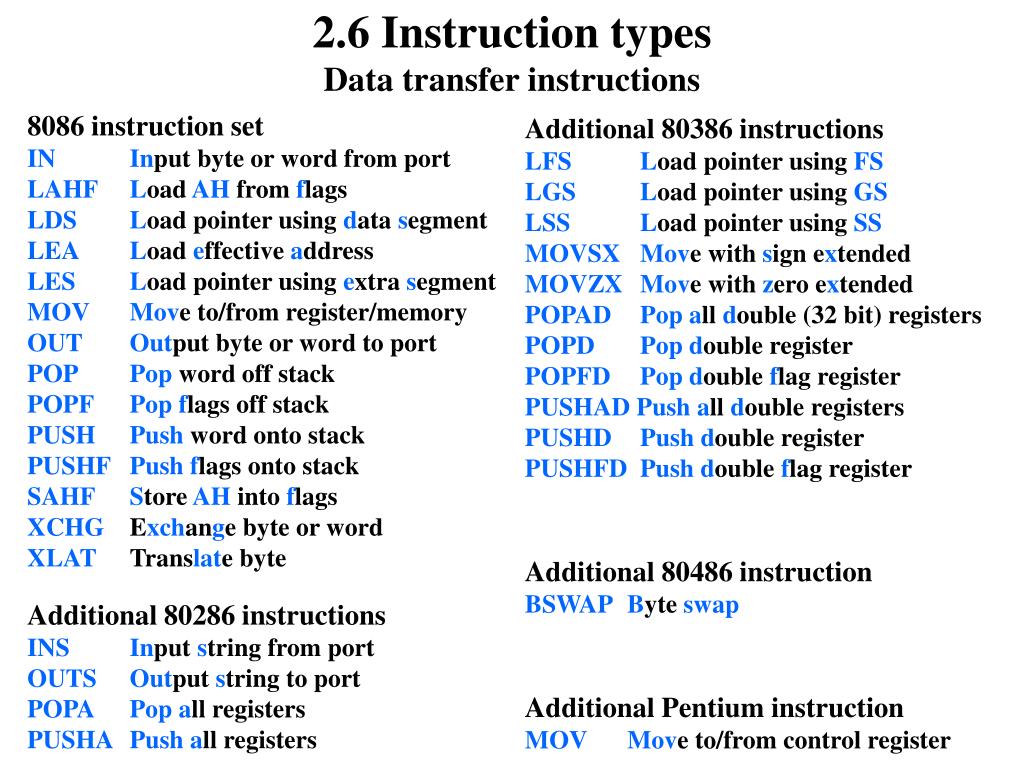

8. 2.6 Instruction typesData transfer instructions 8086 instruction set INInput byte or word from port LAHFLoad AH from flags LDSLoad pointer using data segment LEALoad effective address LESLoad pointer using extra segment MOVMove to/from register/memory OUTOutput byte or word to port POPPop word off stack POPFPop flags off stack PUSHPush word onto stack PUSHFPush flags onto stack SAHFStore AH into flags XCHG Exchange byte or word XLAT Translate byte Additional 80386 instructions LFSLoad pointer using FS LGSLoad pointer using GS LSSLoad pointer using SS MOVSXMove with sign extended MOVZXMove with zero extended POPADPopall double (32 bit) registers POPDPopdouble register POPFDPopdouble flag register PUSHAD Pushall double registers PUSHDPushdouble register PUSHFD Push double flag register Additional 80486 instruction BSWAPByte swap Additional 80286 instructions INSInput string from port OUTSOutput string to port POPAPop all registers PUSHAPush all registers Additional Pentium instruction MOVMove to/from control register

9. 2.6 Instruction typesArithmetic instructions 8086 instruction set AAAASCII adjust for addition AADASCII adjust for division AAMASCII adjust for multiply AASASCII adjust for subtraction ADCAdd byte or word plus carry ADD Add byte or word CBWConvert byte or word CMPCompare byte or word CWDConvert word to double-word DAADecimal adjust for addition DASDecimal adjust for subtraction DECDecrement byte or word by one DIVDivide byte or word IDIVInteger divide byte or word IMULInteger multiply byte or word INCIncrement byte or word by one MULMultiply byte or word (unsigned) NEGNegate byte or word SBBSubtract byte or word and carry (borrow) SUBSubtract byte or word Additional 80386 instructions CDQConvert double-word to quad-word CWDEConvert word to double-word Additional 80486 instructions CMPXCHGCompare and exchange XADD Exchange and add Additional Pentium instruction CMPXCHG8BCompare and exchange 8 bytes

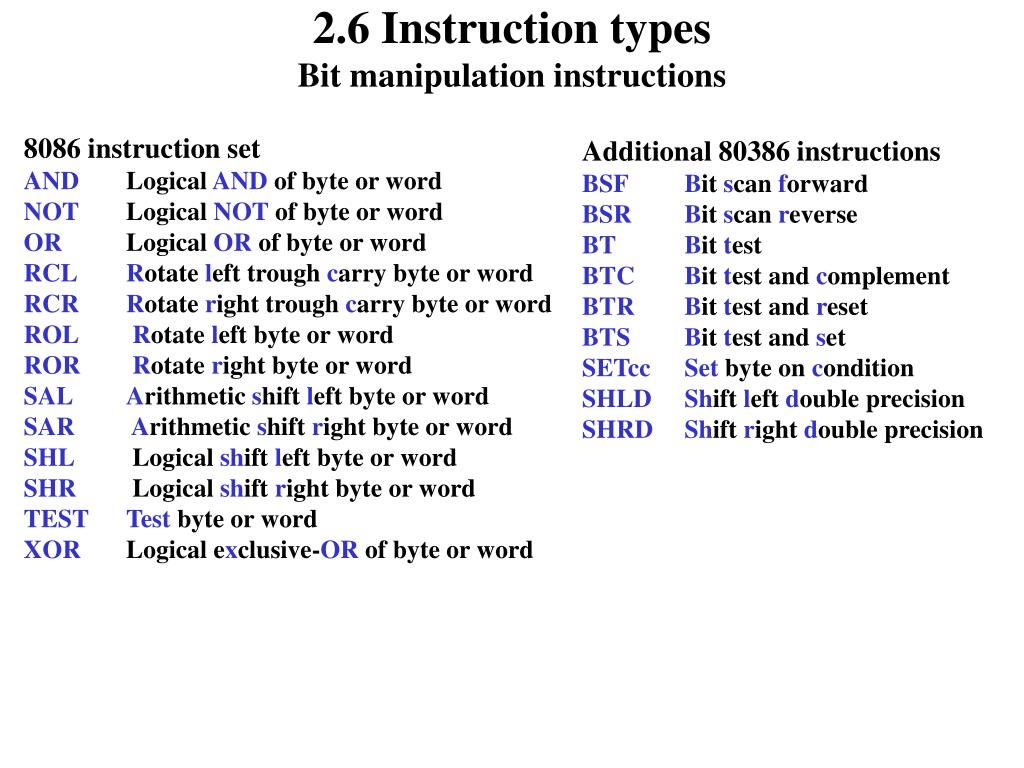

10. 2.6 Instruction typesBit manipulation instructions 8086 instruction set AND Logical AND of byte or word NOT Logical NOT of byte or word OR Logical OR of byte or word RCLRotate left trough carry byte or word RCRRotate right trough carry byte or word ROLRotate left byte or word RORRotate right byte or word SALArithmetic shift left byte or word SARArithmetic shift right byte or word SHL Logical shift left byte or word SHR Logical shift right byte or word TESTTest byte or word XOR Logical exclusive-OR of byte or word Additional 80386 instructions BSFBit scan forward BSRBit scan reverse BTBit test BTCBit test and complement BTRBit test and reset BTSBit test and set SETccSet byte on condition SHLDShift left double precision SHRDShift right double precision

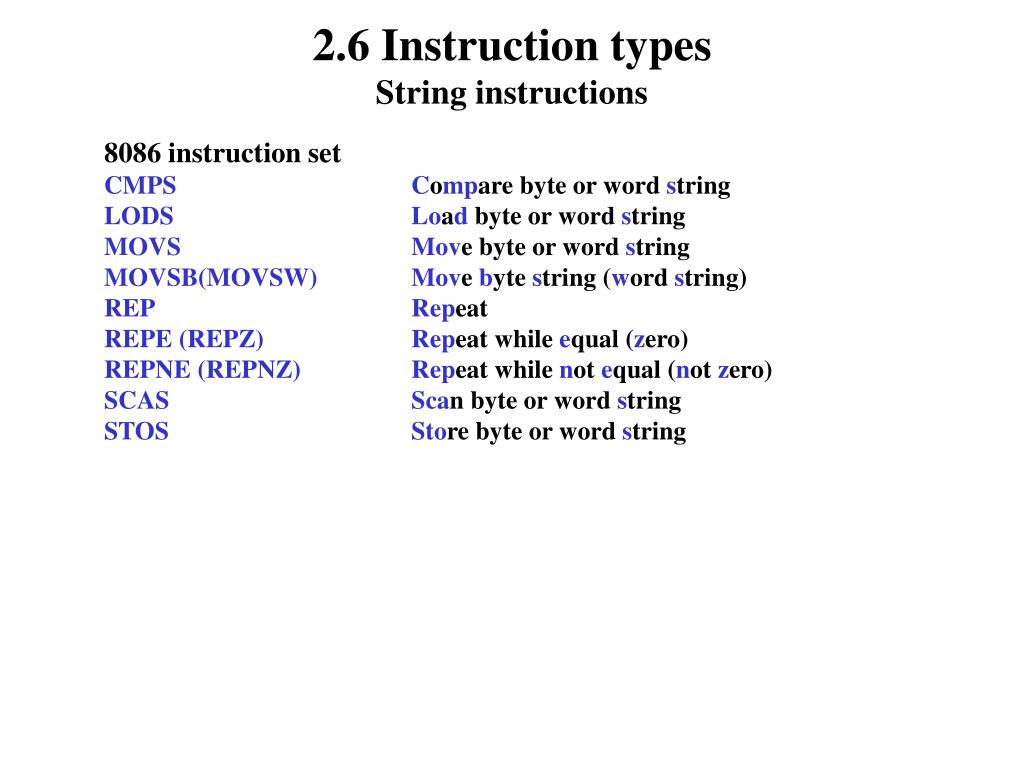

11. 2.6 Instruction typesString instructions 8086 instruction set CMPSCompare byte or word string LODSLoad byte or word string MOVSMove byte or word string MOVSB(MOVSW)Move byte string (word string) REPRepeat REPE (REPZ) Repeat while equal (zero) REPNE (REPNZ) Repeat while not equal (not zero) SCAS Scan byte or word string STOSStore byte or word string
