  1. CosmicRUn@ZEroTesla DT in CRUZET: C.Bedoya CMS Run meeting 9/5/08 http://indico.cern.ch/conferenceDisplay.py?confId=33621

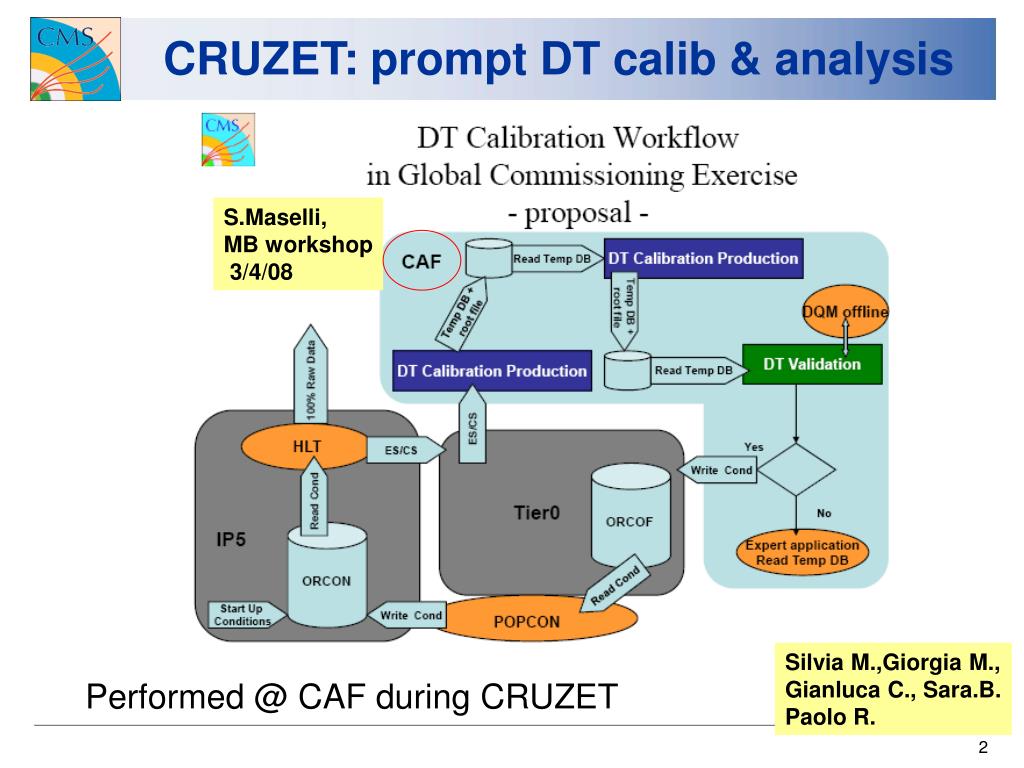

  2. CRUZET: prompt DT calib & analysis S.Maselli, MB workshop 3/4/08 Silvia M.,Giorgia M., Gianluca C., Sara.B. Paolo R. Performed @ CAF during CRUZET

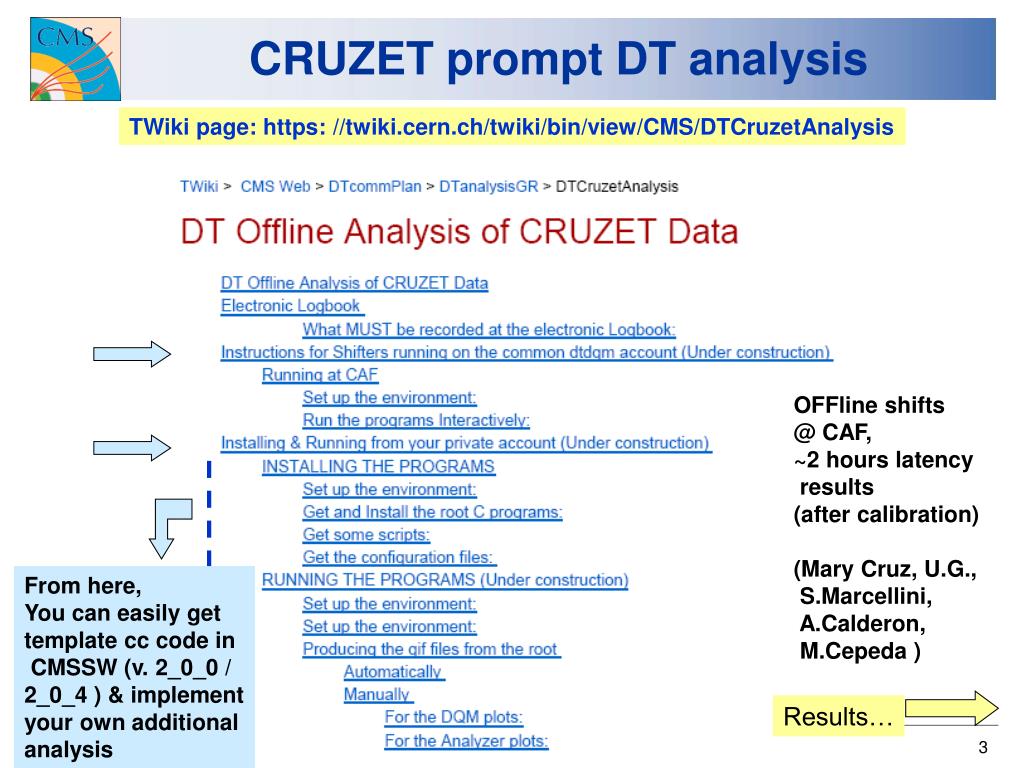

  3. CRUZET prompt DT analysis TWiki page: https: //twiki.cern.ch/twiki/bin/view/CMS/DTCruzetAnalysis OFFline shifts @ CAF, ~2 hours latency results (after calibration) (Mary Cruz, U.G., S.Marcellini, A.Calderon, M.Cepeda ) From here, You can easily get template cc code in CMSSW (v. 2_0_0 / 2_0_4 ) & implement your own additional analysis Results…

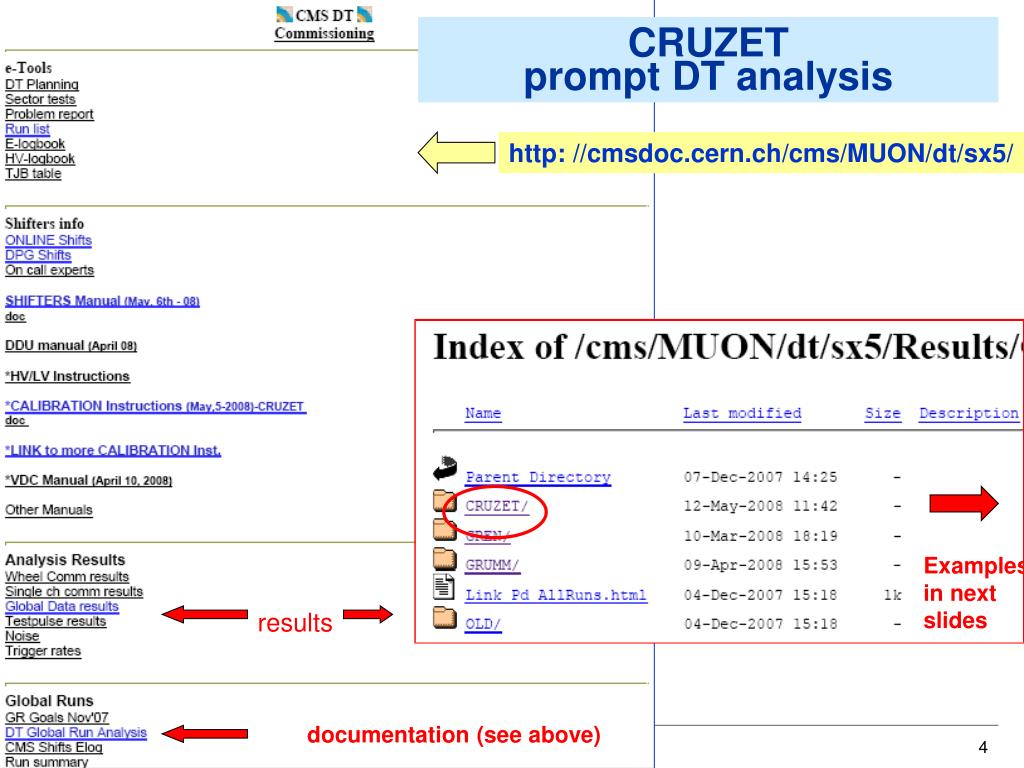

  4. CRUZET prompt DT analysis http: //cmsdoc.cern.ch/cms/MUON/dt/sx5/ Examples in next slides results documentation (see above)

  5. CRUZET: DT prompt analysis Longer (stable) runs analyzed with priority… See for Run Info The CmsRunSummary page: http: //cmsmon.cern.ch/cmsdb/servlet/ RunSummary

  6. MB4 MB3 MB2 MB1 Layer1 Leyer2 Layer3 Layer4 TimeBoxes, Wheel0 Run43439 MB1 MB2 MB3 MB4

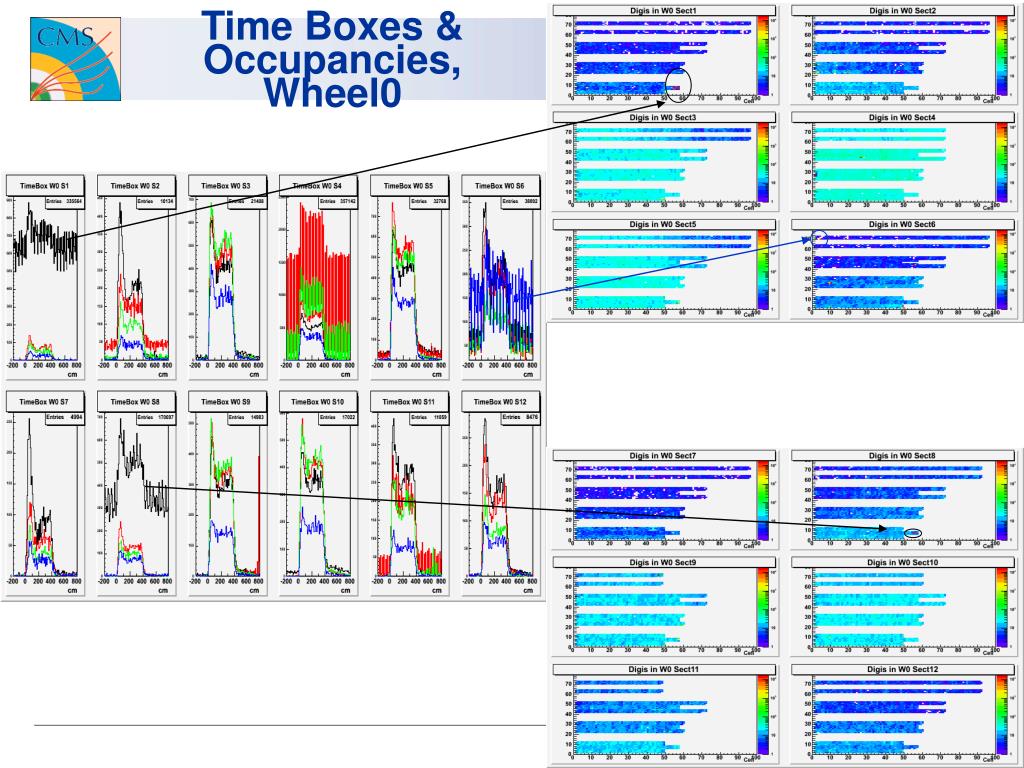

  7. Time Boxes & Occupancies, Wheel0

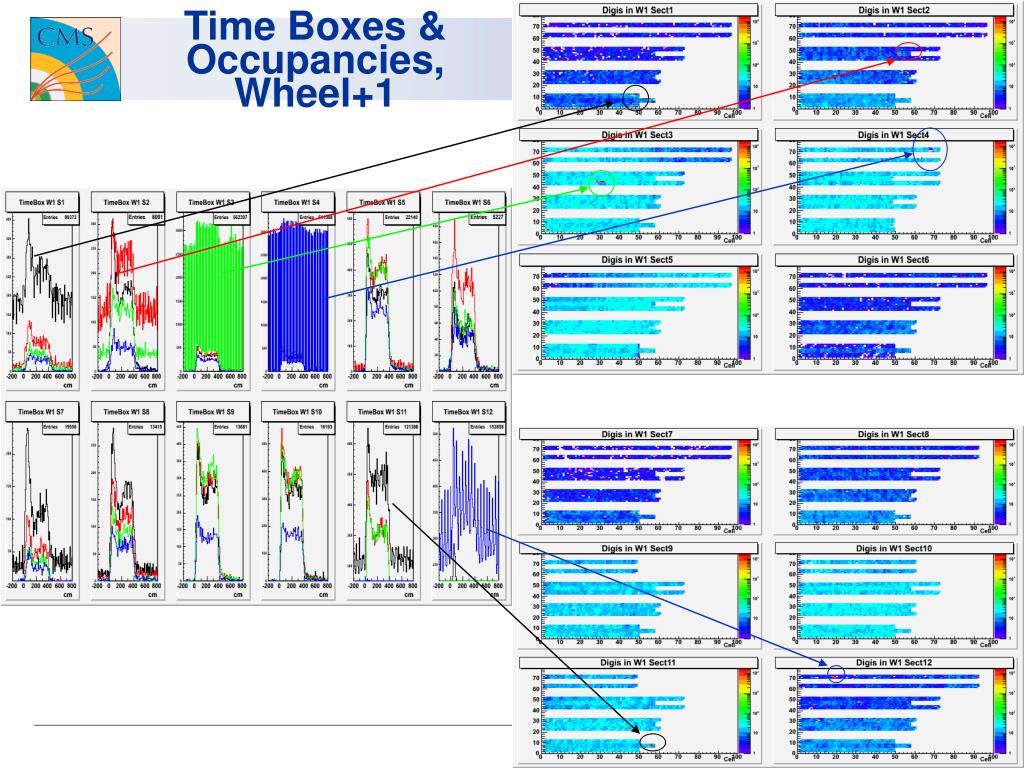

  8. Time Boxes & Occupancies, Wheel+1

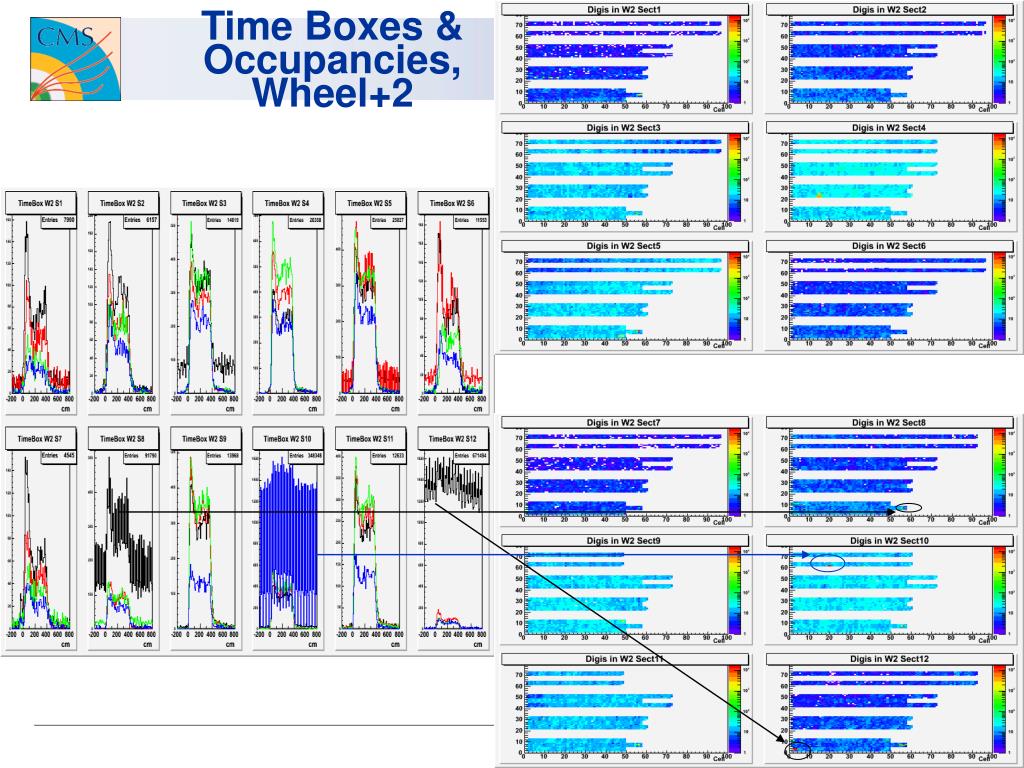

  9. Time Boxes & Occupancies, Wheel+2

  10. Time Boxes & Occupancies, Wheel-1

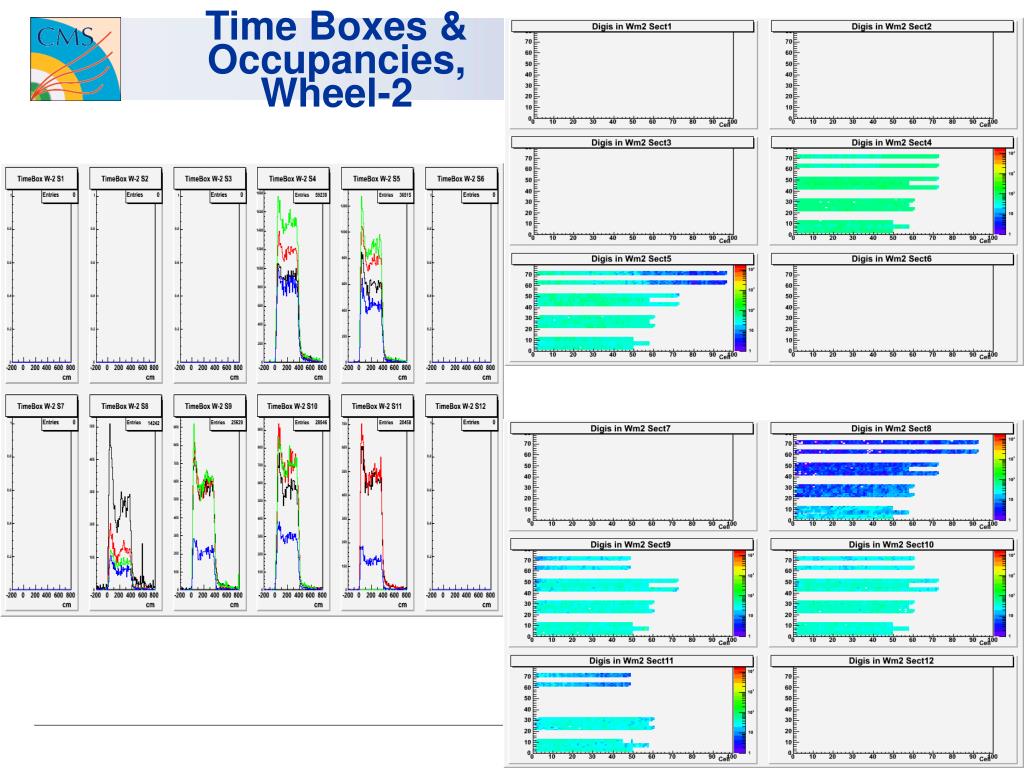

  11. Time Boxes & Occupancies, Wheel-2

  12. DT in CRUZET From CmsRunSummary page: http: //cmsmon.cern.ch/cmsdb/servlet/ RunSummary ~7 hours Run, ~ 6 M triggers ~170,000 triggers analyzed (out of 6 M) Events with no Segments ( 8% ) # segments /event

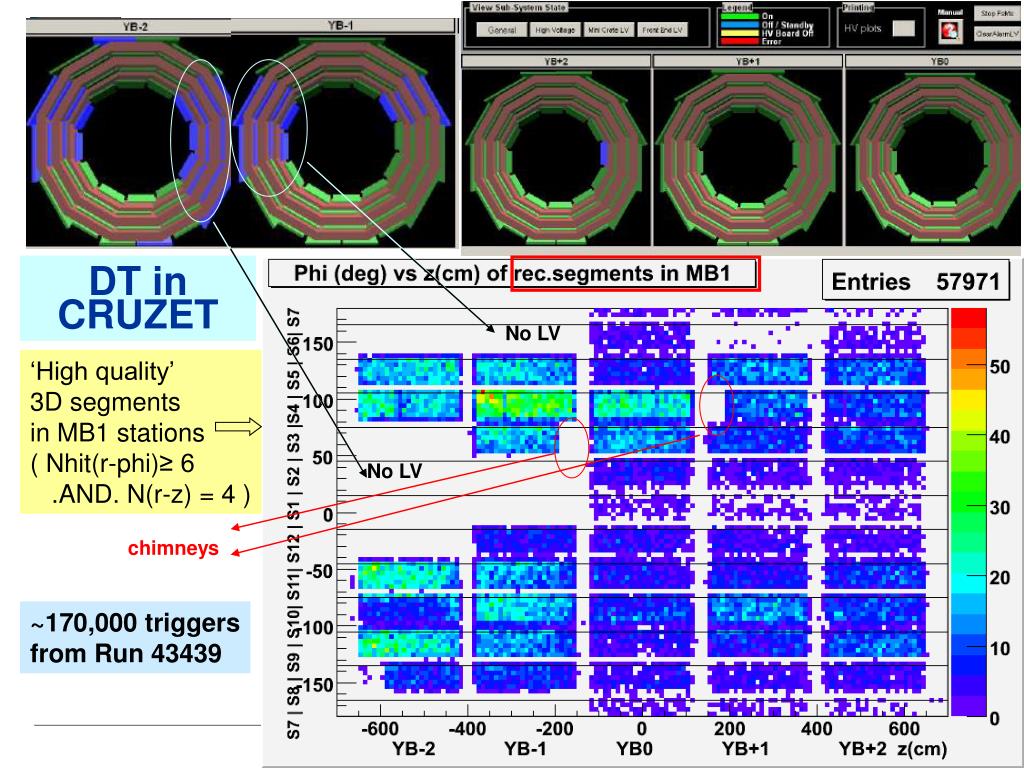

  13. DT in CRUZET No LV ‘High quality’ 3D segments in MB1 stations ( Nhit(r-phi)≥ 6 .AND. N(r-z) = 4 ) No LV chimneys ~170,000 triggers from Run 43439

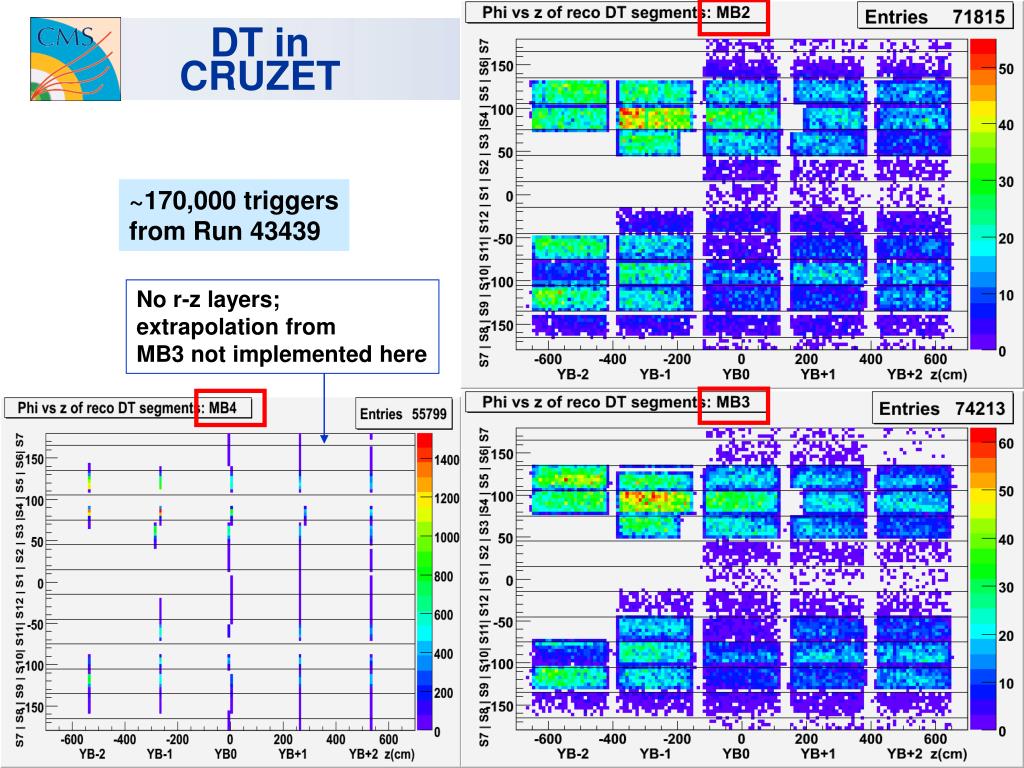

  14. DT in CRUZET ~170,000 triggers from Run 43439 No r-z layers; extrapolation from MB3 not implemented here

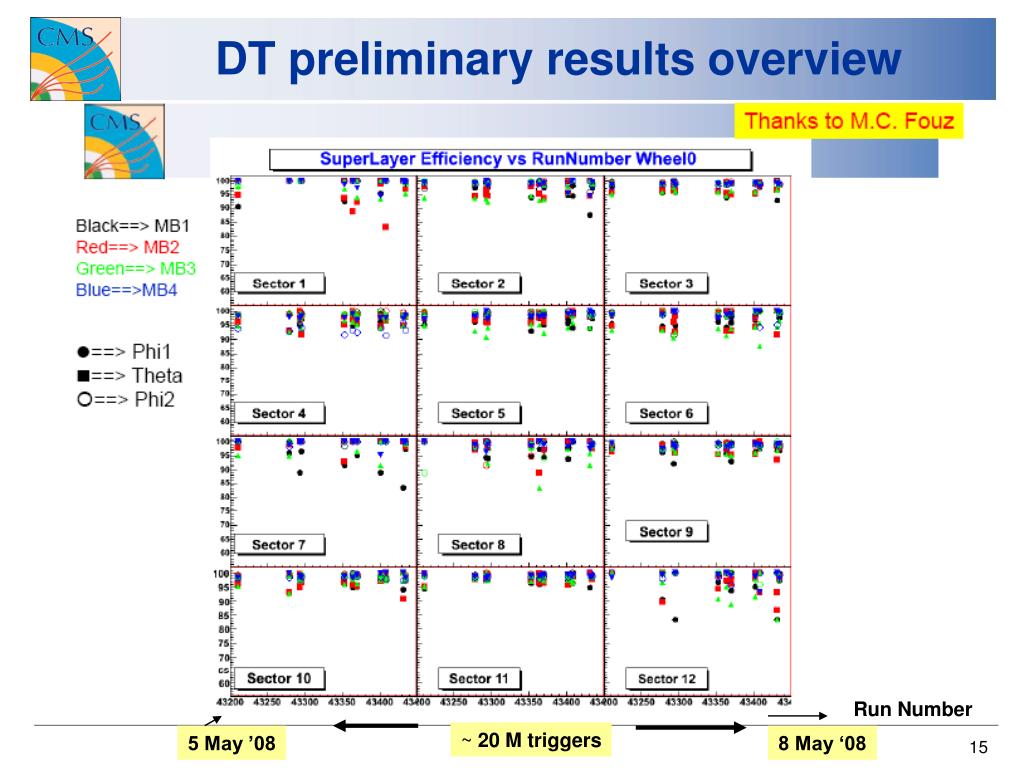

  15. DT preliminary results overview Run Number ~ 20 M triggers 5 May ’08 8 May ‘08

  16. DT preliminary results overview Run Number

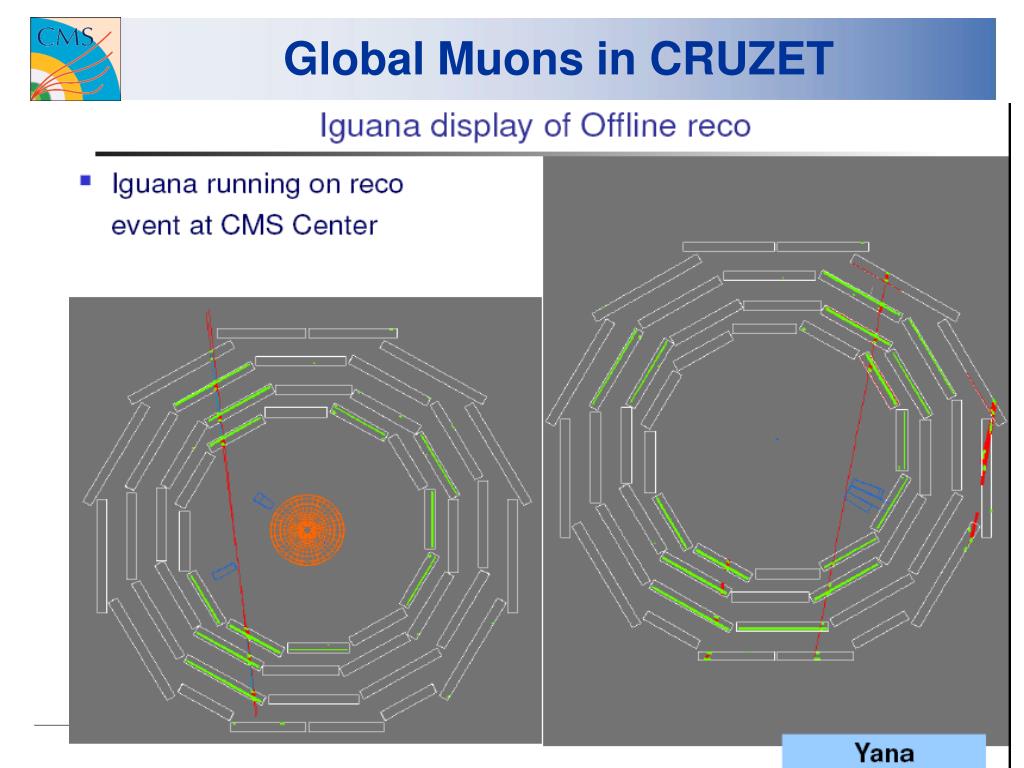

  17. Global Muons in CRUZET A. Rizzi CMS Run meeting 9/5/08

  18. Global Muons in CRUZET

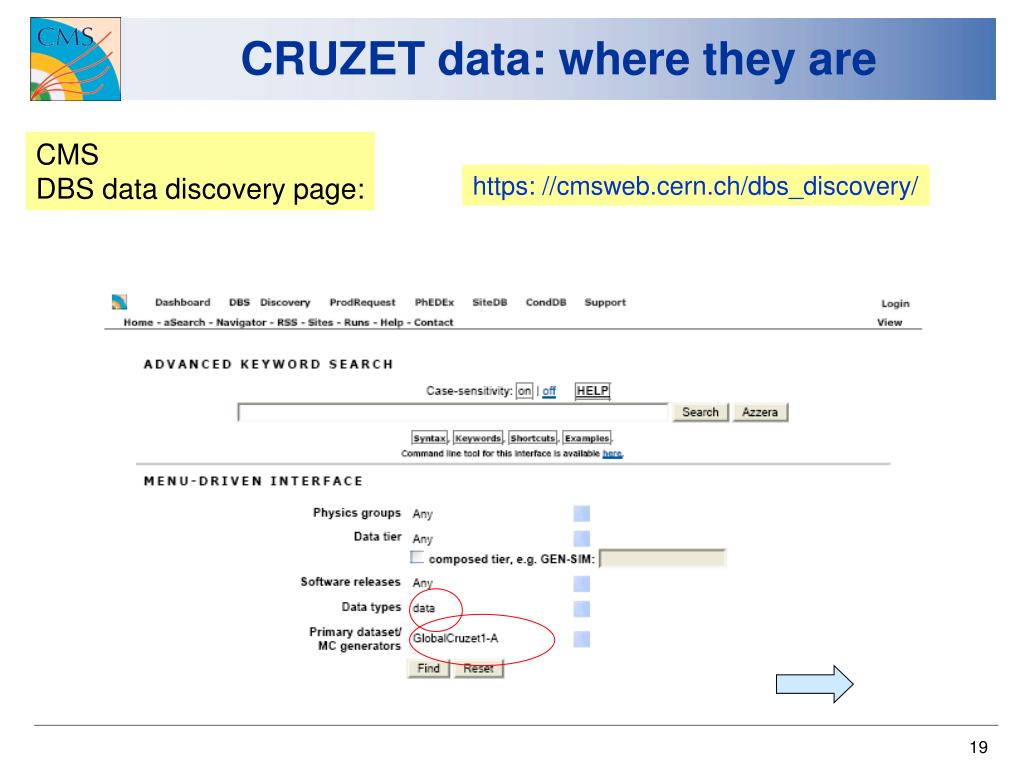

  19. CRUZET data: where they are CMS DBS data discovery page: https: //cmsweb.cern.ch/dbs_discovery/

  20. CRUZET data: where they are Click here…

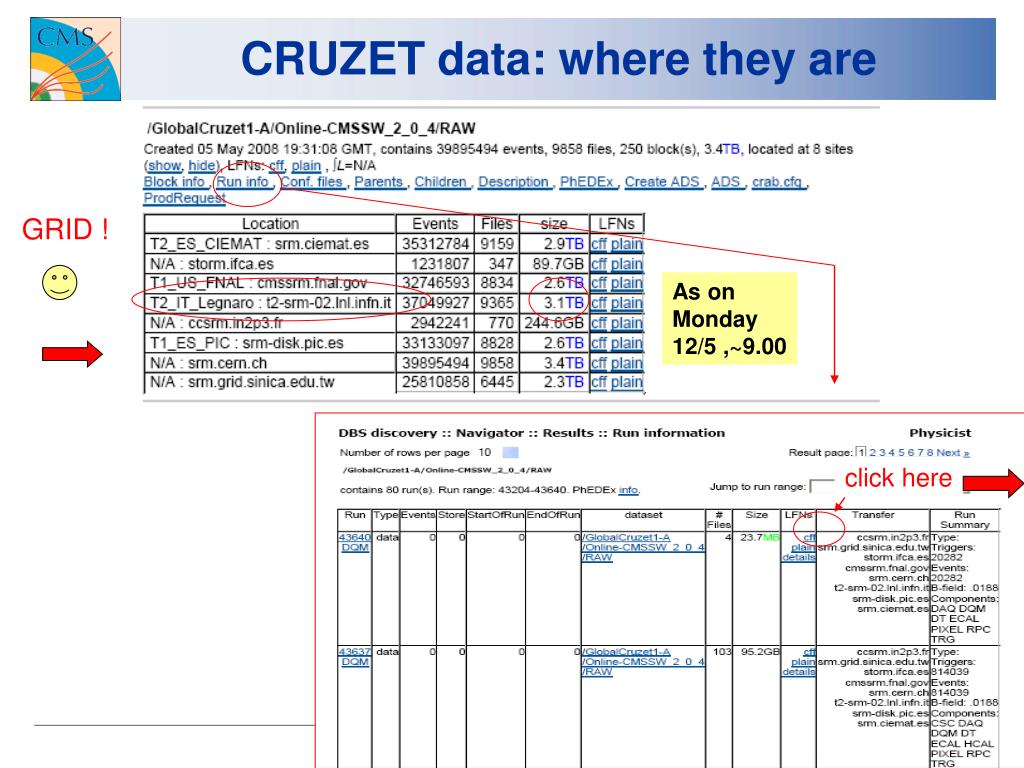

  21. CRUZET data: where they are GRID ! As on Monday 12/5 ,~9.00 click here

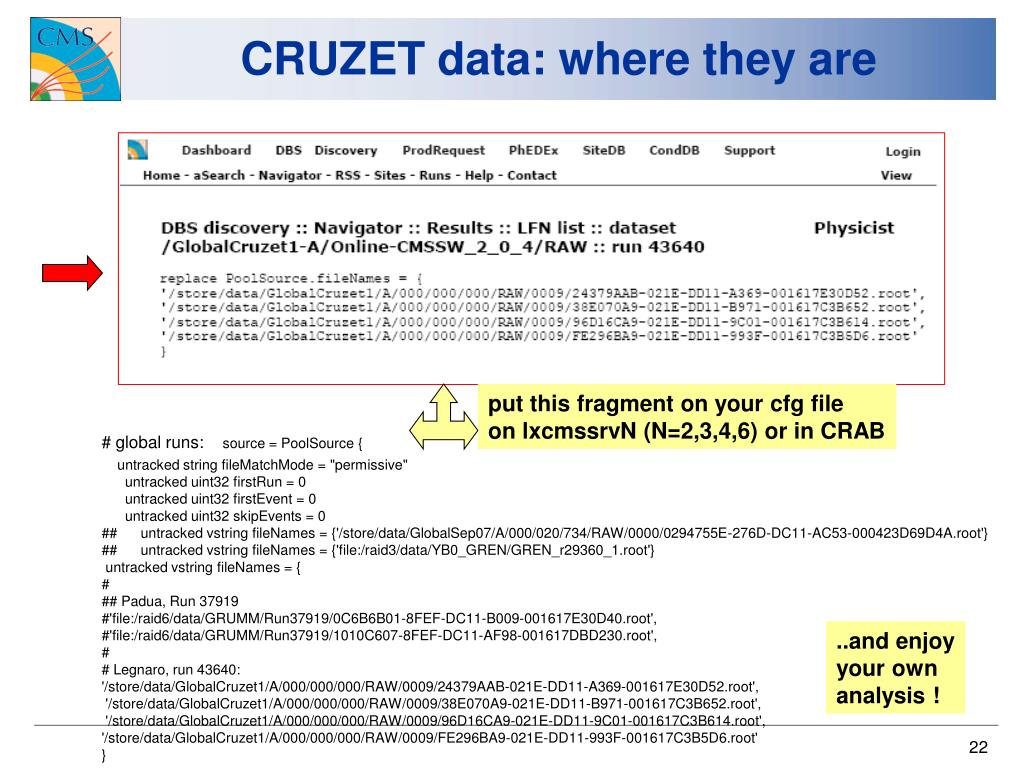

  22. CRUZET data: where they are put this fragment on your cfg file on lxcmssrvN (N=2,3,4,6) or in CRAB # global runs:source = PoolSource { untracked string fileMatchMode = "permissive" untracked uint32 firstRun = 0 untracked uint32 firstEvent = 0 untracked uint32 skipEvents = 0 ## untracked vstring fileNames = {'/store/data/GlobalSep07/A/000/020/734/RAW/0000/0294755E-276D-DC11-AC53-000423D69D4A.root'} ## untracked vstring fileNames = {'file:/raid3/data/YB0_GREN/GREN_r29360_1.root'} untracked vstring fileNames = { # ## Padua, Run 37919 #'file:/raid6/data/GRUMM/Run37919/0C6B6B01-8FEF-DC11-B009-001617E30D40.root', #'file:/raid6/data/GRUMM/Run37919/1010C607-8FEF-DC11-AF98-001617DBD230.root', # # Legnaro, run 43640: '/store/data/GlobalCruzet1/A/000/000/000/RAW/0009/24379AAB-021E-DD11-A369-001617E30D52.root', '/store/data/GlobalCruzet1/A/000/000/000/RAW/0009/38E070A9-021E-DD11-B971-001617C3B652.root', '/store/data/GlobalCruzet1/A/000/000/000/RAW/0009/96D16CA9-021E-DD11-9C01-001617C3B614.root', '/store/data/GlobalCruzet1/A/000/000/000/RAW/0009/FE296BA9-021E-DD11-993F-001617C3B5D6.root' } ..and enjoy your own analysis !
