  1. Getting started with GEM-SA Marc Kennedy Central Science Laboratory, York Tony O’Hagan, Jeremy Oakley University of Sheffield

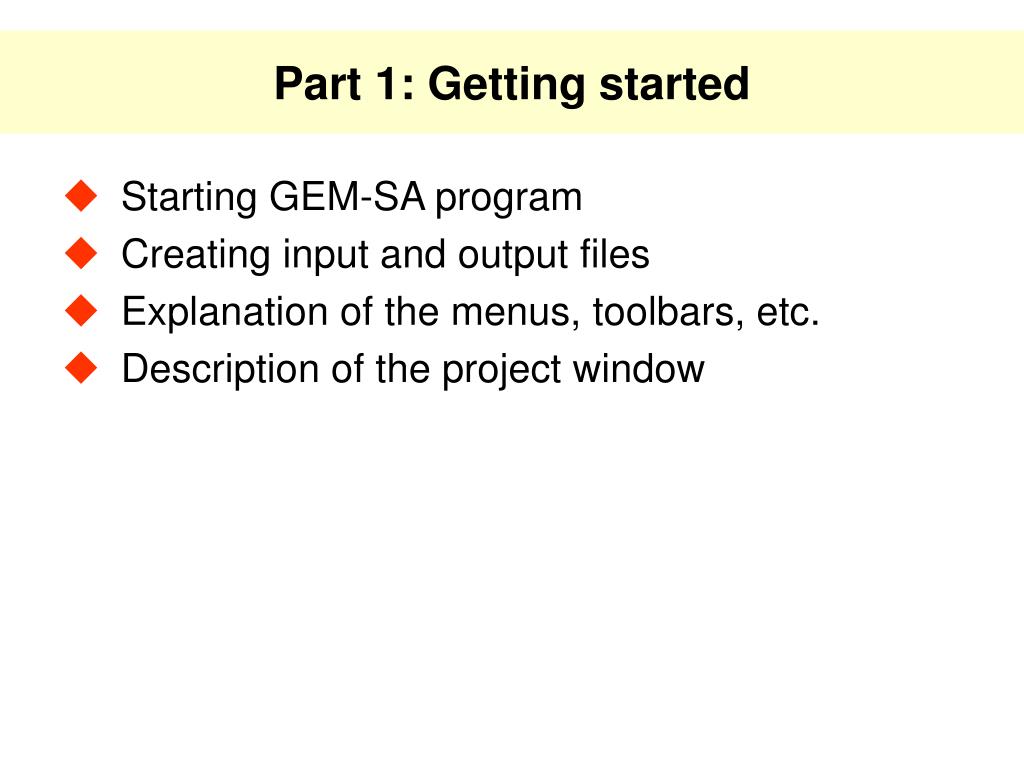

  2. Part 1: Getting started • Starting GEM-SA program • Creating input and output files • Explanation of the menus, toolbars, etc. • Description of the project window

  3. Starting GEM-SA • Double-click the GEM-SA icon to start • The main window appears, with • Menu • Toolbar • Sensitivity analysis output grid • Tab windows for other types of output • Log window

  4. menu toolbar Sensitivity analysis output grid Log window

  5. New project Open project Save project Print output report Edit project Generate input design points Rescale an input Standardise design Copy input design to clipboard Convert input to integer Run the analysis Help Toolbar icons

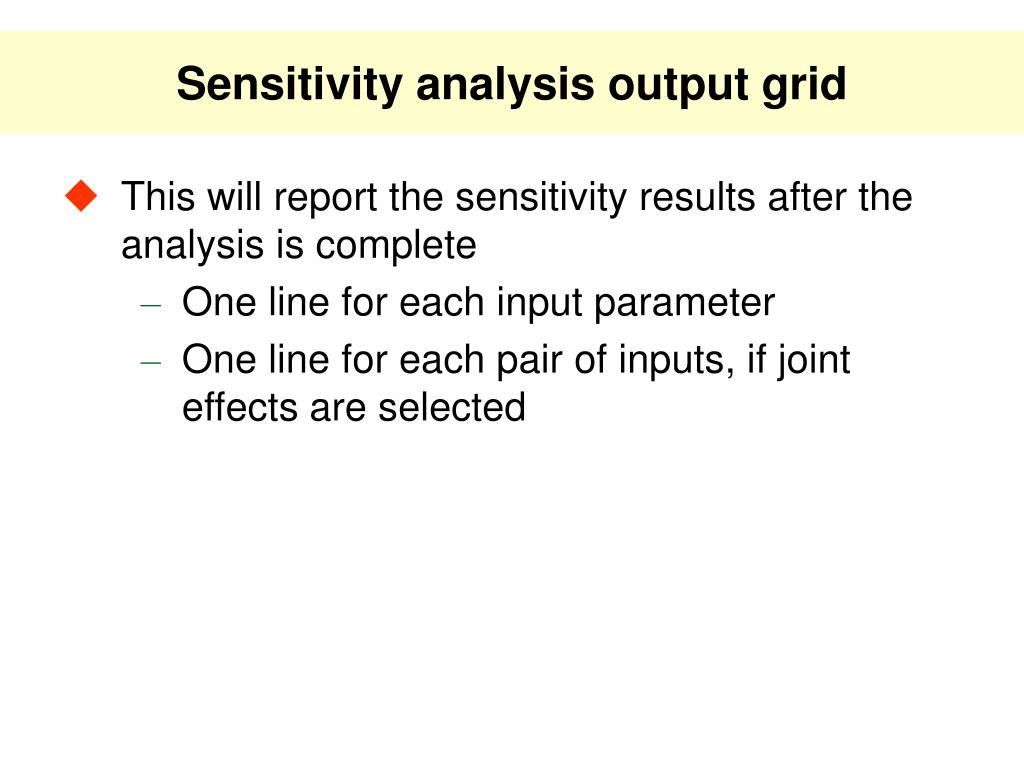

  6. Sensitivity analysis output grid • This will report the sensitivity results after the analysis is complete • One line for each input parameter • One line for each pair of inputs, if joint effects are selected

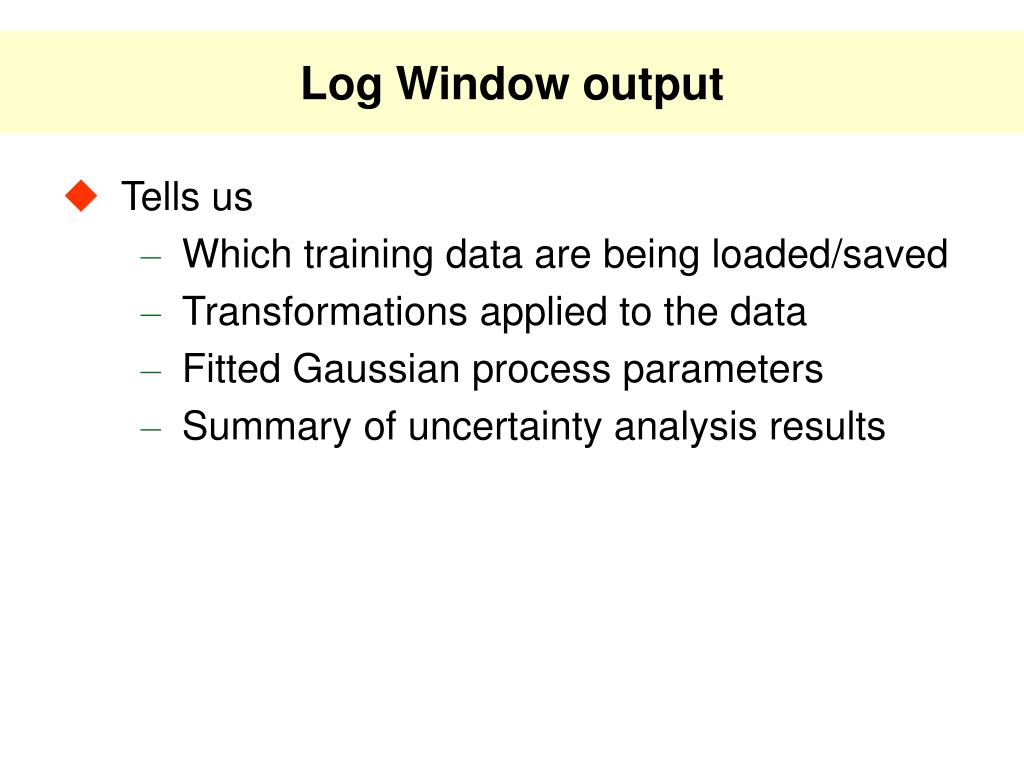

  7. Log Window output • Tells us • Which training data are being loaded/saved • Transformations applied to the data • Fitted Gaussian process parameters • Summary of uncertainty analysis results

  8. Creating a GEM project • To build the emulator we first need 3 files: • Data file of code inputs • Data file of code outputs • GEM-SA project file

  9. Restrictions on input/output data • Single output • Multiple outputs must be treated individually • GEM can read multiple outputs file, but a single column is specified within a project • Max 30 input parameters • Max 400 training points • The data files should be plain text files • One line for each point • Input file can be space or tab delimited

  10. Generating a new input design • Designs can be generated using the toolbar icon or the menu: Input  Generate… • The design dialog appears

  11. Generating a new input design • Click OK and fill in the required range for each input • Click OK again

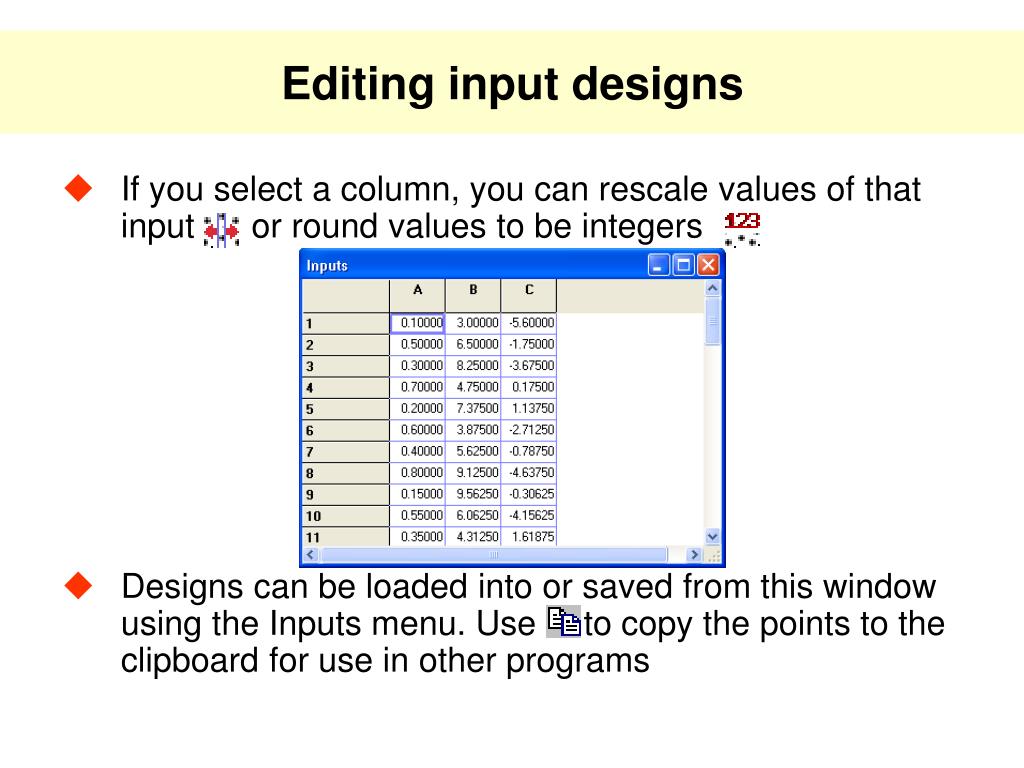

  12. Editing input designs • If you select a column, you can rescale values of that input or round values to be integers • Designs can be loaded into or saved from this window using the Inputs menu. Use to copy the points to the clipboard for use in other programs

  13. Types of design • GEM-SA can generate 2 types of design • LP- • Maximin Latin Hypercube designs • Both have good space-filling properties • Ensure all regions of the input space are well represented • LP- quick to generate, good for increasing input design sequentially • MmLH can be better in high dimensions

  14. Creating output data from these inputs • Each row from the input design must be used to generate a single output, e.g. using • Spreadsheet • Simple, but requires functional form • Script • Only need executable code • Loop through inputs, modify code input file • Modify code to loop through the points • Can be difficult, need source code

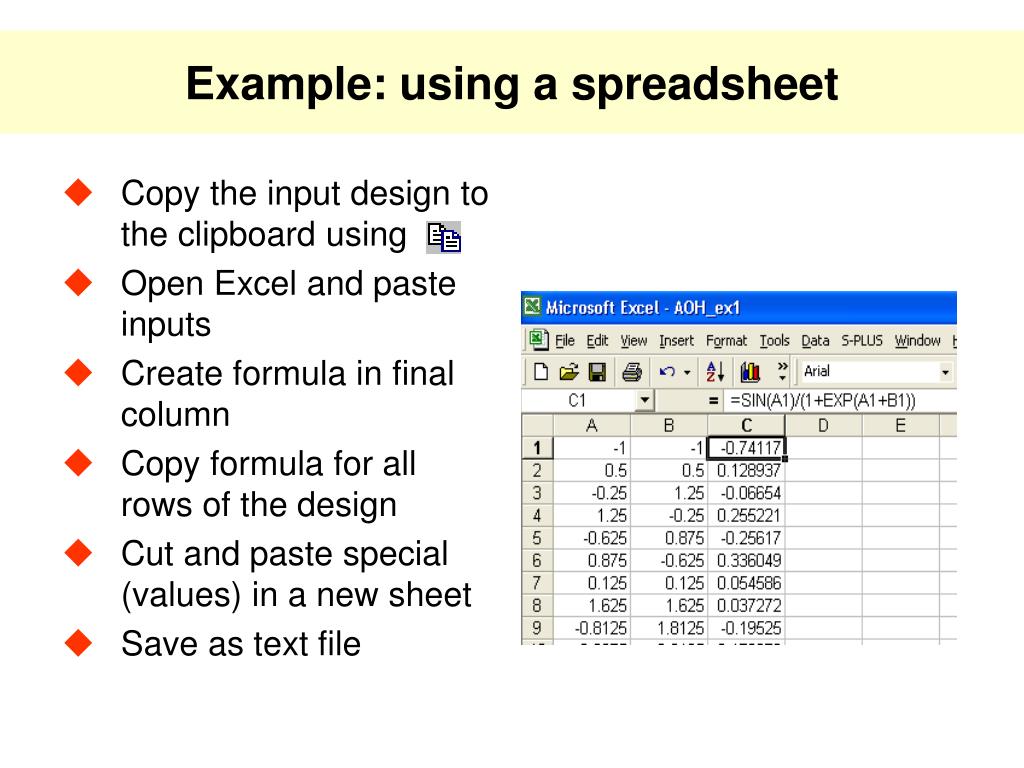

  15. Example: using a spreadsheet • Copy the input design to the clipboard using • Open Excel and paste inputs • Create formula in final column • Copy formula for all rows of the design • Cut and paste special (values) in a new sheet • Save as text file

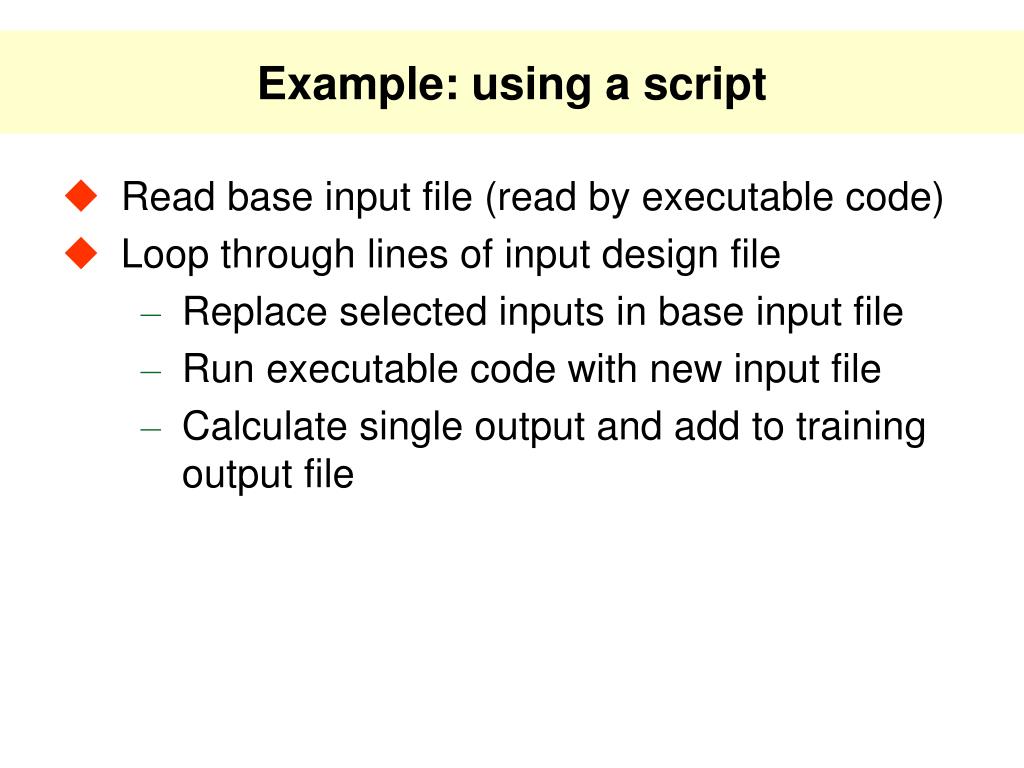

  16. Example: using a script • Read base input file (read by executable code) • Loop through lines of input design file • Replace selected inputs in base input file • Run executable code with new input file • Calculate single output and add to training output file

  17. The project window • Appears whenever you • Load a project • Edit a project • Create new project • This window has 3 tabs • Files • Options • Simulations

  18. Names for the input files Names for the output files

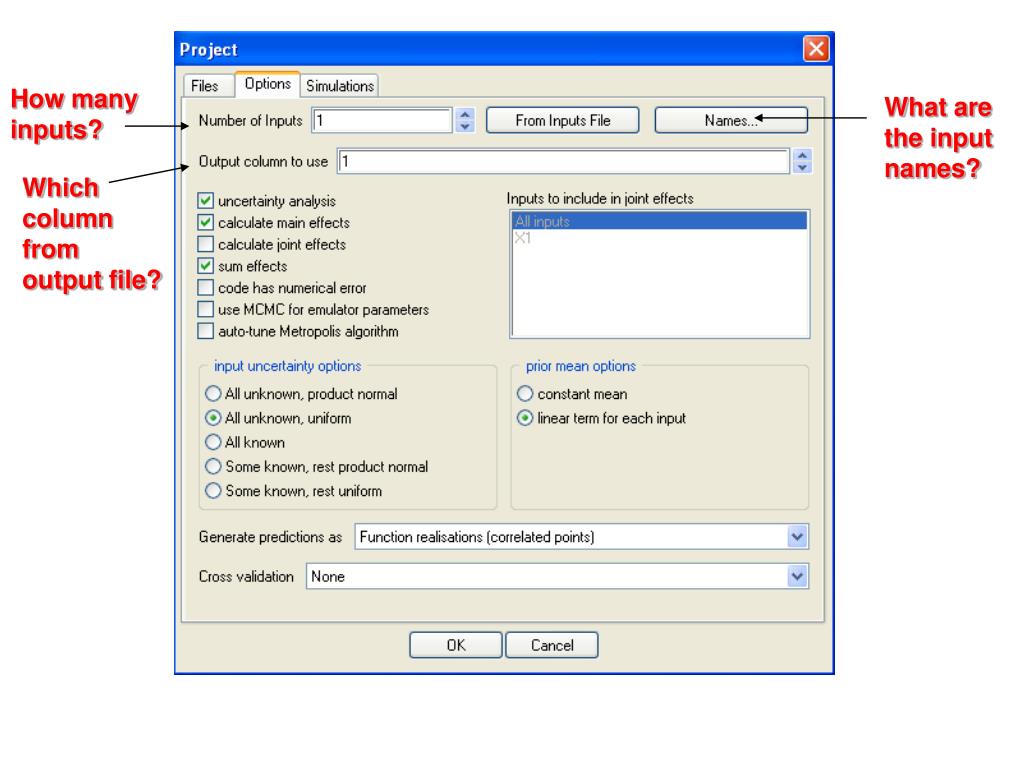

  19. How many inputs? What are the input names? Which column from output file?

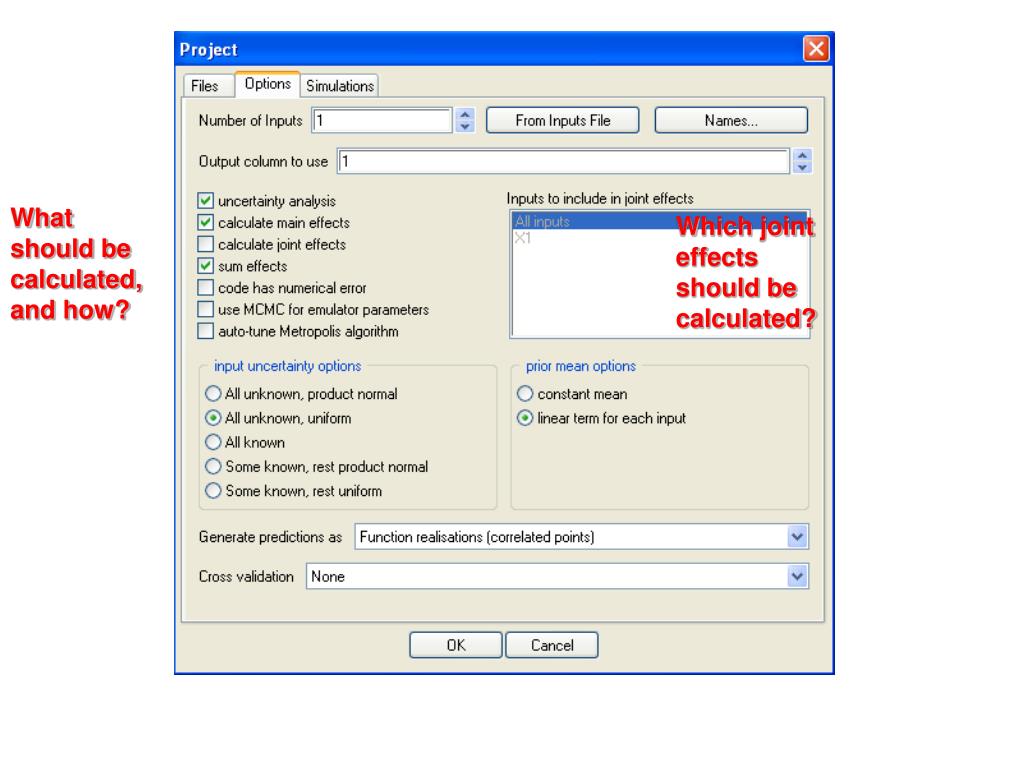

  20. What should be calculated, and how? Which joint effects should be calculated?

  21. What prior mean for the output? Are the inputs uncertain?

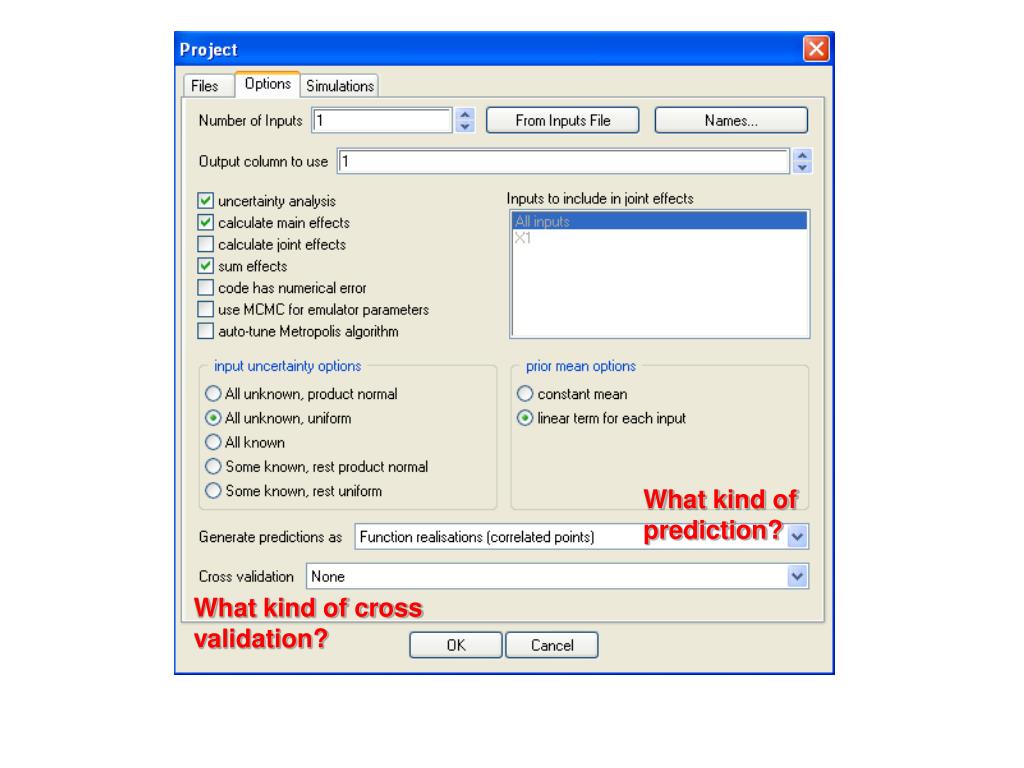

  22. What kind of prediction? What kind of cross validation?

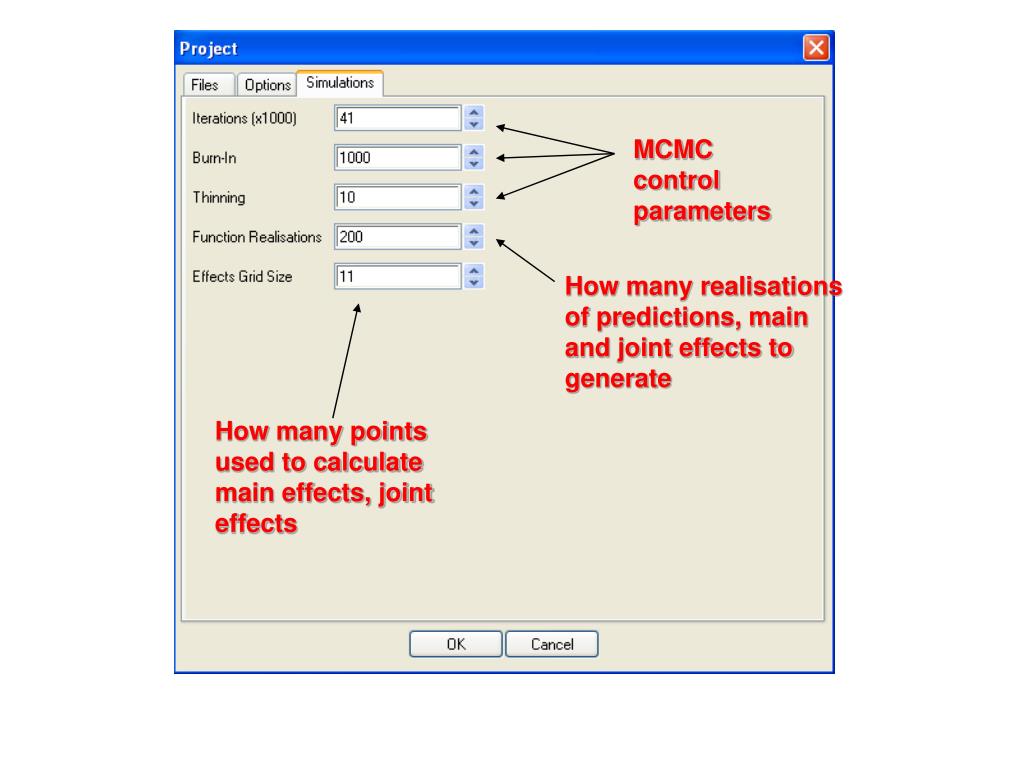

  23. MCMC control parameters How many realisations of predictions, main and joint effects to generate How many points used to calculate main effects, joint effects

  24. Part 2Uncertainty Analysis Using GEM-SA

  25. Part 2: Outline • Setting up the project • Running a simple analysis • More complex analyses

  26. Setting up the project

  27. Create a new project • Select Project -> New, or click toolbar icon • Project dialog appears • We’ll specify the data files first

  28. Files • Using “Browse” buttons, select input and output files • The “Inputs” file contains one column for each parameter and one row for each model training run (the design) • The “Outputs” file contains the outputs from those runs (one column, in this examle)

  29. Our example • We’ll use the example “model1” in the GEM-SA DEMO DATA directory • This example is based on a vegetation model with 7 inputs • RESAEREO, DEFLECT, FACTOR, MO, COVER, TREEHT, LAI • The model has 16 outputs, but for the present we will consider output 4 • June monthly GPP

  30. Number of inputs • Click on Options tab • Select number of inputs using or click “From Inputs File”

  31. Define input names • Click on “Names …” • The “Input parameter names” dialog opens • Enter parameter names • Click “OK”

  32. Complete the project • We will leave all other settings at their default values for now • Click “OK” • The Input Parameter Ranges window appears

  33. Close and save project • Click “Defaults from input ranges” button • Click “OK” • Select Project -> Save • Or click toolbar icon • Choose a name and click “Save”

  34. Running a simple analysis

  35. Build the emulator • Click to build the emulator • A lot of things now start to happen! • The log window at the bottom starts to record various bits of information • A little window appears showing progress of minimisation of the roughness parameter estimation criterion • A new window appears in the “Main Effects” tab and several graphs appear • Progress bar at the bottom

  36. Focus on the log window • Ignore the outputs in the “Main Effects” and “Sensitivity Analysis” windows for now • These will be explained later • Focus on the log window • This reports two key things • Diagnostics of the emulator build • The basic uncertainty analysis results • These also appear in the “Output Summary” window and can be printed using

  37. Emulation diagnostics • Note where the log window reports … • The first line says roughness parameters have been estimated by the simplest method • The values of these indicate how non-linear the effect of each input parameter is • Note the high value for input 4 (MO) Estimating emulator parameters by maximising probability distribution... maximised posterior for emulator parameters: sigma-squared = 0.342826, roughness = 0.217456 0.0699709 0.191557 16.9933 0.599439 0.459675 1.01559

  38. Uncertainty analysis – mean • Below this, the log reports • So the best estimate of the output (June GPP) is 24.1 (mol C/m2) • This is averaged over the uncertainty in the 7 inputs • Better than just fixing inputs at best estimates • There is an emulation standard error of 0.062 in this figure Estimate of mean output is 24.145, with variance 0.00388252

  39. Uncertainty analysis – variance • The final line of the log is • This shows the uncertainty in the model output that is induced by input uncertainties • The variance is 73.9 • Equal to a standard deviation of 8.6 • So although the best estimate of the output is 24.3, the uncertainty in inputs means it could easily be as low as 16 or as high as 33 Estimate of total output variance = 73.9033

  40. More complex analyses

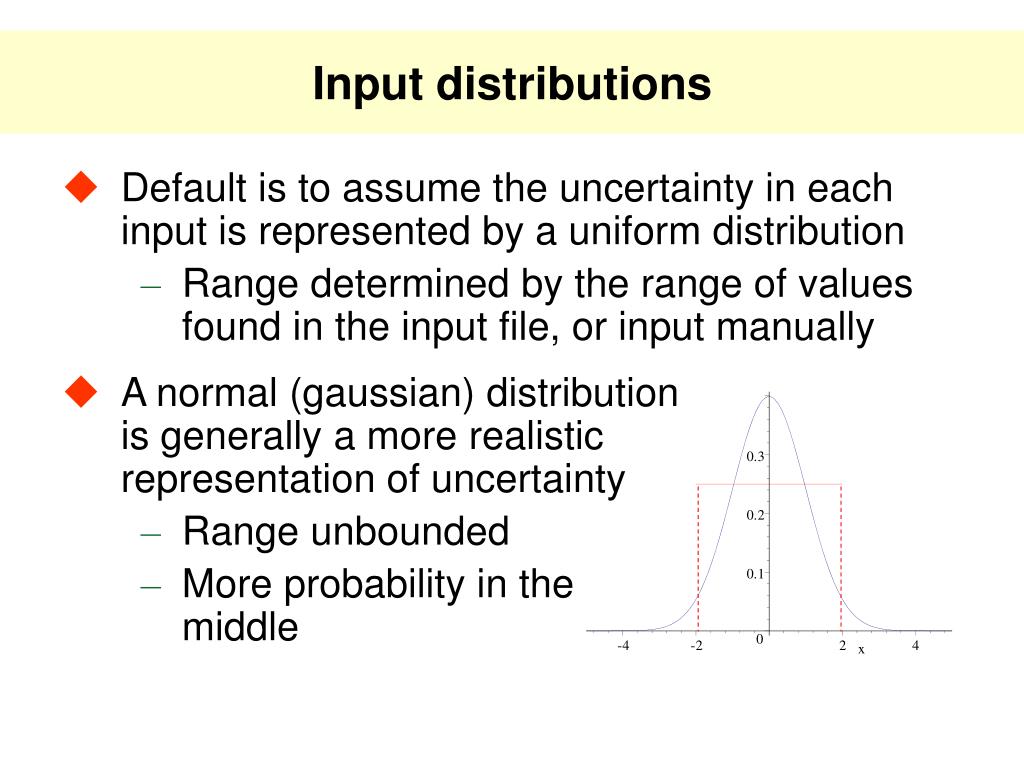

  41. Input distributions • Default is to assume the uncertainty in each input is represented by a uniform distribution • Range determined by the range of values found in the input file, or input manually • A normal (gaussian) distribution is generally a more realistic representation of uncertainty • Range unbounded • More probability in the middle

  42. Changing input distributions • In Project dialog, Options tab, click the button for “All unknown, product normal” • Then OK • A new dialog opens to specify means and variances

  43. Uniform Normal Parameter Lower Upper Mean Variance RESAEREO 80 200 140 900 DEFLECT 0.6 1 0.8 0.01 FACTOR 0.1 0.5 0.3 0.01 MO 30 100 60 100 COVER 0.6 0.99 0.8 0.01 TREEHT 10 40 25 100 LAI 3.75 9 6.5 1 Model 1 example • Uniform distributions from input ranges • Normal distributions to match • Range is 4 std devs • Except for MO • Narrower distribution

  44. Effect on UA • After running the revised model, we see: • It runs faster, with no need to rebuild the emulator • The mean is changed a little and variance is halved The emulator fit is unchanged Estimate of mean output is 26.2698, with variance 0.00784475 Estimate of total output variance = 38.1319

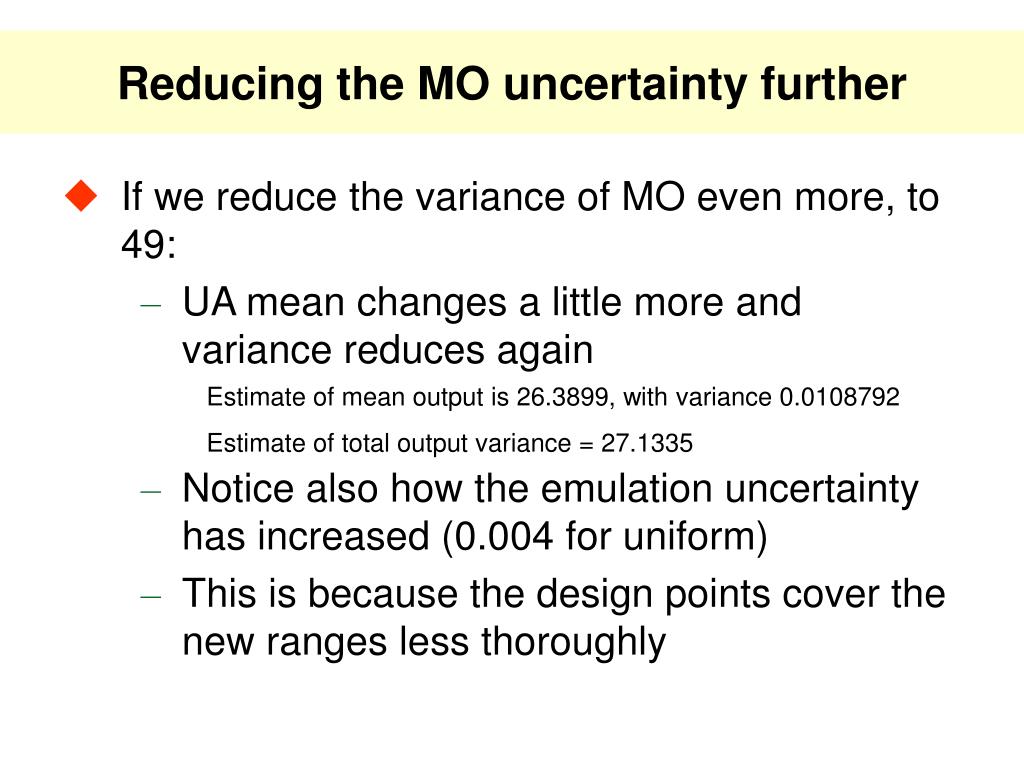

  45. Reducing the MO uncertainty further • If we reduce the variance of MO even more, to 49: • UA mean changes a little more and variance reduces again • Notice also how the emulation uncertainty has increased (0.004 for uniform) • This is because the design points cover the new ranges less thoroughly Estimate of mean output is 26.3899, with variance 0.0108792 Estimate of total output variance = 27.1335

  46. Cross-validation • In the Project dialog, look at the bottom menu box, labelled “Cross-validation” • There are 3 options • None • Leave-one-out • Leave final 20% out • CV is a way of checking the emulator fit • Default is None because CV takes time

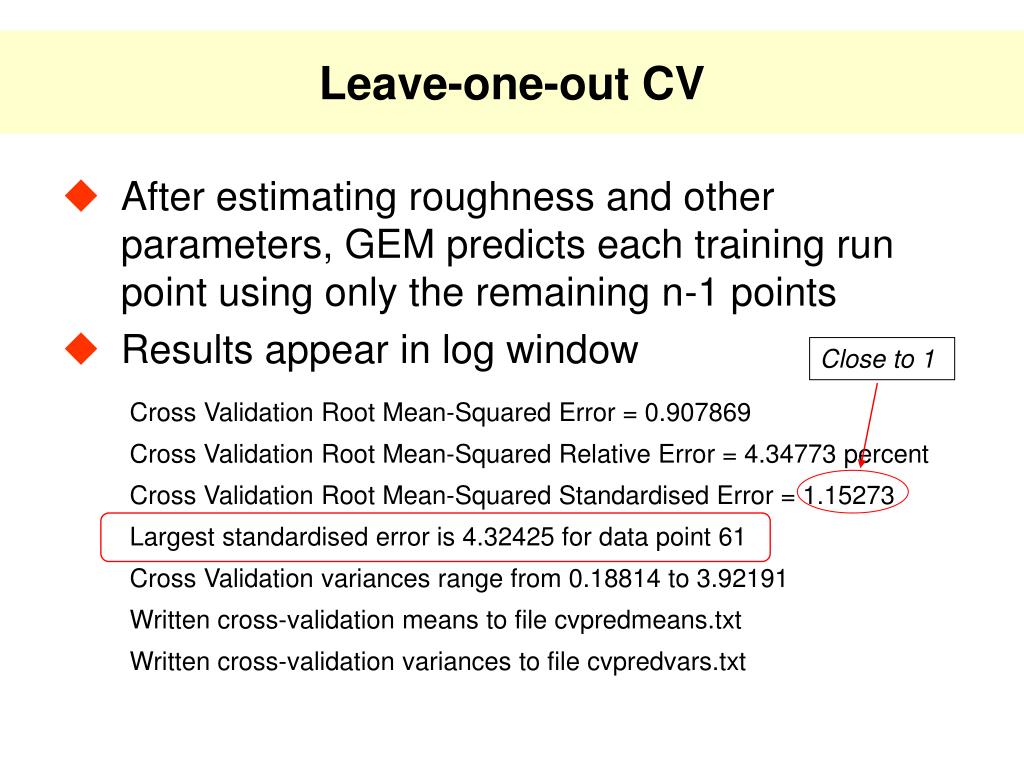

  47. Close to 1 Leave-one-out CV • After estimating roughness and other parameters, GEM predicts each training run point using only the remaining n-1 points • Results appear in log window Cross Validation Root Mean-Squared Error = 0.907869 Cross Validation Root Mean-Squared Relative Error = 4.34773 percent Cross Validation Root Mean-Squared Standardised Error = 1.15273 Largest standardised error is 4.32425 for data point 61 Cross Validation variances range from 0.18814 to 3.92191 Written cross-validation means to file cvpredmeans.txt Written cross-validation variances to file cvpredvars.txt

  48. Leave out final 20% CV • This is an even better check, because it tests the emulator on data that have not been used in any way to predict it • Emulator is built on first 80% of data and used to predict last 20% Cross Validation Root Mean-Squared Error = 1.46954 Cross Validation Root Mean-Squared Relative Error = 7.4922 percent Cross Validation Root Mean-Squared Standardised Error = 1.73675 Largest standardised error is 5.05527 for data point 22 Cross Validation variances range from 0.277304 to 4.88653

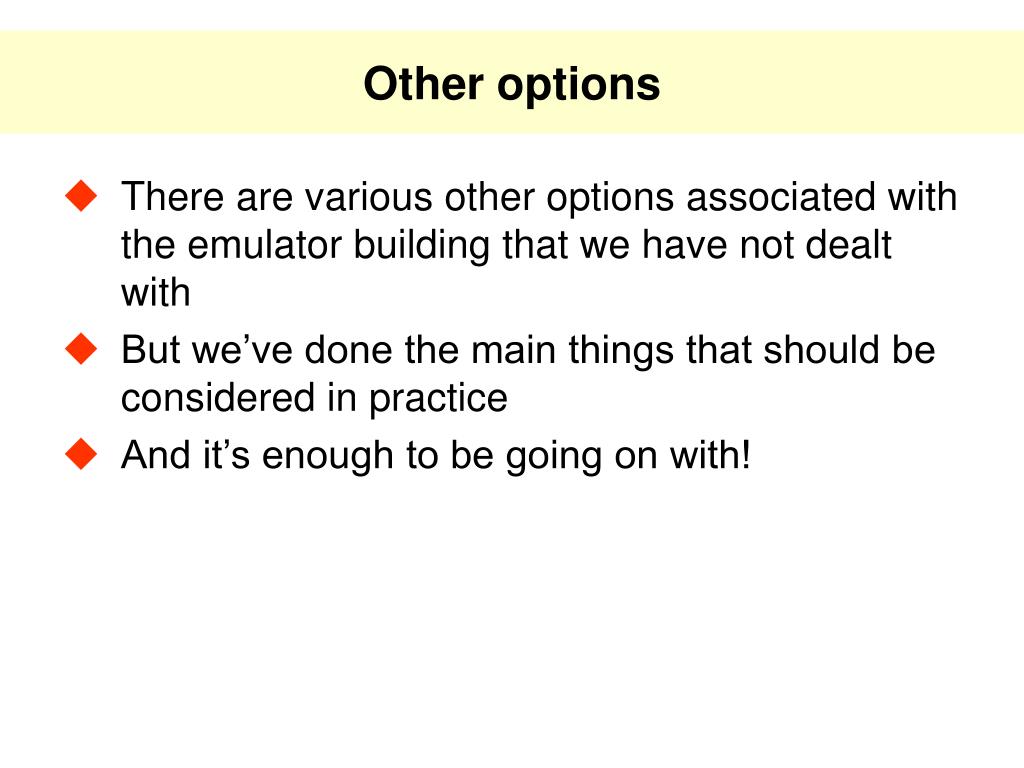

  49. Other options • There are various other options associated with the emulator building that we have not dealt with • But we’ve done the main things that should be considered in practice • And it’s enough to be going on with!

  50. When it all goes wrong • How do we know when the emulator is not working? • Large roughness parameters • Especially ones hitting the limit of 99 • Large emulation variance on UA mean • Poor CV standardised prediction error • Especially when some are extremely large • In such cases, see if a larger training set helps • Other ideas like transforming output scale
