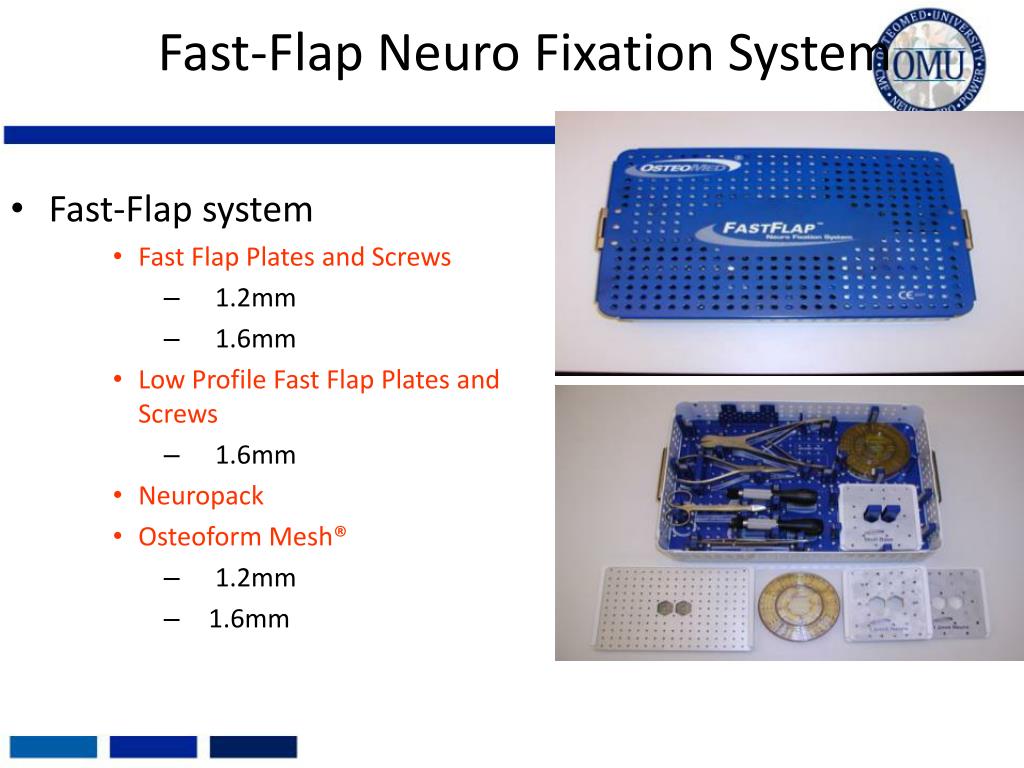

fast flap neuro fixation system
Fast-Flap Neuro Fixation System
  • Fast-Flap system
      • Fast Flap Plates and Screws
        • 1.2mm
        • 1.6mm
      • Low Profile Fast Flap Plates and Screws
        • 1.6mm
      • Neuropack
      • Osteoform Mesh®
        • 1.2mm
        • 1.6mm
fast flap neuro fixation system1
Fast-Flap Neuro Fixation System
  • Fast Flap : SCREW

Available in diameters-

1.2mm and 1.6mm

Lengths for 1.2mm screws are 3,4 and 5mm

Lengths for 1.6mm screws are 4,5 and 6mm

Safety Screw

1.5mm x 3mm

slide3

Fast-Flap Neuro Fixation System

  • Fast Flap : SCREW

Features

OsteoMed's Auto-Drive® self-drilling screws are the only patented cruciform drive self-drilling screws available. These screws employ a cruciform drive head design, ensuring the applied axial force is distributed evenly throughout the screw head, while minimizing screw head stripping.

The TaperLock self-retaining mechanism on the screw head ensures optimal stability during screw placement. The screws also utilize innovative Maximum Thread Area (MTA) technology that maximizes the area of bone-to-screw interface.

CENTER DRIVE

CRUCIFORM

fast flap neuro fixation system2

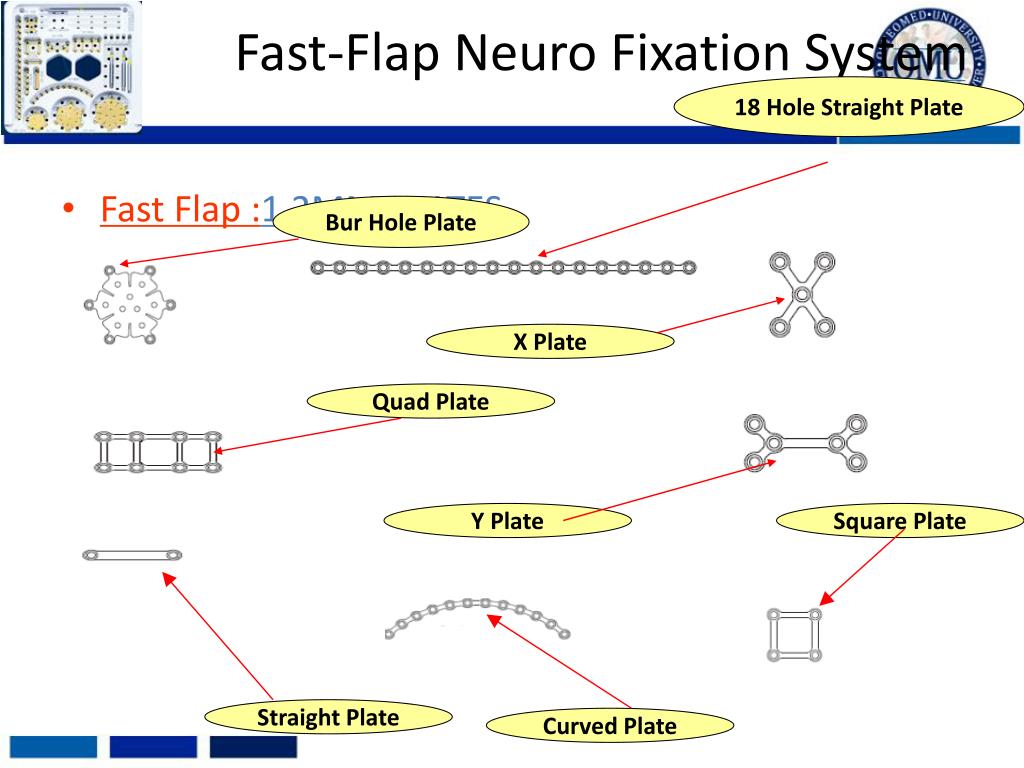

Fast-Flap Neuro Fixation System

18 Hole Straight Plate

  • Fast Flap :1.2MM PLATES

Bur Hole Plate

X Plate

Quad Plate

Y Plate

Square Plate

Straight Plate

Curved Plate

slide5

Fast-Flap Neuro Fixation System

  • Fast Flap : 1.6MM PLATES

Square Plate

Sub Temporal Plate

Bur Hole Plate

Straight Plate

Shunt Plate

Mesh Plate

Y Plate

18 Hole Straight Plate

Quad Plate

Gap Plate

slide6

Fast-Flap Neuro Fixation System

  • Fast Flap : Low Profile Plates
slide7

Fast-Flap Neuro Fixation System

  • Fast Flap : OsteoForm Mesh
  • Malleable: 0.3mm profile CP G3
  • Rigid: 0.6mm profile CP G3
  • Extra-rigid: 1.0mm profile CP G3
  • Pre-formed mesh allows for easy adaptation to anatomical curvature of cranium
  • Applicable to varying anatomical curves with minor contouring of appliance
  • Rapid mesh application when used with OsteoMed’s patented Auto-Drive self-drilling screws
  • Rigidity and strength provide for better protection of underlying structures
  • Use as a stand alone titanium appliance or as scaffolding for cranioplasty
  • ALSO AVAILABLE IN STERILE PACK
slide8

Fast-Flap Neuro Fixation System

  • Fast Flap : DRILLS

1.2mm System (Yellow Band) 1.6mmSystem (White Band)

0.9mmExtended Drill

0.9mm Drill

1.2mm Driver Stem

1.6mm Auto Tap

slide9

Fast-Flap Neuro Fixation System

  • Fast Flap : INSTRUMENTS

Plate Bending Forceps

Small Grasping Forceps

slide10

Fast-Flap Neuro Fixation System

  • Fast Flap : INSTRUMENTS

Plate Cutter

Taperlock Screwdriver Body

Rigid Mini Plate Cutter

fast flap features benefits
Fast Flap: Features & Benefits
  • Patented Auto-Drive self-drilling screws eliminate the need for pre-drilling
  • Low profile system virtually eliminates palpability and produces superior aesthetic results
  • OsteoForm Mesh allows for contouring and three-dimensional bending without creasing
  • A complete, cost effective solution for cranial flap fixation
  • Sterile plates and screws are available in different configuration
slide12

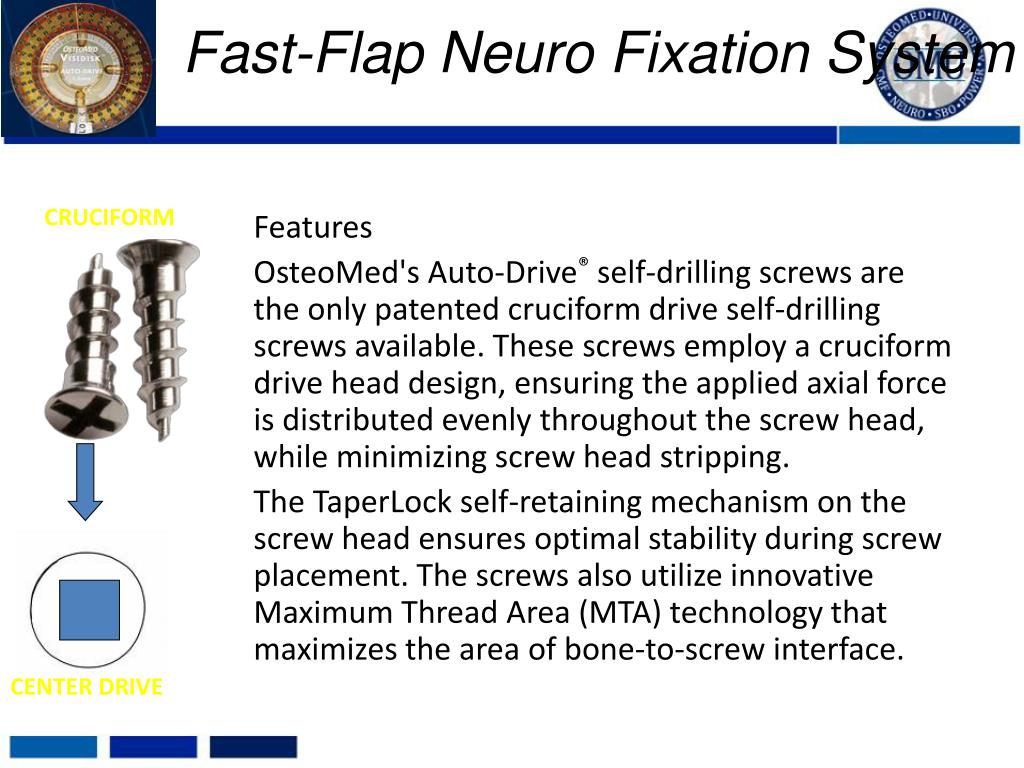

Fast-Flap Neuro Fixation System

Features

OsteoMed's Auto-Drive® self-drilling screws are the only patented cruciform drive self-drilling screws available. These screws employ a cruciform drive head design, ensuring the applied axial force is distributed evenly throughout the screw head, while minimizing screw head stripping.

The TaperLock self-retaining mechanism on the screw head ensures optimal stability during screw placement. The screws also utilize innovative Maximum Thread Area (MTA) technology that maximizes the area of bone-to-screw interface.

CRUCIFORM

CENTER DRIVE

fast flap neuro fixation system3
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system4
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system5
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system6
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system7
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system8
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system9
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system10
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system11
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap neuro fixation system12
Fast-Flap Neuro Fixation System
  • Fast Flap : CLINICAL PHOTOGRAPHS
fast flap testimonials kols
Fast Flap: Testimonials/ KOLs
  • Michael Muhonen, MD Orange, CA
  • David Greenwald, MD Titusville, FL
  • Salim Abdulrauf, MD St.Louis,MO
  • Robert Dickerman, MD Dallas, TX
fast flap target customers
Fast Flap: Target Customers
  • Target Market
    • Neurosurgeons
    • Craniofacial reconstructive (trauma)
    • ENT/Neurologist
  • Target locations
    • Teaching institutions
    • Private Hospitals
fast flap competitive comparison
Fast Flap: Competitive Comparison
  • WLorenz (BIOMET)
    • 1.5 System
    • Extensive Plate Selection
    • Rapid Fire Screw Driver
    • ThinFlap now with .3mm Profile with Screw Inserted.
  • Osteomed Advantages
    • 1.2 System
    • Proven Low Profile System with Greater Plate Selection
    • Ancillary Products
fast flap competitive comparison1

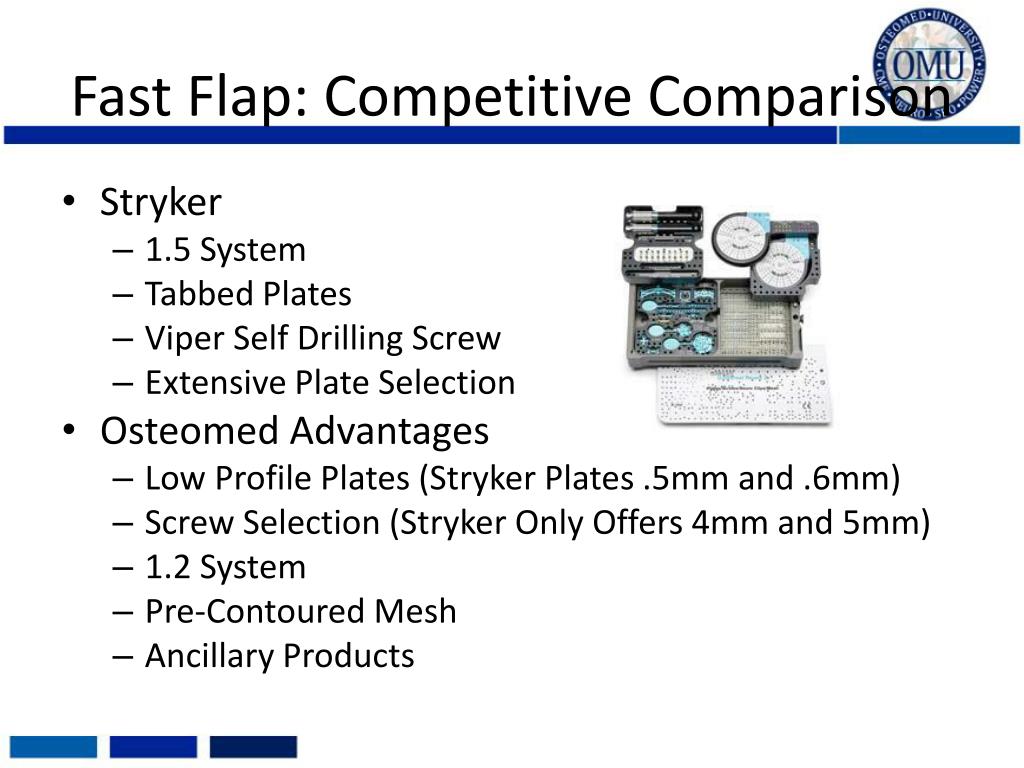

Fast Flap: Competitive Comparison
  • Stryker
    • 1.5 System
    • Tabbed Plates
    • Viper Self Drilling Screw
    • Extensive Plate Selection
  • Osteomed Advantages
    • Low Profile Plates (Stryker Plates .5mm and .6mm)
    • Screw Selection (Stryker Only Offers 4mm and 5mm)
    • 1.2 System
    • Pre-Contoured Mesh
    • Ancillary Products
fast flap competitive comparison2
Fast Flap: Competitive Comparison
  • Synthes Matrix Neuro
    • Plate/Screw profile .5mm
    • Self Drilling Screws
    • Extensive plate selection
  • Osteomed Advantages
    • 1.2 System
    • Proven Low Profile System with Greater Plate Selection
    • Ancillary Products
    • Maximum Thread Area Technology
fast flap competitive comparison3

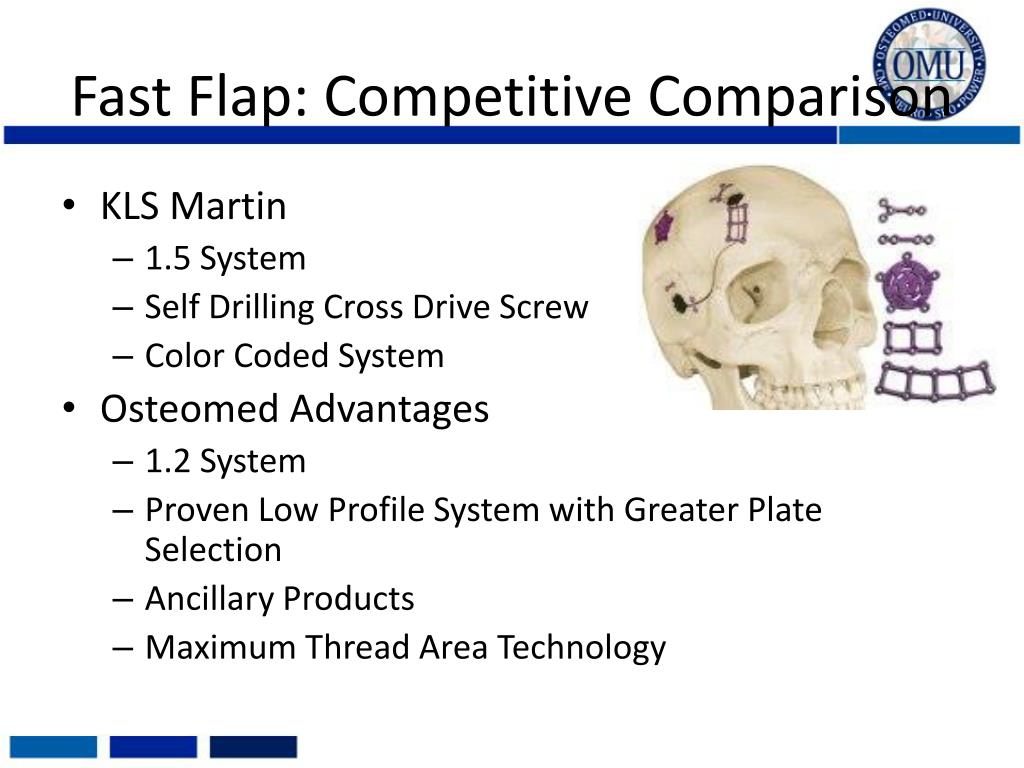

Fast Flap: Competitive Comparison
  • KLS Martin
    • 1.5 System
    • Self Drilling Cross Drive Screw
    • Color Coded System
  • Osteomed Advantages
    • 1.2 System
    • Proven Low Profile System with Greater Plate Selection
    • Ancillary Products
    • Maximum Thread Area Technology
fast flap competitive advantages
Fast Flap: Competitive Advantages
  • Lowest profile plates
  • Wide selection of plates
  • 1.2mm and 1.6mm screw offering
  • Multiple shunt plate offering
  • Preformed mesh
  • Patented self drilling screw
  • 100% hand inspected and deburred
fast flap surgical objective
Fast Flap: Surgical Objective
  • Craniotomies
    • Neurosurgeons cut a bone flap from the cranium to gain access to the brain
    • The cranial flap is then set aside and re-attached after the surgeon has completed the critical part of the surgery
    • The flap must then be rigidly fixated
  • Cranial trauma
    • Fixation of fx and comminuted bone
    • High usage of mesh
fast flap commonly used construct
Fast Flap: Commonly Used Construct
  • Plates and screw
    • Tri-angulation: 3 points of fixation
    • Screw length – contact with the dura
      • 4mm is the safest
    • Plate and defect positioning
fast flap tips tricks
Fast Flap: Tips & Tricks
  • Couple with the OsteoDriver
  • When engaging the screw driver shaft into the screw insure perpendicular insertion
  • Keep precontoured mesh in the system
