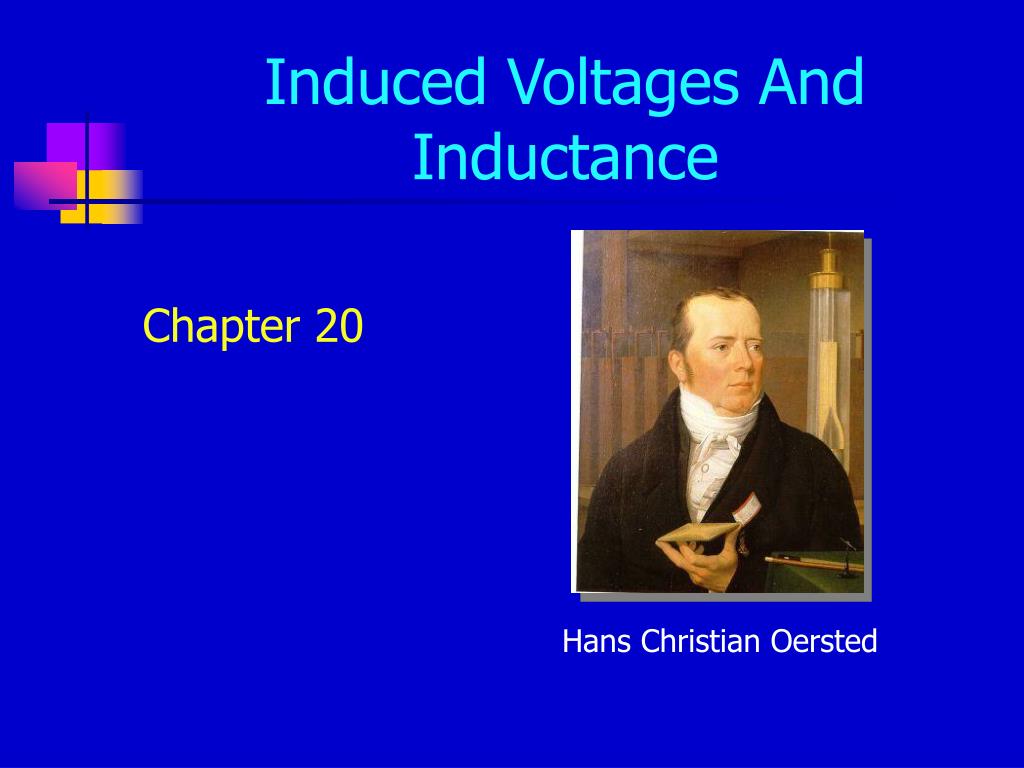

Induced Voltages And Inductance

Chapter 20

Hans Christian Oersted

Introduction l.jpg

  • Oersted’s discovery was the first evidence of a link between electricity and magnetism.

Symmetry in physics l.jpg

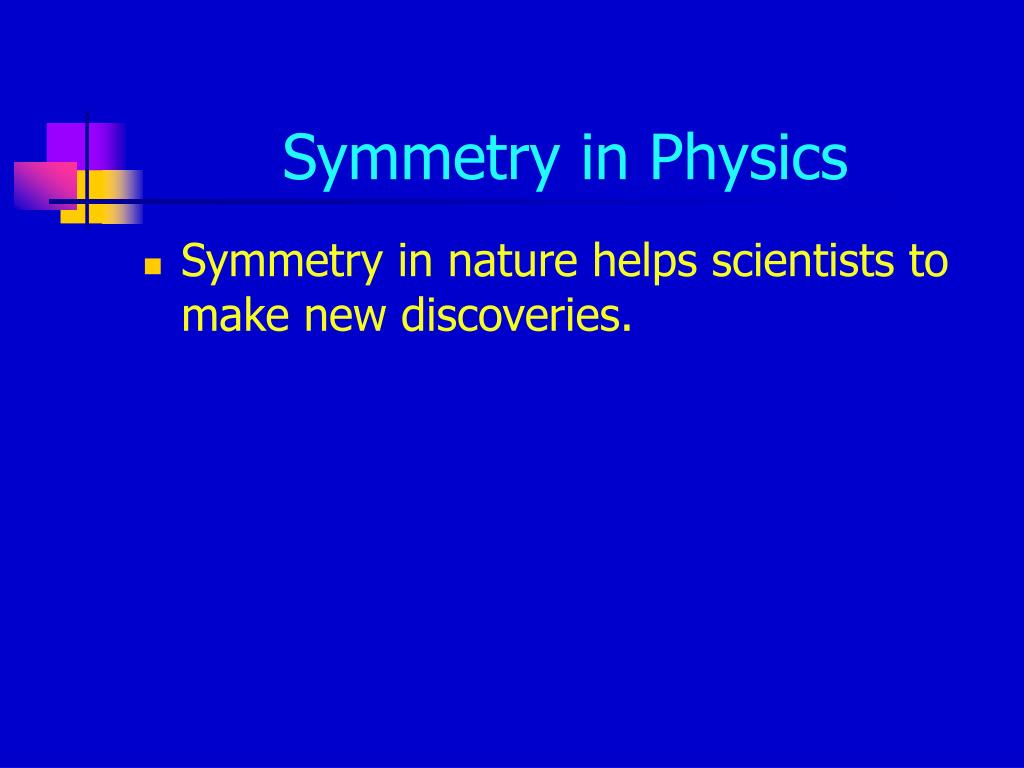

Symmetry in Physics

  • Symmetry in nature helps scientists to make new discoveries.

Generating electricity l.jpg

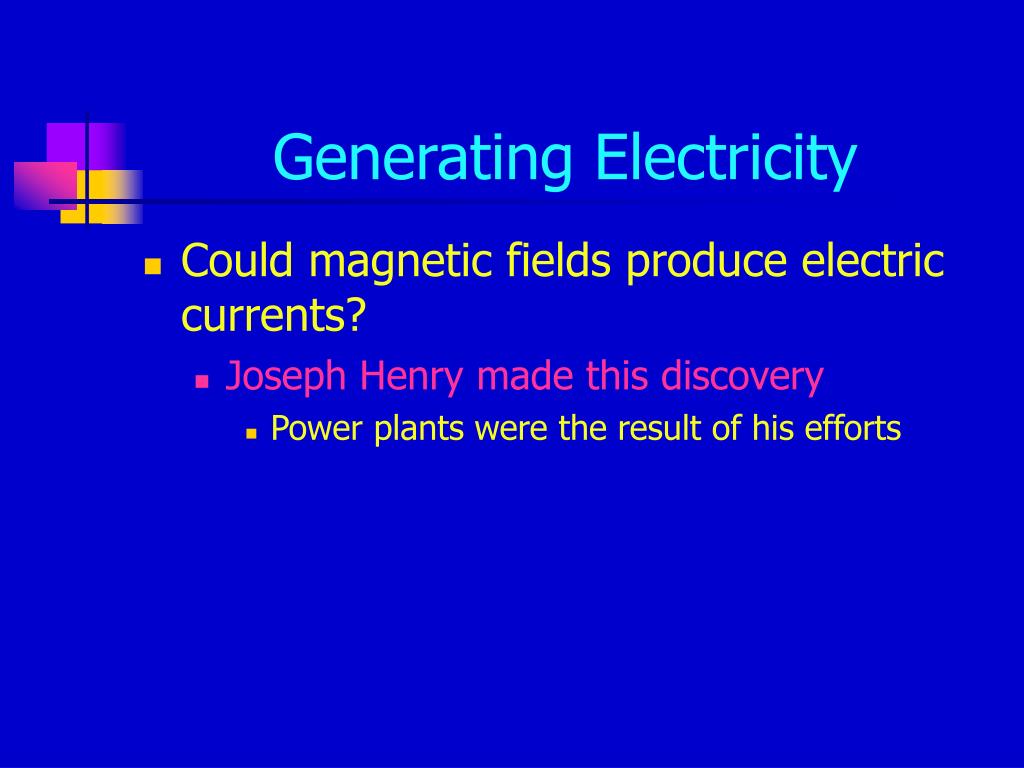

Generating Electricity

  • Could magnetic fields produce electric currents?

    • Joseph Henry made this discovery

      • Power plants were the result of his efforts

Induced emf and magnetic flux l.jpg
Induced emf And Magnetic Flux

  • Faraday’s experiment

    • A current can be produced by a changing magnetic field.


Primary and secondary coils l.jpg
Primary and Secondary Coils

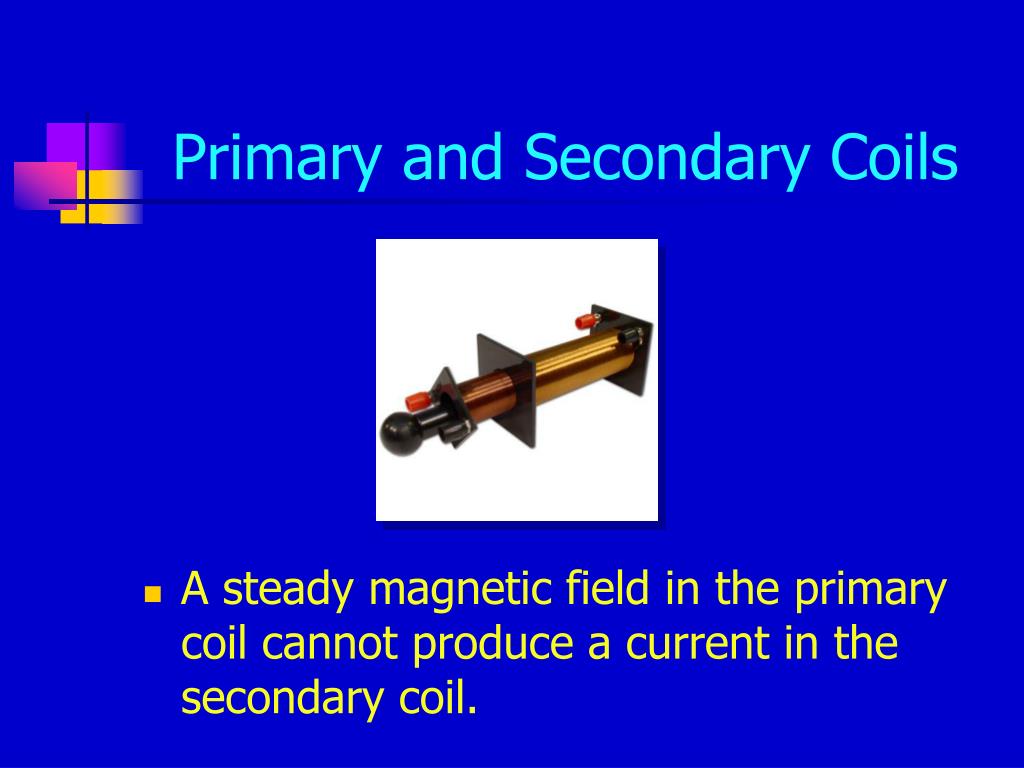

  • A steady magnetic field in the primary coil cannot produce a current in the secondary coil.

Induced emf and magnetic flux7 l.jpg
Induced emf And Magnetic Flux

  • Magnetic flux (F)

    • The flux is proportional to the number of lines passing through the loop

    • Changes in the flux induce a change in the emf.

  • 20.2

Magnetic flux formula l.jpg
Magnetic Flux Formula

  • q is the angle between the B field and

  • the normal to the plane of the loop

Faraday s law of induction l.jpg
Faraday’s Law of Induction

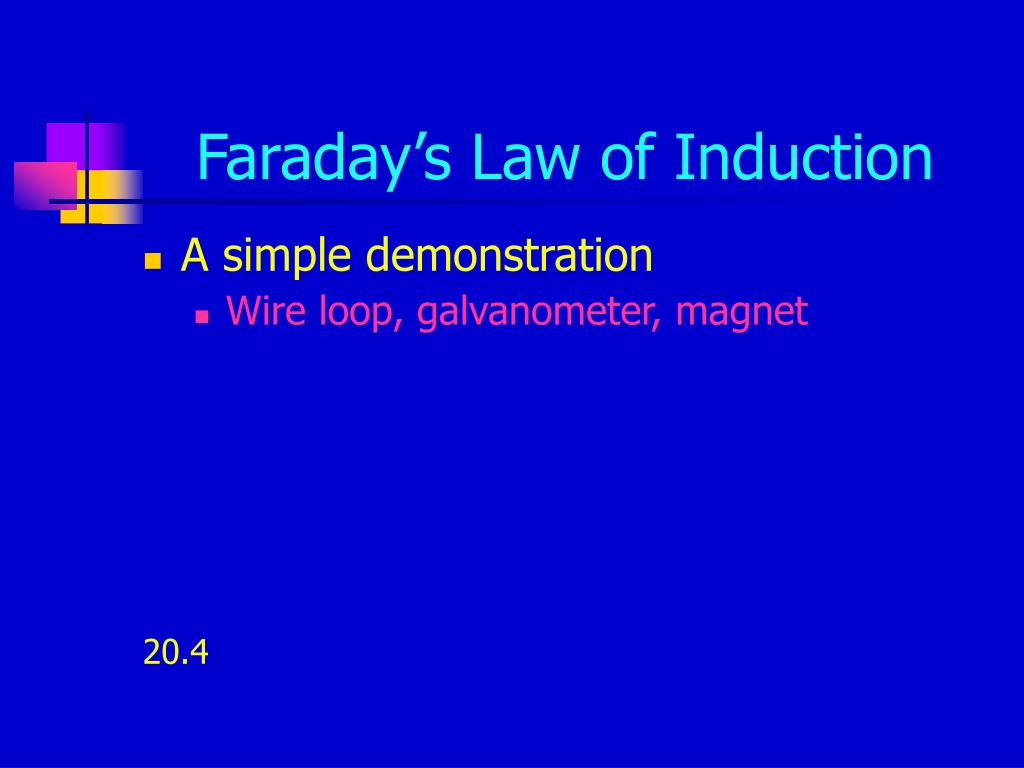

  • A simple demonstration

    • Wire loop, galvanometer, magnet


Induced current l.jpg
Induced Current

  • A current is set up in the loop as long as there is relative motion between the magnetic field and the loop.

    • This is an induced current.


Faraday s law of induction11 l.jpg
Faraday’s Law of Induction

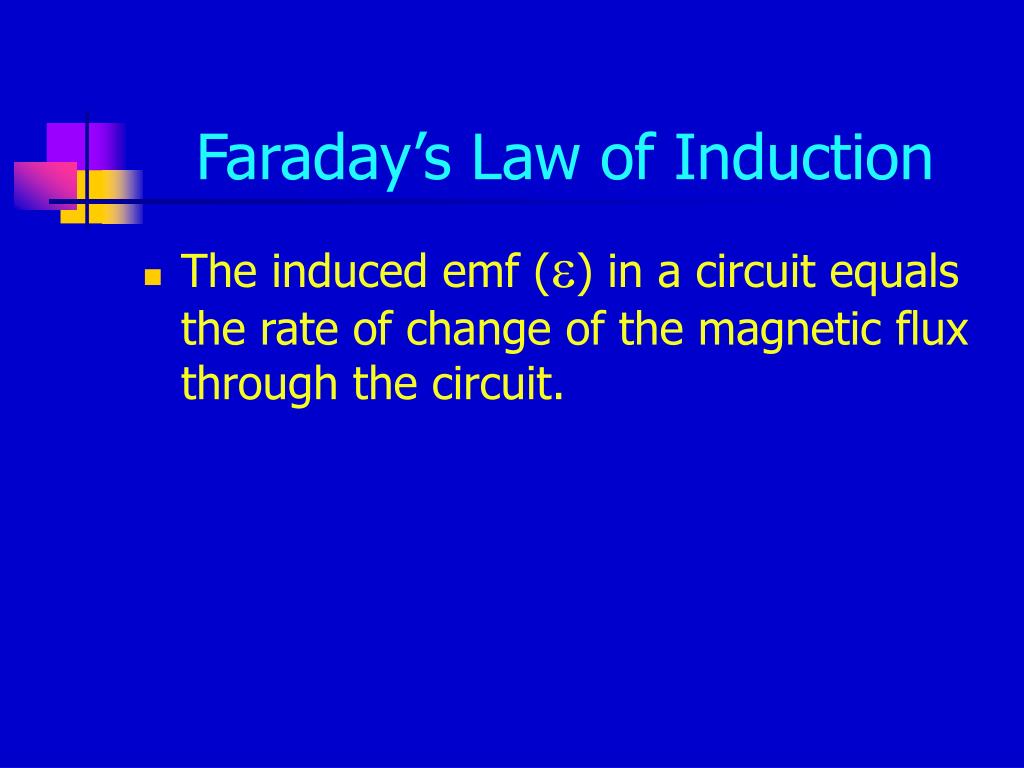

  • The induced emf (e) in a circuit equals the rate of change of the magnetic flux through the circuit.

Faraday s law of induction13 l.jpg
Faraday’s Law of Induction

Since F = B.A.cosq

Ande = -N.DF/Dt

Thene = -N.D (B.A.cosq) /Dt

Lenz s law l.jpg
Lenz’s Law

  • The induced current tries to maintain the original flux through the circuit.

    • It sets up a magnetic field that opposes any change in the original magnetic field.

Applications of faraday s law l.jpg

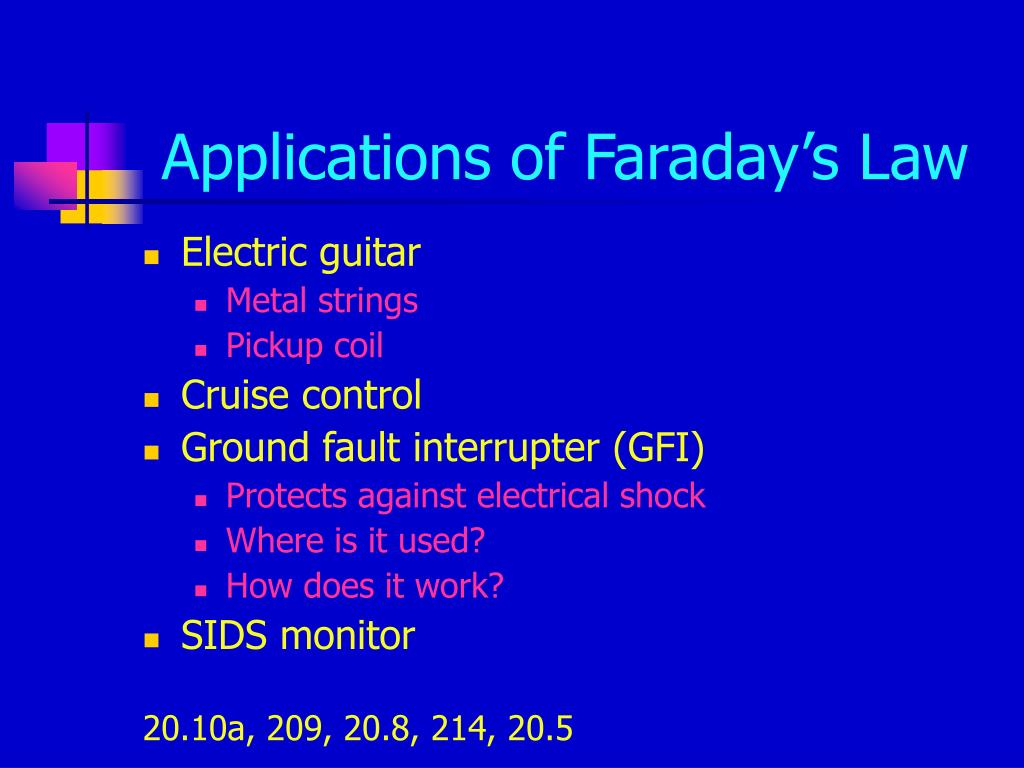

Applications of Faraday’s Law

  • Electric guitar

    • Metal strings

    • Pickup coil

  • Cruise control

  • Ground fault interrupter (GFI)

    • Protects against electrical shock

    • Where is it used?

    • How does it work?

  • SIDS monitor

    20.10a, 209, 20.8, 214, 20.5

Motional emf l.jpg
Motional emf

  • Motional emf is the emf induced in a conductor moving through a magnetic field.

    • Example: A straight conductor moving through a magnetic field

      20.8, 20.13

Motional emf19 l.jpg
Motional emf

  • A potential difference (DV) is maintained across a conductor as long as there is motion through the field.

    • If the direction of the motion is reversed, the polarity also reverses.

Motional emf20 l.jpg
Motional emf

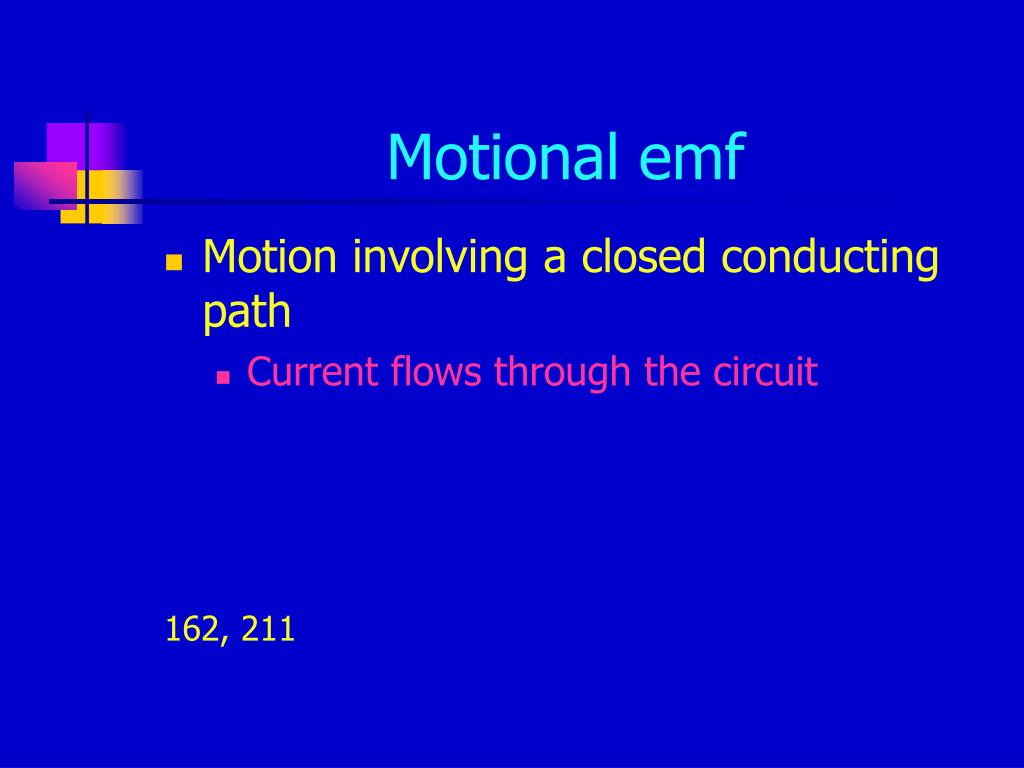

  • Motion involving a closed conducting path

    • Current flows through the circuit

      162, 211

Lenz s law revisited l.jpg
Lenz’s Law Revisited

  • Another example (Figure 20.17):

    • A stationary conducting loop and a bar magnet

      215, 20.13, 165

Applications of magnetic induction l.jpg

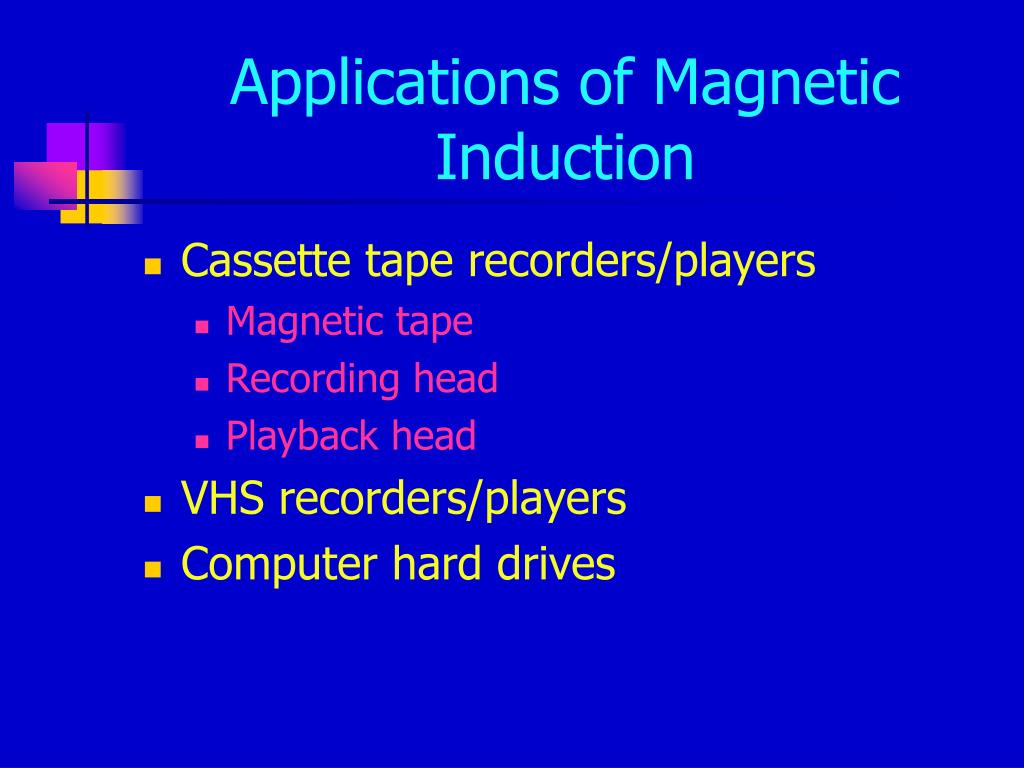

Applications of Magnetic Induction

  • Cassette tape recorders/players

    • Magnetic tape

    • Recording head

    • Playback head

  • VHS recorders/players

  • Computer hard drives

Questions l.jpg

1 - 7

Pg. 689

Ac generators l.jpg
AC Generators

  • The alternating current (ac) generator

    • Converts mechanical energy to electrical energy

    • Has a coil rotating in a magnetic field

      • Slip rings

        • Insure that the output voltage changes polarity

      • Stationary brushes

        20.20, 216

Types of commercial power plants l.jpg
Types of Commercial Power Plants

  • Fossil Fuel

  • Hydroelectric

  • Nuclear

Total emf l.jpg
Total emf

  • Formula for total emf:

    Note: wt = q and w = 2pf (f = 60 Hz in USA)

    qis measured between the magnetic field and the normal to the loop.

  • Maximum emf occurs when the plane of the loop is parallel to the magnetic field


Dc generators l.jpg
DC Generators

  • The direct current (dc) generator

    • Uses a split ring or commutator

      • This insures that the output voltage does not change polarity.


Motors and back emf l.jpg
Motors and Back emf

  • A motor is the opposite of a generator.

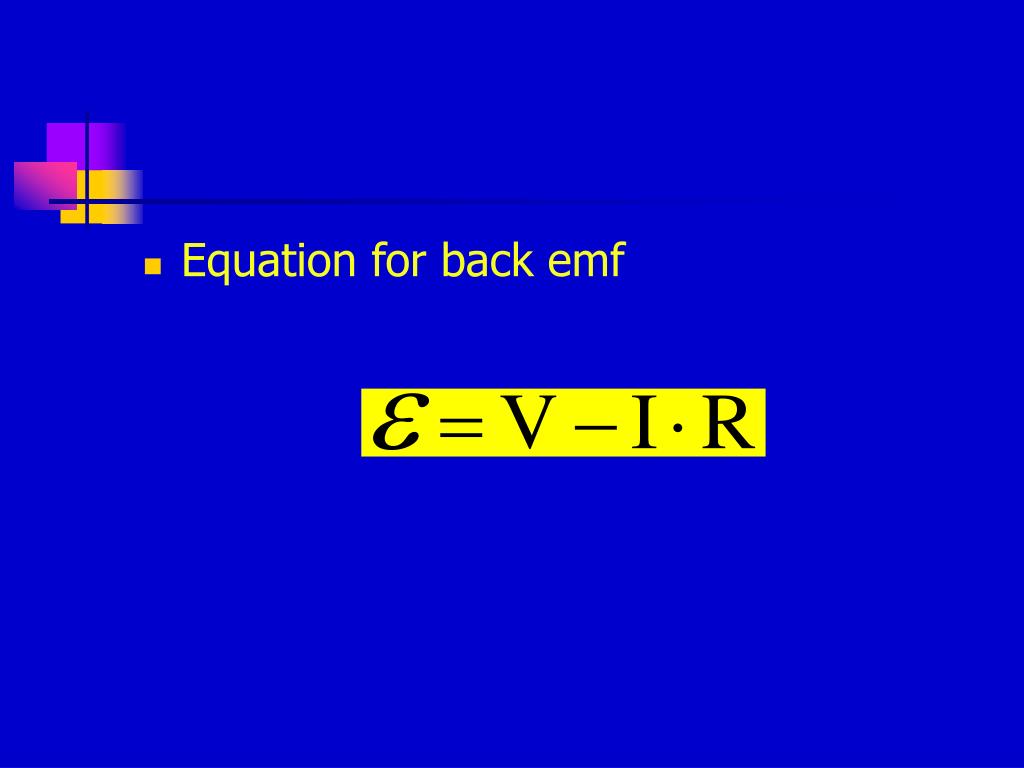

    • Because of Lenz’s Law, back emf is generated in a motor.

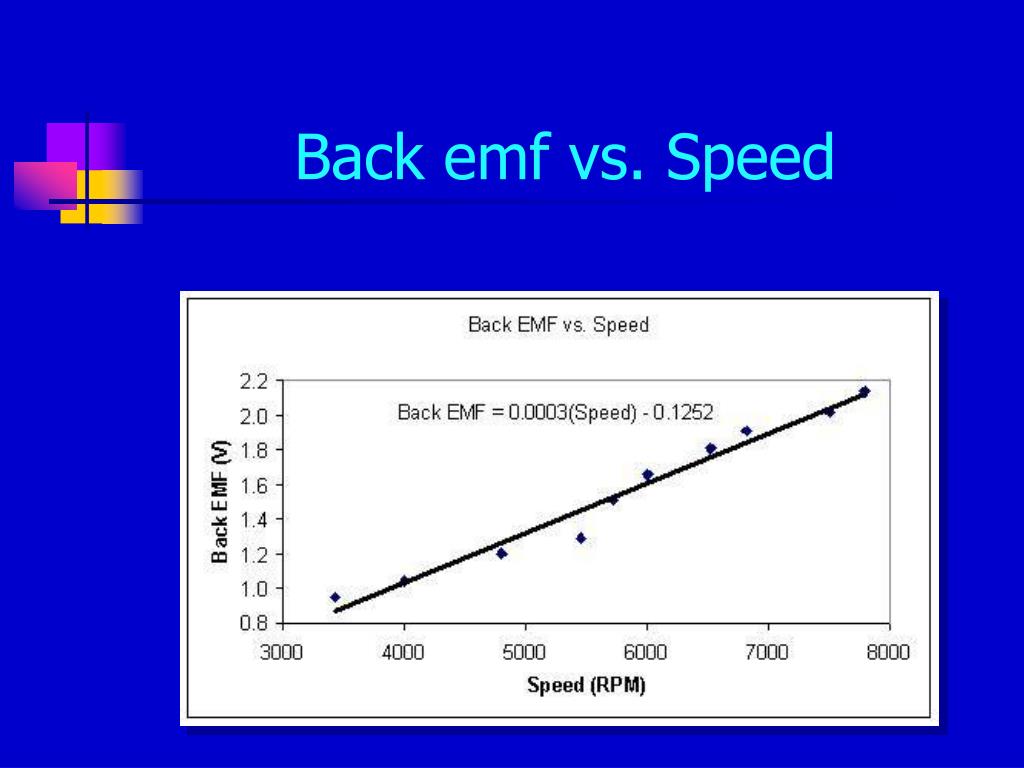

      • Back emf increases with rotational speed.

      • Back emf tends to reduce current flow in the windings.

        • Maximum current is present when the motor starts up.


Eddy currents l.jpg
Eddy Currents

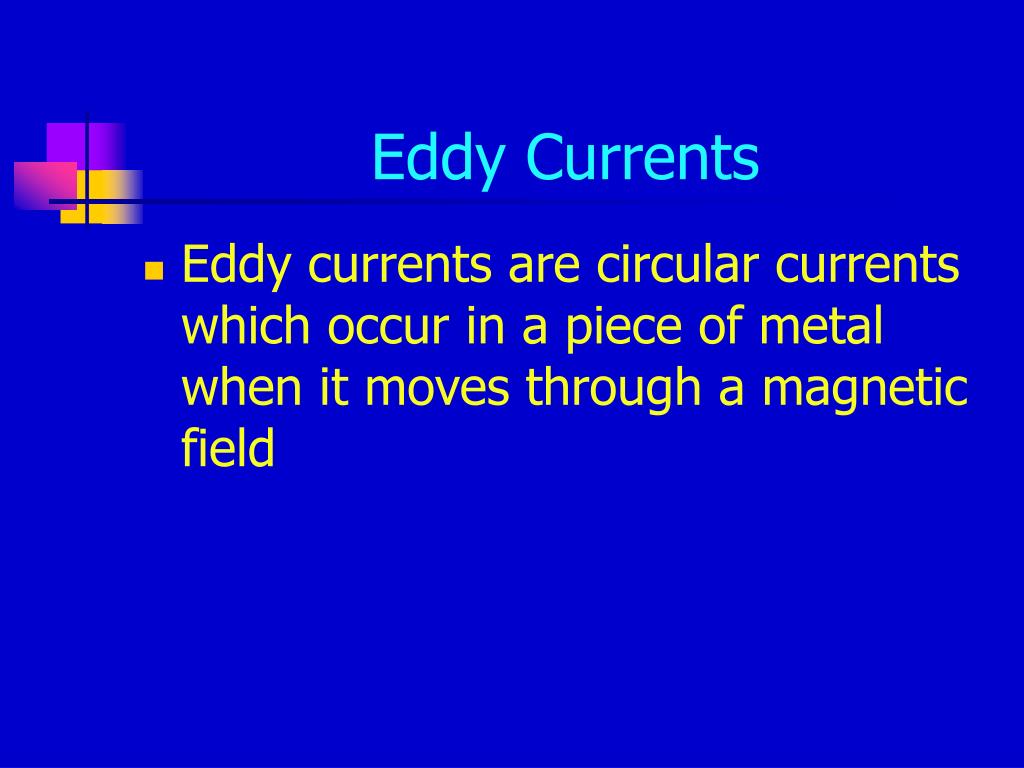

  • Eddy currents are circular currents which occur in a piece of metal when it moves through a magnetic field

Magnetic damping l.jpg
Magnetic Damping

  • The magnetic fields produced by the eddy currents try to prevent motion of the metal through the field.

Effects of eddy currents l.jpg

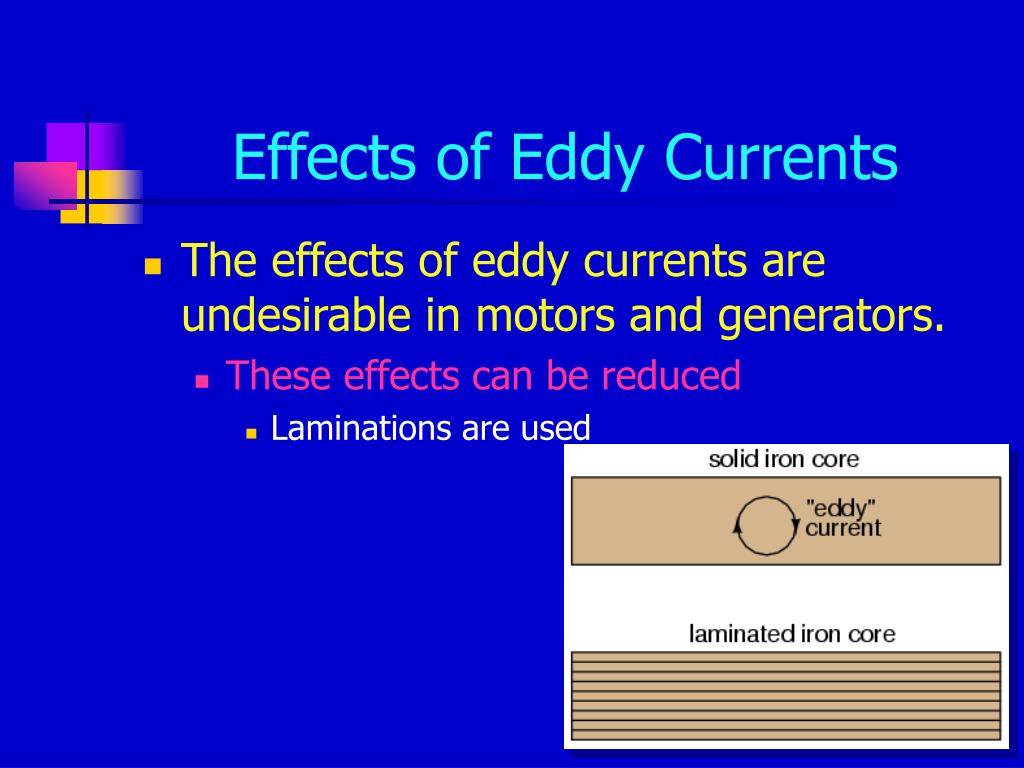

Effects of Eddy Currents

  • The effects of eddy currents are undesirable in motors and generators.

    • These effects can be reduced

      • Laminations are used

Self inductance l.jpg

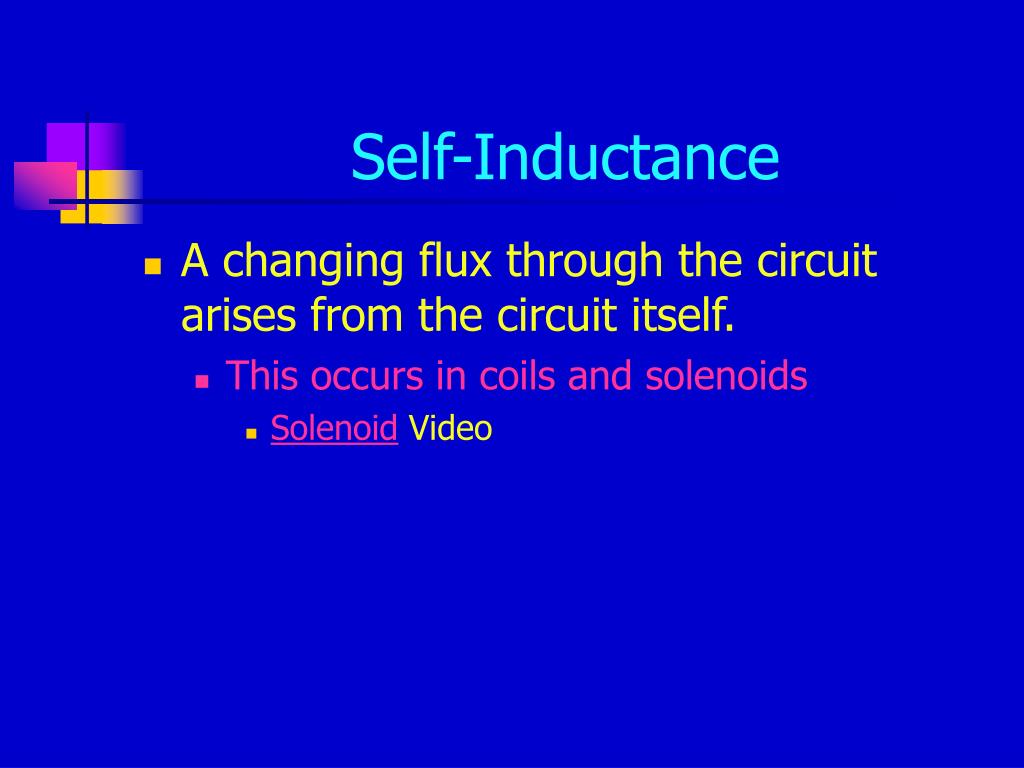

  • A changing flux through the circuit arises from the circuit itself.

    • This occurs in coils and solenoids

      • Solenoid Video

Self induced emf l.jpg
Self-Induced emf

  • The self induced emf is proportional to the time rate of change of current

    L is a constant representing the inductance of the device and is measured in Henries (H).

Inductance l.jpg

  • Formula for inductance (L)

Inductors l.jpg

  • An inductor is a circuit element which is used to provide inductance.

    • Usually a closely wrapped coil of many turns

Inductance40 l.jpg

  • Inductance (L) is a measure of the opposition to the rate of change of current.

    • Schematic symbol


Rl circuits l.jpg
RL Circuits

  • RL time constant (t)

    • The time that it takes for the current in the circuit to reach 63.2 % of its maximum value.

Energy stored in a magnetic field l.jpg
Energy Stored In A Magnetic Field

  • Current flowing through a solenoid produces a magnetic field.

    • The battery must do work to produce a current in a coil.

    • This energy is stored in the magnetic field of the coil.

      37-1, 14, 78

Questions43 l.jpg

8,10, 11, 13, 14

Pg. 689
