  1. Atoms, Elements, and Molecules Image from: ase.tufts.edu

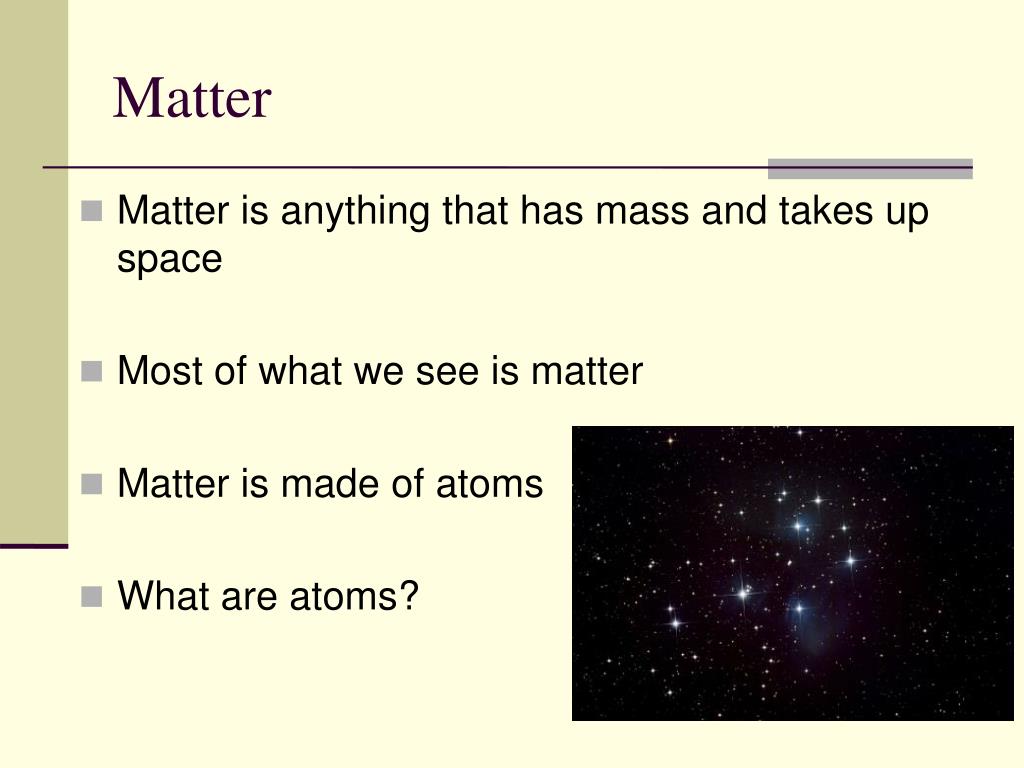

  2. Matter • Matter is anything that has mass and takes up space • Most of what we see is matter • Matter is made of atoms • What are atoms?

  3. Atoms • Atoms are the smallest building blocks of matter that can chemically change • This means that they are the smallest piece of matter that has chemical properties • Since atoms make up matter, and matter makes up almost everything we know, it means almost everything is made of atoms • Atoms are made of different parts

  4. Parts of the Atom • The atom is made of basic 3 parts: • Protons • Neutrons • Electrons Both found in the nucleus ‘Orbits’ outside the nucleus

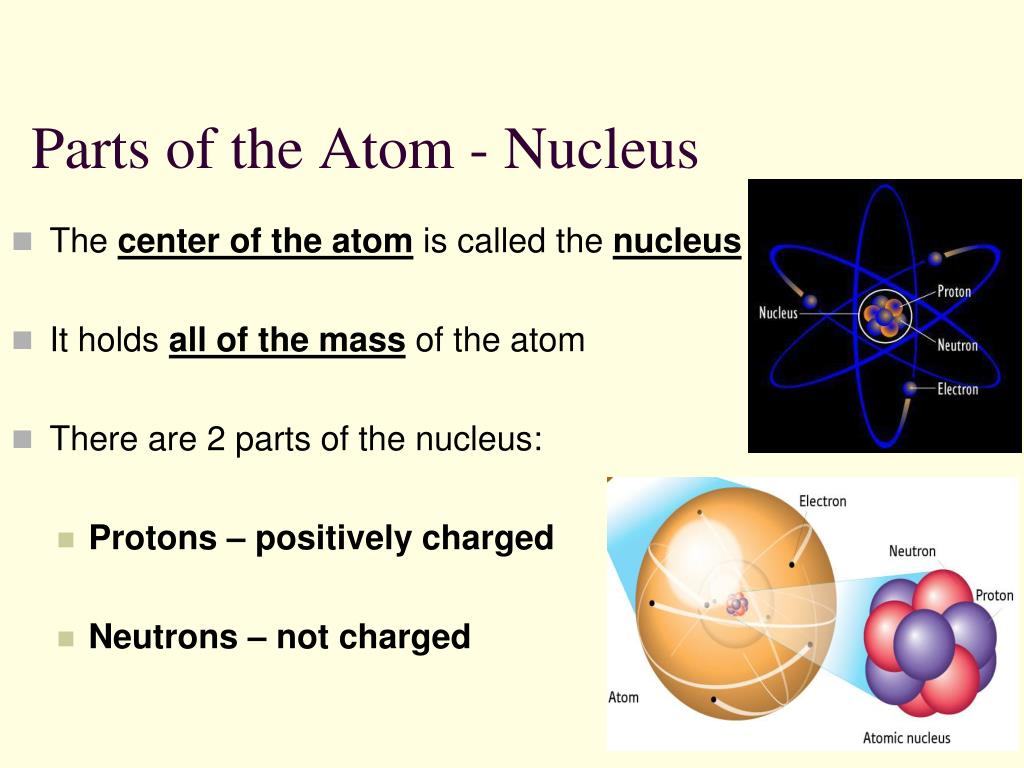

  5. Parts of the Atom - Nucleus • The center of the atomis called the nucleus • It holds all of the massof the atom • There are 2 parts of the nucleus: • Protons – positively charged • Neutrons – not charged

  6. Parts of the Atom - Electrons • Electrons ‘orbit’ outside of the nucleus • Electrons are negatively charged • Electrons weigh about 2000 times less than protons or neutrons, so we assume the nucleus has all of the mass • Electrons orbit REALLY far away from the nucleus

  7. Electrons • Electrons are really far away from the nucleus • If the nucleus were the size of a marble and that marble was placed on the middle of a soccer field, the electrons would far outside the outside of the stadium. • This means that atoms are almost entirely empty space

  8. Atoms and Elements • There are different types of atoms • Each type of atom is called an element • There are 92 naturally occurring elements and 26 man-made elements • Each element has it’s own unique physical and chemical properties

  9. Elements • Elements are listed on the Periodic Table of Elements • Each elements has its own square on the Periodic Table • Each element has a 1 or 2 letter symbol called a chemical symbol • The first letter is ALWAYS a capital letter • The second letter (if present) is ALWAYS lower case.

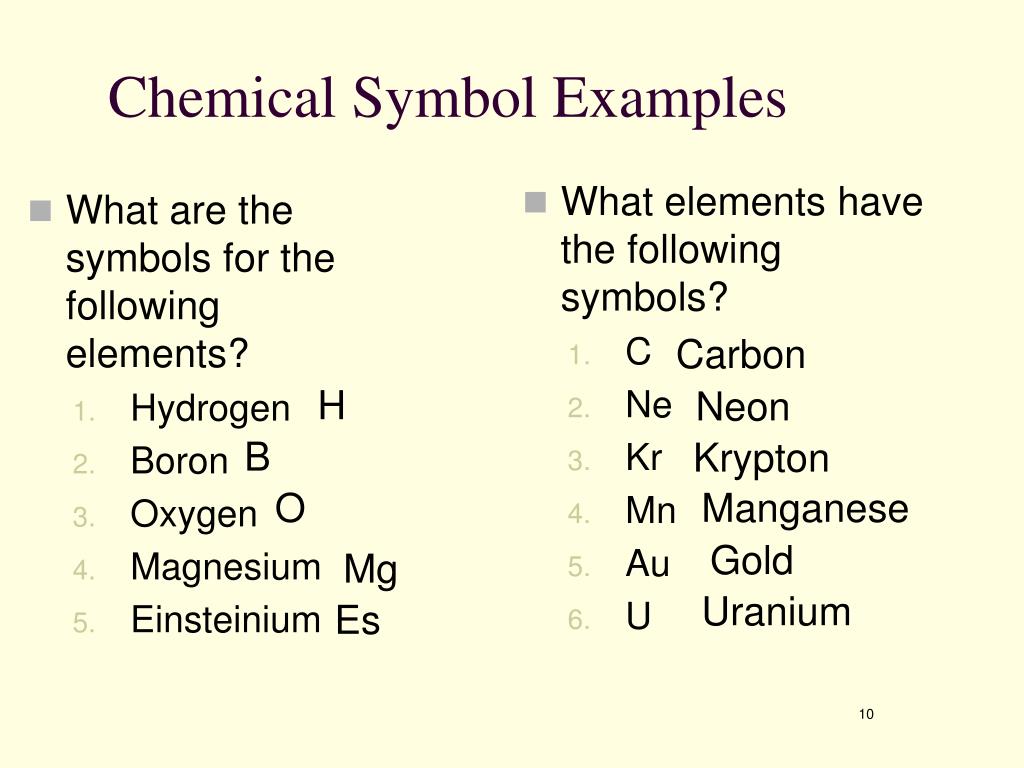

  10. Chemical Symbol Examples • What elements have the following symbols? • C • Ne • Kr • Mn • Au • U • What are the symbols for the following elements? • Hydrogen • Boron • Oxygen • Magnesium • Einsteinium Carbon H Neon B Krypton O Manganese Gold Mg Uranium Es

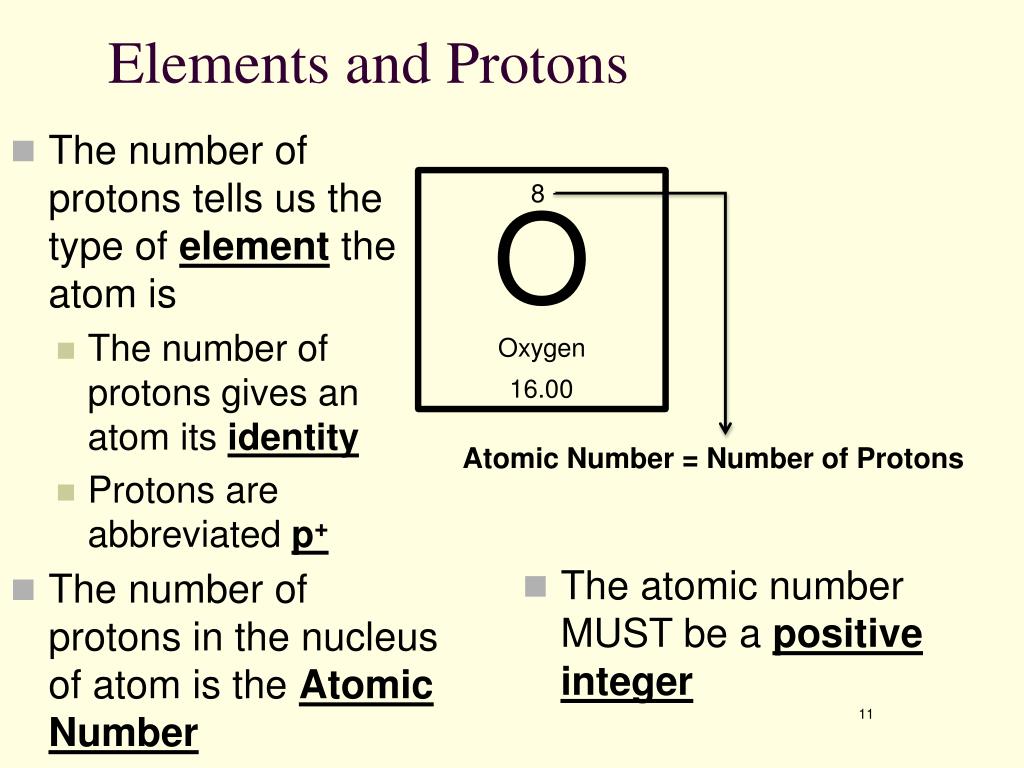

  11. Elements and Protons • The number of protons tells us the type of element the atom is • The number of protons gives an atom its identity • Protons are abbreviated p+ • The number of protons in the nucleus of atom is the Atomic Number 8 O Oxygen • The atomic number MUST be a positive integer 16.00 Atomic Number = Number of Protons

  12. Element Examples • How many protons do the following elements have? • Oxygen • Fluorine • Titanium • Sodium • Silver • Which elements have the following atomic numbers? • 24 • 58 • 11 • 100 • 3

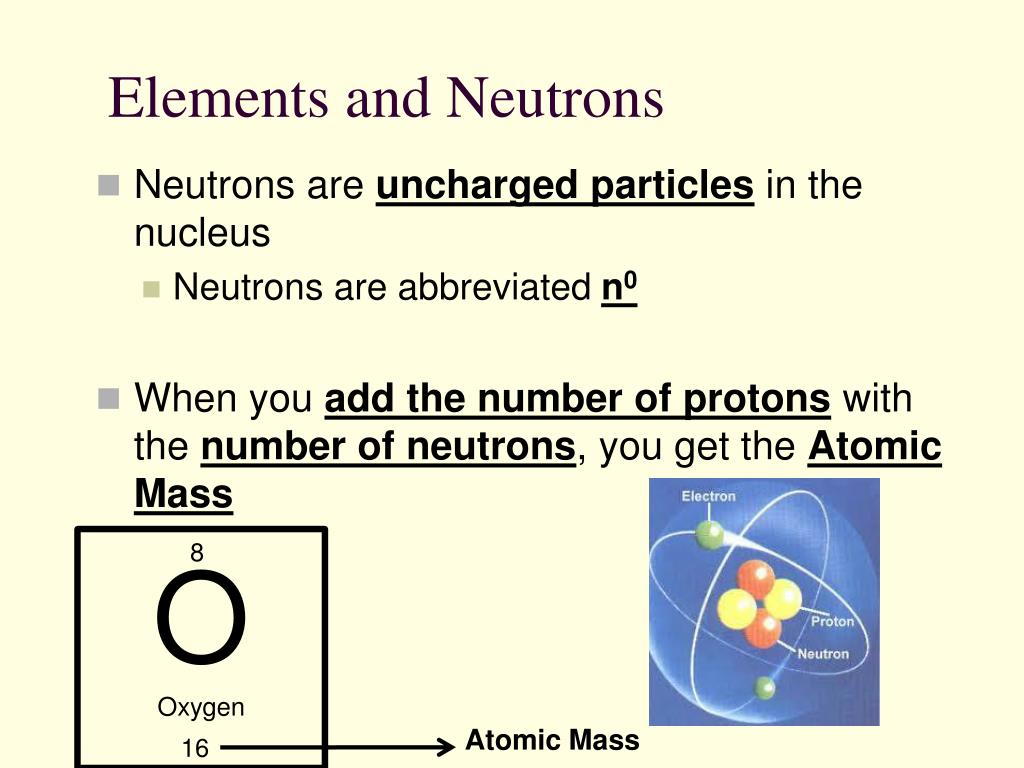

  13. Elements and Neutrons • Neutrons are uncharged particles in the nucleus • Neutrons are abbreviated n0 • When you add the number of protons with the number of neutrons, you get the Atomic Mass 8 O Oxygen 16 Atomic Mass

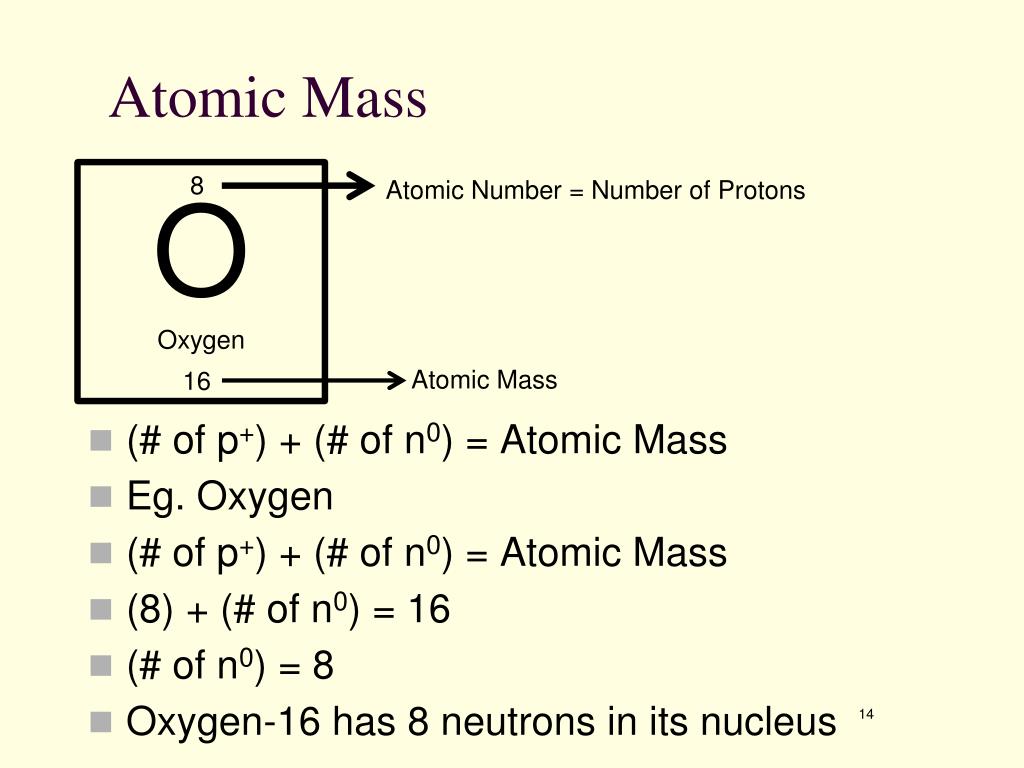

  14. Atomic Mass Atomic Number = Number of Protons • (# of p+) + (# of n0) = Atomic Mass • Eg. Oxygen • (# of p+) + (# of n0) = Atomic Mass • (8) + (# of n0) = 16 • (# of n0) = 8 • Oxygen-16 has 8 neutrons in its nucleus Atomic Mass 8 O Oxygen 16

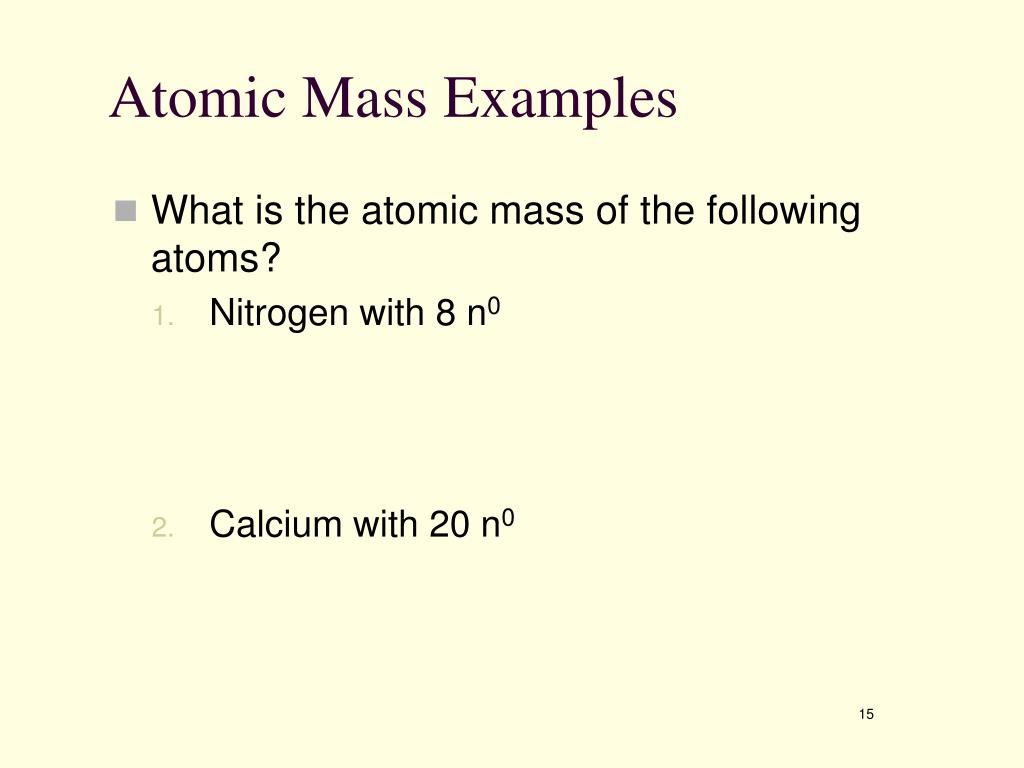

  15. Atomic Mass Examples • What is the atomic mass of the following atoms? • Nitrogen with 8 n0 • Calcium with 20 n0

  16. Neutrons • Elements always have the same number of protons but can have different numbers of neutrons in their nucleus • The same element, with different numbers of neutrons are called Isotopes • Eg. All carbon atoms have 6 protons, but they can have 6, 7, or 8 neutrons. Carbon-6, Carbon-7, and Carbon-8 are all isotopes of carbon

  17. Atomic Mass Example • Eg. How many neutrons are in the following isotopes of Calcium? • Calcium-40 • Calcium-42 • Calcium-48

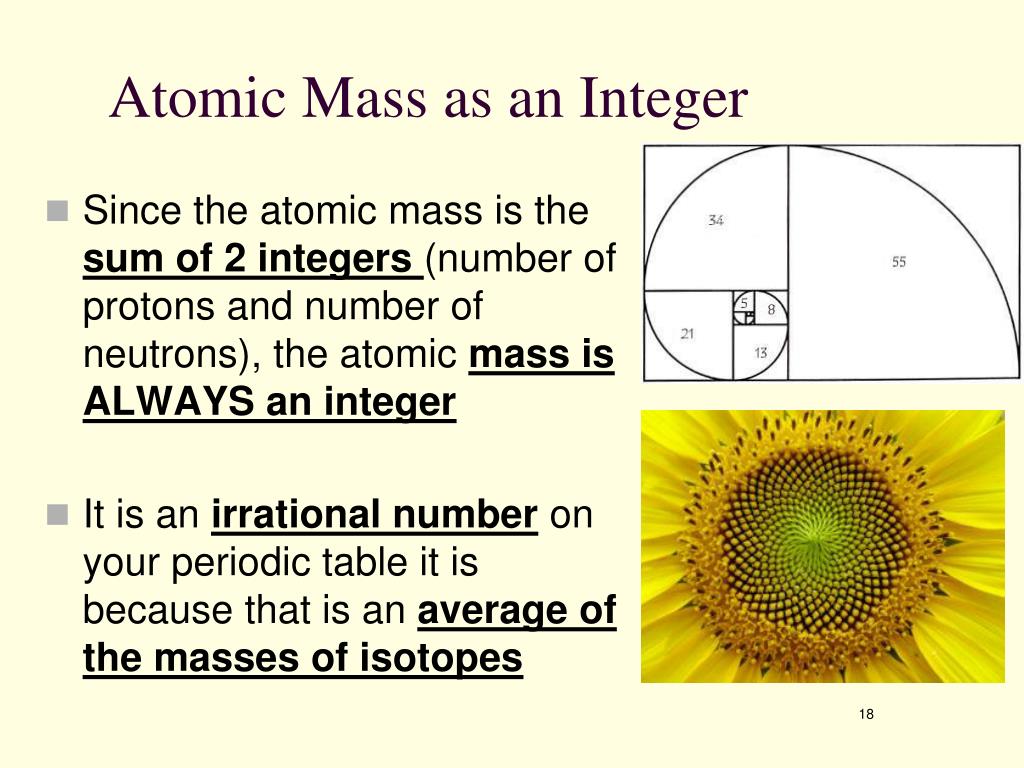

  18. Atomic Mass as an Integer • Since the atomic mass is the sum of 2 integers (number of protons and number of neutrons), the atomic mass is ALWAYS an integer • It is an irrational number on your periodic table it is because that is an average of the masses of isotopes

  19. Electrons • Electrons determine the behaviour of an element • They give an element its physical and chemical properties • The number of electrons is usually the same as the number of protons

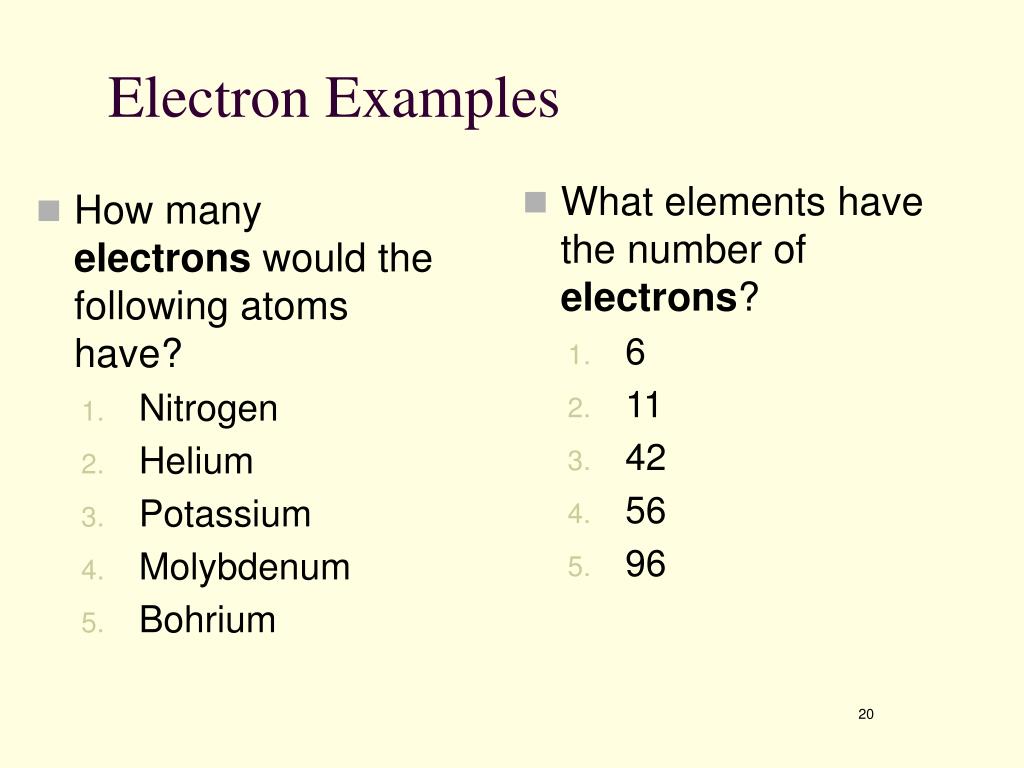

  20. Electron Examples • What elements have the number of electrons? • 6 • 11 • 42 • 56 • 96 • How many electrons would the following atoms have? • Nitrogen • Helium • Potassium • Molybdenum • Bohrium

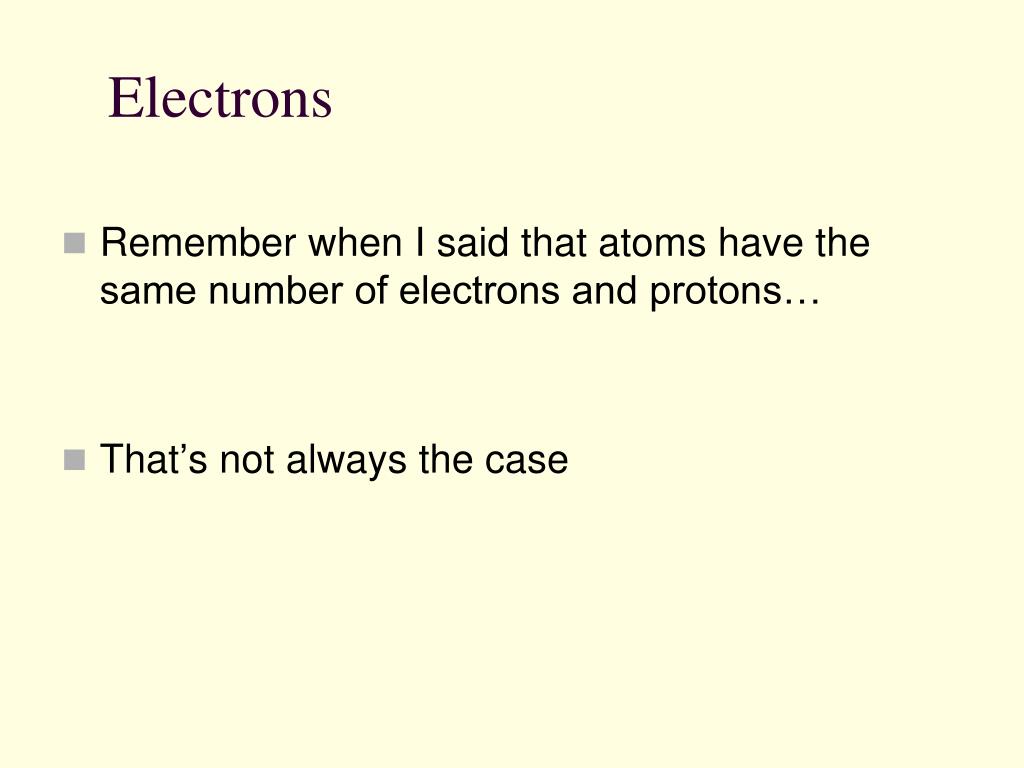

  21. Electrons • Remember when I said that atoms have the same number of electrons and protons… • That’s not always the case

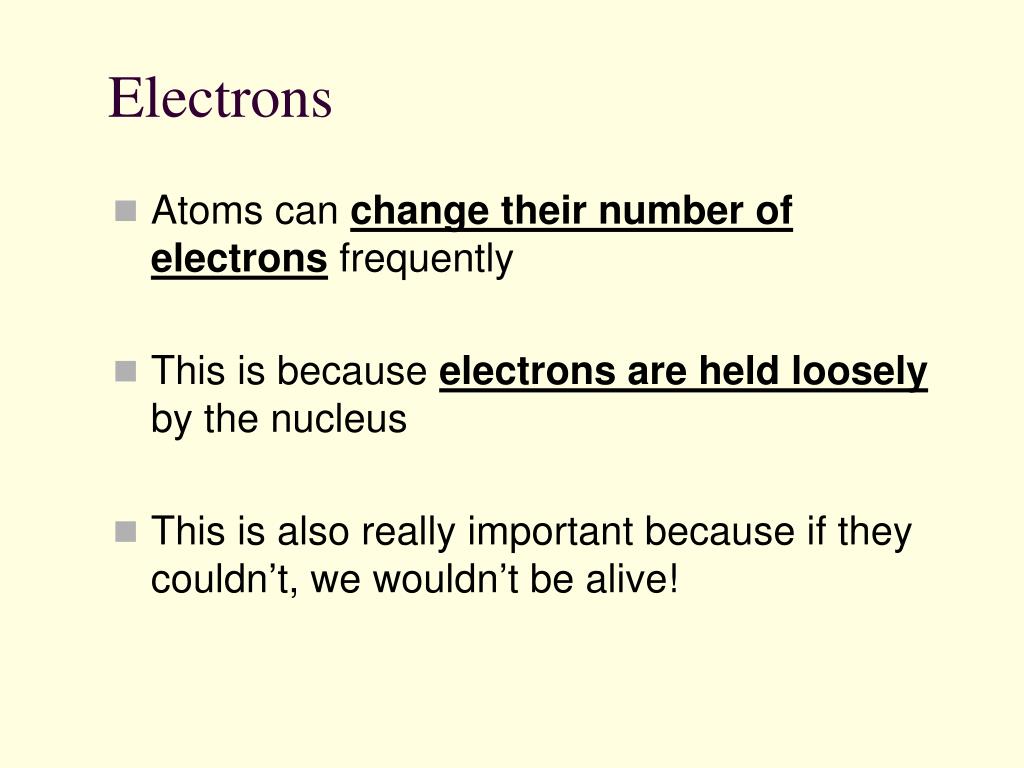

  22. Electrons • Atoms can change their number of electrons frequently • This is because electrons are held loosely by the nucleus • This is also really important because if they couldn’t, we wouldn’t be alive!

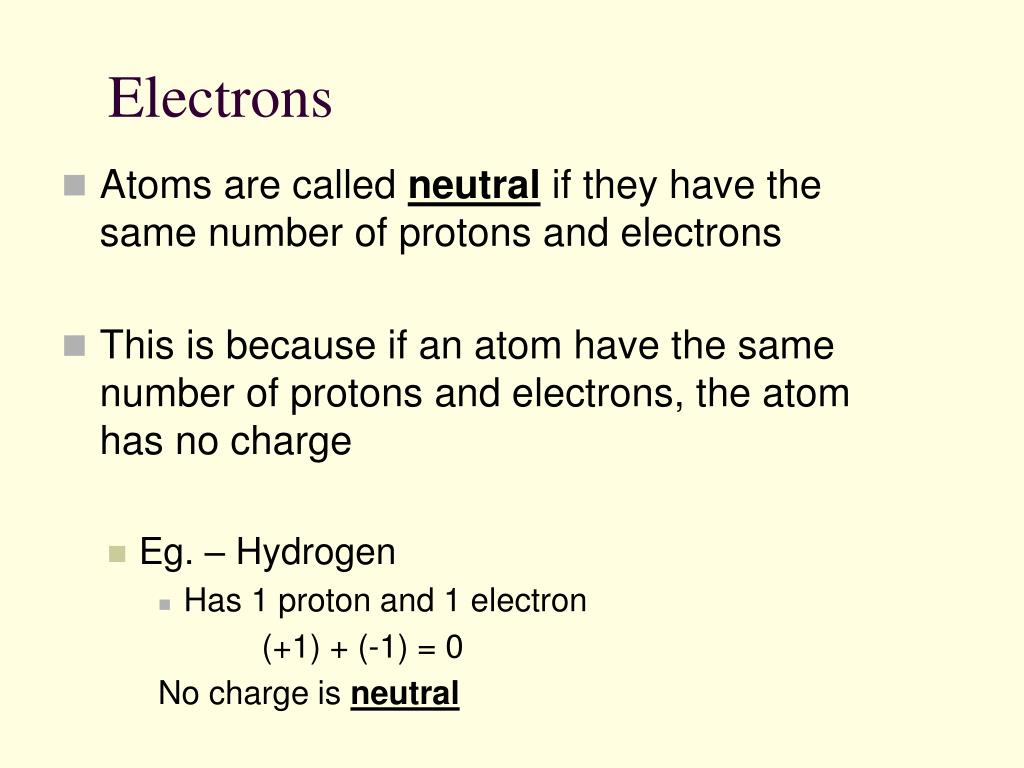

  23. Electrons • Atoms are called neutral if they have the same number of protons and electrons • This is because if an atom have the same number of protons and electrons, the atom has no charge • Eg. – Hydrogen • Has 1 proton and 1 electron (+1) + (-1) = 0 No charge is neutral

  24. Ions • Atoms that lose or gain electrons are called ions • Ions have a charge • When writing the charge, it always goes in the top right-hand corner. • Eg. Fluorine with a -1 charge gets is shown as: F- • Eg. Selenium with a charge of -2 is shown as: Se2-

  25. Cations • If an atom loses electrons, it gets a positive charge • Atoms with a positive charge are called cations

  26. Cation Examples • How many electrons would each of the following have? • Beryllium loses 2 electrons • Sodium loses 1 electron 2) What is the charge on each of the following atoms? • Aluminum loses 3 electrons • Silicon loses 4 electrons

  27. Anions • If an atoms gains electrons, it gets a negative charge • Atoms with a negative charge are called anions • Think of it like this, A-Negative-ion, A-N-ion

  28. Anion Examples • How many electrons would each of the following have? • Fluorine gains 1 electron • Phosphorus gains 3 electrons 2) What is the charge on each of the following atoms? • Sulphur gains 2 electrons • Chlorine gains 2 electrons

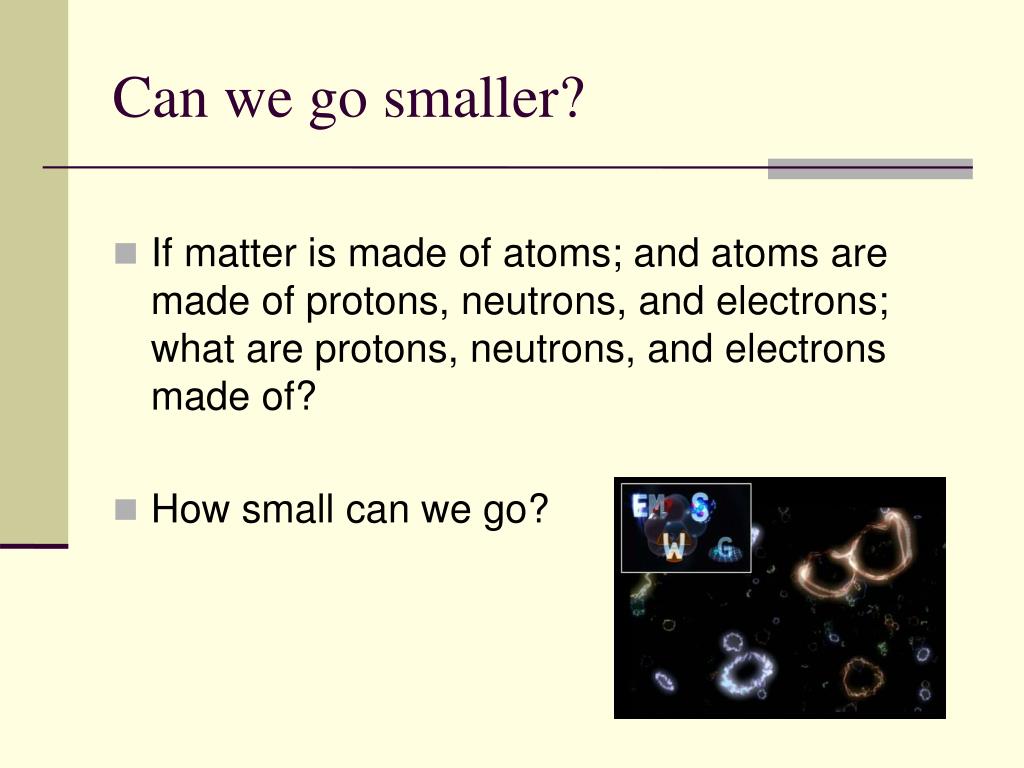

  29. Can we go smaller? • If matter is made of atoms; and atoms are made of protons, neutrons, and electrons; what are protons, neutrons, and electrons made of? • How small can we go?

  30. Compounds • So far we learned about elements, 1 type of pure substance • The other type of pure substance is a compound • Compounds are 2 or more elements hooked (sometimes called bonded) together

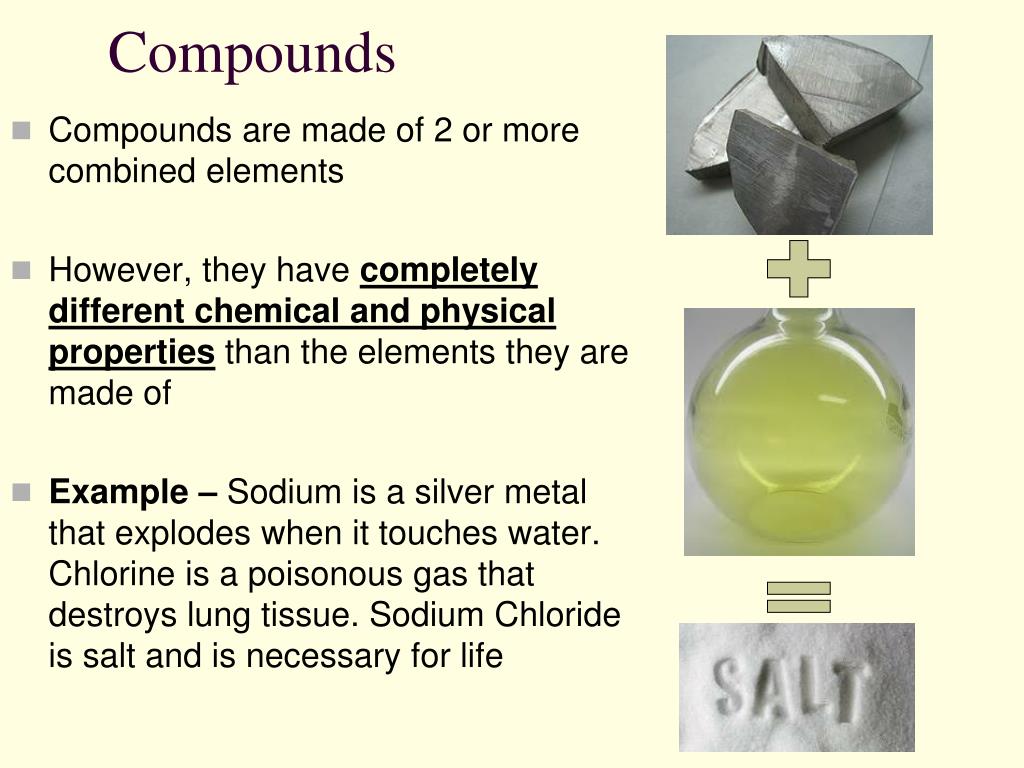

  31. Compounds • Compounds are made of 2 or more combined elements • However, they have completely different chemical and physical properties than the elements they are made of • Example – Sodium is a silver metal that explodes when it touches water. Chlorine is a poisonous gas that destroys lung tissue. Sodium Chloride is salt and is necessary for life

  32. Chemical Formulas • Molecules are another name for compounds • All compounds are represented with a special notation • Write the chemical symbol of each element in the compound • If there is only 1 atom of that element in the compound, leave it alone • If there are 2 or more atoms of an element, write a small number in the bottom right hand of the chemical symbol

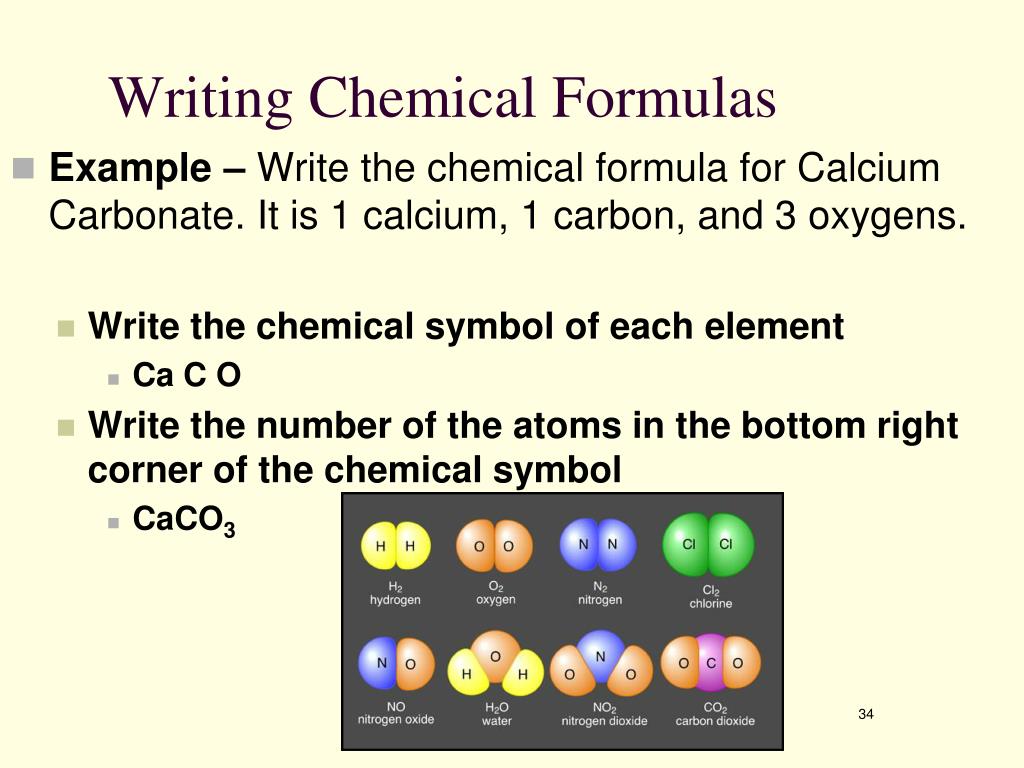

  33. Writing Chemical Formulas • Example – Write the chemical formula for Calcium Carbonate. It is 1 calcium, 1 carbon, and 3 oxygens. • Write the chemical symbol of each element • Ca C O • Write the number of the atoms in the bottom right corner of the chemical symbol • CaCO3

  34. Chemical Formula Examples • Determine which elements, and how many of each, are in the following compounds • BaCl2 • N2 • Fe2O3 • KCo2F5 • U3O8 • Write the chemical formula for each compound • Hydroiodic acid – 1 hydrogen, 1 iodine • Hydrogen Peroxide – 2 hydrogen, 2 oxygens • Glucose – 6 carbon, 12 hydrogen, 6 oxygen • Sulphuric Acid – 2 hydrogen, 1 sulphur, 4 oxygen
