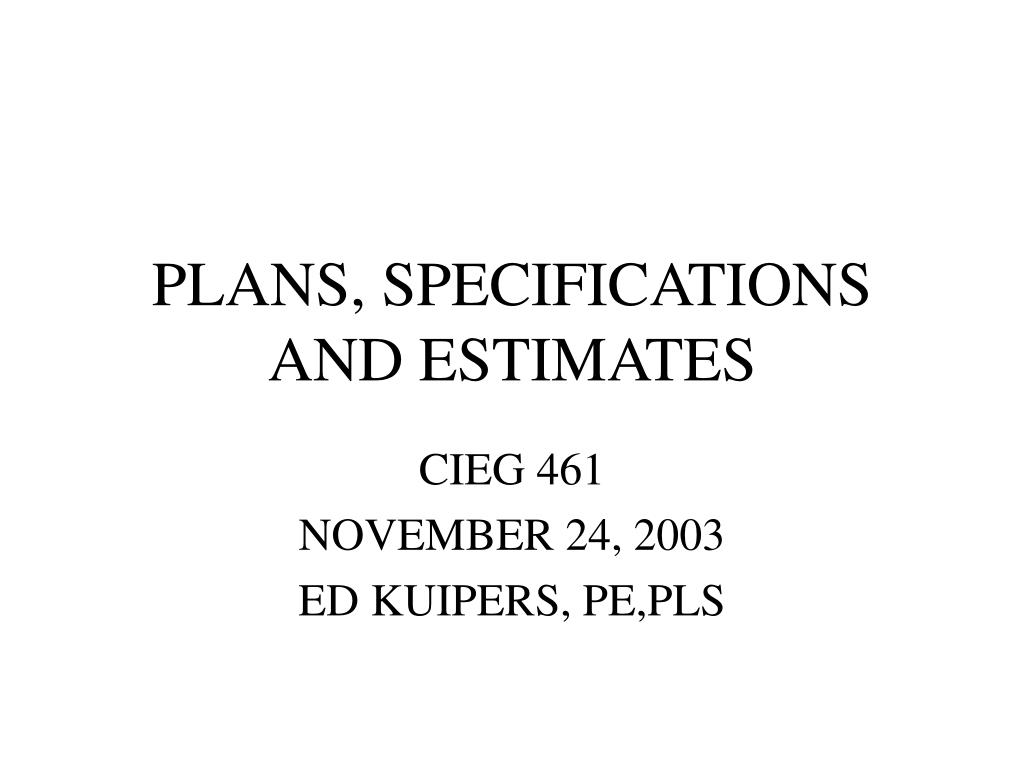

  1. PLANS, SPECIFICATIONS AND ESTIMATES CIEG 461 NOVEMBER 24, 2003 ED KUIPERS, PE,PLS

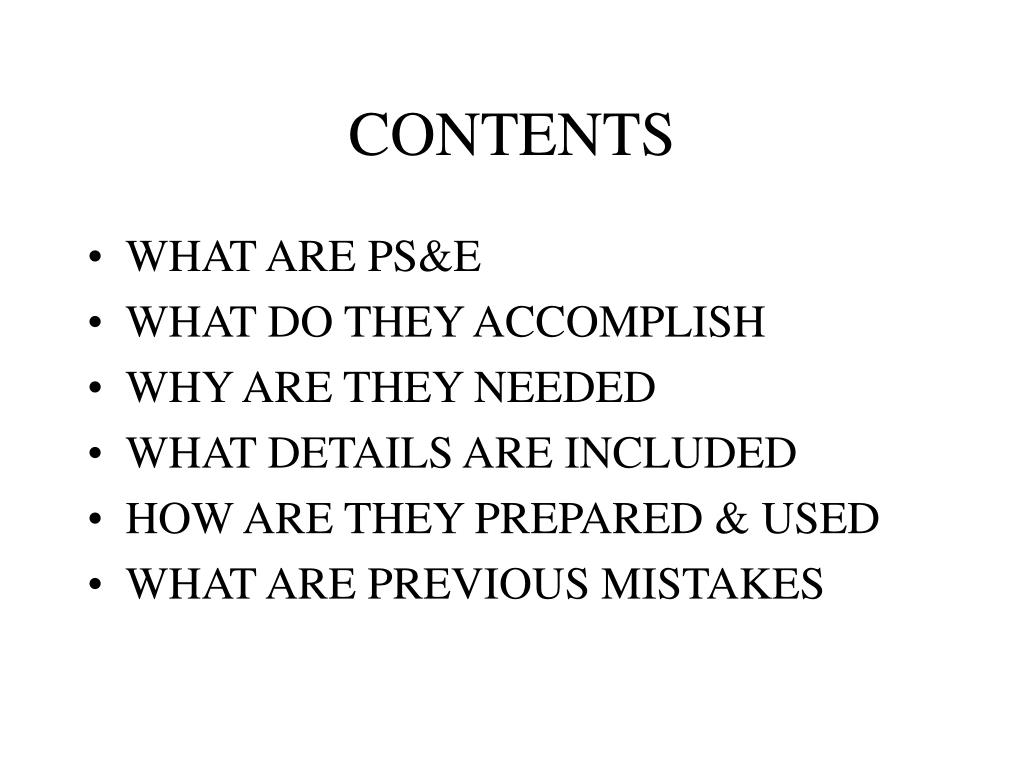

  2. CONTENTS • WHAT ARE PS&E • WHAT DO THEY ACCOMPLISH • WHY ARE THEY NEEDED • WHAT DETAILS ARE INCLUDED • HOW ARE THEY PREPARED & USED • WHAT ARE PREVIOUS MISTAKES

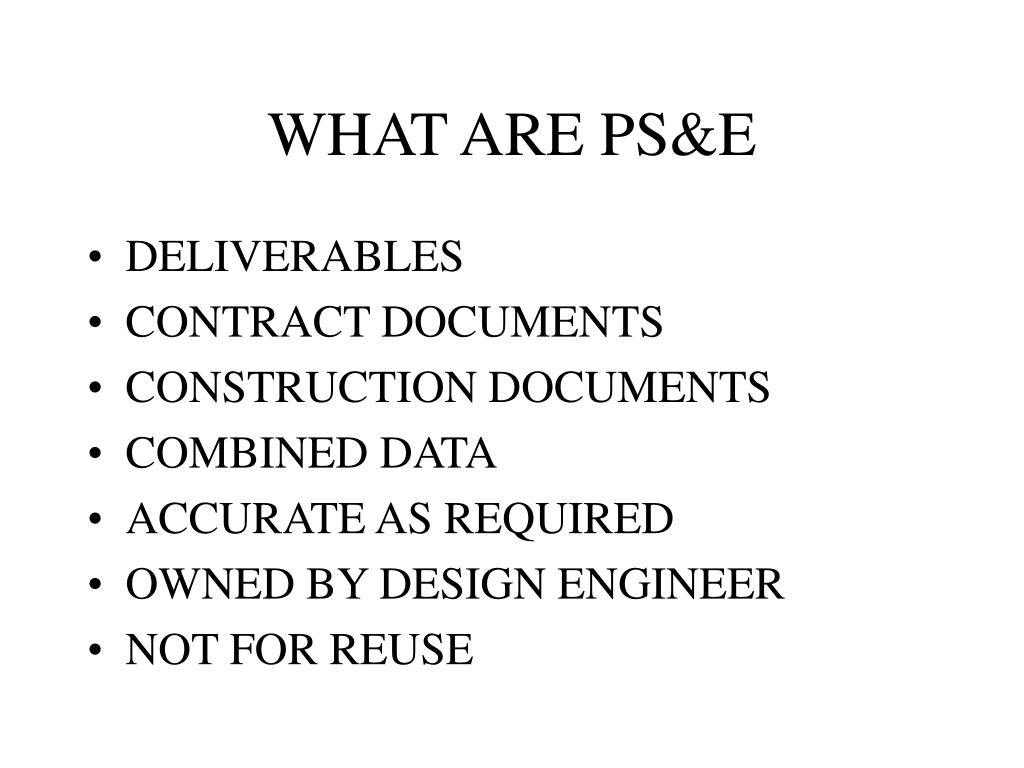

  3. WHAT ARE PS&E • DELIVERABLES • CONTRACT DOCUMENTS • CONSTRUCTION DOCUMENTS • COMBINED DATA • ACCURATE AS REQUIRED • OWNED BY DESIGN ENGINEER • NOT FOR REUSE

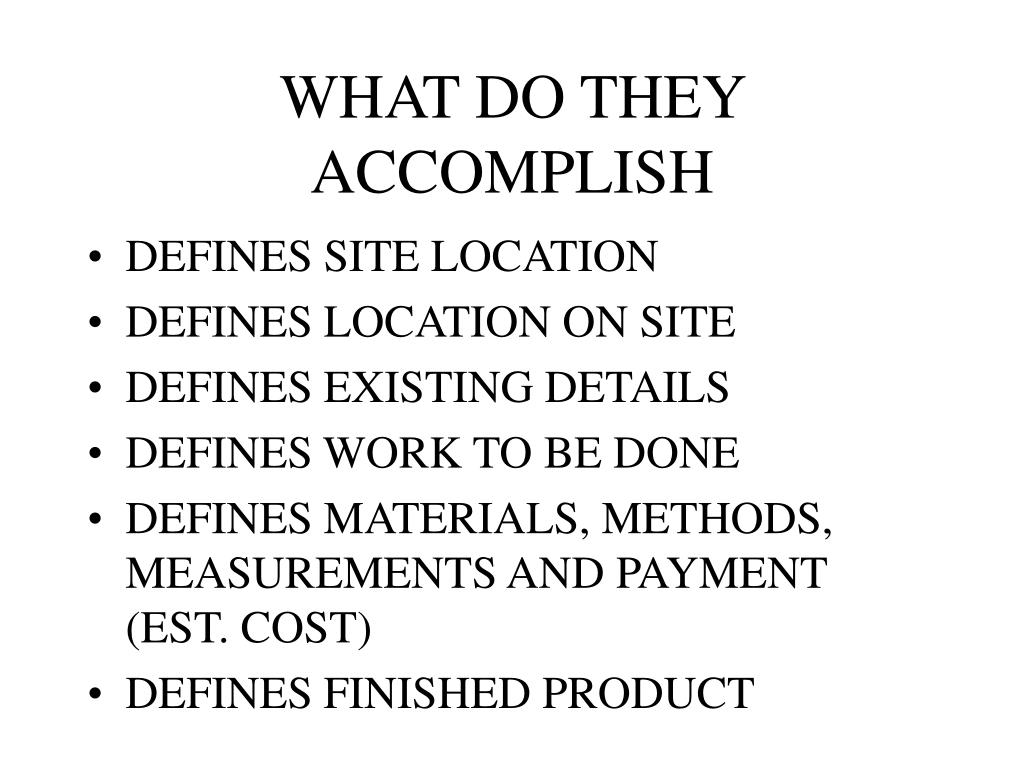

  4. WHAT DO THEY ACCOMPLISH • DEFINES SITE LOCATION • DEFINES LOCATION ON SITE • DEFINES EXISTING DETAILS • DEFINES WORK TO BE DONE • DEFINES MATERIALS, METHODS, MEASUREMENTS AND PAYMENT (EST. COST) • DEFINES FINISHED PRODUCT

  5. WHY ARE THEY NEEDED • TO OBTAIN REQUIRED PERMITS • TO MEET LOCAL REGULATIONS • TO SAFEGUARD LIFE, HEALTH, AND PROPERTY AND TO PROMOTE THE PUBLIC WELFARE

  6. WHAT DETAILS ARE INCLUDED • PLANS - SURVEY, PRELIMINARY, SEMI-FINAL, FINAL • SPECIFICATIONS • ESTIMATES (OPINION OF PROBABLE CONSTRUCTION COST) • CONTRACT DOCUMENTS • AZ PS&E - CIVIL,STR,ENVIR,TRANS

  7. HOW ARE THEY PREPARED & USED • SURVEY • DEVELOP BASE DATA • ADD PROPOSED DESIGN • COMPLETE PS&E, SIGN & SEAL • OBTAIN PERMITS • BID, CONSTRUCT, REVIEW (NOT INSPECT) • AS-BUILT, RECORD

  8. NOT TO SCALE NO SETBACKS BLDG. SPACING FIRE CLEARANCE VEH. MOVEMENT ELEVATIONS NOT CONSIDERED,FF,$ FILL,SWM, PL EX. SITE DATA MISSING PROP. DESIGN DATA MISSING WHAT ARE PREVIOUS MISTAKES
