chloroplast

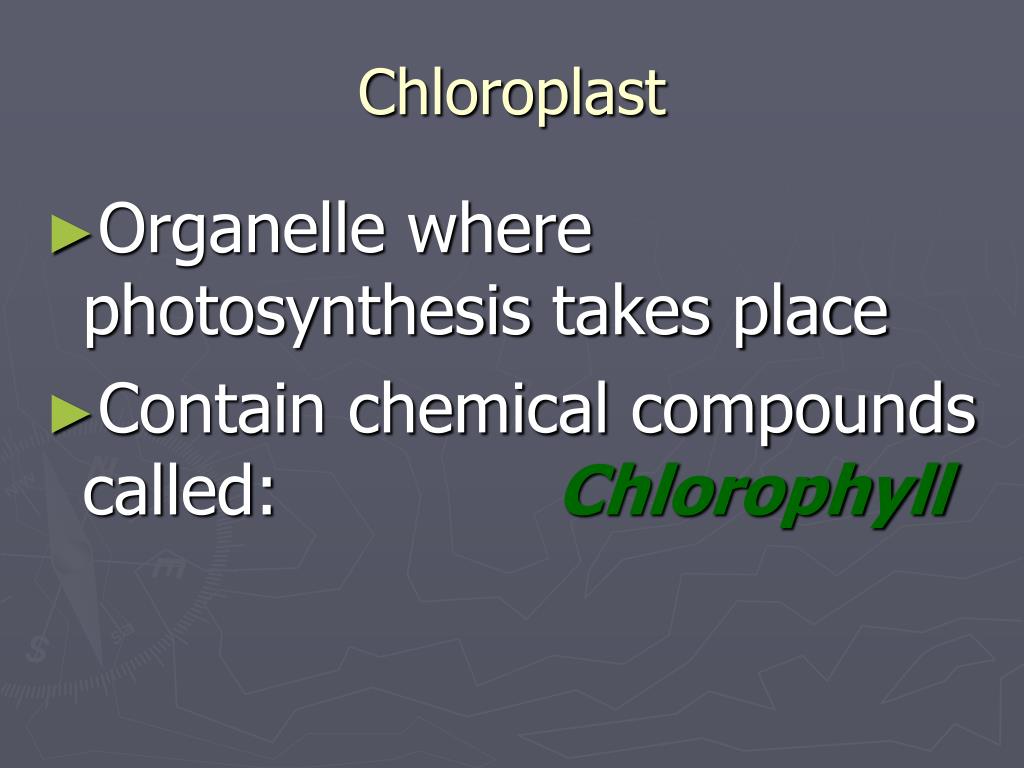

Chloroplast
  • Organelle where photosynthesis takes place
  • Contain chemical compounds called: Chlorophyll
leaf structure

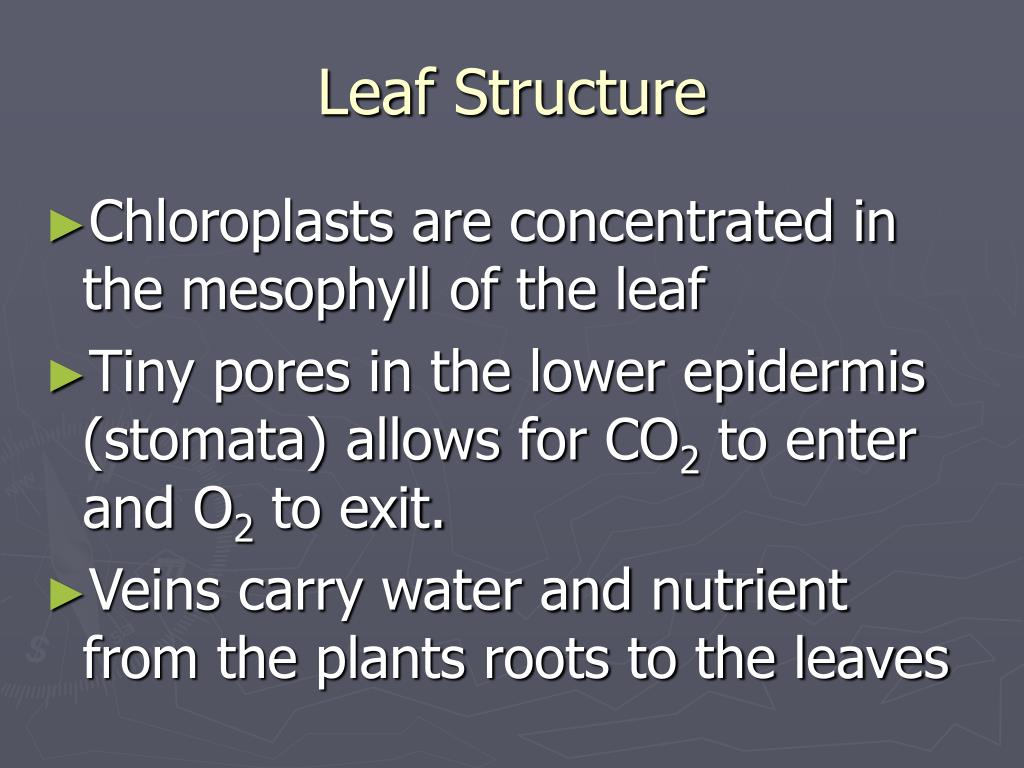

Leaf Structure
  • Chloroplasts are concentrated in the mesophyll of the leaf
  • Tiny pores in the lower epidermis (stomata) allows for CO2 to enter and O2 to exit.
  • Veins carry water and nutrient from the plants roots to the leaves
chloroplast structure

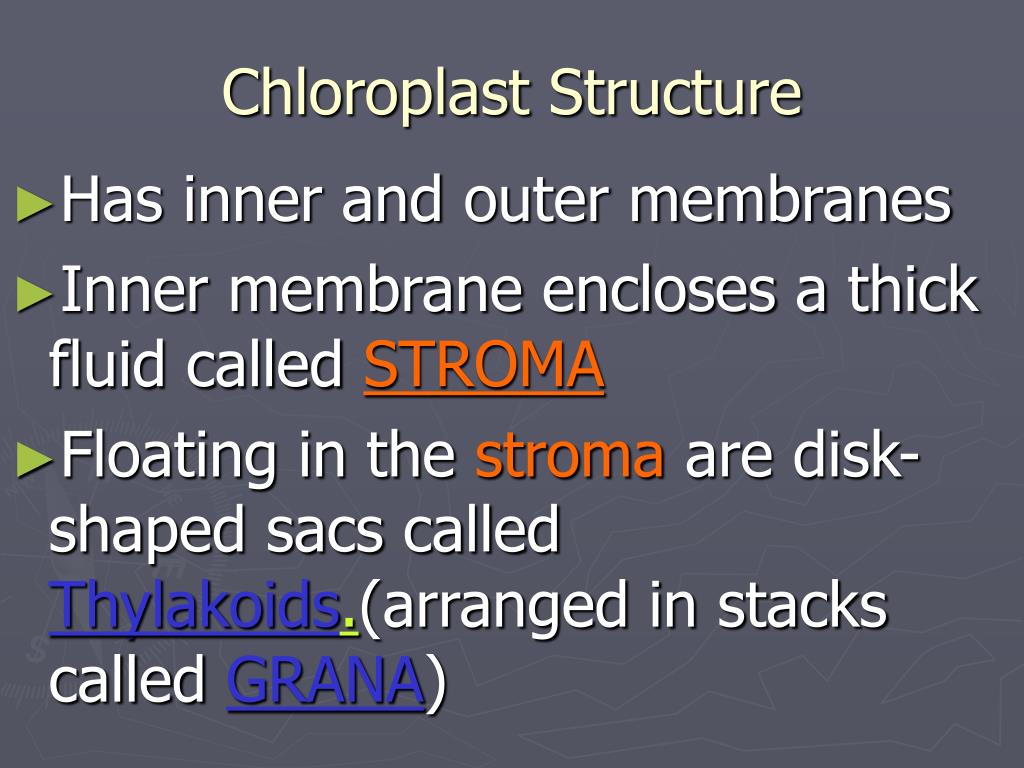

Chloroplast Structure
  • Has inner and outer membranes
  • Inner membrane encloses a thick fluid called STROMA
  • Floating in the stroma are disk-shaped sacs called Thylakoids.(arranged in stacks called GRANA)
thylakoids

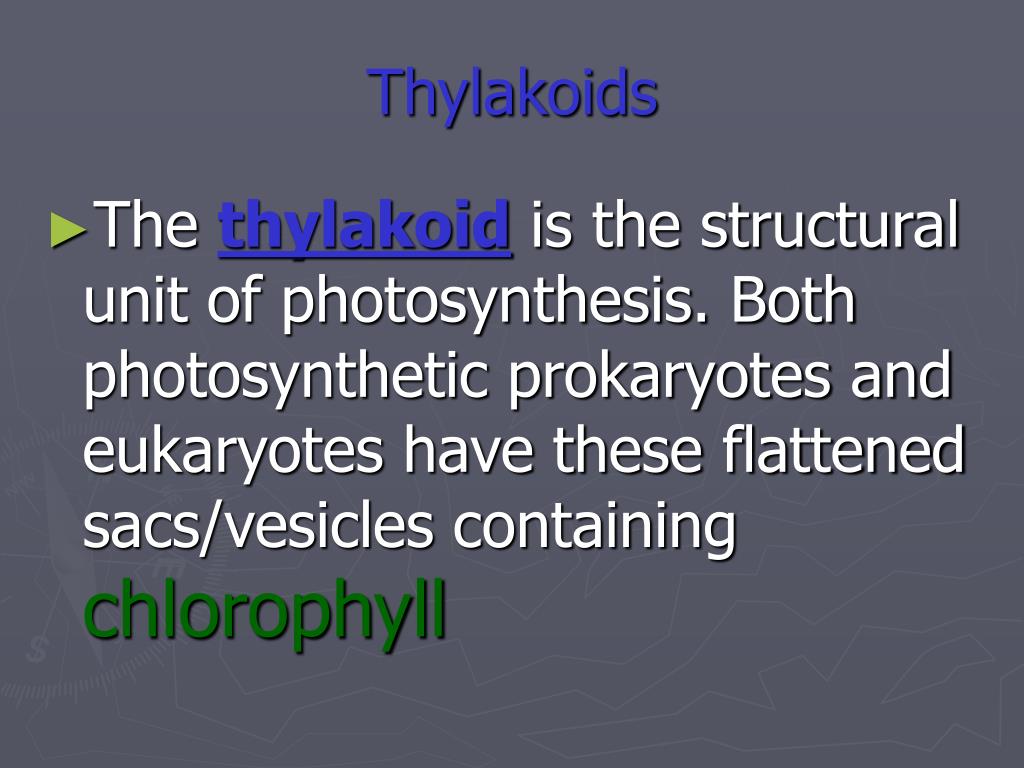

Thylakoids
  • The thylakoid is the structural unit of photosynthesis. Both photosynthetic prokaryotes and eukaryotes have these flattened sacs/vesicles containing chlorophyll
the light reaction

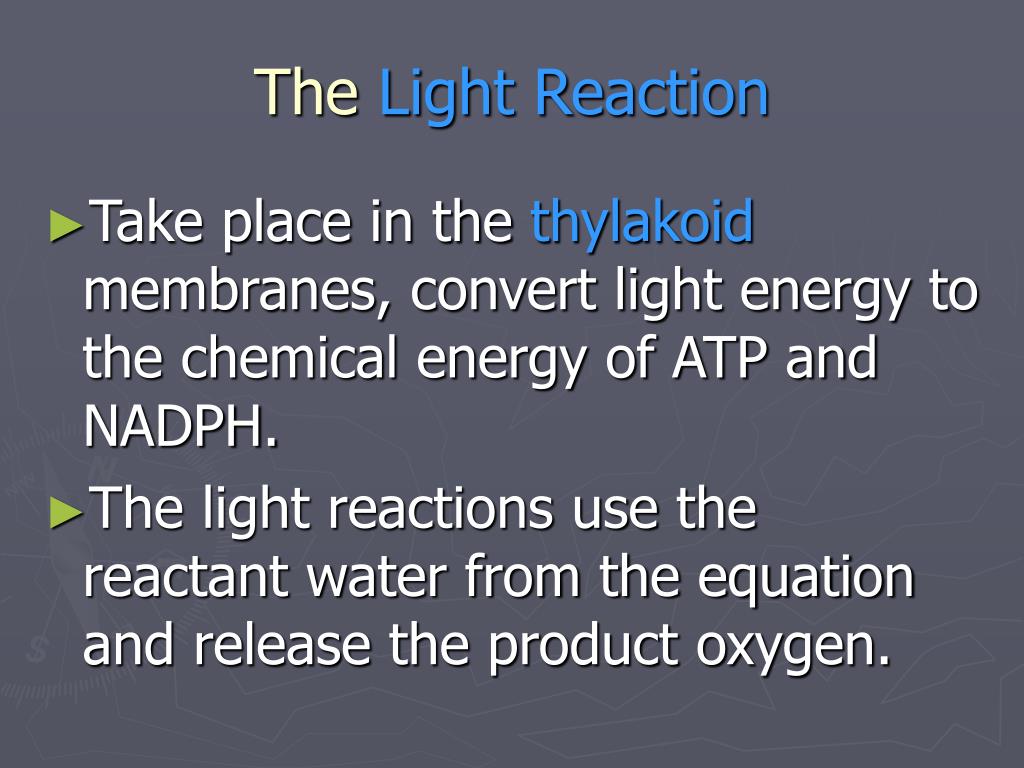

The Light Reaction
  • Take place in the thylakoid membranes, convert light energy to the chemical energy of ATP and NADPH.
  • The light reactions use the reactant water from the equation and release the product oxygen.
calvin cycle
Calvin Cycle
  • Like a sugar factory within a chloroplast.
  • It is called a cycle because the starting material is regenerated each time the process occurs.
  • The starting material that gets regenerated is a compound called RuBP, a sugar with five carbons
inputs and outputs reactant and products

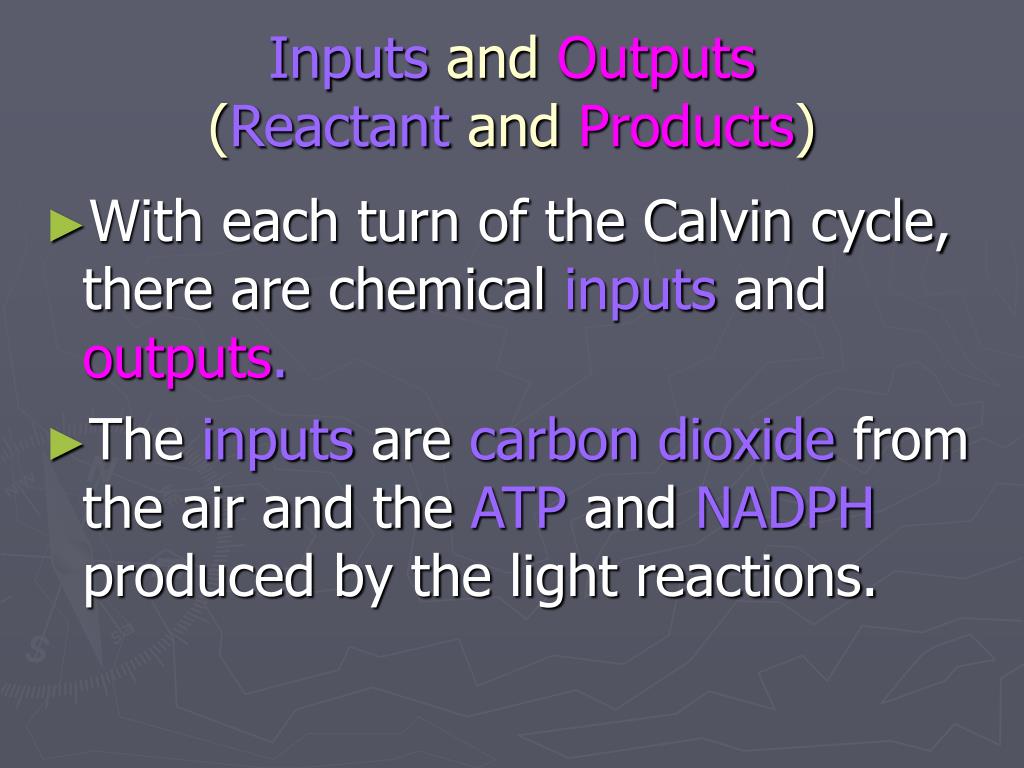

Inputs and Outputs(Reactant and Products)
  • With each turn of the Calvin cycle, there are chemical inputs andoutputs.
  • The inputs are carbon dioxide from the air and the ATP and NADPH produced by the light reactions.
calvin cycle inputs
Calvin CycleInputs
  • The Calvin cycle uses carbon from the carbon dioxide, energy from the ATP, and high-energy electrons and hydrogen ions from the NADPH.
calvin cycle outputs
Calvin CycleOutputs
  • Is an energy-rich sugar molecule. That sugar is not yet glucose, but a smaller sugar named G3P.
  • The plant cell uses G3P as the raw material to make glucose and other organic molecules it needs.
summary of photosynthesis

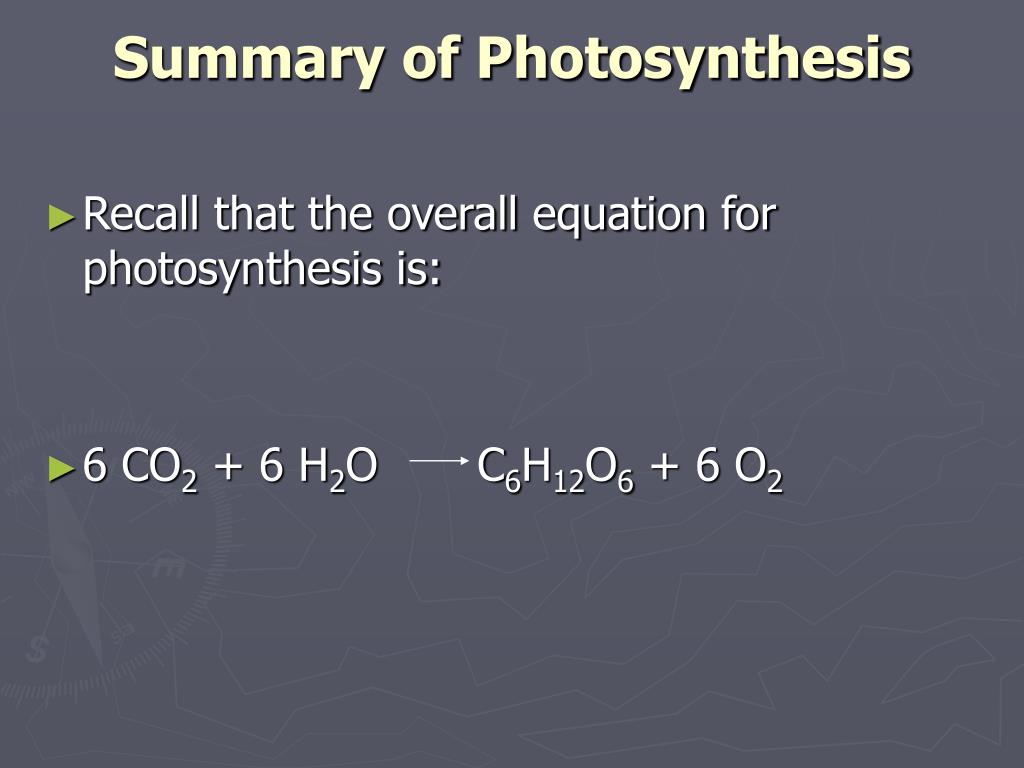

Summary of Photosynthesis
  • Recall that the overall equation for photosynthesis is:
  • 6 CO2 + 6 H2O C6H12O6 + 6 O2
the calvin cycle

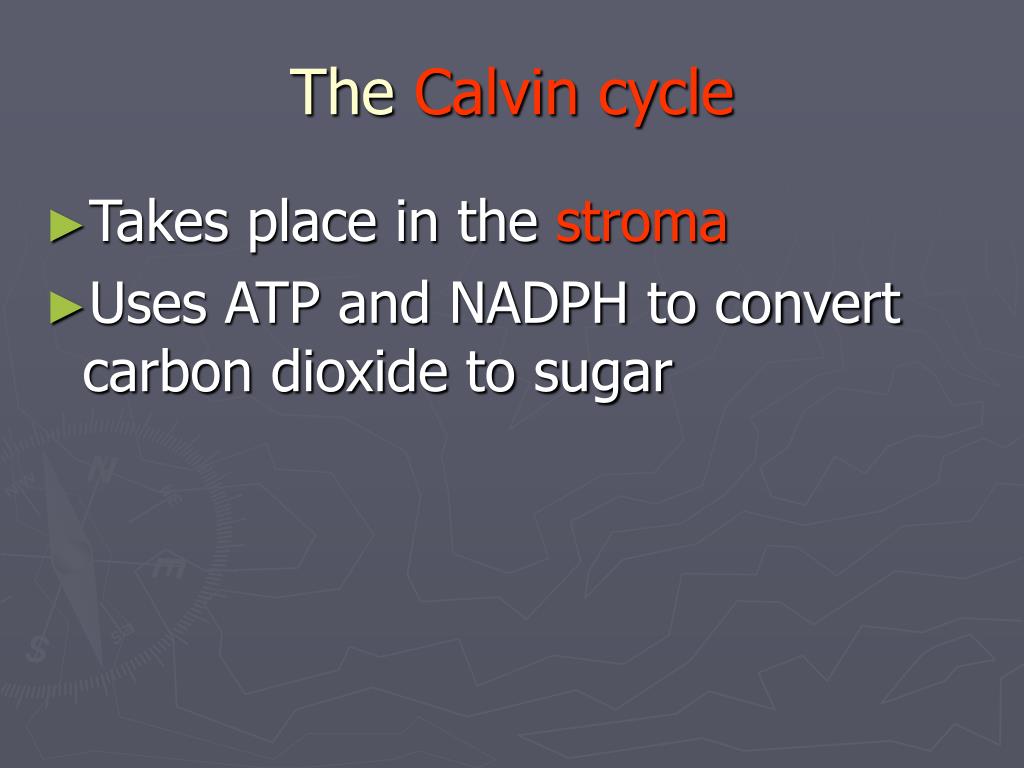

The Calvin cycle
  • Takes place in the stroma
  • Uses ATP and NADPH to convert carbon dioxide to sugar
flow of energy
Flow of Energy
  • By converting light energy to chemical energy, photosynthesis is the first step in the flow of energy through an ecosystem.
slide14

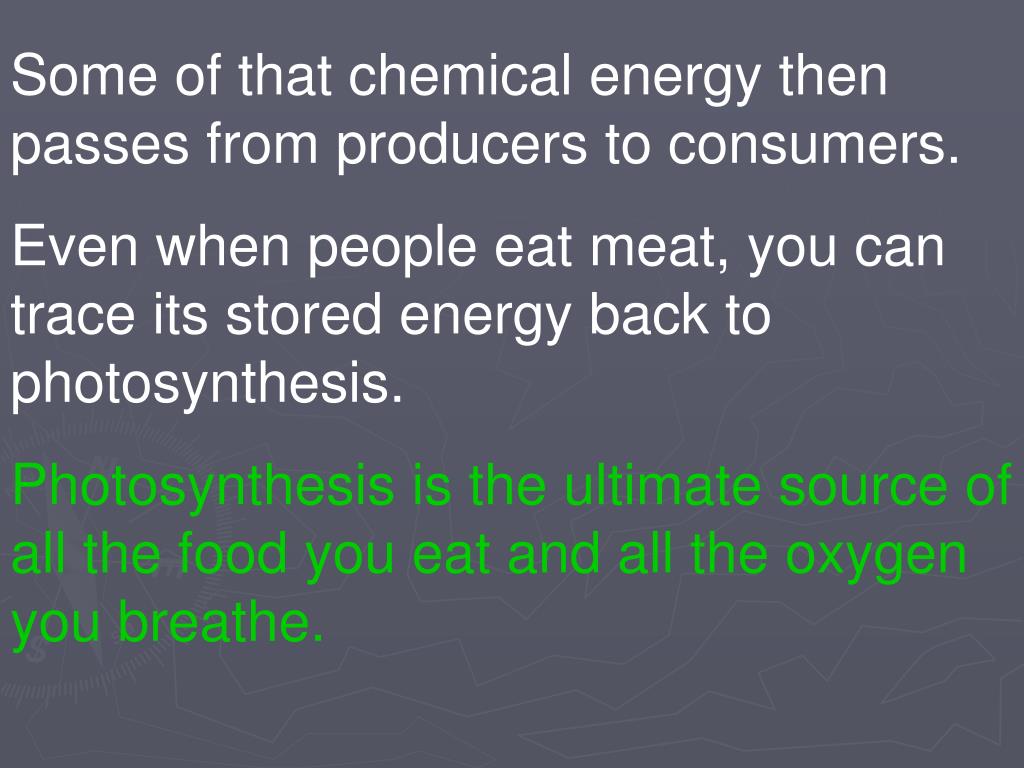

Some of that chemical energy then passes from producers to consumers.

Even when people eat meat, you can trace its stored energy back to photosynthesis.

Photosynthesis is the ultimate source of all the food you eat and all the oxygen you breathe.

slide15

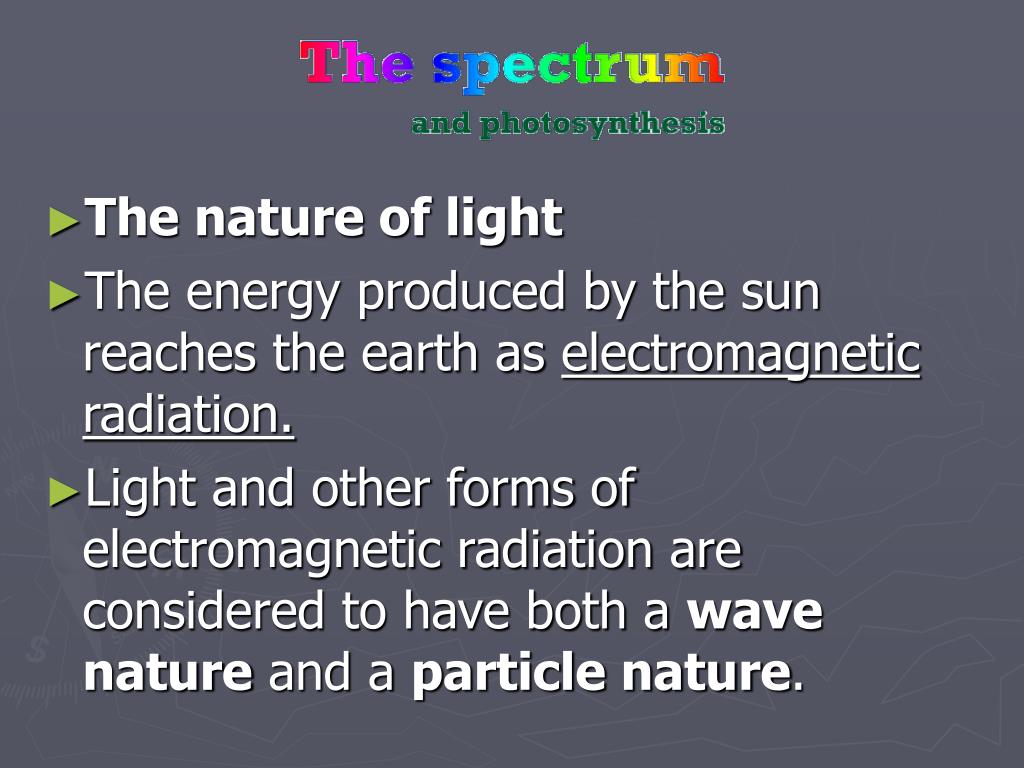

The nature of light
  • The energy produced by the sun reaches the earth as electromagnetic radiation.
  • Light and other forms of electromagnetic radiation are considered to have both a wave nature and a particle nature.
slide16
Particles or packets of light (its particle nature) are known as photons - the smallest divisible units of light.
    • The distance moved by a photon during one of it vibrations is referred to as its wavelength and is measured in nanometers (nm).
visible light
Visible light
  • A very small part of this spectrum can be seen by the human eye i.e. between the wavelengths 400 and 700 nm.
  • This part of the electromagnetic spectrum is called visible light.
    • Almost all life depends ultimately on this part of the spectrum for its energy.
why plants only use visible light as a source of energy for photosynthesis

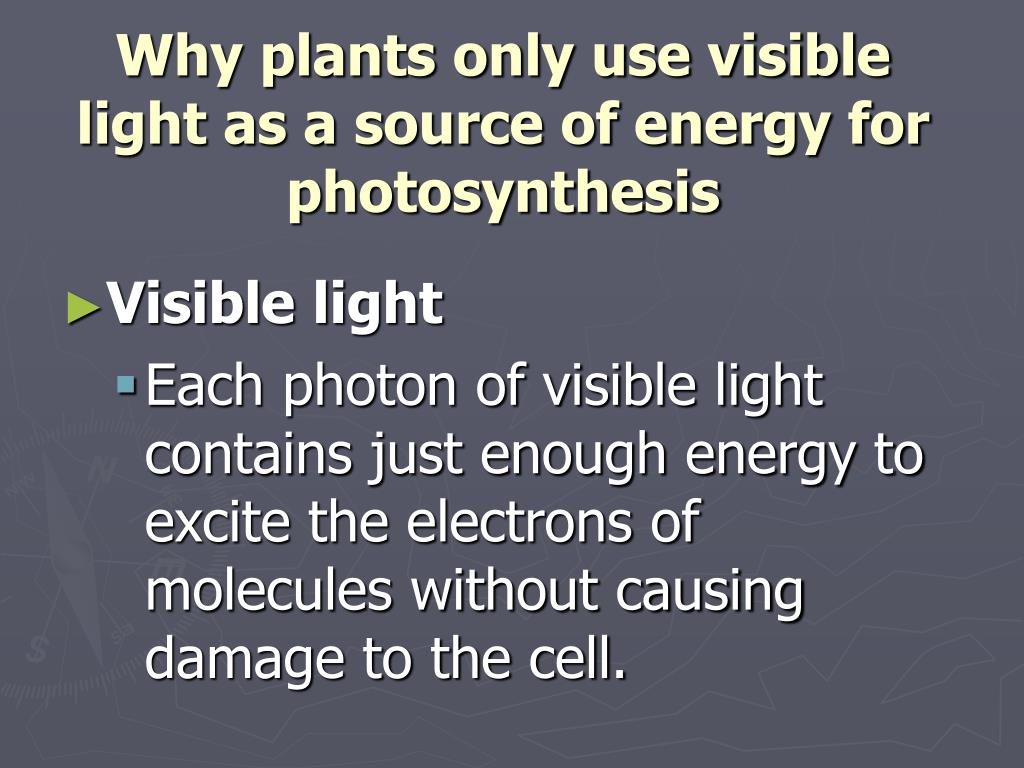

Why plants only use visible light as a source of energy for photosynthesis
  • Visible light
    • Each photon of visible light contains just enough energy to excite the electrons of molecules without causing damage to the cell.
light and photosynthesis
Light and photosynthesis
  • Chlorophyll absorbs blue-violet and red-orange

Reflects green back

  • Chlorophyll a, the most important light-absorbing pigment in plants, does not absorb light in the green part of the spectrum.  Light in this range of wavelengths is reflected.
light and photosynthesis1
Light and photosynthesis
  • Plants do not depend only on chlorophyll a but also have other pigments (accessory pigments) which absorb light of  different wavelengths.
