frictional heating ed36 owi 035 ocp 800 092 operating procedures

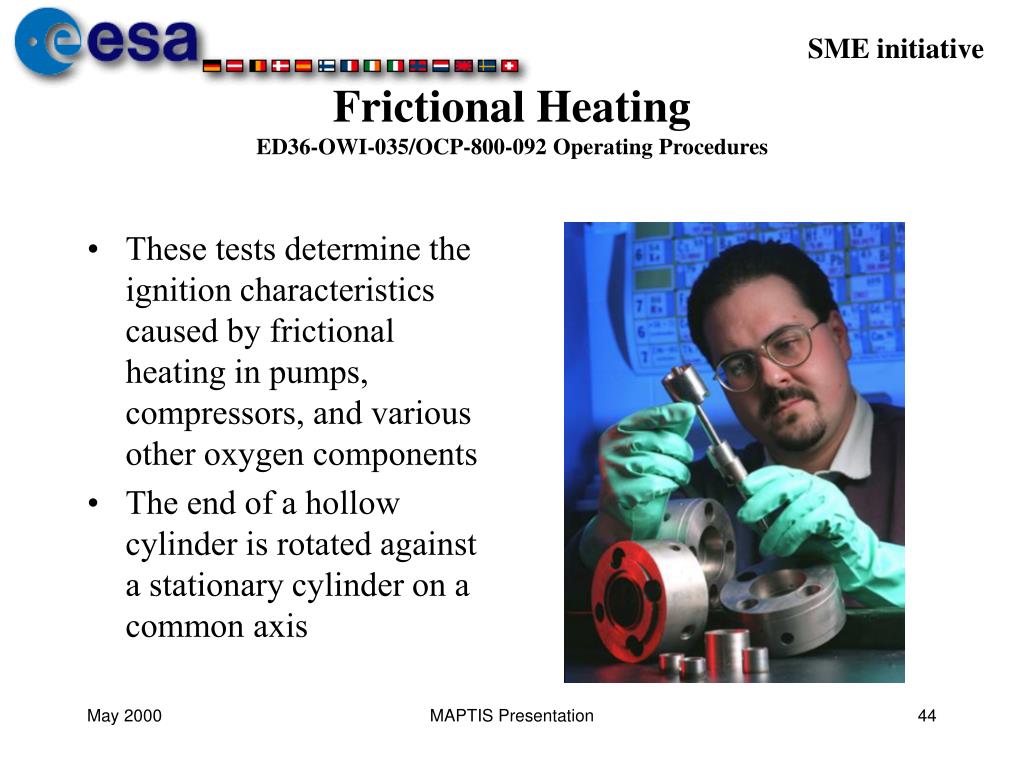

Frictional Heating ED36-OWI-035/OCP-800-092 Operating Procedures
  • These tests determine the ignition characteristics caused by frictional heating in pumps, compressors, and various other oxygen components
  • The end of a hollow cylinder is rotated against a stationary cylinder on a common axis

MAPTIS Presentation

slide2
Frictional Heating ASTM-STP-910 Flammability and Sensitivity of Materials in Oxygen Enriched Atmospheres
  • Typical Specimen
    • Hollow cylinders 2.5 cm OD and 2.0 cm ID
  • Ignition Source
    • Frictional heating
  • Test Conditions
    • Max rotation is 30,000 RPM
    • Max load is 5000 N
    • Worst-case pressure, temp, and oxygen concentration
  • Ranking Criteria
    • The resistance of metals to ignition is measured as the product of the contact pressure and the average linear velocity or Pv product required for ignition

MAPTIS Presentation
