Presentation Transcript
what is processing
What is Processing
  • http://www.processing.org
  • 由Ben Fry (Broad Institute) 及Casey Reas (UCLA Design | Media Arts) 發起,並且是由MIT Media Lab的Aesthetics and Computation Group的構想發展出來的
  • Open Source
  • Based on JavaLanguage,Processing code can be transformed to Java code
  • 主要用於藝術、影像、影音設計與處理
  • Support Linux, Mac OS X and Windows
slide3

Java

Processing

processing 1
Processing介面介紹(1)

開發中Sketch名稱

Processing版本

執行/停止/新Sketch /載入Sketch/儲存Sketch /匯出Sketch

processing 2
Processing介面介紹(2)

程式碼

輸出訊息

message

print

processing 3
Processing介面介紹(3)
  • Help->Reference(->Extended)

<Reference>

Color

sketch
Sketch介紹
  • 每一個專案都稱為一個sketch,每個sketch都有一個和sketch名稱相同的目錄,並在此目錄中產生一個sketch主程式
  • 所有的sketch都集中放在sketchbook中, sketchbook為檔案存放的路徑
  • 程式執行所需資料(如圖檔、音效檔)可放置在與sketch主程式同目錄下的data目錄內(或與sketch主程式同目錄)
sketchbook
Sketchbook設定
  • File->Preference
sketch1
第一個sketch
  • Hello World
sketch2

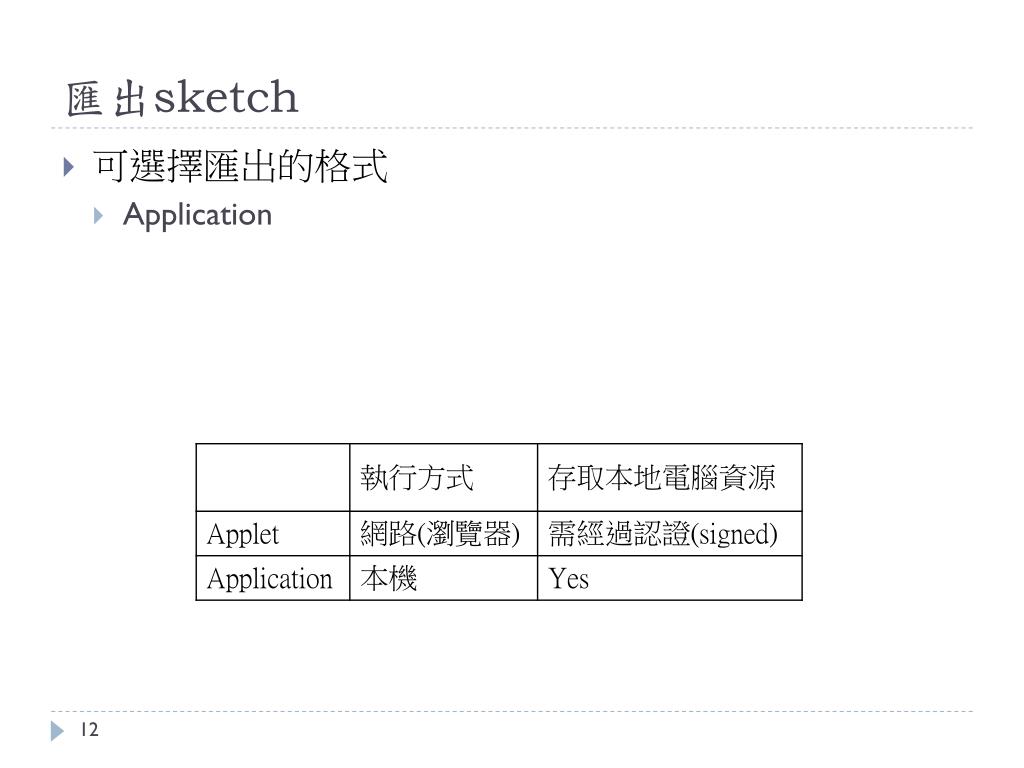

匯出sketch
  • 可選擇匯出的格式
    • Application
resource
Resource
  • Help->Reference
  • http://www.processing.org
internal variable
Internal Variable
  • width - int,視窗寬度
  • height - int,視窗高度
  • mouseX - int,滑鼠X座標
  • mouseY -int,滑鼠Y座標
processing1
Processing架構
  • 基本模式(Basic Mode)
  • 連續模式(Continuous Mode)
  • Java模式(Java Mode)
a simple example basic mode

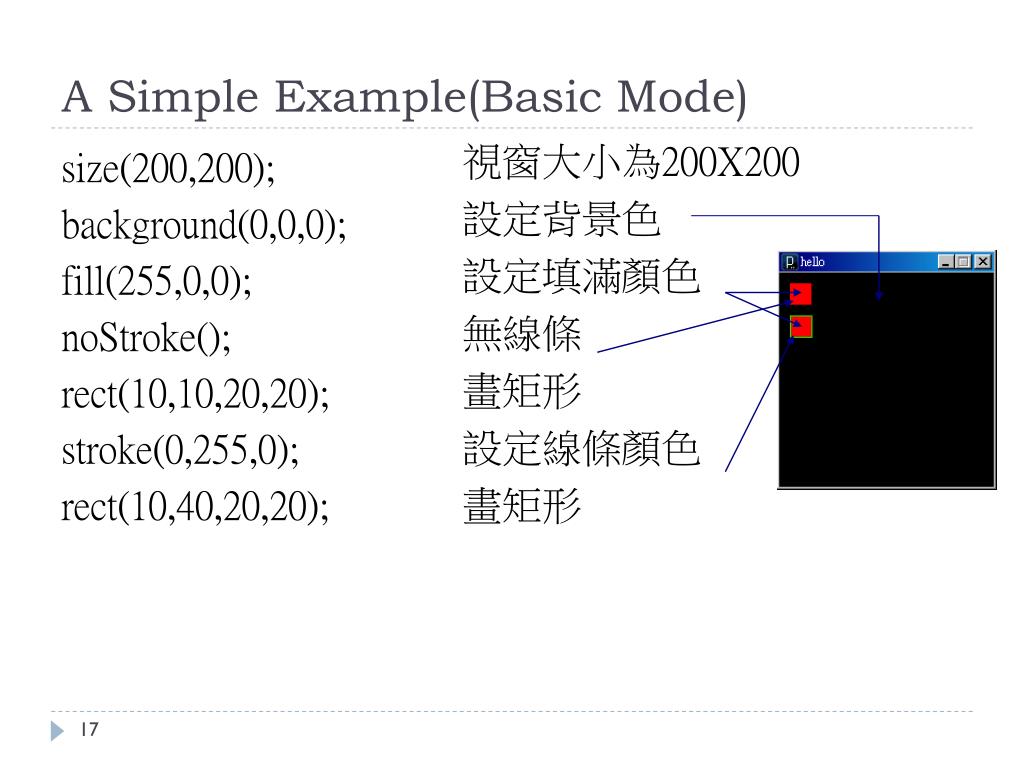

A Simple Example(Basic Mode)

視窗大小為200X200

設定背景色

設定填滿顏色

無線條

畫矩形

設定線條顏色

畫矩形

size(200,200);

background(0,0,0);

fill(255,0,0);

noStroke();

rect(10,10,20,20);

stroke(0,255,0);

rect(10,40,20,20);

basic structure continuous mode
Basic Structure (Continuous Mode)

begin

setup()

draw()

others()

stop()

end

a simple example continuous mode

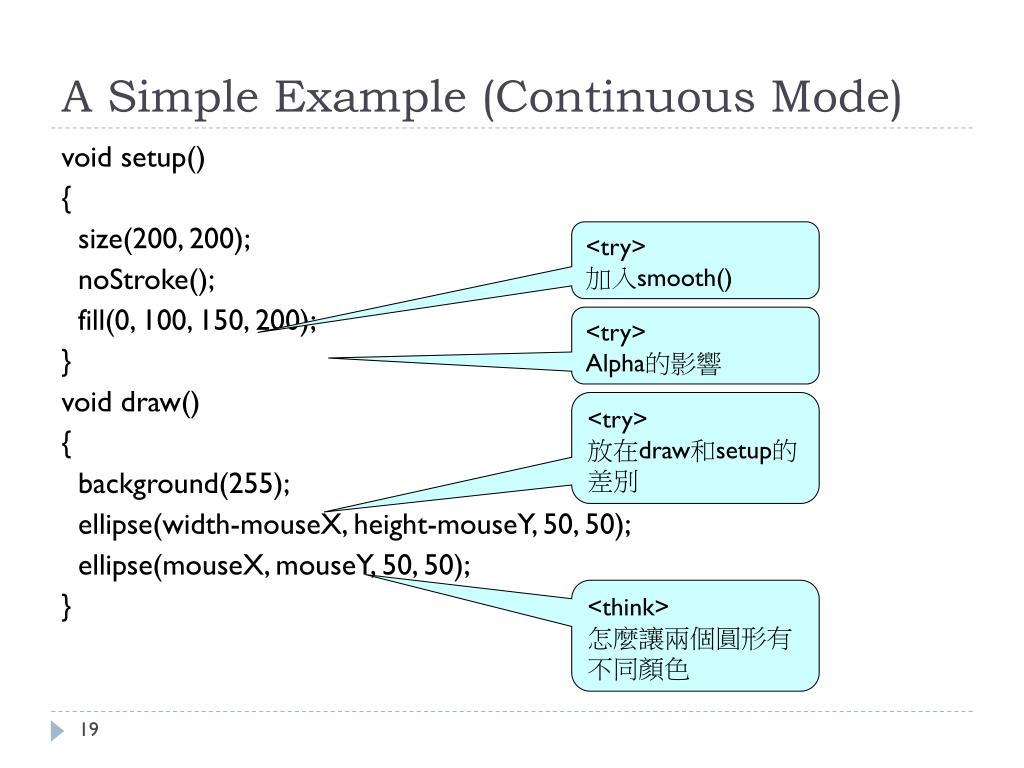

A Simple Example (Continuous Mode)

void setup()

{

size(200, 200);

noStroke();

fill(0, 100, 150, 200);

}

void draw()

{

background(255);

ellipse(width-mouseX, height-mouseY, 50, 50);

ellipse(mouseX, mouseY, 50, 50);

}

<try>

加入smooth()

<try>

Alpha的影響

<try>

放在draw和setup的差別

<think>

怎麼讓兩個圓形有不同顏色

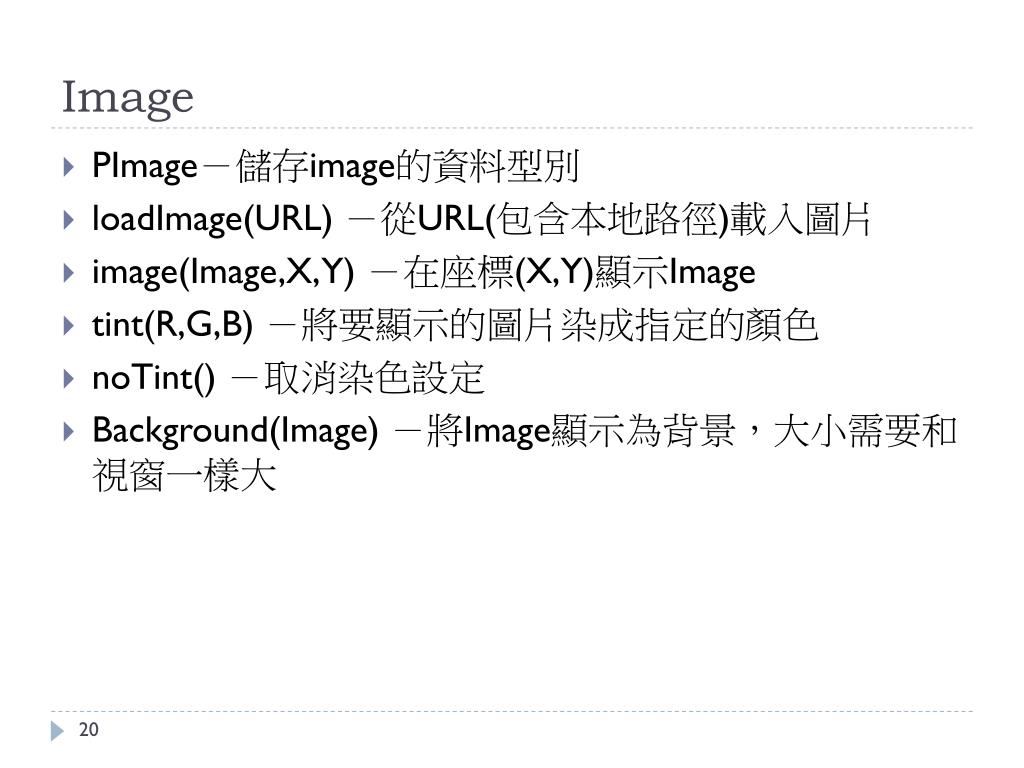

  • PImage-儲存image的資料型別
  • loadImage(URL) -從URL(包含本地路徑)載入圖片
  • image(Image,X, Y) -在座標(X,Y)顯示Image
  • tint(R,G,B) -將要顯示的圖片染成指定的顏色
  • noTint() -取消染色設定
  • Background(Image) -將Image顯示為背景,大小需要和視窗一樣大
picture is tinted color
Picture is tinted color

PImage b;

size(640,240);

b = loadImage("lenna.png");

tint(100, 0,100); // Tint purple

image(b, 0, 0,320,200);

noTint(); // Disable tint

image(b, 320,0,320,200);

<Reference>

可改變長寬比

video

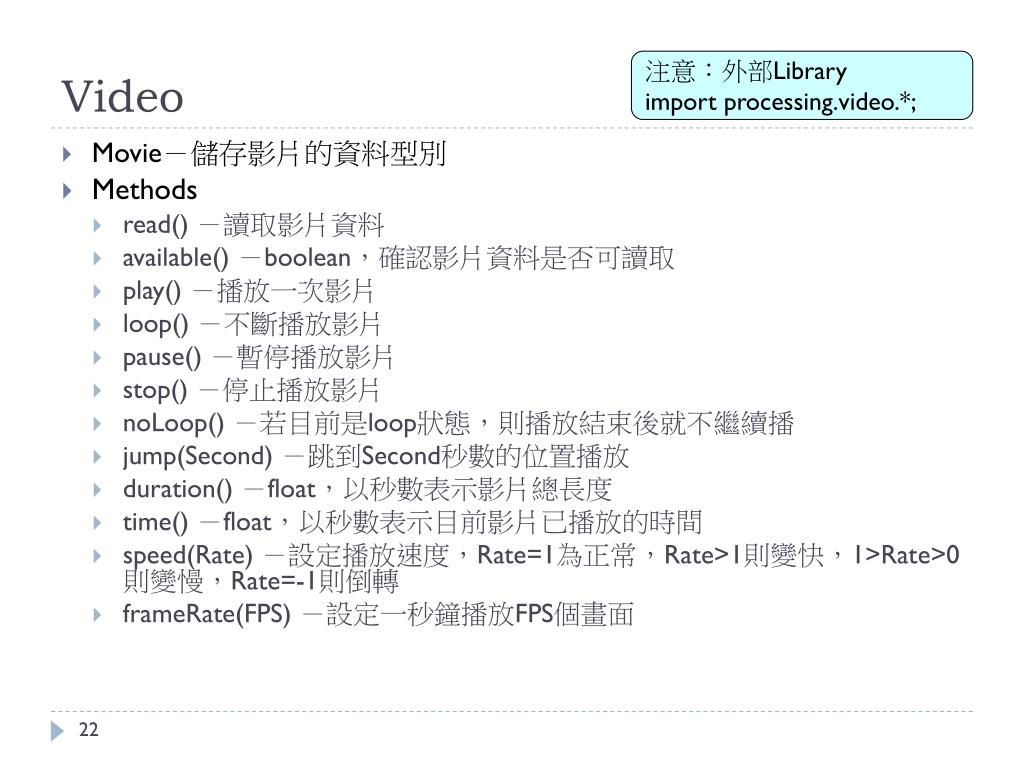

Video

注意:外部Library

import processing.video.*;

  • Movie-儲存影片的資料型別
  • Methods
    • read() -讀取影片資料
    • available() -boolean,確認影片資料是否可讀取
    • play() -播放一次影片
    • loop() -不斷播放影片
    • pause() -暫停播放影片
    • stop() -停止播放影片
    • noLoop() -若目前是loop狀態,則播放結束後就不繼續播
    • jump(Second) -跳到Second秒數的位置播放
    • duration() -float,以秒數表示影片總長度
    • time() -float,以秒數表示目前影片已播放的時間
    • speed(Rate) -設定播放速度,Rate=1為正常,Rate>1則變快,1>Rate>0則變慢,Rate=-1則倒轉
    • frameRate(FPS) -設定一秒鐘播放FPS個畫面
play movie repeatedly

void draw()

{

if(myMovie.available()) myMovie.read();

image(myMovie, 0, 0);

}

第二種作法

Play movie repeatedly

import processing.video.*;

Movie myMovie;

void setup()

{

size(180,160,P2D);

background(0);

myMovie = new Movie(this, "station.mov");

myMovie.loop();

}

void draw() {image(myMovie, 0, 0);}

void movieEvent(Movie m) {m.read();}

<試試看>

是否可用其他模式

slide24

import processing.video.*;

Movie myMovie;

void setup()

{

size(640,480,P2D);

background(0);

myMovie = new Movie(this, "station.mov");

myMovie.loop();

}

void draw()

{

for(int i=0;i<8;i++)

for(int j=0;j<6;j++)

{

tint(i*30,256-j*40,(i+j)*5);

image(myMovie, i*80, j*80,80,80);

}

}

void movieEvent(Movie m) {m.read();}

control playing speed of movie
Control playing speed of movie

import processing.video.*;

Movie myMovie;

int fps=15;

float rate=1;

void setup()

{

size(180,160,P2D);

background(0);

myMovie = new Movie(this, "station.mov");

myMovie.loop();

}

void draw() {image(myMovie, 0, 0);}

void movieEvent(Movie m) {m.read();}

void mousePressed()

{

if(mouseButton==LEFT) {fps--;rate-=0.1;}

else if(mouseButton==RIGHT) {fps++;rate+=0.1f;}

if(fps<1) fps=1;

//myMovie.frameRate(fps);

myMovie.speed(rate);

println("FPS: "+fps+" RATE: "+rate);

}
