  1. Amway Center Facts • Opened in October of 2010 • Owned and Operated by the City of Orlando • Received LEED Gold Certification (1st NBA Facility to receive) • 875,000 sq ft Multi-purpose Sport and Entertainment facility • Home of the NBA’s Orlando Magic, AFL’s Orlando Predators and the ECHL Orlando Solar Bears • Hosted the 2012 NBA All Star Game

  2. Amway Center Header Area Seating Capacity-18 k Multiple WSP’s 3 Sectors-Bowl Area 375 Omni Antennas-Corridors 24 Panel Antennas-Corridors 32-Corning/Mobile Access Remotes -75 dBm for 95% of Venue iDAS- Neutral Host Solution

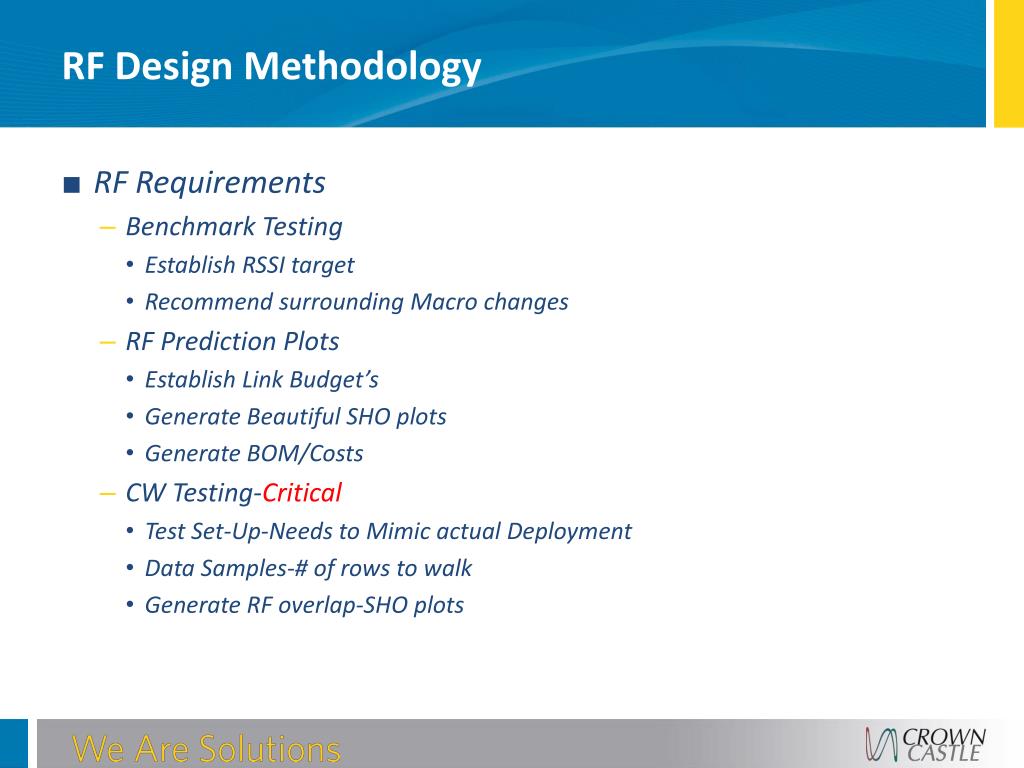

  3. RF Design Methodology • RF Requirements • Benchmark Testing • Establish RSSI target • Recommend surrounding Macro changes • RF Prediction Plots • Establish Link Budget’s • Generate Beautiful SHO plots • Generate BOM/Costs • CW Testing-Critical • Test Set-Up-Needs to Mimic actual Deployment • Data Samples-# of rows to walk • Generate RF overlap-SHO plots

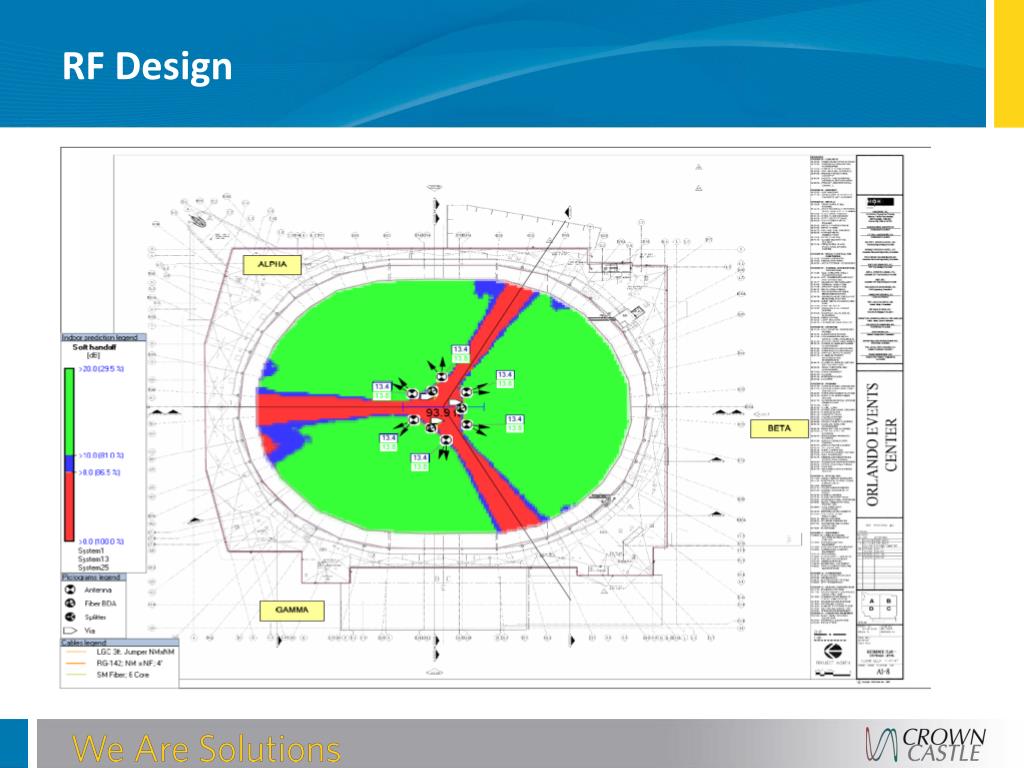

  4. RF Design

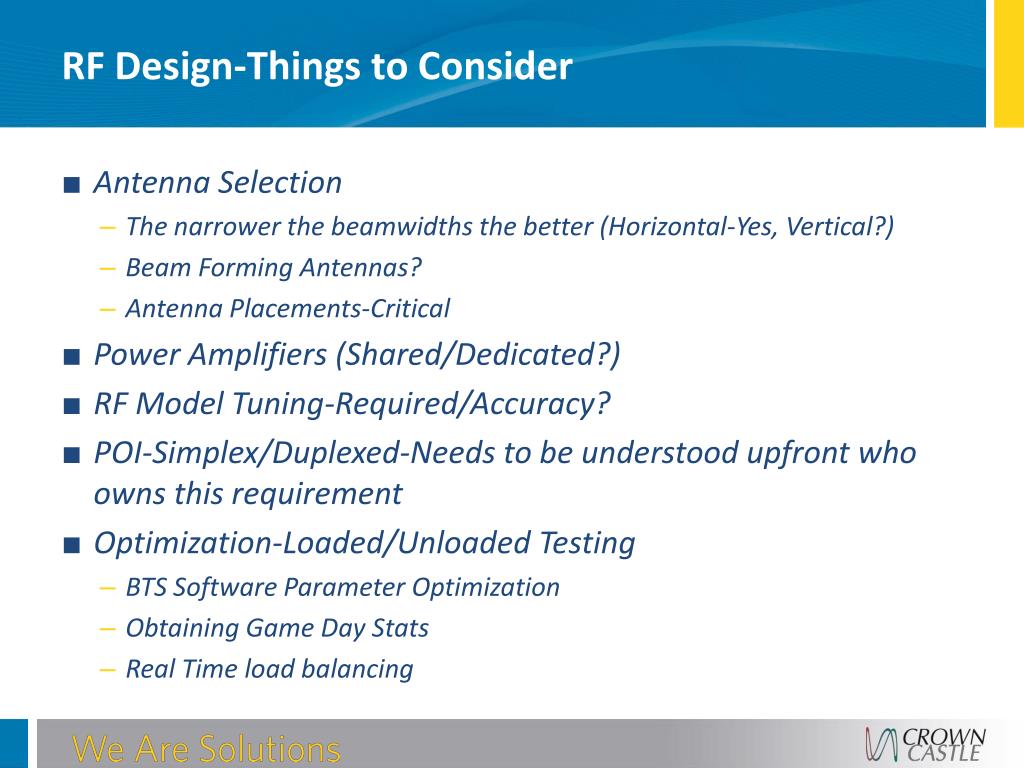

  5. RF Design-Things to Consider • Antenna Selection • The narrower the beamwidths the better (Horizontal-Yes, Vertical?) • Beam Forming Antennas? • Antenna Placements-Critical • Power Amplifiers (Shared/Dedicated?) • RF Model Tuning-Required/Accuracy? • POI-Simplex/Duplexed-Needs to be understood upfront who owns this requirement • Optimization-Loaded/Unloaded Testing • BTS Software Parameter Optimization • Obtaining Game Day Stats • Real Time load balancing

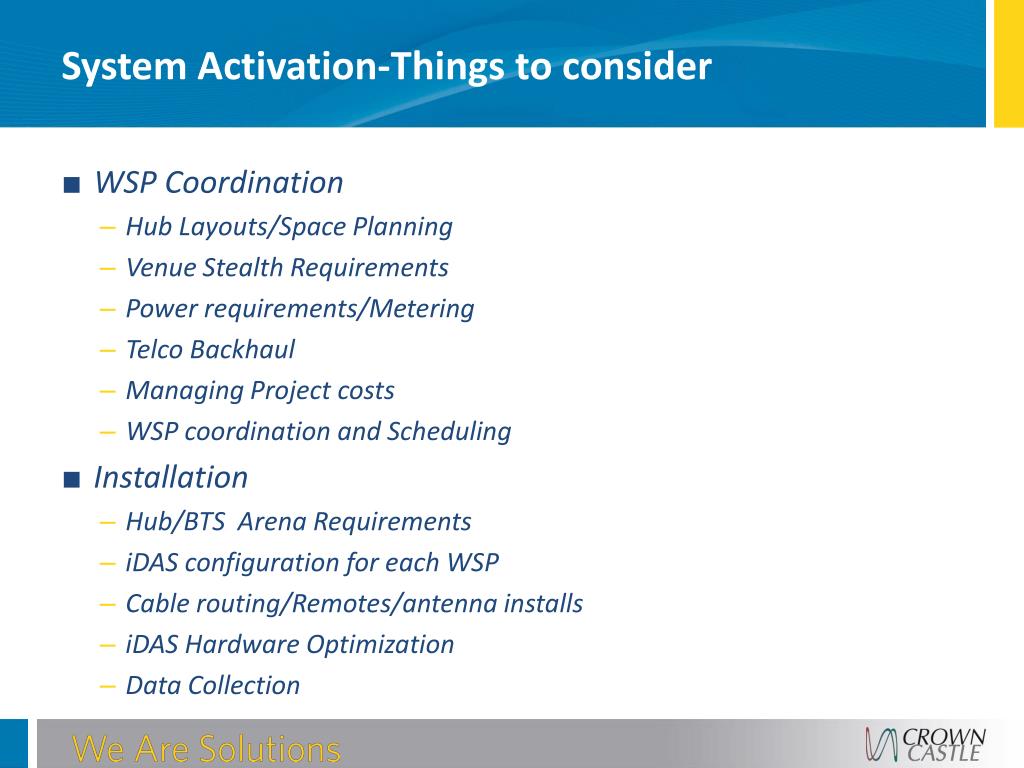

  6. System Activation-Things to consider • WSP Coordination • Hub Layouts/Space Planning • Venue Stealth Requirements • Power requirements/Metering • Telco Backhaul • Managing Project costs • WSP coordination and Scheduling • Installation • Hub/BTS Arena Requirements • iDAS configuration for each WSP • Cable routing/Remotes/antenna installs • iDAS Hardware Optimization • Data Collection

  7. We Are WhereYou Are Going Thank your for your interest in Crown Castle
