  1. Community Measurements

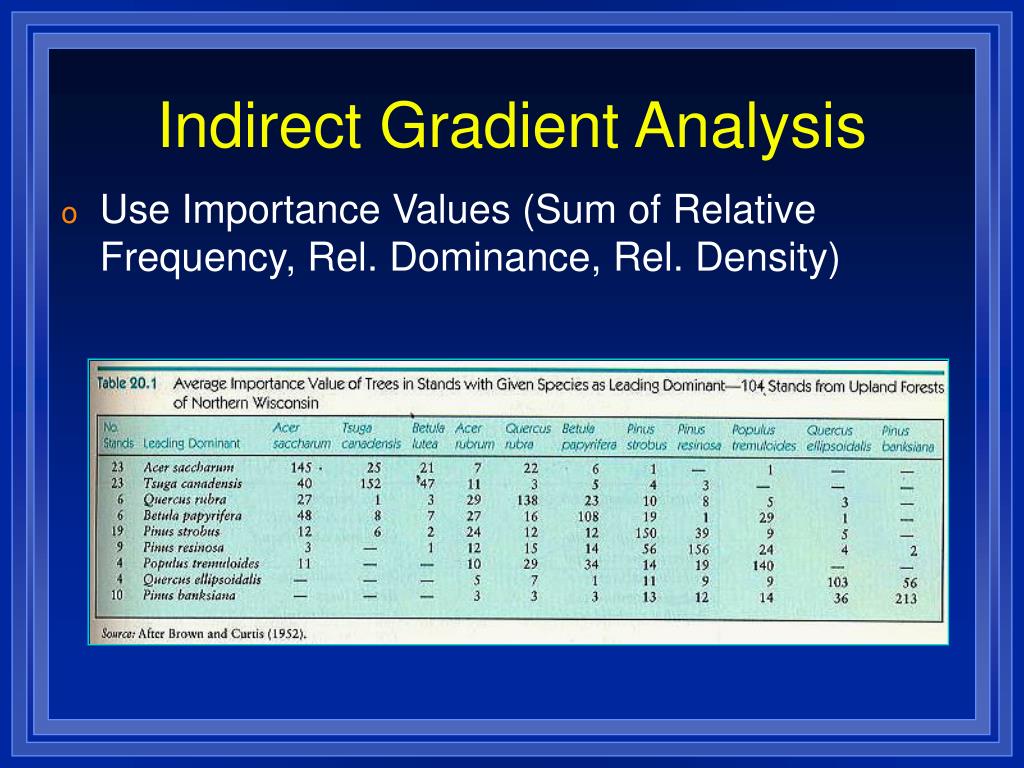

  2. Indirect Gradient Analysis • Use Importance Values (Sum of Relative Frequency, Rel. Dominance, Rel. Density)

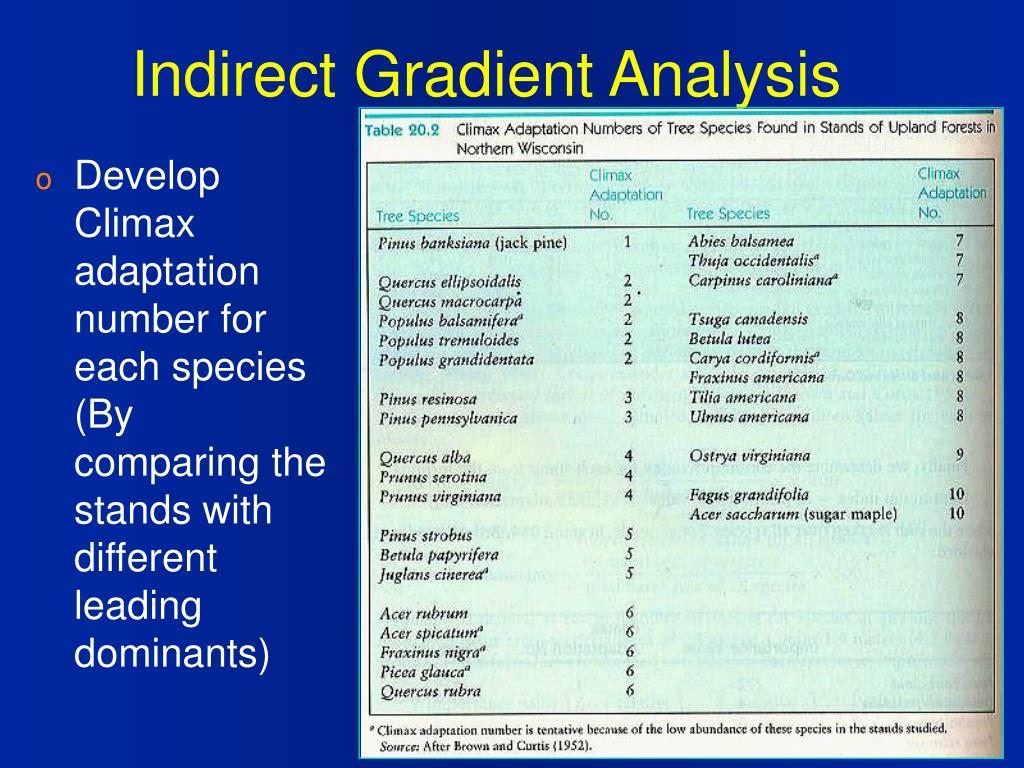

  3. Indirect Gradient Analysis • Develop Climax adaptation number for each species (By comparing the stands with different leading dominants)

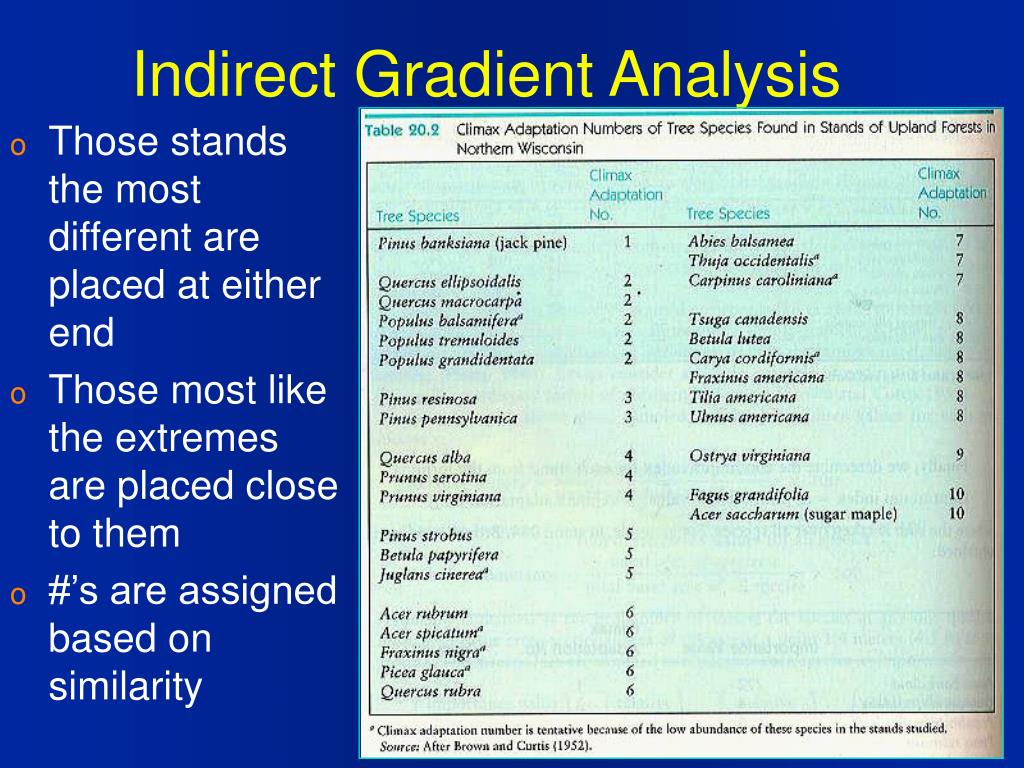

  4. Indirect Gradient Analysis • Those stands the most different are placed at either end • Those most like the extremes are placed close to them • #’s are assigned based on similarity

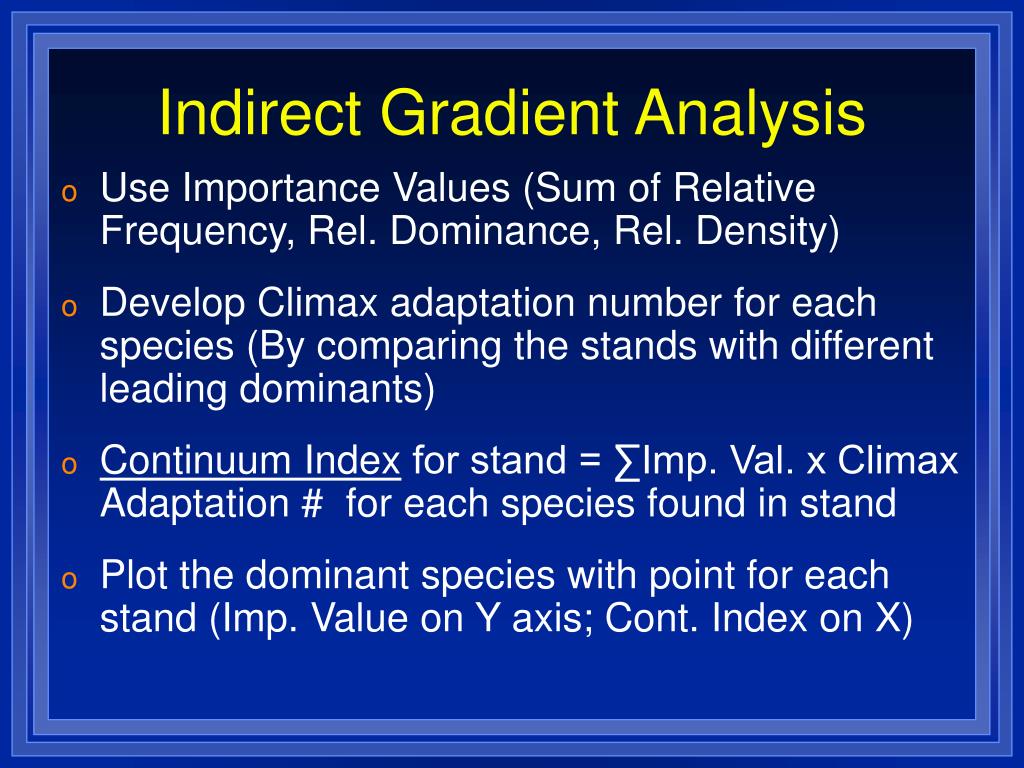

  5. Indirect Gradient Analysis • Use Importance Values (Sum of Relative Frequency, Rel. Dominance, Rel. Density) • Develop Climax adaptation number for each species (By comparing the stands with different leading dominants) • Continuum Index for stand = ∑Imp. Val. x Climax Adaptation # for each species found in stand • Plot the dominant species with point for each stand (Imp. Value on Y axis; Cont. Index on X)

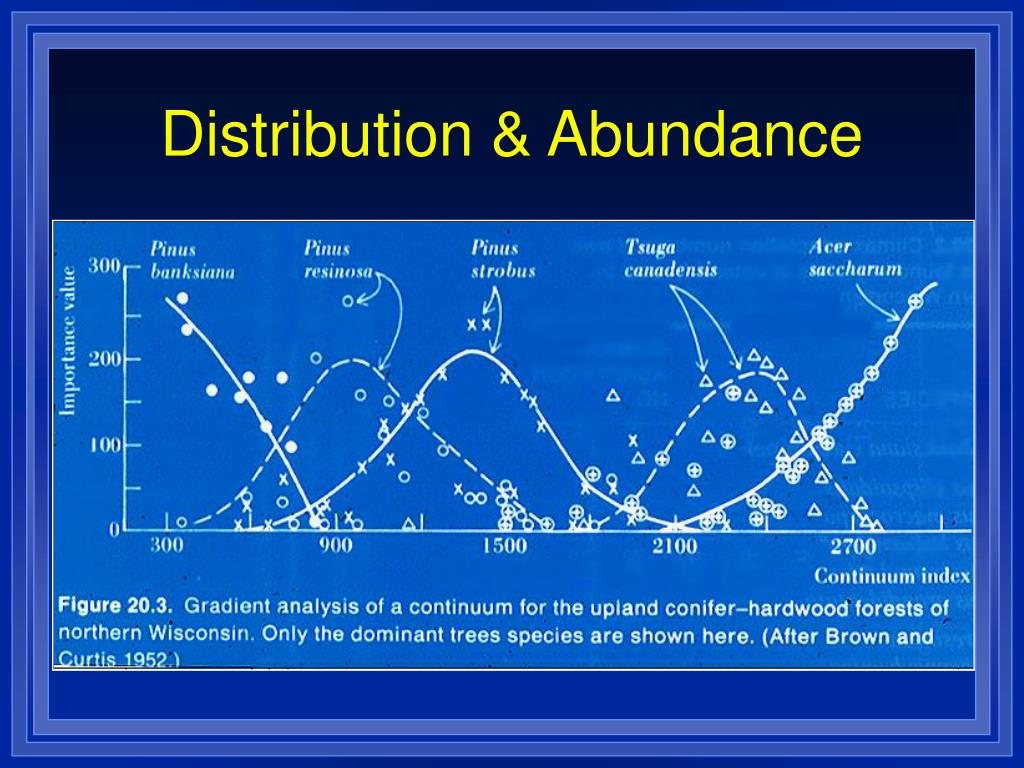

  6. Distribution & Abundance

  7. Direct Gradient Analysis • Some figure (usually density) plotted against an environmental gradient (such as elevation)

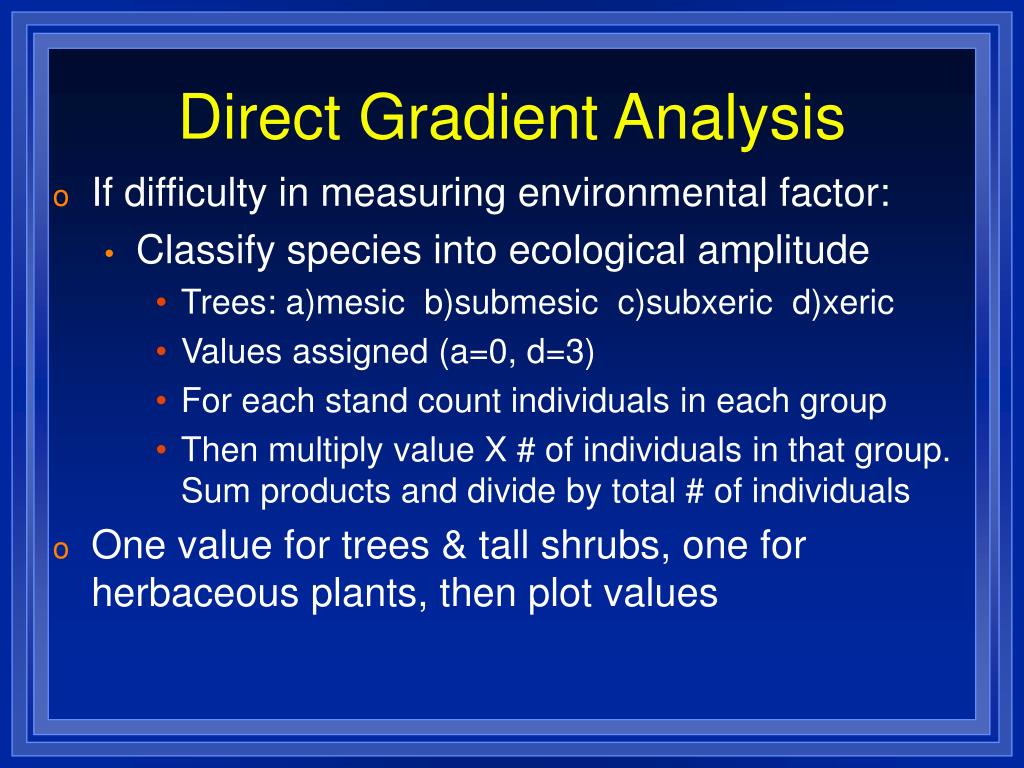

  8. Direct Gradient Analysis • If difficulty in measuring environmental factor: • Classify species into ecological amplitude • Trees: a)mesic b)submesic c)subxeric d)xeric • Values assigned (a=0, d=3) • For each stand count individuals in each group • Then multiply value X # of individuals in that group. Sum products and divide by total # of individuals • One value for trees & tall shrubs, one for herbaceous plants, then plot values

  9. Continuum classes

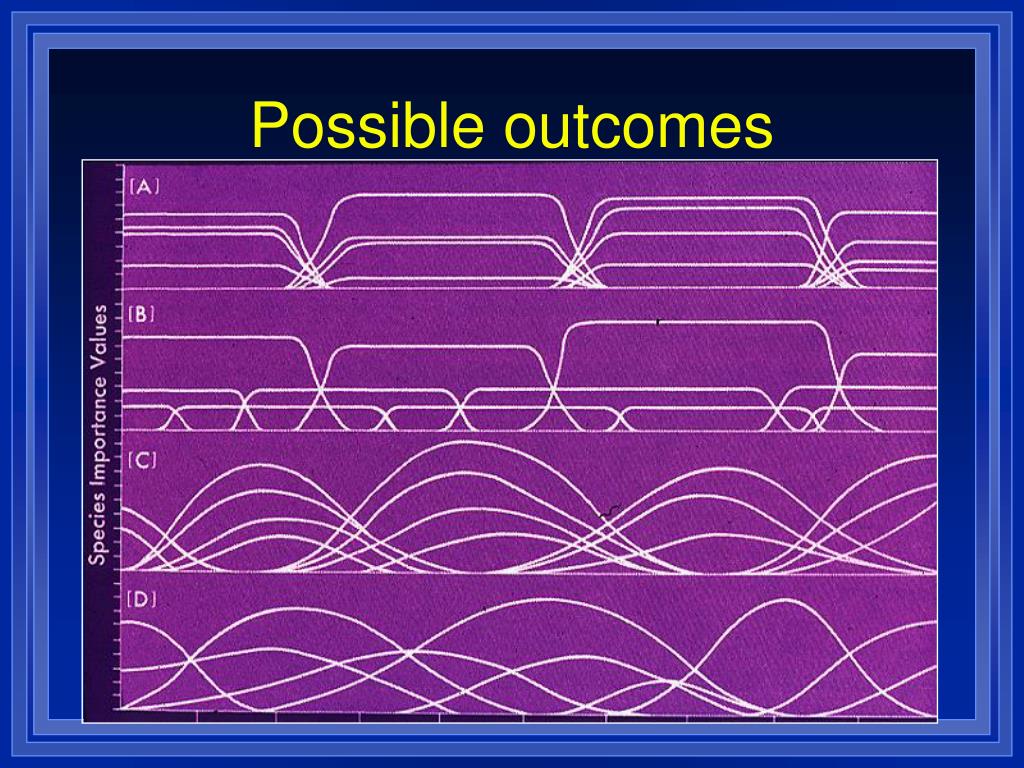

  10. Possible outcomes

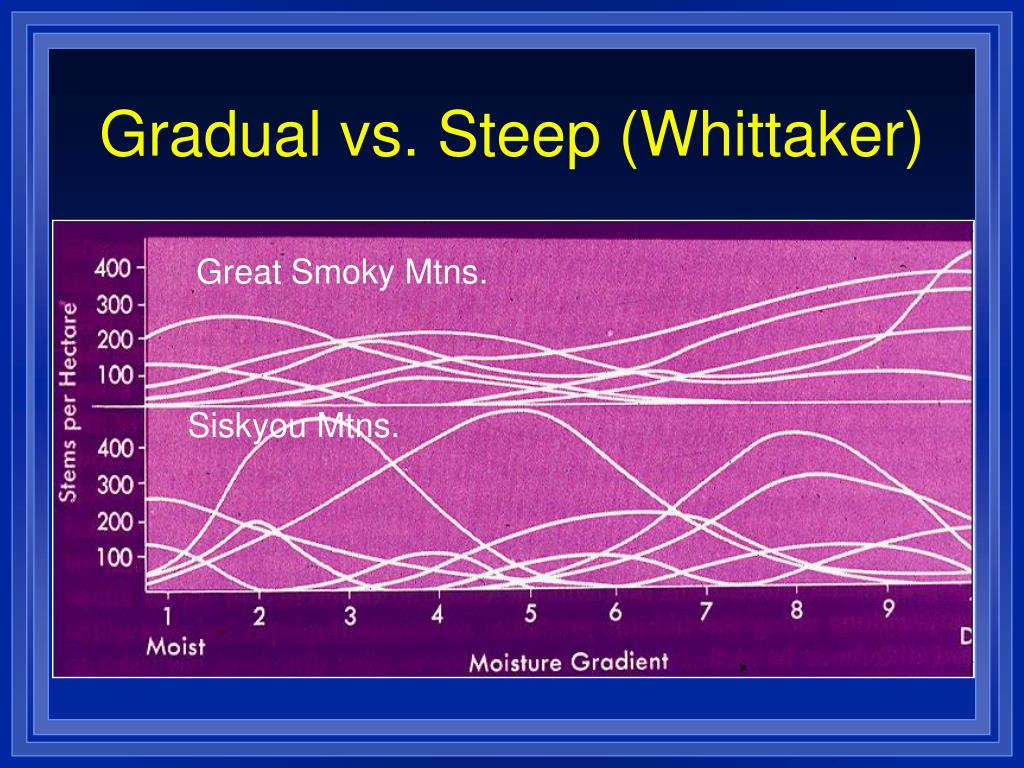

  11. Gradual vs. Steep (Whittaker) Great Smoky Mtns. Siskyou Mtns.

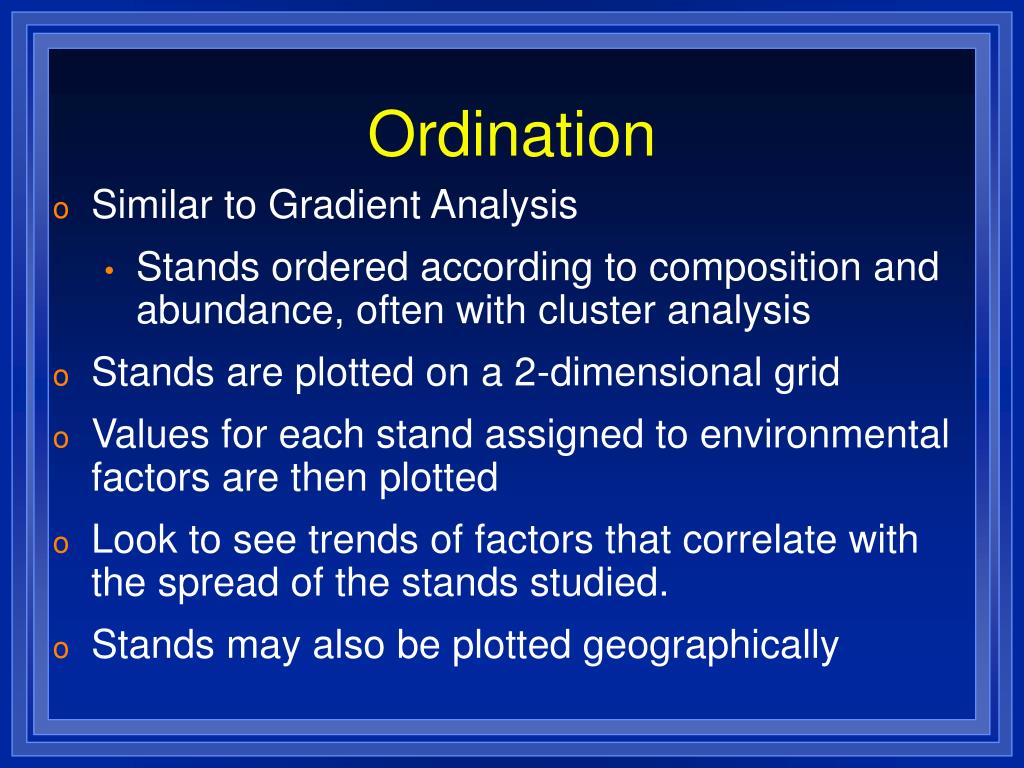

  12. Ordination • Similar to Gradient Analysis • Stands ordered according to composition and abundance, often with cluster analysis • Stands are plotted on a 2-dimensional grid • Values for each stand assigned to environmental factors are then plotted • Look to see trends of factors that correlate with the spread of the stands studied. • Stands may also be plotted geographically

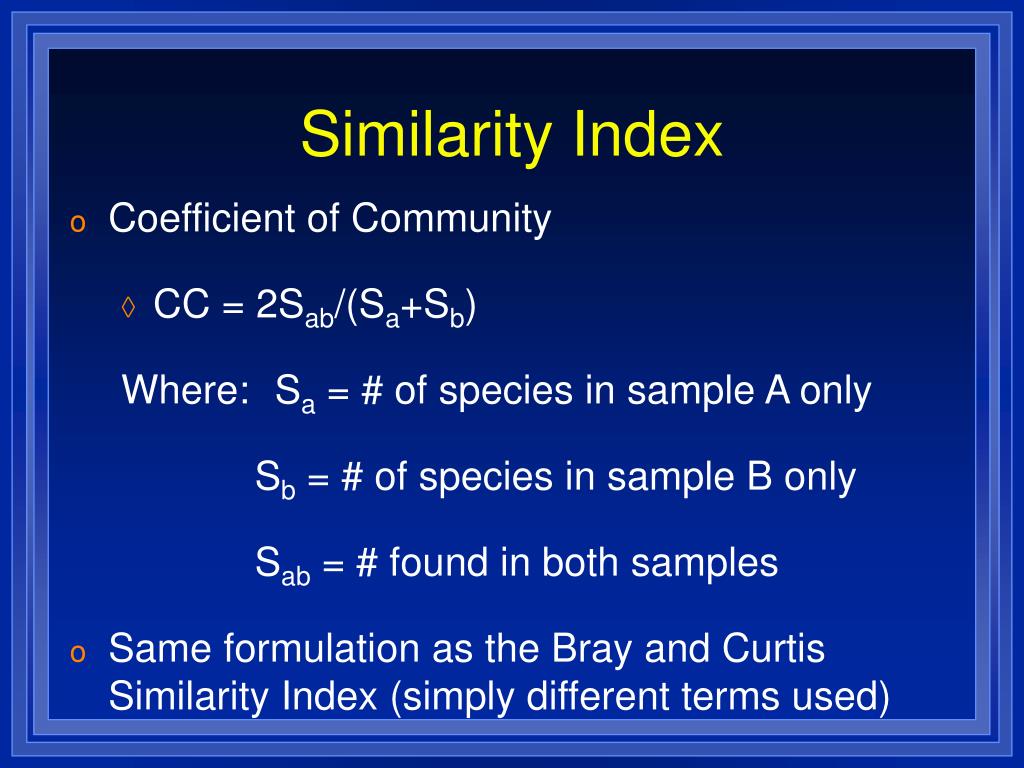

  13. Similarity Index • Coefficient of Community • CC = 2Sab/(Sa+Sb) Where: Sa = # of species in sample A only Sb = # of species in sample B only Sab = # found in both samples • Same formulation as the Bray and Curtis Similarity Index (simply different terms used)

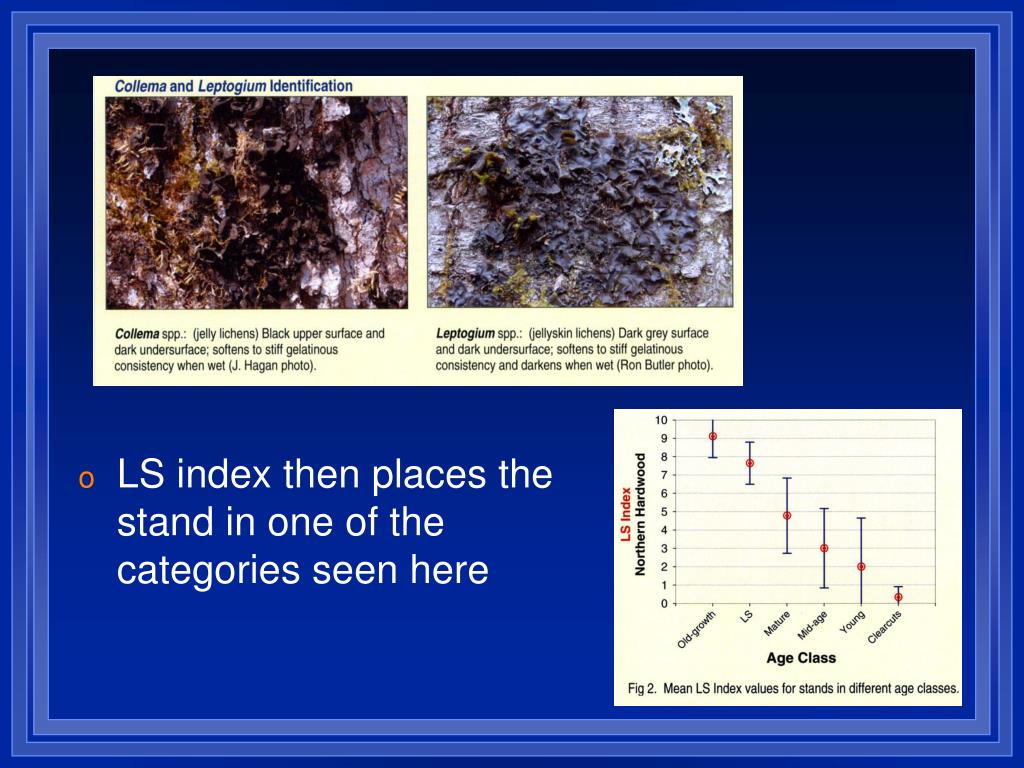

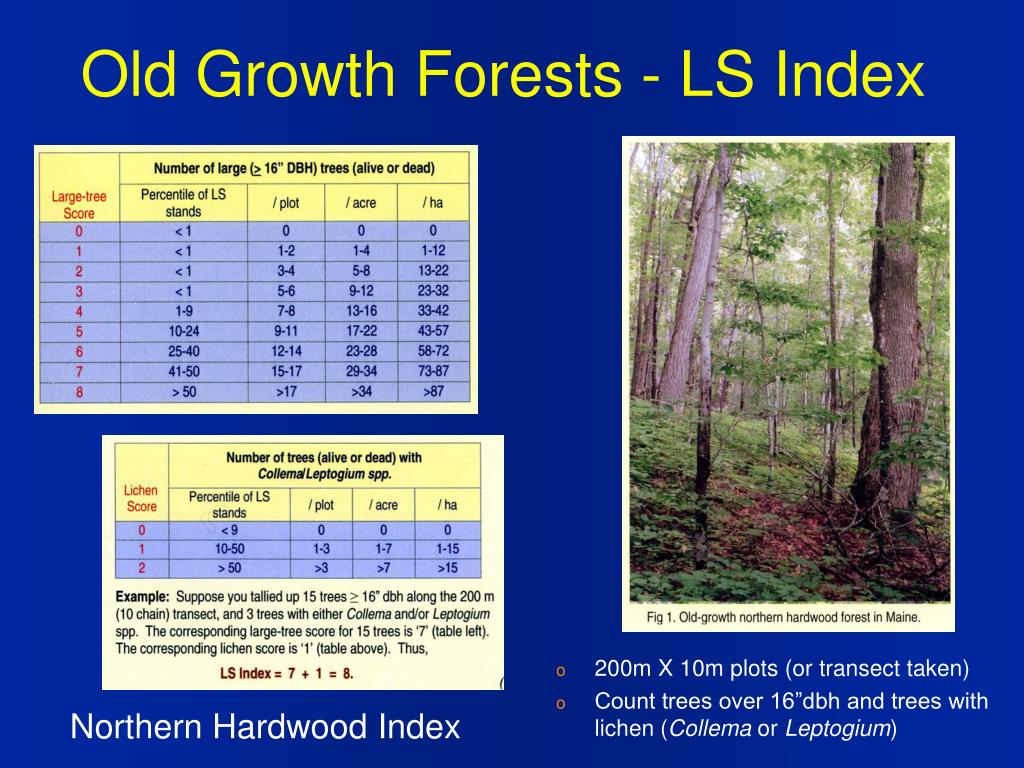

  14. Old Growth Forests - LS Index • 200m X 10m plots (or transect taken) • Count trees over 16”dbh and trees with lichen (Collema or Leptogium) Northern Hardwood Index

  15. LS index then places the stand in one of the categories seen here
