Bent Beam Sohic Test Suppliers-Caltech India

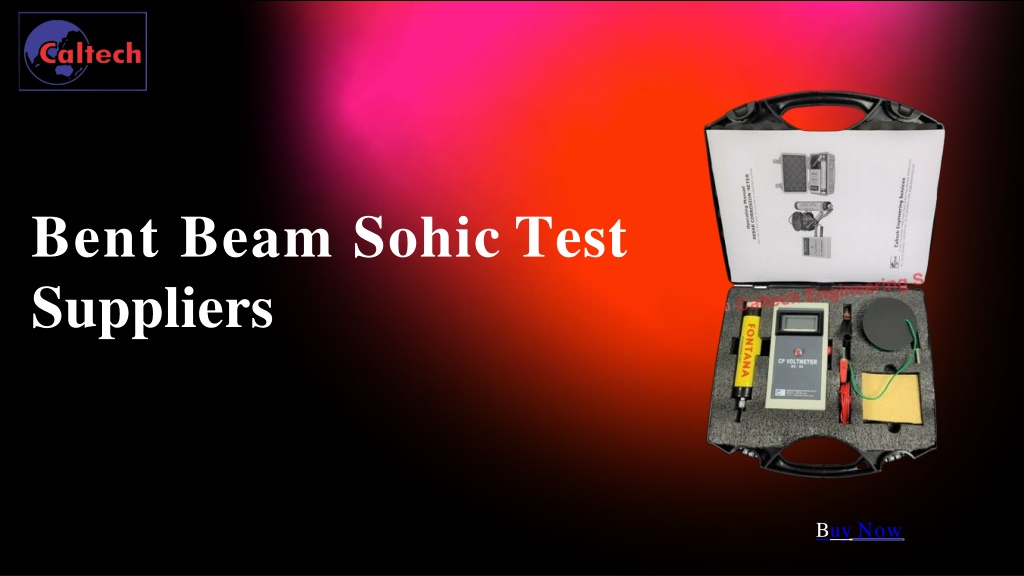

1. Bent Beam SohicTest Suppliers BuyNow

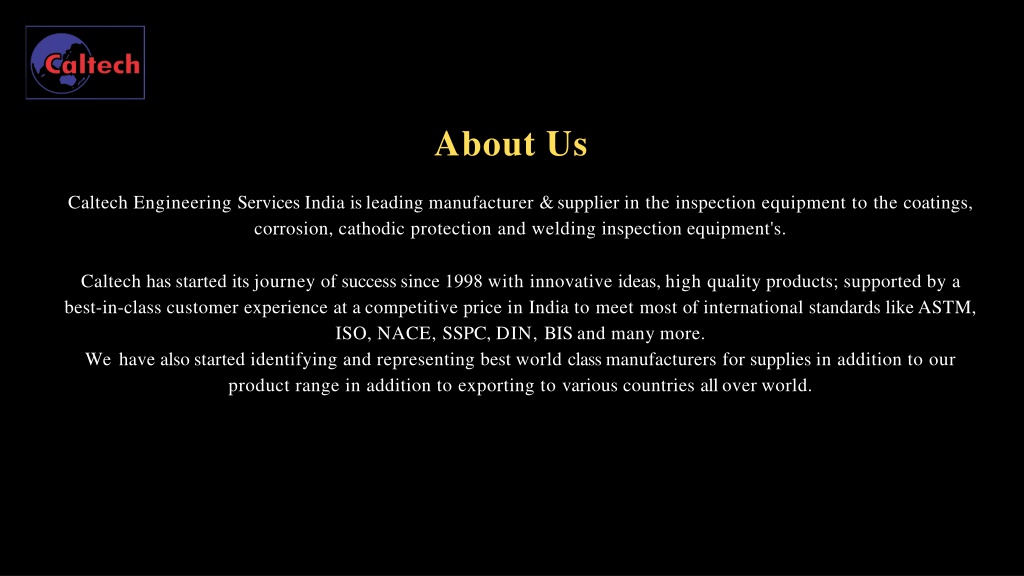

2. AboutUs Caltech Engineering Services India is leading manufacturer & supplier in the inspection equipment to the coatings, corrosion, cathodic protection and welding inspectionequipment's. Caltech has started its journey of success since 1998 with innovative ideas, high quality products; supported by a best-in-class customer experience at a competitive price in India to meet most of international standards like ASTM, ISO, NACE, SSPC, DIN, BIS and manymore. We have also started identifying and representing best world class manufacturers for supplies in addition to our product range in addition to exporting to various countries all overworld.

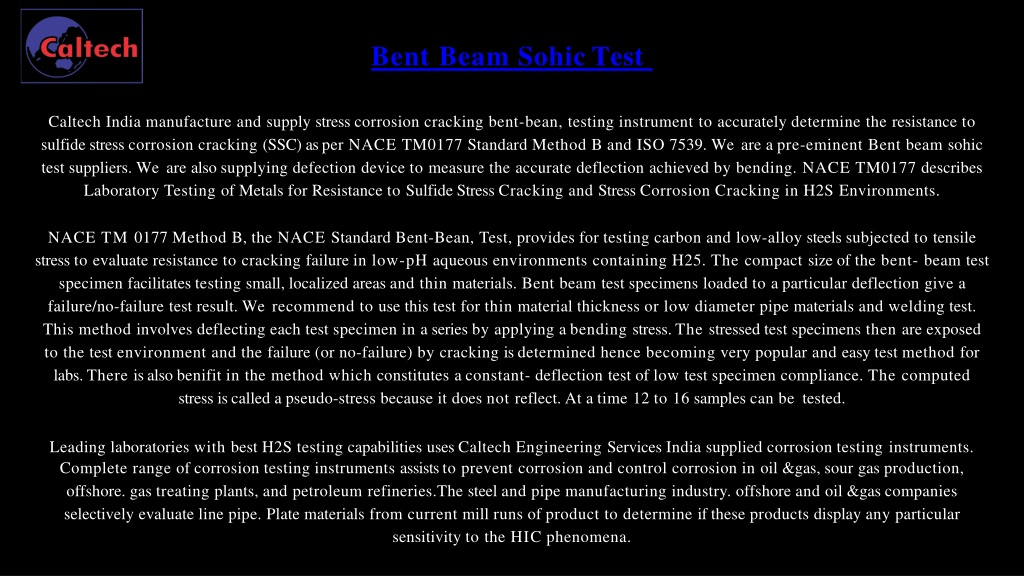

3. Bent Beam SohicTest Caltech India manufacture and supply stress corrosion cracking bent-bean, testing instrument to accurately determine the resistance to sulfide stress corrosion cracking (SSC) as per NACE TM0177 Standard Method B and ISO 7539. We are a pre-eminent Bent beam sohic test suppliers. We are also supplying defection device to measure the accurate deflection achieved by bending. NACE TM0177 describes Laboratory Testing of Metals for Resistance to Sulfide Stress Cracking and Stress Corrosion Cracking in H2SEnvironments. NACE TM 0177 Method B, the NACE Standard Bent-Bean, Test, provides for testing carbon and low-alloy steels subjected to tensile stress to evaluate resistance to cracking failure in low-pH aqueous environments containing H25. The compact size of the bent- beam test specimen facilitates testing small, localized areas and thin materials. Bent beam test specimens loaded to a particular deflection give a failure/no-failure test result. We recommend to use this test for thin material thickness or low diameter pipe materials and weldingtest. This method involves deflecting each test specimen in a series by applying a bending stress. The stressed test specimens then are exposed to the test environment and the failure (or no-failure) by cracking is determined hence becoming very popular and easy test method for labs. There is also benifit in the method which constitutes a constant- deflection test of low test specimen compliance. The computed stress is called a pseudo-stress because it does not reflect. At a time 12 to 16 samples can betested. Leading laboratories with best H2S testing capabilities uses Caltech Engineering Services India supplied corrosion testinginstruments. Complete range of corrosion testing instruments assists to prevent corrosion and control corrosion in oil &gas, sour gas production, offshore. gas treating plants, and petroleum refineries.The steel and pipe manufacturing industry. offshore and oil &gas companies selectively evaluate line pipe. Plate materials from current mill runs of product to determine if these products display any particular sensitivity to the HICphenomena.

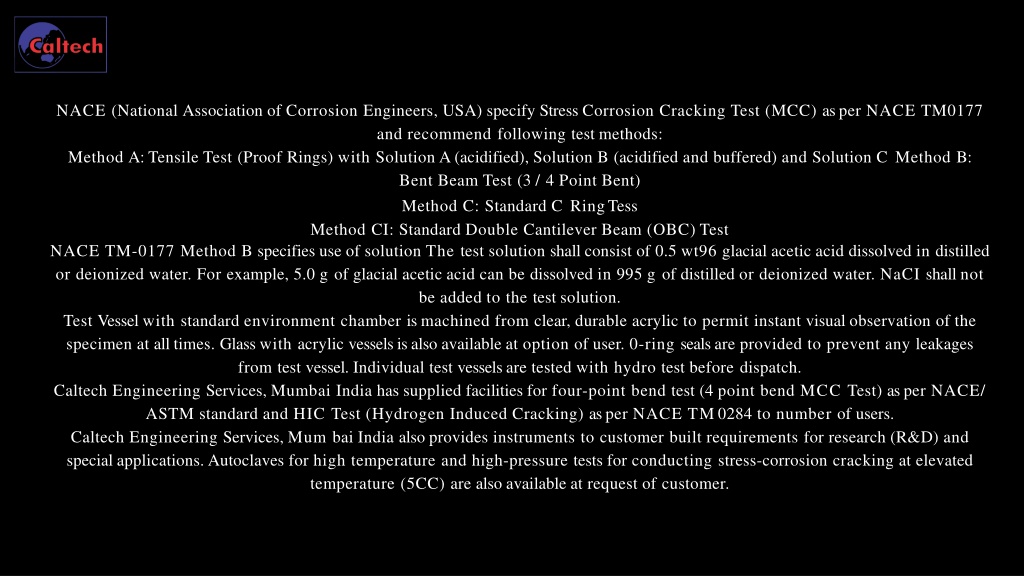

4. NACE (National Association of Corrosion Engineers, USA) specify Stress Corrosion Cracking Test (MCC) as per NACE TM0177 and recommend following testmethods: Method A: Tensile Test (Proof Rings) with Solution A (acidified), Solution B (acidified and buffered) and Solution C Method B: Bent Beam Test (3 / 4 PointBent) Method C: Standard C RingTess Method CI: Standard Double Cantilever Beam (OBC)Test NACE TM-0177 Method B specifies use of solution The test solution shall consist of 0.5 wt96 glacial acetic acid dissolved in distilled or deionized water. For example, 5.0 g of glacial acetic acid can be dissolved in 995 g of distilled or deionized water. NaCI shall not be added to the testsolution. Test Vessel with standard environment chamber is machined from clear, durable acrylic to permit instant visual observation of the specimen at all times. Glass with acrylic vessels is also available at option of user. 0-ring seals are provided to prevent any leakages from test vessel. Individual test vessels are tested with hydro test beforedispatch. Caltech Engineering Services, Mumbai India has supplied facilities for four-point bend test (4 point bend MCC Test) as per NACE/ ASTM standard and HIC Test (Hydrogen Induced Cracking) as per NACE TM0284 to number of users. Caltech Engineering Services, Mum bai India also provides instruments to customer built requirements for research (R&D) and special applications. Autoclaves for high temperature and high-pressure tests for conducting stress-corrosion cracking at elevated temperature (5CC) are also available at request ofcustomer.

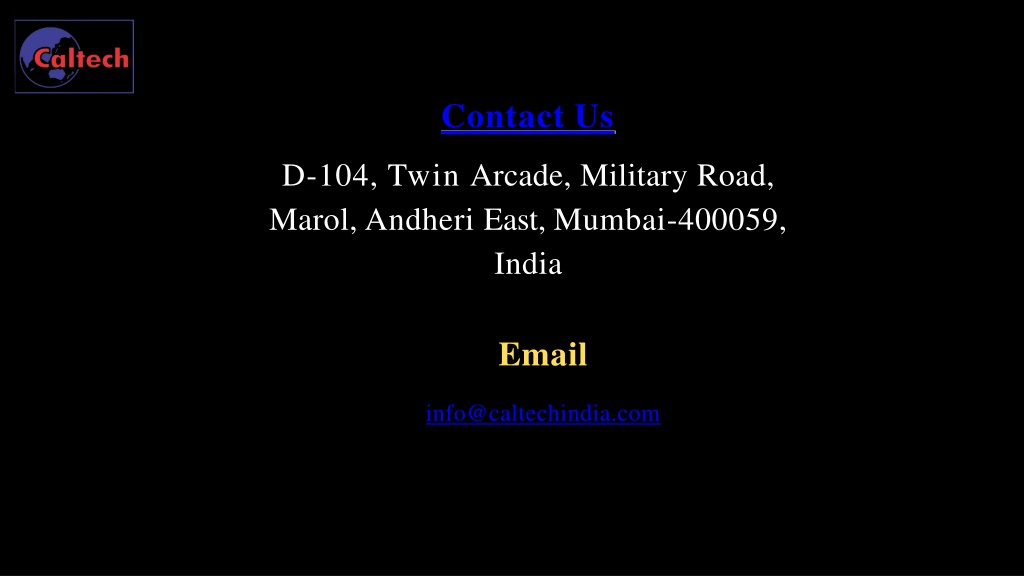

5. ContactUs D-104, Twin Arcade, Military Road, Marol, Andheri East, Mumbai-400059, India Email info@caltechindia.com
