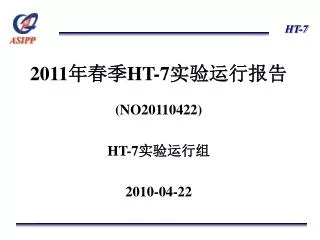

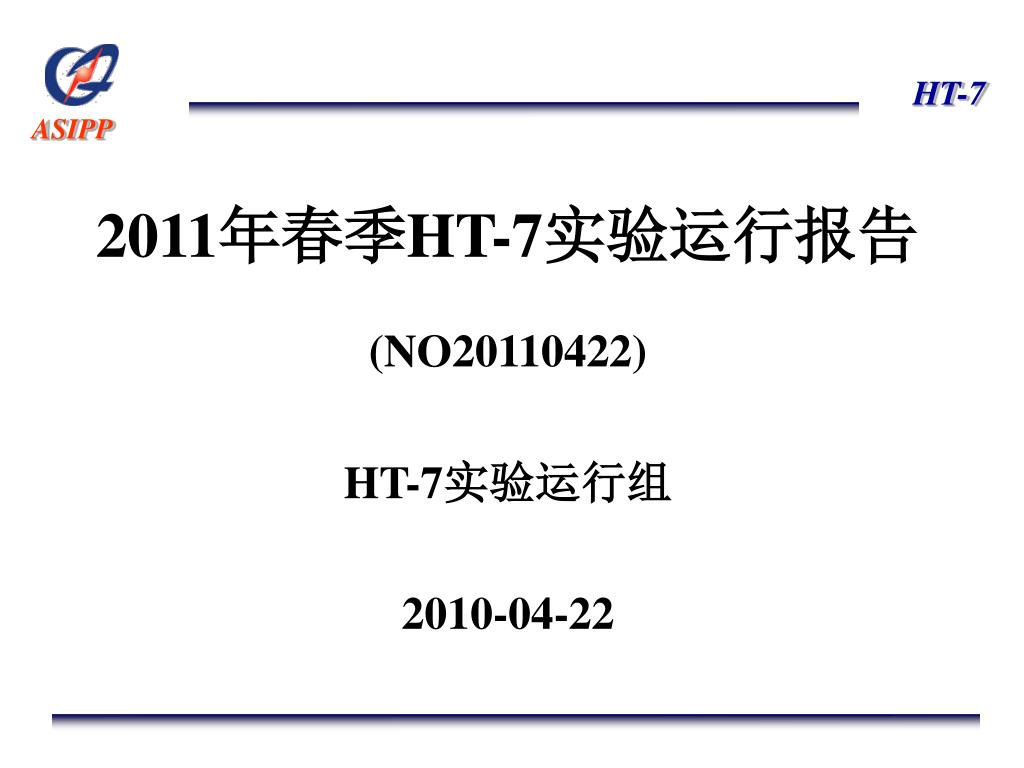

  1. 2011年春季HT-7实验运行报告 (NO20110422) HT-7实验运行组 2010-04-22 2008年3月18日

  2. 实验内容 • 8:00-13:00 电流引线降温 • 9:00-11:00 LHCD调试/出气 • 9:00 真空室烘烤降至壁温120C • 13:30 纵场励磁至3800A • 13:00-15:00 总控与各系统测试 • 15:00 等离子体放电调试

  3. 等离子体启动调试 Vc~2000V,IT~3800A,Pvv~1.2e-5Pa击穿延时较大,壁温~120 ℃,密度较高

  4. 程序放电调试 Ip~100kA,200ms,Ne~2.8

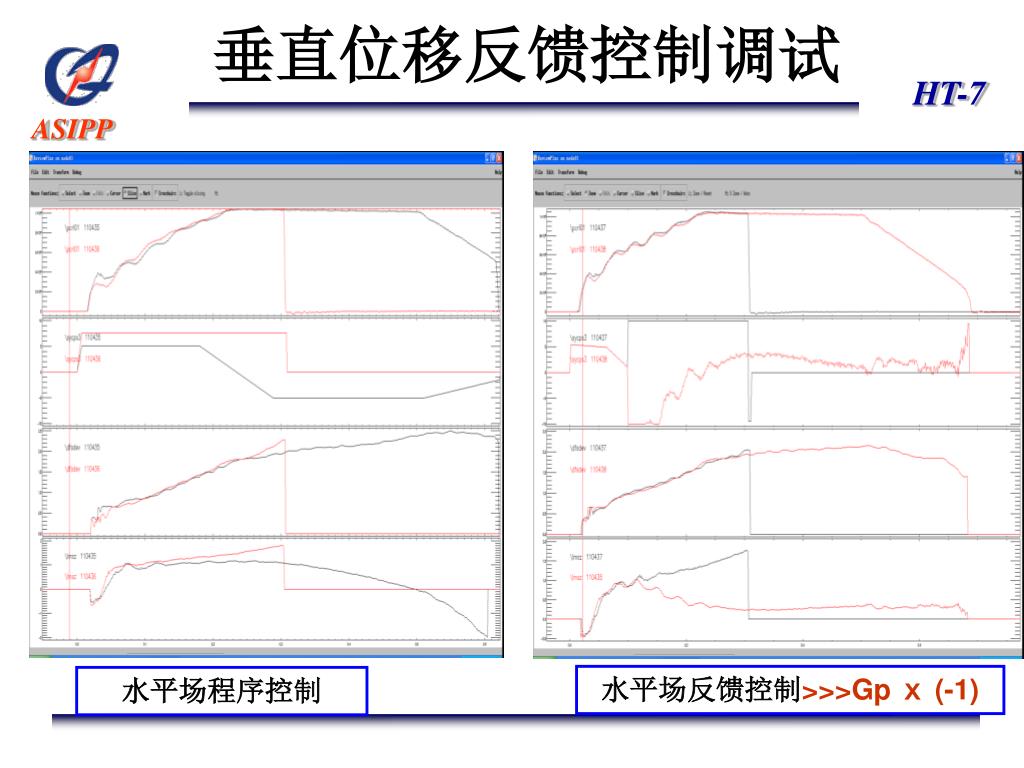

  5. 垂直位移反馈控制调试 水平场反馈控制>>>Gp ⅹ(-1) 水平场程序控制

  6. 重复放电 Ip~100kA,Vp~2.3,Ne~2.0
